Polypropylene or PP is a useful, low-cost plastic but machining it is not as simple as cutting other materials. Its flexibility, chip behavior and thermal movement create unique challenges that many shops underestimate. In this guide, we will explain those complexities and give you clear, practical steps to machine PP consistently and correctly.

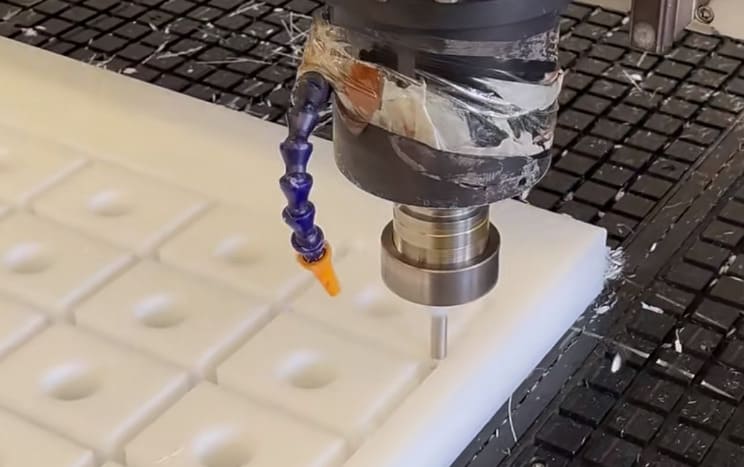

Polypropylene CNC Machining– An Overview
Polypropylene CNC machining refers to the process of shaping parts by computer controlled cutting tools from solid PP stock.
Polypropylene is often chosen over HDPE or ABS for parts that need lightweight strength, low moisture uptake and excellent chemical resistance.
Core Material Traits That Drive Machining Behavior
Polypropylene’s semi-crystalline structure allows for smooth machining. And its moisture and chemical resistance makes it ideal for wet or corrosive environments. However PP has low stiffness and a high thermal expansion rate. This combination increases workholding distortion risk and makes holding tight tolerances difficult during machining.
How to Choose the Right Polypropylene for CNC Machining
For successful CNC machining, it is very important to select the ideal polypropylene grade. The right choice influences both manufacturing efficiency and final performance of the part.
PP Homopolymer Vs Copolymer
PP Homopolymer (PPHP) provides higher chemical resistance and superior stiffness which make it well suited for structural chemical tanks. However it becomes brittle below 0°C.
Conversely, for impact-prone parts like gears or protective housings, choose Copolymer (PPCP). It incorporates ethylene to boost toughness and impact strength.
Filled & Reinforced PP
When standard PP falls short in wear, stiffness or electrical properties, consider filled options. Mineral-or glass-filled PP increases rigidity and dimensional stability, ideal for large brackets and plates. But be aware it can increase tool wear as well.
For electronics that need static control, you should select ESD or conductive PP. However, for outdoor components, UV-stabilized PP is recommended to prevent sun degradation.
Machining Stock Types & What They Mean For Results
Polypropylene is available in cast or extruded plates, sheets and rods. Extruded is cost-effective but often holds internal stresses that cause warping. Cast grades on the other hand, offer superior dimensional stability and lower internal stress which ensures predictable results.
Pre Machining Conditioning
Proper conditioning of stock before machining is important to prevent defects. Allowing material to acclimate to the shop’s temperature ensures stability. For high-precision parts, annealing can relieve internal stresses and help minimize warping.
What are Some Challenges in Machining Polypropylene?
Polypropylene presents several distinct machining challenges even though it is a relatively soft material. By understanding these hurdles, you can produce accurate, high-quality parts and avoid common pitfalls.
Heat Buildup & Material Smearing
Polypropylene’s poor thermal conductivity and low melting point (160-170°C) cause heat buildup at the cutting edge. This friction-induced heat leads to dimensional inaccuracies, gummy material and smeared surface finishes.
Chip Formation & Birdnesting
As a ductile material, polypropylene forms long, stringy chips instead of breaking cleanly. These chips can wrap around the tool— a phenomenon known as birdnesting. This leads to tool breakage, poor surface finishes and thermal damage.
Deflection, Chatter & “Shape Wandering”
Due to low stiffness, polypropylene flexes under cutting pressure particularly on thin walls. This deflection causes chatter or vibration which results in dimensional inaccuracies and a poor surface finish.
Warpage after Machining
Removing significant material from one side of polypropylene stock releases internal stresses. This imbalance often causes parts to warp and make it difficult to hold tight flatness tolerances.
Fuzz, Burrs & Edge Rollover
Instead of forming crisp edges like metals, soft polypropylene often results in “fuzz” or burrs. These defects are most common where the tool exits the material such as the edges of slots and holes.
CNC Process Selection for Polypropylene Machining
Choosing the right CNC process is important to successfully machining polypropylene parts. Each method provides unique advantages depending on component geometry.
CNC Milling
Multi-axis CNC mills are well suited for creating complex polypropylene parts with features like manifolds, pockets and intricate faces. And because PP has low melting point, adaptive clearing toolpaths are often preferred over traditional pocketing for milling it. This approach ensures a consistent tool engagement which helps prevent polypropylene from melting during machining. It also improves the overall surface finish of the finished part.
CNC Turning
Turning is best for producing cylindrical polypropylene parts such as bushings, seals and rollers. Due to PP’s softness, using soft jaws or a collet system with reduced clamping pressure is essential. This prevents part distortion and ensures dimensional accuracy throughout the turning operation.
CNC Routing
For cutting shapes from large polypropylene sheets, routing is often preferred. During this process, strategies like tabs, part nesting and onion-skin passes are applied to prevent smaller PP components from shifting. A reliable vacuum table is also necessary for holding the material securely during routing.
Drilling, Tapping & Threading
When drilling holes in PP parts, peck drilling cycles are essential. They clear chips and help prevent heat buildup that can melt the material. Moreover for threading polypropylene parts, use two-flute coated taps to manage chip buildup. And because PP is a soft material, thread-forming screws or inserts are often better alternatives for stronger connections.
Also See: Drilling vs Tapping
Tooling For Polypropylene– Materials, Geometry & What Actually Works
Since polypropylene is highly elastic with low melting point, standard tools often generate excessive friction. This causes the plastic to melt and stretch. Selecting the right tooling is therefore critical, with success depending on two factors– massive chip clearance and razor-sharp edges.
Tool Material Choices
For unfilled polypropylene, High-Speed Steel (HSS) is preferred because it can be ground razor-sharp to shear material cleanly with less heat. On the other hand, for abrasive glass-filled PP, uncoated carbide provides superior wear resistance. Coated tools however, are generally not recommended as coatings can blunt the sharp edges required for clean cuts.
Tooling by Operation
For roughing, multi-flute end mills allow rapid material removal. For finishing, tools with a higher helix angle help produce a smoother surface. And for drilling PP, “slow spiral” or low-helix drills are recommended. They reduce the tendency to grab the soft material and self-feed which prevents workpiece damage.
Tool Wear & Part Quality Checks
Dull tools rub instead of cut and generate heat that smears material and harms dimensional stability. And a declining surface finish is a key indicator of such worn tools. So replace such tools promptly to prevent machining-induced stress in the polypropylene part.
Feeds, Speeds & Depths– Practical Parameter Guidance for PP Machining
Polypropylene melts instantly if the tool rubs instead of cuts and destroys surface finish. That’s why maintaining a high chip load with optimal feeds and speeds is very important. A proper chip load makes sure that heat evacuates with the chip, rather than soaking into the sensitive workpiece.
Starting Ranges for Cutting Parameters
The following table provides recommended starting parameter values for machining polypropylene.
| Operation | Spindle Speed (RPM) | Feed Rate (mm/rev) | Depth of Cut (mm) |
| Turning | 3,000–4,000 | 0.15–0.25 | 1.5–3.0 |
| Milling | 2,500–4,500 | 0.05–0.30 | 0.5–4.0 |
| Drilling | 2,500–3,000 | 0.10–0.15 | _ |
Note: These values are baselines so adjust them based on specific tool diameter and machine rigidity.
Toolpath Strategy for Heat Control
Climb milling is strongly recommended for polypropylene. It ejects chips behind the cutter which reduces heat transfer to the part. For creating pockets in polypropylene parts, adaptive or trochoidal paths are superior to full-width slotting. They maintain constant, low tool engagement which minimizes heat buildup.
Chip Evacuation Strategy
Since polypropylene produces long, stringy chips, effective evacuation is necessary to prevent melting and recutting. A directed blast of compressed air is often sufficient to clear the cutting zone. However for aggressive cuts and deeper pockets, vacuum extraction is suitable.
Coolant, Air & Temperature Control in PP CNC Machining
Effective heat management is very important for maintaining Polypropylene’s dimensional stability.
When to Run Dry Vs Air Blast Vs Coolant
Directed air blast is the preferred method for most PP machining. It effectively clears chips and provides adequate cooling without the mess or chemical compatibility concerns of liquid coolants. Use flood coolants only for aggressive roughing and always verify fluid compatibility first.
Managing Workpiece Temperature & Stability
Aggressive roughing builds heat and causes thermal expansion that affects polypropylene part’s accuracy. That’s why operators must program a dwell time before finishing to allow the material to stabilize before cutting critical features.
Workholding and Fixturing– The Biggest Differentiator in PP Quality
Proper workholding is very important for quality polypropylene parts as its flexibility makes it prone to vibration and distortion during machining.
Clamping Without Distortion
Polypropylene’s low stiffness requires gentle clamping. Use soft jaws or wide area pads to distribute pressure evenly. Avoid overtightening vises which can compress the material and lead to inaccurate final dimensions once the part is released.
At RICHCONN, we often create custom soft jaws shaped to each part’s profile. This helps us hold polypropylene securely while keeping distortion to a minimum.
Vacuum Workholding for Sheets
Vacuum tables are effective for holding PP sheets but require care. Therefore use downcut tooling to press the sheet firmly against the table. This helps counter the lifting forces created by standard end mills. Good gasket seals are also necessary to prevent vacuum loss—particularly during through-cuts.
Support for Thin Walls & Large Flat Plates
Thin polypropylene walls deflect easily under cutter pressure which leads to chatter and inaccuracy. Therefore support these features with sacrificial backing material. Alternatively you can use an “onion-skin” technique which leaves a thin layer for a final finishing pass to maintain rigidity.
Datum Strategy & Rework Control
Polypropylene relaxes after roughing and thus shifts machine coordinates as internal stress is released. Always re-probe datums after bulk material removal to account for this movement. Failing to re-establish zeros results in mismatched steps on critical features.

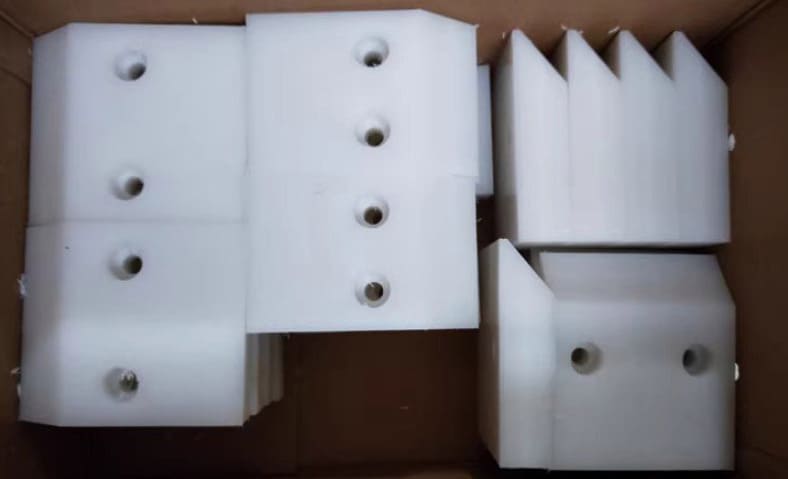

DFM for Polypropylene CNC Machining– Design Rules That Prevent Scrap
Designing for manufacturability (DFM) is essential to prevent costly scrap when machining polypropylene.
Tolerances & What’s Realistic In PP
Due to its low stiffness and high thermal expansion, it is very challenging to hold tight tolerances in polypropylene. A general machining tolerance of +/- 0.13mm is a realistic starting point. Tighter tolerances are possible but require strict process control. So specify them only for critical dimensions.
If you are unsure which tolerances are practical for your polypropylene part, our engineering team at Richconn can review your design. We’ll point out the opportunities where you can adjust tolerances to reduce machining difficulty and lower overall cost.
Wall Thickness, Bosses, Ribs & Stiffness-First Design
Avoid walls thinner than 1.5 mm. Such walls deflect under cutter pressure and lead to vibration marks and machining errors in PP parts. Moreover instead of thickening entire sections, add gussets or ribs to boost rigidity without retaining excessive heat during machining.
Radii, Corners & Cutter Access
CNC tools cannot create perfectly sharp internal corners. So design inside corners with a radius at least 1.3 times the tool radius. This allows for efficient machining and helps reduce stress. Additionally avoid narrow and deep pockets as they trap heat and hinder chip evacuation.
Threads, Holes & Inserts
Creating threads directly in polypropylene is unreliable due to softness. For durable connections, use threaded inserts. If direct threading is necessary, use coarse threads to prevent stripping. Moreover limit thread length to 1.5 to 2 times the hole diameter.
Surface Finish Callouts & Functional Surfaces
Standard machined polypropylene parts feature surface finishes between 63 to 125 microinches Ra.
Smoother finishes are achievable with optimized parameters and specialized tooling. However you should only specify finer finishes where functionally required, to avoid extra steps and reduce costs.
Post Processing & Assembly Options for Machined PP Parts
After machining, several post processing and assembly options are available for polypropylene parts.
Cleaning & Part Preparation
Proper cleaning is very important particularly for food grade or medical applications. Use isopropyl alcohol or mild detergents to remove debris and cutting fluids. Aggressive solvents such as aromatic hydrocarbons or ketones should be avoided. These chemicals can cause environmental stress cracking in polypropylene and lead to premature part failure.
Joining Methods
It is very challenging to bond polypropylene with adhesives because of its low surface energy. Adhesive bonding often requires surface treatments such as flame or plasma treatment to obtain acceptable results. For stronger and more permanent joints, plastic welding methods—such as hot gas welding or extrusion welding—are generally more reliable. Mechanical fastening with coarse-threaded screws designed for plastics is also a good option.
Marking & Identification
Laser marking the polypropylene can be challenging because the material often does not provide good contrast without specific additives. For permanent identification and traceability, CNC engraving is a more reliable method. It creates clear, durable marks that are necessary for quality control processes and B2B applications.
Quality Control & Inspection for Polypropylene Machined Parts
Inspection Strategy for PP Parts
Due to polypropylene’s high coefficient of thermal expansion, parts must be stabilized to room temperature (20°C or 68°F) before inspection to ensure accuracy. Using non-contact measurement systems like CMMs with low-force probes and vision systems is ideal since they help avoid distorting the soft material.
Process Validation for Repeatability
A First Article Inspection (FAI) should verify that the manufacturing process can consistently produce parts that meet all specifications. A control plan such as effective chip evacuation verification and tool wear monitoring is also key to maintaining quality throughout a production run.
Preventing Machined-In Stress & Premature Failure
To prevent premature failure, it is important to minimize machined-in stress. This can be achieved by avoiding excessive heat and using sharp tools. A balanced material removal strategy should also be adopted such as machining both sides of a part before final sizing.

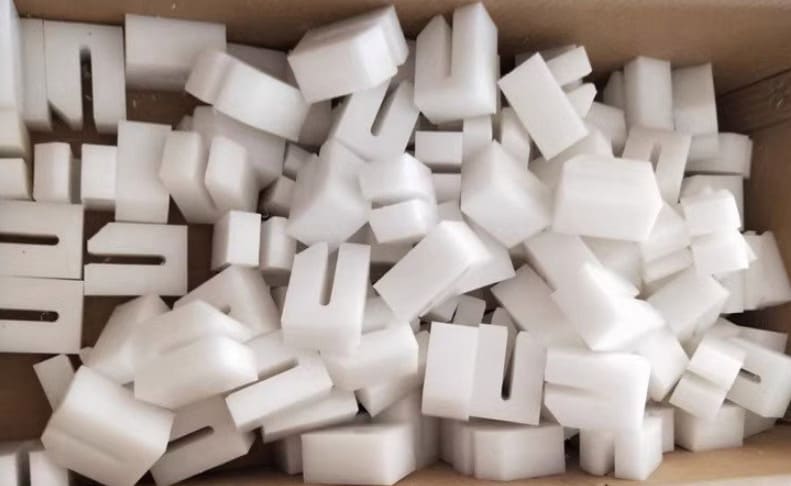

Main Applications of Polypropylene CNC Machined Parts
The versatility of CNC machined polypropylene parts makes them a valuable asset across numerous industries. Here’s a look at some main applications.
Water & Wastewater process components
For water and wastewater equipment, polypropylene is machined into clarifier components, spacers, custom flanges and wear strips. The material’s corrosion resistance in wet conditions and its ease of fabrication make it well suited for one-off retrofits and custom parts in treatment plants.
Laboratory, Diagnostic & Medical Fixtures
Polypropylene is frequently used for laboratory racks, trays and prototype housings for medical instruments. When sourcing for these applications, it is important to specify compliance requirements early. It’s because cleaning and sterilization compatibility depend heavily on the specific PP grade and machining process.
Chemical Processing & Fluid Handling
Polypropylene is used for chemical resistant manifolds, distribution blocks and valve & pump components. Its selection is driven by strong resistance to alkalis and acids coupled with low water absorption. This makes it a cost-effective alternative to PTFE or PVDF when the environment allows.
Beverage, Food & Packaging Machinery
In the packaging and food sector, polypropylene is shaped into star wheels, guides and rails. It is also used for washdown-area brackets and drip trays due to its low moisture absorption and excellent resistance to cleaning chemicals. But always confirm that the material is a certified food-contact PP grade in these applications.
Automotive & Transportation
The automotive industry uses polypropylene for sensor mounts, ducting supports and protective covers. However it is not suitable for high temperature service or structural parts that require tight tolerances. In such cases, a filled grade or an alternative plastic should be considered.
Electronics & Industrial Equipment
Polypropylene’s properties make it well suited for cable guides, machine guards and covers. It also serves as a reliable non-conductive spacer and separator in electrical applications unless an ESD grade or conductive is required.
Consumer Products & Custom Fabrication
CNC machining polypropylene is advantageous for creating custom brackets, enclosures and prototypes. This method is particularly justified for short-run production where the high cost of an injection mold is not economical.
CNC Vs Injection Molding for PP Parts
Choosing between CNC machining and injection molding for polypropylene parts depends on design complexity, production volume and speed-to-market needs.
When CNC Machining Is The Best Fit?
CNC machining is well suited for polypropylene prototypes, custom parts and low-volume production runs, typically up to 1,000 units. It offers greater design flexibility with no high upfront tooling costs. This makes it more affordable and faster for frequent design changes or smaller batches.
When Injection Molding Wins?
Injection molding performs well in high-volume production where thousands or millions of identical PP parts are needed. While the initial mold cost is high, the per-part cost becomes significantly lower as volume increases. This makes it highly economical for mass production.
Hybrid Strategy
You can use a hybrid approach to leverage the strengths of both methods. Use CNC machining for initial prototyping and design validation of your polypropylene part. Once the design is finalized and proven, transition to injection molding for cost-effective, high-volume runs. This strategy optimizes cost and mitigates risk.
At RICHCONN, we support both CNC machining and injection molding in-house. This allows us to guide your project smoothly—from early prototypes to validated designs and finally into efficient large-scale production.
RFQ Checklist– What Buyers Should Provide to Get Accurate Quotes & Better Parts
Provide these essential details in your RFQ to ensure accurate quotes for machined polypropylene:
- Drawing Package: Include a 3D model and 2D print with GD&T.
- Material Specification: Specify if copolymer, homopolymer, glass-filled or FDA-grade is required.
- Surface Finish: Define precise Ra callouts and identify cosmetic faces.
- Tolerances: Clearly categorize critical versus non critical dimensions.
- Quality Requirements: Specify required documentation like COC, FAI and material lot traceability.
- Production Volume: State order quantity and expected annual volumes.
To Sum Up
In short, mastering polypropylene CNC machining requires careful attention to its unique properties, from heat sensitivity to low stiffness. By implementing the right strategies for workholding, tooling and cutting parameters, you can produce precise, high quality components.
If you need custom machined polypropylene parts then Richconn is your best option. You can contact us anytime for our precision CNC machining services.
Related Questions
Yes but it is difficult. Polypropylene’s poor bonding properties need special surface preparation such as primers to ensure coatings or paint will adhere properly.
No achieving a truly transparent finish on polypropylene through machining alone is not possible. However post processing techniques like polishing can create a smoother, glossier surface
Laser cutting is possible but it often leaves melted, raised edges on polypropylene parts. Similarly laser engraving produces poor contrast on polypropylene. Therefore CNC rotary engraving is recommended to achieve clear, legible text.
Yes its low material cost and good machinability make it a cost effective choice for producing lightweight parts. This helps reduce shipping expenses for export.
