Nowadays, the need for strict tolerances and high precision parts is greater than ever. Precision grinding sets itself apart as a main method for meeting these demanding standards. It also provides advantages in cost savings and production pace.
By exploring precision grinding, manufacturers can get high output, minimize expenses and increase production speed. This article covers the many upsides of precision grinding. We will see its many uses across different industrial fields and how CNC boosts manufacturing precision and productivity.

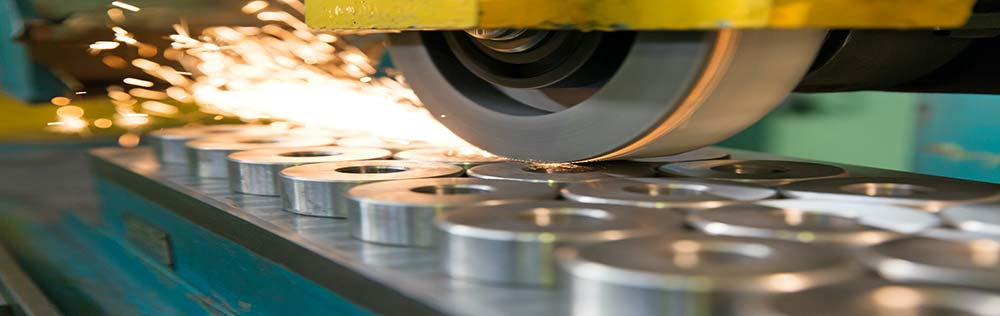

What is Precision Grinding?
Precision grinding is an advanced machining technique that uses abrasive wheels to carefully remove substance from workpieces. This process attains remarkably better surface finishes and strict tolerances. The level of accuracy possible with precision grinding is truly remarkable which ranges from (2.5 μm) to 0.25 μm) for roundness. It also produces surface roughness as low as 130 nm Ra. Such extraordinary abilities make precision grinding indispensable for making parts that need extraordinary surface quality and dimensional precision.
Types of Precision Grinding
Precision grinding has different specialized methods and all of them are made for particular manufacturing requirements. Let’s look at the most common types, starting with surface grinding.

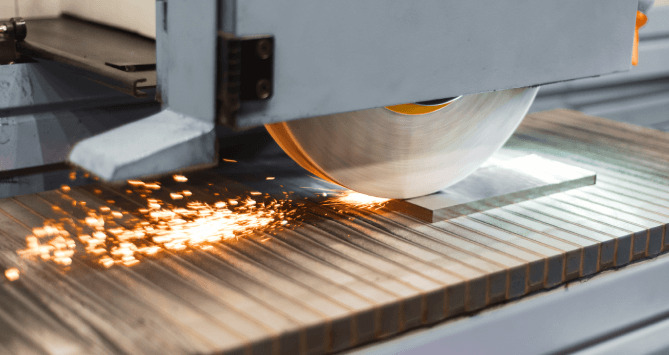

Surface grinding
In precision manufacturing, surface grinding sets itself apart as a face peripheral longitudinal method. This technique makes smooth and flat surfaces on workpieces with extraordinary accuracy. Tolerances as strict as ±0.0002 inches and surface roughness of ≤ 130 nm Ra are possible through this process. Aerospace, medical and automotive industries depend heavily on surface grinding for parts that require outstanding dimensional accuracy.

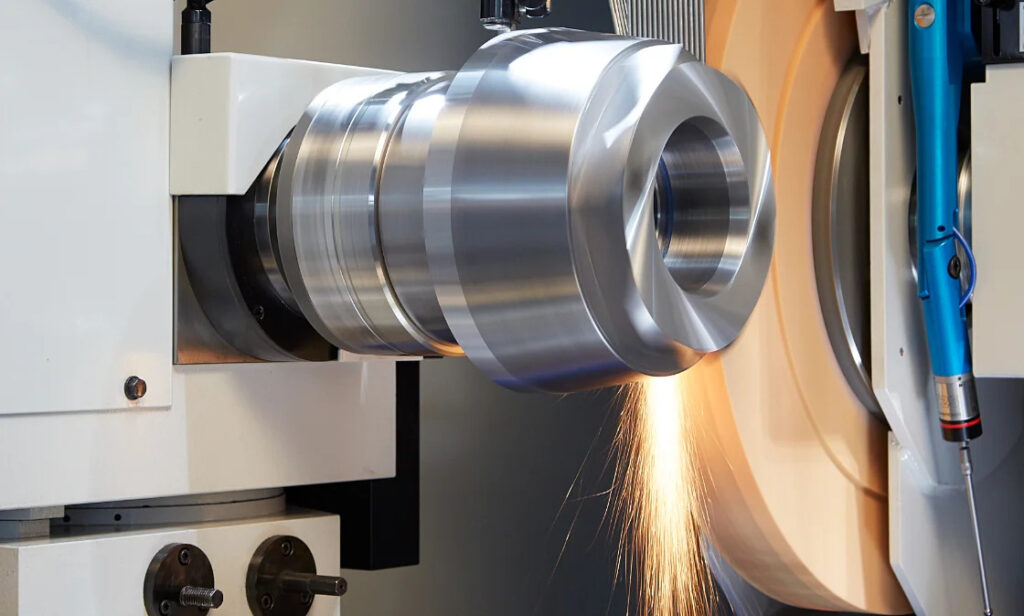

Cylindrical grinding
Cylindrical grinding is another important process of precision grinding which focuses on shaping cylindrical workpieces. This method has impressive abilities and gets tolerances of ±0.00004 inches for diameter and ±0.000025 inches for roundness. Automotive and aerospace producers mainly use cylindrical grinding to create high precision parts such as hydraulic pistons and crankshafts.

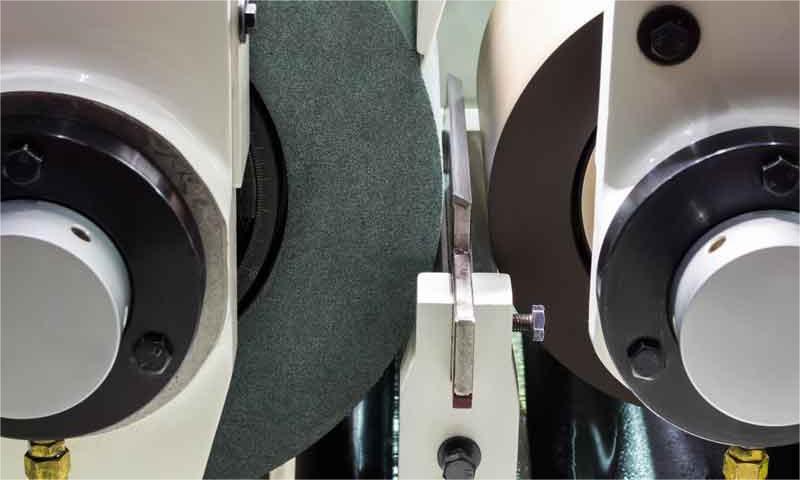

Centerless Grinding
Centerless grinding has removed the requirement of workpiece centering. This fast speed technique can fabricate up to 300 parts per minute with its super narrow tolerances of ±0.0001″. Such performance makes centerless grinding the top choice for mass producing detail oriented parts, such as bearings, shafts and pins, in aerospace and automotive sectors.

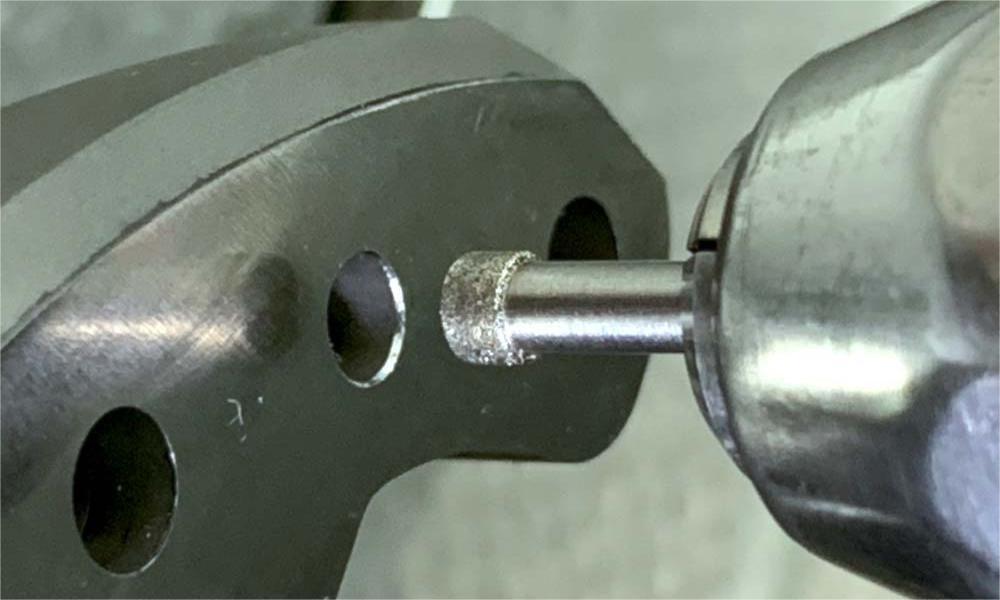

Jig Grinding
For making intricate shapes with extreme accuracy, jig grinding is very important. This method reaches tolerances of ±0.0002 inches while spinning at insane speeds of ≤ 60,000 RPM. Producers of high precision molds, aircraft parts and dies mostly use jig grinding for its better precision in producing complicated features such as holes and contours in hardened parts.

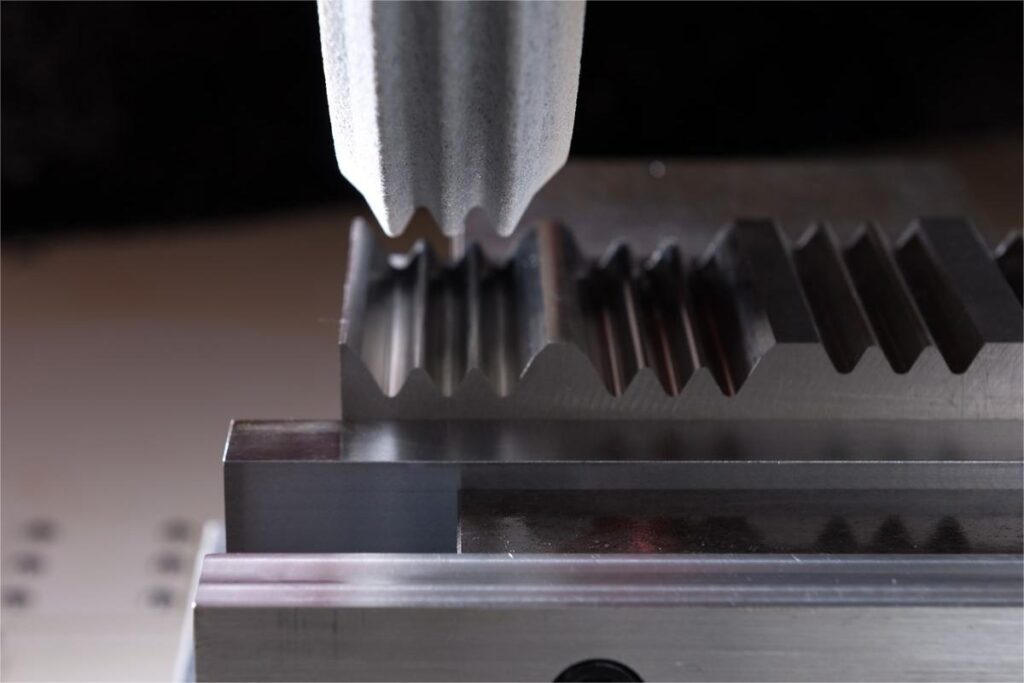

Creep Feed Grinding
Deep 0.075 inch cuts and slow 5 to 20 inches/minute feed rates define creep feed grinding, a method designed for removing tons of material. It reaches tolerances of ±0.0005 inches and surface finishes as low as 0.1 μm Ra. Fields like aerospace and power generation depend heavily on this technique for machining complicated forms and superalloys.
Precision Grinding and Manufacturing Efficiency
Precision grinding largely increases production performance in different ways. Let’s go through its benefits one by one.
Faster Production Speed
Precision grinding machines facilitate fast material removal by spinning at up to 60,000 RPM without sacrificing quality. Techniques such as creep feed grinding amplify this performance and reach insane 80 mm3/ (mm/s) removal rates. Also, using coarser grit wheels preserves cutting power by increasing productivity for detail oriented parts.
Cost-Effectiveness
For repeated batch making, fine tuning grinding gives many financial benefits. Producers can lengthen tool life and decrease material waste by changing abrasive choice, grinding conditions and machine settings. Moreover, CNC grinding machines saves cost by increasing accuracy and decreasing human error. This yields fewer rejected parts and lower network expenses.
High Throughput for Mass Production
When it comes to high volume manufacturing, fine-tuning grinding truly outshines. Centerless grinding is capable of producing as much as 300 parts per minute. Modern techniques such as high speed grinding and micro abrasive waterjet texturing of diamond wheels further increase this extraordinary productivity.
How Precision Grinding Enhances Accuracy
Precision grinding greatly increases production accuracy through different means.

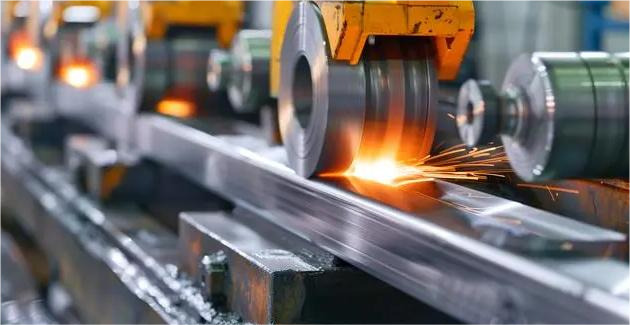

Tight Tolerances
The trademark of precision grinding is its ability to reach very strict tolerances. For dimensional accuracy, it can reach up to ±0.0001 inches. Roundness tolerances can be ±0.00001 inches. Many factors contribute to this level of precision: regulated material removal, less deflection and low cutting forces during the grinding method. Fields like aerospace and medical devices rely heavily on these strict tolerances.
Flawless Surface Finishes
For surface quality, precision grinding is extraordinary and it produces exceptional surface finishes. Surface roughness values can be as low as 130 nm Ra. This level of smoothness is very important for parts in medical and aerospace industries. In these fields, even small surface issues can lead to serious failures. To increase surface quality further, sophisticated techniques such as creep feed grinding and ELID (Electrolytic In-Process Dressing) come into play. These methods let mirror-like finishes on hard substances including superalloys and ceramics.
Production of Complex Shapes
Complicated geometries are no challenge for precision grinding because of its greater accuracy. Jig grinding is a particular technique that can achieve tolerances as strict as ±0.0002 inches on intricate 3D shapes. Such accuracy is indispensable for making high accuracy dies, aerospace and molds.
Moreover, modern 5-axis CNC grinding machines have transformed the industry. These machines can produce sophisticated contours and traits once thought impossible to manufacture.
Applications in Different Industries
From aerospace to automotive and medical fields, precision grinding performs a main role in many fields.
Aerospace

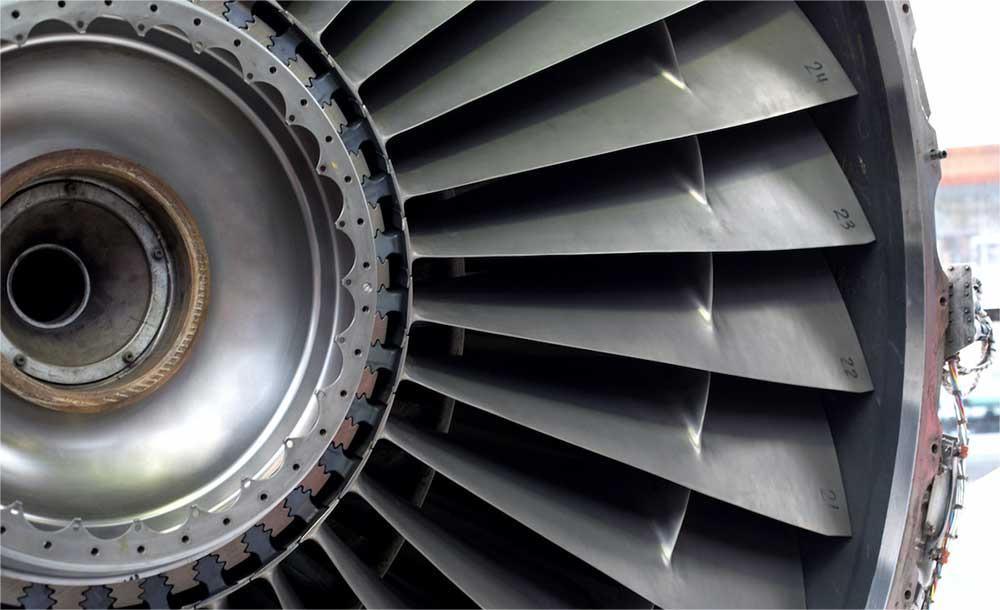

Turbine blades and engine parts in aerospace need very narrow tolerances of just a few microns which fine tuning grinding delivers with extraordinary accuracy. This process is necessary for making parts that can go through extreme temperatures and pressures to make sure safety and performance of aircraft.
Automotive

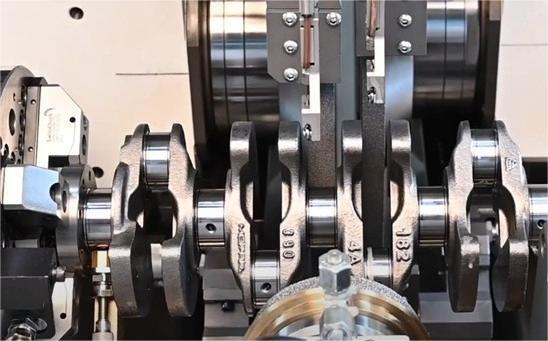

The automotive industry heavily depends on precision grinding, particularly for engine parts. It’s very important in making accuracy parts such as crankshafts, fuel injectors and camshafts. As a result, vehicles benefit from longer lifespan and better performance.
Medical
In medicine, precision grinding facilitates production of surgical tools and implants with narrow tolerances. As a result, top quality parts such as guidewires, joint replacements and needles are made through this method according to strict FDA regulations.
Role of CNC Technology in Precision Grinding
CNC technology has improved precision grinding a lot since its invention.
Automating Accuracy
CNC grinding machines have set new records in precision. They reach tolerances of just a few tenths of a micron (0.1 μm) or less. This automation removes human error and guarantees same level of quality in large productions.
Improved Consistency
CNC grinding gives extraordinary consistency part-to-part and decreases variations. This repeatability is indispensable for high volume production, particularly in aerospace and automotive industrial sectors where uniformity of parts matters.
Challenges and Future of Precision Grinding
Evolution of precision grinding brings forth many challenges. Let’s uncover these problems and their possible solutions.
Tool Wear and Maintenance
Dimensional inaccuracies are mostly caused by tool wear. To keep peak performance, regular maintenance such as dressing and balancing is very necessary. Monitoring systems helps in predicting wear. This keeps quality and decreases downtime.
Innovation in Grinding Technology
AI powered CNC machines and IoT integration are changing how precision grinding is done. These sophisticated technologies permit real time optimizations and surface finishes up to 130 nm Ra. So productivity and quality increase greatly.
Sustainability and Energy Efficiency
The precision grinding business is increasingly using eco-friendly methods. Things such as energy saving motors and minimum quantity lubrication can greatly decrease use of energy. These developments promote sustainable manufacturing while keeping the high accuracy and quality standards in grinding work.
Conclusion
Precision grinding plays a very important part in improving manufacturing accuracy and proficiency in many industries. Its unmatched ability to make parts with tight tolerances, flawless finishes and intricate shapes makes it an indispensable process for high accuracy production.
FAQs about Precision Grinding
1. What industries rely heavily on precision grinding for part manufacturing?
Several main industries depend greatly on precision grinding to produce critical parts. Aerospace, electronics, automotive and medical devices are at the top of the list. These areas require exceptionally tight tolerance parts, intricate geometries and ultra-smooth surfaces which only precision grinding can give.
2. Why is surface finish important in precision grinding and how does it affect performance of a product?
The surface finish’s importance in precision grinding can’t be exaggerated since it directly affects function and performance. A better surface finish provides multiple benefits: it minimizes friction, boosts fatigue strength and increases wear resistance. It also assures proper fit and sealing in assembly. Together these improvements raise product durability, reliability and efficiency in different industries.
3. How does precision grinding contribute to cost savings in high volume production?
For high-volume production, precision grinding gives major cost saving advantages. It streamlines the process by decreasing material waste and improving dimensional precision. This efficiency leads to fewer rejected parts, less rework and faster cycle times. So manufacturers can substantially lower production costs while increasing productivity.
