Precision machined parts perform an important part in today’s engineering and manufacturing. These parts feature exact measurements and carefully detailed finishes. Their accuracy supports consistent performance in everything from cars to life-saving medical devices
In this blogpost we will give you an overview of the main categories of precision machined parts, the machining techniques that create them and the variety of industries that use them.

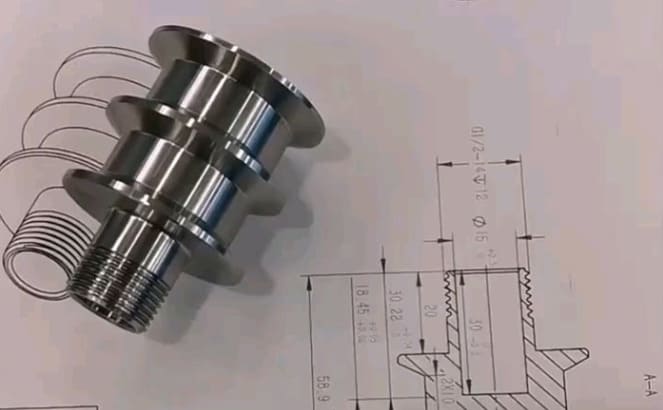

What are Precision Machined Parts
Precision machined parts are components that are made to very strict tolerances often ±0.005″ (0.127 mm) or better. Manufacturers use controlled material removal methods such as CNC machining to match exact design requirements. For example standard CNC machines can reach an impressive accuracy of ±0.0025 mm. This level of precision guarantees that each part has the correct shape, size and surface finish every time.
Also See: What is Precision CNC Machining
Types of Precision Machined Parts
Precision machined parts vary widely in their shapes, how they are made and what purposes they are used for. Grouping these parts by type helps manufacturers select both the right equipment and production methods for each job.
Based on Geometry & Complexity
Simple Prismatic Parts
Prismatic parts have flat faces and basic shapes. Manufacturers use either 2.5-axis or 3-axis CNC milling to create them. Blocks, brackets and plates with slots or holes are common examples.
These parts usually need fewer setups and therefore can be produced quickly. Electronic enclosures and automotive housings often use them because they need steady, repeatable dimensions for proper function.
Cylindrical & Rotational Parts
Cylindrical parts, with circular or tubular forms, are made mainly with CNC turning or grinding. Pins, shafts, bushings and bearings are all included in this group of rotational components. They often meet roundness tolerances as close as 0.01 mm, following the ASME Y14.5M standards. Their built-in symmetry gives reliable service and smooth rotation in motion systems.
Complex 3D Contours
Parts with complex 3D contours include curved, freeform surfaces and detailed internal passages that need 5-axis CNC machining. Orthopedic implants, turbine blades and optical housings fall into this class and are typically milled within ±2–5 microns tolerance. Advanced CAD/CAM systems are essential to achieve the exact ergonomic or aerodynamic qualities these parts require.
Based on Manufacturing Process
Milling
Milling relies on a rotating cutter that shapes a stationary workpiece. Because the process is very versatile, it can easily produce slots, flat faces and complex 3D forms. Multi-axis CNC toolpaths guide the cutter that allows us to machine everything from simple brackets to complex housings with high precision.
Turning
Turning produces cylindrical parts by rotating a workpiece while a single-point cutting tool shapes it precisely. This method uses a lathe and works well for making items such as pins and shafts. CNC turning automates the process which leads to high precision and very accurate measurements.
At Richconn our Swiss-type lathes can handle shafts up to 80 mm and pins as small as 0.5 mm in diameter.
Also See: Main Differences between CNC Milling vs CNC Turning
Grinding, Honing & Lapping
These finishing processes use abrasion in order to improve surfaces effectively:
- Grinding removes small amounts of material with a rotating abrasive wheel and refines the surface of a part.
- Honing finishes the inside diameter of cylindrical parts. It delivers both specific surface textures and tight tolerances.
- Lapping uses a loose abrasive slurry to make surfaces ultra-flat and smooth. This process can reach flatness tolerances within millionths of an inch.
Drilling, Boring & Tapping
These methods create and refine holes in materials:
- Drilling starts the process by making a hole in the material. It creates holes measuring between 0.1mm and 80mm in diameter
- Boring takes an existing hole and then enlarges it. This step achieves a smooth internal surface and precise diameter.
- Tapping finally cuts internal threads so screws or bolts can seat securely.
EDM & ECM
Electrical Discharge Machining (EDM) erodes conductive material with controlled electrical sparks. It creates complex shapes and can hold tolerances as tight as ±0.001 mm. Electrochemical Machining (ECM), on the other hand, dissolves metal chemically rather than mechanically. This method works well for making intricate, stress-free parts from hard-to-machine alloy and it does not use heat in the process.

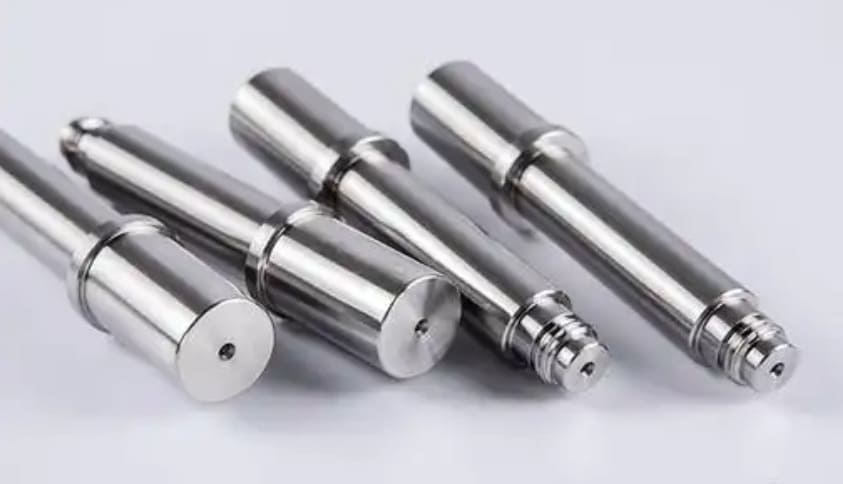

Materials Used in Precision Machined Parts
Precision machining uses a range of materials. The selection depends on weight, strength, corrosion resistance and cost.
Metals
Manufacturers choose metals for their long service life and natural strength. Typical choices include stainless steel, aluminum and brass. Because aluminum combines light weight with good corrosion resistance, many designers prefer it. Stainless steel, on the other hand, provides outstanding mechanical strength. Whereas when ease of machining is the priority, brass often becomes the top choice.
At Richconn we keep more than 200 material grades in stock—from aerospace-grade titanium to biocompatible PEEK. This wide selection guarantees that we meet your requirements and avoid material shortages.
Plastics & Composites
Plastics and composites provide unique benefits in precision machining. Engineering plastics, such as Acetal and PEEK, gives durability, strong performance and resistance to both chemicals and heat. Whereas composites like carbon fiber have a high strength-to-weight ratio. This makes them ideal for demanding, specialized uses.

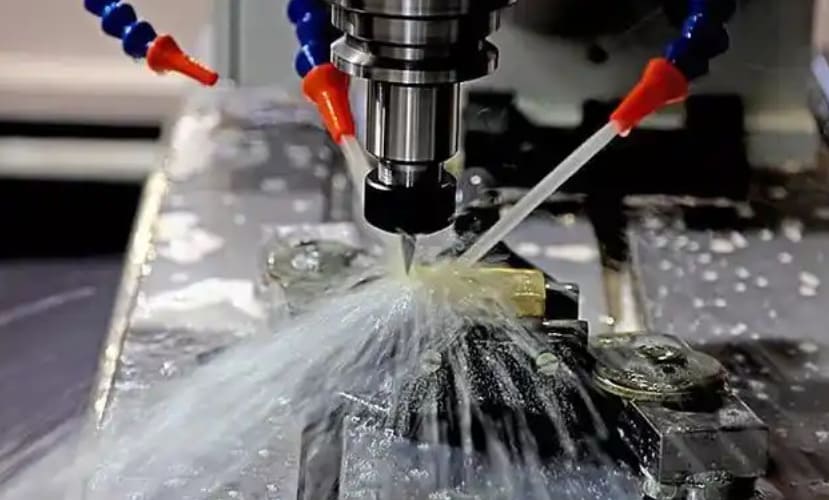

Step-by-Step Look at the Machining Workflow
Precision machining follows a clear sequence that starts with design and ends with inspection. Each phase builds on the last so that digital designs can be transformed into precise physical parts.
Design & Engineering Stage
Engineers start by creating detailed 3D models in CAD software. These models clearly define the part’s tolerances, dimensions and features. CAM software then converts the design into G-code. It is this code that guides the machine’s toolpaths and ensures accurate machining.
Material Procurement & Workpiece Preparation
Once the design is ready, suitable material is chosen according to budget, mechanical requirements and machinability. Billets, bars or sheets undergo quality tests for grain structure, hardness and surface defects. After inspection, technicians cut and clean the workpieces accurately. This preserves dimensional stability as machining begins.
Machine Setup & Tooling Selection
With materials in hand, technicians move to machine setup. First they secure the workpiece firmly and calibrate each piece of equipment. Next appropriate cutting tools—such as drills or end mills—are chosen to match material and design needs. Finally they dial in feed rate, cutting speed and other settings with fine adjustments.
Machining Operations
Once the setup is checked, CNC machines follow programmed tool paths to remove material layer by layer. Turning, milling and drilling are all automated so the part can be shaped exactly as specified in the design. Operators monitor the process closely so that operations remain smooth and accurate throughout.
Post Machining Treatments
When cutting ends, parts often get extra treatments that improve both their appearance and properties. These steps can include anodizing for corrosion resistance, heat treatment for hardness and polishing for a smooth surface. Together these measures raise overall performance and strength.
QC Checks & Inspection
A final inspection makes sure the part meets every design requirement. Skilled technicians check key dimensions with accurate tools—e.g coordinate Measuring Machines (CMMs), micrometers and calipers. They may also use non-destructive tests to spot internal flaws and confirm overall strength.
Assembly & System Integration
After passing inspection, individual parts are assembled into complete systems or sub-assemblies. The work can include bringing together electrical, mechanical and software components. Each assembly is aligned and tested to guarantee smooth operation and compliance with specifications.
Documentation & Final Delivery
Once assembly is finished, the products are packaged securely to avoid damage during shipping. Customers also receive detailed documentation such as material certificates, inspection reports and assembly drawings. These records together provide full traceability and also support part reproduction and future maintenance.

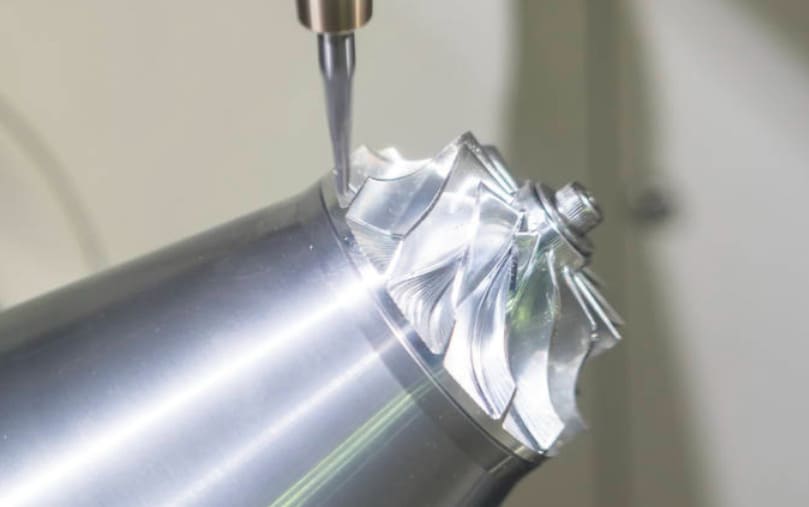

Main Applications of Precision Machined Parts
Power Generation
Generators, turbines and renewable-energy hardware depend on precisely machined parts. These components must endure heavy loads while running without interruption.
Energy, Gas & Oil
In gas and oil facilities, precision parts like turbines, drill bits and valve housings face pressures reaching 20 000 psi and temperatures of 1500 °C. To survive those extremes, manufacturers use EDM and CNC processes that provide excellent corrosion resistance, dimensional stability and leak-proof seals. Precision machining keeps extraction, drilling and pipeline operations safe.
Aerospace & Defense Industry
Landing gear, turbine blades and avionics housings make up the aerospace sector’s precision-machined core. Because flight hardware faces extreme stress and heat, complete dimensional accuracy is a must. CNC equipment can achieve tolerances as tight as ±0.002 mm which ensures the flawless fits that engineers need.
Healthcare & Medical Sector
Medical applications demand components like surgical tools, implants and device housings that must be both biocompatible and precise. Manufacturers use precision machining to produce dental instruments, custom bone plates and microfluidic devices. These parts are made to micron-level tolerances which in turn helps protect patient safety and meet strict hygiene requirements.
Automotive Manufacturing
Modern vehicles depend on precision parts to improve safety and performance. Transmissions, engines and braking systems all make use of these components. Gears, pistons and brake calipers need high accuracy during manufacturing. This high level of accuracy guarantees durability and reliable operation on the road.
Electronics & Telecommunications
Precision parts are important for both electronics and telecommunications industries. Components such as connectors, heat sinks and device housings need high accuracy to function properly. This precision helps maintain signal quality and allows for the miniaturization of consumer electronics including both smartphones and communication devices.
How to Choose the Best Machining Process
To choose a machining process, you should carefully evaluate the part’s design, needed tolerances and material. Surface finish requirements, production volume and total cost also perform an important role in the decision. Basic methods can handle simple parts effectively. However advanced CNC machining is often necessary for producing complex shapes accurately. Weighing these factors together leads to effective manufacturing.
If you are still unsure, Richconn’s engineers provide free design reviews and process advice. You can get their help anytime.
To Sum Up
Precision machining performs an important part in making highly accurate and complex parts for modern industries. When you fully understand how processes, materials and applications connect, you can get the best possible reliability and performance.
If you need expert manufacturing of precision parts then Richconn is your best option. You can contact us anytime.
Related Questions
Main factors that you should consider include the shop’s equipment, quality certifications such as ISO 9001, experience in your industry and a strong record for on-time delivery.
During CAD/CAM stage, accurate toolpaths are created, errors are reduced and production workflows are streamlined. Detailed simulations also let machining steps be improved long before cutting starts.
Precision machined parts often feature tolerances from ±0.005 mm to ±0.001 mm. Surface finishes for these parts generally range between 0.2 µm and 1.6 µm Ra based on both the process and the application used.
Shops now use energy-efficient machines. Moreover they try to reduce waste, recycle coolant and adopt renewable energy sources. These important steps are reducing environmental impact and also keeping both cost-effectiveness and precision high.
