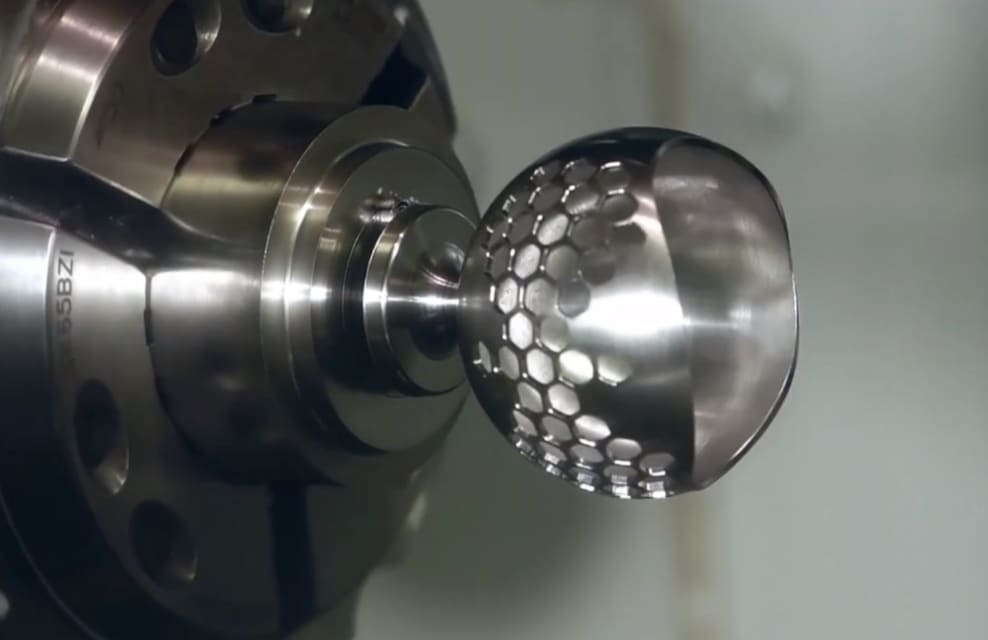

Thin walled components perform an important part in high precision industries but they usually warp or deform during machining. These deformations lead to production delays as well as costly rework and rejected parts. In this blog-post we’ll see how we can prevent deformation issues in thin walled parts and obtain accurate results consistently.
What are Thin-Walled Parts in CNC Machining?
In simple terms thin‐walled components in CNC machining are components which are characterized based on their reduced wall thickness and lightweight structures. They have a wall thickness of less than 2mm & a wall to length ratio greater than 1:10.
Such parts are specially designed for applications that require minimum weight without compromising strength. Besides that, their low mass to strength ratio makes them prone to deformation under thermal stresses, vibrations and machining forces.
Factors Contributing to Deformation in Thin-Walled Parts
Multiple factors influence these thin walled CNC machined components which are as follows.
Material Properties
The material’s hardness, elastic modulus and thermal expansion coefficient have a considerable effect on deformation. Soft materials such as aluminum tend to bend more easily under machining forces. On the other side, metals that have high thermal expansion rate undergo dimensional changes because of heat build‐up during cutting.
Clamping & Fixturing Techniques
Improper clamping can lead to distortion in thin walled parts. Uneven or excessive clamping forces may cause twisting or bending. This in turn alters the part’s geometry. For example using a three-jaw chuck can cause triangular deformation in thin walled parts.
Machining Parameters
The choice of machining parameters also has a great impact on risks of deformation. Aggressive feed rates, improperly planned toolpaths or large depths of cut can produce high cutting forces that thin walls cannot handle at all. Furthermore tool wear increases heat generation & friction which further destabilize the machining process.
Thermal Effects
Heat generated during machining also affects deformation. Thin walled components have very limited thermal mass so as a result they are not capable of dissipating heat effectively. Additionally it leads to thermal expansion that causes warping and dimensional changes in materials such as aluminum that has high thermal conductivity.
Mechanical Stresses
During the machining of thin walls, the residual stresses within the material normally cause deformation. Such stresses emerge from uneven material removal during machining or due to prior processes. Gradual reduction of thickness as well as symmetrical machining can help keep dimensional accuracy & balance stress distribution.
Best Practices to Prevent Deformation

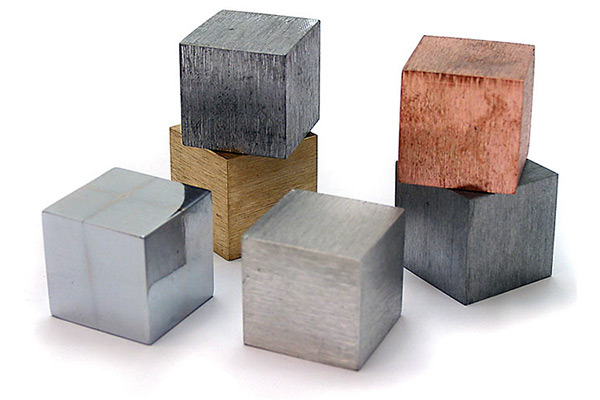

1. Material Selection & Preparation
Pick a material with low thermal expansion coefficient and high rigidity in order to minimize warping under machining forces. For example titanium alloys are more resistant to thermal deformation than aluminum alloys. Furthermore pre‐heat the material through annealing process to relieve internal stress as well as decrease unexpected distortions during cutting.
2. Thermal Management
In thin walled parts, heat is a major cause of deformation. Therefore use coolant setups to dissipate heat effectively. Besides that, when working with materials like aluminum with high thermal conductivity, reduce dwell times in order to avoid localized heating.
3. Optimizing Clamping and Fixturing
Correct fixturing is important to avoid excessive clamping forces. Such forces can easily deform thin walls.
Flexible fixtures like vacuum suction systems distribute forces evenly to minimize stress concentrations. Similarly symmetrical clamping methods help prevent uneven deformation and balance forces for cylindrical parts.

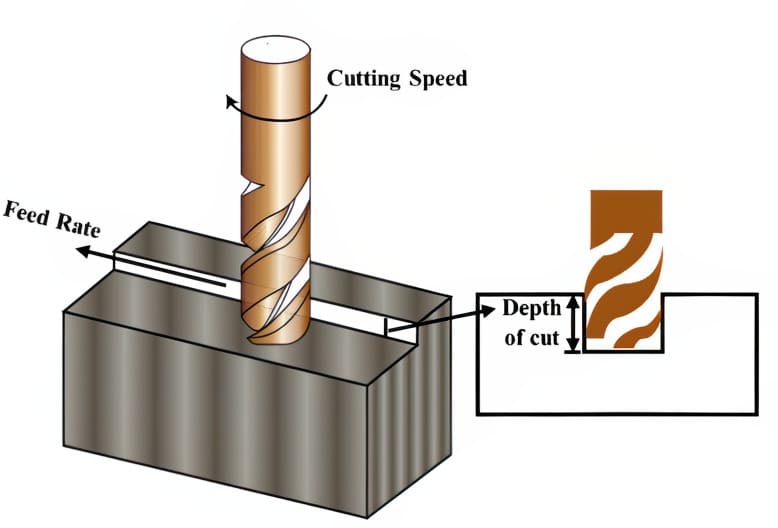

4. Cutting Parameter Optimization
Choose the conservative cutting parameters to lower the cutting forces. Use lower feed rates as well as smaller depths of cut and sharp tools with high rake angles to decrease stress on part. Also high speed machining is good option here. It serves dual purposes—reduces both cutting forces & heat generation at the same time.
See Also: Feed Rate and Cutting Speed in CNC Machining
5. Process Planning & Toolpath Optimization
Machining processes require careful planning of sequences in order to minimize stress generation.
Symmetrical milling strategies release stresses evenly. On the opposite, adaptive toolpaths such as spiral/contour-parallel milling spread cutting forces uniformly over the part.
These approaches in addition to improving dimensional accuracy also enhance surface finish by decreasing vibrations.

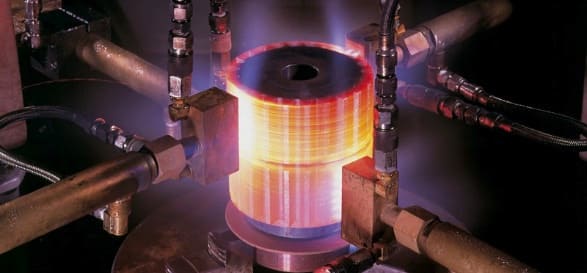

6. Stress Relief Techniques
Integrate stress relief treatments to manage residual stresses between roughing & finishing stages. Some techniques prior to final machining such as cryogenic treatment or vibration stress relief can further stabilize the part.
Advanced Techniques & Technologies
Modern technologies have greatly changed the machining of thin walled parts even beyond standard methods. Such modern approaches decrease deformation risks and improve proficiency & precision in your machining operations.

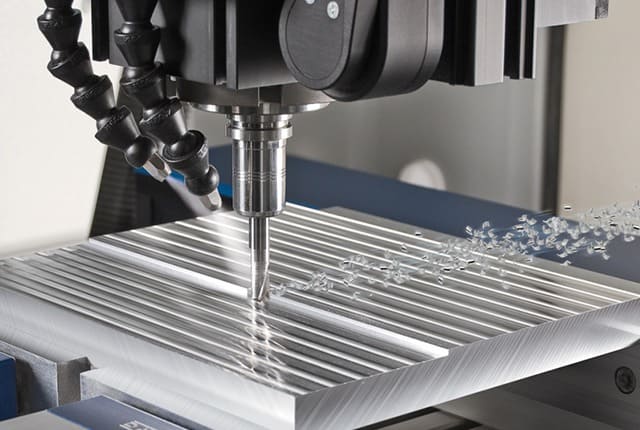

High-Speed Cutting
This technique works according to a special methodology—small depth of cut with fast cutting speed to decrease cutting forces.
When your tool rotates at high speed, the workpiece momentarily softens at contact points and converts the chips into chip like fragments. This technique rapidly removes cutting heat, keeps the workpiece at near room temperature and removes processing induced deformation as well.
For parts that require high precision, this approach not only makes machining fast & light but minimizes thermal distortion too.
CNC Compensation Methods
CNC compensation techniques adjust tool paths in real time to compensate for tool deflection as well as tool wear and material inconsistencies. For instance cutter compensation permits precise adjustments according to tool diameter or wear characteristics.
Some advanced CNC systems modify machining parameters using sensor feedback in order to assure consistent accuracy during prolonged operations. Thus these methods are useful for keeping tolerances in thin walled parts that have complicated geometries.
Finite Element Analysis (FEA) in Process Planning
Finite Element Analysis is a powerful simulation tool that predicts deformation risks before machining begins. This technique permits you to analyze thermal effects, cutting forces and mechanical stress on thin walled components. So you can improve toolpath strategies and machining parameters.
For example simulating the milling process of aluminum alloys can help determine better depth of cuts as well as feed rates which will decrease warping.
Case Studies & Practical Applications
Case Study 1_ Machining of Aerospace Components

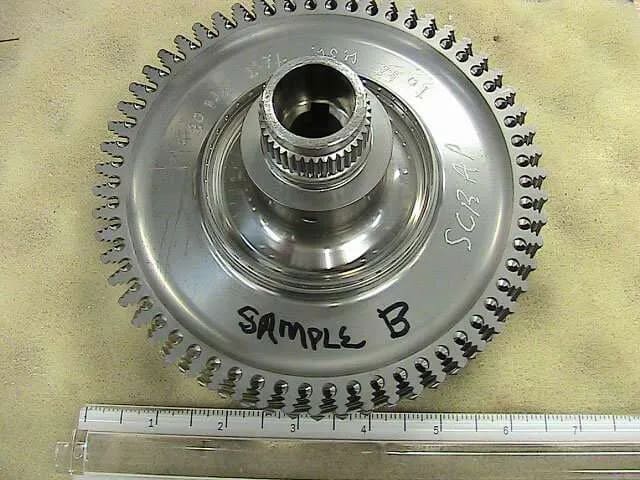

When machining titanium compressor disc for turbofan engine, we used to face deformation challenges because of material’s high cutting forces & low thermal conductivity.
So, to solve this we designed a custom carbide‐toothed chuck in order to securely hold the disc without inducing stress. After that we implemented dynamic toolpaths which were customized to distribute cutting forces uniformly, to reduce localized heat buildup.
We also used special cutters and high speed milling at 134 cm/min to maintain precision as well as minimize tool wear. The final result was a flawless compressor disc which adheres to both aerospace standards for durability & dimensional accuracy.
Case Study 2_ Automotive Industry Applications

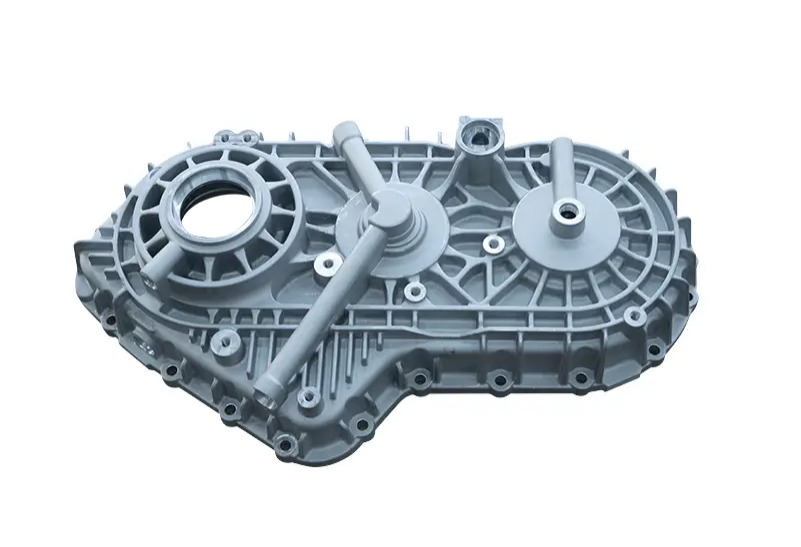

A few years ago we were given the task of manufacturing highly-precise aluminum gearbox housing for a luxury sports car. But the part’s complicated internal geometry and thin walls created considerable deformation risks during machining.
So, to tackle this problem we designed a custom multi‐axis fixture that securely supported the housing and also allowed access to all machining areas. We also used trochoidal milling strategy to minimize heat buildup & cutting forces because this was important for maintaining dimensional accuracy.
Furthermore we used PVD-coated end mill, specially optimized for aluminum, to get accurate & smooth finish. Then we delivered the final gearbox housing with perfect quality and precision.
Case Study 3_ Medical Device Manufacturing

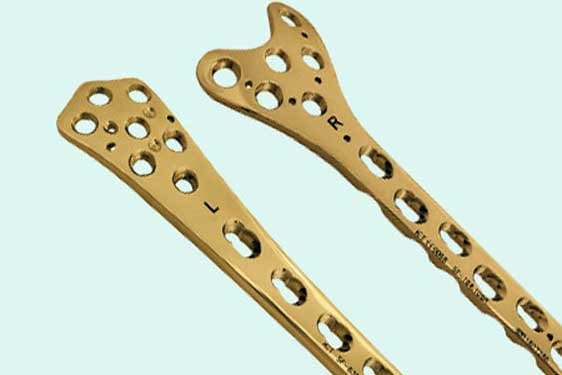

Our most complex project involved creating a titanium orthopedic implant with thin walled sections to improve patient compatibility. The main challenge we faced was that we had to maintain dimensional accuracy down to ±0.001mm and also avoid deformation due to heat sensitivity & low stiffness of material.
So to solve this, we created a custom fixture that applied uniform clamping pressure to assure stability without inducing stress. We also incorporated high proficiency cooling system to dissipate heat generated during machining and avoid thermal expansion. Using low feed rates & ultra fine cutting tools, we were able to create an implant that meets all precision standards and provides reliable performance for medical applications.
To Sum Up
In short avoiding deformation in thin walled parts requires combination of advanced techniques, accurate planning as well as machining strategies. You can get best results by addressing material properties & using technologies such as high speed cutting and FEA.
If you need highly-precise thin walled CNC parts, then RICHCONN is your best option. You can contact us anytime.
Related Questions
Can filling internal cavity of thin-walled parts help prevent deformation?
Yes filling the cavities with materials such as paraffin wax and urea melt suppresses deformation, increases rigidity and also provides temporary stiffness during machining.
What are process reinforcing ribs & how do they help?
Reinforcing ribs are thin wall like structures that provide strength as well as support to injection molded parts. They not only increase rigidity but also decrease material usage and prevent sink marks & distortion.
What is recommended minimum wall thickness for CNC-machined parts?
The minimum wall thickness varies with material. For example titanium (1mm), brass (0.5mm), aluminum (0.5-0.8mm), stainless steel (1mm) etc.
Can vibration damping techniques be used to prevent deformation?
Yes. Such techniques involve adding viscous material, structural modification or tune mass damping to decrease vibration amplitude & avoid deformation in thin walled components．
What are the benefits of using CNC high-speed machining for thin-walled parts?
High speed CNC machining decreases heat build‐up and cutting forces which reduces the risk of deformation. Apart from providing outstanding dimensional accuracy & surface finish, it shortens production time.
