When conventional plastics break down in corrosive conditions, engineers often depend on PVC as a durable alternative. However machining PVC comes with its own challenges, requiring careful technique to avoid deformation and maintain precision.
In this blog post we will explore both the advantages and complexities of PVC CNC machining. It will provide practical insights for producing durable, high-performance PVC components.
What Is PVC CNC Machining

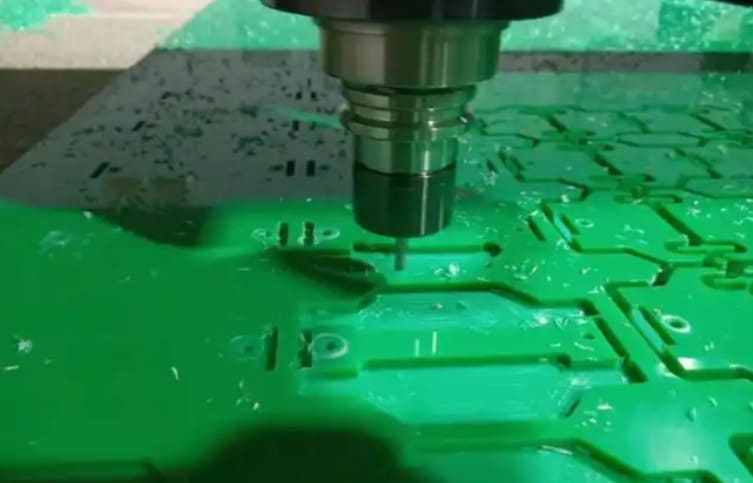

PVC CNC machining is a subtractive process in which computer-controlled tools precisely shape Polyvinyl Chloride (PVC). This automated technique converts rigid thermoplastic stock into complicated, durable components. This operation achieves exceptional dimensional accuracy and routinely holds tight tolerances of ±0.25 millimeters for critical industrial applications.
Material Focus_ PVC Properties & Why it Matters for CNC Machining
Understanding PVC’s properties is key to optimizing the CNC machining process for high‐quality results.
Mechanical Properties
Rigid PVC’s hardness allows for clean cuts and smooth surface finishes. However, its moderate tensile strength (40 to 80 MPa) and inherent brittleness need careful machining.
High feed rates or excessive clamping force can cause stress which ultimately leads to cracks or chipping in the material. Therefore machinists must balance cutting speeds and tool pressure to prevent fractures, especially in thin-walled sections.
Chemical Resistance
PVC demonstrates extraordinary resistance to acids, alkalis as well as salts which is highly advantageous during machining. This allows for the use of many water‐soluble coolants and lubricants without material degradation. Consequently, neither the workpiece nor the cutting tools are compromised by chemical reactions throughout the machining process.
Electrical Insulation Attributes
As a premier electrical insulator, PVC has a high dielectric strength, often up to 40 kV/mm. This is ideal for creating machined components like housings, connectors and insulators. This property also prevents the buildup of static electricity during machining operations. This helps protect the sensitive electronics of the CNC machine itself from potential damage.
PVC Grades Used in CNC Machining
Selection of the right PVC grade is fundamental to meeting the particular demands of any CNC machining project.
PVC (Plasticized)
Often called flexible PVC, this grade contains plasticizers that increase its pliability. While its flexibility simplifies some machining processes, it offers lower temperature resistance and tensile strength (10 to 25 MPa) as compared to rigid grades. It is well‐suited for applications that need high impact strength such as seals, tubing as well as liners.
uPVC (Unplasticized)
As a durable and rigid material, unplasticized PVC (uPVC) is a popular choice for CNC machining. It exhibits extraordinary chemical resistance and a tensile strength of up to 52 MPa. This is why it’s ideal for structural components. Common applications include pipes, fittings and window frames where dimensional stability is crucial.
PVC-C (Chlorinated)
By increasing the chlorine content, Chlorinated PVC (PVC-C or CPVC) gains enhanced thermal stability. It can withstand temperatures up to 95°C, significantly higher than standard uPVC. This makes it suitable for machining parts intended for hot water systems and industrial liquid handling.
PVC-O (Oriented)
This grade undergoes a process that aligns its molecules. This results in superior strength and stiffness. PVC-O can have double the tensile strength of uPVC (reaching 90 MPa) and therefore it’s an excellent choice for high‐pressure applications. Its enhanced durability also provides high fatigue resistance.
PVC-M (Modified)
PVC-M is modified with chemical agents to boost its toughness and impact resistance. While its elastic modulus and tensile strength are slightly lower than uPVC, its enhanced durability makes it best for applications that need high impact resilience.
PVC CNC Machining Process — Step-by-Step
The journey from a raw PVC block to a finished component is a precise, multi-stage process.
Pre-Production Preparation
First, the PVC material undergoes an annealing process, a controlled heating and cooling cycle that relieves internal stresses from manufacturing. This step is crucial for preventing cracking or warping during machining. Next, the CAD (Computer-Aided Design) model is finalized and converted into a CAM (Computer-Aided Manufacturing) file which generates the G-code that directs the CNC machine.
CNC Workflow Overview
PVC workpiece is securely fastened to the CNC machine, often using soft jaws or padded clamps to prevent surface marks. The CNC machine then executes the G-code instructions to mill, turn or drill the material. Operators use moderate feed rates and spindle speeds to avoid heat buildup which can cause PVC to melt or deform.
Machining Considerations for PVC
Successful PVC machining needs specific techniques & tooling. Sharp carbide or high‐speed steel (HSS) tools are essential for clean cuts as dull tools can crush the material. A compressed air blast or mist coolant is also needed to dissipate heat and clear away chips. This prevents chips from melting and adhering to the tool or the part’s surface.
Post-Machining & Finishing
After machining, the part is deburred to remove any sharp edges. Techniques like filing or cryogenic deburring create a smooth, safe finish. Depending on the application’s requirements, surfaces can be further refined through polishing or bead blasting to achieve a specific texture.
Working with a manufacturing partner, like RICHCONN, who provides these comprehensive surface finishing solutions in-house, simplifies the entire workflow and ensures a consistent, high-quality result.
Benefits of PVC CNC Machining
High Precision & Accuracy
CNC machines provide exceptional precision for creating intricate PVC parts with tight tolerances, often at ±0.125mm or tighter. This accuracy ensures each component meets exact design requirements for a perfect fit and function.
Affordability
PVC is an inexpensive thermoplastic as compared to materials like ABS or PEEK. This affordability, combined with efficient CNC machining, lowers production costs. The durability and long lifespan of PVC parts also increase its long‐term cost‐effectiveness.
Rapid Prototyping & Quick Turnaround
PVC’s machinability allows for rapid production which is ideal for prototyping. The automation of CNC machining further accelerates this process and this permits swift design adjustments and iterations. This significantly reduces lead times and speeds up the entire product development timeline.
Design Flexibility
CNC machining provides great flexibility for creating complicated shapes and detailed geometries from PVC. It accommodates a wide range of designs i.e., from simple to intricate and allows for greater innovation and customization.
Excellent Chemical & Moisture Resistance
Machined PVC parts retain the material’s inherent resistance to acids, alkalis as well as moisture. This makes them highly durable and reliable for use in corrosive industrial environments or applications with fluid exposure.
Repeatability & Scalability
Once programmed, a CNC machine can consistently produce identical PVC parts in large volumes. This excellent repeatability ensures every component meets the same quality standards. It also simplifies the scaling of production from a prototype to thousands of units.
Lightweight and Strong Mechanical Performance
PVC has a favorable strength-to-weight ratio which offers durability without the bulk of metallic alternatives. This makes it ideal for applications where reducing component weight is critical such as in the aerospace and automotive sectors.
Common Applications of PVC CNC Machined Parts
Unique properties of PVC make it a valuable material across many industries for precisely machined components.
Construction
In construction, rigid PVC is machined for custom pipe fittings, flanges as well as valve components where chemical resistance and durability are vital. Its weather resistance makes it suitable for specialized architectural elements and window profiles that need dimensions that are not achievable through standard extrusion.
Electrical & Electronics
Because of its extraordinary electrical insulation properties, PVC is frequently used in the electrical and electronics sectors. Common components include insulators, cable jackets, housings for electronic devices as well as control panels.
Automotive & Transportation
The automotive industry uses CNC machined PVC for interior components like trim and panels. Its lightweight nature aids fuel efficiency while its durability ensures longevity.
Medical & Laboratory Equipment
The medical field uses CNC machined PVC for its biocompatibility and resistance to sterilization chemicals. It is formed into components for diagnostic equipment, fluid-handling systems and custom lab fixtures that demand the tight tolerances of CNC machining.
Industrial Machinery & Signage
For industrial machinery, PVC is machined into durable wear parts, bushings and seals resistant to corrosive chemicals. Its smooth, weather‐resistant surface also makes it a popular material for precise, intricate 3D signage and engraved panels.
Design Considerations & Best Practices
Optimization of your design for the specifics of PVC machining is crucial for achieving quality, efficiency and cost effectiveness.
Material Selection Tips
- For high rigidity & chemical resistance, choose uPVC (Unplasticized PVC); for example, for pipes, fittings and housings.
- For higher temperature applications up to 95°C, select PVC-C (Chlorinated PVC).
- For superior impact strength, PVC-M (Modified PVC) is the best choice, though it has slightly lower tensile strength.
Design for Manufacture (DFM) Guidelines
To increase machinability
- Maintain a minimum wall thickness of 1.5 mm to prevent warping from heat during cutting.
- Design interior corners with a radius that is at least one-third of the cavity’s depth to reduce stress and allow for efficient machining.
- Keep cavity depths to less than four times the tool’s diameter. This will help avoid tool deflection and ensure dimensional accuracy.
Also See: What is an DFM Report in Manufacturing
CAD & CAM Optimization Strategies
In your CAM software, program toolpaths that prioritize heat reduction to prevent PVC from melting. Use strategies like climb milling and high feed rates with relatively shallow cuts instead of a single deep pass. This approach, combined with programming a constant air blast or mist coolant, ensures efficient chip evacuation and maintains the integrity of the finished part.
Challenges and How to Overcome Them
Machining PVC presents unique challenges that need specific strategies to assure quality results. Understanding and addressing these issues is key to a successful manufacturing process.
- One major hurdle is heat management. PVC has a low melting point and poor thermal conductivity which causes heat to build up at the cutting tool. This can lead to melting and a poor surface finish. To overcome this, use very sharp carbide tools, higher feed rates as well as lower spindle speeds to minimize friction and heat generation.
- Another issue is poor chip evacuation. Heat can make chips soft and sticky, causing them to clog the tool flutes. Therefore you should use tools with polished flutes as well as high‐pressure air blast or mist coolant to help clear these chips effectively.
- Thermal expansion can also affect dimensional accuracy. PVC expands and contracts more than metals with temperature changes. Machining with proper cooling and allowing the part to stabilize before final measurements can mitigate this.
- Finally, overheated PVC can release corrosive chlorine gas. This poses a health risk and accelerates tool wear. This can be managed by controlling cutting temperatures through optimized parameters and ensuring proper workshop ventilation.
Because these challenges can add up quickly, working with an experienced CNC machining partner like Richconn can help you avoid trial-and-error and maintain stable, repeatable results.
To Sum Up
In summary, PVC is a highly versatile and affordable material for CNC machining. When its thermal properties and machining parameters are properly managed, it delivers precise, durable and reliable parts for a vast range of applications.
If you need precision CNC machining services for PVC parts then Richconn is your best option. You can contact us anytime.
Related Questions
Yes. PVC is well‐suited for high‐precision CNC machining. Its extraordinary machinability and dimensional stability allow for the creation of intricate parts with tight tolerances.
PVC is generally easier to machine than many other plastics as it offers a good balance of durability and workability. It is stronger and more rigid than HDPE and provides superior chemical resistance compared to acrylic.
Standard tolerances for CNC machined PVC parts are typically around ±0.125mm. For applications requiring higher precision, it is possible to achieve tighter tolerances of ±0.05mm with specialized equipment and techniques.
CNC machining PVC usually costs based on complexity and machine time. Typical rates range from about $10 – $200+ per hour. These rates vary with machine type, needed tolerance and skill and part complexity.
