Train wheels often have vibrations that affect passenger comfort as well as performance of train. To solve this problem engineers use damping wheels. These special components decrease vibrations, which in turn causes less wear on infrastructure & provides smoother travel.
This guide details the main damping techniques & machining processes that are necessary to solve railway wheels’ vibration problems.

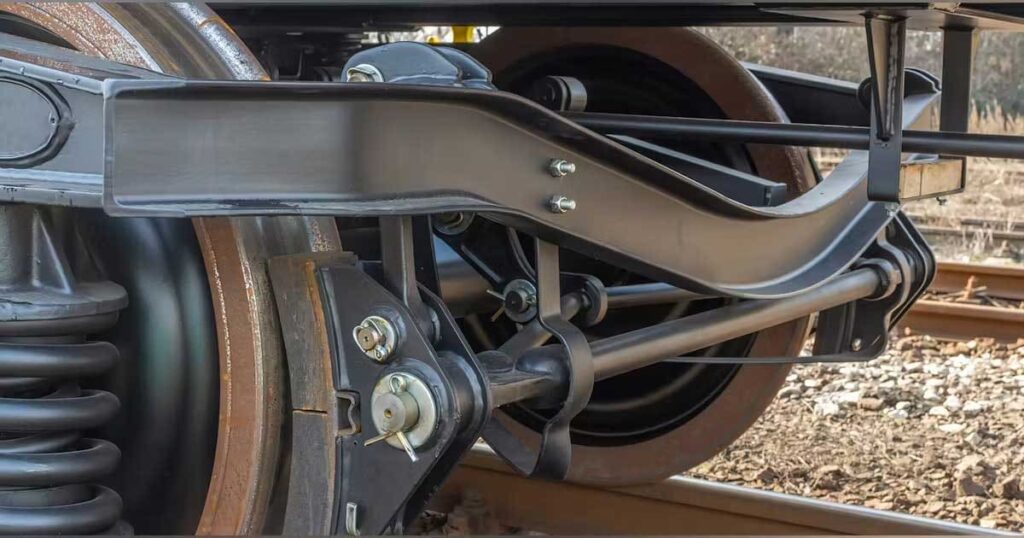

Basics of Railway Wheel Damping
Rail industry relies on wheel damping to control vibration and noise levels. This process requires special designs and materials that can effectively absorb and dissipate the vibrational energy generated during wheel & rail contact.
Wheel Induced Noise
The contact between railway tracks & wheels produces dynamic forces. These forces create vibrations in both components. This results in noise from rail structure as well as wheels.
There are many elements that cause noise in wheels
- Wheel-rail contact forces directly affect intensity of vibration.
- Wheel wear & track condition are also a factor that affect noise production.
Resonance can amplify specific frequencies while strong wheel-rail contact forces cause intense vibration that increase overall noise production.
Vibration Damping
Railway systems require effective vibration control to avoid a number of problems.
Uncontrolled vibration can damage train tracks and wheels through structural stress. Over time, track infrastructure deteriorates and causes an uncomfortable ride for passengers.
Damping systems solve these problems by absorbing & dissipating unwanted vibrations that result in quieter & smoother train experience.
Different Types of Damping Techniques
Plate & Ring Absorbers
Railway systems use plate & ring absorbers to deal with wheel rail contact forces as well as vibrations.
Ring absorbers work by dry friction to dissipate energy between the wheel rim and ring. This process reduces both lateral & radial vibrations.
Plate absorbers have elastic layers attached to metal sheets. Their different blade lengths allow better damping over a wide frequency range from 125 Hz to 4000 Hz.

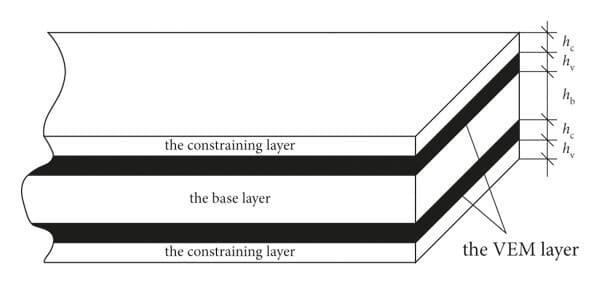

Sandwich Type Dampers
This type of dampers has multiple metallic sheets separated by viscoelastic layers. During wheel vibrations the metallic sheets move against each other. This movement deforms the viscoelastic material which dissipates the energy.
Engineers can tune these dampers to specific frequencies from 100 Hz to 5000 Hz. This precision tuning capability makes them excellent tools for noise reduction.

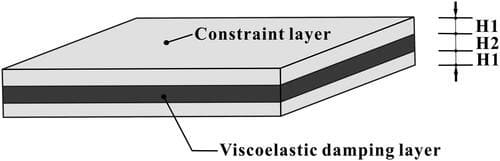

Viscoelastic Damping Layers
Engineers place special polymer materials between constraining plates & wheel webs to form viscoelastic damping layers. These materials convert mechanical vibration energy into heat by shear deformation.
Elastomers or butyl rubber are used as common damping materials. This system performs best between frequencies of 500 Hz to 2000 Hz and is most effective at 780 Hz to 800 Hz for low squeal noise.
Machining Processes for Damped Railway Wheels
1. Manufacturing process
High strength steel is used as base material for railway wheels. Manufacturers either forge the wheels under high pressure or cast them using molten steel in molds.
The wheels are then subjected to heat treatment particularly quenching and tempering of rim. This treatment creates a pearlitic structure up to 50 millimetre deep from tread surface. This structure prevents heat cracks and gives excellent wear resistance.
In final step, web, hub and rim of wheel are machined for better performance.
2. Incorporation of Damping Features
Damping features are incorporated after initial manufacturing process. Manufacturers apply several components to specific parts of wheels such as rim or web. These components include ring absorbers, viscoelastic layers and sandwich type dampers.
Each component is tuned to natural frequencies of wheels to give efficient energy dissipation as well as better operational efficiency.
3. Precision Machining Techniques
Production of damped railway wheels depends on precision machining. Some important techniques to get accurate dimensions & surface finish are turning, milling and polishing. For example high speed CNC lathes can maintain tolerances within 0.15 millimetre.
These precise methods decrease imbalance, optimize wheel profile and guarantee compatibility with damping features.
Maintenance and Re-Machining of Damped Wheels
Damage & Wear Estimation
Regular reviews focus on specific signs of damage & wear patterns. Inspectors look for rolling contact fatigue, wheel flats and tread concave wear within ±20 mm of rolling circle. Advanced inspection equipment includes Wheel Impact Load Detectors (WILD) & ultrasonic testing systems that recognize these defects.
Increasing Wheel Life
Railway wheels can last longer through many maintenance techniques. Laser cladding has emerged as an effective Metal Additive Manufacturing (MAM) option. This method adds a wear resistant coating to surface of wheels. This coating increases surface hardness, decreases wear and reduces number of wheel re-profiling.
Re-Profiling Techniques
CNC lathes perform milling, grinding and turning operations to restore original shape of the wheels. This process focuses on three parts of wheels. First technicians focus on the center parts to correct roundness. Then they restore profile edge contour on the outside. Finally they repair surface layer near flange.
To Sum Up
There have been some major technological advances in vibration & noise control in field of railway wheel damping. Advanced damping methods combined with maintenance protocols and accurate machining gives longer service life as well as better wheel performance.
If you require any kind of CNC machining service for railway wheels, then RICHCONN is best option. You can contact us anytime.
Related Questions
Can you provide examples of successful installation of damping techniques in high speed trains or urban transit systems?
Two prominent examples show successful implementations, the first being semi-active MR dampers that improved ride in railway vehicles by 29%.
And second example is, in urban transit systems, vibration isolation pads greatly decreased building vibrations particularly between 50 Hz to 63 Hz frequencies.
What are main causes of wheel noise in railway systems?
Railway noise is caused by several factors such as rail & wheel surface roughness and special defects like rail joints & wheel flats.
What materials are commonly used for damping in railway wheel applications?
Damping systems commonly use composite dampers made of rubber and recycled tire rubber granules.
What are best methods for testing and evaluating wear in damped railway wheels?
These methods include ultrasonic testing, eddy current testing and magnetic particle inspection, which assesses condition of the wheel without causing damage.
What effect does the integration of damping material have on re-machining process & maintenance of railway wheels?
Damping materials reduce heat generation, wheel vibration and wear rates. These improvements reduce need for re-machining & shorten maintenance cycles which increases overall wheel life.
What are considerations for machining resilient wheel sets on wheel turning lathes?
Three essential factors require attention when machining resilient wheel sets which are proper management of axial displacement during machining, use of friction drive lathes instead of self locking dogs and careful use of elastic inserts to protect wheel from damage.
What are the effects of damping techniques on durability and long term performance of railway wheels?
Installation of damping techniques extends the life of wheels by up to 15 years. These techniques achieve this goal by reducing three main factors, namely vibration, noise and wheel wear.
What are benefits of using underfloor wheel lathes for re-profiling damped railway wheels?
Main advantages of using underfloor wheel lathes are better safety measures, faster maintenance operations and minimal downtime.
How does wheel polygonization affect maintenance & performance of railway wheels?
Wheel polygonization increases wheel-rail contact stress while reducing safety and also increases vibrations as well. These problems result in less ride comfort and more component wear. The result is wheels requiring more frequent re-profiling maintenance.
