Resin Materials: Ultimate Guide to Types, Differences & Uses

What Resins Are

Resin is a highly viscous liquid that hardens into a durable, glossy, and chemical-resistant solid. It can be made of resin directly from plants or synthesized chemically in laboratories.

• Natural resin is a sticky substance secreted by plants for protection. Historically, it was used in varnishes, adhesives, and perfumes.
• Synthetic resin is man-made and designed to offer higher stability and resistance. These include thermoset, thermoplastic, and elastomer resins, each with unique structures and uses.

Common examples are epoxy resin, polyurethane resin, and polyester resin, which are widely applied in jewelry, coatings, adhesives, composites, furniture, and even aerospace components.

Types of Resin

There are many types of resin materials, but they can be broadly classified into three main categories: thermoset, thermoplastic, and elastomer. Each category has its own properties and characteristics that make it suitable for different purposes.

Thermoset Resins

Thermoset resins are resins that undergo a chemical reaction when heated or cured, which makes them hard and irreversible. They cannot be melted or reshaped once they are set. Thermoset resins have high strength, stability, and resistance to heat and chemicals, but they are also brittle, difficult to process, and prone to cracking. Some examples of thermoset resins are epoxy, polyester, and phenolic resin.

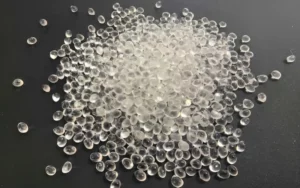

Thermoplastic Resins

Thermoplastic resins are resins that can be melted and reshaped repeatedly when heated and cooled. They are soft and flexible when heated and hard and rigid when cooled. Thermoplastic resins have high ductility, elasticity, and recyclability, but they are also susceptible to deformation, creep, and degradation. Some examples of thermoplastic resins are polyethylene, polypropylene, and polystyrene.

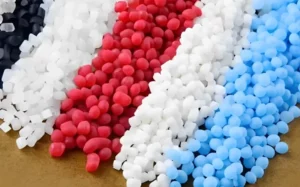

Elastomer Resins

Elastomer resins are resins that have rubber-like properties, such as high elasticity, flexibility, and resilience. They can stretch and recover their original shape when subjected to stress or strain. Elastomer resins have high impact resistance, vibration damping, and noise reduction, but they are also vulnerable to abrasion, tearing, and aging. Some examples of elastomer resins are silicone, rubber, and polyurethane.

How Resins Differ

The main difference lies in their chemical structures. Thermosets harden permanently, thermoplastics remain re-moldable, and elastomers combine elasticity with strength. Their performance also varies:

• Viscosity and cure times affect how they are applied.
• Hardness levels influence durability and resistance to scratching.
• UV and chemical resistance determine long-term stability.

For example, casting resins are designed for bubble-free deep pours, while art resins are optimized for clarity and glossy finishes.

Resin Print Strength vs PLA

Resin printing and PLA printing are two common methods of 3D printing, which is a process of creating three-dimensional objects by depositing layers of material. Resin printing uses liquid resin that is cured by light, while PLA printing uses solid plastic filament that is melted by heat. Both methods have their own advantages and disadvantages in terms of strength and durability.

Resin prints are generally stronger and more detailed than PLA prints, as they have higher resolution, accuracy, and smoothness. Resin prints can also create complex shapes and structures that PLA prints cannot. However, resin prints are also more brittle and sensitive to UV light, which can cause them to degrade over time. Resin prints are also more expensive, toxic, and difficult to clean than PLA prints.

PLA prints are generally weaker and less detailed than resin prints, as they have lower resolution, accuracy, and smoothness. PLA prints can also suffer from warping, cracking, and shrinking due to temperature changes. However, PLA prints are also more flexible and resistant to UV light, which can make them last longer. PLA prints are also cheaper, safer, and easier to handle than resin prints.

The best printing method and material for a given project depends on the purpose, budget, and preference of the user. Some tips for choosing the best printing method and material are:

• If the project requires high strength, durability, and detail, resin printing is a better option than PLA printing.
• If the project requires low cost, safety, and ease of use, PLA printing is a better option than resin printing.
• If the project requires both strength and flexibility, a hybrid printing method that combines resin and PLA can be used.
• If the project requires different colors, textures, or effects, different types of resin or PLA can be used.

Best Resin to Use for Molds

A frequent question among makers and manufacturers is: What is the best resin to use for molds? Choosing the right resin depends on the shape of the object, the molding process, and the durability required. Below are the most common resins used in mold-making, each with unique strengths and weaknesses.

Epoxy Resin for Molds

Epoxy resin is one of the most popular choices for creating durable and glossy molds. It cures into a strong and rigid material that can capture fine details with high clarity. Epoxy molds are great for jewelry, crafts, and decorative items because they provide a smooth surface and can be easily polished. However, epoxy can be brittle when used for very flexible molds, so it works best for smaller and less complex shapes.

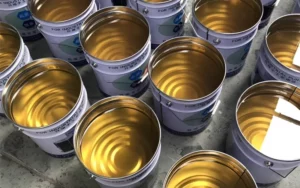

Polyester Resin for Molds

Polyester resin is an affordable option that provides strong and rigid molds. It is widely used in applications like fiberglass reinforcement, marine projects, and quick prototypes. While polyester molds can capture details, they are less durable than epoxy or silicone and tend to have a strong chemical odor. Because of its lower cost, it is often chosen for short-term projects where long-term durability is not a priority.

Polyurethane Resin for Molds

Polyurethane resin offers versatility because it can be formulated as either rigid or flexible. Flexible polyurethane molds are ideal for parts that require elasticity and easy demolding, while rigid polyurethane is suited for durable prototypes and functional parts. It also has excellent abrasion resistance, making it a good option for repeated use. However, polyurethane resins can shrink during curing and may be sensitive to moisture, which requires careful handling.

Silicone Resin for Molds

Silicone resin is widely regarded as the best resin to use for molds thanks to its superior flexibility and reusability. It can stretch without breaking, which makes it perfect for complex shapes and delicate objects. Silicone molds release parts easily without the need for mold release agents, reducing production effort. Although silicone resin is more expensive than other options, its durability and ability to be reused many times often make it the most cost-effective choice in the long run.

Medical Grade Resin

Medical grade resin is a type of resin material that is specially designed and certified for medical applications, such as implants, devices, and instruments. Medical-grade resins must meet strict requirements and standards for safety, biocompatibility, sterility, and performance. Medical grade resin has to undergo rigorous testing and validation before it can be used for medical purposes.

Medical grade resin is used for various medical products and applications, such as:

Dental Resin

Dental resin is a type of resin material that is used for dental restorations, such as fillings, crowns, bridges, and dentures. Dental resin has to be strong, durable, and resistant to wear and tear. Dental resin also has to match the color, shape, and texture of natural teeth. Dental resin can be made of different types of resin materials, such as acrylic, composite, and ceramic materials.

Orthopedic Resin

Orthopedic resin is a type of resin material that is used for orthopedic implants, such as screws, plates, rods, and pins. Orthopedic resin has to be biocompatible, meaning that it does not cause adverse reactions or infections in the body. Orthopedic resin also has to be stable, meaning that it does not degrade or corrode over time. Orthopedic resin can be made of different types of resin materials, such as PEEK, polyethylene, and polyurethane.

Surgical Resin

Surgical resin is a type of resin material that is used for surgical instruments, such as scalpels, scissors, and forceps. Surgical resin has to be sterile, meaning that it does not contain harmful microorganisms or contaminants. Surgical resin also has to be smooth, durable, and easy to handle. Surgical resin can be made of different materials, such as polycarbonate, polypropylene, and polyamide.

Hardest Resin

Hardness is a measure of how resistant a material is to indentation, scratching, or deformation. It is an important property for resin materials because it affects durability, performance, and appearance.

The hardness of resin materials depends on their type, composition, and curing process. Generally, thermoset resins are harder than thermoplastic and elastomer resins, as they have higher cross-linking and rigidity. However, some thermoplastic and elastomer resins can also be hardened by adding fillers, additives, or modifiers.

Some examples of the hardest resin materials are:

Epoxy Resin

Epoxy resin is one of the hardest thermoset resins because it has high cross-linking and stability. It is used for various applications that require high strength, durability, and resistance, such as coatings, adhesives, and composites.

Polycarbonate Resin

Polycarbonate resin is one of the hardest thermoplastic resins due to its high molecular weight and crystallinity. It is commonly used for applications requiring high impact resistance, transparency, and heat resistance, such as lenses, helmets, and protective shields.

Silicone Resin

Silicone resin is one of the hardest elastomer resins, offering a good balance of resilience, flexibility, and temperature resistance. It is often used in seals, gaskets, and molds.

How to Use Resin Safely

Using resin requires preparation and safety precautions. Most resins involve mixing a resin with a hardener, then pouring into molds or onto surfaces. Steps include:

1. Preparation: Wear gloves, goggles, and work in a ventilated space.
2. Mixing: Follow manufacturer ratios carefully to avoid curing problems.
3. Pouring: Ensure a level surface to prevent uneven curing.
4. Curing: Allow time from hours to days depending on resin type.
5. Finishing: Sand or polish the hardened piece if desired.

Because many resins emit fumes, proper safety gear is essential.

Why Choose Richconn for Resin Prototyping?

When working with resin, precision and material expertise make a big difference. Richconn provides high-quality prototyping and production services with advanced equipment and technical knowledge. Whether you need parts made of resin for industrial testing, custom resin molds, or intricate 3D printing support, our team ensures accuracy and durability.

By partnering with Richconn, you gain:

• Professional guidance on selecting the best resin to use for molds and other applications.
• Advanced machinery for high-precision resin prototypes.
• Experience across industries from medical devices to aerospace components.
• Fast turnaround times with consistent quality control.

If you are wondering which resin best fits your project, our experts will help you choose the right solution. With Richconn, you don’t just get parts — you get a reliable partner committed to turning your designs into reality.

Conclusion

Resins are versatile materials used across industries, from crafts to aerospace. They answer the question of what type of material is resin by existing as both natural and synthetic forms. While many ask is resin a plastic, the truth is resins can function like plastics or advanced composites, depending on their type. For mold-making, epoxy, polyurethane, and silicone resins stand out, with silicone often regarded as the best resin to use for molds. Products made of resin continue to expand possibilities, and with expert manufacturing support, resin projects can achieve precision and durability.
