Robot Joint Components: Parts, Materials and Manufacturing Methods

Every robot’s real personality lives in its joints. An arm can have flawless kinematic code and a beautifully engineered end-effector, but if the joints wobble, backdrive under load, or lose repeatability after ten thousand cycles — none of that matters.

As a CNC manufacturer that machines precision components for robotic applications, we spend a lot of time inside the tolerance windows of joint hardware. Bearing seats held to Ra 0.4 μm. Harmonic drive flanges concentric within ±0.005 mm. Titanium yokes lightened by 30% without touching stress-critical sections.

This guide covers what actually goes into a robot joint — the parts, the materials, and the manufacturing methods that shape final performance. Where most articles on the topic stop at broad categories, we’ll go deeper: specific alloy grades and why you’d pick one over another, surface finish targets that matter for real-world assemblies, tolerance stack-up strategies, and the trade-offs you’ll encounter moving from CAD to a production run.

You’ll find this useful whether you’re designing a new humanoid platform, sourcing joint modules for an industrial cell, or evaluating a machining supplier for the first time.

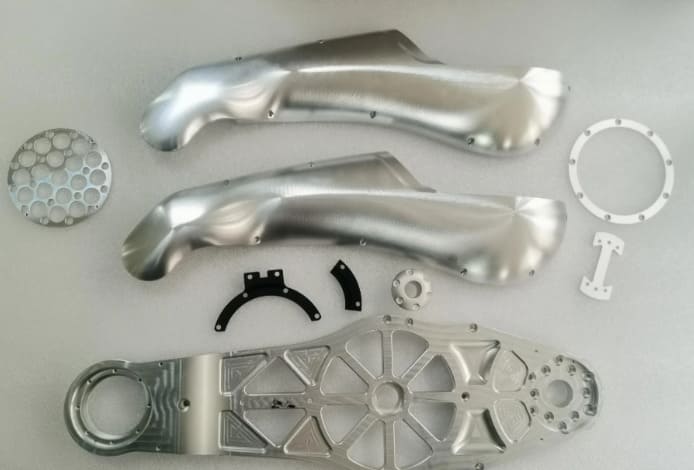

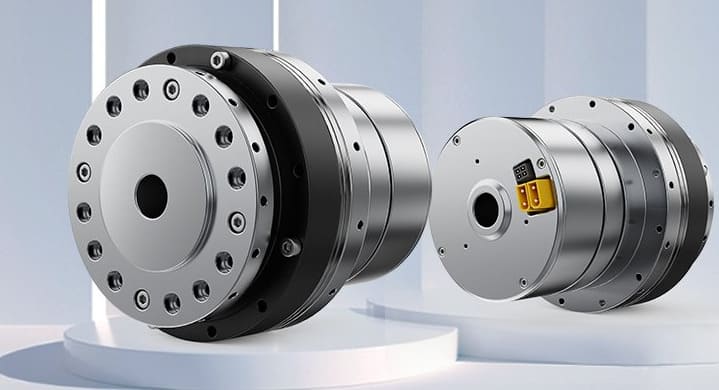

Understanding Robot Joint Components and Their Critical Role in Robotic Systems

Before diving into individual parts, it’s worth stepping back to see how a joint actually behaves as a system — and why it dominates the performance envelope of the entire robot.

Integration of Mechanical, Drive, and Electrical Systems

A robot joint is where three engineering domains collide. The mechanical side provides structure and constrains motion to the right degrees of freedom. The drive side — motors, reducers, brakes — supplies and modulates power. The electrical and control side — encoders, torque sensors, cabling — closes the loop.

None of these can be optimized in isolation. A servo motor with excellent torque density means little if the housing amplifies its vibration into the encoder disc. A harmonic drive with 30 arc-second repeatability is wasted if the bearing seat wanders by 0.02 mm under thermal load. When we quote work on a robot joint housing, we always ask about the paired components — because the machining strategy has to serve the assembly, not just the drawing.

Impact on Robot Performance, Accuracy, and Reliability

Three metrics matter most to end users of robotic systems: absolute accuracy, repeatability, and mean time between failures. Joint hardware influences all three.

• Accuracy depends on link length precision, joint alignment, and the elastic behavior of the structure under load
• Repeatability is dominated by reducer backlash, bearing preload consistency, and encoder mounting rigidity
• Reliability comes down to bearing lubrication retention, sealing effectiveness, and material fatigue performance

You can compensate for accuracy errors in software through calibration. Repeatability and reliability, on the other hand, are almost entirely functions of the physical hardware — which is why manufacturing quality has such outsized influence on total cost of ownership.

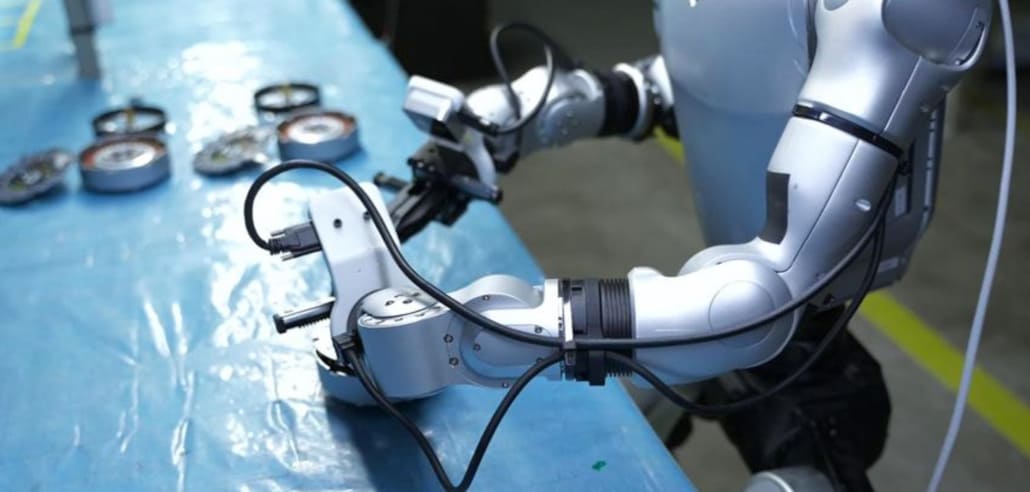

Evolution from Industrial to Collaborative and Humanoid Platforms

The last decade has reshaped what robot joints need to do. Traditional industrial arms — the SCARA and 6-axis workhorses in automotive plants — prioritized stiffness, speed, and payload. Their joints are chunky, heavy, and built around large gear reducers.

Collaborative robots changed the brief. Suddenly joints needed integrated torque sensing for safe human interaction, backdrivability for teach modes, and enough thermal margin to run all day at reduced duty cycles. Housings shrank. Integration density climbed.

Humanoid platforms are pushing the envelope further. A bipedal robot with 20+ actuated joints simply cannot carry the mass of legacy joint architectures. This is where lightweight aluminum housings, titanium load paths, and quasi-direct drive actuators enter the picture — and where our conversations with robotics customers have shifted most in the past two years.

Mechanical Components: The Structural Foundation

Robot joints don’t exist in isolation. They connect to structural members, mount into frames, and sit under protective housings. Each of these mechanical elements has its own machining requirements and material logic.

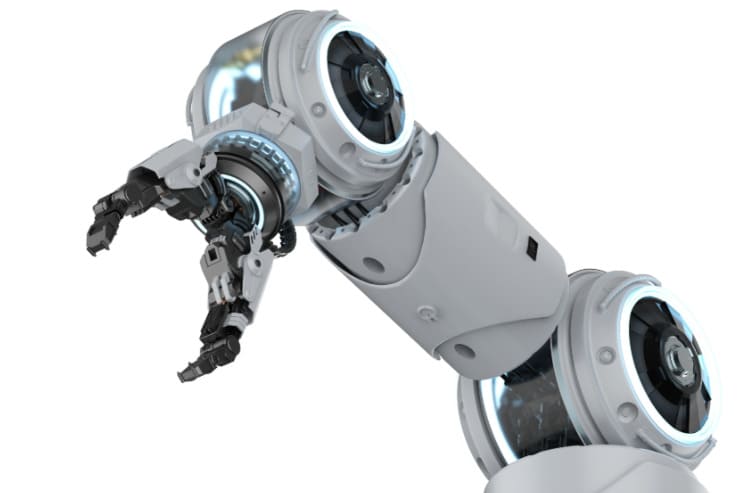

Robot Arms and Links: Primary Structural Members

Links are the long structural members that connect adjacent joints. They carry both static and dynamic loads — gravity, inertial reactions during acceleration, and external forces at the end-effector.

Most modern robot links are machined from 6061-T6 aluminum billet or forged aluminum blanks. For higher payload arms — anything above roughly 30 kg payload — we often see 7075-T6 for the primary link sections and steel or titanium reinforcements at the joint interfaces. The design goal is a favorable stiffness-to-mass ratio, since every gram of link mass appears in the inertial equations for every joint upstream.

From a machining perspective, links are usually thin-walled, pocketed structures. They benefit from 5-axis machining because the pockets and rib features are hard to access from three axes without multiple setups — and each additional setup introduces alignment uncertainty.

Robot Joints: Enabling Controlled Movement and Degrees of Freedom

The joint itself is the mechanical assembly that permits controlled motion between two links. Two joint types dominate industrial robotics:

• Revolute joints (rotational, 1 DOF) — the most common, used in every articulated arm
• Prismatic joints (linear, 1 DOF) — used in gantries, SCARA Z-axes, and some humanoid legs

More exotic configurations include spherical joints (3 DOF, mostly in surgical and legged robots) and universal joints (2 DOF, mostly in drive-train applications).

Every joint contains, at minimum: a rotating member, bearings, a housing, a drive interface, and — usually — a position sensor. The machining priorities are concentricity between bearing bores and the drive axis, flatness of the mounting flange, and dimensional stability of the load-bearing sections under thermal cycling.

Frames and Bases: Load-Bearing Structures and Stability

The base is where the robot connects to the world. For industrial arms it’s typically a cast or welded steel structure, machined on its critical mounting surfaces. For collaborative and mobile robots, aluminum is the default.

The critical machined features on a base are the joint-1 mounting interface — where flatness and hole-pattern precision determine how straight the entire arm points — and the fastening interfaces to the floor, cart, or AGV. A base with a 0.1 mm out-of-flat condition at the joint-1 mount can show up as several millimeters of end-effector position error at full reach.

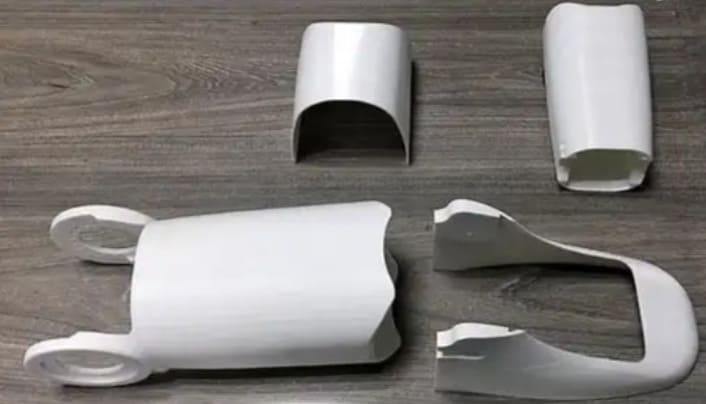

Housings and Protective Covers: Component Protection and Cable Management

Housings do more than enclose components. They provide structural stiffness, act as heat sinks for the drive electronics, define ingress protection ratings, and route internal cabling.

The best housing designs consolidate as many functions as possible into a single machined part — reducing joints, sealing surfaces, and assembly time. This is where 5-axis CNC pays for itself. A complex housing that would require five separate castings and an assembly operation can often be machined from a single billet in one or two setups.

Drive Components: Power Transmission Systems

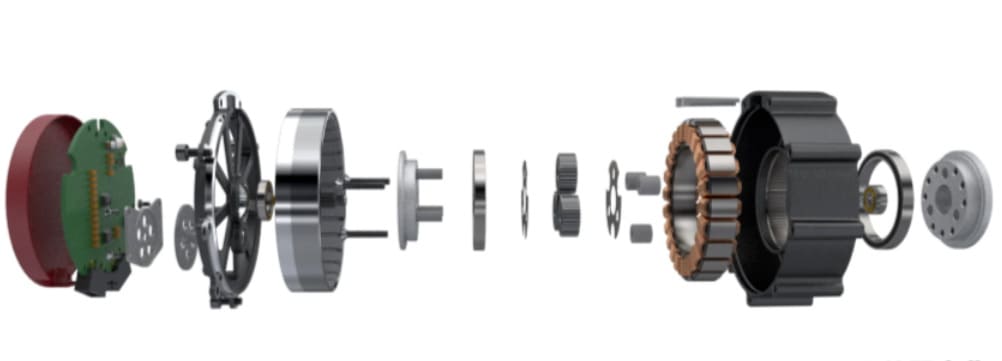

The drive train is where electrical energy becomes mechanical motion. Its components — motors, reducers, bearings, shafts — determine the joint’s torque, speed, backlash, and thermal behavior.

Servo Motors: Primary Power Source with Closed-Loop Control

Modern robot joints almost universally use brushless permanent magnet servo motors. AC servos dominate industrial arms; frameless DC servos are common in cobots and humanoids because they can integrate directly into the joint housing without a separate motor case.

From a manufacturing standpoint, the motor itself is rarely something we machine — but its mounting interfaces are. Motor flanges, rotor sleeves, stator locating features, and encoder mounts all require tight tolerances. A frameless motor’s rotor magnets, for instance, sit inside a machined sleeve whose concentricity to the encoder disc directly affects commutation accuracy.

Precision Reducers and Gearboxes: Harmonic Drives and Cycloidal Systems

Reducers are what allow a small, high-speed motor to deliver the high torque and low speed a robot joint needs. Three main architectures dominate:

• Harmonic drives — compact, zero-backlash, low mass; the default for cobots and smaller industrial joints
• Cycloidal / RV reducers — high torque density, excellent shock resistance, used in larger industrial arms (typically joints 1-3)
• Planetary gearboxes — lower cost, higher backlash, used in less demanding auxiliary axes

We don’t machine the internal gearing of these reducers — that’s the domain of specialist manufacturers like Harmonic Drive Systems and Nabtesco. But we machine the housings that carry them, the input and output flanges, and the adapter plates that couple reducers to motors. These interfaces are precision-critical: any misalignment translates directly into reducer wear, vibration, and shortened service life.

Bearings and Bushings: Supporting Smooth Rotational Motion

Cross-roller bearings are the workhorse of robot joints. Their combined radial, axial, and moment load capacity in a slim profile makes them ideal for high-payload rotational joints. Angular contact bearings appear in higher-speed applications; deep-groove ball bearings in less demanding auxiliary roles.

Bearing seat machining is a discipline of its own. Typical requirements we work to:

• Bore diameter tolerance: H6 or better (often ±5 μm)
• Surface finish: Ra 0.4-0.8 μm
• Cylindricity: within 5 μm across the full seat length
• Squareness of the mounting shoulder to the bore axis: within 10 μm

Get any of these wrong and the bearing will run hot, wear prematurely, or transmit noise through the entire joint. This is one of the features we sample 100% on production runs — because the failure mode is expensive and hard to catch in field.

Shafts and Couplings: Power Transfer and Vibration Compensation

Between motor and reducer, or reducer and output flange, there is usually a coupling — a rigid clamp, a bellows, or an elastomeric spider — that transfers torque while absorbing small misalignments. Shafts connecting these elements are typically hardened steel (4140 or 17-4 PH), ground and often turned on Swiss-type lathes for tight concentricity and surface finish.

Electrical and Control Components

While our focus as a CNC manufacturer is the mechanical side of the joint, no complete picture is possible without acknowledging the electrical and control layer.

Every actuated joint contains an encoder — typically an absolute magnetic or optical unit mounted to the motor shaft, often with a secondary encoder on the reducer output for stiffness compensation. Torque sensors, either strain-gauge based or magnetostrictive, are standard on collaborative robot joints. Brakes — usually spring-engaged, electrically released — hold position on power loss. Motor drivers and control boards may be integrated inside the joint housing or located remotely in a control cabinet.

The relevance to manufacturing is subtle but real. Encoder mounting surfaces need micron-level flatness, or the disc will run out and degrade position accuracy. Sensor cavities sometimes require specific surface treatments for EMI shielding. Cable channels need generous radii and smooth internal surfaces to prevent insulation wear over millions of flex cycles. When we machine a housing that integrates all of these interfaces, the drawing tolerances tell only part of the story — the assembly sequence and neighboring component specifications tell the rest.

Material Selection for Robotic Applications

Material choice sets a ceiling on what any manufacturing process can deliver. In our shop, the material call is often revisited after the initial design review — because a poorly chosen material can double the machining cost, halve the fatigue life, or make surface treatment impossible.

Aluminum Alloys: 6061-T6 for Housings vs. 7075-T6 for Structural Flanges

Aluminum dominates robot joint construction. Its combination of low density (2.7 g/cm³), good machinability, and compatible surface treatments makes it the default choice for housings, covers, and secondary structural elements.

6061-T6 is the workhorse. Yield strength around 276 MPa, excellent weldability, and outstanding response to hard anodizing make it ideal for the majority of housing applications. It machines cleanly and holds tolerance well through thermal cycling.

7075-T6 enters the picture when strength-to-mass ratio matters more than corrosion resistance. Yield strength around 503 MPa — nearly double 6061 — makes it attractive for load-bearing flanges, joint yokes on high-payload arms, and structural members where wall thickness must be minimized. The trade-offs are real: worse corrosion resistance, more difficult welding, and higher raw material cost. It’s also less friendly to hard anodizing, sometimes requiring specialized process control to achieve consistent coating quality.

In practice, we often see mixed use — 6061 for the outer housing, 7075 for internal load-bearing brackets and mounting flanges. The design intent is to put alloy strength exactly where it counts and no further.

Stainless Steel 17-4 PH: High-Strength Applications and Harsh Environments

For applications requiring corrosion resistance, higher strength, or fatigue performance beyond what aluminum can offer, 17-4 PH stainless steel is the go-to. In H900 condition, yield strength exceeds 1170 MPa. It’s used for output shafts, high-load pins, joint yokes on robots operating in food processing or medical sterilization environments, and load-bearing brackets on humanoid legs.

Machining 17-4 PH is more demanding than aluminum. Cutting forces are higher, tool wear is faster, and heat management matters more. We generally machine it in solution-annealed condition (Condition A), then apply the precipitation-hardening aging heat treatment after machining is complete. Distortion during aging is minimal if the geometry is symmetric — a critical point to raise during design review for asymmetric parts.

Titanium Ti-6Al-4V: Aerospace and Medical Robotics Requirements

Titanium alloy Ti-6Al-4V — Grade 5 — is where robotics meets aerospace metallurgy. Density around 4.43 g/cm³ (roughly 60% of steel), yield strength around 880 MPa, and outstanding corrosion resistance make it the material of choice when mass and strength are simultaneously critical.

Practical applications in robotics include: surgical robot end-effector mounts, humanoid load-bearing brackets where every gram matters, aerospace inspection robot arms, and mounting hardware for medical imaging systems.

The manufacturing challenges are real. Ti-6Al-4V machines slowly and expensively — cutting speeds are a fraction of steel, tool life is short, and heat management requires flood coolant and disciplined chip control. On the positive side, it takes precision surface treatments well, and its fatigue behavior in the as-machined condition is outstanding. If a design team is willing to pay the machining premium, titanium can enable joint configurations that simply aren’t achievable in aluminum or steel.

Engineering Polymers: Acetal, PEEK, and Nylon for Specific Functions

Not everything in a robot joint is metal. Engineering polymers appear in bushings, wear surfaces, cable guides, and sometimes structural covers.

• Acetal (POM) — low friction, good machinability, dimensional stability; used for guide bushings and light-load slide surfaces
• PEEK — high temperature capability, chemical resistance, and impressive strength; used in medical robotics, thermal isolation bushings, and structural elements exposed to sterilization cycles
• Nylon (typically 6/6 or MDS-filled variants) — wear-resistant bushings, cable clamps, non-critical structural covers

The machining logic for polymers inverts many metallic principles. Feeds are higher, speeds are moderate, and tool geometry emphasizes clean shearing over chip evacuation. Heat management shifts from tool wear concerns to material distortion — polymers are more prone to gumming, melting, or thermal deformation than to abrasive tool wear.

Precision Manufacturing Methods

Manufacturing method choice is where design intent becomes physical reality — or fails to. Selecting the wrong process can turn a well-designed joint into an unmanufacturable one, or double its cost for no functional gain. The next sections walk through the process choices we make most often for robot joint components, and the reasoning behind each.

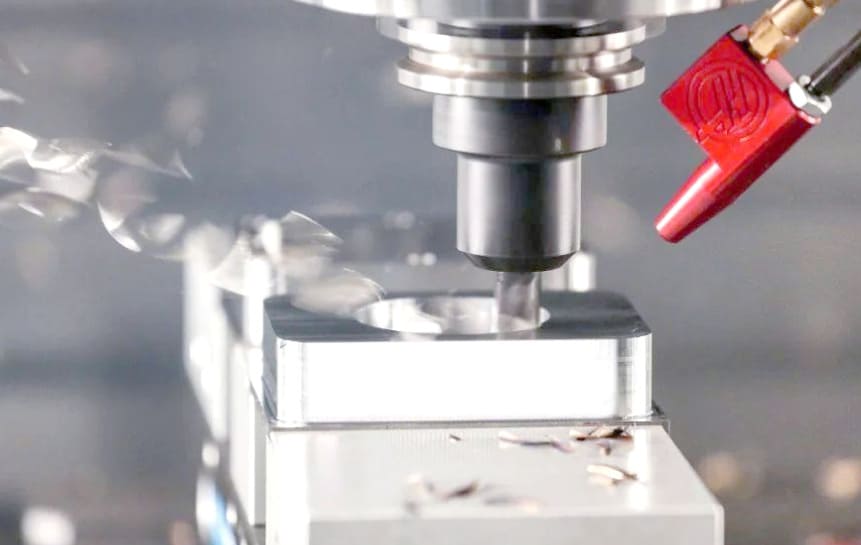

CNC Machining Processes for Complex Geometries

5-Axis vs. 3-Axis Machining: Undercuts and Single-Setup Benefits

The single biggest capability difference between shops that compete for robotics work is 5-axis capacity. For robot joint components, 5-axis machining isn’t a nice-to-have — it’s a cost and quality lever.

Three-axis machining requires that every feature be accessible from a single tool orientation. For a robot joint housing with pocketed bosses, angled mounting flanges, and cable channels running through multiple planes, this typically means four to six setups. Each setup introduces alignment tolerance and rework risk.

Five-axis machining lets us hold the part in a single fixture and reach features from multiple orientations without breakout. The benefits compound:

• Undercuts that would require angled fixtures or dedicated tooling become straightforward
• Shorter tool overhangs improve stiffness and surface finish
• Setup count typically drops from four-to-six down to one or two
• Overall lead time and cost decrease — sometimes by 30-50% for complex housings

We reserve 3-axis machining for simpler brackets, adapter plates, and secondary housings where the geometry doesn’t warrant the added machine cost.

Bearing Seat Machining: Surface Finish Ra 0.4-0.8 μm Requirements

Bearing seats are where surface finish and dimensional tolerance intersect. A cross-roller bearing running in an oversized or out-of-round seat will lose preload, exhibit backlash, and generate heat.

Our approach to bearing seat machining follows a controlled sequence:

1. Rough boring to within 0.1 mm of final size
2. Semi-finish boring to within 0.02 mm with a high-precision boring bar
3. Finish boring with a wiper insert or a solid carbide reamer for the final pass
4. Optional honing or diamond boring for the tightest applications (H5 or better)

Surface finish targets vary by bearing type. For cross-roller bearings we typically hold Ra 0.4-0.8 μm. For angular contact ball bearings, Ra 0.8-1.6 μm is usually adequate. The finish must also be consistent across the full bearing seat length — a “polished band” of better finish over most of the seat with a rougher region near the shoulder can be worse than a uniformly rougher finish, because it creates a preload discontinuity that the bearing translates into vibration.

Tolerance Stack-Up Control: GD&T Implementation for ±0.05 mm Precision

A robot joint housing might have 15-20 dimensioned features, each with its own tolerance. Naively summing tolerances would suggest a stack-up of ±0.5 mm or more at the assembly level — enough to make the joint non-functional.

Correct GD&T practice prevents this. Instead of stacking size tolerances, we use:

• A primary datum reference frame based on functional features (typically the joint axis of rotation and the mounting flange)
• Position tolerances referenced to that frame, controlling feature location without stacking
• Profile tolerances for critical surfaces such as bearing seats and seal grooves
• Runout callouts for concentricity between related bores

For a well-toleranced housing, we routinely hold ±0.05 mm at the assembly level even when individual features have looser dimensional tolerances. The key is that the drawing must clearly convey functional intent. A housing dimensioned with old-school ± tolerances on every feature is a recipe for either scrap or unnecessary cost — usually both.

Trochoidal Toolpaths and High-Speed Machining Strategies

High-speed machining strategies matter most for the pocketing operations that dominate housing manufacture. Trochoidal toolpaths — where the cutter engages the material in a shallow, circular pattern rather than a full slot — allow much higher material removal rates without exceeding tool load limits.

For aluminum housings, we typically run:

• Roughing cutters at 15,000-24,000 RPM
• Radial engagement of 5-10% of tool diameter
• Axial depth of cut equal to 2-3× the tool diameter
• Feed rates optimized to hold constant chip load through corners and transitions

The benefits — reduced cycle time, longer tool life, better surface finish, less thermal deformation — compound over a batch of production parts. For a typical robot arm link, we’ve seen 40% cycle time reduction from switching conventional pocketing strategies to trochoidal ones.

Advanced Manufacturing Technologies

Swiss Machining for Small Precision Parts: Pins, Shafts, and Dowels

Robot joints are full of small, high-precision cylindrical parts — dowel pins, output shafts, encoder shafts, sensor mounts. Swiss-type lathes, with their guide bushing support, hold concentricity and surface finish on these parts that conventional turning cannot match.

Typical Swiss capabilities we bring to robotics work:

• Length-to-diameter ratios up to 20:1 without noticeable deflection
• Diameter tolerances within ±2.5 μm
• Surface finish Ra 0.4 μm as-turned, better with a burnishing pass
• Complete part production — turning, milling, drilling, threading, cross-features — in one setup

For a batch of 500 encoder shafts, Swiss machining produces a completed part per cycle without secondary operations, at a per-part cost that conventional lathe-plus-milling routing cannot approach.

EDM for Intricate Features: Splines and Tight-Entry Slots

Some features are simply not producible by rotating tools. Internal splines with narrow entries, sharp internal corners in tight pockets, and hardened components with post-heat-treatment feature requirements all fall into EDM’s domain.

Wire EDM excels at through-features — splines, cam profiles, keyways in hardened components. Surface finish Ra 0.4 μm and tolerances within ±5 μm are achievable in production.

Sinker EDM handles closed-bottom features — small pockets, blind slots, and complex 3D cavities. It’s slower and more expensive than milling but often the only viable process for certain drive component internal features.

Additive Manufacturing: Rapid Prototyping with Multi Jet Fusion and SLS

Additive manufacturing has earned its place in the robotics R&D cycle. For prototype housings, brackets, and non-load-bearing structural elements, HP Multi Jet Fusion (in PA12) and SLS (in PA11 or PA12) produce parts in 2-3 days that would take 2-3 weeks by machining.

We recommend AM for:

• First-article prototypes to validate fit and cable routing
• Low-volume tooling — jigs, gauges, assembly fixtures
• Non-critical secondary structural elements in demonstration robots

We steer customers away from AM for:

• Load-bearing structural elements in production robots
• Surfaces requiring machined-quality precision (bearing seats, sealing surfaces)
• Applications with dynamic loading and fatigue concerns

Metal additive manufacturing — DMLS, LPBF — has a growing but still limited role in production robot joints. Post-processing costs (support removal, HIP, machined critical surfaces) usually eliminate the apparent economic advantage for anything but complex, low-volume components with topology-optimized geometry that machining cannot produce.

Quality Control and Inspection Protocols

A joint housing that passes machining but fails final assembly is worse than one that fails at inspection. Our quality process for robot joint components follows a simple sequence: measure, characterize, correct.

First-article inspection uses a coordinate measuring machine (CMM) to verify all GD&T callouts against the drawing. For features critical to assembly — bearing bores, motor mounting patterns, sealing surfaces — we generate a full deviation report referenced to the design datums. This is the point at which small drawing ambiguities become apparent, and we resolve them with the customer before running the balance of the batch.

Production inspection uses a mix of in-process gauging (bore gauges, pin gauges, height gauges) and CMM sampling. Cross-roller bearing bores are 100% inspected because their tolerance is tight and the failure mode is expensive. Cosmetic surfaces and non-critical features are sampled per an agreed AQL.

Surface finish measurement uses a contact profilometer for critical bearing seats and sealing surfaces. Surface texture — beyond just Ra — matters for sealing performance, and we can measure Rz, Rmax, and bearing area ratios when specifications require them.

Documentation matters as much as measurement. Every production batch of robot joint components leaves our facility with a Certificate of Conformance, a material certification traceable to mill heat number, and — for critical features — a dimensional inspection report. This traceability is not optional in most robotics supply chains, particularly those serving medical, aerospace, or automotive OEM customers.

Surface Treatments and Finishing Processes

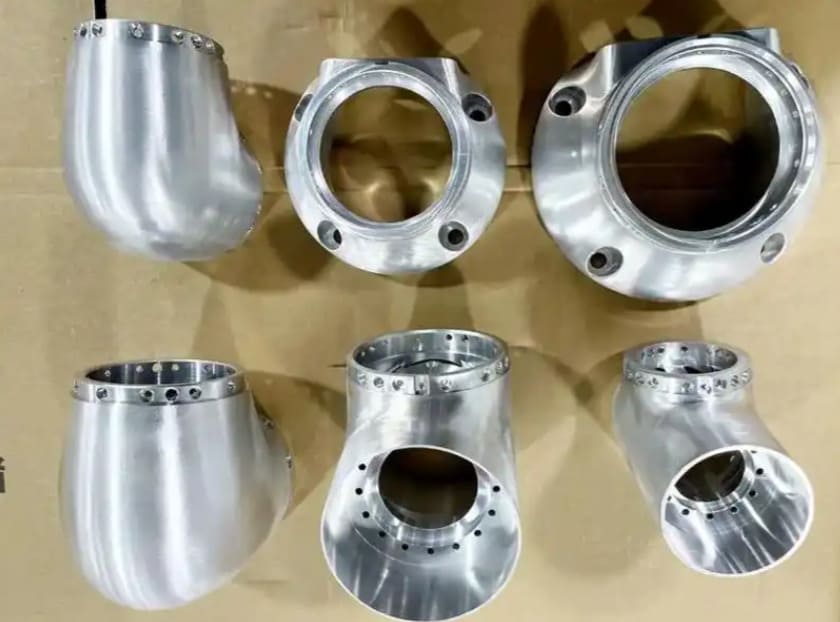

Surface treatment is where a good machined part becomes a durable production component. For robot joints, three treatment families dominate.

Hard Anodizing and Micro-Arc Oxidation for Aluminum Components

Standard Type III hard anodizing produces a ceramic-hard aluminum oxide layer 25-75 μm thick. Surface hardness reaches 500-700 HV (compared to roughly 150 HV for bare 6061), wear resistance improves by an order of magnitude, and corrosion resistance is transformed.

For robot joint housings, we specify hard anodizing on:

• External surfaces exposed to handling, transport wear, or cleaning chemicals
• Bore surfaces that carry seals but not bearings — the coating changes the bore dimension by roughly half the coating thickness and affects bearing preload
• Wear surfaces on cable channels and access covers

That bearing-seat exclusion is one of the most common design oversights we catch during review. A drawing that says “hard anodize all over” applied to a housing with a critical bearing bore will produce parts that measure correctly before coating and out of tolerance after. The fix is either to mask the bore before coating or to specify a slightly oversized bore that lands in tolerance post-coating — both add cost and complexity.

Micro-arc oxidation (MAO), also called plasma electrolytic oxidation, produces even harder coatings — up to 1500 HV — with excellent dielectric properties. It’s more expensive and has a rougher as-deposited surface, but for the most demanding wear applications it’s the coating of choice.

Dry Film Lubricants and Chemical Smoothing Applications

Dry film lubricants — MoS₂ and PTFE-based — reduce friction on sliding contact surfaces without the contamination risks of oil or grease. They’re used on cable channel wear surfaces, sliding cover interfaces, and assembly aids. Application is typically by spray-and-cure or dip-and-cure processes.

Chemical smoothing — controlled etching that reduces surface roughness — is a specialty process used on additive manufactured components. AM parts with as-printed roughness Ra 8-15 μm can be smoothed to Ra 1-3 μm through chemical smoothing, improving fatigue behavior and making secondary surface treatments more effective.

Thermal Management: Coefficient of Thermal Expansion Considerations

Thermal expansion mismatches between joint components can cause bearing preload changes, encoder misalignment, and fit variation between mating parts. The coefficients you’re working with:

• Aluminum: ~23 × 10⁻⁶ /°C
• Steel: ~11 × 10⁻⁶ /°C
• Titanium: ~9 × 10⁻⁶ /°C
• PEEK: ~50 × 10⁻⁶ /°C

For a joint that operates from 15°C to 65°C — a common range for industrial robots — a 100 mm aluminum bearing bore will expand by roughly 115 μm, while a steel bearing shaft in the same bore will expand by only 55 μm. That’s a preload change of about 60 μm — potentially enough to change bearing behavior significantly.

Sound joint designs account for this. Common strategies include using matching materials at critical interfaces, specifying bearings designed to accommodate high thermal gradients, and — where possible — allowing thermal float in the axial direction while constraining the primary load axis. Ignore this and you’ll see failure modes in the field that never appeared in bench testing.

Conclusion

Robot joints are where design intent meets manufacturing reality. Every component we’ve covered — from links and housings through motors, reducers, bearings, and shafts — reflects trade-offs between mass and stiffness, precision and cost, capability and reliability.

If you take one thing from this guide, let it be this: material selection, tolerance specification, and process choice are not independent decisions. A 7075-T6 flange with tight tolerances will fail if you specify it in cast form. A cross-roller bearing seat won’t perform if you route it through a coating step that changes the bore dimension. A humanoid joint housing designed for 3-axis machining will cost three times what it needs to.

At Richconn, we work with robotics teams from early design review through production. If you’re evaluating suppliers for a new joint component — whether prototype quantities or ongoing production — we can help you pressure-test the design for manufacturability before your first chip is cut. That upfront collaboration is where most of the real cost and lead-time savings live.
