Robotic Arm Manufacturing: Process, Types and Applications

Modern manufacturing heavily depends on robotic arms. These machines give better efficiency & precision while decreasing human errors in multiple tasks.

This blog post covers different types of robotic arms, their important parts, production methods and industrial uses in different sectors.

What is Robotic Arm Manufacturing?

In simple terms it is a manufacturing process that creates programmable mechanical devices that automate industrial tasks. These machines mimic the function of a human arm through detailed engineering.

Each arm uses specific components including actuators, joints & sensors. These elements permit robots to handle dangerous or complex operations with constant precision.

Types of Robotic Arms in Manufacturing

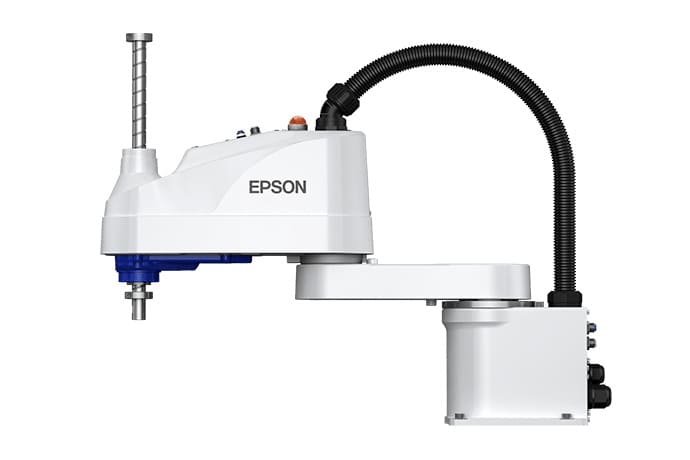

SCARA Robots (Selective Compliance Articulated Robot Arm)

SCARA robots combine flexible horizontal motion with inflexible vertical motion. These units work great in packaging operations as well as in electronics manufacturing. They perform assembly, pick-&-place and dispensing tasks very well.

The SCARA design offers an efficient combination of stability & flexibility which makes these robots great for automated tasks with light payloads in limited spaces.

Articulated Robots

Articulated robots have multiple rotary joints connected to a rotating base. They are built like a human arm and have more than five joints. These robots can reach any point in their operational field due to their broad range of motion.

Many Industries prefer articulated robots because of their flexibility. They perform welding, assembly as well as painting tasks with great precision. This adaptability makes them the most important industrial robots in manufacturing facilities.

Collaborative Robots (Cobots)

Collaborative robots work safely in shared spaces with humans. They don’t need safety barriers and can do dangerous, repetitive as well as strength requiring tasks. This permits human workers to focus on difficult tasks that need mental abilities.

Cobots include a number of safety features. Their force sensors detect collisions & respond by immediately stopping operation. Similarly their rounded exterior design decreases the risk of injury during accidental contact.

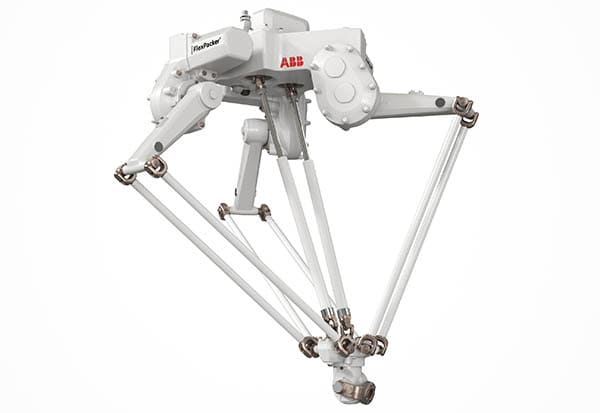

Delta Robots

Delta robots use 3 arms in a parallel link structure. These arms are connected to a central platform and enable precise movement on the X, Y and Z axes. Their compact design allows for overhead mounting which saves floor space, thus increasing workplace efficiency.

Pharmaceutical, food and electronics industries make extensive use of Delta robots. These units perform assembly as well as packaging tasks with exceptional accuracy & speed.

Main Components of Robotic Arms

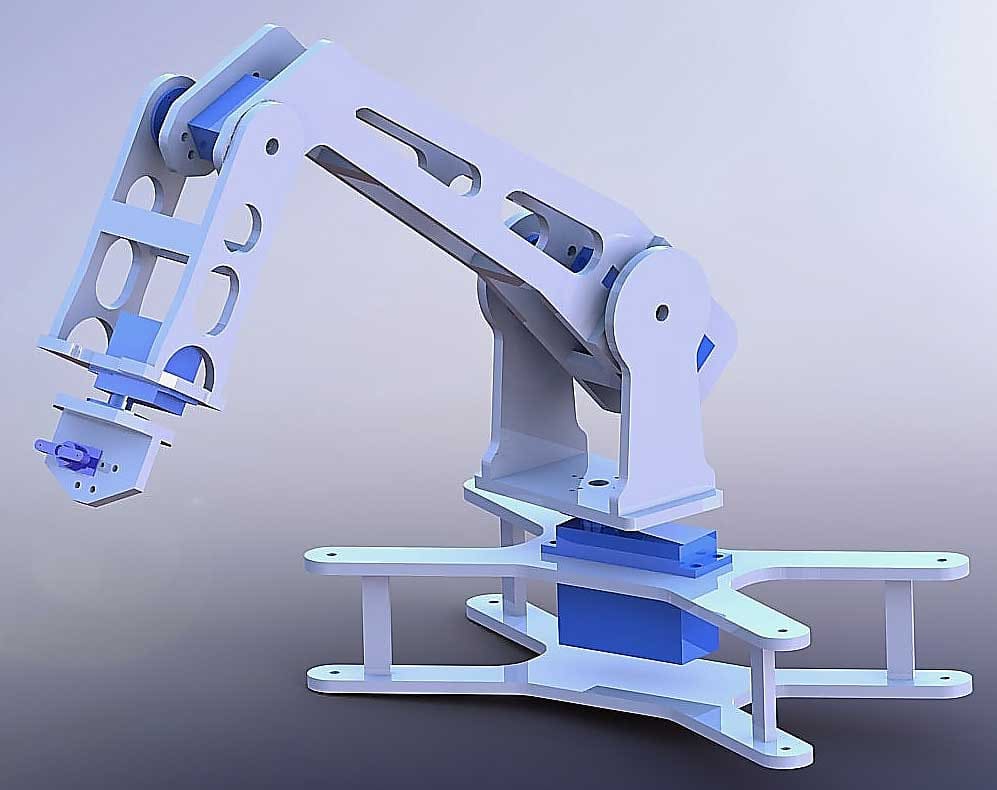

Mechanical Structure

Joints, links and base components form mechanical structure of the robotic arms. These elements form the physical framework that determines necessary operational parameters. This structure defines maximum reach, payload capacity and available degrees of freedom of the arm.

Controllers

Controllers act as central processing units of robotic arms. These units process programmed instructions and convert them into arm movement by giving signals to actuators. Each controller coordinates multiple functions including speed regulation, path planning as well as torque control.

Sensors

Electronic sensors measure & recognize physical properties in the operational space of robotic arm. They transmit necessary data to controllers about proximity measurements, position coordinates, force application as well as visual information. This continuous feedback permits safe operation which leads to collision prevention in dynamic manufacturing environments.

Actuators

Actuators generate power in robotic arms by converting electrical energy into mechanical motion. These components perform precise movements at specific joints with positional accuracy as well as precise speed. Actuators control all physical manipulations & operations of robotic arm.

End Effectors

End effectors are attached to the end point of robotic arm to perform specific tasks. These components interact directly with the workpieces through various operations. These interactions include material handling, cutting operations as well as material processing operations.

Manufacturing Process of Robotic Arms

Step 1: Design & Planning

The production process begins with extensive strategic planning & design development. Engineers use specialized CAD software to create detailed models. These models define the dimensions, structure and range of motion of arm.

The planning phase focuses on main functional parameters including working envelope specification, degrees of freedom, payload limitations and motion control constraints.

Step 2: Selection of Material

Material selection is the second stage of production. Engineers select materials based on intended application requirements. High performance industrial arms need alloy steels for durability & strength. In applications that prioritize energy efficiency, magnesium & aluminum alloys are best for their lightweight properties.

Step 3: Fabrication Techniques

Different parts need distinct fabrication methods.

• CNC machining creates joints with precise tolerances of ±0.001 millimetre.
• Structural components depend on traditional casting & forging processes.
• 3D printing technology allows fast prototyping & production of complex geometric parts.

Step 4: Assembly Process

The base structure serves as foundation for assembly of robotic arm. Technicians install mechanical components in a special order. They start at shoulder joint and work outward through each connection point. The next step is installation of actuators at each joint. The teams then add sensor networks throughout the structure. Final mechanical step involves adding end effectors to complete assembly process.

Modern production lines use automated testing systems. These systems verify the function as well as compatibility of each component during assembly.

Step 5: Quality Control & Testing

Strict quality control measures protect the entire manufacturing procedure. Robotic arms undergo detailed inspections to confirm that they meet design requirements. The testing phase includes burn-in tests where the arms move repeatedly under specified loads. Electrical safety checks verify proper isolation. These tests confirm that each arm gives dependable performance in its targeted workplace.

Applications of Robotic Arms

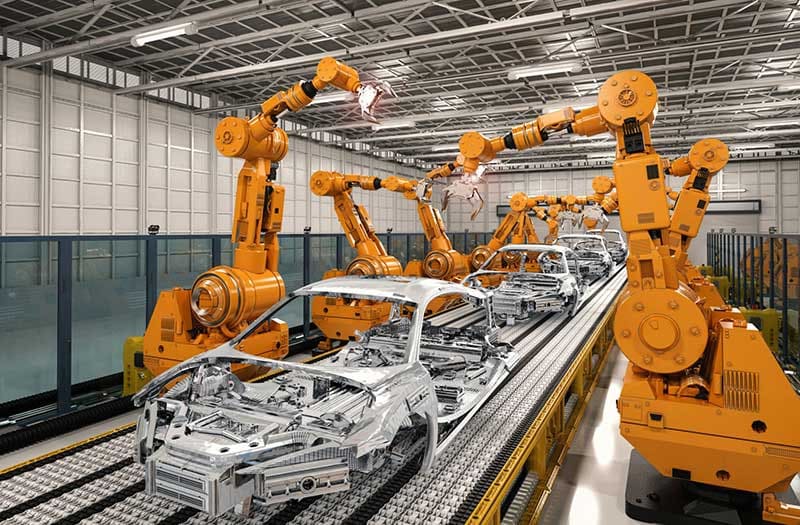

Automotive

Robotic arms perform important role in automotive manufacturing. They spot weld vehicle body panels with great accuracy. These systems apply layers of paint evenly to surfaces. They also perform complex assembly tasks including screw driving operations & windshield installation.

These arms decrease workplace safety hazards & protect workers from hazardous materials like paint fumes. They also greatly increase production efficiency.

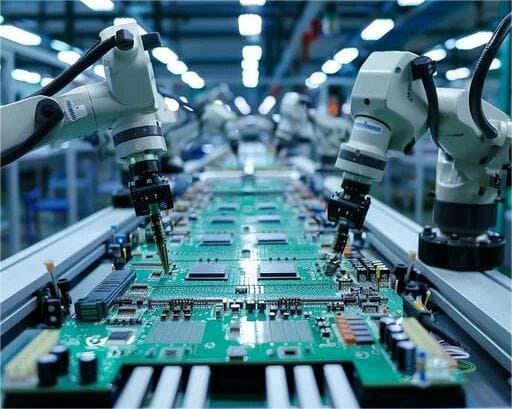

Electronics Manufacturing

Electronics producers depend on robotic arms for precise assembly work. These machines are adept at soldering tasks & component placement. They achieve sub micron accuracy when handling small parts. These arms also carry out detailed quality inspection of circuit boards.

Their consistency & accuracy lead manufactures to more dependable electronics products.

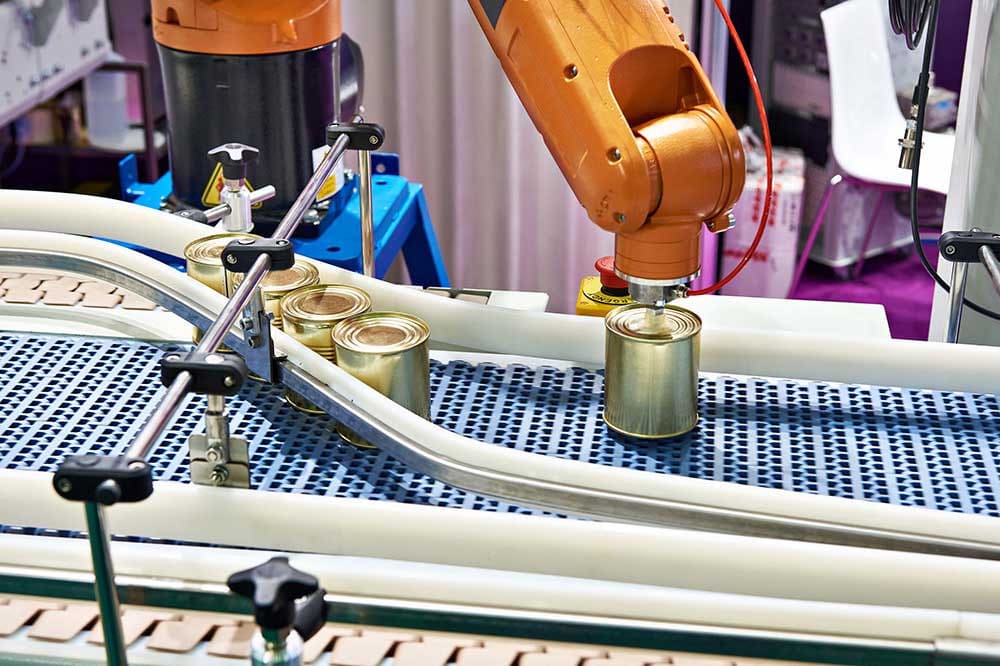

Beverage & Food

Beverage and food sector uses robotic arms for a variety of tasks. These include product sorting, packaging operations as well as bottle handling. These arms also perform precise filling & capping functions.

They efficiently pack products into containers and sort items by type or size. Additional tasks include product labeling, quality assurance and palletizing for shopping & storage.

Healthcare

Healthcare facilities implement robotic arms in a number of applications. These systems assist surgeons during minimally invasive procedures. They help patients perform continuous movements during physical therapy. In laboratories these arms automate routine tasks like simple analyses.

Logistics

Robotic arms transform logistics operations through multiple functions. They execute palletizing & depalletizing tasks efficiently.

These arms manage the unloading & loading of trucks, sorting packages as well as bin packing tasks. They also help in inventory monitoring.

In addition Robotic arms allow continuous operations without any fatigue. They decrease workplace injuries from lifting heavy objects as well as increase operational efficiency.

Advancements & Trends in Robotic Arm Manufacturing Technology

Integration of Machine Learning & Artificial Intelligence

Machine learning & AI have revolutionized the capabilities of modern robotic arms. These technologies now allow robots to perform tasks with improved functionality through a process of self learning.

Advanced sensors collect environmental data that AI systems analyze to guide the robot’s actions. Through reinforcement learning techniques, robotic arms can automatically learn complicated tasks without requiring explicit programming for each operation.

Incorporation of Vision Systems

Advanced vision technology has transformed the operational capabilities of robotic arms. The combination of specialized lighting systems, 3D & 2D cameras and vision software creates a complete visual processing system.

Robots can accurately identify & track movements of objects in their workspace. These capabilities allow automatic adjustments during operation. Enhanced visual processing decreases need for precise positioning of objects as well as increases quality control tasks & performance in pick and place operations.

Soft Robotics Development

The field of soft robotics has introduced a revolutionary alternative to traditional rigid robotic systems.

Now manufacturers can create flexible robotic arms using materials like flexible polymers & silicone rubbers. The inherent flexibility of these materials allows safe collaboration between robots & humans.

These systems attain greater degrees of freedom compared to stiff alternatives.

Some new innovations involve fluidic elastomer actuators that contain proprioceptive sensing abilities.

Evolution of Digital Twins

Digital Twin technology has redefined robotic arm manufacturing process through virtual system replication.

Operators can create exact digital copies of real robotic systems to analyze & monitor performance. These virtual models permit comprehensive configurations as well as testing of new designs before actual production. This technology predicts possible system faults and helps in optimizing real-time operational parameters as well.

To Sum up

The main priority of modern industries is now robotic arms manufacturing. These systems maximize operational efficiency, give great precision in operations and adapt to different tasks.

If you require CNC machining services for robotic arm manufacturing, then RICHCONN is best option. You can contact us anytime.

Related Questions

How robotic arms are calibrated during the manufacturing process?

Manufacturers use kinematic calibration to guarantee accurate operation. This process identifies & adjusts main structural parameters that  include orientation & position of joints in the arm’s framework.

What are the main factors considered in the selection of materials for robotic arms?

Material selection should balance strength, stiffness and weight. Steel alloys and aluminum alloys are among the best choices. These materials maintain excellent control while effectively resisting operational forces through their lightweight properties.

What are the considerations for maintaining precision in high speed robotic arms?

High speed precision requires three main components that includes advanced control systems, absolute encoders for position accuracy as well as integrated sensors. These components work together to monitor velocity, position and acceleration during operation.

How do robotic arms handle different types of objects?

Advanced sensing systems enable object variation handling. Vision systems handle different sizes & shapes. Torque/force as well as tactile feedback mechanisms permits arms to adjust their movement & grip to size & weight of different objects.

What is the impact of 3D printing in manufacturing robotic arms?

3D printing technology permits manufacturers to create intricate parts with great precision. It facilitates the integration of internal channels for pneumatic & wiring systems. In addition it also allows for on demand production of spare components.

What are the challenges in designing end effectors for robotic arms?

End effector design faces three main challenges that are payload-specific adaptations, versatility in object handling as well as weight optimization without compromising strength. Each aspect requires careful professional evaluation.
