You may have seen sandblasting & shot peening as common surface treatments in multiple industrial uses. At first glance these methods can seem similar but in reality they are not; each has its own specific purpose and each gives different results.
This article will clarify main differences between sandblasting and shot peening which include their methods, equipment used, as well as their uses.

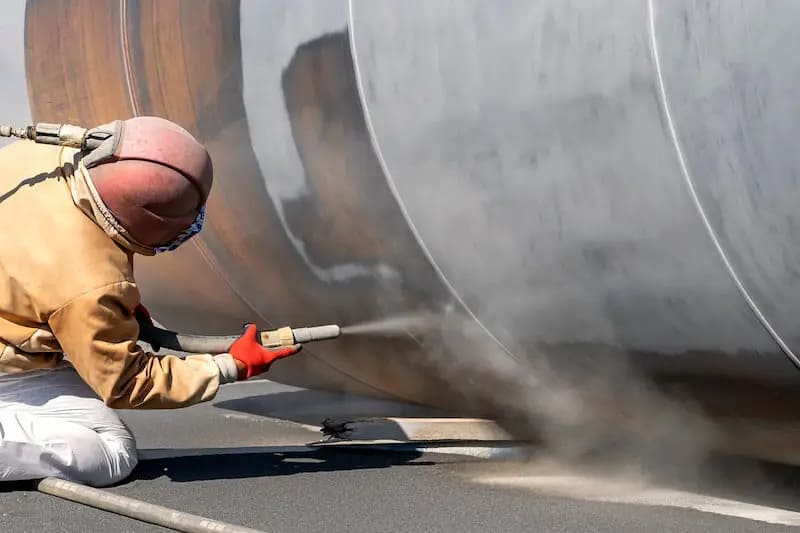

What is Sandblasting?
To put it simply, sandblasting or abrasive blasting involves the use of high‐pressure abrasive materials to clean, prepare or smooth a surface. Common abrasive materials that get used are glass beads, sand and steel grit. This process removes contaminants such as paint, rust or soil.

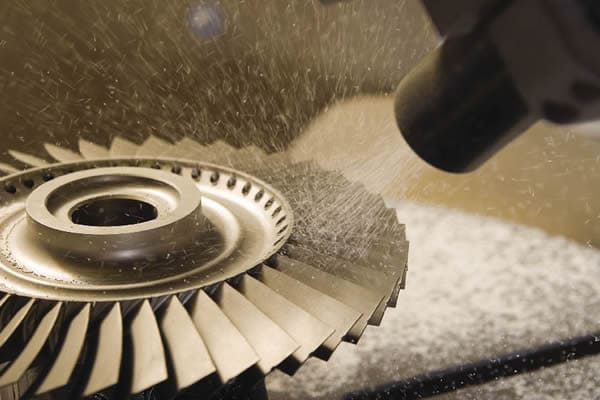

What is Shot Peening?
Basically shot peening is a cold working technique that is developed to reinforce metal surfaces. In this technique spherical particles made of ceramic, steel or glass hit the metal surface at great speed.
This bombardment produces compressive residual stresses within the material. These stresses decrease tensile stresses and help avoid cracks which eventually extends the lifespan of metal.
Also See: Surface Finish_ The Key to Quality & Aesthetics in Manufacturing
Top 10 Main Differences between Sandblasting and Shot Peening
1. Process Control
Sandblasting: Sandblasting involves handling variables such as the pressure used, type of abrasive as well as nozzle spacing to attain uniform results. But as the primary goal of sandblasting is surface roughness or cleanliness, it usually has a lesser degree of accuracy than shot peening.
Shot Peening: Tight control of parameters is important to attain consistent compressive stress distribution in shot peening. Technicians carefully monitor shot intensity, size as well as coverage using modern equipment such as X‐ray diffractometers & surface roughness gauges.
See Also: A Complete Guide to Surface Roughness
2. Mechanism
Sandblasting: In Sandblasting, compressed water or air forces abrasive particles such as glass beads or sand in direction of the target surface. These particles impact the surface and remove contaminants such as dirt, rust or paint. So the cleaned surface changes into a rough surface which increases the ability to fuse with the coating.
Shot Peening: Shot peening involves directing round particles－such as ceramic or steel shots－at a metal surface under controlled environment. It plastically deforms the surface layer which produces compressive residual stresses. This stress increases the fatigue resistance & durability which eventually strengthens the metal.
3. Material Removal
Sandblasting: The main purpose of sandblasting process is to eliminate rust, coatings or debris from surfaces. This process depends on different factors such as pressure levels & choice of abrasive.
Shot Peening: Shot peening is recognized as a non‐destructive technique and it does not remove surface material. Rather it compresses and strengthens the surface layer through controlled impact.
4. Surface Effect
Sandblasting: The primary effect of sandblasting is to roughen the surface, which increases the adhesion of paints or coatings. It also removes oxide layers & contaminants. However prolonged sandblasting can create surface roughness which can reduce corrosion protection.
Shot Peening: Shot peening improves surface properties mainly by producing compressive residual stresses. These stresses increase crack resistance and fatigue life. Also it improves the treated layer by refining the grain structure and densifying the microstructure. This results in better wear resistance & hardness.
5. Surface Hardening
Sandblasting: The main purpose of sandblasting is to rough & clean surfaces and it has little effect on surface hardness. Although it can slightly maximize the surface texture, it does not produce structural changes or compressive stress. This is why sandblasting is not good when better durability or fatigue resistance is needed.
Shot Peening: Shot peening greatly hardens surfaces by creating a layer of compressive stress. This layer significantly increases fatigue resistance, strengthens the material & helps stopping crack propagation as well.
6. Equipment
Sandblasting: The equipment used in sandblasting is comparatively simple－i.e pressure or suction blast machines. These machines throw abrasives such as glass beads or sand at great speeds. Even though it is cost‐effective, sandblasting equipment needs periodic maintenance because the abrasive media wears down nozzles & pipes.
Shot Peening: Shot peening uses special equipment that are usually CNC‐controlled to guarantee accuracy. These machines use round media such as steel or ceramic shots and are made for durability & precision. For large‐scale or complex jobs, modern shot peening systems may include rotary indexing or ultrasonic mechanisms.
7. Cost
Sandblasting: In most cases sandblasting is a more budget‐friendly method for surface cleaning. Depending on the intensity & material, costs usually range between $2‐$5 per square foot. Even so cleaning efforts and ongoing costs for abrasive materials can increase the complete operational budget.
Shot Peening: Shot peening has greater starting costs because of special tools needed. Regardless of this initial cost, it gives long‐term benefits related to budget by increasing strength of parts. Furthermore automatic shot peening systems also reduce labor costs.
8. Effect on Fatigue Life
Sandblasting: Removing surface defects through sandblasting can give a little enhancement in fatigue life but its effect is limited. This process does not generate compressive stresses and at extreme intensities it can even generate stress risers. In some situations these stress risers can reduce fatigue resistance.
Shot Peening: Shot peening significantly increases fatigue life. By generating a layer of compressive residual stress, shot peening prevents the initiation of cracks and also slows their propagation.
9. Uses
Sandblasting: Sandblasting has a variety of uses that mainly focus on cleaning paint, rust, or contamination from different surfaces. It is mostly used on vehicles, machinery, buildings as well as boats. Furthermore it is very useful for decorative uses on materials such as wood or glass and it also prepares surfaces for coating or painting.
Shot Peening: Shot peening performs an important role in areas where fatigue resistance & strength are necessary. Common uses include strengthening automotive springs, gears, turbine blades as well as aerospace parts.
10. Health & Environmental Considerations
Sandblasting: The sandblasting process poses significant health & environmental risks. It produces hazardous dust specially when using silica‐based abrasives. Workers exposed to this dust are in danger of having respiratory diseases such as silicosis. For this reason operators must strictly follow safety standards that include protective clothing and using respirators.
Shot Peening: Shot peening has lesser health & environmental risks than sandblasting. It uses recyclable materials such as ceramic or steel shots which greatly decreases dust production. The controlled nature of shot peening reduces health risks as well as pollution. As a result this process is safer for both the environment and operators.
Advantages and Disadvantages of Sandblasting vs Shot Peening
Sandblasting
Advantages
- Sandblasting effectively cleans materials such as wood, metal and concrete which includes surfaces with hard‐to‐reach areas or intricate shapes.
- It rapidly removes paint, rust as well as other contaminants which makes it very effective for large‐scale industrial use.
- This process decreases time required and manual labor which saves costs in large‐scale industrial manufacturing.
- By creating a rough surface sandblasting greatly increases coating durability & paint adhesion.
Disadvantages
Regardless of these advantages sandblasting also has some disadvantages.
- Dust generated during sandblasting causes respiratory health risks especially with silica‐based abrasive materials, if appropriate safety measures are not taken.
- If not done correctly sandblasting can damage or warp thin or delicate objects due to its abrasive nature.
Shot Peening
Advantages
- Shot peening prevents the growth of microcracks by balancing tensile stresses and also decreases the chances of stress corrosion cracking.
- It maximizes fatigue resistance. It increases the useful life of parts by producing compressive stresses on the surface.
- Unlike abrasive methods, shot peening improves material properties by controlled impacts without removing the material.
- This technique increases the strength of metal surfaces. As a result your parts become more resistant to fretting, corrosion as well as wear.
Disadvantages
- Shot peening often gives the surface a pebbly look. In some applications, extra processing may be required to smooth out this texture.
- It is more costly at the start due to the special media & equipment. This initial investment needed can be quite high.
- If the intensity is not controlled properly then shot peening can cause deformation in delicate or thin parts.
Factors to Consider When Selecting Between Sandblasting and Shot Peening
Desired Performance and Surface Characteristics
Keep in mind your desired results when picking the right method. Sandblasting is good in cleaning surfaces or preparing them for paint due to its abrasive nature. But if your primary goal is to strengthen parts & increase fatigue life then shot peening is the better choice.
Material Properties and Type
Your choice between sandblasting & shot peening should mainly depend on the material you are working on. Sandblasting can be used on a variety of materials and is effective for plastics, metals as well as glass surfaces. On the other hand shot peening is good for metals such as aluminum, titanium and steel, especially if your aim is to increase durability & fatigue resistance.
Cost Implications and Budget Constraints
Sandblasting is generally a more budget‐friendly solution for large‐scale cleaning tasks.
Although shot peening is costly due to its accuracy requirements and special equipment, it can lead to long‐term savings due to the huge increase in part`s life.
Safety and Environmental Considerations
You will also need to consider safety & environmental factors. Sandblasting creates a lot of pollution as well as dust which means you will need tight safety protocols. Shot peening is relatively environment friendly but it does need accurate controls to protect your parts from damage.

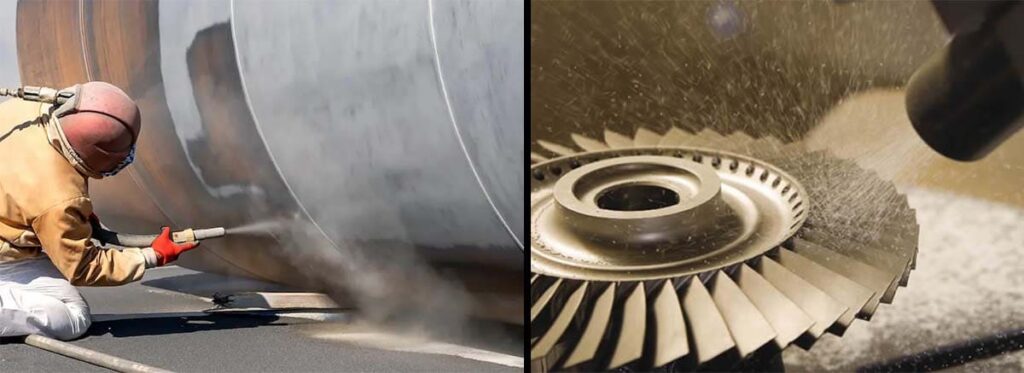

Sandblasting vs Shot Peening－Which One Is Best?
Which one is better－sandblasting or shot peening? It depends on your particular industrial preferences & needs.
Sandblasting is great for surface preparation, rust removal as well as cleaning. It is effective if your goal is surface restoration or painting. Although sandblasting is budget‐friendly and works on different types of materials yet it does not improve durability.
On the other hand shot peening is perfect when your main priority is to increase their fatigue resistance, strengthen metal components as well as avoid cracks in high‐stress situations. Although it has a greater initial cost, the accuracy of shot peening and its ability to increase the life of your parts usually make up for this big investment.
At the end your choice should fit your budget constraints & performance goals.
To Sum Up
Sandblasting & shot peening on plastics are two surface treatment methods that are designed for particular industrial purposes. Sandblasting is specifically good for preparation tasks and surface cleaning. Whereas shot peening fundamentally increases their durability, strengthens the materials as well as fatigue resistance.
If you want to know which surface treatment is optimal for your manufacturing needs, then contact Richconn today. Our expert team will help you choose the right one.
Related Question
What safety measures are necessary when sandblasting?
Operators should wear respirators, protective suits, gloves as well as goggles. Periodic equipment testing, appropriate ventilation and effective dust control measures are also very important to prevent injuries & respiratory problems.
Can sandblasting warp thin objects?
Yes sandblasting can warp thin objects if there is too much impact or heat during the procedure.
How to maintain sandblasting equipment?
You should periodically check sandblasting equipment for leaks, monitor pressure levels as well as clean nozzles. Also it is important to replace worn parts promptly and lubricate moving parts.
What is the difference between shot blasting & shot peening?
Shot blasting cleans surfaces through the process of abrasion. Whereas shot peening uses round media that generate compressive stresses which maximize fatigue resistance.
Is shot peening method good for treating welded joints?
Yes shot peening can be smoothly applied to welded joints. It helps reduce defects and increases fatigue strength in these areas.
What alternative can be used instead of sandblasting method for surface cleaning?
Alternative surface‐cleaning methods include dry ice blasting, soda blasting, walnut shell blasting & laser cleaning. These methods can lower the risk of material distortion and decrease the environmental impact in contrast to traditional sandblasting.
Is shot peening good for automation in large‐scale production?
Yes CNC‐controlled systems can automate shot peening which guarantees consistent & accurate results for large‐scale production.
