Chip testing in manufacturing & development relies on semiconductor test sockets. These tools connect integrated circuits to test equipment without soldering. You can use them with many package types and applications. In this blog post you will learn about the types, uses and main benefits of test sockets in today’s electronics.
What are Semiconductor Test Sockets?
In simple terms semiconductor test sockets are temporary connectors which hold chips in place during testing. They create an electrical connection between the automated test equipment and the chip. With these sockets you can run precise and repeatable tests at speeds of several gigahertz (GHz). They support a broad temperature range between -55°C & 150°C. This helps engineers test chip reliability and performance before final assembly.
Main Parts of Test Sockets
Three main components make up a semiconductor test socket and each one is crucial for reliable chip testing.
Socket Body/ Cartridge
Socket body is the main structure and is mostly made of strong metal or plastic. Its design aligns the contacts with high accuracy and keeps the chip in place even after thousands of test cycles.
At RICHCONN we use advanced CNC machining and precise fabrication to create socket bodies which meet tight tolerances. This assures reliable performance even in tough high‐cycle conditions.
Contact Elements
Contact elements include pogo pins, spring pins & elastomers. These parts provide the electrical connection. Pogo pins work well for fine‐pitch layouts, spring pins support high current and elastomers give low insertion force with support for high frequencies ─ sometimes above 40GHz.
Also See: 27 Different Types Of Pins_ A Complete Guide
Mechanical Assemblies
Mechanical assemblies such as retainers, lids & frames hold the device under test in place and keep it aligned. These parts stop the chip from moving during testing. They make every test cycle consistent and lower the risk of incorrect readings or damage.
Types of Test Sockets
Test sockets fall under a number of categories. These categories depend on how the socket connects, its use and the package type it supports. In this section you will learn about each type so you can choose the right socket for your needs.
1. By Connection Mechanism
Pogo Pin or Spring Probe Sockets
Pogo pin sockets use spring loaded pins to make electrical contact with the device. These sockets can withstand many test cycles and are highly reliable. Standard pogo pins support up to 2A per pin at 36V. And if you need higher current then custom versions are also available. These sockets work well with high density and fine pitch chips.
Also See: A Complete Guide to Pogo Pins
Elastomer (Conductive Rubber) Sockets
Elastomer sockets use a soft rubber material filled with metal particles to conduct electricity. This design reduces the force needed to insert a chip and protects fragile devices. They can work between temps of –55°C to 150°C. Every contact supports 3 to 5A and each one’s contact resistance is below 100 milliohms.
2. By Package Type
BGA (Ball Grid Array) Sockets
These sockets fit chips by using many solder balls in a grid pattern. They are well-suited to handle high pin counts. Their design also supports good thermal performance. Modern, high density chips often use BGA sockets.
QFN/ WLCSP Sockets
Sockets for Wafer Level Chip Scale Packages (WLCSP) and Quad Flat No‐Lead (QFN) solve the problem of flat, small contacts and tiny footprints. They assure even pressure and keep reliable electrical connections.
PLCC, DIP, ZIF Variants
Plastic Leaded Chip Carrier (PLCC), Dual In‐line Package (DIP) and Zero Insertion Force (ZIF) sockets have both old and new options. PLCC and DIP are still used today. Newer ZIF sockets make it easier to place & remove chips which helps prevent device damage.
3. By Testing Use Case
Manual Sockets
Manual sockets are for low or medium volume testing like debugging or prototyping. You can insert & remove chips by hand which makes these sockets affordable and flexible for R&D work.
Production/ Bench Sockets
These sockets are for high volume testing ─ either automated or semi automated. They have a sturdy build to withstand repeated use. You get consistent and repeatable connections which is important for quality control.

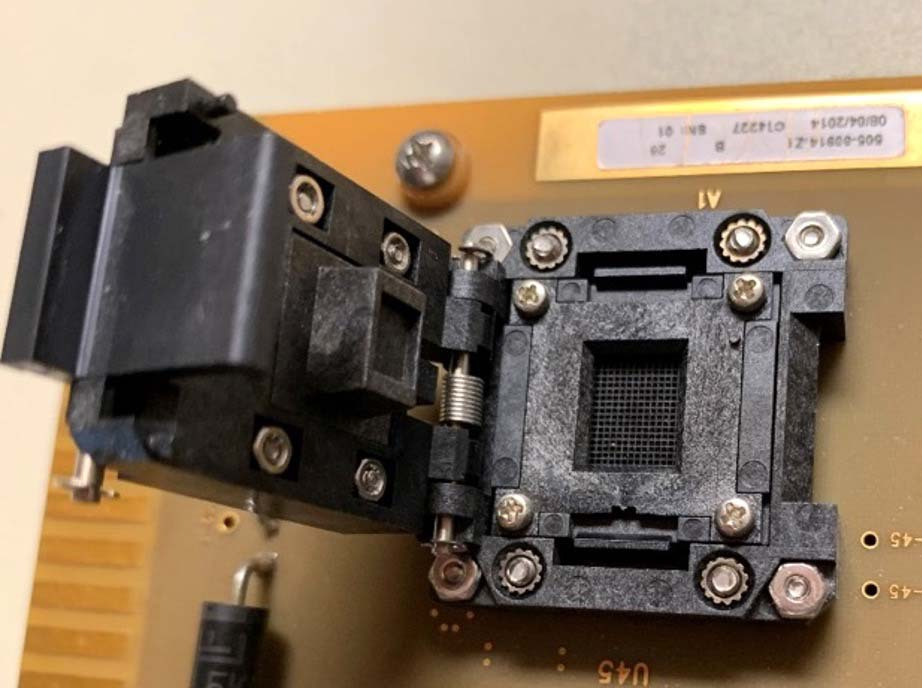

Burn‐In Sockets
Burn‐in sockets support long and high temperature stress tests. Most models work from –40°C to 125°C or more. This testing exposes chips to both electrical and heat stress for hours or days to find early failures.
A suitable surface finish on socket parts can make a big difference in thermal durability. RICHCONN gives several finishing options to help your sockets last longer in harsh environments.
Core Uses of Semiconductor Test Sockets
Semiconductor test sockets are used in many industries and at different stages of chip development. They make testing integrated circuits (ICs) efficient and reliable.
Quality Assurance in Manufacturing
You can use test sockets to control quality during manufacturing. They let you run both stress and functional tests so you can detect defects early and stop faulty chips from reaching customers. Moreover test sockets allow fast and repeatable testing in high volume production. This lowers scrap rates and reduces downtime.
Aerospace, Automotive, Defense
Test sockets are vital in aerospace, automotive and defense industrial fields. These industries have to meet strict reliability standards including ISO 26262 and MIL‐STD. These sockets can withstand harsh environments and assure parts work safely in extreme conditions.
R&D/ Prototyping Environments
Development engineers use test sockets for flexible testing during product development. These sockets let you swap chips and change configurations quickly. This multifunctionality helps shorten development cycle and makes debugging faster.
High Frequency/ RF ICs
Specialized test sockets are needed for high speed and RF chips. They support testing up to 110 GHz. By reducing crosstalk and signal loss these sockets become necessary for radar, 5G as well as broadband applications.
Benefits of Semiconductor Test Sockets
Test Accuracy and Reproducibility
Test sockets give you solid connections. They prevent signal loss and interference. So your measurements are consistent and field defects are less common.
Cost Efficiency
Sockets last through thousands of test cycles because they are made of strong materials and smart design. Their quick change features make them even more productive. These factors not only reduce your testing costs but decreases scrap from damaged parts too.
If you choose a manufacturing partner that is skilled in both manufacturing process & materials —like RICHCONN— you can improve socket durability and cost savings throughout the product’s life.
Reduced Device Damage
Fine pitch and ZIF sockets protect sensitive chips from mechanical stress during testing. You can reduce device damage by using sockets instead of direct soldering.
Faster Throughput
Automated test sockets let you handle devices quickly and they work smoothly with automated test equipment (ATE). This setup shortens test times and gets you to market faster. Moreover meeting tight production deadlines is much easier with this efficiency.
To Sum Up
IC testing in different industrial fields depends on semiconductor test sockets. These sockets handle high frequency signals and survive many test cycles. They also lower manufacturing costs and prevent device damage.
If you need any kind of precise CNC machined parts including pogo pins for test sockets then Richconn is your best option. You can contact us anytime.
Related Questions
How do probe cards and test sockets differ?
Probe cards test chips at wafer level before packaging. Test sockets connect packaged integrated circuits to testers for final tests.
What temperature range can burn‐in sockets tolerate?
Burn‐in sockets can withstand reliability tests between -40°C & 125°C.
What is the typical cycle life of a test socket?
Most test sockets support up to 500,000 cycles of insertion and removal.
When should I use embedded instrumentation instead of external sockets?
Use embedded instrumentation if you need to test inside the chip or if you can’t access the device externally.
Can I use a single socket for different package formats?
No most sockets are designed for particular package formats and don’t work with others.
