For a servo motor to operate properly it is very important that its shaft is machined with precision. This level of precision needs both skill and careful preparation.
In this blog post we will thoroughly explain to you all the steps involved in machining the shaft of a servo motor. You will learn about setup, grinding, turning and testing. By following these stages, you can produce shafts that are reliable and of high quality.

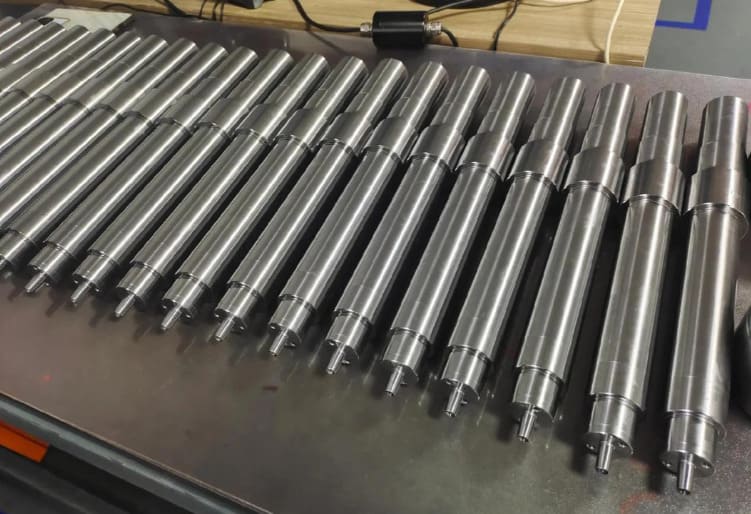

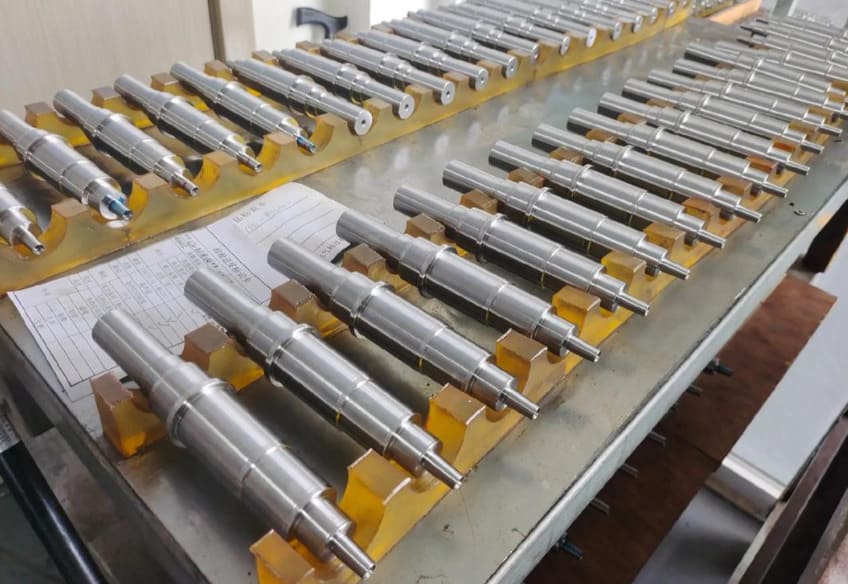

What Is Servo Motor Shaft Machining?
Servo motor shaft machining refers to shaping the servo motor’s main rotating component (i.e shaft). This process uses turning, milling and grinding to transform raw metal into a finished shaft. This shaft connects the rotor to the load and transfers power.
Servo shafts must meet tighter tolerances and higher precision compared to general motor shafts. This is because servo motors operate in closed‐loop systems that constantly adjust position. Any imbalance or flaw in the shaft can cause errors or vibration. Such issues reduce the system’s overall accuracy.
Related Blogpost: A Complete Guide on CNC Machined Shafts
Role of Shaft in a Servo Motor System
Shaft fulfils three primary functions in a servo system.
- It transfers torque from the motor to the load.
- It holds the rotor and its bearings in place.
- It provides a crucial connection point for components like couplings, encoders or gearboxes.
Design & Material Considerations Before Shaft Machining
Planning the design and selection of the material are two extremely important steps before machining. These decisions directly influence how well the shaft will perform and how long it will remain effective.
1. Choosing the Right Shaft Material
Material selection affects both the performance and cost of the shaft.
- SAE 1045 carbon steel is suitable for most general applications.
- If you need greater wear resistance, alloy steels offer better results but are more expensive as well.
- Stainless steel works well in corrosive environments, although it is harder to machine.
Many shafts undergo heat treatment to increase durability. After heat treatment, grinding may be needed to bring the shaft back to precise dimensions.
2. Geometric Design Features Related to Machining
All geometric features must be clearly defined in the design to avoid mistakes during machining. Key details include lengths, diameters and shoulders. You should also specify features like splines, keyways as well as threads.
Servo motor shafts need very tight tolerances. For example, an h7 tolerance is common for shaft diameters to assure a precise fit. Concentricity typically stays within ±0.03 mm to ±0.1 mm and shaft run out is kept between 0.02 mm and 0.025 mm TIR to assure reliable operation.
3. Surface Finish, Hardness & Balance Specifications
A clear specification of surface properties is also essential. Bearing seats and other critical sections need a smooth finish, often around Ra 0.2 to 0.4 μm, to reduce friction. High stress contact areas should have hardened surfaces for better wear resistance.
In high speed applications like servo motors, dynamic balance is also very important. Even a small imbalance of 1 to 5 g-mm can create noticeable vibration.

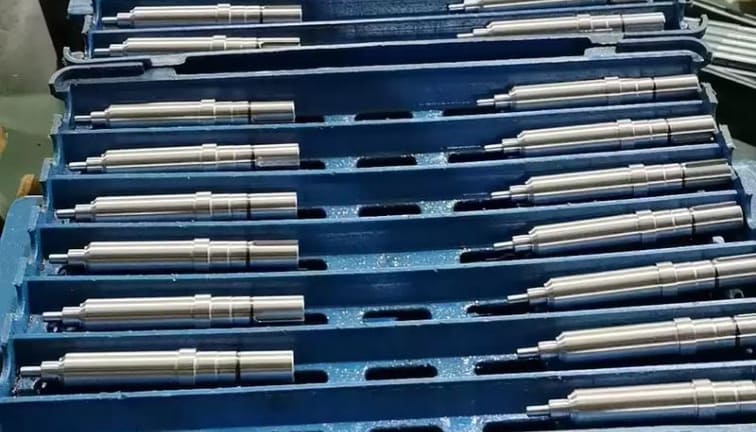

Stages of Servo Motor Shaft Machining
Servo motor shaft machining consists of different precise steps. Every stage needs careful planning to achieve repeatability, tight tolerances as well as reliable quality.
1. Work-Piece Preparation & Setup
Machining begins with preparing the raw stock. This material is normally a metal bar, billet or forging.
During machining, it is essential to secure the workpiece firmly. Fixtures such as collets, chucks or faceplates provide stability and reduce vibration.
Initial operations like facing create a flat and accurate end surface. After this, the workpiece is turned to a diameter slightly larger than the final size. This extra material is reserved for finishing later.
2. Turning & Facing Operations
Once the workpiece is ready, facing and turning are performed on the lathe. Rough turning removes most of the excess material and brings the shaft close to its final profile. Then semi-finish and finish passes are made to improve surface quality and accuracy.
Selection of the right cutting tools is crucial to achieving the best results. Carbide tools or those with wear resistant coatings are commonly used. Coolant and lubrication planning is also important. Proper cooling and lubrication control heat and friction which ultimately keep the shaft cylindrical, concentric and smooth.
At RICHCONN our CNC turning team selects the best cutting tools and coolant strategy for every project. This approach maintains accuracy and surface quality consistently, for both small runs and large scale production.
Related Blogpost: A Complete Guide on CNC Turning
3. Milling & Slotting for Keyways/ Splines/ Threads
After turning, additional features are machined. Keyways are often cut using milling. Splines, which are sets of grooves, can be produced through shaping or hobbing. If fastening is required, threads can also be cut into the shaft.
4. Grinding, Honing & Surface Finishing
When the application needs extremely tight tolerances, grinding is performed after turning. This step produces the final diameter and creates a very smooth surface. Cylindrical grinding is typically used to refine external diameters, particularly for areas like bearing seats.
This method can achieve surface finishes with a roughness average (Ra) below 0.8 μm.When the shaft has internal features such as bearing journals, honing is used to achieve a highly accurate and smooth internal bore. These finishing processes are important to meet particular surface roughness requirements.
5. Heat Treatment Distortion Control & Final Machining
Heat treatment increases the strength and durability of the shaft. However this process can introduce warping or distortion. Machinists address this by leaving a small amount of extra material on the shaft before heat treatment.
After hardening and tempering, they remove this excess material through a final grinding operation. This approach guarantees that the shaft reaches its correct final dimensions and compensates for changes caused by thermal stresses.

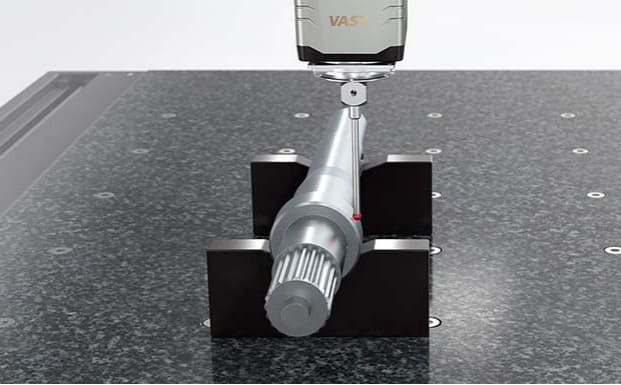

Quality Control, Inspection & Assembly Fit-Up for Machined Shafts
Every servo motor shaft undergoes strict quality control after machining to ensure it meets all required specifications.
Dimensional & Geometric Inspection
Dimensional inspection is the first step. High precision instruments such as dial indicators, micrometers and CMMs check the shaft’s length, diameter and feature positions. These tools can detect even the slightest deviations. They ensure that the shaft’s concentricity and run-out remain within the tight tolerances needed for servo applications.
At RICHCONN, we use calibrated CMMs and specialized shaft gauges to measure length, diameter as well as concentricity with high accuracy. This process helps us identify variations early and guarantees that every servo shaft is ready for dependable performance in its application.
Surface Finish & Hardness Testing
At this stage, inspectors check the shaft’s surface finish and hardness. They use a profilometer to measure surface roughness and verify the needed smoothness for bearing journals. Hardness testing methods like Brinell or Rockwell ensure that the heat treatment has provided the needed durability and wear resistance.
Balancing & Dynamic Testing
Technicians perform dynamic balancing to assure the shaft rotates smoothly at high speeds. They spin the shaft and adjust its mass by adding or removing small amounts of material to correct any imbalance.
Fit-Up in the Motor & Functional Testing
The machined shaft is then carefully installed into the motor assembly. Technicians measure clearance between the shaft and the bearings to confirm a proper fit. After assembly, they perform functional tests on the servo motor to detect excessive run-out or vibration and assess performance under both no-load and load conditions.
Best Practices and Troubleshooting in Shaft Machining for Servo Motors
Best Practices for Ensuring High Quality & Repeatability
- Use stable machine tools and rigid fixtures to minimize vibration and maintain accuracy.
- Select the correct feeds and speeds and optimize tool paths to reduce tool deflection.
- Follow a multi-stage machining process—start with roughing, then semi-finishing and end with finishing passes.
- Control machine temperature to avoid errors caused by thermal expansion.
- Use SPC to monitor process stability and assure consistent part quality from one piece to the next.
Common Machining Problems & Their Solutions
Excessive Run-Out or Eccentricity
Run-out or wobble is a frequent issue. It normally occurs because of fixture misalignment or tool deflection during cutting. To correct this, properly align the workpiece in the chuck and use tooling that is shorter and stiffer.
Poor Surface Finish on the Bearing Journal
A rough finish on critical surfaces is a common problem. It often results from coolant issues or machine vibration. To fix this, adjust the cutting speeds and ensure the setup is rigid.
Post Heat-Treatment Distortion
After heat treatment, shafts often warp or distort because cooling or heating is not uniform. To resolve this, leave a small machining allowance on the shaft. After heat treatment, perform a final grinding pass to eliminate warping.
Balancing Failure
If the shaft fails a dynamic balancing test, it is usually because of uneven material removal during machining which creates an asymmetrical shape. To avoid this, design the shaft with symmetrical features and always perform balancing after all machining steps are complete.
Cost, Lead Time & Sustainability Considerations
Servo motor shafts need high precision which affects both cost and lead time. Tighter tolerances and complicated shapes make machining slower and more expensive. Managing batch sizes and extending tooling life helps control these factors.
Sustainable practices—such as using recyclable materials and reducing waste—lower the lifetime cost of the shaft and have a positive environmental impact.
Experienced manufacturers like RICHCONN can provide feedback on manufacturability and cost efficiency to help keep your project within budget and on schedule.
To Sum Up
Precision is essential in servo motor shaft machining. This machining involves careful steps—beginning with material selection & design and ending with final inspection. Every stage ensures the shaft operates reliably within a closed-loop system.
If you need export CNC machining services for high precision servo shaft then RICHCONN is your best option. You can contact us anytime.
Related Questions
Shaft diameters normally follow h6 or h7 tolerance classes. For most standard sizes and speeds, run-out stays below 0.02 mm.
Use grinding when you need a smooth surface, extremely tight tolerances or when the shaft is hardened after heat treatment.
Leave extra material on the shaft before heat treatment to account for distortion. In the final machining step, remove this allowance to achieve the correct size.
A dynamic balancing grade of G2.5 or better, as specified in ISO 1940, is typically suitable for servo motor shafts. The correct grade depends on the shaft’s speed and size.
