Understanding Side Milling: Types, Uses and Techniques

Side milling is a very important process used in machining to cut and shape materials. This process provides benefits such as proficient material removal and improved precision. In this blog post we will cover the different types of side milling along with techniques and practical applications in different industries.

What is Side Milling？

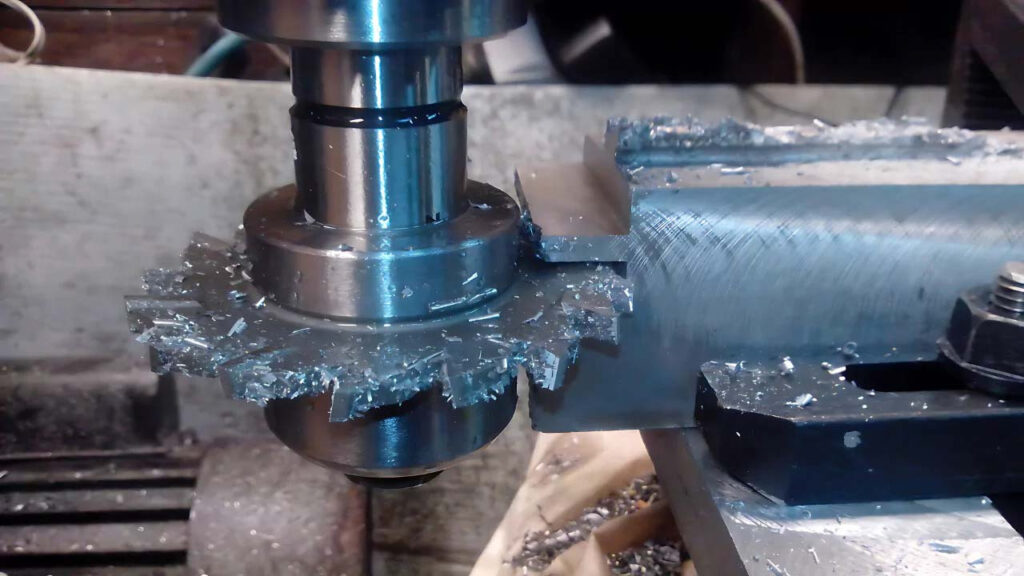

Side milling is a machining process which targets the side of workpiece by engaging the peripheral edges of cutters. This process produces fine slots, precise vertical surfaces and other features. Industries such as energy, automotive, medical and aerospace depend on side milling for complicated profiles.

How Side Milling Works?

Side milling uses a cutter mounted on an arbor. This cutter removes material from the side of the workpiece. When the teeth of the cutter engage the material, this process creates slots, curves or contours. Cutter rotates at a high speed perpendicular to the workpiece and during this the workpiece is continuously fed into the cutter.

This accurate interaction assures precise shaping and better material removal. Moreover good results can only be obtained by carefully balancing important settings such as cutting speed, feed rate and depth of cut.

Types of Side Milling Operations

Plain Side Milling

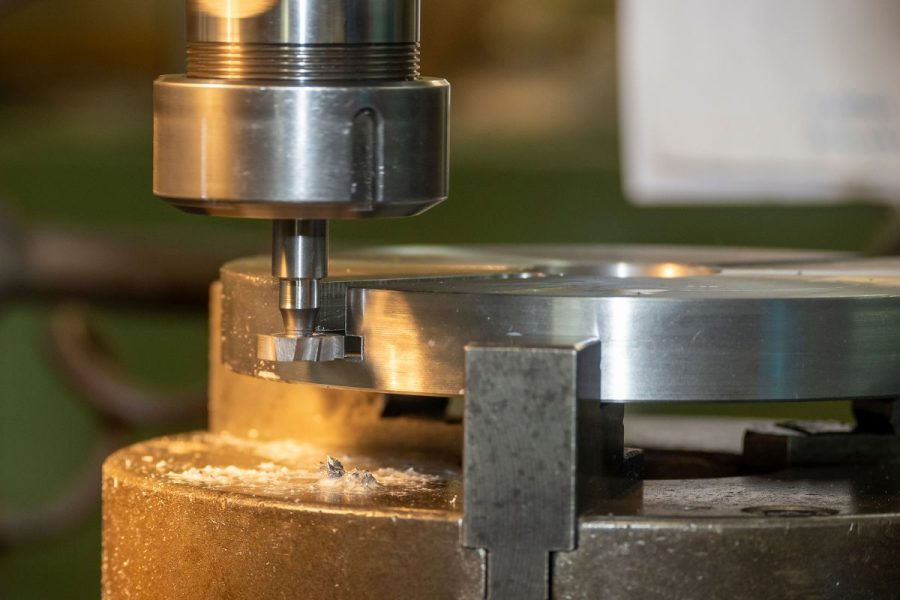

In plain side milling, straight tooth cutters are used to machine flat vertical surfaces on the side of the workpiece. This operation is usually performed by horizontal milling machines because the cutter is parallel to the machined surface. Plain side milling is best for creating grooves, edges and slots. This process guarantees dimensional accuracy and manufactures parts that have uniform, clean profiles.

Half-Side Milling

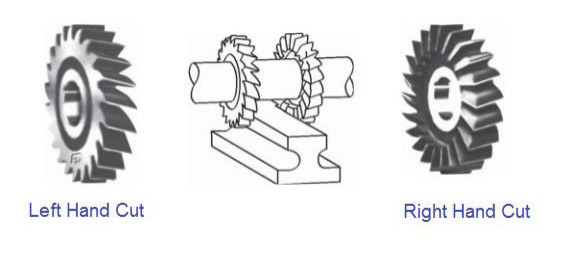

In half-side milling, cutters have teeth only on one side and on the periphery. These cutters are classified as left hand or right hand types based on the direction of cutting. This method is great for creating profiles or edges and contours on workpieces. Its design allows for outstanding material removal and precise machining, especially for edge detailing or complicated geometries.

Staggered Tooth Side Milling

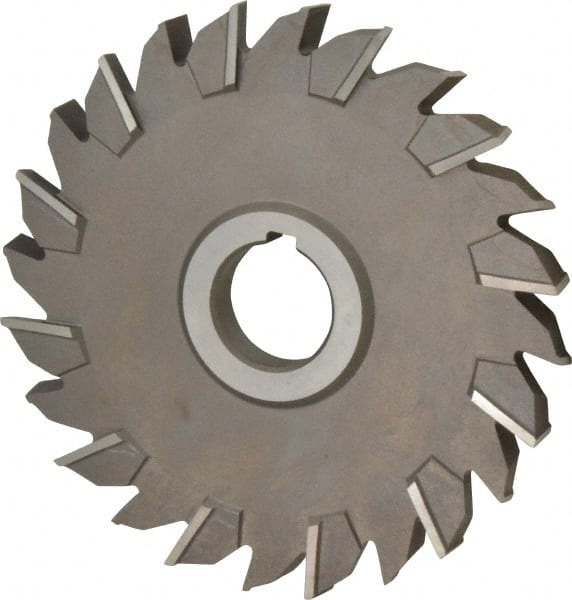

Staggered tooth side milling has alternating teeth on the periphery of the cutters. This design improves chip clearance and also decreases vibration. It also gives better material removal and deep cuts that makes it suitable for heavy duty tasks. This staggered arrangement extends tool life, reduces chatter and produces a smooth finish. And it performs particularly well during rough operations or machining uneven surfaces.

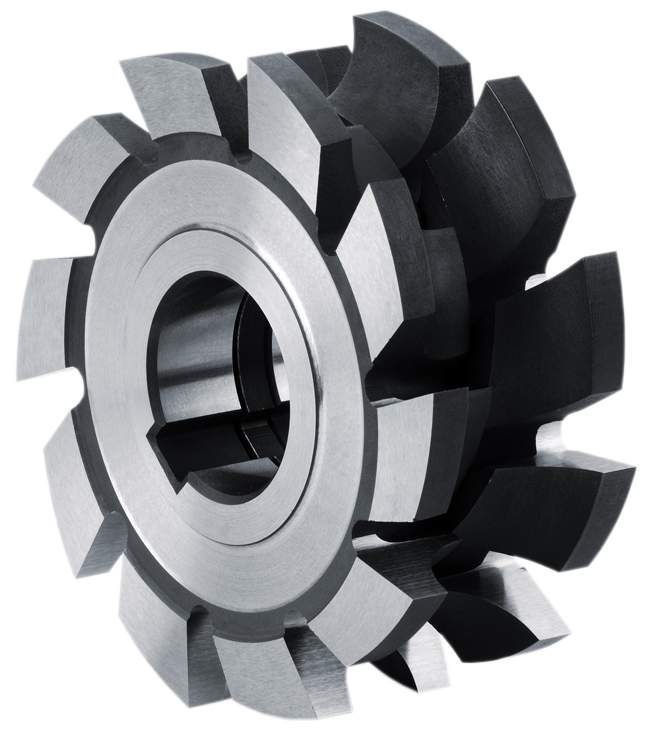

Form Milling

Form milling uses specially shaped cutters to create a profile or contour on the workpiece. This technique is used to produce parts with particular geometries, intricate shapes or detailed profiles. It can create concave, custom and convex forms that are not possible with standard cutters. Form milling is mostly used in gear creation and mold making.

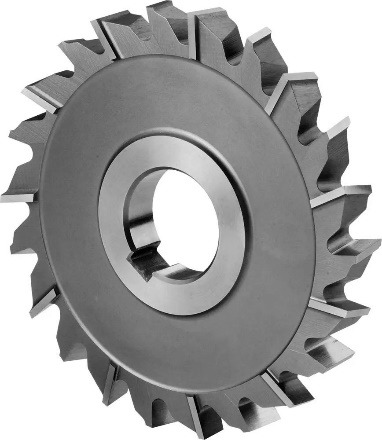

Side & Face Milling

Side and face milling combines these two operations- side & face milling. The cutter has teeth that engage both the face and side of the workpiece. This allows simultaneous cutting of the surface and face of the workpiece. This technique is widely used in the heavy machinery and aerospace industries to create contours, slots and grooves.

Key Parameters in Side Milling

Cutting Speed & Feed Rate

Both feed rate and cutting speed have a great effect on side milling performance. You should use 600 to 1200 fpm for carbide cutters and 150 to 600 fpm for high speed steel cutters. Feed rates vary based on cutter design and material which normally range from 0.001 to 0.000 inches per tooth.

Coolant Application

Coolants play an important role in side milling, especially with high cutting forces and temperatures. They dissipate heat and lubricate the cutting area. Water-soluble coolants are often used for general applications.  Also oil based coolants are preferred for heavy-duty milling or high temperature operations while water soluble coolants are mostly used for general applications.

Depth of Cut

Depth of cut is another very important consideration in side milling because both axial and radial depths influence the overall milling process. Large axial depths increase material removal but also cause more tool wear.

Radial depth is typically 0.05 to 0.25 times the diameter of the cutter.  So that it can withstand high cutting forces and assure smooth operation.

Techniques for Effective Side Milling

Chip Formation & Removal

Side milling needs better chip formation and removal. Proper control of chip thickness not only guarantees manageable chip shapes but also minimizes tool wear and heat.  High pressure coolants help remove chips more effectively. Besides that better clearance and rake angles improve chip breaking.  These strategies prevent tool damage and also improve surface quality.

Tool Path Strategies

Several toolpath strategies are effective in side milling. Contour paths work well for complicated geometries and zigzag paths assure even material removal, while trochoidal paths reduce cutting forces. Furthermore, using a helical interpolation cutter in the toolpath, especially for deep cuts, reduces load and also improves surface quality.

Minimizing Tool Deflection

Tool deflection is a big challenge in side milling particularly when machining tougher materials or using larger cutters. So you ought to reduce tool overhang length and use tools with larger core diameters or higher hardness to decrease tool deflection. Pick carbide machining tools for greater hardness and use climb milling for roughing and conventional milling for finishing.

Applications of Side Milling

Slotting & Grooving

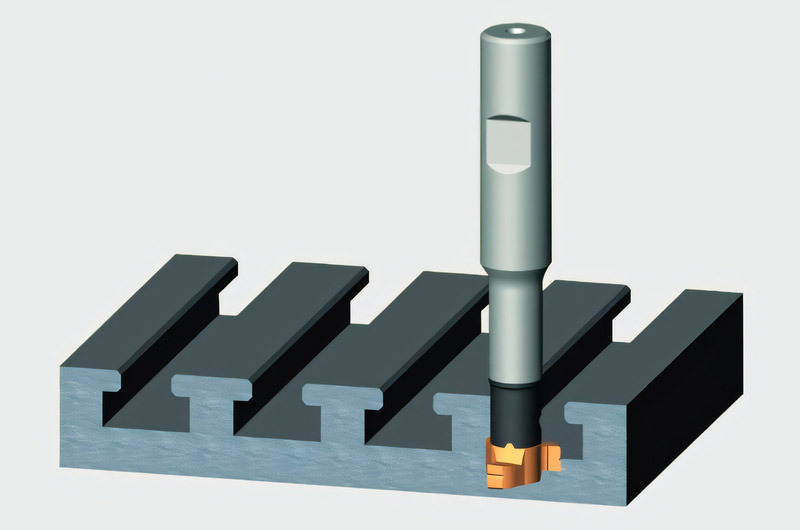

Manufacturers use side milling to create grooves and slots in components. These include bearings, shafts, housings, gears, keyways and automobile parts. This process assures consistent and accurate cuts that produce features with uniform depth and width.

Straddle Milling

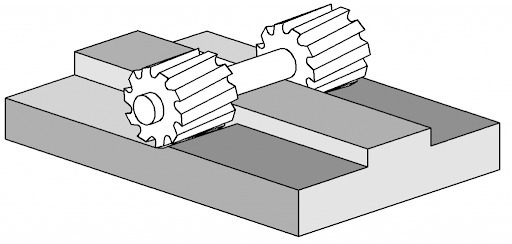

Straddle milling uses two side milling cutters on the same arbor to machine parallel surfaces together. It is very useful for making symmetrical features like hexagons, squares or splines on flat or cylindrical workpieces.

Angular or Bevel Milling

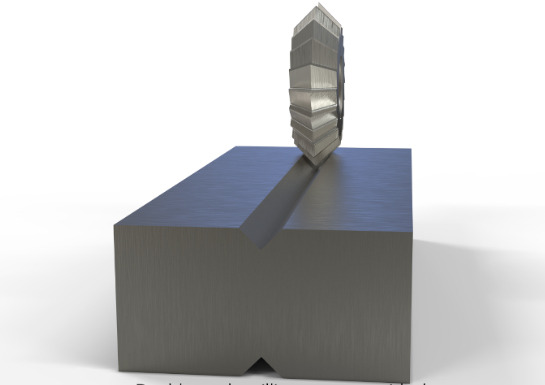

Side milling is used to make angular and bevel cuts on parts. Such parts are structural frames, brackets, flanges, machine tool parts and gears. These parts often require chamfered or beveled edges to meet design specifications and assure proper assembly and fitting.

Surface Finishing

A high quality surface finish is needed for many parts to function better. As a result, smooth surface finishes in parts such as frames, machine parts, molds and engine blocks are produced by side milling.

Contouring & Profiling

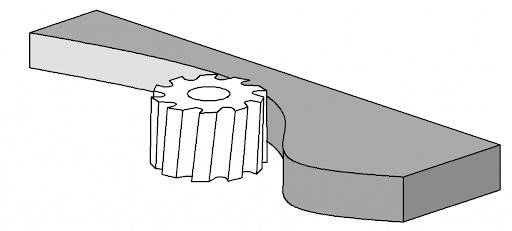

Side milling is suitable for creating contours and profiles on the surface or edges of the workpiece. This is particularly useful for tough curves or shapes, for example, clamps, valve, mold cavities, engine components and flanges.

Advantages and Disadvantages of Side Milling

Advantages

• Side milling increases machining accuracy by rapidly removing material through wider cutters and larger depth of cut. As a result, cycle times are reduced while part accuracy and quality remain high.
• Side milling can easily machine tough materials. These materials include titanium, high temperature alloys and stainless steel. This ability makes it useful for many applications such as medical device manufacturing and aerospace.
• Side milling increases edge stability due to the geometry of cutter. This design reduces vibrations and tool deflection which provides better part quality and smoother cuts.
• Side milling is useful for creating interactive geometries and features that are challenging with other machining methods. Its adaptability allows it to machine custom profiles, shapes and grooves very precisely.
• Side milling provides high accuracy cuts that guarantee smooth surface finishes and strict tolerances. This is important for parts that need high functionality, for example, precision machinery, molds and components of engine.

Disadvantages

• Programming the setup for side milling can be complex when using special toolpaths or multiple cutters. This can increase setup time and will require skilled operators.
• Side milling usually produces a lot of toolwear due to long operation times and high cutting forces. Due to which the operational costs and tool replacements increase.

To Sum Up

In short side milling offers versatility and efficiency in creating smooth surfaces and accurate shapes. This process offers many advantages but requires careful tool and setup management for best results.
