Are you considering silicone injection molding but unsure about their cost aspects? Understanding factors that affect the cost can help you set a good budget and avoid any financial challenges．
In this blogpost you will know about expenses related to silicone injection molding, cost factors as well as useful methods to adjust your expenses efficiently.
What is Silicon Injection Molding?
Basically in silicone injection molding, liquid silicone rubber (LSR) is fed into a heated mold at extreme pressure. The silicone flows into the cavities of detailed mold and hardens to form a hard & flexible part.

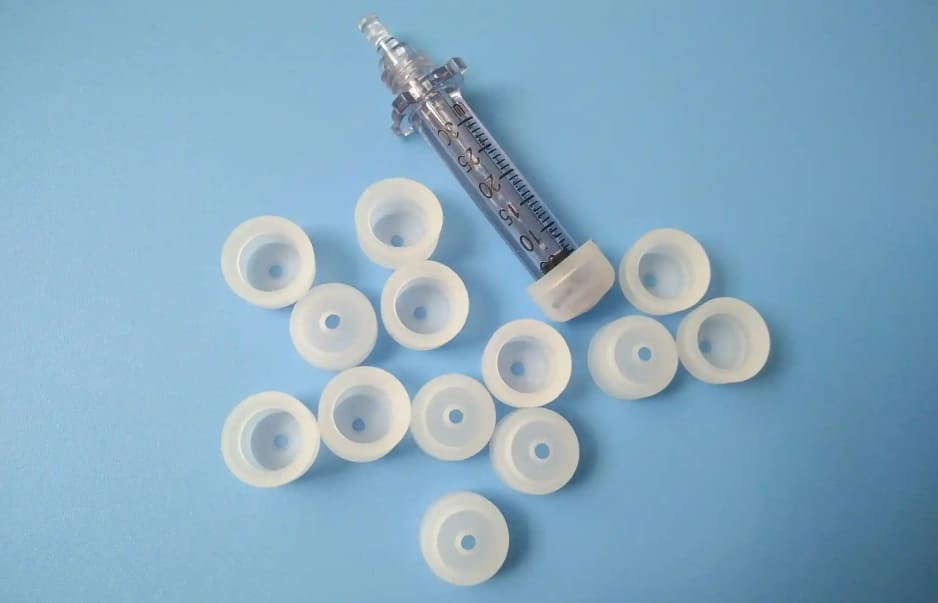

This procedure facilitates fast manufacturing cycles which is typically between 2 – 20 minutes for each component. Multiple sectors utilize this procedure to make biocompatible and heat‐resistant components.
Main Aspects That Affects Silicone Injection Molding Costs

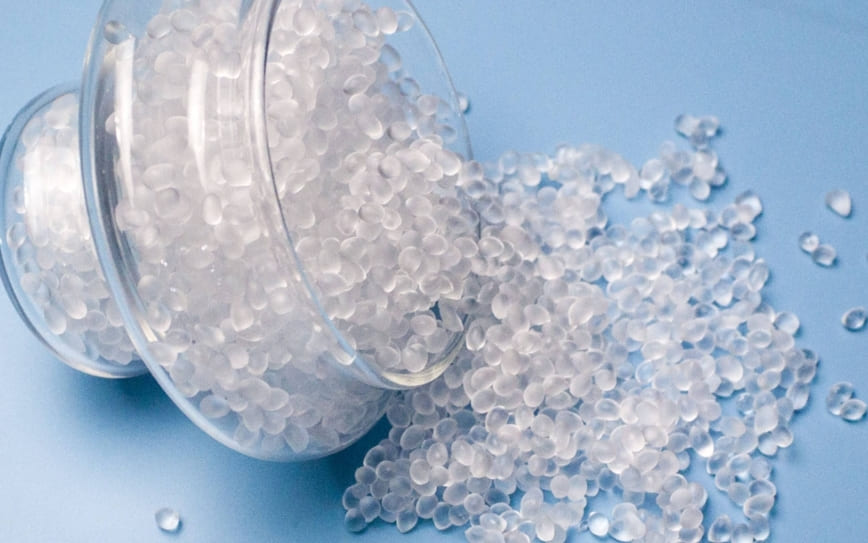

1. Choice of Material
One of the most important aspects that affects cost is the type of silicone material you pick. General‐purpose silicone typically costs between $20 & $50 per kilogram. Specialty silicones – such as food‐safe or medical‐grade materials – can cost $100‐$200 per kilogram.
Moreover additives for UV shielding, color or flame resistance also increase the cost of material. Also how easy can silicon be processed affects waste and cycle time which in turn affects your total expense.

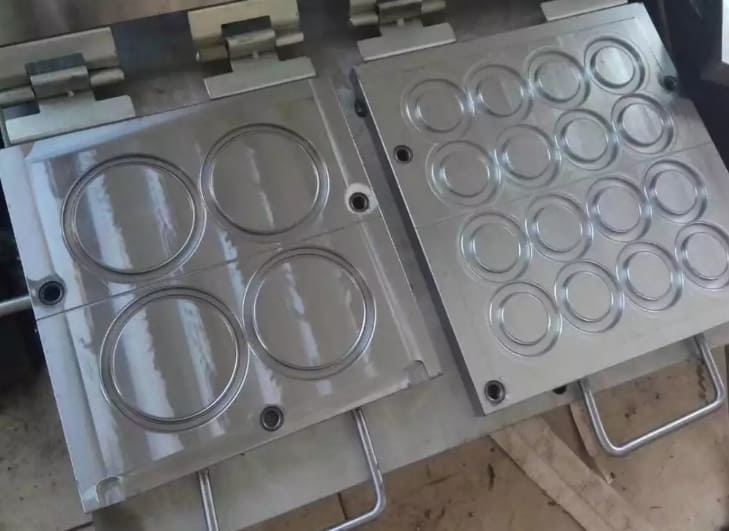

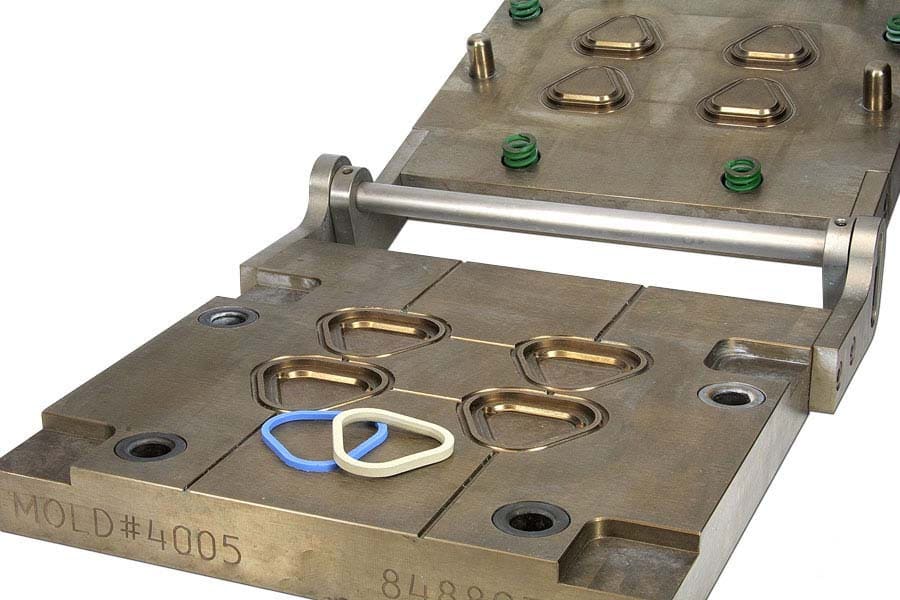

2. Mold Design and Complexity
The cost of production relies largely on technical difficulty of your mold design. Standard molds with uncomplicated geometry can start at $500. But molds with precise details, undercuts, textures, or intricate structures can cost around $5,000 for single‐cavity molds or up to $20,000 for multi‐cavity molds.
More intricate molds require advanced machinery, greater skill as well as longer manufacturing times which increases the overall expense.

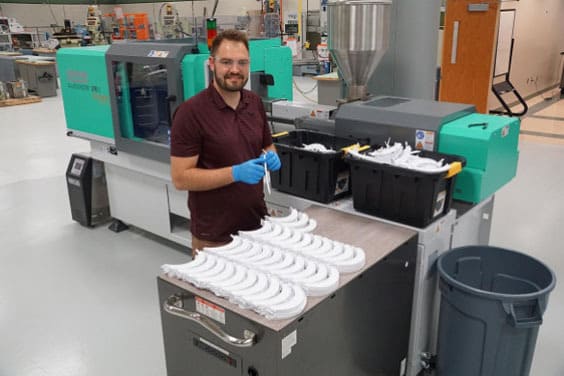

3. Equipment and Tooling

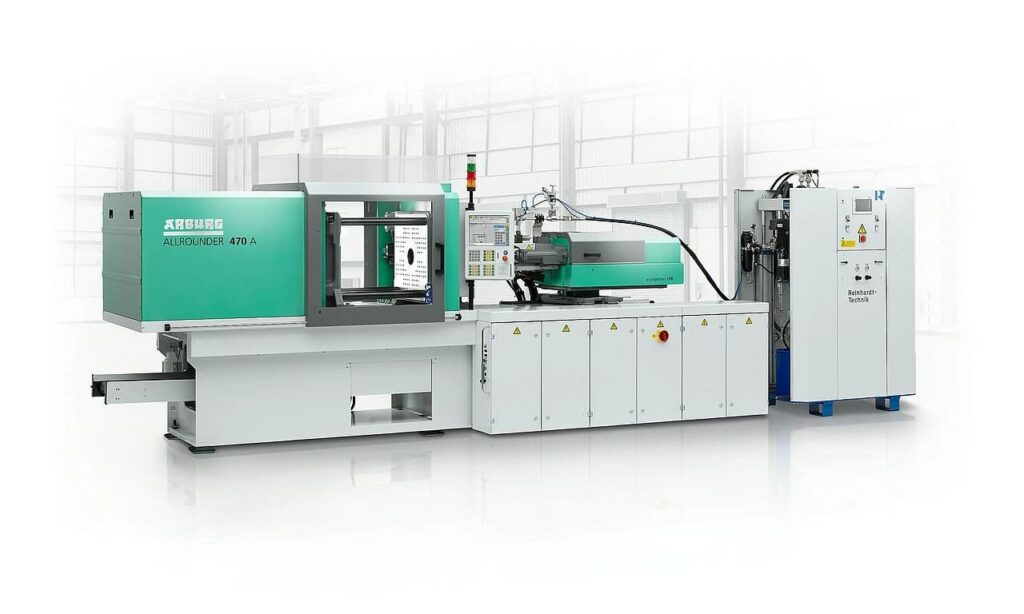

In addition to mold, the cost of equipment needed also has a big effect on your budget. Industrial injection molding machines usually cost between $50,000 to $200,000. Extra auxiliary equipment such as dryers & chillers add further costs. Desktop injection molding machines give a low cost alternative at under $10,000.
But for large‐scale manufacturing, industrial tools with strong clamping force, accurate temperature controls as well as modern features are very important. Although these machines increase the initial cost they improve component uniformity and the manufacturing efficiency.
4. Manufacturing Volume
The number of components you make greatly affects unit cost. Large‐scale manufacturing allows you to spread fixed costs like tooling over more components which reduces cost of a single unit. While low‐volume manufacturing runs usually have greater per‐part costs because setup and tooling charges are spread out less.
5. Post‐Processing Demands
Extra finishing processes needed for some silicone parts also add to final cost. Depending on complexity, surface treatments, printing, coatings or assembly can increase costs by 10% to 30%. For example medical products usually need special sterilization whereas consumer goods may include packaging or decorative finishing.
6. Overhead and Labor
Overhead & labor expenses are a big part of your total cost. In Western Europe & North America expert workers who handle machine operations, molded design & quality control range from $20 to $40 per hour. Whereas in countries such as India or China, labor rates range from $5‐$15 per hour.
Overhead expenses comprise utilities, fares, equipment maintenance as well as management costs. These costs are included in the expense of each component in cases whether you are manufacturing on‐site or outsource processing.
Considerations to Reduce Costs
We have talked about the aspects that affect costs of silicone injection molding. Now we will analyze the methods & processes to manage our budget while maintaining product quality.
Material Selection
Try other materials that give similar performance but are easier to mold. Many plastics have similar functionality & strength but some alternatives are inherently cheaper. Choosing the correct mold temperature & material is very important for smooth flow as well as adequate solidification during molding.
Material selection has a big effect on manufacturing costs and quality of your component. This is why, use the interactive quoting equipment offered by engineers to conduct detailed evaluations of different material options.
Design for Production
Simplify your component design by eliminating unnecessary features & undercuts. These factors complicate molding process and thus raise expenses. The core cavity design method helps obtain easy part ejection, smooth finishes as well as sharp draft angles. This method decreases tooling costs.
Conduct Design for Manufacturing (DFM) assessment early in your design procedure. It will help you find and resolve possible production problems in advance.
Appropriate Supplier Selection
Choosing right injection molding provider is very important to managing expenses. Evaluate your providers according to their production capabilities. These capabilities include management of mold complexity, machine size as well as the proficiency to manufacture desired volume. Suppliers that utilize quick‐mold change systems can significantly decrease downtime and project costs.
Furthermore give preference to suppliers that prioritize better cooling procedures. Cooling represents 50% to 70% of total injection molding cycle time. Improving cooling performance can significantly decrease expenses.
Also See: Top 12 Mold Manufacturers in China
Production‐scale Planning
Scaling up quantity of components is a great way to decrease the cost per unit. Larger quantities help spread the starting expense of mold machining and design over more pieces. Look into family molds for making large quantities of components.

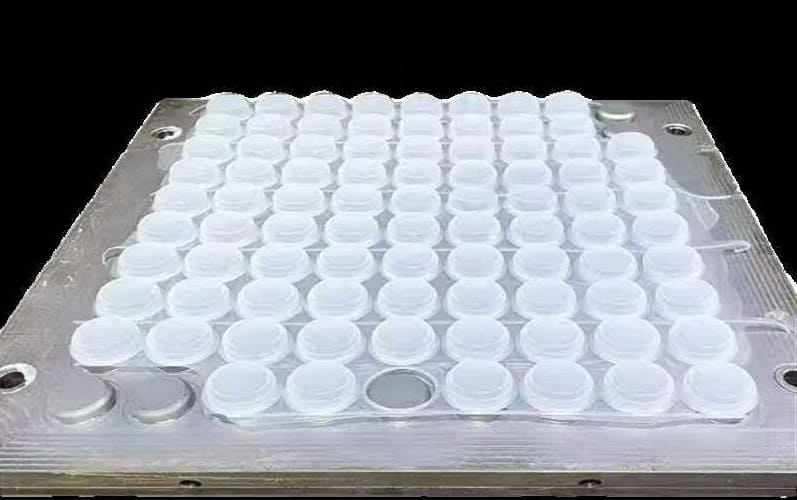

Aluminum molds can hold up to eight cavities which decreases expense of each single component. Multi‐cavity molds make numerous similar components in one molding cycle. This method greatly lowers unit expense as well as decreases manufacturing time.
To Sum Up
To figure out cost of silicone injection molding you need to assess aspects such as mold complexity & material selection. Starting cost of high accuracy molds is usually between $5,000 & $50,000. By design improvements & thoughtful planning, expense can be decreased in huge‐scale manufacturing．
If you need any kind of custom molding services then Richconn is your best option. You can contact us anytime.
Related Questions
Is silicone injection molding a budget‐friendly approach for prototypes?
Yes. Silicone molding is beneficial for prototyping due to its lesser tooling costs than metal molds and design changes can be made rapidly.
How much time should be expected for silicone injection molding?
Typically silicone injection molding takes 6 to 10 weeks. Mold creation takes 4 to 6 weeks and the manufacturing & shipping phases take 2 to 4 weeks.
Does mold reuse decrease cost of a silicone injection molding project?
Yes, mold reuse can significantly reduce total project expense. Reusing molds divides the starting tooling cost into more units which reduces the cost per unit.
How do compliance certifications (e.g. ISO, FDA) & standards affect the expense of silicone molding?
Standards such as ISO certification (9001, 14001, 13485), FDA approval as well as CE marking greatly increase cost of silicone molding. These standards require detailed documentation, additional testing and rigorous quality control.
How does automation help decrease costs in silicone molding?
Automation decreases labor spending, enhances product uniformity & reduces material waste as well. This improvement reduces rates of imperfection as well as overall silicone molding expense.
What is the effect of design changes after tooling on cost?
Design changes after tooling usually require replacement of molds. This type of condition increases project duration & also considerably increases your costs.
What unexpected costs can occur in silicone molding projects?
Unexpected costs typically are design modifications, maintenance of molds & tools and extra post‐manufacturing stages such as assembly or finishing.
