If you work in CNC machining or precision manufacturing you must know about single point threading. This technique allows you to create threads on parts using manual or CNC lathes. In this blog post you will learn the tools, step by step procedure and tips to get accurate results.

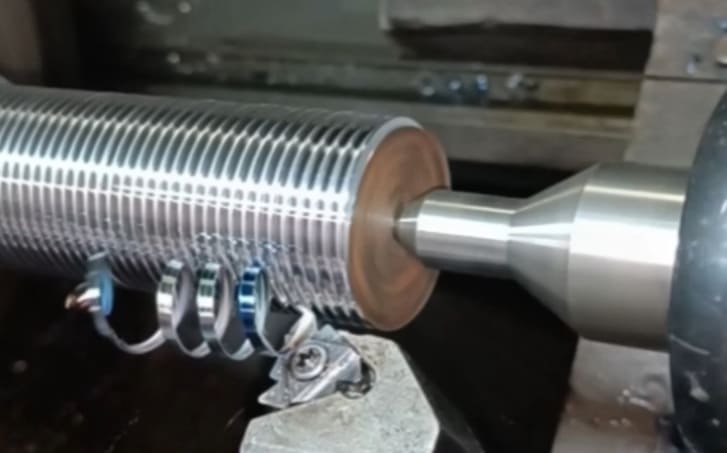

What is Single Point Threading?
In simple terms single point threading is a method used to cut threads onto a cylindrical workpiece using a single point tool. This method works for internal & external threads. It’s the preferred method when you need high accuracy or custom threads that other methods can’t provide easily.
Equipment and Tools Needed
Manual Lathes
Manual lathes give you full control over the threading procedure. These are good for custom jobs or low volume production. You can adjust speed, depth of cut and feed rate to match thread & material according to your need.
CNC Lathes
CNC lathes give you automation, repeatability and precision. Once you program a setting the machine will repeat the threading cycle every time. It is good for complicated threads and high volume production where consistency is important.
Threading Tools
Single Point Cutting Tools
You use these standard tools ( made from carbide or high speed steel) to cut different thread profiles.
Tool Holders
Tool holders keep your cutting tool steady. They reduce vibration and help you get precise cuts.
Indexable Inserts
Changing the cutting tip is quick as you don’t have to remove the entire tool. This saves time during production.
Measuring Instruments
Thread Pitch Gauges
These gauges help you check & match thread pitches.
Optical Comparators
With optical comparators you can visually compare thread shapes to standard profiles for quality checks.
Micrometers
Use micrometers to measure thread diameters and confirm they meet your particular needs.

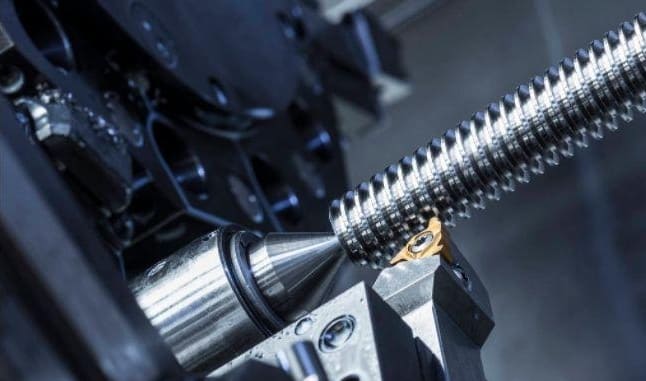

Step by Step Guide to Manual Single Point Threading
a. Preparation
Material Selection
Choose a material for your project according to your needs. Stainless steel is stronger while brass & aluminum are easy to work with. Softer materials will reduce tool wear and make threading easier.
Machine Setup
Clean your lathe & apply lubrication. Set the gears to the thread pitch you need. Make sure both the lead screw and spindle are smooth.
Tool Alignment
Mount your cutting tool so it’s at 90 degrees to the workpiece. Use a gauge to check the thread pitch. Run a dry pass to see everything lined up as preparation is key to avoiding mistakes.
b. Thread Cutting Procedure
Calculating Thread Depth
First use this formula for 60° thread; Depth = 0.61343 × Pitch. It is the formula of theoretical thread depth.
Feed Rate and Spindle Speed
Set spindle speed low about 100‐300 RPM depending on material. Set feed rate to match desired thread pitch.
Engage Half Nut Lever
Watch threading dial and always engage half‐nut at the same number. This keeps your thread pitch consistent.
Make Successive Passes
Start with shallow cuts. After each pass, pull back tool and reset it for next cut. Increase depth little by little until you reach final thread size.
c. Tips for Precision
Threading Dials
Threading dials help you stay in sync with leadscrew. Use them to assure the tool engages thread pitch consistently.
Avoid Frequent Mistakes
Before final passes, check your setup again. Dull tool, chip buildup or small misalignment can cause poor finish or errors.
Safety
Wear eye protection at all times. Keep loose clothing away from moving parts. Never leave chuck key in the chuck. Following these will keep you and your work safe.

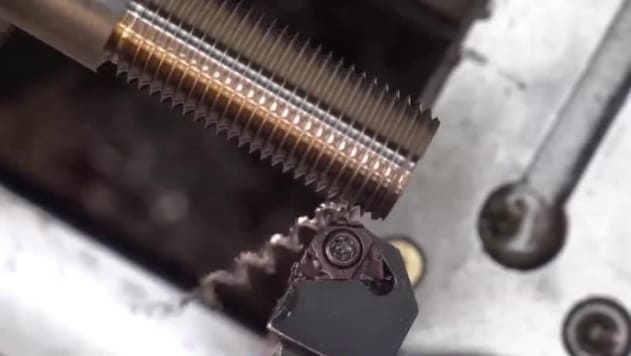

CNC Single Point Threading Methods
1. Programming Basics
- G Code: You can control threading with G code. You can do a single pass through G32 whereas G76 does multiple passes.
- Main Threading Cycles (e.g., G32, G76): G32 has fewer automated options and is less advanced. But G76 sets depth for each pass and retracts tool automatically.
2. CNC Machine Setup
- Tool Offsets: Enter tool length and nose radius into controller. This keeps your threads accurate.
- Spindle Synchronization: Match spindle rotation to Z‐axis movement. This keeps pitch consistent & leads during cutting.
3. Run and Monitor
- Dry Run: Run program without material first. This lets you check clearances and tool paths.
- Real Time Adjustments: Use override controls to change speed or feed during operation.
Advantages Over Manual Threading
- Consistency: CNC threads are uniform and of high quality with minimal variation.
- Complicated Threads: Cutting multi start threads or ACME threads is easy. CNC makes it possible to create designs that are hard to do by hand.
- Speed: You can thread parts faster and use multiple passes to increase productivity.
Threading Parameters and Calculations
You need to know a number of important parameters to thread accurately.
Thread Pitch and Lead
Thread pitch is the distance between one thread peak to the next. Lead is how far the thread moves forward in one full rotation. For multi start threads, multiply pitch by number of starts to get the lead.
Calculation of Thread Depth
Use standard formulas to calculate thread depth. For a 60° thread, calculate depth as 0.61343 × Pitch. Always round down to the nearest 0.001 to avoid cutting too deep. Check with micrometers & pitch gauges to verify it.
Choice of Right Feed Rate and Cutting Speed
Choose the right speed for cutting tool & how fast the material moves. Material, tool material, thread pitch and coolant used all affect these choices. For example steel is hard so you need to run at lower speeds to not wear out the tool. On the other hand aluminum is soft so you can run at higher speeds.
Tool Geometry Considerations
Tool geometry also has a big impact. Relief angle, rake angle as well as tip radius all affect thread finish and chip flow. If you’re using a CNC machine make sure to enter these values in the tool offset and geometry settings.
In short setting the right parameters will reduce tool wear, avoid mistakes and give you clean and accurate threads.

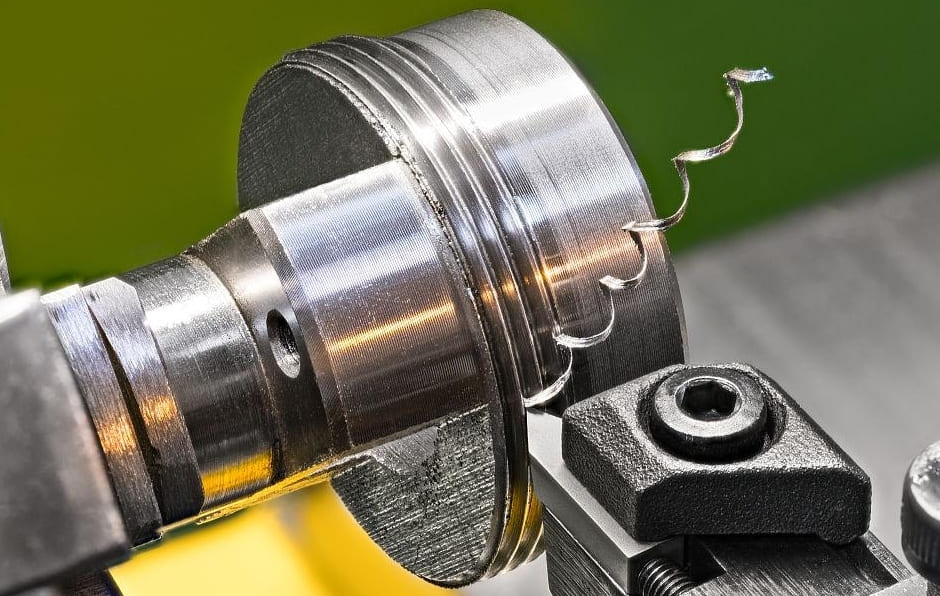

Common Problems and Solutions in Single Point Thread Machining
Tool Wear and Breakage
Threading will wear or break tools even with high quality tools. This is mostly caused by excessive speed or choosing the wrong tool for your material. To address this issue, slow down the RPM and choose a tougher insert.
Incorrect Thread Dimensions
Sometimes the thread dimensions will be off. Incorrect pitch settings or misaligned tools are well known causes. Use a thread gauge to check the pitch and measure with the correct micrometer. Before your final cut, double check the machine setup.
Also See: Unstable Thread Pitch in CNC Lathe Machining
Poor Thread Finish
You might get a poor thread finish. It can happen if the tool is dull, vibrations occur or if the speed is wrong. Always keep your tool sharp and mounted properly. Using the right coolant will help remove chips as you go.
Material Related Issues
Threading certain materials like titanium or stainless steel brings notable challenges. These metals wear down tools faster and harden quickly. To manage this, choose coated carbide inserts and take shallower cuts for every pass.
Quality Control and Inspection
Thread Measurement
- Go/No‐Go Gauges: Start with Go/No‐Go gauges to check your threads. These are a quick way to know if internal or external threads pass or fail. Accurate measurement & documentation starts here.
- Three Wire Method: When you need higher precision switch to this method. This measures the pitch diameter and is best for tight tolerances. Use a micrometer with the wires to get repeatable and reliable results.
Surface Finish Evaluation
To evaluate surface finish, use an optical comparator or a profilometer. Compare it with standards like ASME B46.1 or ISO 4287. A smooth finish indicates that tool’s sharpness and cutting speed is correct.
Documentation and Compliance
Always document your tool settings, measurements as well as any other changes you make. This supports your internal quality control. It also assures you meet industry certifications like AS9100 or ISO 9001.
Advanced Tips and Best Practices for Thread Machining
Tool Life Optimization
To get better threading results think about every step from tooling to workflow. Start with tool life. Use the right cutting speeds and keep your tools sharp at all times. With indexable inserts you can quickly replace worn edges and avoid downtime.
Integrating Threading into Production Workflows
Think about where threading fits into your total production procedure. In a CNC environment you can increase efficiency by dedicating a machine to threading or grouping threading jobs. It increases throughput and reduces setup time.
Threading Exotic Materials
Machining exotic materials like titanium or Inconel requires you to use carbide tools and slow down your speeds. Moreover these materials can wear out tools fast. So use plenty of coolant and make shallow depth passes to protect your tooling.
Upgrade with Technology
Keep your shop competitive by following the latest technology. New tool coatings, software updates as well as machine improvements can all increase efficiency. Stay informed by attending trade shows, talking to tooling reps and reading industry blogs.
To Sum Up
Single point threading gives you control over the thread cutting procedure. Understanding how it works matters whether you’re using a manual lathe or a CNC machine. If you are following best practices then you can make threads to any particular specification.
