Precision machining has changed manufacturing industry completely, with EDM being a top innovation. But picking between Sinker and Wire EDM can be tough for manufacturers. Today we will see the main differences, best uses and benefits of these two methods.Our goal is to aid you make the right choices for your distinct manufacturing needs.
What is Electrical Discharge Machining (EDM)?
Electrical Discharge Machining (EDM) is a machining process that makes use of power of controlled electrical sparks. This non-contact method erodes conductive metals with good accuracy to make complicated shapes and attaining strict tolerances. The process takes place in a dielectric fluid, usually oil or deionized water. The spark temperatures of fluid can rise to 12,000°C. EDM can reach tolerances of ±0.005 mm. And it can attain surface finishes as smooth as 0.1 μm Ra. It is very good in machining complicated geometries and hard metals. This makes it indispensable in medical, aerospace and tooling industries.
Sinker EDM

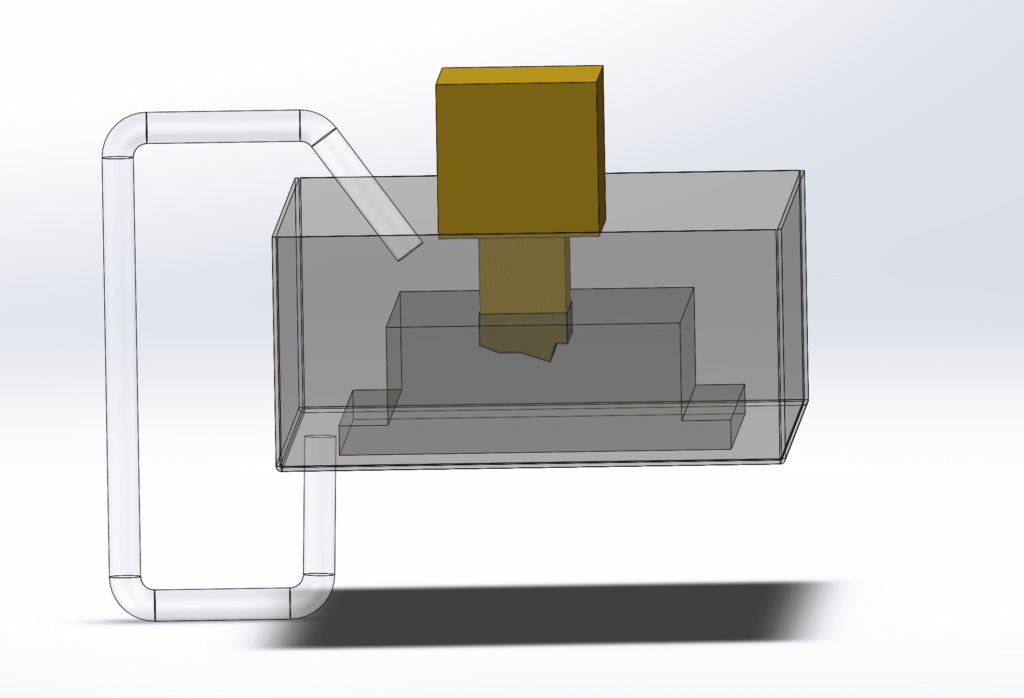

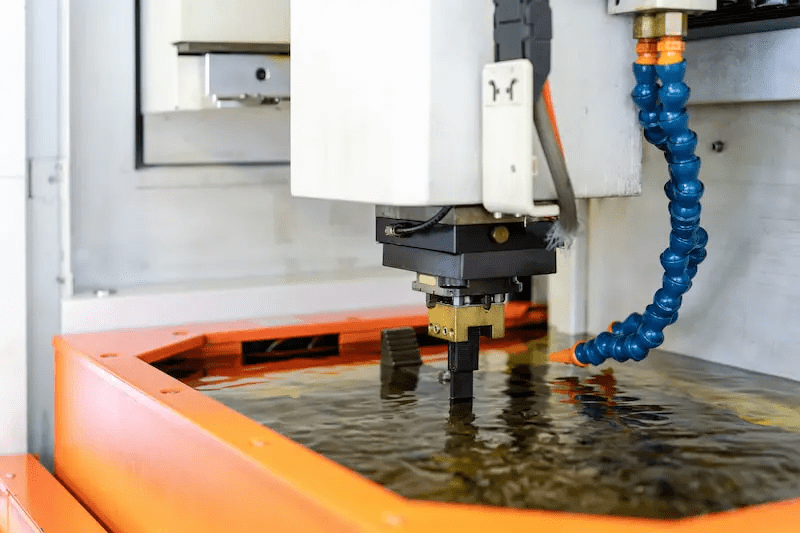

Sinker EDM uses a shaped electrode to manufacture exact cavities in conductive materials. The electrode usually made of copper or graphite submerges into a tank filled with dielectric fluid. Controlled electrical discharges then vaporize material from the workpiece. It results in complicated 3D geometries having high precision.
This technique has many benefits for accurate manufacturing. It shines at producing complicated internal geometries with good tolerances. And it can attain surface finishes as refined as 0.1 μm Ra. Sinker EDM is particularly good at machining hard materials like carbide and tool steel without putting mechanical stress on the workpiece. Moreover, it can produce cavities with good depth and aspect ratios up to 40:1
Despite its advantages, Sinker EDM has some limitations too. The process is relatively slow with material removal rates usually between 2 and 400 mm³/min. Additionally, electrode wear calls for multiple electrodes for highly accurate work which raise production costs.
Sinker EDM has many applications across industries. In aerospace manufacturing, it manufactures turbine blade cooling holes with diameter as low as 0.3 mm. Automotive industry uses it to produce complicated mold cavities for plastic parts and engine parts. The medical device industry depends on sinker to make accurate implant components and surgical instruments within ±0.005 mm tolerance.
Wire EDM
Wire EDM pushes the boundaries of accurate cutting by using a thin, electrically charged wire to cut through conductive materials. The wire which is commonly 0.1 to 0.3 mm in diameter performs as an electrode and generates controlled electrical discharges that erode the workpiece. This advanced technique permits delicate cuts with kerf widths as minute as 0.02 mm and reach tolerances of ±0.001 mm.
The distinct capabilities of Wire EDM gives many advantages. This technique can cut through materials much faster than other methods. The process applies no cutting force which allows the machining of delicate parts without distortion. Wire Machining can also cut hardened metals up to 400 HRC without altering their properties. And this process produces very minimal waste as it cuts very close to workpiece.
Like any other technique, wire EDM is not without limitations. It can only be used on electrically conductive materials. The wire electrode wears too which requires time to time replacement of electrode.
A lot of industries benefit from Wire EDM’s accuracy. Medical manufacturers use it to produce orthopedic implants with porous surfaces that can have feature sizes as minute as 0.1 mm. In the electronics sector, wire machining makes micro-components like lead frames with thicknesses as thin as 0.05 mm. Tooling manufacturers use it to manufacture extrusion dies with a surface finish of 0.1 μm Ra and complicated profiles.
Comparison between Sinker EDM and Wire EDM
Electrical Discharge Machining has two distinct techniques: Sinker EDM and Wire EDM. These methods share the use of electrical discharges for material removal but differ greatly in their capabilities, processes and applications.
| Criteria | Sinker EDM | Wire EDM |
| Machining Process | Uses a shaped electrode that “sinks” into the workpiece andforms a 3D shape or cavity | Uses a thin, continuously moving wire to cut material along a programmed 2D path |
| Geometry and Design Capabilities | Shines in producing intricate molds, complicated 3D geometries and blind cavities | Best for creating detailed 2D profiles, high-tolerance parts and complicated patterns |
| Surface Finish and Precision | Usually produces a slightly rougher finish compared to Wire EDM | Commonly attain higher accuracy and a finer finish |
| Material Compatibility | Suitable for a large range of conductive materials, including hard metals like tool steel and tungsten carbide | Works with electrically conductive materials, including alloys and metals |
| Speed and Efficiency | Commonly slower than Wire EDM, but gives more control for complex shapes | Usually faster material removal rate particularly for complicated designs and small components |
| Tooling Requirements | Requires custom electrodes (usually graphite/copper) for each shape/cavity | Uses continuous wire electrode(commonly brass or coated metal), simpler to set up |
| Cost and Operational Considerations | Higher tooling costs but can be cost-effective for low volumes | Less expensive because of Lower tooling costs and faster production |
1. Machining Process
The core difference between these techniques is in their electrode movements and types. Sinker EDM uses a shaped electrode that is submerged into the workpiece which produces three-dimensional cavities. It primarily works along the Z-axis having spark gap of 0.010 to 0.500 mm.
Wire EDM, in contrast, uses a thin wire (0.02 to 0.33 mm diameter) that moves along X and Y axes. This wire cuts through the whole workpiece thickness. It constantly unwinds from a spool and maintains a fixed diameter in the complete cutting process.
Both methods function in dielectric fluids, but their preferences differ. Sinker usually uses oil-based fluids. On the other hand, Wire EDM commonly use deionized water for its greater flushing qualities.
2. Geometry and Design Capabilities
Each technique shines in different areas of design and geometry. Sinker EDM manufactures complicated shapes and complex 3D cavities with depths up to 400 mm. It produces characteristics like steep angles up to 45 degrees and sharp internal corners which make it the best for deep cavities and mold-making.
Wire EDM is very good in cutting through-holes and accurate 2D profiles. It can reach very narrow kerf widths of 0.02 mm and produce complicated contours with strict radii. This method works great when producing components with complex perimeters and complicated flat parts.
3. Surface Finish and Precision
Both EDM methods give high precision, but Wire EDM can usually reach finer surface finishes. Sinker EDM makes surface roughness between 0.4 to 1.6 μm Ra, while Wire can be as fine as 0.1 μm Ra.
Regarding accuracy, Sinker EDM usually have tolerances of ±0.013 mm. And wire EDM can hit strict tolerances of ±0.003 mm. The wire process also facilitates better control over surface texture, so it’s better for applications that need particular micro-textures or very smooth surfaces.
4. Material Compatibility
Sinker EDM and Wire EDM have different material compatibility strengths. Sinker EDM is great for machining conductive, hard stuff like carbides, tool steels and superalloys. It works particularly well with high melting point metals and heat-resistant alloys.
Wire EDM offers more flexibility in materials. While also good for conductive stuff, it deals with a larger range of material like brass, aluminum and some exotic alloys. Both need electrically conductive workpieces with electrical resistivity level below 100 Ω·cm for best performance.
5. Speed and Efficiency
Wire EDM commonly outshine Sinker EDM in efficiency and cutting speeds particularly for larger workpieces. Wire EDM can do continuous cutting so it removes material faster particularly in bigger workpieces.
Although slower, sinker EDM shines when manufacturing complicated 3D cavities in one step. For tiny, complex parts that need multiple wire EDM setups, sinker EDM can be more quicker.
6. Tooling Requirements
The two techniques differ greatly in their tooling needs. Sinker EDM needs custom-shaped electrodes which are commonly made of copper or graphite. These molds are designed to match the needed cavity shape. These electrodes can be expensive and tricky to make particularly for complicated shapes.
Wire EDM, on the other hand, uses a simple, continuously fed brass wire electrode which is commonly made of brass. Sinker EDM’s custom electrodes permits making of more elaborate 3D forms while Wire EDM is restricted to 2D cutting outlines.
7. Cost and Operational Considerations
Wire EDM usually has lower operating expenses because of its quicker cutting speeds and simpler tooling. But the ongoing need for new wire can raise overall costs.
Sinker EDM may have higher starting tooling expenses because of custom electrode making. But it can be more affordable for complicated 3D geometries or when you need many identical parts.
Choosing the Best EDM Technique for Your Needs
There are many elements that help in finding the right EDM method for your project:
- Shape complexity: Sinker EDM works best for deep cavities and complicated 3D shapes. But, wire machining shines in accurate 2D cutting.
- Material properties: Sinker technique is usually good with harder, thicker materials like steel. And wire EDM is commonly used to cut thin and delicate metals such as titanium alloys
- Production volume: Wire EDM is faster than Sinker which makes it best for producing large quantities.
- Cost Considerations: For manufacturing simple shapes, wire EDM is commonly less costly.
Conclusion
Sinker and Wire machining processes are high-performance methods. Each technique excels in different area. Sinker shines in manufacturing of complicated 3D cavities. On the other hand, Wire EDM gives good cutting speeds and greater surface quality for 2D outlines. Picking between them depends on variables like part material traits, shape, cost factors and production volume. It is very important that you know these differences to get the wanted results and boost your manufacturing workflows.
Frequently Asked Questions
1. Can Sinker EDM and Wire EDM be used on non-conductive materials?
Wire and Sinker both machining types need conductive materials to work well. They use electrical sparks to erode metal so the material must conduct electricity. We can’t directly process non-conductors with EDM. But we can coat non-conductive materials with a conductive layer to allow EDM machining.
2. What is the level of precision that can be achieved with Sinker vs. Wire?
Both EDM methods give high precision, but Wire EDM has the edge. Sinker EDM commonly reaches tolerances of ±0.013 mm. Wire EDM, on the other hand, can acquire ±0.003 mm of tolerance. Both methods can produce surface finishes as smooth as 0.1 μm Ra. Wire EDM’s greater precision comes from its smaller cutting tool. Wire diameters are usually between 0.02 to 0.33 mm.
3. Which materials are best suited for Sinker and Wire EDM?
Hard, conductive materials are best for both EDM processes. Usual options are carbides, tool steels and superalloys. Sinker EDM shines at manufacturing complicated 3D shapes in alloys like Inconel. Wire EDM is particularly good when cutting delicate, thin parts from alloys such as titanium alloys. The best option depends on the metal’s properties and part’s shape.
