Swiss machining has changed the way manufacturers approach precision manufacturing — especially when it comes to producing small diameter holes in complex components. CNC Swiss turning machines use a guide bushing system that sits close to the cutting tool. This setup reduces vibration and deflection, giving you the stability needed for demanding deep hole drilling operations.
On a typical Swiss lathe, on-axis holes can go as small as 0.04 inches (1mm) in diameter with a maximum depth of six times the diameter — an aspect ratio that pushes the limits of conventional drilling. Radial holes drilled from the side need a minimum diameter of 0.08 inches (2mm). Spindle speeds exceeding 15,000 RPM make rapid, repeatable production possible even at these scales.
This guide walks you through the critical design considerations for small deep holes in Swiss machined parts — from aspect ratio limits and material selection to tooling strategies and coolant delivery. Each rule is grounded in real-world shop floor experience so you can design with confidence.
Understanding the Challenges of Deep Hole Drilling in Swiss Machining
Drilling small, deep holes on a Swiss lathe sounds simple — until you push past standard ratios. Once you exceed a certain depth, a whole set of drilling challenges emerges. These problems can stall production, ruin parts, and drive up costs if you don’t plan ahead.
Before we dive into specific design rules in the next section, let’s break down what makes deep hole drilling so difficult — and where things tend to go wrong.
Defining the Aspect Ratio Threshold
The depth-to-diameter ratio is the key metric you need to watch. Standard drilling stays below a 4:1 ratio without much trouble. Once you go beyond that, the risk of failure climbs fast. Most Swiss lathe operations can push holes to about 6x the drill diameter, but this ceiling depends on material, hole size, and part geometry.
When overall part length-to-diameter ratios exceed 7:1, Swiss-type lathes become your best option. The guide bushing supports the workpiece close to the cut, which helps maintain stability. That said, Swiss lathe limitations still apply — reach, spindle speed, and coolant pressure all cap what’s achievable.
Common Failure Modes in Small Diameter Drilling
Machining failures in deep holes tend to follow predictable patterns. Understanding them helps you design parts that avoid costly rework. Watch for these common issues:
- Tool deflection — small drills flex under cutting forces, producing oversized or misaligned holes
- Poor chip evacuation — chips pack inside the flute, causing recutting, heat spikes, and eventual tool breakage
- Heat buildup — friction at depth accelerates wear, especially in tough alloys like 17-4 PH stainless
- Catastrophic tool breakage — a snapped drill buried inside your part often means scrapping the piece entirely
Some manufacturers machine from each side of a through-hole to reduce reach demands and split the depth-to-diameter ratio in half. This approach is one practical workaround — and we’ll cover more strategies in the sections ahead on tooling and coolant delivery.
Essential Design Rules for Small Deep Holes in Swiss Machined Parts
Getting your hole specifications right from the start saves time, money, and frustration. When you apply solid DFM principles early in the design phase, you reduce the risk of costly rework. Let’s break down the key rules you need to follow for small deep holes in Swiss machined parts.
Determining Optimal Hole Diameter to Depth Ratios
Design for manufacturability starts with selecting the right aspect ratio. A safe starting point for most materials is a 4:1 depth-to-diameter ratio. Standard operations can stretch to 6:1, but anything beyond that demands specialized tooling and techniques.
Keep these minimum diameters in mind when defining your hole specifications:
- On-axis holes — 0.04 inches (1 mm) minimum diameter
- Radial holes — 0.08 inches (2 mm) minimum diameter
- Wall thickness near holes — at least 0.020 inches (0.5 mm) for structural integrity
Tolerancing and Geometric Dimensioning for Deep Features
Applying geometric dimensioning and tolerancing — commonly called GD&T — is critical for deep hole features. Tighter tolerances drive up costs at a steep rate. Moving from ±0.1 mm to ±0.025 mm can increase costs by 2.5x to 4x. Tolerances below ±0.005 mm can multiply costs by 15x or more.
A smart approach to GD&T is functional tolerancing. Reserve tight callouts for critical mating surfaces only. Blanket precision across an entire part wastes your budget without improving performance.
The Importance of Pilot Holes and Spotting
Pilot drilling and spotting operations are essential steps you should never skip. Small diameter drills are prone to walking — drifting off their intended center — especially on curved or angled surfaces. A properly sized pilot hole or spot creates a guide that keeps the drill on track.
These preparatory steps align directly with core DFM principles and set the stage for the tooling strategies we’ll explore next.
Material Selection and Its Impact on Hole Quality
Your alloy selection plays a direct role in whether a deep hole meets spec or ends up as scrap. Each material responds differently to the stresses of small-diameter drilling — from chip formation to surface finish. Understanding material machinability ratings helps you predict costs, cycle times, and precision hole quality before production begins.
Machinability Ratings of Common Swiss-Turned Alloys
Machinability ratings use AISI 1212 free-cutting steel as the 100% baseline. Here’s how popular Swiss-turned alloys compare:
- Brass 360 — 90% (material cost: ~1.0x baseline)
- Stainless Steel 303 — 78% (material cost: ~2.5x baseline)
- Stainless Steel 316L — 42% (material cost: ~3.0x baseline)
- Titanium Ti-6Al-4V — 22% (material cost: ~8.0x baseline)
When corrosion resistance requirements allow it, choosing 303 over 316L can reduce part costs by up to 40%. That gap in material machinability translates directly into tool life and cycle time savings.
Managing Work Hardening in Stainless Steels
Austenitic stainless steels are prone to work hardening during stainless steel drilling. If your feeds are too light or the drill dwells in the cut, the surface hardens rapidly. This damages subsequent tools and degrades hole finish. You need aggressive, consistent feeds — never letting the cutting edge rub instead of shear. Maintaining wall thickness above 0.5 mm (0.020 in.) prevents part deformation under cutting pressure, which can worsen work hardening effects.
Thermal Expansion Considerations for Precision Holes
Heat generated during deep hole drilling causes dimensional shifts in the workpiece. Thermal expansion is especially critical in tight-tolerance features where even a few microns matter. Titanium and stainless steel retain heat longer than brass or aluminum, so you should account for on-machine expansion when targeting precision hole quality. Proper coolant strategy — covered in the next section — is your best defense against thermal drift.
Tooling Strategies for High-Aspect-Ratio Features
Getting the right tools in place is critical when you’re tackling high-aspect-ratio drilling on Swiss lathes. The wrong grade, coating, or cycle can snap a drill in seconds — or produce holes that fail inspection. Modern cutting tool technology gives you several ways to prevent these outcomes. Let’s break down the three pillars of a solid tooling strategy.
Selecting Carbide Grades for Small Diameter Drills
Proper carbide drill selection starts with balancing two competing needs — hardness for wear resistance and toughness to prevent breakage. In small diameters (down to 0.040 inches or 1mm), micro-grain carbide grades offer the best compromise. These grades maintain a sharp cutting edge while resisting the flexion forces that snap brittle tools.
Drill geometry plays a major role here as well. Point angles, flute helix, and web thickness must match your material and depth. A 140-degree split-point design, for example, reduces thrust force and keeps the drill tracking straight in deep features.
Coating Technologies to Reduce Friction and Heat
Advanced tool coatings dramatically extend life in demanding applications. Consider these popular options:
- TiAlN (Titanium Aluminum Nitride) — excels in high-temperature alloys and stainless steels, handling heat up to 1,470°F.
- DLC (Diamond-Like Carbon) — reduces friction in aluminum and copper alloys, preventing built-up edge.
- AlCrN (Aluminum Chromium Nitride) — offers superior oxidation resistance for dry or near-dry machining.
Choosing the right coating depends on your workpiece material and coolant setup.
The Role of Peck Drilling Cycles
Peck drilling is essential for any hole deeper than three times its diameter. This cycle retracts the drill at set intervals, breaking chips and allowing coolant to flush debris from the bore. Without it, packed chips generate heat, cause recutting, and destroy surface finish. You can pair peck drilling with live tooling on Swiss lathes to cut cycle times by up to 60% compared to conventional setups — all while maintaining tight tolerances in deep features.

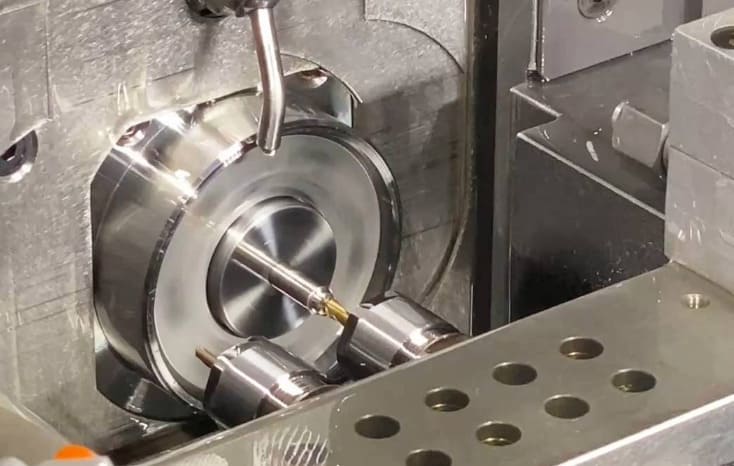

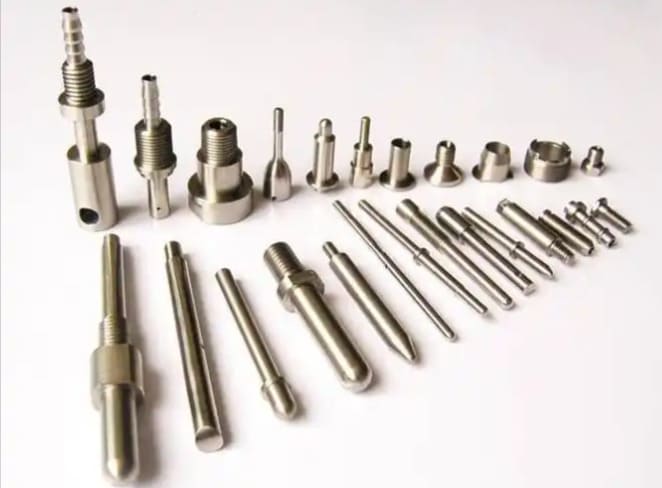

Optimizing Coolant Delivery and Chip Evacuation
Even the best tooling strategy will fail if chips pack inside a deep hole. When you’re drilling at high aspect ratios on a Swiss lathe, effective coolant systems and reliable chip evacuation become your most critical success factors. Getting the right fluid to the right place — at the right pressure — makes the difference between a perfect bore and a scrapped part.
High-Pressure Coolant Systems in Swiss Lathes
Standard flood coolant simply can’t reach the cutting zone in deep, small-diameter holes. High-pressure coolant operating at 1,000 PSI or above forces fluid past the drill flutes and into the cut. This blast of pressure breaks chips into manageable segments and flushes them out before they can repack. Modern Swiss lathe coolant setups with guide bushing support let you push aggressive feed rates while maintaining hole quality — a combination that boosts both throughput and precision.
Through-Tool Coolant Benefits for Deep Holes
Through-spindle coolant takes delivery one step further. Instead of spraying from an external nozzle, fluid travels through the drill body itself — right to the cutting edge. This approach offers several key advantages:
- Direct cooling at the point of highest heat generation
- Reduced risk of chip welding and built-up edge
- Surface finishes of 8–16 microinch Ra without secondary operations
- Extended tool life by preventing thermal shock
For aerospace and medical components, through-spindle coolant is often non-negotiable when drilling holes beyond 6:1 depth-to-diameter ratios.
Managing Viscosity and Lubricity for Small Orifices
Your cutting fluid selection must balance two competing needs. Thicker fluids offer better lubricity but struggle to penetrate small orifices. Thinner fluids flow freely but sacrifice the lubricating film that protects your tool. For holes under 2 mm, we recommend low-viscosity synthetic or semi-synthetic blends rated for high-pressure coolant delivery. This careful chip evacuation and lubrication balance sets the stage for the process verification strategies we’ll cover next.
Conclusion
Drilling small deep holes in Swiss machined parts demands a thoughtful approach to design optimization. You need to respect the 4:1 to 6:1 depth-to-diameter guidelines, pick materials with strong machinability ratings, and apply functional tolerancing from the start. These Swiss machining best practices cut scrap rates and keep your parts within spec — especially for aerospace and medical applications.
Richconn precision manufacturing brings advanced CNC Swiss turning capabilities together with proven process knowledge to help you achieve tight tolerances on deep hole features. Their experience supports effective cost reduction strategies — from material selection guidance to process parameter tuning. Partnering with a skilled Swiss machining provider gives you access to the expertise needed for consistent results on your most demanding components.
