Do you need to machine shafts with more complex shapes as compared to standard cylinders? This is where special‐shaped shaft machining shines. It is highly effective at creating parts with distinct keyways, profiles and exceptional cross‐sections.
In this blogpost you will gain information about machining procedures, materials, techniques & quality control related to special‐shaped shaft machining.
What is Special‐shaped Shaft Machining?

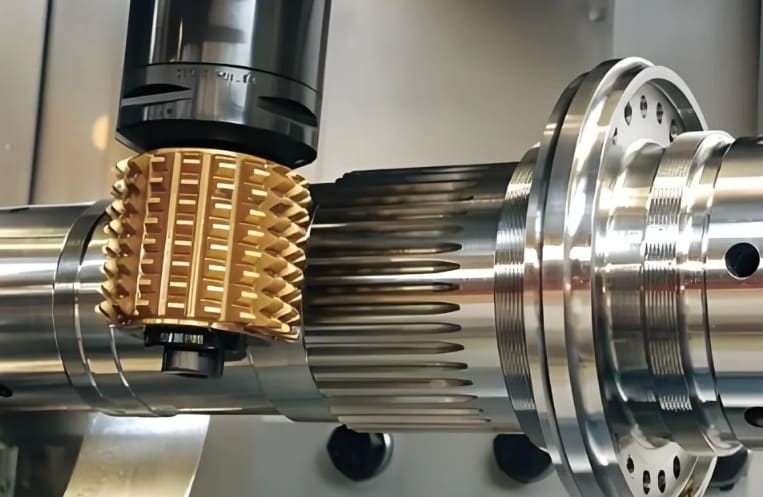

In simple terms, special‐shape shaft machining is a procedure that produces shafts which have complex or non‐standard profiles. Examples are flats, splines and polygonal shapes. Attaining these shapes usually demands modern CNC methods. You can attain strict tolerances, usually as fine as ±0.01 mm and distinct geometries for your particular requirements.
Also See: What is CNC Precision Machining
Materials Used in Special Shaped Shaft Machining
Stainless Steel
Stainless grades such as 316 & 304 offer great corrosion resistance. These materials perform well in wet and harsh situations.
Carbon Steel
Carbon steel, like 1045, provides reasonable price and strength. It is also easy to machine which makes it good for industrial shafts.
Titanium Alloys
Titanium alloys, which include Ti-6Al-4V, give a combination of low weight with high strength. They are selected for essential shafts in medical or aerospace sectors.
Aluminum Alloys
Aluminum alloys are both corrosion‐resistant and light in weight. They are usually used for shafts in aerospace & automotive industries.
Material Picking Criteria
Manufacturers evaluate machinability, corrosion resistance, mechanical properties and cost at the time of selecting materials. Figuring out best combination guarantees that shaft works great and remains within budget.
If you’re confused which material best suits your needs then you can take advice from a specialist manufacturer like RICHCONN. They can help you balance cost, performance and manufacturability from the start.
Machining Procedures for Special‐Shaped Shafts
Advanced machining incorporates multiple modern methods to form special shafts with speed and precision. Each method has its own specific benefits. By picking the right method you can meet a broad range of performance & design requirements.
CNC Milling

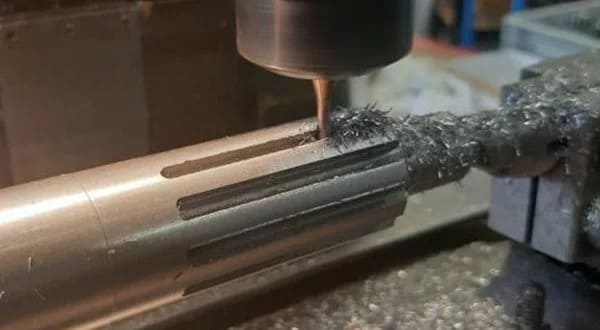

CNC milling adds flexibility to shaft manufacturing. A rotating cutting tool forms a shaft held in a fixed place. This approach produces features such as flats, keyways, splines and grooves. Milling becomes very important when you require intricate shapes that are not possible with turning. It is good for non‐cylindrical or personalized shafts and it also supports detailed designs.
Also See: A Complete Guide to CNC Milling
CNC Turning

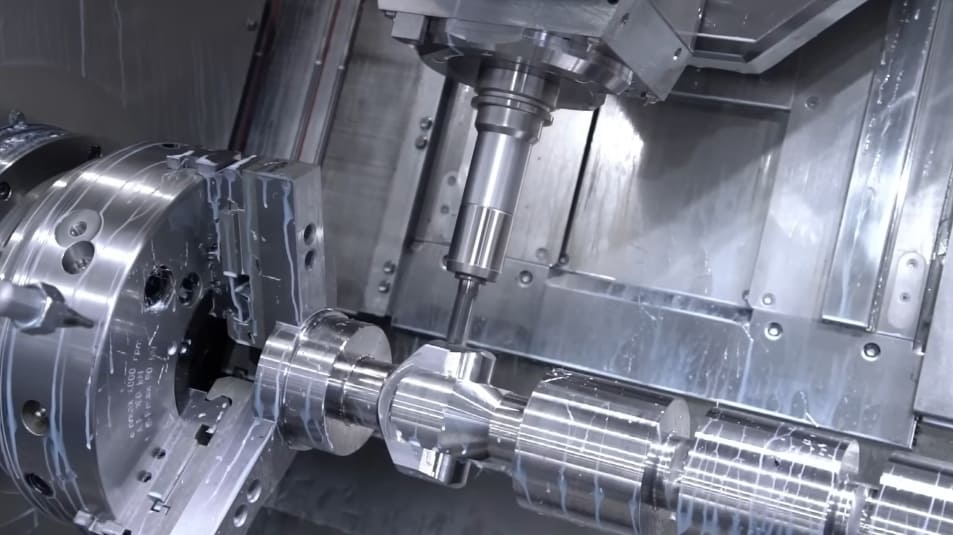

CNC turning is the basis of shaft machining. In this procedure, the shaft rotates while a fixed cutting tool removes material. This procedure provides superior concentricity as well as strict tolerances. For mass production of cylindrical shafts CNC turning is the favourable selection in many sectors.
Polygonal Turning
Polygonal turning creates non‐circular shaft shapes such as squares or hexagons without pausing the shaft rotation. This procedure combines the movement of the cutting inserts with the rotation of shaft. It rapidly produces detailed profiles. For shafts that need multiple points or flats, polygonal turning works very fast in contrast to milling.
CNC Grinding

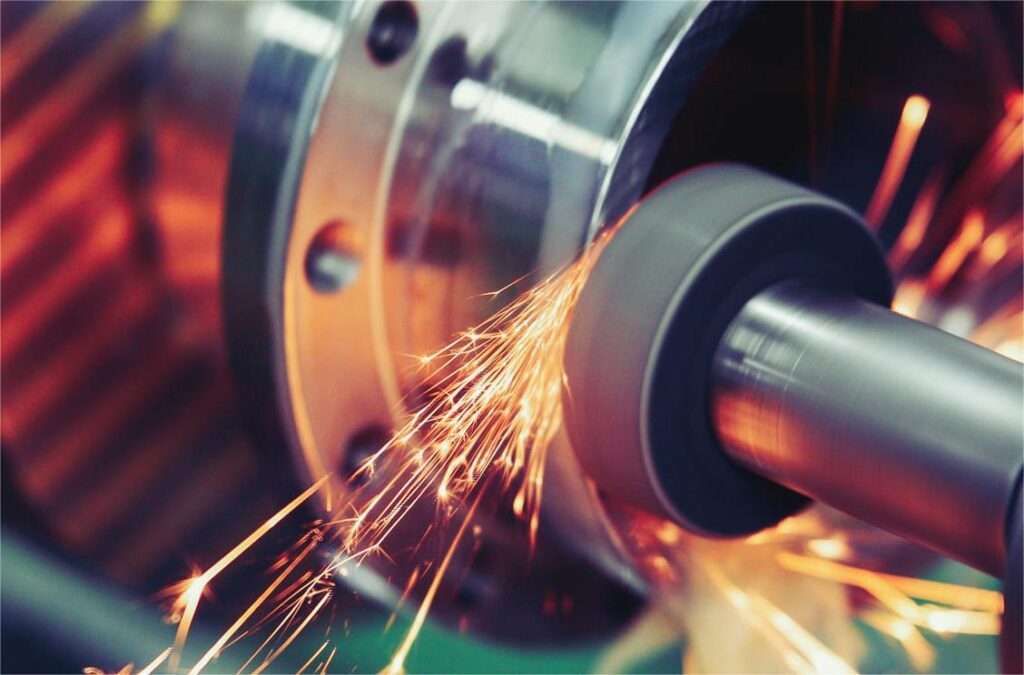

CNC grinding is essential when the shaft requires very strict tolerances and an extremely smooth surface. An abrasive wheel refines & polishes the surface of shaft. This procedure is important for components that work with bearings or seals usually achieving tolerances of up to ±0.025 mm.
Also See: A Complete Guide to Precision Grinding
Ultrasonic Machining

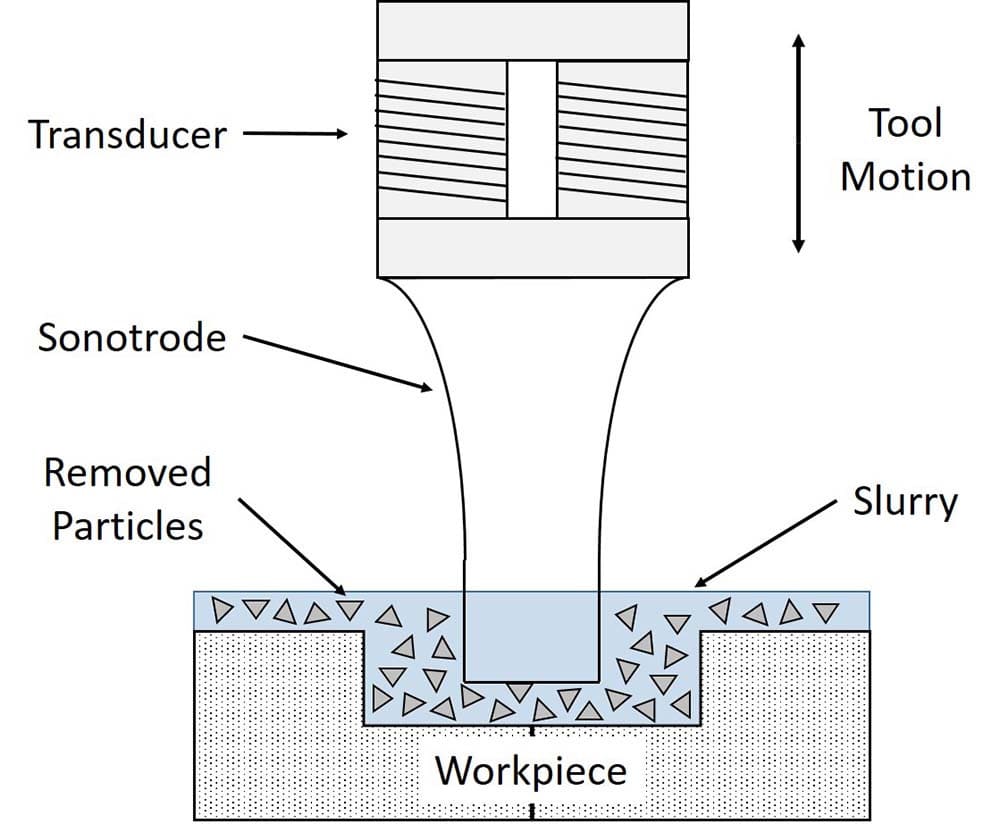

Ultrasonic machining is ideal for difficult‐to‐work & hard materials. This procedure uses high‐frequency vibrations to move abrasive particles against shaft. This approach accurately shapes the material and maintains low heat generation as well. You can use this procedure for glass‐filled or ceramic composites.
Electrical Discharge Machining (EDM)
EDM works best for machining hard or intricate materials. This procedure employs an electrical discharge to vaporize material. This makes it possible to create sharp internal corners and detailed features. At RICHCONN, we usually depend on EDM to machine hardened steels and exotic alloys that are difficult to do by other approaches. This method creates highly accurate, burr‐free components.
Modern Technologies and Techniques
4‐Axis and 5‐Axis Machining
4‐axis & 5‐axis CNC machining incorporates rotational movement to basic 3‐axis system. This upgrade permits you to produce more intricate shaft designs. In 5‐axis machining, the cutting tool moves on five axes. You can create components with complex shapes in one setup.
Freeform Surface Machining

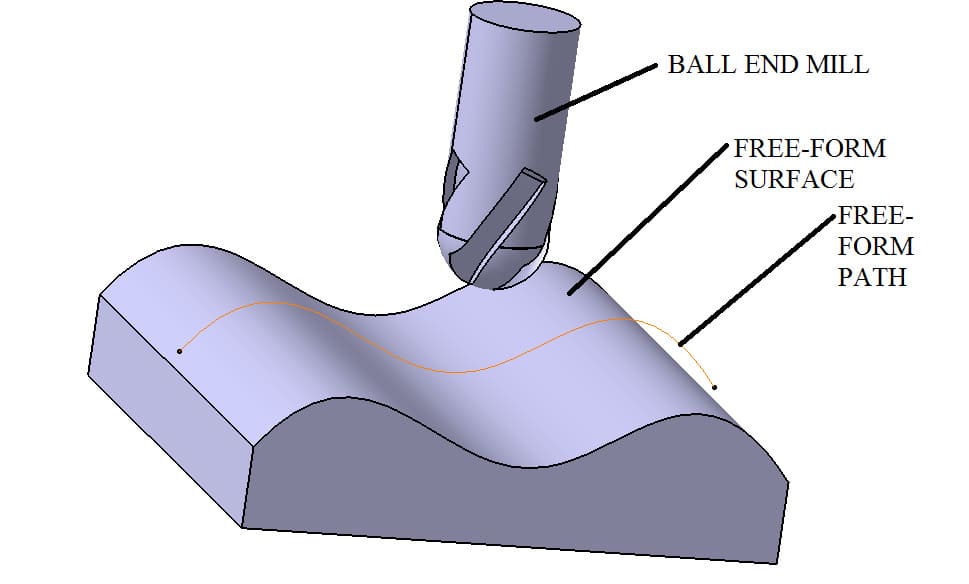

Freeform surface machining is built for complex, curved‐shaped shafts that standard tools cannot produce. This procedure uses modern tool path generation such as cutter shaft tilt method. This minimizes surface imperfections and guarantees that shaft meets 5‐axis precision requirements.
Diamond Turning

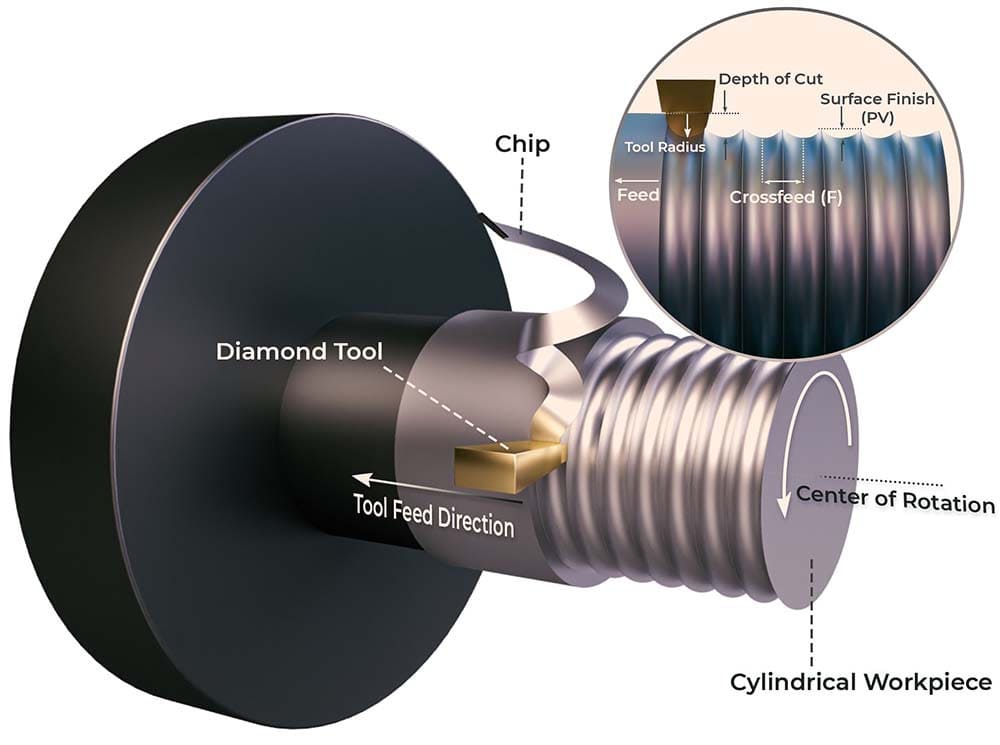

Diamond turning uses a diamond‐tipped tool to produce a highly accurate finish on shaft surfaces. This technique is perfect for optical shafts or parts that require surface smoothness at nanometer level.
Design Factors for Special‐Shaped Shafts
When designing a special‐shaped shaft you must evaluate durability, strength and manufacturability. Each design choice influences efficiency of shaft and its dependability in real‐world use.
Surface Finish and Tolerance
Smooth surfaces and accurate tolerances are critical for optimal fitting & sealing. Minimize surface roughness on curved corners. This method increases both seal life and fatigue strength as well.
Shaft Geometry
Design the shaft in a way that is simple to manufacture & assembly. Refrain from sudden changes in diameter, include fillets at transitions and use uniform radii. These measures reduce stress concentrations and extend the life of the shaft.
Torque and Load Requirements
Initially check if your shaft can withstand all expected torques & loads. Use the torque and permissible stress to estimate minimum diameter. For example, a 200 hp motor running at 1800 rpm typically requires a 60 mm diameter shaft. If you include keyways then also increase the diameter by 3% to 10% so that the shaft remains strong.
If you have doubts related to reinforcement or sizing then RICHCONN’s manufacturing team can give you FEA‐based advice. This guarantees that your shafts are strong & dependable from the start.
Material Behavior
Consider how your material will deal with corrosion, temperature changes and repeated loading. Pick materials and heat treatments that suit the demands of your uses.
By keeping all these aspects in mind, you can build shafts that are precise, strong and ready for extreme jobs.
Quality Control and Inspection
Surface Finish Assessment

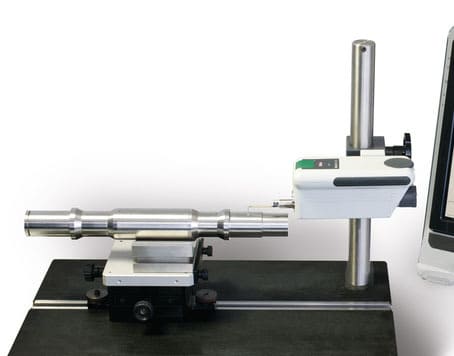

Surface finish has a direct influence on wear and efficiency of the shaft. Rz & Ra values are used as basic measurements, and many applications need a finish of 0.8‐3.2 μm Ra. You can monitor these values with profilometers. This will ensure that the shaft surface is smooth and performs according to your intention.
Measurement Methods

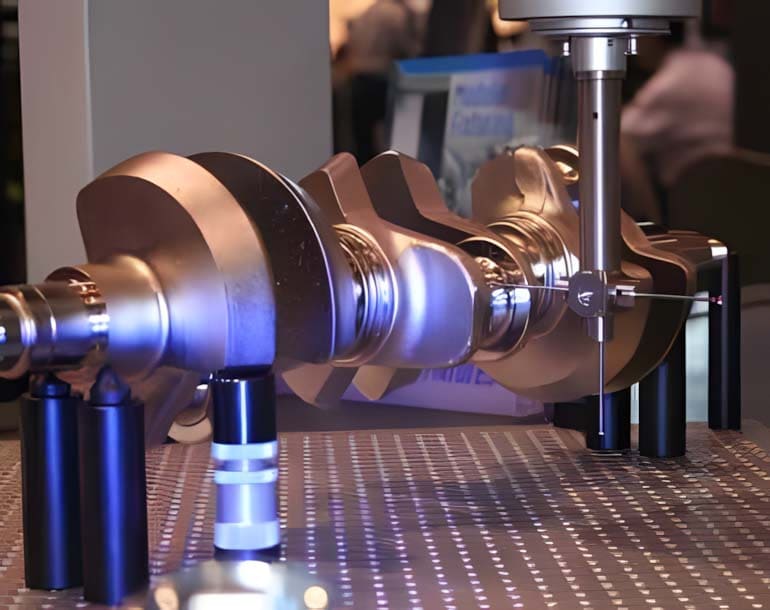

Engineers use CMMs to verify fine details and intricate shapes in 3‐dimensions. Profilometry & laser scanning add further precision by offering rapid, non‐contact measurements. These tools can capture deviations as small as 0.01 mm so you can maintain uniform batch quality.
At RICHCONN, our ISO‐certified CMM lab checks every personalized shaft. We use detailed GD&T inspections and laser scanning to ensure your components always meet stringent standards.
Also See: What is CMM Inspection
Tolerancing and Standards
Using GD&T principles helps your components fit and work as intended. Industry standards such as ASME & ISO guide your tolerance selection. Critical features usually require tolerances of ±0.01 to 0.02 mm. Using standards simplifies assembly and reduces the risk of mistakes.
Limitations in Special‐Shaped Shaft Machining
Machining special‐shaped shafts presents many unique challenges. Modern techniques and thoughtful planning are required to get best results.
Material Hardness
Many shafts are produced from hard materials such as hardened steel or titanium. These materials cause cutting tools to wear out as much as 30% faster as compared to softer metals. Thus, tool costs increase and machining takes longer.
Complex Geometries
Splines, grooves and polygonal profiles are common on special‐shaped shafts. These features make it difficult for tools to reach many parts. Multi‐axis CNC machines can solve some of these challenges. However programming and setup become much more complicated.
Price Implications
Specialized fixtures, accurate machining and repeated tool changes raise production expenses. You have to balance these costs with customer demand for high durability & precision. At RICHCONN our experienced team manages these expenses with optimal batch planning and smart fixture design. This method makes it possible to produce very intricate shafts at a very reasonable price and preserve quality at the same time.
Maintaining Tolerances
Stringent tolerances are particularly important for thin or long shafts. Even a difference as minor as 0.01 mm can have a big impact on shaft performance. Heat generated by the machining procedures can also lengthen the shafts which makes it difficult to maintain precision.
Best Practices for Better Machining
Machining Parameters
Adjust your feed rate, cutting speed and depth of cut to suit each task. Lesser speeds can help tools last longer and offer a better surface finish. If you are required to enhance productivity for simple features then try higher feed rates. Always check and adjust your parameters according to the complexity of shaft and hardness of material.
Tool Selection
Choose cutting tools according to the shape and material of your shaft. When operating on hard alloys, use coated and carbide tools. These tools hold tighter tolerances and last longer.
Preventive Maintenance
Adopt a tight maintenance routine to keep your CNC machines in good condition. Clean filters, check fluid levels and lubricate moving components regularly. Preventive maintenance reduces downtime and helps keep your shafts to the required tolerances every time.
Coolant Usage
Use right coolant type and concentration to improve surface finish and to control heat. Studies show that an 11% coolant concentration can reduce the Ra value by 3 µin. This decreases surface roughness and keeps results uniform. The correct coolant also eliminates chips and shields components from rust.
Practical Uses of Special‐Shaped Shaft Machining
Aerospace Sector

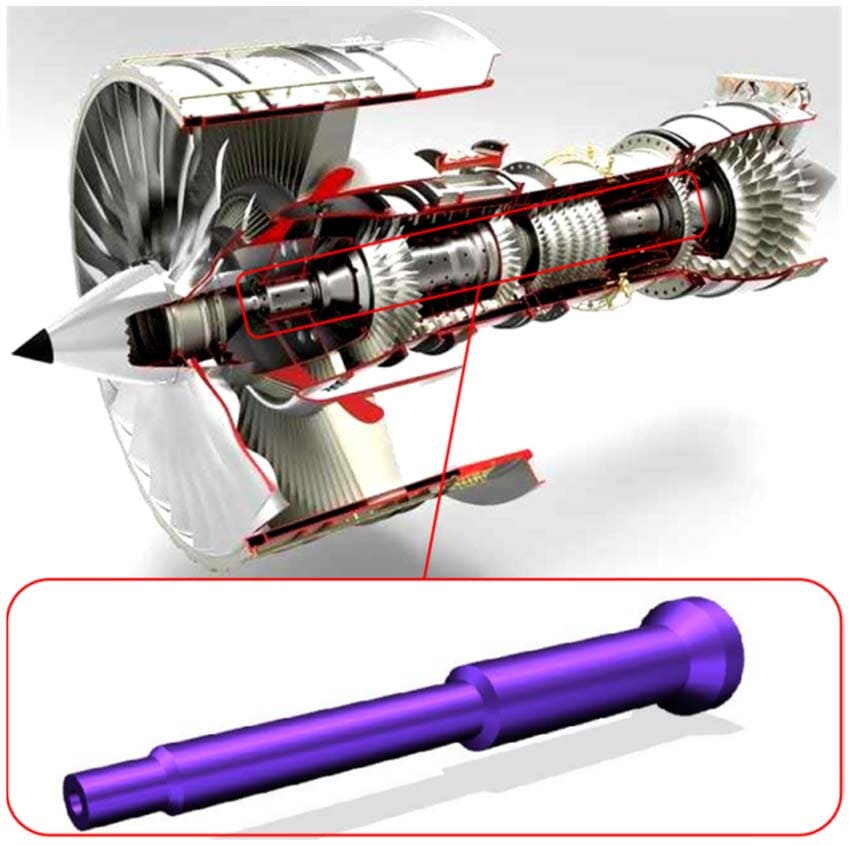

The aerospace sector requires shafts for engine components, landing gear and turbine assemblies. These parts are exposed to very great speeds, high temperatures and continuous vibrations. Precision machining is essential to meet tight tolerances. This guarantees both performance & safety.
Automotive Industry

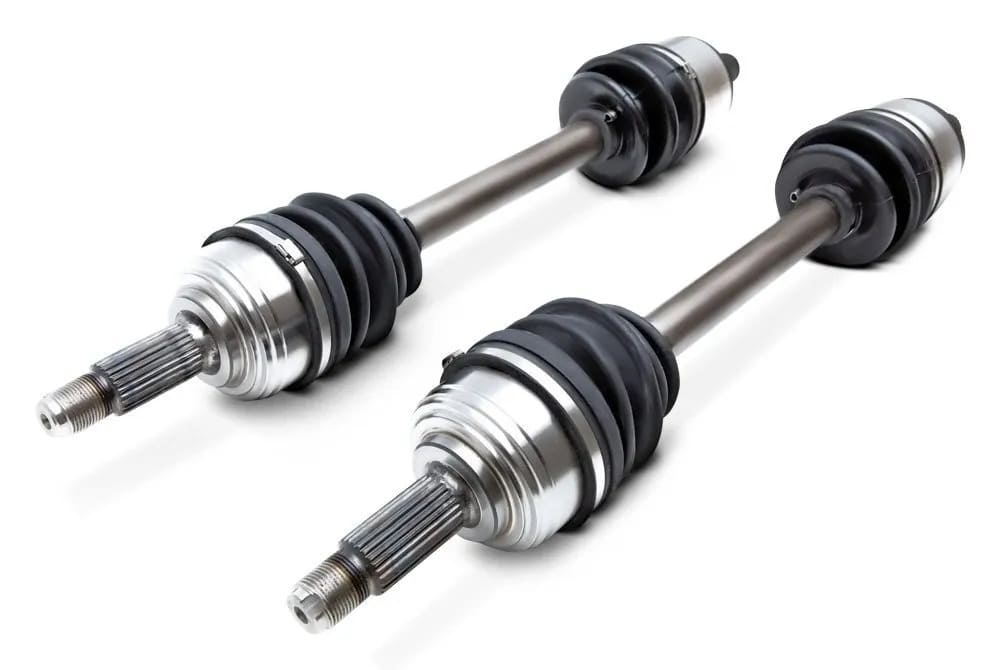

Automotive engineers depend on special‐shaped shafts for transmission parts, drive shafts as well as engine assemblies. These shafts withstand high vibration & torque and make sure that power transfers smoothly. Their performance has a direct impact on the performance of vehicles.
Industrial Machinery

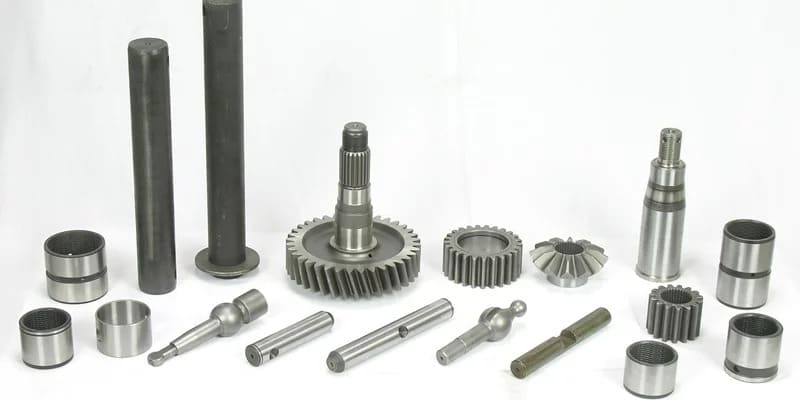

Industrial machines rely on shafts to drive rotating components – i.e., pumps, conveyors & compressors. Personalized machining is used to tailor these shafts to speed, load and environmental needs. This method enhances both efficiency and life of machine.
Medical Devices

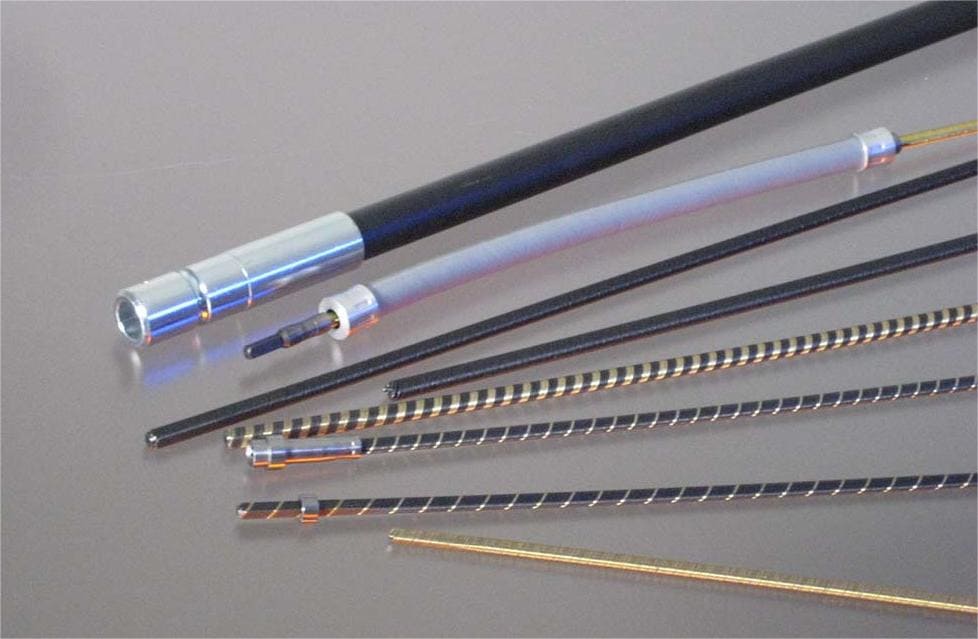

Medical devices use special‐shaped shafts in implants & surgical equipments. Biocompatibility and precision are of utmost importance here. These shafts have smooth surfaces and fine details which are very important for precision‐dependent processes. At RICHCONN our FDA‐compliant machining procedures ensure that medical shafts have a high‐quality surface finish and are biocompatible as well.
To Sum Up
Advanced industries require special‐shaped shaft machining. This sector combines accurate procedures, modern materials and meticulous quality testing. Thus you get dependable special shafts for aerospace, automotive, medical as well as industrial applications．
If you need any kind of CNC machined parts including custom special shaft then Richconn is your best option. You can contact us today to discuss your needs.
