Tool wear and poor surface finishes often frustrate machinists. These problems can sometimes be traced back to the toolpath you use. Spiral machining offers a solution to this by letting the tool move in a smooth, continuous path without sudden direction changes.
In this blog post we will cover the basics of spiral machining, show you when it works best as well as explain how to use it for consistent & reliable results.

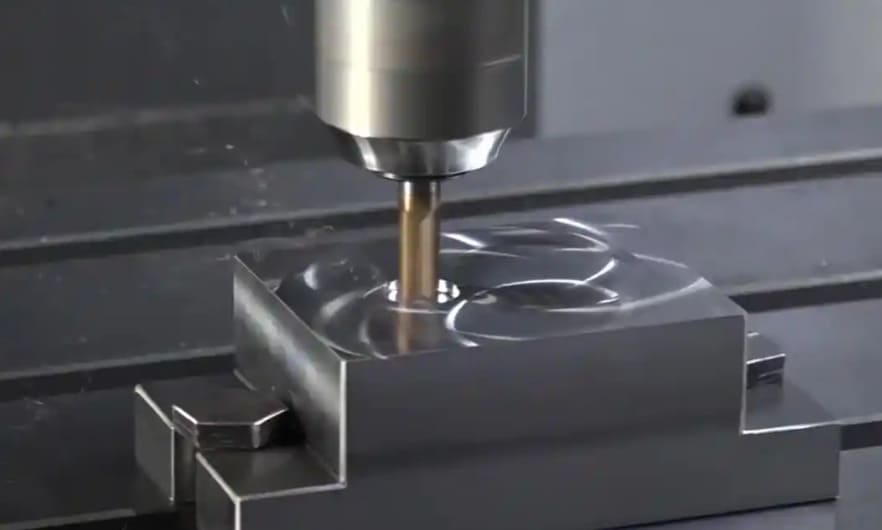

What Is Spiral Machining?
Spiral machining is a machining approach where CNC controls are used to guide a cutting tool along a continuous spiral or helical route. The tool stays engaged with the material at all times. This approach works well to form holes, clear out pockets as well as finish complicated 3D surfaces efficiently & smoothly.
Related Terms You’ll See:
Many terms in CNC shops describe techniques similar to spiral machining.
- Helical interpolation or circular ramping mills holes by moving the tool in a corkscrew pattern along the X, Y & Z axes.
- Spiral pocketing removes material from 2.5D cavities by following paths that expand or contract.
- 3D spiral finishing lays a spiral pattern over curved surfaces to create a smooth finish.
- Trochoidal milling uses wave‐like spiral paths for slotting and also for roughing tasks.
Why Machinists Choose Spiral Paths?
Spiral toolpaths have several key benefits;
- The chip load and cutting forces remain steady.
- Machines run more smoothly because there are fewer sharp turns.
- This process produces a consistent, high quality surface finish.
- Tools last longer and cycle times decrease because the tool stays engaged with the material.
Where Spiral Strategies Shine?
Spiral toolpaths solve particular machining problems with very high efficiency. Selection of right spiral strategy improves both part quality and overall productivity.
Quick Decision Guide
- Select helical interpolation if you need to make a hole but cannot use a drill.
- Use spiral pocketing for machining enclosed pockets that have internal corners.
- Pick dynamic or trochoidal milling when working on narrow slots or cutting deeply into hard materials.
- Apply a 3D surface projected spiral to achieve a smooth finish on freeform surfaces.
Primary Use Cases
Hole Making (Alternative to Drilling)
Helical interpolation creates or enlarges holes with a milling tool. This method works well for large diameter holes, for materials that tend to pack chips or for thin walled parts where drilling could cause distortion. It is mostly chosen instead of drilling in these cases.

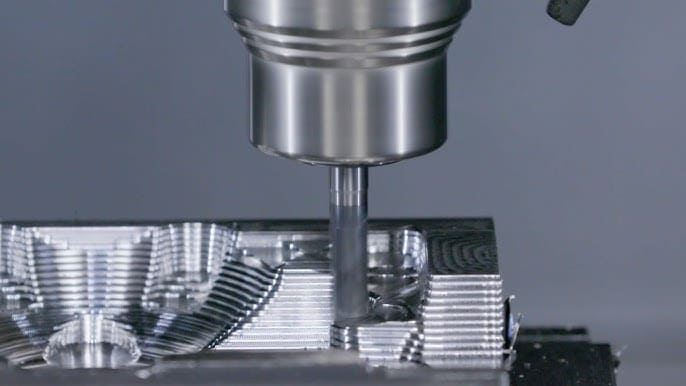

Pocketing & Cavities
Spiral toolpaths keep the cutting tool engaged while clearing pockets and cavities. They prevent uncut material from being left in the corners. This leads to a smoother pocket floor and more even material removal which can make the process more efficient as compared to straight milling.

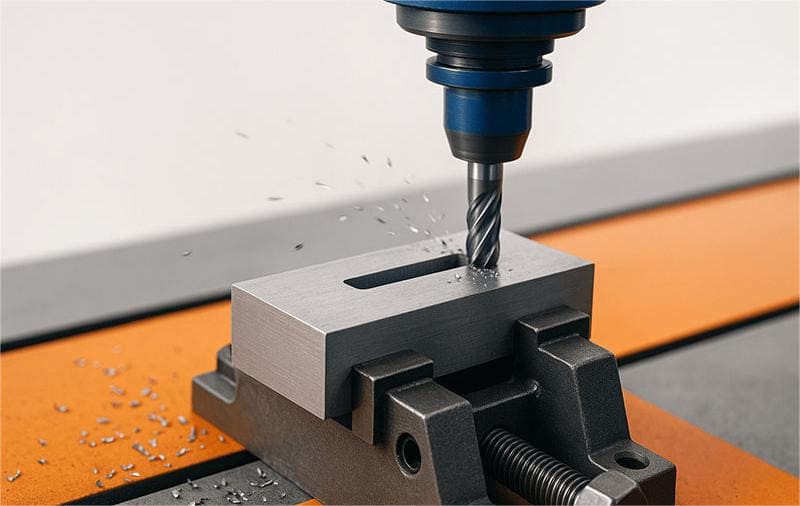

Slotting & Roughing (Dynamic/ Trochoidal)
Dynamic or trochoidal milling is ideal for hard materials such as titanium. This process uses a small radial stepover and a deep axial cut. This approach lowers heat, reduces tool wear and allows fast material removal.
3D Semi Finishing/ Finishing
Spiral finishing paths can be projected directly onto sculpted or freeform surfaces. This creates a continuous toolpath and produces a high quality surface with few tool marks.
At RICHCONN, we often follow this with bead blasting or anodizing. This way the finished part is ready for use right after production.
Mechanics of Spiral Toolpaths
Spiral toolpaths work by moving the machine and tool in a precise, continuous manner. Here we will explain how both the tool and the machine operate during these processes.
1. Path Geometry Types
Helical Interpolation: The tool moves in a circle on the XY plane while also moving along the Z axis. This creates a helix.
Planar Spiral: When the tool clears out pockets, it follows a spiral that starts at the center and moves outward in one flat plane. This keeps the tool cutting at all times and avoids making sharp turns.
Surface Projected Spirals: In this method, the spiral path is calculated and applied to a curved surface. The tool can then finish non flat parts in one smooth, continuous pass.
2. Constant Engagement
Spiral machining relies on keeping the tool engaged with the material at all times. The tool follows smooth, curved paths instead of making sudden direction changes like in traditional pocketing. This approach keeps cutting forces steady and helps reduce both tool wear and chatter.
3. Machine Control Capabilities
Interpolation & Look Ahead: CNC controllers with look‐ahead features can predict upcoming changes in the toolpath. This lets the machine keep a steady speed and chip load even when following complicated curves.
Jerk Limits & Smoothing: Smoothing algorithms and jerk control adjust how quickly the machine changes acceleration. They prevent sudden jolts by making motion smoother. This is important for getting a high quality surface finish without defects.
Tooling Choices (End Mills & Holders) for Spiral Work
Choice of right tools is crucial to create accurate & smooth spiral toolpaths. Your end mill as well as the holder directly influences the final quality of your work.

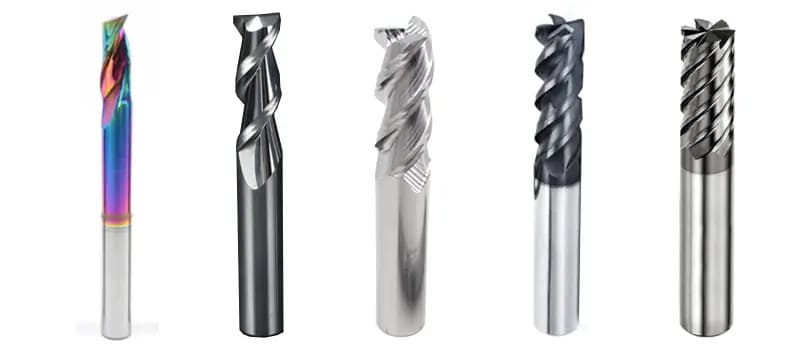

End Mill Features That Matter

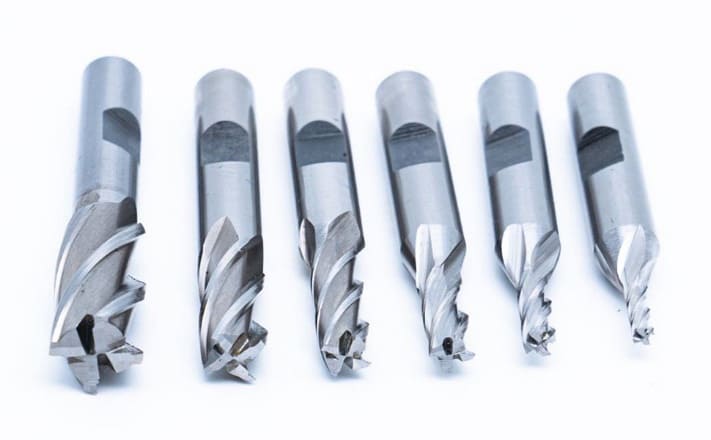

Center Cutting vs Non Center
A center cutting end mill has cutting edges that reach the center of the tool. This feature lets the tool plunge or ramp helically into solid material. Tools without center cutting capability cannot perform these entry moves.
Flute Count Tradeoffs
End mills with fewer flutes have more space for chips to escape which works well for materials like aluminum. End mills with more flutes provide greater rigidity and a finer finish in harder materials. However they need careful chip removal management.

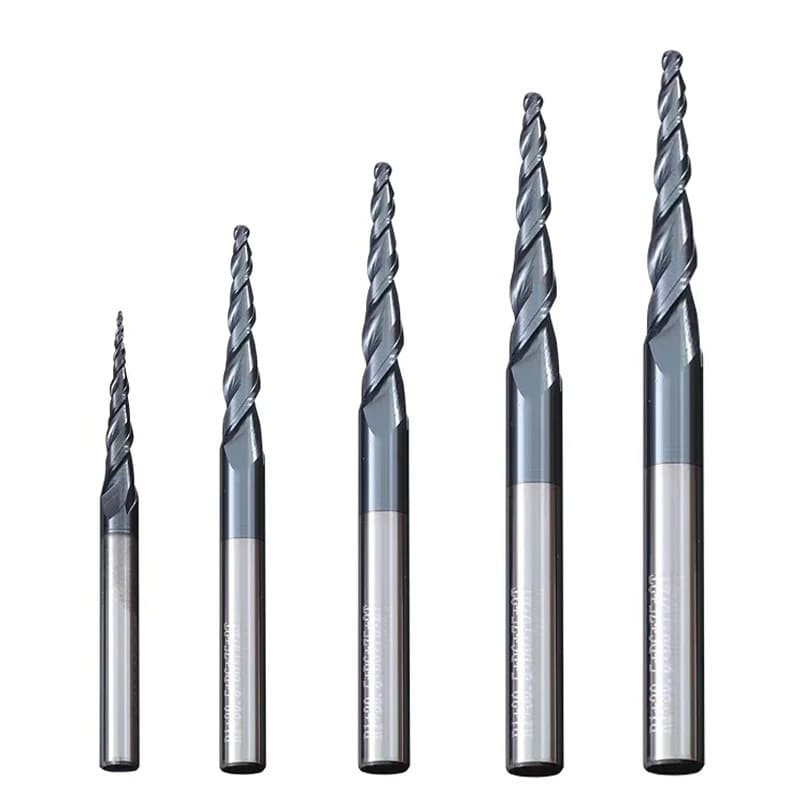

Corner Protection
End mills with a small corner radius or chamfer have stronger cutting edges. This extra protection reduces the risk of chipping and helps the tool last longer during continuous cutting.

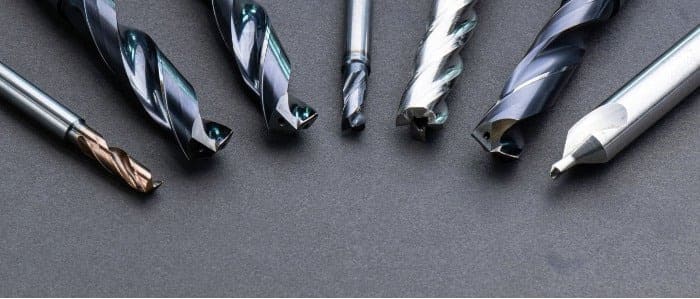

Coatings Aligned to Material
Tool coatings help lower friction and improve heat resistance. For example AlTiN (Aluminum Titanium Nitride) works well for machining tough alloys. While other coatings are made for non ferrous materials.
Tools for Helical Entry & Hole Interpolation
A strong, center cutting end mill is needed for helical interpolation. The tool must handle both axial and radial forces as it moves downward in a spiral. On the other hand, multi‐flute tools can improve the finish but you must assure chips are cleared effectively.
Holders & Runout Control
Holder Types & Balance

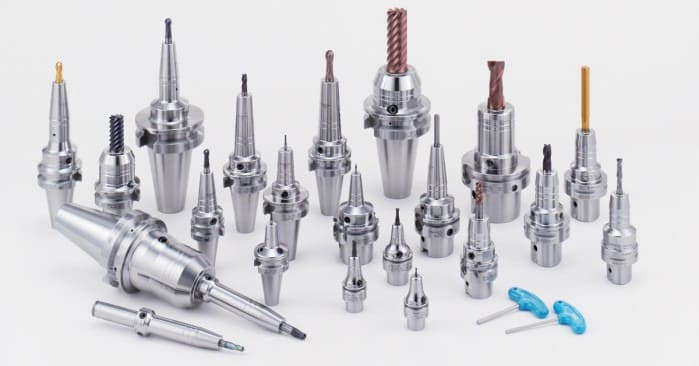

Hydraulic or shrink‐fit holders provide a rigid and balanced grip. These holders reduce runout and keep tool engagement steady even at high speeds.
Runout Targets & Impact
Runout is the wobble of the tool as it spins. It is important to keep runout low because if runout exceeds 15 microns, chip loads become uneven, hole quality drops, along with shortened tool life. Moreover for precise work, keeping runout below 5 microns improves accuracy along with finish.
Cutting Parameters for Spiral Machining
Choice of right cutting parameters is essential for spiral machining. These settings influence tool life, surface finish and how proficiently the process runs.
Ramp/ Helix Angle
A shallow ramp angle lets the tool enter the material smoothly. Most jobs use an angle from 1 to 3 degrees. This range keeps the tool pressure low & helps chips clear away.
Pitch/ Step Down per Revolution
Pitch measures how deep the tool cuts along the axis with each full rotation. You need to match this depth with the tool’s stiffness and its chip clearing ability.
Radial Engagement (Stepover)
Radial engagement means how much the tool cuts sideways. For dynamic roughing, use a low stepover—about 5 to 20% of the tool’s diameter. Conversely, a higher stepover works better to create a smoother surface for finishing tasks.
Feed & Speed During Entry vs Steady State
Lower the feed rate when the tool first enters the material to prevent sudden impact. After the tool is fully engaged in the spiral path, switch to the full programmed feed rate.
Related Blogpost: Feed Rate and Cutting Speed in CNC Machining
Chip Thinning & MRR in Dynamic Paths
Dynamic toolpaths use low radial engagement which produces thinner chips and less heat. This setup lets you safely raise feed rates and boost material removal rates (MRR).
At RICHCONN, we run our own cutting tests to find safe limits for each alloy. Therefore customers avoid unnecessary trial & error.
Programming Helical & Spiral Paths (CNC & CAM)
Once you understand the basics, programming spiral and helical toolpaths in CNC & CAM software becomes straight forward. These methods help you in machining holes, pockets as well as detailed surfaces with smooth & efficient movements.
G Code Basics
To create a helical or spiral path, use G2 or G3 for circular interpolation. Move the Z axis at the same time. Define arc centers with I, J & K (or R) and specify the pitch for each Z step per revolution. This setup lets the tool follow a true helix or spiral.
Entry Methods
Choose between a straight ramp and a helical ramp. Helical ramps work better for hard materials because they lower tool stress. Do not plunge straight down particularly when machining tough metals.
CAM Strategy Selection
Modern CAM software makes it easier to generate these advanced toolpaths. Look for options in your software named “Spiral”, “Helical” or dynamic strategies like “Trochoidal” or “VoluMill.” These features handle the complicated calculations and create smooth, arcing tool movements. They keep the tool engaged with the material at a constant rate.
Process Planning for Common Scenarios (Mini Playbooks)
Planning spiral toolpaths well is essential for success. The following playbooks outline steps for typical situations.
Helical Interpolate a Hole/ Counterbore
Pre Checks
Start by checking the tool diameter. Make sure it fits the hole and lets chips clear easily. Also confirm that tool runout stays low to improve accuracy.
Core Parameters
Choose a helix angle between 1 and 3 degrees to keep tool stress low as the tool enters. Next, set the pitch. Additionally lower the feed rate during entry for better control.
Finishing
At the final depth, add a circular “spring pass.” This step removes any remaining material and improves the roundness of the wall.

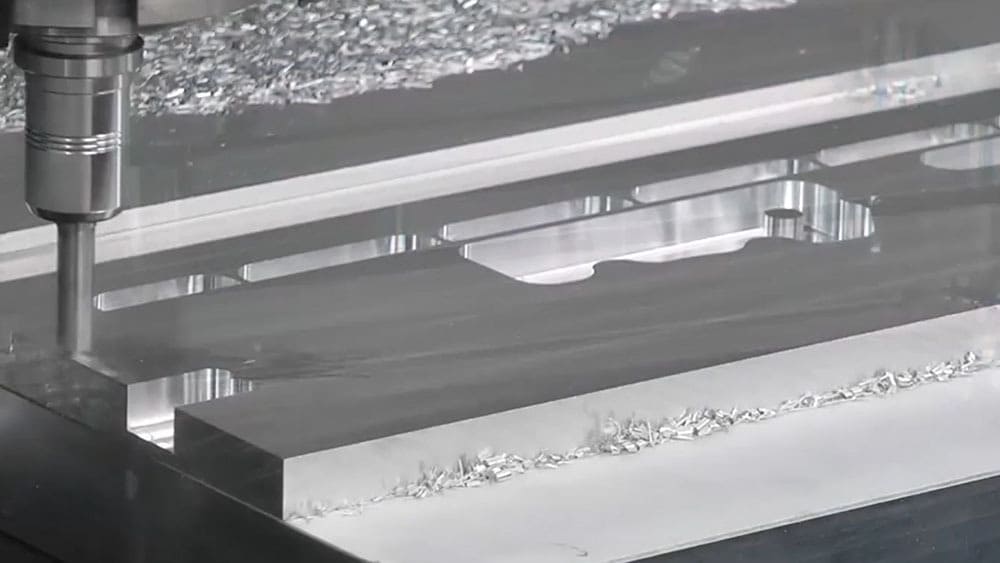

Spiral-Clear a Closed Pocket
Safe Entry & Containment
Begin with a helical ramp to enter the material. This avoids the high stress of plunging straight in. Make sure your CAM software detects the stock boundaries.
Consistent Stepover
Use a spiral toolpath that keeps the stepover the same throughout. This approach stops uncut material from being left in corners.
Finishing Passes
Add separate finishing passes for the walls and floor. This greatly improves the surface finish.
Troubleshooting Guide (Symptoms → Likely Causes → Fixes)
Chatter at Entry
A steep ramp angle or poor chip removal often causes chatter at entry. To fix this, lower the ramp angle and check that chips are clear. Using a center cutting tool or drilling a pilot hole first can also help make entry smoother.
Poor Hole Roundness/ Taper
If holes are not round or they show taper then tool runout may be too high or the pitch may be too large. First, reduce tool runout. Then decrease the pitch per revolution. Also check your machine’s smoothing controls to achieve better accuracy.
Tool Breakage During Ramp
When a tool breaks during ramping, the most common reason is too much force at the tool’s center. This often results from a high feed rate. Moreover a straight plunge increases stress on the tool as well. Therefore always slow down the feed rate at entry; and replace plunging with a gentle helical ramp to reduce tool stress.
Heat in Dynamic/ Trochoidal Slots
Too much heat can quickly harm both the tool and the workpiece. High radial depth of cut is a frequent cause of this. Also the pauses in the toolpath can make heat spikes worse. Therefore lower the radial engagement to keep temperatures down. Also make sure your CAM program creates a smooth & continuous toolpath with no stops.
Comparisons & When Not to Use Spiral Strategies
Entry Methods
Every entry method—plunge, linear ramp and helical ramp—impacts tool stress and machining time in different ways.
- Helical ramping spreads cutting forces evenly throughout the tool path. Thus it is a good choice for deep cuts or hard materials.
- Plunging completes entry faster but puts more stress on the tool particularly with tough alloys.
- Linear ramps work for basic operations but do not provide the smooth entry of a spiral approach.
Pocketing Styles
Conventional pocketing finishes simple shapes quickly but causes load spikes at corners. These spikes can increase tool wear. Spiral pocketing, on the other hand, avoids corner impacts and lowers vibration. However it needs longer toolpaths and more advanced programming.
Slotting Approaches
Traditional slotting uses large tools and high feed rates. This can cause vibration and leave an uneven surface. Trochoidal (spiral‐like) milling takes a different approach. It uses low radial depth and high axial depth. This method can double tool life and produces a smoother cut which is particularly helpful with hard metals.
Limits/ Contraindications
Spiral toolpaths do not suit every situation. Avoid them for features with very small internal radii or sharp corners. They also create problems when chip evacuation is poor such as in deep, narrow pockets. Machines that lack power or rigidity may struggle with these paths as well. In these cases, pre‐drilling a pilot hole is often a safer and more reliable method.
If you are unsure about using a spiral path, RICHCONN’s engineering team can review your design and provide feedback.
Quick “Setup Checklist” for Spiral Jobs
A reliable setup is the foundation of a successful spiral job. Following a checklist helps you achieve consistent results and a smooth machining process.
Strategy & Tooling
Begin by checking your machining strategy. Decide if you will use helical interpolation for holes or trochoidal milling for slots. Then, choose the right end mill. Make sure it is a center cutting type so you can make entry moves. After this, place the tool in a high quality holder. Also check that tool runout stays as low as possible.
Parameters & Control Settings
Set the helix angle between 1 & 3 degrees along with the correct pitch for your job. Pick a stepover and axial depth of cut that match the material and the tool’s rigidity. Turn on machine control features like look‐ahead and path smoothing. These help the machine move smoothly and cleanly. Also plan how you will remove chips – with the help of high pressure coolant or a focused air blast.
Simulation & Prove‐out
Run a full simulation in your CAM software before starting. Look for possible collisions or sharp acceleration points that could cause jerky motion. Make sure all lead‐in, lead‐out and retract moves are safe & efficient. After you check everything, post the code and do a dry run on the machine before you cut any parts.
First‐article Notes
Inspect the very first part with care. Write down the final offsets, note any tool wear and observe how the chips formed. Use these notes to improve the process for the rest of the job.
Conclusion
With the right setup, spiral machining delivers smoother cuts, uniform surface finishes and longer tool life. Following proven methods for tooling, parameter selection & process planning helps prevent common problems and also boosts efficiency.
Richconn provides precision CNC machining services including spiral machining. Feel free to reach out to us at any time.
Related Questions
Helical interpolation works best when you need to create holes of different sizes using a single tool, or when you want to improve chip evacuation or lack the exact drill size. This method also suits cored holes and threading tasks.
A helical toolpath in CAM keeps the same radius as it moves up or down the Z axis. It’s much like a spring’s motion. In contrast a spiral toolpath changes its radius as it expands or contracts on a flat, 2D surface.
Yes you can machine tapered bores using spiral or helical toolpaths if your CNC control and toolpath software support this function.
