Machining spline shafts is critical for power transmission systems in aerospace, automotive and many other industries. And it is very important that you machine spline shafts correctly to extend their life, reduce wear and transfer torque efficiently.
This blogpost will give you important information about tools, techniques as well as practical tips for efficient spline shaft manufacturing.

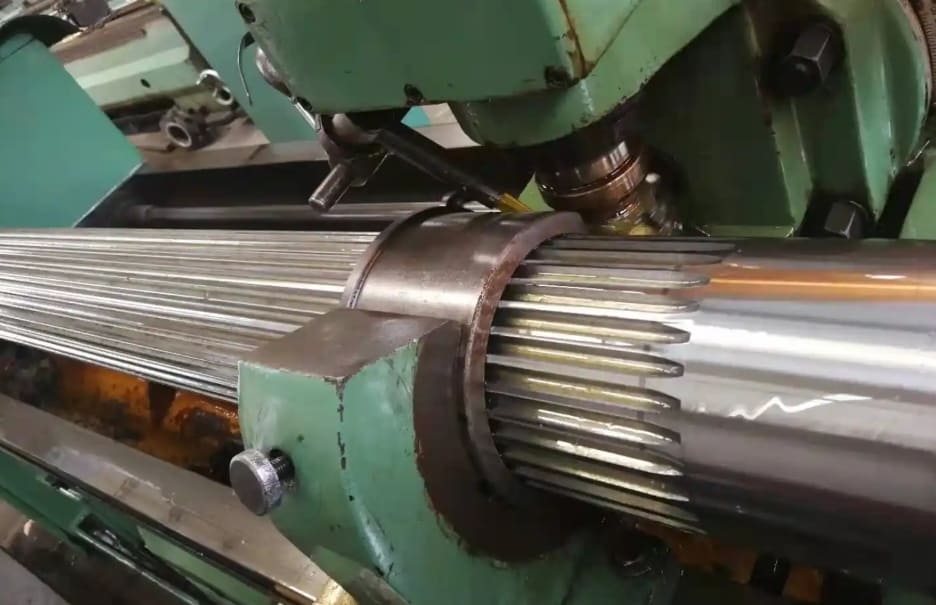

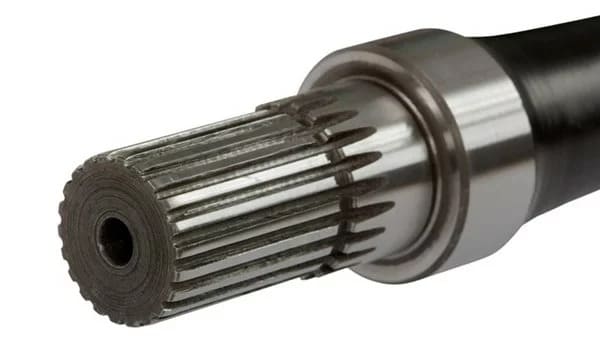

What are Spline Shafts?
Basically, spline shafts are specially manufactured mechanical parts that have very accurately machined ridges or grooves, called splines. These splines allow the shaft to safely transfer rotational motion and torque between components such as wheels, gears or couplings. The splines have an interlocking design which help provide accurate alignment, great torque transfer and balanced load management making spline shafts very important in heavy duty applications.
Also See: A Complete Guide to Motor Shaft Machining
Types of Spline Shafts

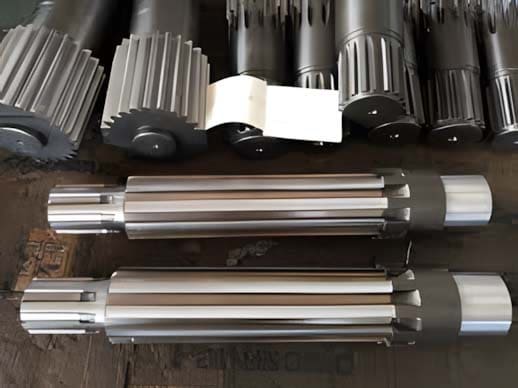

Parallel Splines
Parallel splines have straight grooves with parallel sides. Their consistent cross‐section makes them easy to produce which makes them a budget‐friendly decision for agricultural tools and other low‐to‐medium torque applications.

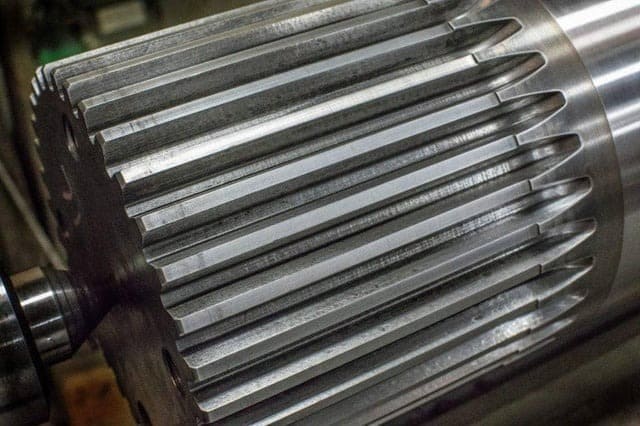

Involute Splines
These splines contain gear‐like curved teeth. These teeth help manage load evenly and lessen stress concentration. Involute splines are appropriate for the uses that demand accuracy and high‐torque.

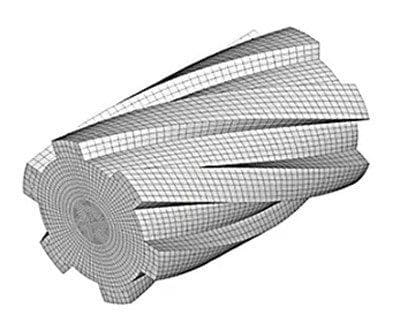

Helical Splines
In helical splines, the teeth are positioned at an angle in a helical pattern. This angled geometry reduces noise levels & vibration during rotation. You will usually pick helical splines for transmissions that need smooth and quiet operation.

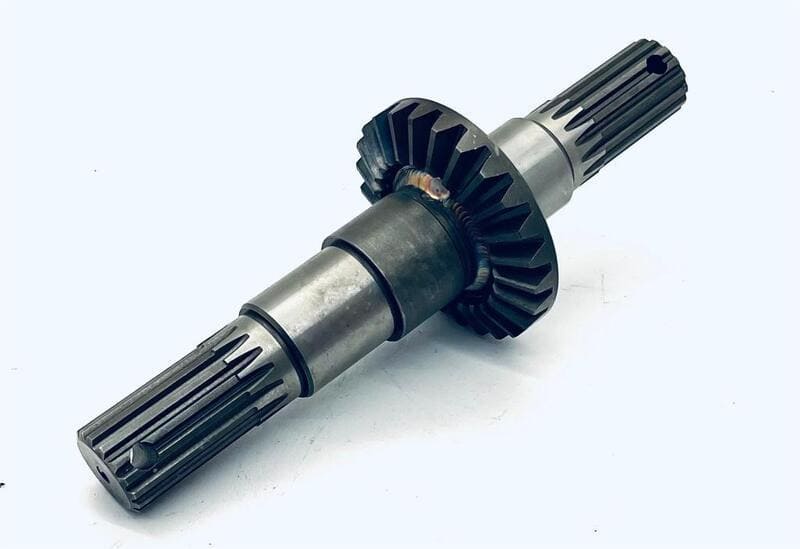

Crowned Splines
In these splines, the tooth structure is adjusted to handle slight angular misalignments between the connected components. Crowned splines reduce wear and increase durability in moving mechanical assemblies.

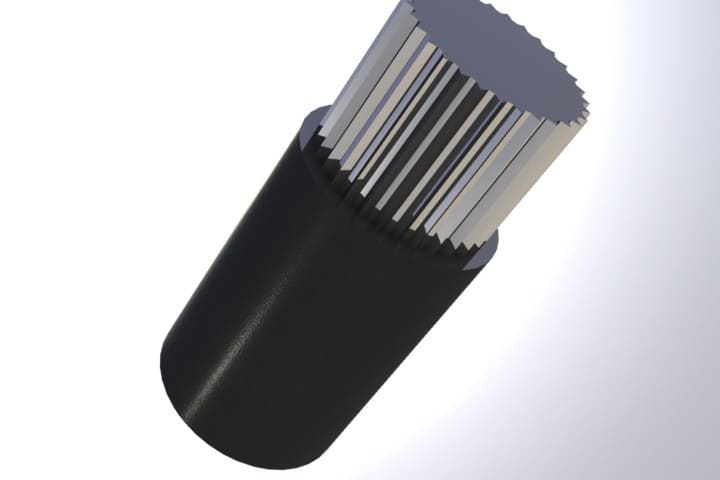

Serrated Splines
Serrated splines feature a “V” shaped tooth design. This design permits for more teeth on smaller diameter shafts. This is why serrated splines are perfect for lightweight, compact and low‐duty uses.
Techniques Used for Spline Shaft Machining

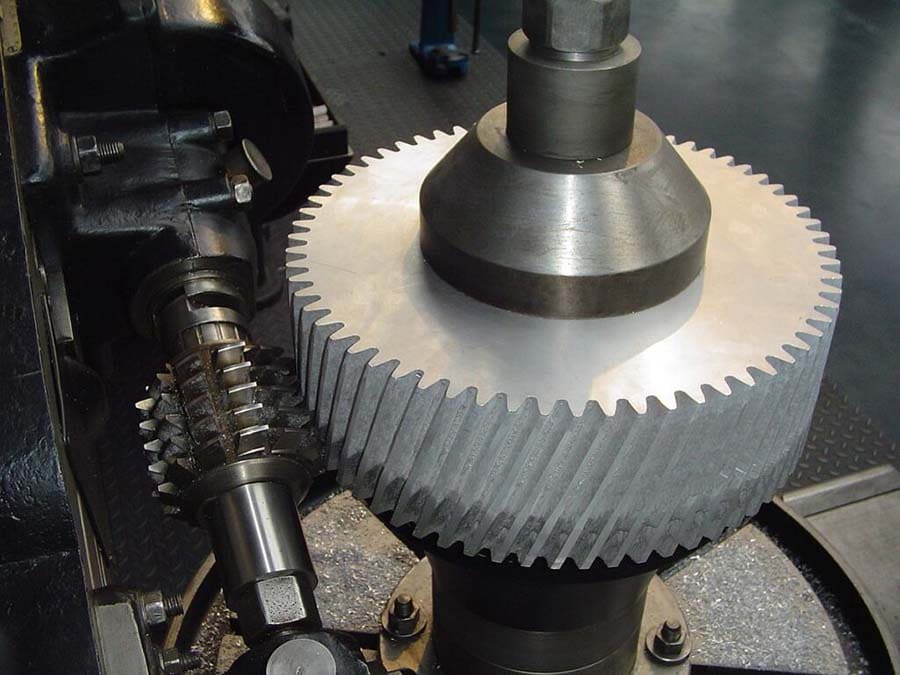

Hobbing
Hobbing offers high‐precision & fast machining of external splines. This procedure is specially good for uses that require mass production and uniform quality. The machine employs a cylindrical hob with helical teeth that cuts the spline profile in a rotating workpiece. This gradual cutting method creates best surface finish and accurate tooth geometry.
At Richconn we employ modern hobbing machines to manage long shafts and intricate spline designs. This guarantees that your parts continuously adhere to tight dimensional accuracy.

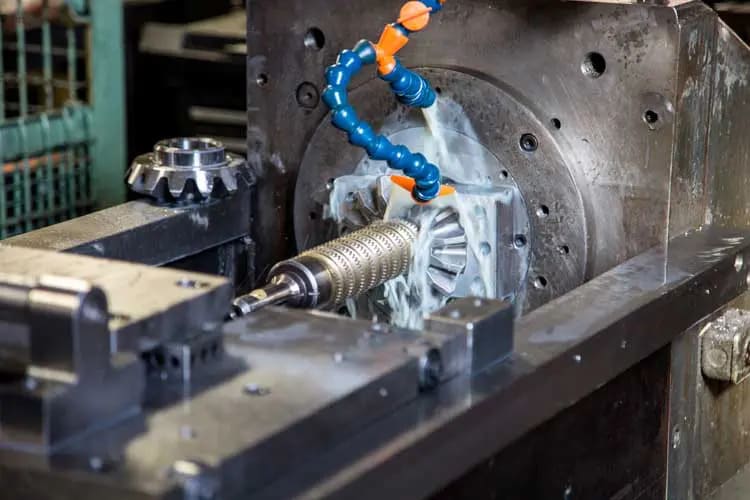

Broaching
Broaching performs cutting of external or internal splines by utilizing a special toothed tool called a broach. This tool cuts in a consistent motion which creates splined shafts with a smooth finish and high precision. Broaching is especially great for large‐scale production – such as automotive production – because it is streamlined & accurate.
But broaching tools need a big initial investment and personalized design which make this technique costly. That’s why it is more suited for large‐scale manufacturing instead of low‐volume production.
At Richconn we use this technique for projects that demand strict dimensional accuracy and uniform results. It makes sure that every spline shaft we manufacture adheres to stringent industry standards.

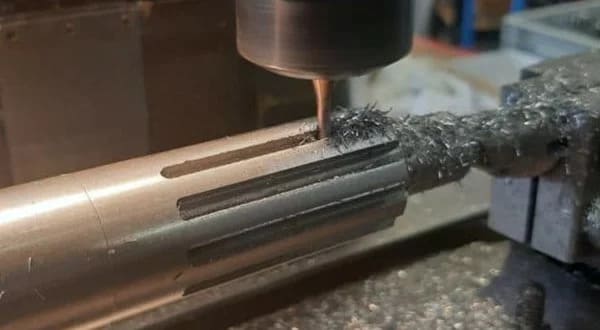

Milling
Milling spline machining is most flexible procedure – specifically with advanced CNC machines. It consists of rotary cutters that give shape to intricate splines design – i.e. helical & involute types – which obtain tolerances down to ±0.01 mm. Milling is good for both prototyping as well as full production runs. Milling is very versatile but it is usually more expensive and time‐consuming as compared to broaching when used for mass production.
At Richconn, we use modern CNC milling techniques to precisely and quickly produce custom spline shafts that meet tight tolerance requirements and your particular needs.
See Also: A Complete Guide to CNC Milling

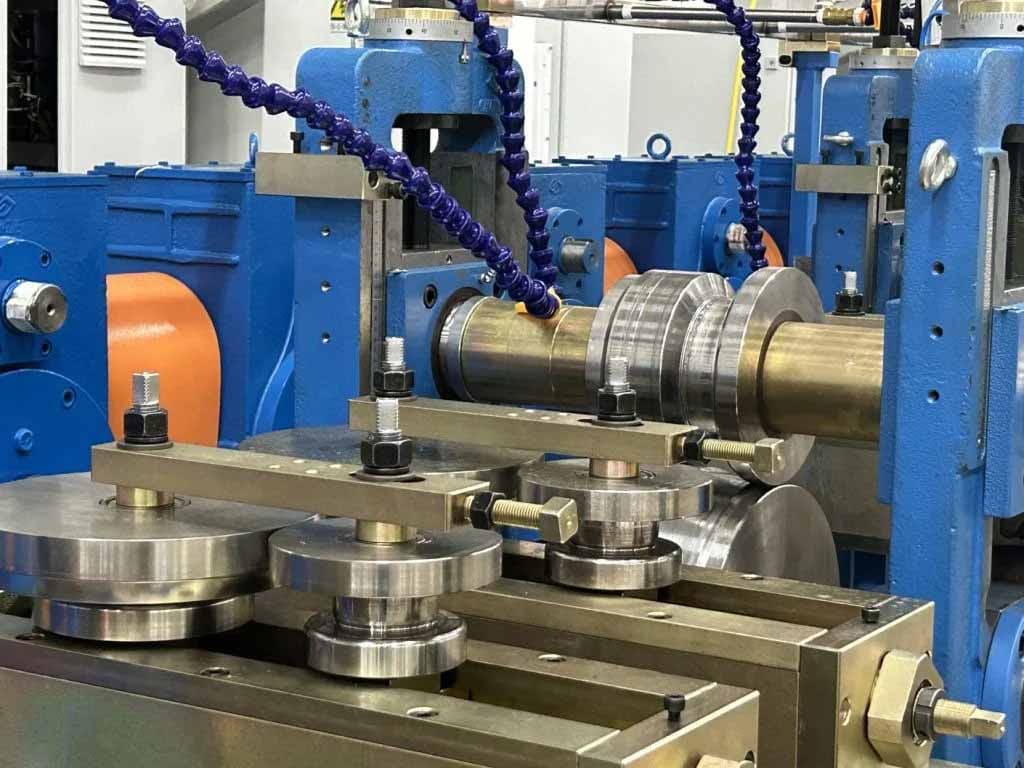

Rolling
Rolling – also called cold roll forming – produces splines by forming the material instead of cutting it. It notably enhances surface finish & tensile strength. Cold‐rolled spline shafts can be up to 20% stronger than shafts made through cutting approaches. This procedure also provides greater productivity and also decreases material waste.
Rolling has, however, some limitations. It needs high‐quality & ductile materials and also precise blank dimensions. It is also less appropriate for very hard or asymmetrical splined profiles.
At Richconn, we generally recommend rolling for high‐volume manufacturing where performance & strength are very important considerations.
Shaping
Shaping is a dependable conventional technique that is mostly used when your internal splines have custom or intricate shapes. This method creates spline shape by eliminating layers of material. During this procedure a single‐point cutting instrument moves in straight line against static workpiece. This technique is very easily adaptable & a low‐cost choice if you need flexibility for small‐scale manufacturing & prototyping.
Spline Shaft Post‐Machining Processes
After machining, spline shafts must undergo a number of necessary post‐processing stages which includes:
Heat Treatment
Heat treatment is a process of regulated heating & cooling of metals to change their physical and mechanical along with maintaining their original shape. This step is necessary to increase hardness, durability and strength of spline shafts.
Typical heat treatment approaches that are used for spline shafts are:
Nitriding and Carburizing
These procedures diffuse nitrogen or carbon into the surface of material. They help decrease internal stresses and preserve dimensional accuracy.
Quenching and Tempering
In this approach the material is heated to an extreme temperature (e.g. 840°C to 860°C) then cooled quickly and after that it is treated at a low temperature (e.g. 600°C). This maximizes strength and decreases brittleness.
Induction Hardening
Induction hardening exclusively hardens particular parts – e.g. spline teeth – by employing high‐frequency currents. This enhances surface hardness without changing primary properties.
Surface Finishing
Polishing & grinding are essential surface finishing procedures after machining spline shafts. They assist in obtaining consistent surface finish and high dimensional accuracy. A carefully finished spline shaft decreases friction, guarantees minimum wear and ensures accurate fitting with mating components.
See Also: Precision Grinding_ Complete Overview
Quality Control
Strict quality control makes sure that your spline shafts work uniformly and stably. Quality inspection involves surface roughness testing with profilometers, dimensional checks using micrometers & calipers and non‐destructive testing approach.
At Richconn we apply thorough inspection procedures and modern technologies at each & every manufacturing stage to get desired performance and quality of your spline shafts.
Materials Used in Machining of Spline Shaft
When selecting a spline shaft material you have to thoroughly consider multiple aspects. These aspects comprise accuracy demands, structural load expectations, weight restriction and corrosion resistance. Furthermore, think about overall material expense & ease of machining. These considerations are particularly essential in cases of personalized or mass production.
Titanium
Titanium is usually picked for spline shafts, as it gives a better strength‐to‐weight ratio and corrosion resistance. Grade 5 titanium (Ti‐6Al‐4V) is very commonly utilized grade. It has a hardness of roughly 349 HV and tensile strength of about 1000 MPa. Titanium spline shafts are specifically appropriate for very high speed, accuracy or corrosive uses.
Steel Alloys
Steel alloys are the most widely used material for spline shorts. They give the best combination of strength, affordability and toughness. Typical alloy grades comprise 35CrMo, 40Cr & 38CrMoAIA. Based on the heat treatment, these grades show tensile strength from 200 – 450 HBS, hardness ratings between 750 & 1000 MPa and flexural strength up to 550 MPa. Because of these properties, steel alloys are suitable for high torque and heavy load uses.
Aluminum Alloys
Aluminum alloys are typically chosen for use cases where weight optimization is critical. Some applications – e.g. high‐performance automotive and aerospace – often use aluminum alloys. They have comparatively low tensile strength (40 MPa to 700 MPa) and hardness (approximately 15-150 Brinell) in contrast to steel but their ideal strength‐to‐weight ratio and improved corrosion resistance make them beneficial.
See Also: What are Aluminium Alloys

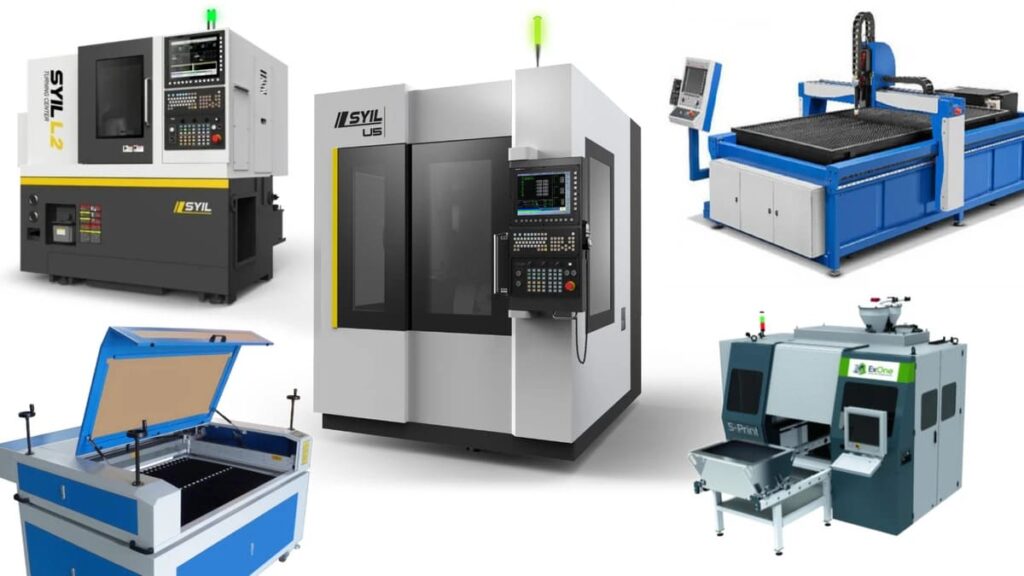

Equipment and Tools for Spline Shaft Machining
Precision spline shaft machining requires special equipment & modern tools. At Richconn we use precisely picked tools combined with advanced CNC machines. This guarantees that we continuously provide premium spline shafts.

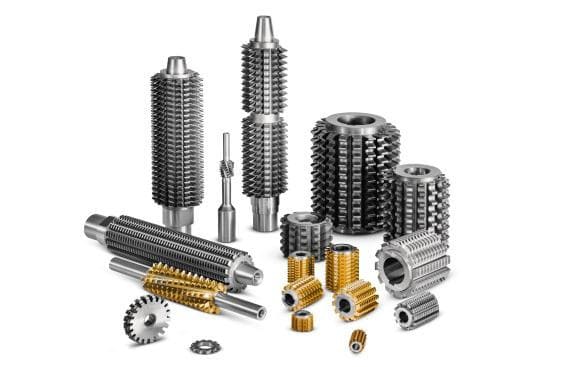

Cutting Tools
We use broaches, special carbide cutters as well as custom gear hobs manufactured particularly for spline profiles. These high‐performance cutting tools stay sharp even at high machining speeds. This is why they ensure strict tolerances and superior surface finishes which are necessary for manufacturing of external and internal spline features.
Machinery
Our machining facility have modern CNC equipment which includes 3‐axis & 5‐axis machining centers. These machines permit the precision manufacturing of intricate spline geometries. CNC turning systems manage main shaft body whereas CNC grinding and milling machines accurately give shape to essential spline sections. With these systems, we obtain surface finishes from 4 to 8 microinches in every single part.
Tooling Considerations
We use robust clamping mechanisms and vibration absorption fixtures to increase machining quality. These tools also assist in reducing deflection particularly during machining of thin shafts. Furthermore we monitor processes in real time, use modern tool coatings and properly program the tool path.
By integrating these methods Richconn continuously manufactures spline shafts that meet or surpass industry standards despite the intricacy of intended use.
Considerations and Tips for Custom Spline Shaft Machining
There are a number of basic aspects that we must consider during planning phase of personalized spline shaft machining. These factors profoundly affect performance and reliability of your shaft.
Material Selection
In the beginning, identify best material based on the strength, wear resistance and corrosion resistance required for your intended use. For harsh environments or high torque, steel alloys are generally the best selection. On the other hand, when weight optimization is necessary then aluminum is preferred.
Spline Structure Selection
The spline structure – parallel, involute or serrated – should be chosen after analyzing the load, torque and suitability with the associated parts of your application. The well‐suited profile increases operational life and guarantees efficient load distribution.
Tolerance Specifications
Defining accurate tolerance requirements is very important since proper tolerances ensure accurate alignment and consistent power transfer with mating components. So precisely define tolerance limits based on particular demands of your system. Slight changes in tolerances can notably decrease performance.
Speed and Feed Maximization
Thoughtfully choosing feed rates and cutting speeds is very important to decrease mechanical stresses and thermal deformation. These considerations heavily affect dimensional precision and surface quality. Moreover carefully selected machining settings help increase equipment life and decrease material waste to a great extent.
Shaft Specifications
Specify the shaft length & diameter in accordance with your required load and assembly requirements. Depending on particular use, shafts lengths usually range from 0.5″ to 48″ and diameters from 0.25″ to 18″. Precise measurements guarantee reliable performance as well as proper fit.
Surface Defects
At scheduled intervals, check shafts for possible defects such as notches or grinding marks. These defects badly affect the strength of shaft and can cause fatigue cracks. To avoid these problems employ a comprehensive inspection procedure and precise finishing methods.
Budget
Ultimately, the balance between quality and expense relies on choice of machining techniques, appropriate materials and unit volumes. With careful selection of suitable tooling and proper procedure planning you can control costs without affecting shaft performance.
Practical Uses for Machined Spline Shafts
Aerospace
Spline shafts are extremely important in aerospace industry – specifically in aircraft engines – where they transfer power to critical parts such as compressors and turbines. Moreover, spline shafts are often used in landing gear assemblies and helicopter rotor shafts. Their capability to maintain correct alignment under very high stress is critical in these settings.
Automotive
Spline shafts are important parts in automotive systems such as steering mechanisms, transmissions and drive shafts. These shafts enable smooth steering, smoothly transmit engine power to wheels and ensure reliable gear shifting without slippage.
Industrial Machinery
Industrial machinery notably depends on appliance shafts to guarantee efficient operation of machine equipment and conveyor systems. In conveyors, spline shafts align the movement of materials. For milling machines and lathes, spline shafts give the motion control necessary for uniform product quality and precise production.
Marine Sector
In marine propulsion systems spline shafts transmit engine power immediately to propeller which permits ships to move efficiently through the water. These shafts also perform a vital role in heavy‐duty ship winches and steering systems. Their ability to withstand shock loads as well as corrosion resistance are very important properties for marine settings.
Automation and Robotics
In robotics and automation, spline shafts allow controlled functioning and accurate movements. These shafts offer steady rotational motion with precise positioning in automated assembly systems and robotic arms. They facilitate high‐speed operations while decreasing wear & friction. This is why spline shafts perform a very important part in increasing equipment life and operational performance in your automated manufacturing systems.
Agricultural Equipment
Spline shafts are indispensable parts in agricultural machinery such as harvesting equipment, tractors and irrigation systems. These shafts smoothly transmit power to attachments which consist of pumps and plows. This make your equipment maintain dependable performance even under harsh situations as well as heavy workloads.
Get Best Spline Shaft Machining Services at Richconn
Richconn provides special spline shaft machining services with superior quality. Our experienced engineers uses modern 5‐axis CNC milling machines to precisely manufacture personalized spline shafts. We can handle a variety of materials – such as aluminum, steel & titanium – according to your demands. Our strict quality control processes ensure a 99.8% accuracy match rate, no matter you need just prototypes or large‐scale manufacturing. Contact us today to discuss your personalized spline shaft machining requirements.
To Sum Up
In short, to get ideal spline shaft durability and performance, you should combine the advanced machining methods, right material choice as well as tight quality control. And by partnering with an experienced manufacturer like Richconn, you can guarantee that your personalized spline shafts can fulfill your intended application demands and adheres to well‐established industry standards.
Related Questions
How do I pick the appropriate spline shafts for my intended use?
When picking a spline shaft you should keep in mind factors like tolerances, spline type, load capacity, material requirements & environmental operating situations.
Can you handle non‐standard geometries and personalized spline designs?
Yes. Our special machining capabilities permits us to handle non‐standard geometries & personalized spline designs.
What quality standards and certifications does your manufacturing site follow?
For managing quality, we adhere to ISO 14001:2015 certification. Our strict QC also comprise X‐ray testing & CMM inspections. We also follow ISO 9001:2015 certification for environmental management and ISO 45001:2018 certification for occupational health and safety.
How to ensure long‐term dependable performance of CNC machine spline shafts?
You can guarantee dependable performance of spline shafts by proper lubrication, accurate machining, regular cleaning & selection of appropriate materials.
