Stainless steel is used as an important material in a number of industries, from medical conditions to airspace parts. Harsh conditions & environmental factors can affect its quality over time. To maintain its performance and properties industries depend on passivation which is an important chemical process．
In this comprehensive guide we will help you understand the passivation process, its testing methods, benefits as well as its practical applications.
What is Stainless Steel Passivation?
Basically, passivation is a chemical process that serves two important purposes.
First purpose is that it removes iron from the stainless steel surface. The other one is that it forms a protective layer of chromium oxide. This protective film prevents zinc formation, increases corrosion resistance and maintains the integrity of material.
These processes are particularly valuable in food processing, aerospace and construction applications.
Also See: Different Types of Stainless Steel
Composition of Stainless Steel
Stainless steel’s unique properties come from its carefully balanced composition. It contains nickel, chromium, iron, carbon and additional elements such as manganese, molybdenum and silicon; each element gives a specific characteristic to increase strength, corrosion resistance as well as durability.
The composition percentage of these elements are summarized in the below given table:
| Element | Composition (%) |
|---|---|
| Chromium | 10.5% to 19.5% |
| Nickel | 8% to 10.5% |
| Iron | 50% to 72% |
| Carbon | 0.03% to 0.08% |
| Manganese | 1% to 2% |
| Molybdenum | 2% to 3% |
| Silicon | 0.5% to 1% |
See Also: 304 Vs 316 Stainless Steel
Passivation Process
Passivation consists of three main steps that increase the corrosion resistance of stainless steel through the formation of an oxide layer.
1. Cleaning the Surface
The first step requires thorough surface preparation.
Technicians must remove all contaminants including oil, grease and dirt. These materials can interfere with the subsequent acid process. Cleaning processes use alkaline solutions, ultrasonic methods or high temperature baths (up to 65°C). This step guarantees uniform contact of acid with the surface in subsequent steps.
2. Acid Treatment
The second step involves dipping in an acid bath.
Manufacturers typically use citric or nitric acid. The acid removes free iron & other impurities from surface. This exposure permits the chromium in alloy to interact with oxygen which forms a consistent chromium oxide layer. This passive layer becomes a protective barrier against corrosion.
3. Product Quality Testing
This step focuses on verification. Quality tests confirm the completion of passivation process.
The copper sulfate test checks for residual free iron. High humidity & salt spray tests evaluate corrosion resistance under extreme conditions.
These tests guarantee compliance with industry standards and confirm the material’s readiness for intended use.
Main Industry Standards that Govern Passivation
ASTM A380
This comprehensive standard covers three main processes－cleaning, descaling & passivating stainless steel components. You will find detailed instructions for chemical treatment procedures, preliminary cleaning and pickling operations. Industries such as architecture and food processing often implement this standard especially for large‐scale equipment & systems.
ASTM A967
This standard specifies particular methods for removing free iron from stainless steel surfaces by chemical treatment. You can use citric or nitric acid for this method.
To confirm the effectiveness of corrosion resistance, ASTM A967 needs special tests that include copper sulfate and water immersion testing. These tests helps achieve a cleaned‐passive surface and at the same time gives better durability in a variety of applications.
AMS 2700
The aerospace industry depends on AMS 2700 for its fabrication needs. This standard particularly covers the treatment of small parts by nitric or citric acid baths. It includes detailed testing protocols and needs strictly following procedures to make sure of structural integrity and corrosion resistance.
Compliance and Certification
For reliable passivation results you should follow standards such as AMS 2700 & ASTM A967. Quality certifications such as ISO 13485 & ISO 9001 give additional validation for safety and regulatory requirements. These certifications make passivated parts suitable for use in critical areas such as medical devices, aerospace and food processing.
Common Testing Methods for Passivation

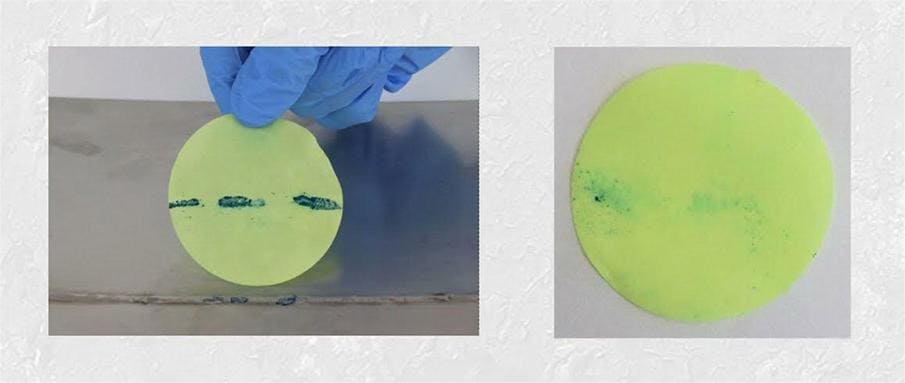

Ferroxyl Test
Potassium ferricyanide spray works as primary testing agent in the ferroxyl method. When the spray comes in contact with free iron then a blue color appears which indicates complete passivation. This test works particularly good for highly sensitive welded joints and also meets the requirements of ASTM A380. However environmental iron dust can cause false positive results.

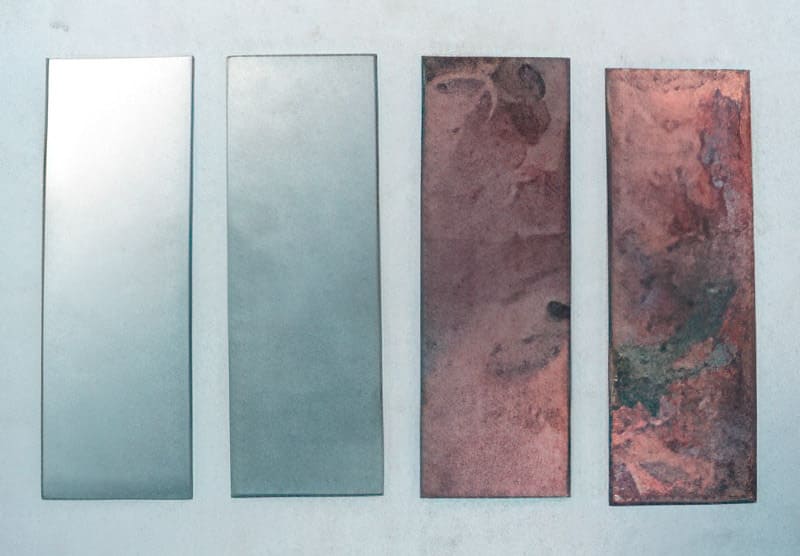

Copper Sulfate Test
This test identifies free iron ions on passivated surfaces through a simple chemical reaction. Technicians apply a mixture of copper sulfuric acid and sulfate to the steel surface. The presence of free iron is detected by copper deposits within six minutes. This test works well for austenitic stainless steels and gives cost effective results but it can show false positives on ferritic grades.

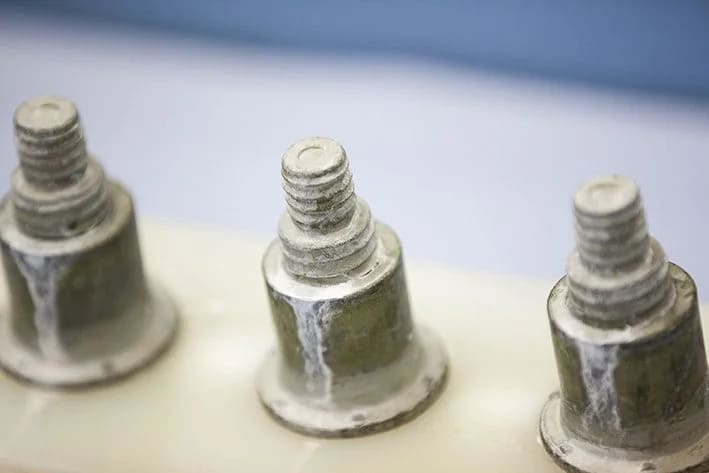

High Humidity Testing
This method requires a sealed chamber with 97% humidity at high temperatures. Parts are tested for 24 hours or longer to simulate real environmental exposure. Although this test needs special equipment and a long testing period, it provides good results on all stainless steel grades. Absence of corrosion or rust confirms successful passivation.

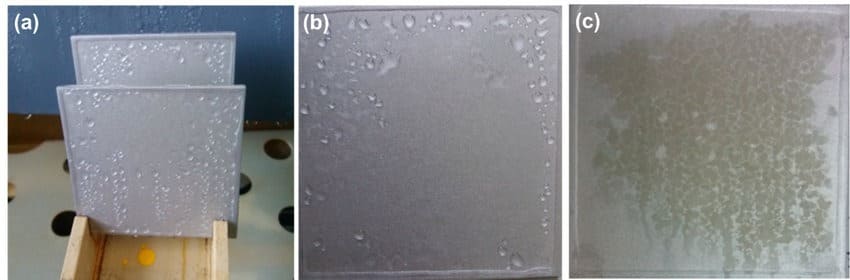

Salt Spray Test
This test evaluates the quality of passivation by exposing the steel to 5% salt fog under controlled conditions. Poor passivation results in pitting or surface rust. The duration of test ranges from 24 hours to many weeks which depends upon the particular alloy grade. Parts destined for marine corrosive environments benefit most from this testing method.
See Also: What is Salt Spray Test
Main Benefits of Passivating Stainless Steel
Stainless steel parts get great benefits through passivation. Here are the main benefits that you should know about.
- Pharmaceutical industries and food processing need contamination‐free instruments. Passivation creates a non‐reactive surface by eliminating residual iron & other impurities. This maintains the hygienic standards of your instruments, thus protecting from contamination of products.
- During passivation, a protective layer of chromium oxide is created. This layer works as a shield against corrosive chemicals & moisture. Your stainless steel parts will be safe from damage and rust even in challenging environments such as chemical plants or coastal areas.
- After passivation, the surface becomes brighter & cleaner by eliminating discoloration, impurities as well as spots. This improved appearance makes stainless steel perfect for industries that demand spotless surfaces and also for construction applications.
- You’ll spend less money and time on upkeep with passivated stainless steel. The protective layer decreases corrosion‐related damage which means less downtime for industrial machinery.
- Your parts will last longer because passivation removes impurities that cause rust. This benefit is necessary in medical device and aerospace manufacturing where material strength directly affects safety & performance.
- Passivation helps meet stringent regulatory standards in medical, aerospace as well as automotive industries. This process guarantees compliance with specifications such as AMS 2700 & ASTM A967 which confirm proper corrosion resistance treatment.
- The elimination of free iron & impurities after passivation maximizes machine operations. Cutting tools perform better because a clean‐passivated surface prevents built-up edge formation.
See Also: Stainless Steel vs Carbon Steel
Uses of Passivated Stainless Steel
Aerospace
Harsh conditions demand passivated stainless steel in hydraulic systems, fasteners and structural parts. The passive layer gives protection against high altitude ionizing radiation and corrosion from atmospheric oxygen which guarantees dependable high altitude performance.

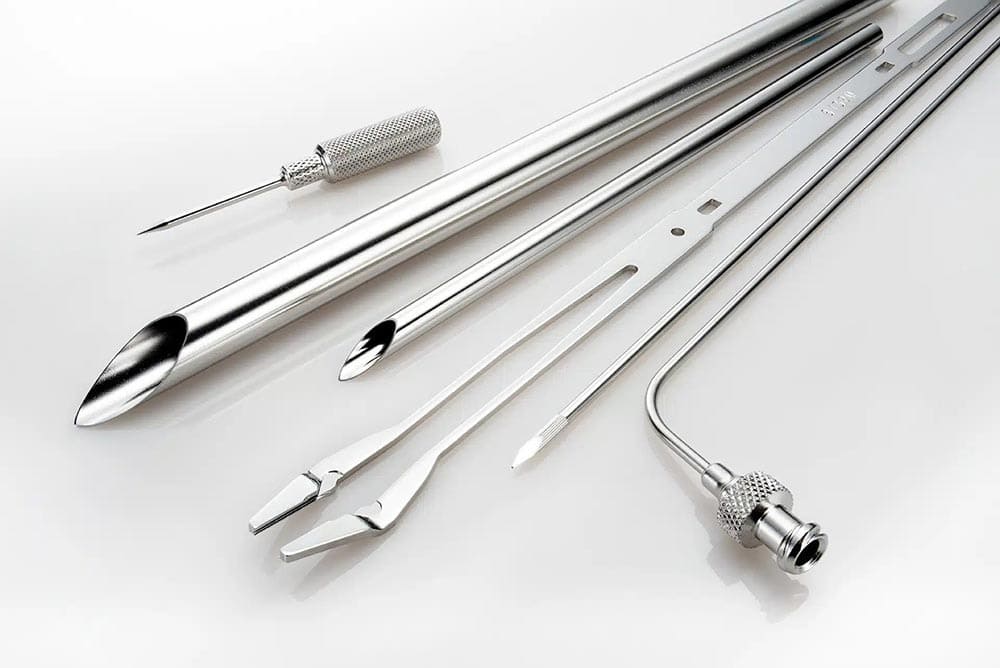

Medical Industry
Implants, surgical instruments and diagnostic equipment depend on passivated stainless steel. The passive layer maintains better performance in a sterile environment by stopping contamination and also guarantees biocompatibility.
Architectural Elements
Railings, facades and bridges benefit from visual appeal and strength of passivated stainless steel. The protective layer fights against corrosion, weathering and oxidation which decreases long term maintenance costs.
Food and Beverage Industry
Piping systems, storage tanks and machinery use passivated stainless steel. This material resists corrosion from salty or acidic foods without compromising hygiene standards & safety regulations.
To Sum Up
The passivation process of stainless steel gives three important benefits that are better durability, corrosion resistance and cleanability. By implementing the correct passivation process & proper testing methods, manufacturers can guarantee the durable and dependable performance of their parts.
Richconn provides professional passivation and other surface finishing options for all your CNC machined parts. Get in touch with us to find the best option for your needs.
Related Questions
Do all types of stainless steel need passivation?
Although not all stainless steels need passivation, it is considered necessary in extreme environments where better corrosion resistance is needed.
What is main difference between passivation & galvanization?
Both of these processes protect the metal in their own way. Passivation creates a protective oxide layer to prevent corrosion. On the other hand galvanization uses a zinc coating to prevent corrosion.
Can stainless steel be passivated at home?
You can passivate stainless steel at home by using oxalic acid‐based cleaners & natural‐air exposure; but this method takes longer than other industrial treatments.
How much time is usually required to complete the passivation process?
In industries, passivation is normally completed in 20 to 30 minutes.
What impact does passivation have on appearance of stainless steel?
This process results in a brighter & cleaner surface. Your stainless steel will look more beautiful and polished.
What are usual signs that stainless steel needs passivation?
Look for these signs－discoloration, rust spots and decreased corrosion resistance. These
problems are often caused by damage to the oxide layer or surface contamination.
Is passivated stainless steel more durable compared to non passivated steel?
Yes passivated stainless steel has better durability due to its great surface stability & corrosion resistance.
Is there any environmental concern with passivation of stainless steel?
This process raises two environmental concerns－nitric acid produces sludge & gives off toxic fumes.
Here citric acid is an environment friendly alternative.
What role does nitric acid perform in passivation process?
Nitric acid does two things－it increases corrosion resistance by strengthening the chromium oxide layer and also removes impurities & free iron.
