Step shafts are extremely important components of different machines including car engines and industrial gear systems.
A machine’s reliability and performance depend heavily on the precision of its step shafts. Therefore in this blog post we will provide fundamental information about step shafts, explain their manufacturing methods and outline the machining steps that make them accurate and dependable.

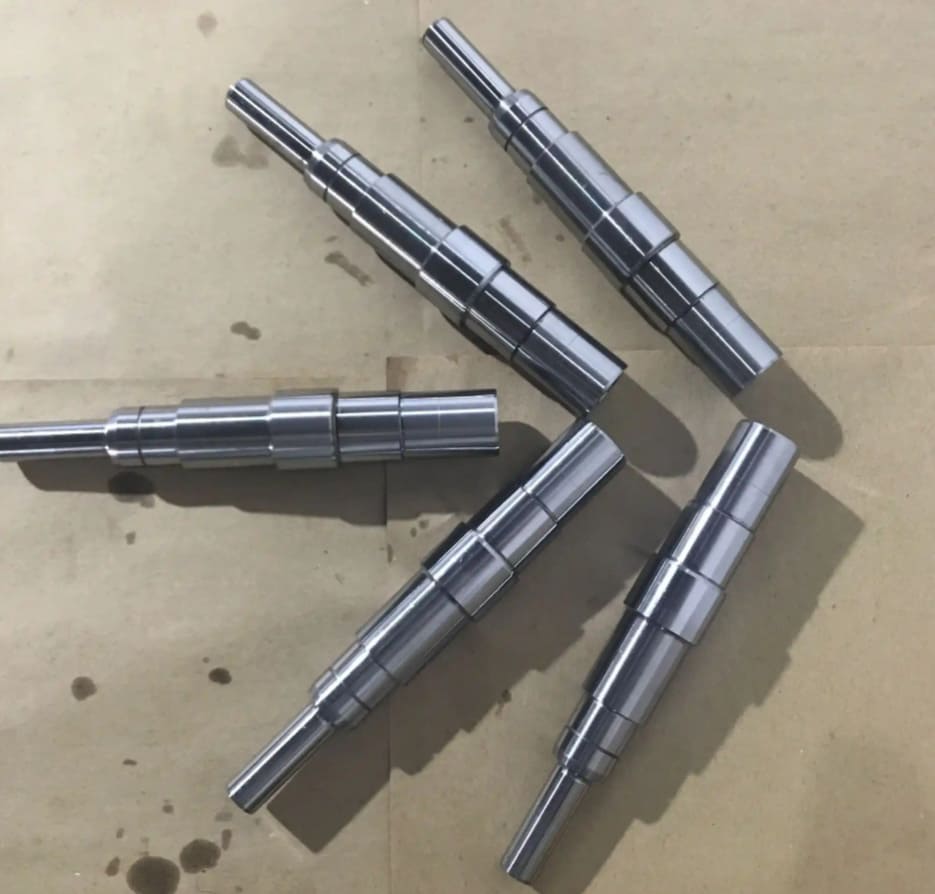

What is a Step Shaft
A step shaft is a cylindrical part that contains two or more sections with different diameters. Every change in diameter creates a distinct shoulder or step, normally with a 90° transition. These steps ensure that gears, bearings, pulleys or other components remain properly positioned and secured during assembly.

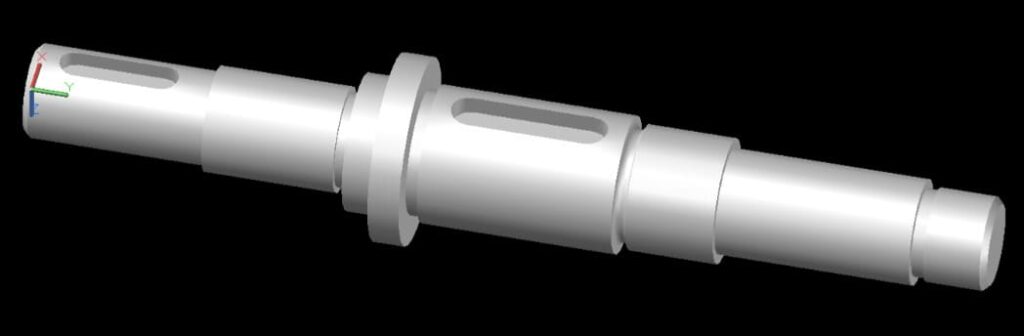

Key Functional Requirements of Step Shafts
For a machine to operate correctly and last long, a step shaft must meet several important requirements.
- Transmission of torque: The primary job of a shaft is to transfer rotational force or torque from the power source to other machine parts. This must happen without twisting or breaking so that power transfer remains efficient.
- Bending loads: The shaft must withstand the weight of gears, pulleys and other parts without bending excessively. This is because excessive bending can cause misalignment and lead to early wear.
- Axial loads: Forces that push or pull along the length of the shaft—such as from certain bearings or helical gears—should not cause the shaft to fail.
- Concentricity: All parts of the shaft must lie on the same axis. This is because good concentricity keeps rotation smooth and prevents vibration.
- Shoulder accuracy: Shoulders must be perfectly perpendicular to the shaft axis. This accuracy is important for proper alignment of mounted parts like bearings.
- Surface finish: Shaft surface must be smooth (typically Ra 0.4–1.6 µm), particularly where bearings and seals fit .A proper finish reduces friction and helps prevent leaks.
Typical Materials & Their Implications
Choice of the right material is highly crucial in step shaft design. Material you select affects the shaft’s manufacturing process, performance as well as its cost.
1. Carbon Steel (e.g., 1040/ 1050)
Carbon steel such as 1045 is commonly used for shafts because it is affordable. It provides a good balance of machinability and strength which is an excellent choice for general applications.
2. Alloy Steel (4140/ 4340)
Alloy steels like 4140 are needed for demanding applications. These materials offer significantly higher strength. They perform exceptionally well under heavy loads and high stress conditions. Therefore they are suitable for high performance machines.
3. Stainless Steel
Stainless steel is chosen when the shaft must withstand moisture or corrosive environments. Its strong resistance to rust is necessary in medical and food settings. However it is more expensive and more difficult to machine as compared to other options.
At RICHCONN, our team works daily with alloy steel, carbon steel, stainless steel and advanced materials like titanium or carbon fiber. We can help you compare these choices and select the best option for your budget and performance requirements.

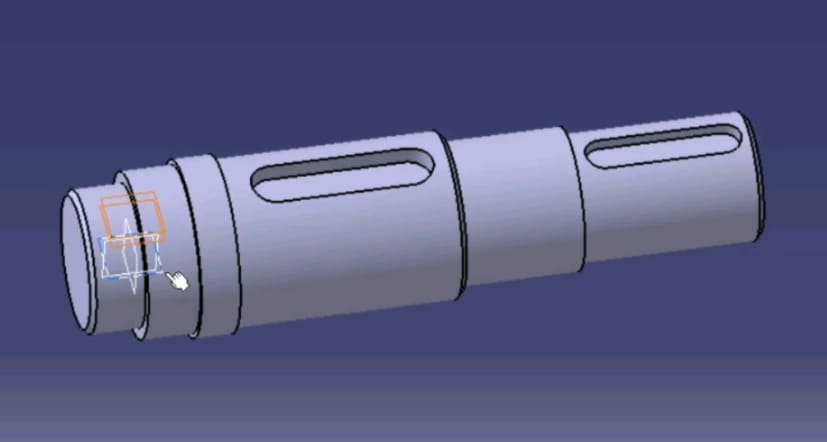

Design Considerations for Precision Step Shafts
Reliable precision step shafts depend on a well-thought-out design. Focus on these important factors so your design meets both performance and manufacturing requirements.
1. Geometry & Dimensional Specifications
Apply strict geometric dimensioning and tolerancing (GD&T) to every feature. This level of detail ensures the shaft fits perfectly with components such as bearings or gears. For example a bearing seat mostly needs a tight diameter tolerance of ±0.005 mm to function correctly.
Control not only the size of the shaft but also its form. Roundness tolerances are typically kept within 0.005 mm and concentricity tolerances are normally set within 0.02 mm to avoid wobble and ensure smooth rotation.
Pay close attention to transitions between steps as well. Sharp corners can weaken the shaft therefore include smooth fillet radii to distribute stress and prevent fatigue cracks. Surface finish is also a critical aspect. Moreover contact areas must have a very smooth finish, such as Ra 0.4 μm, to minimize wear and reduce friction.
2. Load & Stress Analysis
Determine all loads the shaft will encounter such as transmitted torque (T) and bending moments (M). Use the ASME code equation or Finite Element Analysis (FEA) to thoroughly evaluate stresses. Keep all stress levels below the material’s endurance limit to prevent fatigue failure.
Also analyze both bending and torsional deflection to maintain proper system alignment. Plus ensure that the shaft’s operating speed stays well below its critical speed to avoid resonance.
3. Machinability & Manufacturability Considerations
Prioritize efficient manufacturing in the design. Choose a material that meets strength requirements but is also easy to machine. Simplify the shaft wherever possible. Also use gradual transitions instead of sharp corners to make production easier and to reduce costs.

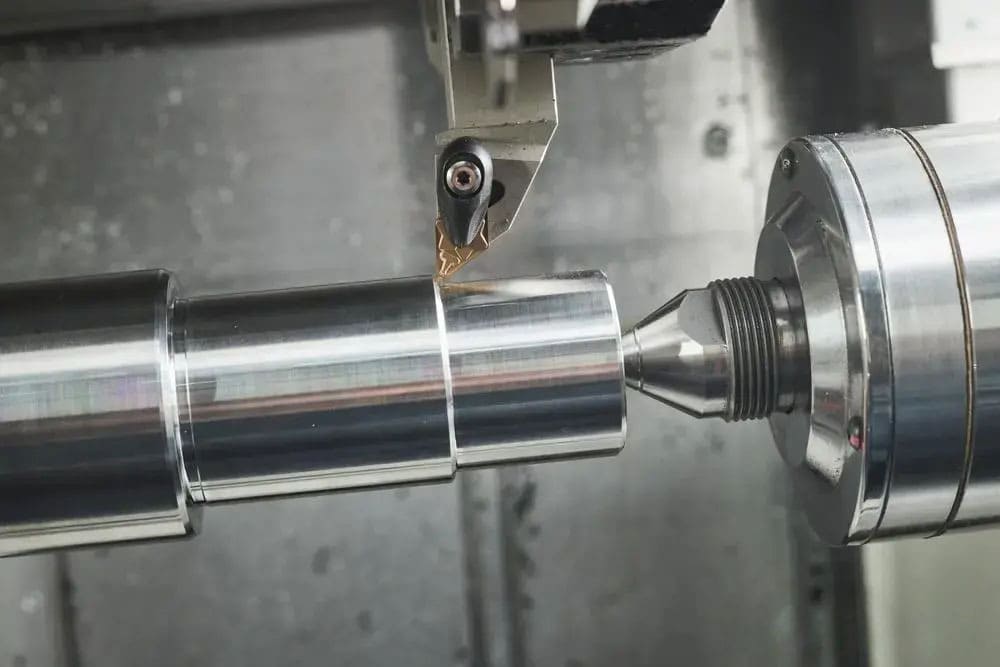

Machining Processes for Precision Step Shafts
Once the material is selected and the design is finalized, the focus shifts towards machining the step shaft. This process includes multiple stages.
1. Setup & Equipment
The right setup is crucial for the production of an accurate final part.
Stock Preparation & Workholding
This process begins by cutting the raw material bar to the required length. This bar is then firmly clamped in the CNC lathe spindle using either a collet or a chuck. This secure grip prevents vibration and keeps rotation concentric.
Tooling Selection
The next step is choosing the correct cutting tools for the shaft material. For turning operations, carbide or high speed steel inserts are commonly used. The chosen tooling affects both the surface finish and dimensional accuracy of the shaft.
CNC Programming & Cutting Parameter Calculation and Facing Operation
A CNC program is generated from the shaft’s CAD model using CAM software. This program controls the machining sequence including cutting speeds, tool paths and feed rates. The first machining step is facing which creates a flat, clean surface on the end of the stock and establishes an important reference point (Z = 0).
2. Primary Machining Operations
These operations form the basic shape of the shaft. They remove most of the excess material and define the various diameters.
Rough Turning the Largest Diameter
he lathe performs rough turning passes to quickly remove most of the unnecessary material from the workpiece.
Steps Machining
After rough turning, every individual step is machined to its needed length and diameter. Machining always begins from the end that is farthest from the chuck to maintain dimensional accuracy for each section.
Also See: What is Step Turning
3. Secondary/ Finishing Operations
Finishing steps bring the shaft to its final required specifications.
Heat Treatment
After primary machining, the shaft may undergo heat treatment such as tempering and quenching. This increases both durability & hardness and this prepares the shaft for high stress and other demanding applications.

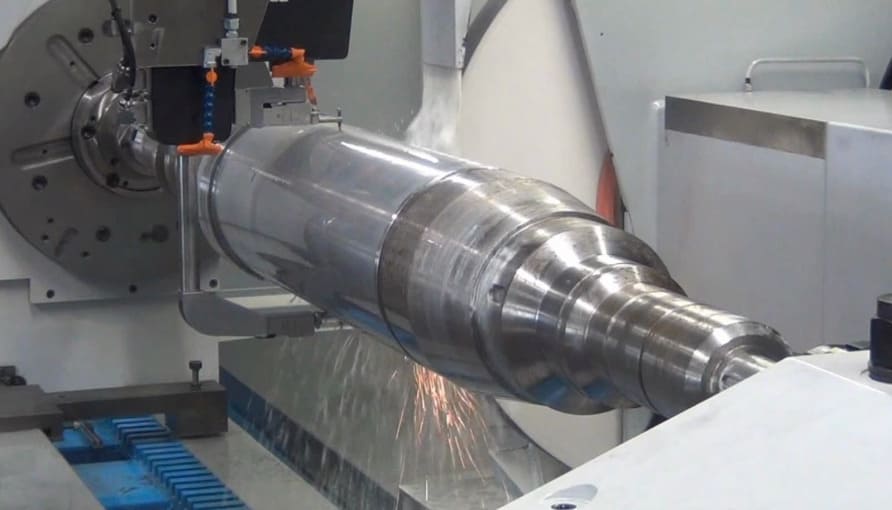

Grinding
Grinding is typically performed after heat treatment. This operation achieves tight tolerances and a smooth surface finish. These features are especially important for bearing journals and sealing areas.
Final Inspection & Quality Control
In the end, every completed shaft undergoes a full quality inspection. Technicians verify all dimensions using precision tools such as calipers and micrometers. This step confirms that each part meets the required design and quality standards.
At RICHCONN we use CMMs and dedicated fixture gauges for shaft inspection. If needed, we can also provide an inspection report for traceability.
Achieving Precision: Tolerances, Surface Finish
Step shafts must be highly precise to fit correctly with parts such as bearings and gears. Tight dimensional tolerances—often within ±0.025 mm—and ISO fits such as h6 for bearing seats help achieve this level of accuracy. A fine surface finish—typically between 0.1 and 0.4 μm Ra—is also crucial for sealing surfaces. It improves part longevity and helps prevent leaks.
Common Challenges & How to Overcome Them
Vibration, Chatter & Deflection
Long and slender shafts often bend or vibrate during machining. This movement affects dimensional accuracy and reduces surface quality.
Supporting the shaft with a tailstock or steady rest helps control this issue. You can also adjust cutting speeds and feeds or use spindle speed variation (SSV) to break up vibrations and reduce chatter.
Chip Control & Surface Damage
Sometimes chips wrap around the part which causes scratches on the surface or breaks tools.
To solve this problem, use tools with chip breakers and apply high pressure coolant. These measures break the chips and push them away from the work area.
Tool Wear & Machine Thermal Effects
Machining step shafts requires constant cutting which produces a lot of heat. This heat accelerates tool wear and makes it difficult to maintain accurate dimensions.
Coated carbide tools and proper cooling help solve this issue. They extend tool life and keep temperatures lower.
Multiple Stepped Geometries
Every step of the shaft must have precise dimensions and smooth transitions. Maintaining accuracy while working with multiple diameters can be difficult.
Advanced CNC programming gives you precise control over the tool path. This ensures all features meet design requirements.
Setup Complexity
Machining complex shafts often requires multiple setups which ultimately increases the chances of alignment errors.
Using a CNC machining center that can perform several operations in a single clamping helps prevent this. In addition to this, secure fixturing also helps maintain accuracy.
Scale-up & Cost-Effectiveness
Small production runs can be costly because of higher setup time and increased material waste.
Increasing batch size spreads out setup expenses and lowers overall cost. Moreover improving the design for manufacturability also reduces machining time and cost.
At RICHCONN we support flexible production runs and work with you to optimize your design. This helps keep setup costs and material waste low even for small quantity custom orders.
Applications of Precision Step Shafts
Automotive
Step shafts have an important role in automotive systems. They are used in engines, transmissions as well as high speed EV motors. Their varying diameters create precise seats for bearings and gears. This design transfers power efficiently and keeps performance high.
Aerospace
In aerospace applications, step shafts are essential for critical systems such as actuators & landing gear. Manufacturers often use titanium to produce these shafts. The steps along the shaft support multiple components along the same axis. This feature is particularly important for turbine engines which must transfer power even under heavy stress.
Industrial Machinery
Industrial machinery—such as compressors, conveyors and pumps—relies heavily on step shafts. Their stepped shape helps manage different loads and ensures proper positioning of parts like motor rotors. This design improves both equipment performance and overall lifespan.
To Sum Up
Machining precision step shafts require strict attention at every stage, from initial design to final inspection. Selection of the right materials and the application of advanced machining methods are essential for meeting tight tolerances and achieving high performance.
Richconn provides reliable CNC machining services, whether for step shafts or other precision components. You can contact us anytime.
Related Questions
Controlling run-out keeps rotation smooth, reduces shaft vibration and prevents uneven wear on connected components. These factors help machinery operate efficiently and extend its working life.
Machining fillets and shoulders requires accurate toolpaths to create precise corners and curves. This makes machining more challenging, slows down the process and increases the chances of stress concentrations or surface flaws.
Rough and finish turning shape the step shaft while grinding and polishing bring the part to its final size and produce smooth surfaces.
The surface must be smooth enough to protect seals from wear, yet rough enough to retain lubrication for bearings. Achieving the correct finish is essential.
Long or slender shafts can bend, vibrate or chatter during machining. These issues reduce accuracy and can damage both the shaft and the cutting tools.
