Selecting metals demands a clear understanding of stiffness, strength as well as hardness. These three different properties determine how metals behave under stress．
In this blog post we will take a comprehensive look at stiffness, strength and hardness. We will also study their measurement methods & the main factors that affect these properties.
What is Stiffness?
The stiffness of a metal represents the material’s resistance to change in shape under force. A stiffer material needs more force to change a certain amount of displacement. Engineers use Young’s modulus to measure the relationship between stress & strain within a material’s elastic limit.
Measurement of Stiffness
Methods to Measure Young’s Modulus
Engineers use multiple methods to measure Young’s modulus.
- Tensile tests apply controlled tensile forces to metal samples.
- Dynamic testing depends on vibration analysis to determine stiffness values.
Ultrasonic techniques use the properties of sound waves to test elastic properties.
Units of Measurement
Stiffness measurements use these pressure units:
- Gigapascal (GPa)－Commonly used for metals
- Pascal (Pa)－SI unit (N/m²)
- Pound‐force per square inch (psi)－an imperial unit
Main Factors that Affect Stiffness in Metals
Material Constitution
Metals’ atomic bonds depend on their chemical composition. Different alloying elements change these bonds. For example chromium, carbon as well as nickel increase stiffness and also strengthen the atomic structure. On the other hand elements like copper & aluminum create weaker bonds and thus decrease stiffness.
Also See: What is Aluminium Alloy
Microstructure
The characteristics of grains in a metal’s structure also affect its stiffness. Metals with smaller grains generally show higher stiffness levels. The increased number of grain boundaries in finer structures increases resistance to deformation and restricts dislocation motion.
Temperature
The stiffness of a metal changes with changes in temperature. Higher temperatures increase atomic vibrations which decrease stiffness and weaken interatomic bonds. On the opposite lower temperatures decrease these vibrations which results in increased stiffness values.
The Role of Stiffness in Metal Manufacturing
Stiffness is an important property in parts & structural design. This property directly affects a material’s resistance to deformation under load.
Engineers must assess stiffness to maintain proper structural alignment. This property also helps control vibration in mechanical systems. High stiffness materials limit resonance and minimize oscillations which guarantees accuracy in machinery operations.
The aerospace industry depends heavily on stiffness for important parts; fuselages & wings have to maintain their shape against constant aerodynamic stresses.
In construction, metals need sufficient stiffness to create durable and safe load bearing structures.

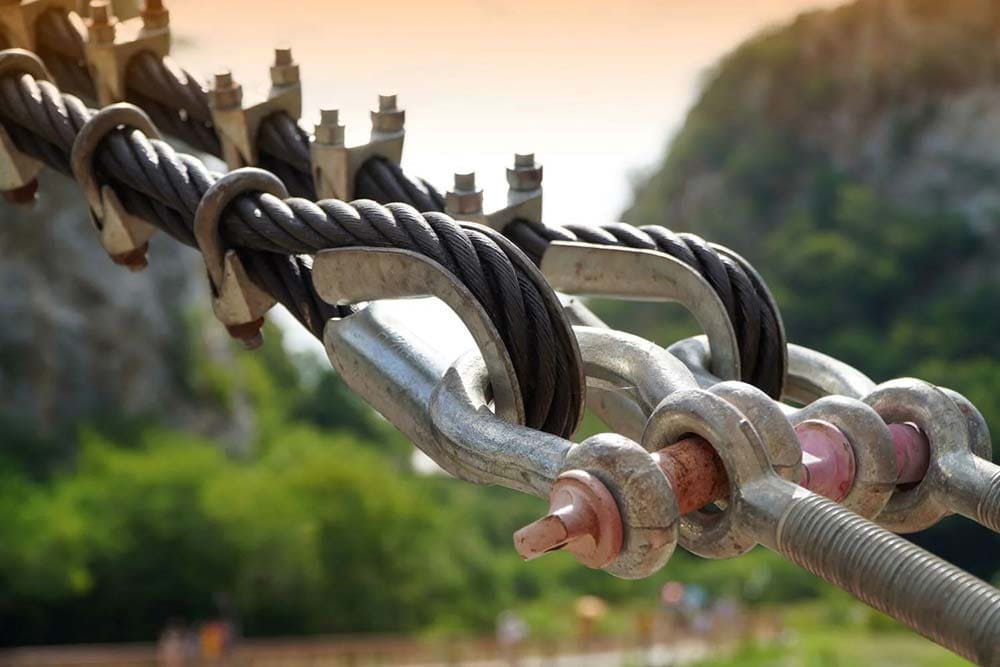

What is Strength
Strength reference to the ability of a metal to bear an applied force before it permanently deforms or breaks. This property determines the maximum load a material can withstand.
Stiffness measures resistance to deformation, likewise strength focuses on the point at which a material fails through fracture or yielding.
Types of Strength
Tensile Strength
Tensile strength measures a material’s resistance to pulling forces. It has two types.
- Ultimate tensile strength (UTS) indicates the maximum stress before necking occurs.
- Breaking strength represents the ultimate point of failure of material.
Engineers use tensile strength values to design structural frameworks & cables that withstand tensile forces.
Yield Strength
Yield strength is the stress where a metal transitions from elastic to plastic deformation. Before this point materials behave elastically and return to their original shape when the load is removed. After the yield point any deformation becomes permanent. This property helps engineers design parts that can safely withstand practical loads.
Shear Strength
Shear strength of a material means its ability to resist sliding forces between internal surfaces. These forces act parallel to the cross section of material. Parts such as adhesives & fasteners depend on high shear strength. This property is very important in sheet metal operations which includes Guillotining and cutting processes.
Compressive Strength
In simple terms compressive strength is the capacity of a material to resist deformation when being compressed. Under compression atomic structure of metals becomes more compact which closes microcracks and internal voids. Most metals show greater resistance to compression compared to tension. Moreover hydraulic presses demand materials with high compressive strength to work efficiently.
Measurement of Strength
Testing Methods
Engineers use two basic standardized tests to measure strength— compression tests & tensile tests.
Compression tests determine a material’s resistance to movement by directly applying compressive forces.
Universal testing machines perform tensile tests in which metal samples are stretched until they break. These tests record tensile strength and yield strength data.

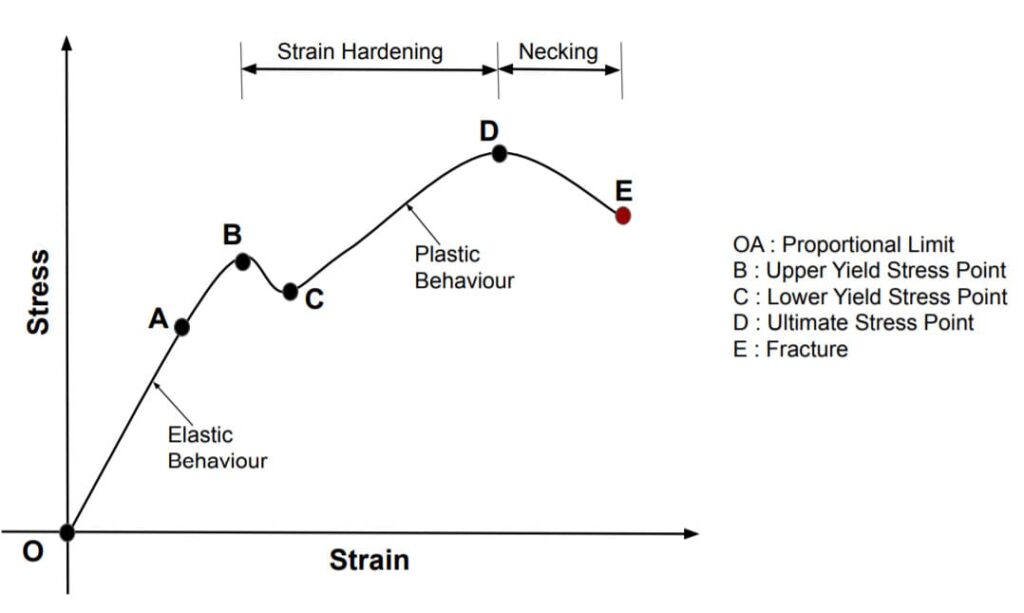

Stress‐Strain Curves
Mechanical tests yield stress‐strain curves that measure strength of a material. These curves show the relationship between stresses (per force or unit area) & strain (variation from original size). From these curves engineers determine important properties such as elastic limit, yield strength as well as ultimate tensile strength (UTS). UTS represents the maximum stress that a material can withstand before necking. The yield point indicates the point where plastic deformation begins.
Factors that Influence Strength in Metals

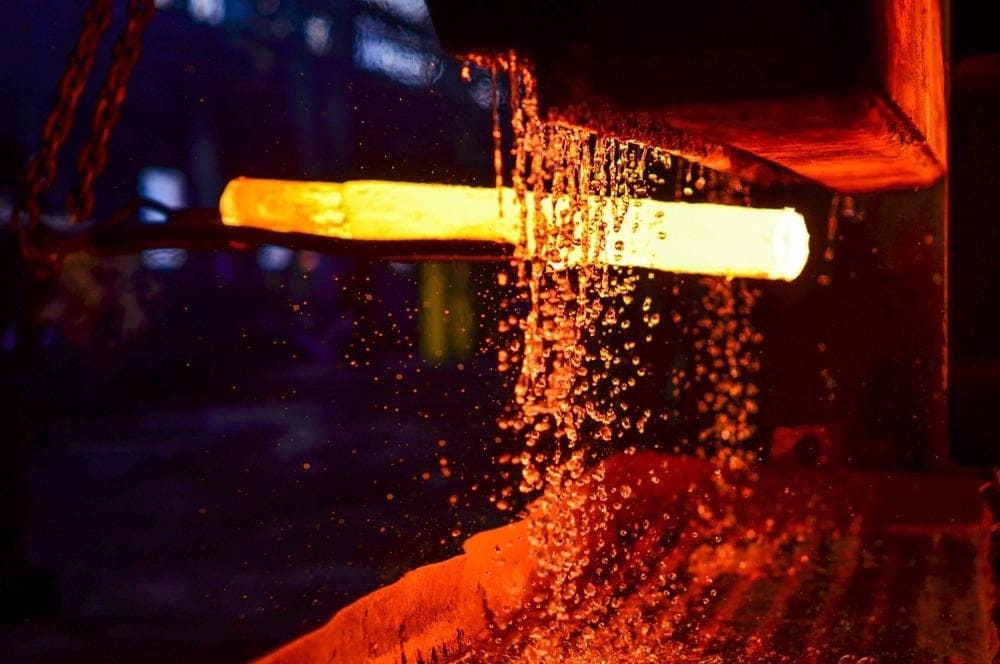

Heat Treatment Processes
Several heat treatment processes can change the microstructure of metal through accurate control of temperature. These processes include annealing, quenching as well as tempering.
- Rapid cooling by quenching increases both strength & hardness.
- Tempering followed by quenching involves reheating at lower temperature to decrease brittleness.
- Annealed steel shows higher yield strength because of its altered microstructure.
Alloying Elements
Engineers can maximize strength of a metal by adding particular elements such as chromium, carbon, molybdenum as well as nickel. These additions create distortions in crystal structure of metal. This distortion increases the metal’s resistance to deformation & inhibits dislocation movement. Steel clearly shows the effect that the addition of 0.8% carbon greatly maximizes its tensile strength.

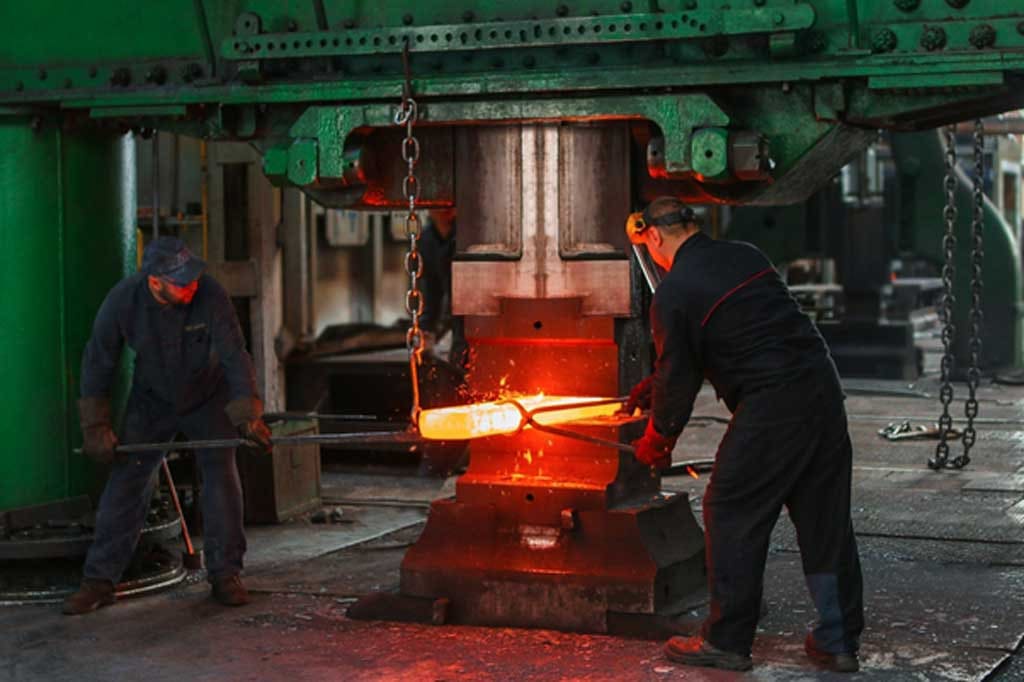

Work Hardening
Metal is strengthened by strain hardening or work hardening. This process involves plastic deformation by hammering or rolling. Crystal lattices increase the dislocation density which increases strength but also decreases ductility.
Cold‐rolled steel is a best example of this effect because it is harder and stronger than its annealed version which makes it perfect for load bearing use.
Significance of Strength in Metal Manufacturing
Safety Considerations
Strong metals work as necessary safety parts in manufacturing. They stop failures from happening that can lead to economic loss. The gas or oil industries demonstrate this importance through the use of high strength steel pipelines. These pipelines must withstand harsh temperature and pressure changes to prevent dangerous ruptures or leaks.
Structural Applications
Industries such as aerospace, construction as well as automotive depend on strength of metals. Strong metals make sure that structures such as buildings, bridges and airplanes can withstand great forces. These forces include earthquakes, wind and mechanical loads.

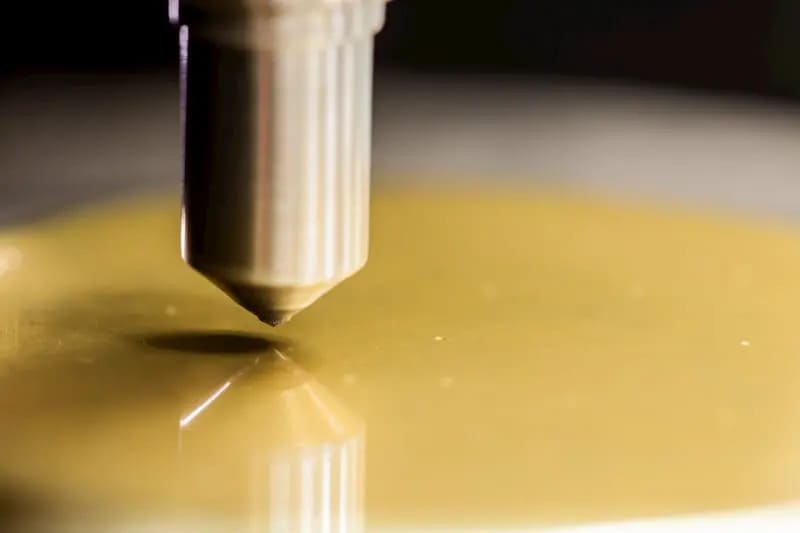

Understanding Hardness
The hardness of a material characterizes its ability to resist permanent deformation. This property is manifested when force is applied through indentation, scratching or any other mechanical stress. Metals with high hardness maintain their shape regardless of impact or abrasion.
Measurement Techniques

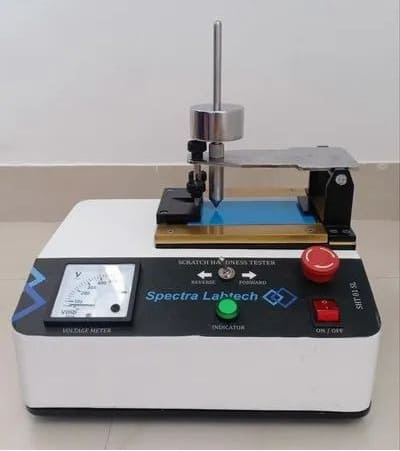

Scratch Hardness Tests (e.g., Mohs scale)
Scratch hardness tests determine how well materials can resist surface damage. In these tests harder objects are scratched across the material’s surface. The Mohs scale ranks materials from one to 10－with talc at 1 & diamond at 10.

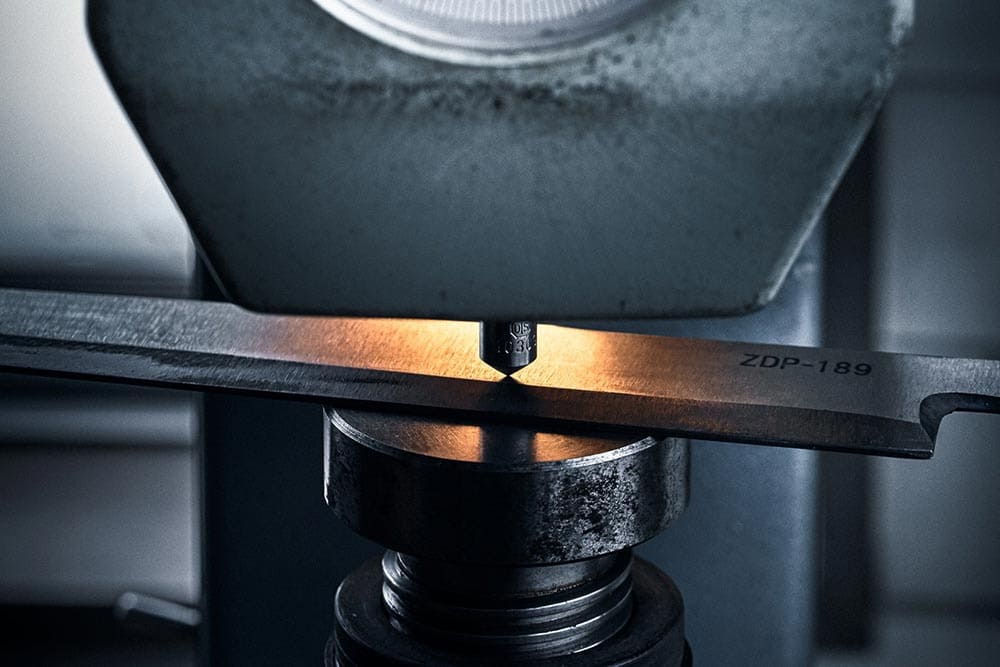

Indentation Hardness Tests (e.g. Rockwell, Brinell, Vickers)
Technicians mostly use indentation tests to test the hardness of materials. These tests apply a fixed load to create marks which are then measured to determine the hardness value.
- The Rockwell test (HRC) applies a fixed load with steel or diamond indenters. It measures depth and gives repeatable or rapid results at different scales.
- The Brinell Hardness Test (HB) creates marks on a surface with a tungsten carbide or steel ball. This test calculates the hardness by measuring diameter of that mark.
- The Vickers Test (HV) uses diamond‐shaped indenters. Its accuracy is best for testing thin.
See Also: What Is Non-Destructive Testing

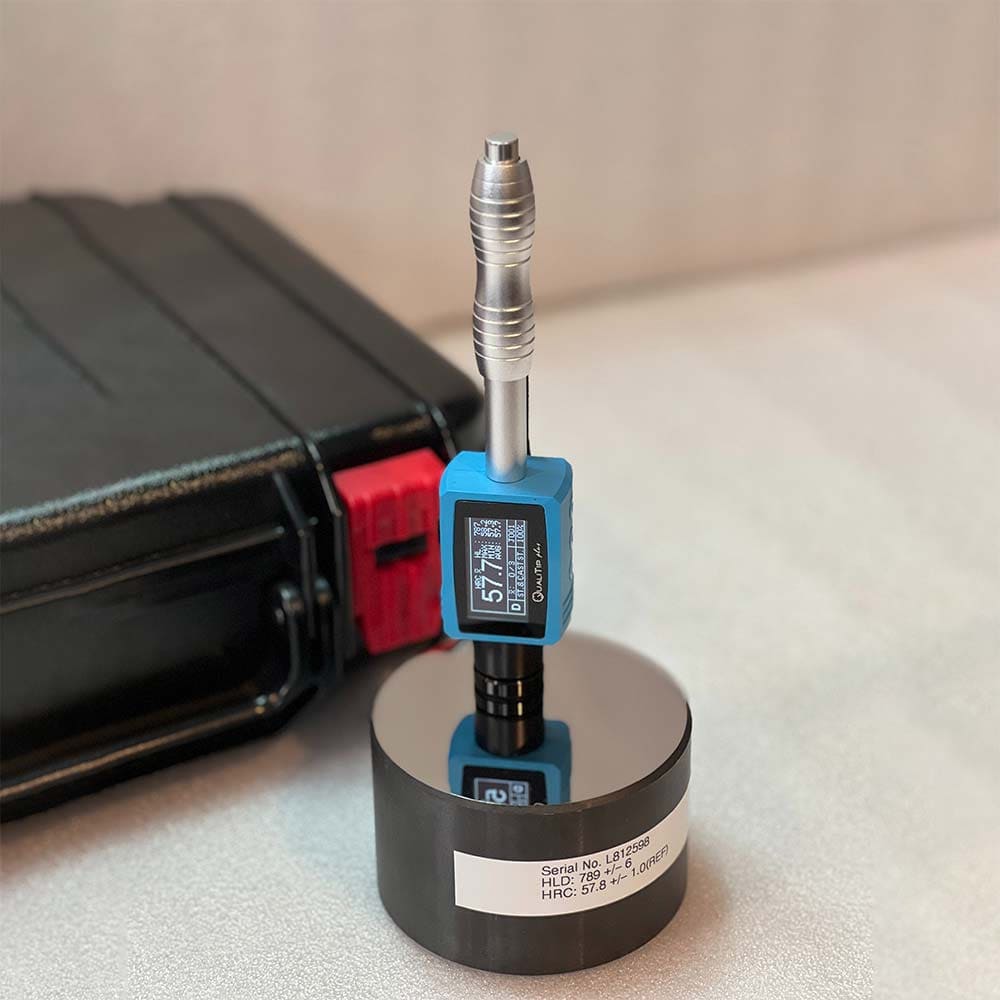

Rebound Hardness Tests
A rebound test, also called Leeb or dynamic hardness testing, examines elasticity of a material. This test measures height of an object’s bounce after hitting the material’s surface.
Main Factors that Affect Hardness in Metals
Heat treatment
Heat treatment processes modify the hardness by changing the microstructure of metal.
Quenching involves rapid cooling from high temperature that creates a martensitic structure which increases the hardness.
Tempering followed by quenching involves reheating to lower temperature. This process creates a balance between toughness & hardness and also decreases brittleness.
Microstructure
The hardness of a metal depends greatly on its microstructure. Phase distribution & grain size are important factors. Harder phases, such as martensite or carbides, increase the overall hardness of metal. On the other hand metals with smaller grains also show higher hardness because their multiple grain boundaries stop dislocation movement.
Presence of Second‐phase Particles or Impurities
Second‐phase particles and impurities affect metal’s hardness by creating barriers to dislocation movement. This process is called precipitation hardening and it increases overall hardness.
In steel, elements such as nitrogen & carbon form hard alloys. These include nitrides (TiN) & carbides (Fe₃C) which increase hardness and resist deformation.
Importance of Hardness in Metal Manufacturing
Tooling & Machining Considerations
Machining performance and tool life are directly dependent on the hardness of material. Ceramic and carbide inserts operate as effective cutting tools because of their superior heat & wear resistance. Even so materials with pronounced hardness can create machining challenges. Such materials are often difficult to shape or cut efficiently.
Wear Resistance
Metal parts demand hardness to withstand constant wear and friction. Materials like hardened tungsten carbide and steel have high hardness levels. These materials maintain their structural integrity and effectively resist deformation under extreme conditions. The aerospace & automotive industries depend on such materials for gears, cutting tools as well as bearings.
Comparative Analysis－Stiffness vs. Strength vs. Hardness
Main Differences
| Property | Definition | Units | Measurement Methods | Example Materials |
|---|---|---|---|---|
| Stiffness | Resistance to elastic deformation under load. | Megapascals (MPa), Gigapascals (GPa) | Young’s modulus, bulk modulus, shear modulus. | Steel (200 GPa modulus of elasticity). |
| Strength | Ability to withstand stress without failure or permanent deformation. | Pounds per square inch (psi), megapascals (MPa). | Tensile, compressive, yield, shear testing. | Titanium (high tensile strength). |
| Hardness | Resistance to scratching, surface deformation or wear. | Brinell hardness (HB), Rockwell hardness (HRC), Vickers hardness (HV). | Vickers hardness tests, Rockwell, Brinell. | Ceramics (high surface hardness). |
Interrelationships Among Properties
Properties of metals are interrelated. Changes in one property often affect other properties.
- Strength & Stiffness: Processes such as heat treatment and alloying increase the strength of materials. These processes can also increase stiffness by creating dislocation barriers and maximizing grain structures.
- Hardness & Strength: Resistance to dislocation motion in crystallites affects both tensile strength & hardness. An increase in one usually increases the other too.
For example Aluminum alloys show this relationship through precipitation hardening. In 7075‐T6 aluminum fine precipitates prevent spot motion which increases both strength & hardness.
Stiffness vs. Strength vs. Hardness in Metal Manufacturing－Which One Is important?
The nature of intended use determines which property is most important. Beams in aerospace structures and architectural demand stiffness to resist deformation. Automotive frames and bridges need strength to withstand high stress loads. Machinery parts and tools demand hardness for wear resistance particularly in engine parts & cutting tools.
To Sum Up
Metal manufacturing depends on three very important properties that are stiffness, strength as well as hardness. Each property has a unique purpose in metal manufacture. Stiffness maintains structural stability. Strength gives the ability to bear weight. Hardness delivers durability and wear resistance as well．
If you require expert CNC machining or sheet metal fabrication services, then RICHCONN is best option. You can contact us anytime.
Related Questions
Can a metal have strength but lack stiffness?
Yes some metals show high stiffness but low strength. They resist deformation well but can crack under weight.
Is it possible that a metal is stiff but not strong?
Yes metals can show low stiffness with high strength. These properties work independently. Toughness prevents breaking under heavy weight whereas stiffness resists deformation.
What is the main difference between hardness & toughness?
Hardness indicates resistance to scratching & surface damage. On the other hand toughness measures the absorption of energy before fracture.
Can a metal’s stiffness be modified by manufacturing methods?
Manufacturing techniques can change the stiffness of a metal. These include etching treatments, alloying and rolling as well which affect the metal’s internal stresses & microstructure.
Does an increase in hardness always cause an increase in brittleness?
Increased hardness does not automatically mean greater brittleness. Multiple factors affect brittleness that includes grain size, microstructure as well as atomic bonding.
