From airplane engine parts to surgical implants, most of the world’s precision components are made using subtractive manufacturing.
Even with all the advances in 3D printing, industries still depend on subtractive manufacturing for accuracy, strength and repeatability. Therefore in this blog post we’ll explain what subtractive manufacturing is, how it’s done and why it remains essential today.
What Is Subtractive Manufacturing?
Subtractive manufacturing creates parts by removing material from a solid workpiece. It starts with a block, billet or sheet and uses cutting tools to carve away excess material. Common operations are drilling, grinding, milling and turning controlled by CNC systems. This process delivers tight tolerances (often 0.01 to 0.025 mm) and smooth finishes across metals, plastics as well as composites.
Where Subtractive Manufacturing Fits in Modern Production?
Subtractive processes dominate prototyping, mass production and custom tooling. Over 80% of automotive, aerospace and medical parts use subtractive machining for reliability, precision and material versatility. Even as additive methods grow, most physical products—especially high strength or tight tolerance components—depend on some subtractive operations before completion.
Also See: Additive vs Subtractive Manufacturing
How Subtractive Manufacturing Works_ From CAD Model to Finished Part
Transformation of a digital design into a physical component has a precise, multistage workflow that builds upon every previous step.

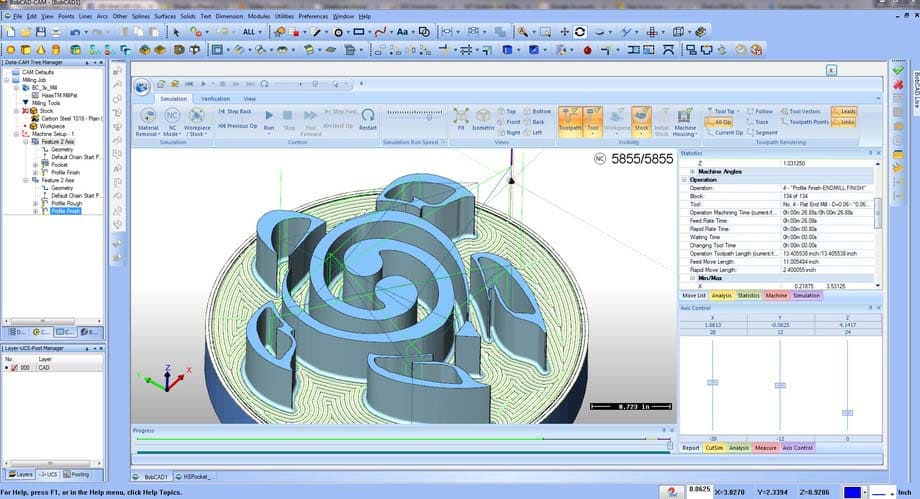

Design & CAD Modeling
The subtractitive manufacturing process begins with a detailed 3D CAD model that specifies material, geometry as well as critical tolerances. During this phase, the designer must account for manufacturing realities like wall thickness and tool access to assure the part is producible without costly revisions.
CAM Programming & Toolpath Generation
CAM software like Fusion 360 or SolidWorks CAM is then used to translate the finalized CAD model into machine instructions (G code). It generates optimal toolpaths and calculates parameters like feed rates and cutting speeds. For example machining aluminum may allow surface speeds of 150 to 300 m/min while harder steels need slower rates (80 to 180 m/min) to preserve tool life.
Machine Setup & Fixturing
Next, a machinist secures the raw material block with vises or fixtures and loads the cutting tools. This setup is critical for establishing a precise zero point or datum (G54) for all operations. Coolant selection is also finalized to manage heat and thermal expansion.
Also See: Workholding Methods in CNC Machining
Cutting, Inspection & Finishing
Finally, a machine executes the G code, cutting away material to reveal the finished part. Machinists may conduct in‐process inspections with calipers to verify accuracy. After machining, the part undergoes finishing steps like anodizing, deburring or heat treatment to meet final specifications for appearance and performance.
At RICHCONN, our machinists manage the full setup process—from fixturing to tool changes—and rely on advanced metrology such as CMM inspection. This helps ensure that every part meets specification from the very first run.
Core Subtractive Manufacturing Methods
Modern manufacturing depends on multiple distinct subtractive processes, each specialized for particular geometries and precision requirements.
CNC Machining & Automation
CNC machining uses pre‐programmed G‐code to automate material removal with micron‐level precision. Unlike manual methods, CNC systems offer exceptional repeatability. This allows continuous production where each part matches the CAD model within ±0.025 mm or better. This precision is executed through several specialized operations which we’ll discuss now.
CNC Milling
Milling uses rotating multi‐point cutters to remove material from a stationary workpiece. These machines, often with 3 to 5 axes, are best for non‐symmetrical prismatic parts like brackets & housings. They can machine complicated features such as slots, pockets and 3D contours that need simultaneous axis movement.
CNC Turning & Lathing
Turning rotates the workpiece at high speeds against a stationary, single point cutting tool. This method is a standard for manufacturing cylindrical components such as bushings, fasteners and shafts. By maintaining constant contact, lathes achieve superior concentricity and roundness as compared to milling.
Drilling, Boring & Reaming
Drilling creates initial holes but offers limited accuracy (IT11 to IT13) and rough finishes (Ra 6.3 to 12.5 µm). Boring then enlarges these existing holes to precise diameters with better concentricity. Reaming is the final finishing operation, refining the hole to tight tolerances (IT7 to IT9) and smooth finishes (Ra 0.8 to 3.2 µm).
Also See: https://richconn.com/cnc-drilling-vs-cnc-boring/
Grinding & Surface Finishing Operations
Grinding uses abrasive wheels to remove minimal material. This achieves tolerances as tight as ±0.002 mm. It is essential for hardened metals that are too tough for conventional cutters. This process creates ultra‐fine finishes (Ra <0.4 µm), critical for mating surfaces that need low friction and perfect seals.
Advanced & Non Traditional Subtractive Manufacturing Processes
Beyond conventional tools, advanced processes are used to tackle difficult materials & complex geometries.
Electrical Discharge Machining (EDM)
EDM erodes conductive materials like hardened tool steel (HRC 60+) using controlled electrical sparks rather than physical contact.
By maintaining a precise gap between the electrode and the workpiece (usually 5 to 50 µm), it creates intricate geometries with sharp internal corners and achieves tolerances as tight as ±0.005 mm. It delivers exceptional surface finishes which often reach Ra 0.1 to 0.8 µm without polishing.
Laser Cutting & Engraving
Laser cutting uses a high energy beam (400W to 12kW) to melt and vaporize material with high precision. Valued for its speed, it creates fine, detailed features with minimal waste. It works well for metals and non metals, particularly in sheet form but can leave a small heat affected zone.
Waterjet Cutting
This method uses a high pressure stream of water (up to 90,000 psi), often mixed with an abrasive like garnet. Its primary advantage is that it is a cold‐cutting process therefore it creates no heat affected zone (HAZ). This preserves the material’s structural integrity which makes it perfect for heat sensitive alloys, composites as well as stone.
Hybrid Machining Systems
Hybrid systems combine methods like additive 3D printing and subtractive CNC milling in one setup. This allows for building complicated near‐net‐shape parts additively and then machining critical interfaces to precise tolerances. This process significantly reduces material waste and lead times for high value aerospace and medical components.
Materials for Subtractive Manufacturing
Subtractive manufacturing requires the selection of right material for efficient and effective production. Material selection impacts cost, tooling and the final quality of the machined part.
Metals & Alloys
Well‐known subtractive metals include aluminum, titanium, steels, stainless steel, copper alloys and nickel superalloys. Aluminum and copper alloys machine quickly while steels, titanium as well as superalloys prioritize stiffness, strength and corrosion resistance.
Engineering Plastics & Composites
Engineering plastics offer a lightweight alternative with good chemical resistance. Materials like Nylon and PEEK are machined for custom parts that require high performance and tight tolerances. Composites with fillers like glass fiber provide increased strength but need special tooling.
Workpiece Stock Forms & Selection
Subtractive manufacturing starts with a solid workpiece known as stock. This raw material comes in forms like bars, blocks or plates. Selection of the right stock size and shape helps minimize machining time, reduce material waste and also lower overall production costs.
How Material Properties Impact Tooling & Parameters
Each material’s hardness, chemical behavior and thermal conductivity directly affect cutting speeds, tool selection and lubrication requirements. Harder materials like titanium need carbide tools and controlled feed rates to prevent overheating. In contrast softer materials such as aluminum permit faster machining but need sharp geometries for clean finishes.
Design for Manufacturability in Subtractive Manufacturing
Designing for manufacturability (DFM) controls costs in any subtractive process where material removal is key.
Tolerances, Fits & Geometric Dimensioning
In subtractive manufacturing, tighter tolerances are not always better as they increase material removal costs and time. A ±0.025 mm tolerance, for example, can cost four times more as compared to standard because of the precise cutting needed. Therefore apply tight tolerances only where functionally necessary.
Designing Features for Milling & Turning
Design features that accommodate standard tools. Use generous internal radii—ideally greater than one‐third of cavity depth—to allow larger, stiffer cutters. Avoid deep pockets; a 4:1 depth‐to‐width ratio is a common guideline.
If you share your part design with us, RICHCONN can point out features that may drive up machining cost & time and suggest small, practical adjustments to make the part easier to mill or turn.
Minimizing Setups, Tool Changes & Fixturing Complexity
Every machine setup in a subtractive workflow adds cost, time and error risks. Design parts so that all features can be accessed from the fewest possible directions. This simplifies the fixturing needed to hold the workpiece during machining.
Cost Saving Design Tips for Prototypes & Production
Standardize features like hole sizes to minimize tool changes. Design parts with dimensions that match standard raw material stock sizes. This reduces material removal which saves time and minimizes waste.
Common Mistakes Engineers Make & How to Avoid Them
Most scrap and rework in subtractive manufacturing comes from a few repeatable design mistakes which we’ll discuss now.
1. Over Specifying Tolerances & Surface Finish Requirements
Applying tight tolerances to every feature drives inflated quotes. For example tightening a tolerance from a standard ±0.1 mm to ±0.01 mm can triple costs because of needed inspections and slower machine speeds. To keep machining economical, reserve tight tolerances for critical sealing or mating surfaces only.
2. Ignoring Tool Access & Workholding Constraints
Deep pockets, sharp internal corners as well as hidden features restrict tool access. Long tools for deep features increase scrap and chatter while undercuts need special tools or 5‐axis machines. This raises costs. Therefore always validate machinability early with CAD/ CAM simulations and design features for standard tool access to reduce setups and production time.
3. Using Material Grades That are Hard‐to‐Machine
Selection of difficult‐to‐machine materials without a clear need adds cost and lead time. Superalloys and hardened steels cut slowly and wear tools quickly. This increases cycle time and tooling spend. In many cases a softer and more common alloy can do the job at a lower cost.
At RICHCONN we can help you review the material options and suggest substitutes that still meet your requirements but machine more efficiently.
4. Not Providing Clear GD&T, Drawings or Manufacturing Notes
Ambiguous drawings lacking clear datums force machinists to guess alignment. This often results in scrapped batches. Implement Geometric Dimensioning and Tolerancing (GD&T) to explicitly define relationships between reference planes and critical features. Moreover clear documentation eliminates interpretation errors and reduces expensive back‐and‐forth communication.
5. Overlooking Post Processing, Finishing & Secondary Operations
Engineers often forget that surface treatments like anodizing add physical thickness to a part. This buildup can cause precision features to become undersized after finishing. To compensate, always subtract the expected coating thickness from your raw machining dimensions.
Benefits & Limitations of Subtractive Manufacturing
Subtractive processes offer unmatched precision but face the same geometric constraints compared to additive methods.
Strengths
- CNC machining routinely holds ±0.025 mm tolerances or better which surpasses typical 3D printing.
- It provides extraordinary surface finishes around Ra 1.6 to 3.2 µm and down to Ra 0.4 µm with fine finishing.
- Machined components maintain isotropic strength with uniform properties in all directions.
Limitations
Subtractive methods struggle with complicated internal or organic shapes. Cutting tools cannot easily reach internal channels, deep cavities or other trapped volumes.Unusual designs also make fixturing more difficult. In these cases, additive manufacturing or 3D printing mostly works better.
Lead Time, Scalability & Cost Considerations
While setup costs for subtractive manufacturing are high because of programming and fixturing, per‐unit cost drops as volume rises. For quantities over 100 units, CNC machining is normally more economical than additive manufacturing. However high material waste for complicated parts can erode cost efficiency.
Subtractive Manufacturing vs Additive Manufacturing & Forming
Quick Reference Table
| Feature | Subtractive (CNC) | Additive (3D Printing) | Forming (Injection/Forging) |
| Process Principle | Material removal | Layer‐by‐layer building | Shape by force/ molding |
| Material Waste | High | Low | Minimal |
| Tooling Cost | Moderate (cutters/ fixtures) | Low (no tooling needed) | High (molds/ dies) |
| Geometric Flexibility | Limited by tool access | Near‐unlimited | Mold‐dependent |
| Volume | Low to Medium | Low (Prototyping) | High (Mass Production) |
| Surface Finish | Superior | Rough (layer lines) | Good (smooth) |
Key Takeaways
- Choose subtractive manufacturing for precision parts with extraordinary strength and smooth finishes.
- Use additive manufacturing for complex internal geometries or rapid prototypes.
- Select forming processes to produce simple metal parts in very high quantities.
Industrial Uses of Subtractive Manufacturing Technique
Subtractive manufacturing remains the primary method for producing high performance components in critical sectors; thanks to its precision and material versatility.
Automotive, Aerospace & Defense Components
These industries need safety‐critical parts to withstand extreme stress & temperatures. Subtractive processes machine high‐strength materials like titanium and Inconel into engine blocks, turbine blades as well as airframes with tolerances as tight as ±0.005 mm. CNC machining’s reliability assures these parts meet strict ISO & AS9100 standards.
Medical Devices & Implants
Manufacturers depend on CNC machining to fabricate biocompatible implants from titanium Ti‐6Al‐4V and PEEK. This process creates smooth, non‐porous surfaces necessary for bone screws, hip joints and surgical instruments. This ultimately prevents bacterial growth and ensures osseointegration.
Tooling, Molds & Jigs for Production Lines
Subtractive manufacturing is indispensable to create a durable tooling that drives mass production. Hardened tool steels (50+ HRC) are machined into complicated injection molds and die‐casting dies using CNC milling & EDM to achieve mirror‐like surface finishes.
Energy Sector
Power generation equipment, including gas & wind turbines, needs massive, durable components. CNC boring and turning mills process large scale shafts and gearbox housings capable of surviving continuous operation in harsh environments.
General Machined Parts
Beyond specialized fields, subtractive manufacturing is used to create countless general components. Items such as brackets, custom gears, housings, pulleys and shafts are routinely machined for use in all types of machinery and consumer products
Complex Machined Parts
Advanced multi‐axis CNC machines also allow the creation of highly complicated geometries. These subtractive processes can produce parts with intricate 3D contours and surfaces such as impellers, medical prosthetics as well as advanced optical components.
Get Subtractive Manufacturing Services from Experts
For high‐stakes projects, finding a partner with ISO certified precision is critical. Subtractive manufacturing demands rigorous quality control to assure parts meet tight specifications. ISO 9001‐certified companies like Richconn deliver this reliability. They can offer expert CNC milling and turning services with tolerances as tight as ±0.005 mm.
To Sum Up
Subtractive manufacturing remains the gold standard for achieving tight tolerances and superior surface finishes. From aerospace alloys to engineering plastics, these processes ensure unmatched structural integrity for critical components.
If you need any kind of precision CNC machining services then Richconn is your best option. You can contact us anytime.
Related Questions
Subtractive manufacturing is generally cheaper for large production runs while 3D printing is more affordable for small batches as well as for creating customized or complicated parts.
To reduce machining costs, simplify the part’s geometry, design features that can be made with standard tools and select materials that are easy to machine.
Yes. In hybrid manufacturing, a part can be 3D printed to its basic shape and then machined to achieve tight tolerances and smooth surfaces.
Choose based on your needs. Additive is best for complicated, low‐volume parts while subtractive is better for high‐volume production that needs strength & precision.
