Surface Roughness Explained: Ra, Rq, Rz, and More

Surface roughness parameters are very important in both engineering and manufacturing as they impact performance and lifespan of the product. This post will address what surface roughness is and its parameters like Ra and Rz. So you can learn to get right surface finish for your parts.

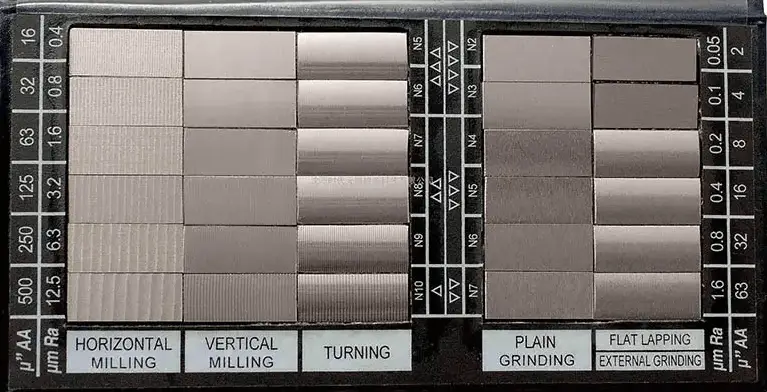

What is Surface Roughness in Manufacturing and Machining?

Surface roughness is the small irregularities on the surface of a material caused during manufacturing or machining. These micro-irregularities which can usually be seen under magnification, are a result of cutting, grinding or other material removal procedures.

These irregularities influence wear resistance, friction coefficients and mechanical performance. A smoother surface gives better wear resistance and less friction. Beyond mechanical performance, surface roughness also plays a big role in the appearance and function of parts.

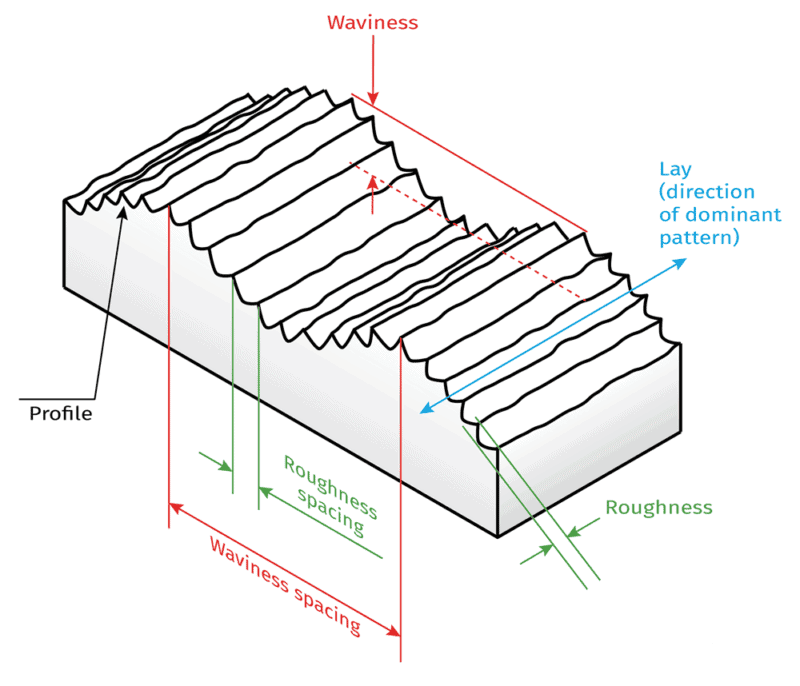

Surface Texture vs. Surface Roughness

Surface texture is the total topographical characteristics of a manufactured surface. It includes three main components which are roughness, waviness and lay. In simple terms, surface roughness measures the microscopic peaks and valleys while surface texture is a comprehensive measurement of all surface irregularities at different scales.

Surface roughness is one of the components of surface texture but surface texture is a wider term and includes other aspects as well that can impact the function of a part, such as its ability to avoid wear, decrease friction or hold lubrication.

Components of Surface Texture:

• Roughness: refers to small, fine irregularities on the surface caused by machining.
• Waviness: These are larger, periodic variations on the surface due to machine tool vibration or deflection.
• Lay: The direction of the predominant surface pattern which is mostly caused by cutting or grinding.

Surface Roughness Parameters

These parameters are numerical values to express surface unevenness. We will go through them one by one now.

Ra or Arithmetic Average Roughness

In simple terms Ra is the average roughness for the length of the measurement, i.e. the average of the peaks and valleys.

To calculate Ra using the continuous form, you measure the deviations of the surface profile from the mean line along the entire sampling length. The deviations, z(x), are integrated across the sampling length L and then the resulting number is divided by L to get the average absolute deviation.

Ra is also used to assess surface finish of different components like castings, brackets and housing parts in aerospace, manufacturing and automotive industries.

Rz (Mean Peak-to-Valley Height)

Unlike Ra, Rz is the average of 5 “tallest” peaks and 5 “deepest” valleys in a given sampling length.

In order to measure Rz, find the 5 tallest peaks and similarly 5 lowest valleys in the surface profile. Then calculate the vertical distance from every peak to its nearest valley and average those 10 values to get Rz. Its formula is written as:

Where P_i = peak heights and V_i = valley depths.

Rz is mainly used in the parts of machine that have to fit together very tightly in order to work properly, e.g., bearing interfaces, sealing surface and the adhesion surface of coating, where extremely rough surfaces can be a problem in the function of these parts. Additionally, Rz is more sensitive to surface flaws than Ra.

Rq (Root Mean Square Roughness)

Rq is the root mean square of the profile height deviations from the mean line.

To calculate Rq, square each of the deviations from the mean line, average those squared values and then take the square root of the result. Its formula is this

• ( Z(x) ) is the surface deviation at any point along the sampling length
• ( L ) is the total sampling length

Because of the squared values, Rq is more sensitive to peaks and valleys compared to Ra. This parameter is used in optical surfaces and precision bearings where small variations are important. Typical Rq values are 0.05 μm for super-finished surfaces to 50 μm for rough-machined surfaces.

Rt

Rt is the total height of roughness profile. We can easily find it by taking the difference between the tallest peak and the deepest valley over the sampling length.

Rt = Highest peak – Deepest valley

Rsk (Skewness)

Rsk measures the asymmetry of profile about the mean line. Positive Rsk means a surface has more peaks and negative Rsk means it has more valleys.

Rsk is determined by the third moment of the height distribution and is normalized by the cube of the standard deviation.

Kurtosis or Rku

Rku measures the peakedness of the profile about mean line. Rku > 3 means sharp peaks while Rku < 3 means rounded profiles.
Rku is calculated by taking the fourth moment of the height distribution and then divided by the fourth power of the standard deviation. Its mathematical formula is:

Ra vs Rz

Ra mostly measures average surface roughness, so it is good for general quality control and aesthetic surfaces. On the other side, Rz measures peak-to-valley variations which is important for sealing surfaces and dynamic applications. For whole surface assessment (0.1-6.3 μm), Ra is better, whereas Rz is suitable for important functional surfaces only where peak heights can impact performance (10-50 μm).

How to Measure Surface Roughness?

There are many methods to measure surface roughness such as contact and non contact methods. Each method further includes multiple techniques for measurement of surface roughness.

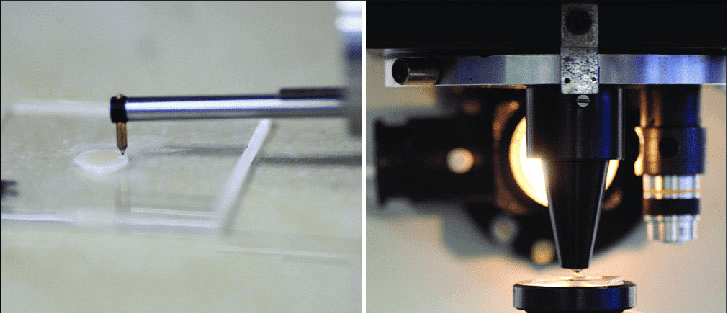

Contact Methods

Stylus profilometry is a method broadly used in the industrial sector for measuring surface roughness. A 2 to 10 μm radius diamond tipped stylus moves over the surface at a constant force (0.7-15 mN) showing the surface profile.

This method is characterized by very high accuracy (±0.1 μm) and the presentation of clear surface profiles. But it can damage delicate surfaces and the scanning speed is slower than that of non contact methods.

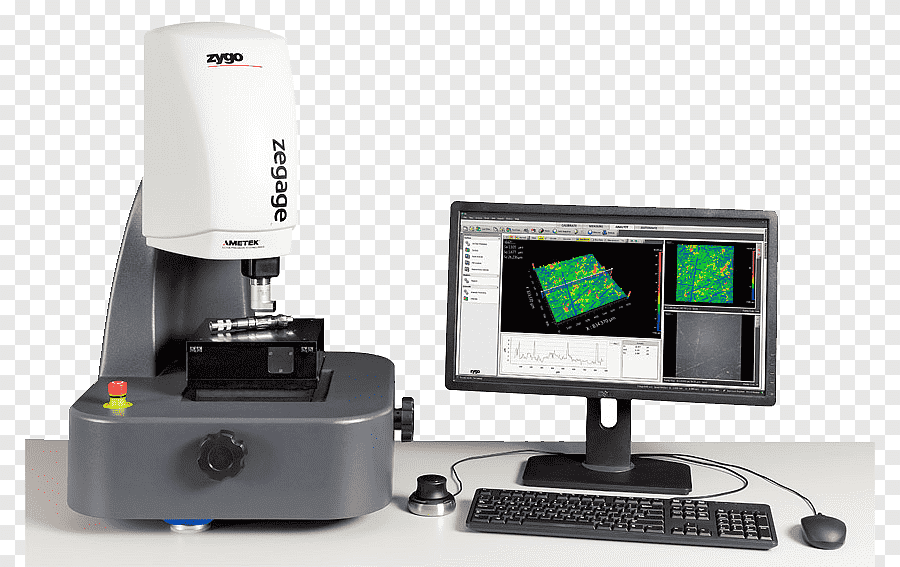

Non Contact Methods

• Optical Profilometry This procedure uses white light interferometry or laser-based systems to measure surface topography.
  It splits a light beam between a reference mirror and the sample surface. The interference pattern created by the reflected beams gives high-resolution 3D surface maps. These systems can measure up to 100,000 points/second with vertical resolution down to 0.1 nm.
• Atomic Force Microscopy (AFM): Unlike optical profilometry, this is a non optical imaging method.
  It scans a small cantilever over the surface of a sample and gives atomic level resolutions. (up to 1 nanometer lateral and 0.1 nm vertical). But it needs vibration isolated spaces and can only scan small areas.

3D Surface Measurement Techniques

• Confocal Microscopy: is a method that uses focused laser light for scanning a surface point by point through a pinhole and making 3D topography maps. The system measures surface heights by detecting only in-focus light reflections. This methodology allows 0.1 nm vertical resolution and is suitable for steep slopes and deep features.
• Interferometry: An interferometer is a device, which divides a light beam between two optical mirrors (one reference and one test surface).  The interferometer combines the two beams to create interference patterns which, in turn, helps to determine if there are differences in surface height. Modern interferometers are capable of measuring to the level of a fraction of a nanometer and can cover areas (up to 100 mm²) in a short time, thus, they are perfect for ultra-precision surfaces.
• Both processes provide non-contact measurement, real-time 3D visualization and automated data processing. They also facilitate measurement of the entire surface without damaging the surface which is important for quality control in precision manufacturing.

Standards Used for Measuring Surface Roughness

SPI Standards

The Society of the Plastics Industry (SPI) has developed a set of standards for classifying surface finishes in plastic injection molding. These standards are important to confirm quality in molded plastic parts in automotive, electronics and consumer goods. SPI mold finish classifications define the level of surface texture, roughness or smoothness required for different applications, from high gloss optical finishes to matte textures.

Grade	Sub-Grade	Process	Finish Type	Ra Range (μin)	Applications
A	A-1	Diamond Buffed	Grade #3	1-2	High-gloss finishes, optical parts, Class A surfaces
A	A-2	Diamond Buffed	Grade #6	2-3	High-gloss finishes, optical parts, Class A surfaces
A	A-3	Diamond Buffed	Grade #15	4-5	High-gloss finishes, optical parts, Class A surfaces
B	B-1	Paper Polished	600 Grit	2-3	Semi-gloss finishes, consumer products
B	B-2	Paper Polished	400 Grit	4-5	Semi-gloss finishes, consumer products
B	B-3	Paper Polished	320 Grit	8-10	Semi-gloss finishes, consumer products
C	C-1	Stone Polished	600 Stone	10-12	Matte finishes, industrial components
C	C-2	Stone Polished	400 Stone	25-28	Matte finishes, industrial components
C	C-3	Stone Polished	320 Stone	38-42	Matte finishes, industrial components
D	D-1	Blasted	#11 Glass Bead	10-12	Textured finishes, grip surfaces
D	D-2	Blasted	#240 Aluminum Oxide	25-28	Textured finishes, grip surfaces
D	D-3	Blasted	#24 Aluminum Oxide	38-42	Textured finishes, grip surfaces

International Standards

International surface roughness standards have three ISO frameworks for measurement and specification:

ISO 1302:

ISO 1302 defines graphical symbols and notation methods for technical drawings and outlines how to indicate surface texture requirements using R-profile (roughness), W-profile (waviness) and P-profile (primary) parameters. These symbols are vertical bar (|), parallel lay (//) and perpendicular lay (⊥).

ISO 4287

ISO 4287 defines fundamental profile parameters and their calculations. This standard defines common parameters like Ra, Rz and Rq and their measurement conditions and evaluation methods.

ISO 25178

ISO 25178 introduces the first standardized 3D surface texture analysis system. It defines areal parameters, measurement technologies (both contact and non-contact) along with calibration procedures. This standard is a great step forward by going beyond 2D profile measurements to 3D surface characterization.

ISO 16610

ISO 16610 defines a standardized method for filtering surface texture data to separate the roughness (short wavelength features) from the waviness (long wavelength features) of a surface. This separation allows analysis and interpretation of surface textures according to their functional needs.

Other Surface Roughness Standards

In addition to above Surface Roughness Standards, several other global standards provide guidance for measurement and specification of surface roughness:

• ASME B46.1 is the primary standard in the US, specially in defense industries. This standard defines surface texture parameters, measurement methods and filtering techniques. The latest version (ASME B46.1-2019) covers dozens of surface parameters.
• VDI 3400 (Germany): This standard outlines 45 roughness classes (0-45) with particular Ra values. Each class defines surface characteristics for different industrial applications, from ultra-smooth optical components to textured grip surfaces.
• JIS B 0601 (Japan): Japanese Industrial Standard JIS B 0601 defines terms and classification system for surface roughness. It provides guidance for roughness measurement methods including profilometry and also specifies surface texture symbols.

Factors Which Affect Surface Roughness

Surface roughness is affected by many factors in manufacturing process. Let’s look into these critical elements which determine the final surface quality.

Material Properties

Material properties such as material hardness and its microstructure itself influence the achievable surface finish. Harder materials (>50 HRC) usually produce finer surface under same machining conditions. Besides hardness, material grain size and microstructure also impact surface quality. Fine grained materials normally have smoother surface than coarse grained one, as the smaller grain boundaries allow for more steady material removal during machining.

Manufacturing Processes

Surface roughness is affected by the manufacturing process and each process affects the surface texture in different ways.

Turning

In turning, a revolving workpiece is shaped by a cutting tool. There, surface roughness is affected by cutting speed, feed rate, tool geometry and material properties. Higher cutting speed will minimize tool marks and improve surface finish. On the other hand, slower feed rates will allow for a finer cut which produces smoother surfaces. Typical roughness values turning can reach are between 1.6 µm and 12.5 µm with a finer finish.

Milling

Milling removes material from a stationary workpiece using rotating cutters. Surface roughness during procedure is affected by feed rate, speed and tool geometry. Faster feed rate will increase roughness but lower speed and better tool design will produce a finer finish with roughness values of 3.2 µm to 12.5 µm.

Drilling

Drilling normally produces a rougher surface due to continuous cutting. Its surface roughness value is between 3.2 µm and 12.5 µm but it can be improved with right tool and technique.

Grinding

Grinding is an abrasive process which produces a finer finish with Ra ranging from 0.1 µm to 1.0 µm depending on grit size and material. Contrary to that, polishing uses finer abrasives to produce an ultra-smooth finish with Ra values below 0.1 µm.

Additive manufacturing

In additive manufacturing (3D printing), roughness is affected by layer thickness and print speed with values of 3 µm to 25 µm, which can be improved with post processing. Since AM is layer by layer deposition, the surface texture will appear stepped or layered unless additional finishing operations are done.

Tool Geometry and Condition

Tool geometry also greatly affects surface finish quality. It includes cutting edge radius (0.2–2.0 mm), rake angle (-5° to +15°) and relief angle (5°–15°), which directly affect surface roughness. For example, a smaller edge radius will produce finer surface and better rake and relief angle will decrease cutting forces.

Advanced coatings such as TiN (titanium nitride), TiAlN (aluminum nitride) and DLC (diamond-like carbon) coatings on tools can further improve surface finish quality and tool performance. These coatings decrease tool wear and friction. But as tool wear progresses, its cutting performance will deteriorate. Flank wear, for example, will increase cutting forces which in turn will produce a rougher surface finish.

Process Parameters

Cut speed, feed rate and depth of cut are the parameters that affect surface finish. Higher cut speeds (above 50 m/min) will improve surface finish by reducing built up edges. Of all these parameters, feed rate has the biggest impact as lower feed rates (less than 0.1 mm/rev) will give finer, smoother surfaces. Depth of cut has a smaller impact on surface finish but depths below 1 mm will give better finish as cutting forces are decreased.

Importance of Surface Finishing in Different Industries

Each industry has distinct requirements for its surface characteristics in order to fulfill the functional and the performance requirements.

Automotive Industry

Engine cylinders (with Ra 0.1-0.4 μm) and transmission gears (Ra 0.4-1.6 μm) in automotive components need precise surface finishes for lubrication and smooth operation. These specifications directly affect vehicle performance and durability.

Aerospace Industry

Surface irregularities on parts like wings, fuselage sections and engine parts can initiate micro-cracks which can compromise fatigue life. So a smooth surface finish is vital to decrease crack formation and improve the durability and safety of these high stress parts.

Medical Devices

For medical implants, surface finish is critical for biocompatibility and bone-to-implant bonding. A smooth yet slightly textured surface supports better cell attachment and growth. Surgical tools like scalpels and forceps with polished finishes also decrease the risk of infection.

Electronics and Semiconductors

Semiconductor wafers need an ultra-smooth surface (Ra <0.01 μm) for device fabrication, while PCB copper traces also need specific roughness (Ra 0.3-0.8 μm) for solder adhesion. A polished finish guarantees better yield and performance.

Optical Industry

Surface finish of optical lenses, mirrors and other components with Ra <0.1 μm is important for light transmission and image clarity. A mirror or lens with rough surface will distort light path and affect system accuracy, alignment and performance.

Mechanical Parts Manufacturing

Precision mechanical components also require particular surface finishes. Bearing surfaces need a surface roughness of Ra 0.1-0.4 μm for smooth operation, gear surfaces need Ra 0.8-1.6 μm for optimal tooth engagement and sliding surfaces need Ra 0.4-0.8 μm to reduce friction and wear.

Inspection and Testing Protocols for Surface Roughness

Effective inspection of surface roughness needs clear protocols for measurement and sampling. Proper sampling methods are crucial to assure representative measurement and quality control.

Sampling Methods

Random or systematic sampling methods are used to assure that surface roughness measurements are representative of the complete production batch.

These measurements should be taken at such areas where finish will most impact performance, such as contact surfaces in rotating machinery, bearings and critical seals. A recommended practice is to take measurements at least three to five times across these areas to increase statistical reliability.

Data Analysis

Surface roughness data analysis uses Statistical Process Control (SPC) techniques like X-bar and R charts to monitor trends and detect changes in surface finish. Control limits are usually set at ±3σ from the mean to notice any deviations from standard production.

For critical surfaces, Cp and Cpk (capability indices) are used to check process stability. Anything above 1.33 means a capable process that constantly meets specs. This method catches the fine details that most of the time get missed with traditional analysis, so you can make more precise adjustments to the process.

Surface Roughness Symbols

Surface finish symbols are graphical representations on technical drawings to specify surface texture or roughness needs for a part. ISO 1302 standardizes surface texture symbols with the following meanings:

• ∇ (Basic symbol) denotes surface texture requirement
• = (Parallel lines) represents machining direction parallel to plane
• ⊥ (Perpendicular) shows machining marks perpendicular to plane
• X (Crossed) is for crossing machining patterns
• M (Multi-directional) means multiple direction patterns
• C (Circular) for concentric machining marks
• R (Radial) is for radial pattern machining

Example: Ra 3.2 ⊥ means surface needs 3.2 μm roughness with machining marks perpendicular to reference plane.

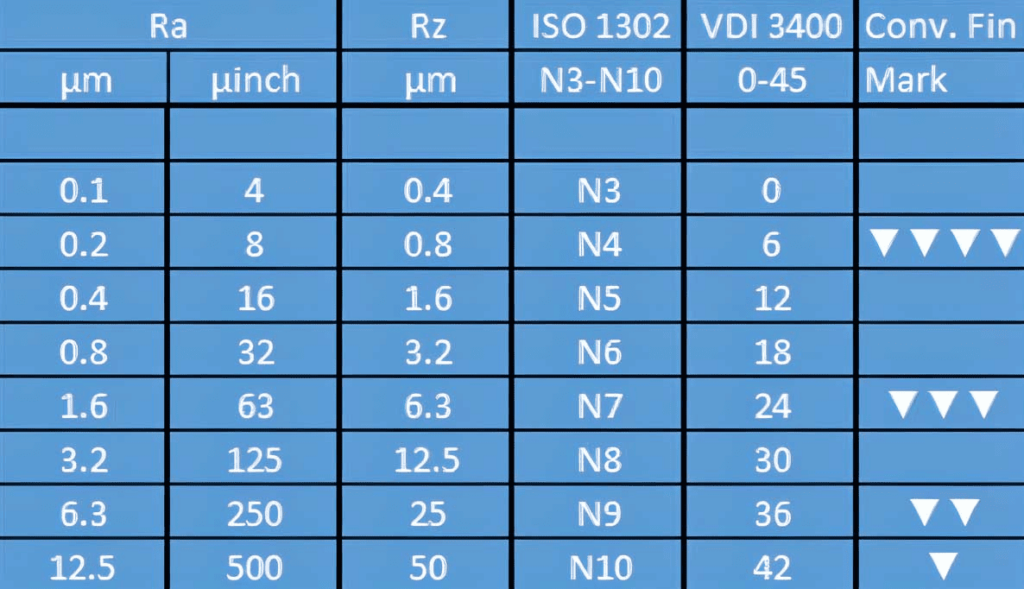

Surface Roughness Comparison Chart

How to Control and Improve Surface Roughness

Process Optimization

Surface finish requires control of several machining parameters to improve roughness. Feed rate has the biggest impact on roughness (0.1-0.2 mm/tooth for a fine finish), followed by cutting speed (75-95 m/min for most materials without causing excessive tool wear). Depth of cut should also be managed between 0.5 and 1.5 mm for stability.

Modern CNC systems have adaptive control algorithms to keep these parameters in the optimal range. And real-time monitoring through sensors further allows for automatic parameter adjustment to achieve target surface finish.

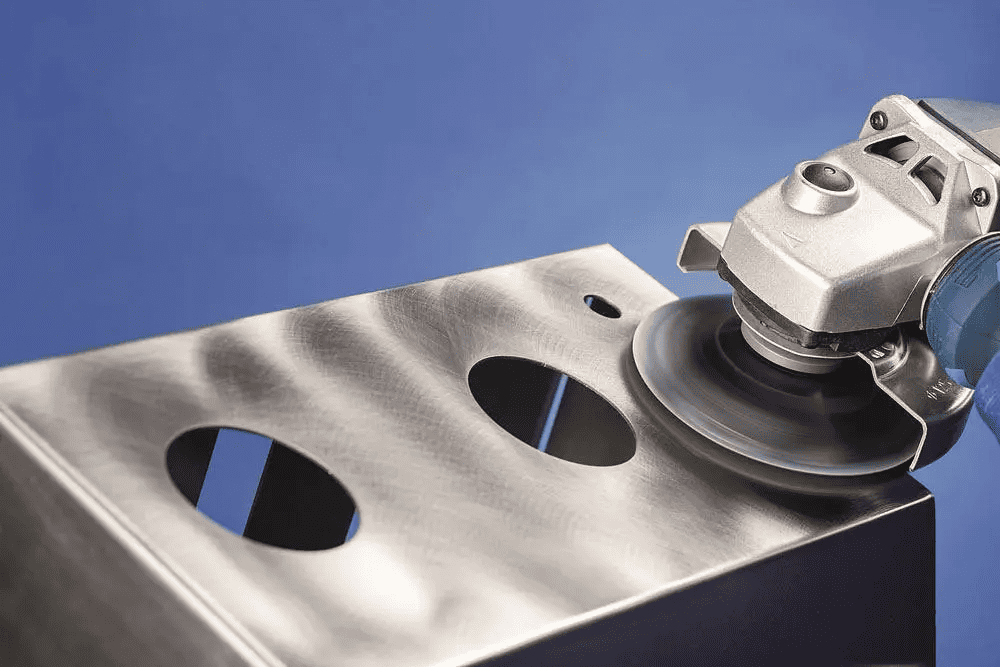

Surface Finishing Techniques

Advanced finishing techniques are important to get ultra-smooth surfaces with precise control of roughness. It includes lapping, honing and superfinishing.

• Lapping is a process in which abrasive particles in slurry are used for the purpose of obtaining highly flat surface. It makes the surface smoother by the systemic removal of thin layers and decreasing the irregularities.
• Honing uses abrasive stones to improve surface finish and geometric accuracy. It controls roughness by removing small amounts of material, assuring a uniform surface and minimizing tool marks.
• Superfinishing uses very fine abrasives at low pressure to get Ra below 0.1 µm. It reduces surface irregularities and lowers roughness to reach near-mirror finish.

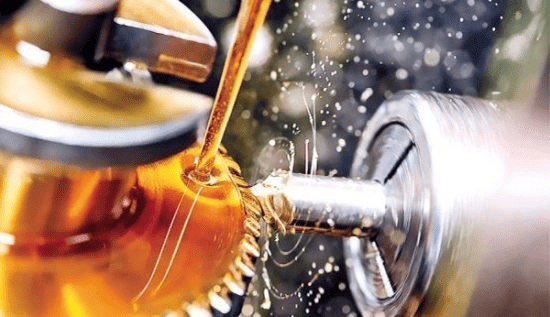

Lubricants and Coolants

Lubricants and coolants are used to reduce friction, scatter heat and flush away debris. Oil lubricants’ main function is to produce a layer between the tool and workpiece for decreasing wear and tear on the cutting tool.

Whereas water soluble coolants help in controlling the temperature. During cutting, they prevent workpieces and tools from overheating and wash away debris and chips. Using lubricants and coolants will definitely increase tool life and reduce burrs, tool marks and surface irregularities.

How Do You Decide on the Correct Finish?

You should pick the surface finish after a thorough analysis of the functional needs and the manufacturing capabilities. First, identify important parameters such as the working condition (temperature and chemical exposure), mechanical properties (wear resistance, friction coefficient) and aesthetic requirements. Match these requirements with achievable Ra values like precision bearings (0.1-0.4 μm), sealing surfaces (0.4-1.6 μm) or cosmetic finishes (0.8-3.2 μm).

Cost implications and manufacturing constraints must not be ignored. Each finishing method has its capabilities like grinding can achieve Ra 0.1-1.6 μm while milling reaches Ra of 0.8-3.2 μm. Also be mindful of material properties as harder materials could need different processing parameters. You can also verify your selection through prototype testing and compliance to industry standards (ISO, ASME or application specific requirements).

To Sum Up

Surface roughness parameters provide important guidelines for manufacturing quality control. Knowing Ra, Rz and other parameters will help you specify and measure surface finish requirements with great accuracy. Nowadays measurement techniques and standards provide uniform surface quality in all industries, from aerospace parts to implants.
