Swiss Machining for Aluminum Precision Parts

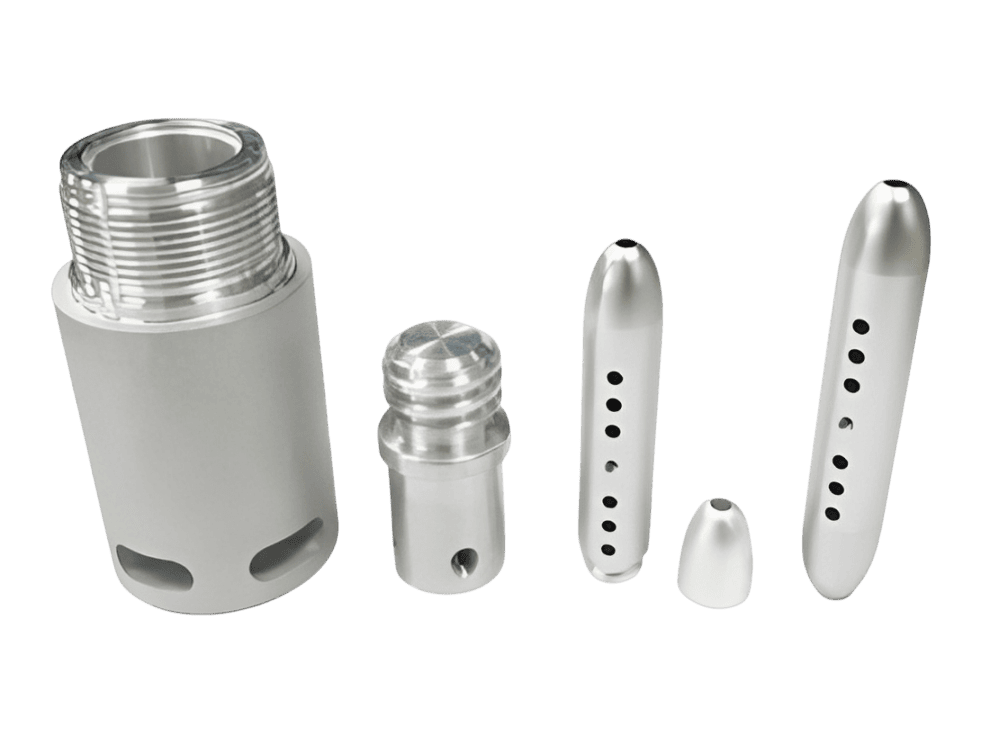

We produce complex aluminum parts — shafts, pins, housings, contacts, and fittings — on Swiss-type sliding headstock machines from CITIZEN, TSUGAMI, and Nomura. Bar stock from Ø0.5 to Ø32 mm. Tolerance to ±0.005 mm. Certified to IATF 16949 and AS9100D.
What Swiss Machining Actually Does
In conventional CNC turning, the workpiece overhangs from the chuck. As length increases relative to diameter, deflection and vibration accumulate — and tolerance suffers. Swiss-type machining eliminates this problem entirely.
The bar stock feeds through a precision guide bushing that supports the material within a fraction of a millimeter from the cutting tool. The result: extraordinary rigidity regardless of how long or slender the part is. For aluminum — a material that machines beautifully but demands careful chip control and feed management — this translates into consistent surface finish and dimensional repeatability that conventional turning cannot match at small diameters.
How the Guide Bushing Changes Everything
Support at the cut point
The guide bushing surrounds the bar stock within 1–2 mm of the tool. No overhang. No moment arm. Deflection is eliminated at the source.
Axial slide, not chuck rotation
The headstock slides the bar forward as the tools cut. This enables complex longitudinal features — tapers, steps, grooves — in a single continuous pass.
Live tooling for complete parts
Cross-drilling, milling flats, threading, and polygon turning happen in the same cycle. No secondary setup means no re-fixture error stacking.
Sub-spindle for back-working
The CITIZEN A-series catches the parted part in a sub-spindle and finishes the back end without any manual handling. You get a complete part from one machine cycle.
Why Aluminum and Swiss Machining Work So Well Together
Aluminum is one of the most favorable materials for Swiss machining. Its low density reduces centrifugal forces at high spindle speeds. Its thermal conductivity dissipates cutting heat fast. And its relatively short chip breaks cleanly — critical for Swiss machines where the guide bushing requires chip clearance to maintain bore quality.
Material Benefits in a Swiss Context
- High spindle speeds (up to 10,000+ RPM) without vibration — aluminum's low mass helps
- Excellent chip break on 6061, 7075, and free-cutting alloys — no chip wrap in the guide bushing
- Superior surface finish achievable without burnishing — Ra ≤ 0.4 μm as-machined
- Fast cycle times — aluminum cuts at 3–5× the speed of stainless, lowering your cost per part
- Anodizing compatibility — Swiss-machined surfaces anodize uniformly due to consistent surface texture
- Dimensional stability — aluminum's low cutting forces mean less workpiece deflection at tight tolerances
When to choose Swiss over conventional turning
If your part has a length-to-diameter ratio greater than 3:1, or has off-center features (cross holes, flats, hex forms) smaller than Ø32 mm, Swiss machining almost always produces better quality at lower per-unit cost than CNC turning with a steady rest or two-operation approach.
Aluminum Grades We Commonly Machine
Not all aluminum alloys behave the same under Swiss machining conditions. Below are the grades we run most frequently, with the characteristics that matter in practice.
Grade Reference
6061-T6
Excellent machinabilityThe most versatile structural aluminum for Swiss machining. Excellent chip break, good corrosion resistance. Our default recommendation for aerospace brackets, structural pins, and general-purpose precision parts. Anodizes uniformly in both Type II and Type III hard anodize.
7075-T6
Good machinabilityAerospace-grade. Roughly twice the strength of 6061 at 40% greater weight. Machines well but produces longer chips — our Swiss machines' coolant systems are configured for chip management on 7075. Recommended for high-stress pins, actuator components, and flight hardware.
2024-T3 / T4
Good machinabilityThe original aviation aluminum. Superior fatigue resistance makes it the choice for dynamic-load structural components. Less corrosion-resistant than 6061 — typically anodized or clad. We confirm temper state and test certificate as standard for this grade.
5052-H32
Good machinabilityExcellent salt-water corrosion resistance without surface treatment. Used for marine hardware, fluid-contact parts, and assemblies that require subsequent welding. Slightly gummier chip than 6061 — we adjust feeds accordingly.
Aluminum Part Families We Machine Daily
The parts below represent the recurring types we produce on our Swiss platform. Geometry and dimensional ranges are guides — bring us your drawing and we'll tell you exactly how we'd approach it.
Precision Shafts & Spindles
Multi-step OD shafts with turned diameters, undercuts, threads, and keyways. The guide bushing maintains straightness tolerances that chuck-turned shafts cannot achieve at L/D > 4.
- DiameterØ1 – 32 mm
- LengthUp to 300 mm per cycle
- Tolerance±0.005 mm OD, ±0.003 mm straightness
- FinishRa ≤ 0.8 μm standard
Connector Pins & Contacts
Spring-loaded pogo pins, press-fit contacts, and electrical connector bodies in aluminum (where weight is a constraint). Sub-micron surface finish for reliable contact performance.
- DiameterØ0.5 – 8 mm
- Tolerance±0.003 – 0.005 mm
- FinishRa ≤ 0.4 μm + anodize or plate
- Volume10K – 500K+ per run
Valve & Fitting Bodies
Miniature aluminum valve bodies, fluid fittings, and manifold inserts where internal bore quality and thread integrity determine function. Electropolished surfaces available for fluid-contact applications.
- DiameterØ6 – 32 mm body
- Bore finishRa ≤ 0.4 μm honed
- ThreadsM3–M24, NPT, BSP
- Grade6061, 7075
Sensor & Actuator Housings
Thin-wall cylindrical housings with internal bores, external features, and mounting threads. Aerospace and automotive sensor bodies in 6061 or 7075 with hard anodize for wear resistance.
- Wall thicknessAs thin as 0.3 mm
- FinishHard anodize Type III
- Tolerance±0.005 mm OD/bore
- CertificationsIATF 16949, AS9100D
Aerospace Structural Fasteners
Precision bolts, shoulder screws, standoffs, and shear pins in 7075-T6 or 2024-T4. AS9100D production with full first article inspection, material certification, and lot traceability per piece.
- StandardAS9100D, full FAIR
- Material certMill certs with each lot
- ThreadsUNC, UNF, metric fine
- FinishAnodize, chromate, bare
Medical Instrument Components
Lightweight aluminum components for handheld surgical instruments, diagnostic devices, and endoscopic hardware. Surface finish and dimensional consistency are verifiable — every part inspected against a documented control plan.
- CleanroomPackaging available
- FinishHard anodize, passivated
- Inspection100% or AQL per spec
- TraceabilityFull lot tracking
Industries We Serve with Swiss Aluminum Parts
We work exclusively with industrial, scientific, and high-reliability applications. Every customer on this list needs parts that work every time, in demanding environments.
Aerospace & Defense
7075 and 2024 aluminum structural components, fasteners, brackets, and sensor mounts. AS9100D certified. Full first article, lot traceability, and material certification standard.
Automotive
IATF 16949 production of sensor housings, connector contacts, EV charging components, and under-hood hardware. SPC, PPAP, and control plan documentation available.
Semiconductor Equipment
Lightweight aluminum components for wafer handling, gas delivery, and process equipment. Clean-machined, deburred, and packaged to fab-entry standards.
Medical Devices
Aluminum instrument components, endoscope parts, and diagnostic device hardware where weight reduction is as critical as dimensional precision. Full lot inspection with CoC.
Industrial Robotics
Robot joint shafts, end-effector components, and linear motion hardware where stiffness-to-weight ratio determines design. 6061 and 7075 in complex geometries.
Professional Electronics
Camera bodies, optical instrument components, and professional AV hardware — including parts machined for RED Cinema camera systems — in hard-anodized aluminum.
Dimensional Tolerances — What Our Machines Deliver
These are the tolerances our Swiss-type machines hold in production — not best-case lab conditions. Every figure below is verified against Mitutoyo CMM reports from active production jobs. Tighter tolerances are achievable on specific features; we discuss those during DFM review.
| Feature | Standard | Achievable |
|---|---|---|
| OD / Turned Diameter | ±0.005 mm | ±0.002 mm |
| ID / Bore Diameter | ±0.005 mm | ±0.003 mm |
| Length / Shoulder | ±0.01 mm | ±0.005 mm |
| Thread Pitch Diameter | 6g / 6H class | 4g / 4H class |
| Straightness | 0.005 / 100 mm | 0.003 / 100 mm |
| Roundness / Cylindricity | 0.003 mm | 0.001 mm |
| True Position (live tool) | ±0.01 mm | ±0.005 mm |
| Surface Finish (as-machined) | Ra ≤ 0.8 μm | Ra ≤ 0.4 μm |
Mitutoyo coordinate measuring machine, traceable calibration under ISO 10012. Every first article report is generated on this system.
Achieved routinely on CITIZEN A-series machines with carbide tooling and correct cutting parameters for 6061 and 7075 alloys.
Post-machining abrasive honing on 5 dedicated machines for bore surfaces that require fluid sealing or precision fit.
A KPI we report internally every week. With 39+ Swiss-type machines, a tight job on one program does not delay your next delivery.
Finishing Options for Swiss-Machined Aluminum
Surface treatment is where the material choice and part function converge. We coordinate finishing through our certified partner network — all operations covered by the same lot traceability as the machining step. You receive one set of documents for the complete part.
Type II Anodizing (Sulfuric)
5–25 μm oxide layer. Improves corrosion resistance and allows color dyeing. Does not significantly affect machined dimensions — specify pre-anodize dimensions with nominal +0.010 mm on OD.
Thickness: 5–25 μm · Hardness: ~250 HV · Colors available
Type III Hard Anodizing
25–50 μm dense oxide. For wear-resistant and electrically insulating surfaces. Grows approximately 50% into the base metal, 50% outward — tighter post-anodize tolerances require pre-anodize machining allowance.
Thickness: 25–50 μm · Hardness: ~400–600 HV
Chemical Film (Alodine / Chromate)
MIL-DTL-5541 Type I or Type II. Near-zero dimensional change (<0.5 μm). Provides electrical conductivity and corrosion resistance — standard for aerospace chassis and structural hardware.
Dimensional change: < 0.5 μm · Electrically conductive
Electroless Nickel (EN) Plating
Uniform coating regardless of geometry — no edge buildup. Improves hardness and wear resistance. Used when aluminum's native properties aren't sufficient for the tribological environment.
Typical thickness: 10–25 μm · Hardness: 500–700 HV (after heat treat)
Bead Blast + Anodize
Uniform matte texture before anodizing. Removes tool marks and provides consistent cosmetic appearance. Commonly specified for instrument panels, housings, and camera components.
Ra ~1.6–3.2 μm post-blast · Uniform light scattering
Abrasive Honing (Bore Finishing)
For internal diameters requiring sealing surface quality or precision bearing fit. Our 5 abrasive honing machines achieve bore finishes down to Ra ≤ 0.2 μm with roundness within 0.001 mm.
Ra ≤ 0.2 μm · Roundness ≤ 0.001 mm
Designing for Finishing: What to Specify on Your Drawing
Surface finishing affects final dimensions — sometimes significantly. Here is the guidance we give engineers during DFM review to avoid re-work cycles.
Anodizing Allowances
Type II anodize grows outward only — add 0.005–0.015 mm to external diameters and subtract from bores to hit final dimension after coating. Type III (hard anodize) grows 50% in / 50% out — add 0.015–0.030 mm to OD, subtract from bore. Always call out "dimensions after anodizing" or "dimensions before anodizing" explicitly on your drawing.
Grade Compatibility With Finishing
6061 anodizes the most uniformly and produces the clearest, most consistent color. 7075 anodizes well for natural and dark colors but can show blotching with lighter dye colors due to alloy content. 2024 anodizes inconsistently — chromate conversion coating is typically the better choice. We flag these issues at the DFM stage so your drawing doesn't drive a finishing choice that underperforms.
Thread Protection During Finishing
Threads tighter than 6H class should be masked before anodizing — the oxide layer will reduce the thread's functional fit. We mask critical threads as standard practice, but confirm which features require masking during our first article review. Plugged holes and taped threads are costed into the finishing operation quote.
Preferred callout format: "Hard anodize per MIL-A-8625 Type III, Class 1, 0.025–0.050 mm thickness. Machine to final dimensions before anodizing. Mask thread M8×1.25-6H." This gives our finishing partner exactly what they need — no interpretation required.
How We Verify Every Swiss-Machined Aluminum Part
Our inspection approach for aluminum Swiss-machined parts follows a documented control plan established during the DFM and first article stage. For aluminum specifically, we also verify hardness and temper-state via material test report — because dimensional tolerance means nothing if the alloy is out of spec.
IATF 16949:2016
Automotive quality management. Covers FMEA, PPAP, SPC, and production part approval for automotive supply chains including EV and sensor programs.
AS9100D
Aerospace quality management. First article inspection per AS9102, lot traceability, configuration management, and nonconforming material control for flight hardware.
ISO 10012:2003 — Measurement Management
Every measuring instrument is calibrated under a documented system traceable to national standards. Calibration records provided on request.
Material Verification — RoHS XRF
Seiko SEA1000A on-site. Verifies alloy composition and RoHS substance compliance. Results documented in the lot record.
Inspection Equipment — Key Instruments
- Mitutoyo CMM (3-Coordinate) ±0.001 mm · Japan
- Rational 2D / 2.5D Optical ±0.001 mm · 4 units
- RKE CCD Auto-Sorter ±0.002 mm · 6 units
- Mitutoyo Profiling (Surface) Ra / contour measurement
- Mitutoyo Height Gauge ±0.001 mm · Japan
- Mitutoyo Micrometer Set ±0.001 mm · 30 units
- Vickers Hardness Tester ±0.5 HV — verifies temper state
- Seiko SII XRF Analyzer Alloy verification, RoHS testing
Engineering Recommendations for Swiss-Machined Aluminum Parts
We review hundreds of aluminum part drawings per year. The issues below account for the majority of DFM feedback we give first-time customers. Addressing them before quoting saves time for everyone.
Specify L/D Ratio Intentionally
Swiss machining is your best option when L/D exceeds 3:1. But for parts under L/D 2:1 with large diameters, conventional CNC turning is faster and cheaper. Call out your part's functional requirements — we'll recommend the right process, even if it's not Swiss.
If your shaft is Ø10 × 80 mm (L/D = 8), Swiss is almost certainly right. If it's Ø25 × 30 mm (L/D = 1.2), a chucked turning operation will cost less.
Tolerance Stack-Up on Threading
Threads formed during the Swiss cycle benefit from the guide bushing's rigidity. However, if you specify 4H thread class on a thin-wall aluminum part (wall < 1.5× thread depth), there is a risk of deformation during tapping. Thread milling is safer for tight-tolerance internal threads in thin walls.
For M4 threads in 6061 with wall thickness under 3 mm: specify thread milling, not tapping. We default to this recommendation without being asked.
Undercut Geometry on Small Diameters
Relief grooves and undercuts are straightforward on parts over Ø6 mm. On parts below Ø3 mm, undercut geometry requires special insert profiles and reduces tool life. If the undercut is for snap-ring retention on a Ø2 mm shaft, ask us — there may be a better functional approach.
Undercut width should be ≥ 0.3 mm and depth ≥ 0.1 mm for reliable production on Swiss machines below Ø5 mm.
Cross-Hole Positioning and Drill Exit
Cross-drilled holes on Swiss-machined parts exit into the guide bushing bore region — which is fine. But if a cross hole intersects a turned undercut or relief groove, the unsupported material at drill exit increases burr formation. Design cross holes to exit into solid material wherever possible.
Cross-hole diameter should not exceed 60% of the shaft diameter. Larger ratios require structural analysis and special tooling consideration.
Hard Anodize and Bore Tolerances
Type III hard anodize grows 12–25 μm per side into the bore. A bore specified at Ø12.000 +0.010/-0.000 will be Ø11.950–11.975 after hard anodize if you don't add the allowance. Always call out whether your dimensions are pre- or post-anodize, and add 0.020–0.050 mm to bores on the drawing note.
Preferred note format: "All dimensions apply after anodizing. Bore Ø12H7 to be achieved after Type III anodize. Machine to Ø12.045 pre-anodize."
Material Callout — Be Specific on Temper
7075-T6 and 7075-T73 have meaningfully different mechanical properties. 2024-T3 and 2024-T4 behave differently under fatigue loading. Specify the full alloy designation including temper — not just "aluminum 7075" — and we will verify it against the mill cert before machining begins.
Correct callout: "AA7075-T651, AMS 2770 heat treat, material certification required." Not: "Aluminum 7075."
Ready to quote your Swiss-machined aluminum parts?
Send us your drawing — 2D PDF with GD&T, or 3D STEP file. We’ll review it for machinability, flag any DFM concerns, and have a quote back to you within 24–48 hours.
- Quote within 24–48 hours
- DFM review and feedback at no charge
- IATF 16949 & AS9100D certified production
- Ø0.5 – 32 mm Swiss · 39+ machines on floor
- 6061 · 7075 · 2024 · 5052 and more
- First article with full CMM report
