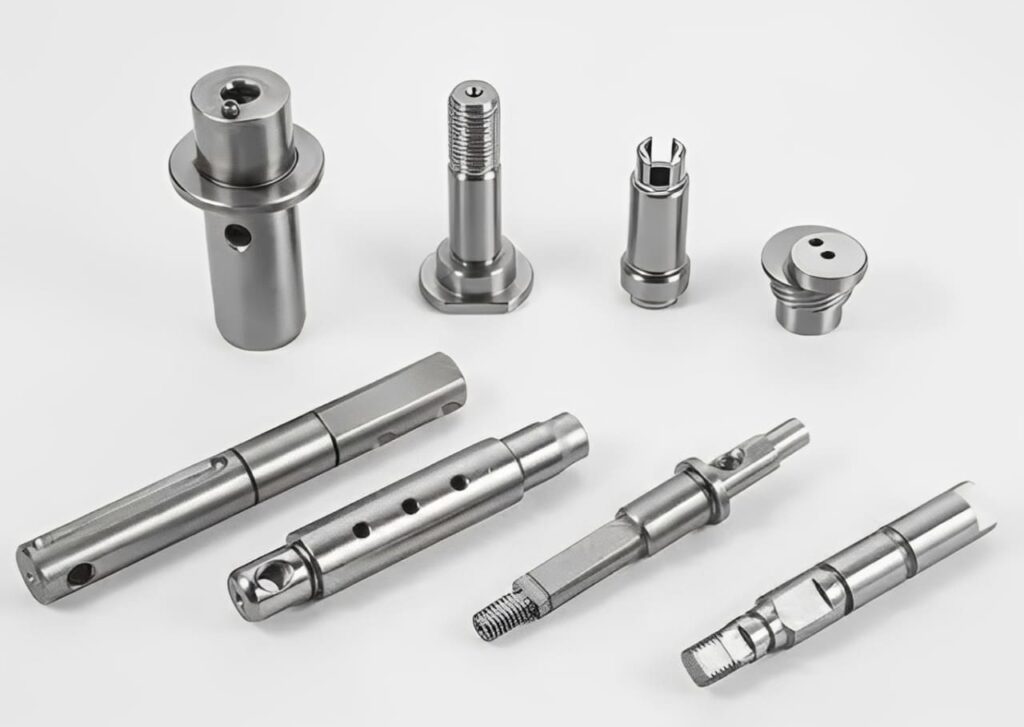

Swiss Machining Nickel Alloy Parts Built to Spec
Inconel, Hastelloy, Monel, Waspaloy, and similar high-temperature alloys are among the most demanding materials to machine precisely. We’ve built our Swiss-type CNC operations specifically around the properties that make these alloys difficult — and deliver tight-tolerance parts for aerospace, semiconductor, and process industries.
Superalloys work-harden rapidly during cutting, retain heat at the tool tip, and are highly abrasive to cutting edges. A supplier without specific process knowledge for these materials will produce scrap or out-of-tolerance parts — often without realizing it until CMM inspection.
Why Nickel Alloys Are Difficult to Machine — and How We Solve It
Nickel superalloys are engineered to resist the very forces that machining applies to them. Their exceptional strength at elevated temperatures, resistance to deformation, and chemical inertness are exactly the properties that make them difficult to cut, drill, thread, and finish to tight tolerances.
Understanding these properties at a process level — not just acknowledging them — is the difference between a supplier who can quote nickel alloys and one who can consistently deliver them to print.
High Heat Retention at the Cutting Zone
Nickel alloys have low thermal conductivity (≈11 W/m·K for Inconel 625 vs. ≈160 for aluminum). Heat generated during cutting stays at the tool tip rather than dissipating into the chip. This accelerates tool wear and causes thermal distortion in precision features.
Rapid Work Hardening
Many nickel alloys — especially Inconel 718 and Waspaloy — harden significantly under the stress of machining. Dwelling or rubbing (even momentarily) causes the surface to harden far beyond the base material hardness, making subsequent passes progressively more difficult.
High Abrasivity from Hard Carbide Particles
The chromium and other carbide-forming elements in superalloys create abrasive particles that wear cutting edges rapidly. Tools that last thousands of pieces on stainless steel may survive only hundreds of pieces on Inconel — and failure is often sudden, not gradual.
High Strength and Toughness — Not Brittleness
Unlike hardened steels that are brittle, nickel superalloys are tough. They resist fracture while requiring high cutting forces. This loads the cutting tool, machine spindle, and workpiece fixturing simultaneously — demanding rigid setups and correct feed-to-depth ratios.
How We Address These Challenges
-
01Sharp, premium coated inserts changed proactively We use TiAlN and AlCrN-coated carbide tooling with defined insert change intervals, not run-to-failure. For Swiss turning, insert geometry is selected specifically for nickel alloys (positive rake, sharp edge, low cutting-edge hone).
-
02High-pressure coolant (HPC) directed at the cutting zone Coolant at high pressure breaks the heat boundary layer at the tool tip, flushes chips efficiently, and prevents chip re-cutting. Chip re-cutting is a leading cause of surface damage in nickel alloy turning.
-
03Continuous feed — no dwell, no rubbing The most common mistake in nickel alloy machining is pausing mid-cut or taking too-light finishing passes. We program continuous engagement, correct chip loads, and avoid the conditions that trigger work hardening.
-
04Rigid Swiss-type setup minimizes vibration and chatter Our CITIZEN sliding headstock machines support the bar stock within 1–2 mm of the cut via the guide bushing. This near-zero overhang virtually eliminates deflection on slender nickel alloy parts where conventional turning would chatter.
-
05First-article dimensional + microstructural verification For new nickel alloy programs we verify not just dimensions but surface integrity: no re-hardened white layer, no micro-cracks at drilled or threaded features. For aerospace programs, we retain surface finish records per AS9100D requirements.
-
06Material traceability from mill cert to finished part We maintain heat lot traceability on all nickel alloy raw material. Material test reports (chemistry + mechanical properties per AMS or ASTM) accompany every order on request.
What This Means for Your Parts
When you send us a nickel alloy drawing, you receive parts that meet your dimensional callouts — not parts that “look right” but fail CMM. We hold ±0.005 mm on OD, ID, and length features on Inconel and Hastelloy as standard production practice, with tighter features achievable on specific diameters during DFM review.
Nickel Alloys We Machine for Precision Swiss CNC Parts
Richconn machines nickel alloys and high-temperature superalloys for small precision parts, connector pins, valve components, sensor housings, threaded fittings, and other custom metal parts. Select an alloy below to view practical machining notes, suitable applications, and DFM considerations.
UNS N06625 · ASTM B446 / AMS 5666
Inconel 625Also known as Alloy 625 or NiCrMo-3.
Why engineers specify Inconel 625
Inconel 625 is often selected when the part needs strong corrosion resistance, good toughness, and stable performance in harsh environments. It is a practical choice for seawater equipment, chemical processing parts, semiconductor-related hardware, and high-reliability precision components.
For Swiss-type machining, the key challenge is heat concentration and work hardening. Richconn normally recommends annealed bar stock where possible, stable cutting engagement, sharp coated carbide tooling, and careful chip evacuation for small-diameter parts.
Richconn machining notes
- Use sharp positive-rake inserts and avoid rubbing during finishing passes.
- Keep feed engagement continuous to reduce work-hardening risk.
- Use high-pressure coolant or targeted coolant for deep holes and threads.
- For slender parts, Swiss guide-bushing support helps control deflection and chatter.
UNS N07718 · ASTM B637 / AMS 5662 / 5663
Inconel 718Age-hardenable nickel-chromium alloy for high-strength parts.
Why engineers specify Inconel 718
Inconel 718 is used when strength, fatigue resistance, and elevated-temperature performance matter more than easy machinability. It is commonly specified for aerospace hardware, turbine-related components, high-strength fasteners, and critical mechanical parts.
The machining sequence is important. If the drawing allows it, Richconn usually recommends rough and finish machining in the solution-treated condition, followed by heat treatment. Machining fully aged 718 is possible, but tool life, cycle time, and cost must be reviewed during DFM.
Richconn machining notes
- Confirm heat-treatment sequence before production to reduce unnecessary machining risk.
- Use controlled chip load; light rubbing cuts can harden the surface quickly.
- Thread milling is preferred for small internal threads where tapping risk is high.
- Plan proactive tool changes instead of running tools until visible failure.
UNS N10276 · ASTM B574
Hastelloy C-276Nickel-molybdenum-chromium alloy for aggressive chemical environments.
Why engineers specify Hastelloy C-276
Hastelloy C-276 is selected for parts exposed to aggressive chemicals, mixed acids, chlorides, and demanding process environments. It is widely used in chemical processing, pharmaceutical equipment, semiconductor process hardware, and corrosion-resistant fluid components.
Compared with some Inconel grades, C-276 can be slightly more forgiving, but it still wears tools quickly due to its alloy composition. For precision parts, chip control and burr prevention are often more important than simply increasing cutting speed.
Richconn machining notes
- Use rigid setups and sharp tooling to prevent built-up edge and poor finish.
- Control long chips carefully, especially on small-diameter Swiss parts.
- Deburring strategy should be confirmed for sealing edges and small cross-holes.
- For process-contact surfaces, finish requirements should be defined on the drawing.
UNS N04400 · ASTM B164 / B165
Monel 400Nickel-copper alloy with good marine and chemical resistance.
Why engineers specify Monel 400
Monel 400 is often used for marine equipment, pump and valve parts, oilfield components, and corrosion-resistant fasteners. It is generally more machinable than many nickel superalloys, but it can produce gummy chips and still requires sharp tools and stable cutting conditions.
Richconn can support Monel parts that require turning, drilling, threading, grooves, flats, and small milled features. For parts with tight concentricity or slender geometry, Swiss machining is usually the better process.
Richconn machining notes
- Expect gummy chip behavior; tool geometry and coolant choice matter.
- Use sharp cutting edges to reduce smearing and surface tearing.
- For high-volume parts, confirm chip-breaking performance during sample production.
- Ra and cosmetic requirements should be clearly specified before quotation.
UNS N07001 · AMS 5708 / 5709
WaspaloyHigh-temperature nickel-based superalloy for demanding components.
Why engineers specify Waspaloy
Waspaloy is used when a part must retain strength at elevated temperature. It is a serious material for serious applications, but it is also one of the most difficult nickel alloys to machine. Small holes, fine threads, thin walls, and interrupted cuts should be reviewed carefully.
Richconn recommends early DFM review for Waspaloy projects. In many cases, minor adjustments to thread form, corner radius, wall thickness, or hole depth can reduce machining risk without changing the part function.
Richconn machining notes
- Review heat-treatment condition before deciding machining sequence.
- Avoid unnecessary deep micro-holes and sharp internal corners where possible.
- Use conservative cutting parameters and frequent tool inspection.
- Prototype validation is recommended before scaling to production quantities.
UNS N06600 · ASTM B166
Inconel 600Nickel-chromium-iron alloy for oxidation and corrosion resistance.
Why engineers specify Inconel 600
Inconel 600 is used for oxidation resistance, corrosion resistance, and stable performance in heat-related applications. It is also found in legacy industrial programs and specialized equipment where the material has already been qualified.
For precision machining, Inconel 600 is generally more manageable than 718 or Waspaloy, but it still requires correct feeds, sharp tools, and coolant control to avoid work hardening and surface quality issues.
Richconn machining notes
- Maintain steady feed to reduce work-hardening at the cutting surface.
- Use coolant control for drilling, tapping, and small internal features.
- Confirm surface finish requirements before choosing final pass strategy.
- Suitable for both prototype and repeat production when bar stock is available.
UNS N06022 · ASTM B574
Hastelloy C-22Nickel-chromium-molybdenum alloy for oxidizing and reducing media.
Why engineers specify Hastelloy C-22
Hastelloy C-22 is chosen for demanding chemical and pharmaceutical environments where both oxidizing and reducing media may be present. It is often used for corrosion-resistant fittings, valve components, process-contact hardware, and fluid-system parts.
Its machining behavior is similar to C-276, with strong demands on tool condition, chip evacuation, and burr control. For parts that require electropolishing, sealing surfaces, or special cleanliness, the finishing route should be confirmed before production.
Richconn machining notes
- Use stable cutting parameters and avoid rubbing on finishing passes.
- Define burr limits clearly for small holes, ports, and sealing edges.
- Confirm post-machining finishing such as passivation or electropolishing if required.
- For fluid-system parts, inspect thread quality and sealing surface finish carefully.
Need help choosing the right nickel alloy? Send Richconn your drawing, material requirement, annual quantity, and tolerance notes. We can review whether Swiss machining, CNC turning, or turn-mill machining is the most suitable route.
Request a Quote →Swiss Machining Capabilities for Nickel Alloys
Our Swiss-type sliding headstock machines are the optimal platform for nickel alloy bar stock work. The guide bushing support within millimeters of the cut provides the rigidity that these alloys demand.
Swiss Turning (OD, Facing, Contouring)
Precision OD turning, face turning, taper contouring, and profiling in nickel alloys on CITIZEN A-series sliding headstock machines. Controlled chip loads throughout the cycle.
- OD tolerance ±0.005 mm standard
- Ø0.5–25 mm bar range (A-series)
- Surface finish Ra ≤ 0.8 μm standard
- Chamfers, radii, and step features in cycle
ID Drilling & Boring
Through-holes, blind holes, and bored IDs in nickel alloys require careful pecking cycles, high-pressure coolant, and appropriate drill geometries to avoid work hardening at hole walls.
- Minimum drill diameter Ø0.3 mm
- High-pressure coolant (HPC) standard
- Peck drilling cycle for depths >3×D
- Reaming to H7 / H6 tolerance on bores
Threading (Internal & External)
Single-point threading and thread milling for internal and external threads. Thread milling strongly preferred over tapping on Inconel 718 and Waspaloy for reliability.
- M1.0 – M24 metric threads
- #0-80 through 1/2-20 UNC/UNF
- Thread milling for difficult alloys
- Thread verification with go/no-go gauges
Live Milling & Off-Center Features
Flats, slots, keyways, cross-holes, and off-center drilled features on nickel alloy parts using the live tooling stations on our CITIZEN machines. True single-setup accuracy.
- Cross-holes from Ø0.5 mm
- Flats and hex profiles (polygon milling)
- Slots to 0.5 mm width
- Position tolerance ±0.01 mm to center
Surface Finishing for Nickel Alloys
Post-machining finishing options appropriate for nickel alloy service conditions. Electropolish is frequently specified for process-contact surfaces in semiconductor and pharmaceutical applications.
- Electropolish (EP) — Ra ≤ 0.25 μm
- Passivation per ASTM A967
- Abrasive honing to Ra ≤ 0.2 μm
- Extrusion honing for bore surfaces
Larger-Diameter Turn-Mill Work
For nickel alloy parts exceeding Ø25 mm, our CITIZEN BNC-40 and MAZAK turn-mill centers handle up to Ø120 mm bar stock with full live milling capability and the same ±0.005 mm standard tolerance.
- Ø25–120 mm bar range
- Y-axis milling on CITIZEN BNC-40
- Full OD / face / ID in one setup
- Suitable for valve bodies, flanges, fittings
Where Nickel Alloy Swiss Parts Go
Every application below represents a case where dimensional failure is not acceptable and material substitution is not an option. These are the programs we are built for.
Semiconductor Process Equipment
Gas delivery, pressure control, and process chamber components require corrosion resistance to aggressive process gases (HF, Cl₂, HCl) and ultra-clean surface finish. Inconel 625, Hastelloy C-276, and Monel 400 are standard material choices.
Aerospace & Defense
Turbine engine hardware, actuation system components, and structural fasteners operating at high temperatures or in aggressive environments. Inconel 718, 625, and Waspaloy are primary alloys. AS9100D with full lot traceability and FAIR documentation.
Chemical & Pharmaceutical Processing
Reactor internals, heat exchanger components, agitator shafts, and fluid handling parts in aggressive acid environments. Hastelloy C-276 and C-22 are the benchmark alloys for these applications. Electropolish finish available for product-contact surfaces.
Oil, Gas & Downhole
Downhole sensors, wellhead components, and subsea hardware operating in H₂S-rich sour environments and high-pressure / high-temperature (HPHT) conditions. Inconel 625 and 718 are the primary alloys for NACE MR0175 / ISO 15156 compliance.
Medical & Laboratory
Surgical instruments, diagnostic equipment components, and analytical instrument parts where biocompatibility, corrosion resistance, and dimensional precision intersect. Material and surface finish are critical considerations for medical-contact parts.
Marine & Subsea
Seawater-immersed components, subsea connectors, and marine fasteners where chloride stress corrosion cracking resistance is essential. Monel 400 and Inconel 625 are the workhorses for saltwater environments. We produce connector contacts, shafts, and threaded components for these programs.
Process Engineering for Superalloy Machining
The following parameters represent our standard starting points for nickel alloy Swiss machining. Every new program is reviewed against these baselines and adjusted based on specific part geometry, alloy condition, and tolerance requirements.
Cutting Parameters by Alloy Family
These represent production-validated starting parameters. Finishing passes use the low end of speed range with reduced feed; roughing uses higher feeds at reduced speed to stay ahead of work hardening.
| Alloy | Speed (Vc) | Feed (Fn) | Tooling |
|---|---|---|---|
| Inconel 625 | 20–35 m/min | 0.05–0.12 mm/rev | TiAlN / AlCrN carbide |
| Inconel 718 | 15–25 m/min | 0.06–0.14 mm/rev | AlCrN carbide / CBN fin. |
| Hastelloy C-276 | 25–45 m/min | 0.06–0.12 mm/rev | TiAlN carbide |
| Monel 400 | 40–70 m/min | 0.08–0.18 mm/rev | Standard carbide |
| Waspaloy | 10–20 m/min | 0.08–0.15 mm/rev | AlCrN carbide / CBN req. |
Why Swiss Machines Are the Right Platform
The guide bushing in a Swiss sliding headstock machine supports the bar stock within 1–3 mm of the cutting point. This creates an extremely rigid cutting condition that would require elaborate special fixturing to replicate on a conventional CNC lathe.
For nickel alloys, this rigidity is not optional — it's what makes consistent tolerances achievable. Without it, the material's high cutting forces cause the bar to deflect mid-cut, producing taper, out-of-round profiles, and chatter marks that are characteristic of attempting superalloy Swiss work on under-supported machines.
What We Hold on Nickel Alloys — Consistently
These tolerances represent what our CMM reports confirm across production runs, not best-case first article results.
OD / ID Dimensional Tolerance
Standard production tolerance on turned and bored features in Inconel, Hastelloy, and Monel. Tighter tolerances (±0.002–0.003 mm) achievable on specific features during DFM review.
Minimum Part Diameter
Swiss sliding headstock machines handle nickel alloy bar stock from Ø0.5 mm, including pogo pin contacts, probe tips, and fine-pitch connectors in Monel 400 and Inconel 625.
μm Standard Surface Finish
Ra ≤ 0.8 μm achievable as standard on nickel alloy OD turning. Electropolish to Ra ≤ 0.25 μm available for process-contact surfaces. Honed bores to Ra ≤ 0.2 μm.
mm Geometric Tolerances
Roundness, cylindricity, and coaxiality on Swiss-turned nickel alloy parts. True position on cross-drilled features ±0.01 mm to centerline. Verified by CMM per ASME Y14.5.
Questions on Nickel Alloy Swiss Machining
Yes, we machine aged Inconel 718 — but we strongly recommend discussing the heat treatment sequence with us during DFM review. Aged 718 (≈36–45 HRC) requires CBN tooling for finishing passes, significantly lower cutting speeds, and more frequent tool changes. The economics are very different from annealed condition machining. For most programs, the preferred sequence is: rough machine in solution-annealed condition → heat treat (solution + aging) → finish machine critical features in aged condition. This minimizes the amount of material removed in the difficult aged condition while achieving the required final dimensions and surface finish. We will advise on what is feasible for your specific part geometry.
Yes. All nickel alloy bar stock used in production is purchased with full material test reports (MTRs) documenting heat lot identification, chemical composition, and mechanical properties per the relevant AMS or ASTM specification (e.g., AMS 5666 for Inconel 625, AMS 5663 for Inconel 718 bar, ASTM B574 for Hastelloy C-276). MTRs are retained and available for shipment with finished parts. For programs requiring specific source or mill restrictions, advise us at the quoting stage and we will confirm material sourcing capability.
First article and sample lead time is typically 15–25 working days for nickel alloy programs — slightly longer than stainless or aluminum due to raw material procurement and the need for more careful process validation on the first run. After first article approval, production lead times run 20–40 working days depending on quantity, part complexity, and whether post-machining operations (EP, honing, plating) are included. We provide a confirmed schedule at the quoting stage. Rush programs are accommodated on a case-by-case basis — contact us directly to discuss.
Yes. We machine internal threads down to M1.0 (1.0 mm pitch) and equivalent inch sizes (#0-80 UNF) in nickel alloys. Below M2.5 in Inconel or Waspaloy, thread milling is strongly preferred over tapping — the work hardening risk during a tap's dwell time at the bottom of a blind hole is significant, and tap breakage in a nickel alloy part is difficult or impossible to recover from. We will specify the threading method in the process plan and confirm it during DFM review.
We do not have a fixed minimum. Nickel alloy raw material costs and setup time mean that very low quantities (1–5 pieces) are typically not economical unless you are in a prototype or first article phase, in which case we accommodate them with appropriate setup charges. For production programs, quantities of 50–500+ pieces per run are typical for Swiss-turned nickel alloy parts, with higher volumes achievable on simpler geometries. We will provide unit pricing at multiple volume tiers in your quote so you can plan accordingly.
Yes. Electropolish is a standard post-machining operation we coordinate through our surface finishing partner network, and it is routinely applied to Inconel 625, Hastelloy C-276, and C-22 parts destined for semiconductor gas handling, pharmaceutical reactors, and process industry applications. EP removes the machining-affected surface layer and produces an Ra ≤ 0.25 µm finish with improved corrosion resistance at grain boundaries. We can also provide BA (bright annealed) tube fittings and VCR-type components as part of a complete fluid path assembly on request.
For standard production programs, we verify surface roughness (Ra) at specified locations and confirm dimensional compliance via CMM. For aerospace programs and programs with explicit surface integrity requirements, we offer additional verification including visual examination for re-hardened white layer, microhardness measurements at critical surfaces, and in some cases etch inspection to reveal heat-affected zones. Surface integrity inspection requirements should be specified in your drawing or quality plan — we will scope the appropriate inspection protocol during DFM review and include it in the control plan.
Yes. Inconel 625 (UNS N06625) and Inconel 718 (in the appropriate heat treatment condition per NACE MR0175 / ISO 15156-3 Table B.4) are standard materials for downhole and wellhead applications in H₂S-containing sour environments. We are familiar with the material condition requirements of NACE MR0175 — for Inconel 718, this means hardness must be ≤40 HRC in the aged condition, which limits the aging temperature and time used. We can supply parts with hardness test reports confirming NACE compliance when specified.
Send Us Your Nickel Alloy Drawing
We’ll review the geometry, flag any DFM considerations specific to your chosen alloy, and have a quote with confirmed lead time back to you within 24–48 hours.
- Quote within 24–48 hours including DFM notes
- Alloy-specific process engineering at no charge
- AS9100D and IATF 16949 certified manufacturing
- AMS / ASTM traceable material with full MTR
- Ø0.5–120 mm Swiss bar stock range
- Inconel · Hastelloy · Monel · Waspaloy · and more
