If your parts are under two inches in diameter — think pen-sized or smaller — Swiss machines are built for exactly that challenge. The process feeds bar stock through stationary cutting tools, and guide bushing technology supports the workpiece right at the cut point. This setup virtually eliminates vibration and bending, which is critical for tight tolerance machining on long, slender geometries.
Richconn’s Swiss machining services are designed to handle the tightest tolerances and most demanding part features in a single setup. In the sections ahead, we’ll walk you through exactly when this technology is the right fit for your next project.
Understanding Swiss CNC Machining Technology
Swiss lathe technology stands apart from conventional turning methods in one critical way — how the workpiece is supported during cutting. This design difference unlocks precision tolerance capabilities that standard lathes simply can’t match. To understand when Swiss machining makes sense for your parts, you first need to grasp how the technology works.

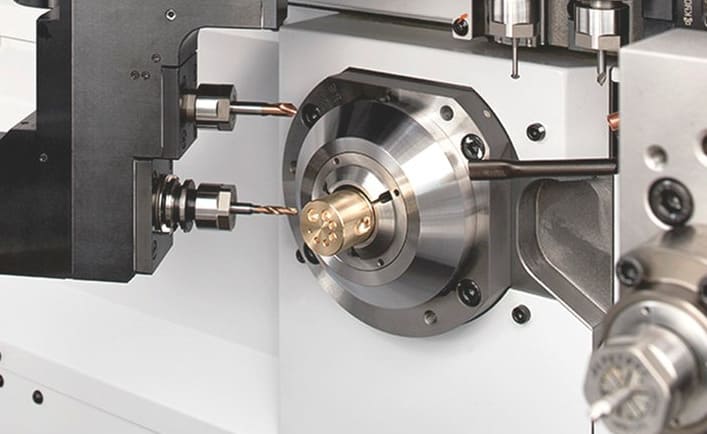

The Guide Bushing Advantage for Precision Parts
At the heart of every Swiss-type machine sits a guide bushing system. This component supports the bar stock within just 1–3mm of the cutting zone. The result? The material stays rigidly held right where the tool meets the workpiece. This setup enables tolerances as tight as ±0.0002″ — a level of accuracy that opens the door to demanding applications in medical devices, aerospace, and electronics.
How Swiss Machines Minimize Deflection
The sliding headstock is what makes deflection control possible on Swiss machines. Instead of the tool traveling to the material, the headstock moves the bar stock along the Z-axis while the cutting tools remain stationary. Key benefits of this architecture include:
- Near-zero workpiece deflection during cutting
- Reduced vibration for cleaner surface finishes
- Consistent accuracy on long, slender parts prone to bending
For micromachining applications, even the smallest variance can make a part unusable. The sliding headstock approach eliminates that risk.
Evolution from Watch Industry to Modern Manufacturing
Jakob Schweizer developed the original sliding headstock concept in the 1870s in Switzerland’s Biel/Bienne region. His goal was simple — manufacture tiny screws and shafts for watch movements with extreme precision. The integration of CNC controls in the 1970s transformed these cam-driven machines into fully programmable systems. Today’s Swiss machines feature 7–13 axes, live tooling for milling and cross-hole drilling, and sub-spindles for complete backworking — all in a single setup.
When to Use Swiss CNC Machining for Small Complex Parts
Not every part calls for Swiss CNC machining. You need to know the sweet spot — where this technology outperforms conventional methods. The decision comes down to part size, shape, precision tolerances, and how many pieces you need. Let’s break down each factor so you can make the right call for your next project.
Ideal Part Specifications and Geometries
Swiss turning works best for parts between 0.125″ and 1.5″ in diameter — some machines stretch up to 2″. If your design involves complex geometries like deep grooves, cross-holes, or intricate profiles, this process handles them in a single setup. Many micromachining services rely on Swiss-type lathes for exactly this reason.
Length-to-Diameter Ratios Above 3:1
The length-to-diameter ratio is a critical decision point. Parts with ratios above 3:1 and diameters under 1.5″ are prime candidates for Swiss turning. The guide bushing supports the workpiece near the cutting zone, which means these machines routinely handle ratios up to 30:1 without losing accuracy. Long, slender pins, shafts, and connectors fall right into this category.
Tolerances Tighter Than ±0.0005″
Swiss machines achieve precision tolerances ranging from ±0.0001″ to ±0.0005″. Compare that to conventional CNC lathes, which typically hold ±0.001″ to ±0.003″. Medical implants governed by ISO 13485 and aerospace fasteners under AS9100 demand this level of accuracy — and Swiss turning delivers it reliably in production runs.
High-Volume Production Requirements
Production volume optimization is where Swiss machining truly shines. Bar feeders enable unattended operation, making batch sizes from 100 to 10,000 pieces highly efficient. Consider the math:
- Break-even volume = (Swiss Setup Cost − CNC Setup Cost) ÷ (CNC Cycle Cost − Swiss Cycle Cost)
- Real-world results from PartsBadger showed a Swiss lathe producing a part in 3 seconds versus 8 seconds on a standard CNC — a 62% cycle time reduction
When you combine shorter cycle times with lights-out capability, the cost per part drops fast. That efficiency gap widens as your volumes increase, making Swiss CNC the clear choice for high-output programs.
Key Industries and Applications for Swiss Machining
Swiss CNC machining plays a critical role across industries where small, complex parts must meet strict quality standards. From life-saving surgical tools to high-speed electronic assemblies, this technology delivers the precision these sectors demand.
The medical field relies on Swiss turning for medical device components — think surgical pins, implantable screws, and orthopedic fasteners. These parts require micro-level features and must meet ISO 13485 standards. Many shops carry FDA registration, which allows them to produce regulated items for the healthcare market.
In the aerospace sector, aerospace fasteners such as pins, spacers, and high-performance bolts need AS9100-certified production. These parts endure extreme temperatures and mechanical stress, so tight tolerances are non-negotiable.
Defense manufacturing demands a unique level of accountability. ITAR-registered facilities produce controlled parts for weapons systems, communications equipment, and armored vehicles. Precision and traceability go hand in hand in this space.
You’ll find Swiss machining at the heart of electronics connectors production as well. Sensor housings, miniature enclosures, and pin connectors all benefit from the exceptional accuracy Swiss lathes provide — often holding tolerances below ±0.0005 inches.
The automotive sector depends on automotive precision parts for fuel injection systems, transmission assemblies, and turbocharger components. High-volume runs at consistent quality make Swiss machining ideal here.
Key applications across these industries include:
- Surgical tools and implantable device components
- Aerospace pins, bushings, and structural fasteners
- Defense-grade housings and mechanical assemblies
- Miniature electronic connectors and sensor parts
- Automotive valve components and precision shafts
Each of these sectors shares a common need — parts that perform without failure. Understanding which materials and geometries suit your application helps you decide if Swiss turning is the right fit, a topic we explore in the next section.
Comparing Swiss CNC to Conventional CNC Methods
Choosing the right machine for your project starts with understanding the core differences. When you compare Swiss vs conventional CNC, the gap in capability becomes clear — especially for small, slender parts. Each platform has strengths that suit specific production scenarios.
Workpiece Support and Deflection Control Differences
Swiss lathes support the workpiece just 1–3mm from the cutting tool through a guide bushing. Conventional lathes leave 50–150mm of unsupported material exposed. For parts with a 10:1 length-to-diameter ratio, this means deflection can be 10–20 times greater on a standard lathe. These deflection control methods give Swiss machines a clear edge in precision turning of long, thin components.
Multi-Axis Capabilities and Live Tooling
Modern Swiss lathes pack 7–13 axes with live tooling stations. This enables multi-axis machining operations like cross-drilling, milling, and flat generation — all in a single setup. Main and sub-spindles work at the same time, so you can complete complex parts without moving them between machines.
Production Efficiency and Cycle Time Analysis
Swiss turning delivers impressive cycle time reduction for high-volume runs. Bar feeders allow unattended operation across long shifts. Setup time is a key tradeoff, though:
- Conventional lathe setup: ~15 minutes for a simple shaft
- Swiss machine setup: 2–3 hours of programming and tooling
Once running, Swiss machines recover that investment quickly on large batches.
Cost Considerations for Different Production Volumes
A thorough production cost analysis reveals that conventional CNC handles diameters from 0.5″ to over 20″ and suits prototypes or runs under 100–200 pieces. At those volumes, setup costs erode per-part savings on a Swiss machine. For runs in the thousands, Swiss turning drives down unit costs and keeps quality consistent. Your production volume is the deciding factor when weighing Swiss vs conventional CNC for any project.
Material Considerations and Part Complexity
Your choice of material plays a big role in whether Swiss CNC machining is the right fit. The guide bushing design gives Swiss machines a clear edge when working with materials that cause deflection — from soft metals like aluminum and brass to tough alloys like Inconel.
Optimal Materials for Swiss Turning
Material machinability varies widely across the metals and plastics used in precision work. Swiss machines handle precision-ground bar stock in 316 stainless steel, titanium, and Inconel with aggressive cutting parameters. Conventional equipment often can’t sustain these speeds without chatter. Titanium machining on Swiss platforms consistently achieves surface finishes between Ra 4–16 µin on medical implants and aerospace parts. PEEK components — common in spinal implants and semiconductor fixtures — benefit from the low-deflection environment that prevents cracking or warping during cuts.
Complex Features in Single Setup Operations
Swiss machines excel at complex feature production because live tooling and multiple axes work on the part simultaneously. In a single cycle, you can produce:
- Turned diameters and tapers
- Cross-drilled holes
- Milled flats and slots
- External and internal threading — including backside features
- Knurling
Single setup machining means a medical device component needing five distinct features runs in one operation. On conventional equipment, that same part would require 3–4 separate setups. Each re-chuck introduces positional error, degrading the geometric relationships between features.
Secondary Operations Reduction
The surface quality Swiss machines deliver on difficult alloys often eliminates secondary grinding. This reduction in post-processing saves time, lowers per-part cost, and keeps tolerances intact. When you’re evaluating production methods for your next project, matching material demands with the right platform is essential for hitting both quality and budget targets.
Conclusion
Choosing between Swiss and conventional CNC comes down to a few Swiss CNC decision factors — part geometry, tolerance needs, production volume, and material type. Neither method is the best choice in every situation. Parts with length-to-diameter ratios above 3:1, diameters under 1.5 inches, and tolerances tighter than ±0.001 inches point strongly toward Swiss turning. For larger diameters, simpler shapes, or lower volumes, conventional CNC remains a cost-effective option. Optimal process selection starts with understanding these key thresholds.
Richconn Swiss machining services offer the expertise you need to make that call with confidence. Our team evaluates your design, timeline, budget, and production goals to recommend the right process. Quality verification through advanced inspection systems — including coordinate measuring machines and optical inspection tools — ensures every part meets strict standards for medical, aerospace, defense, and photonics applications. Full traceability from quoting through shipment keeps regulated industries covered at every step.
