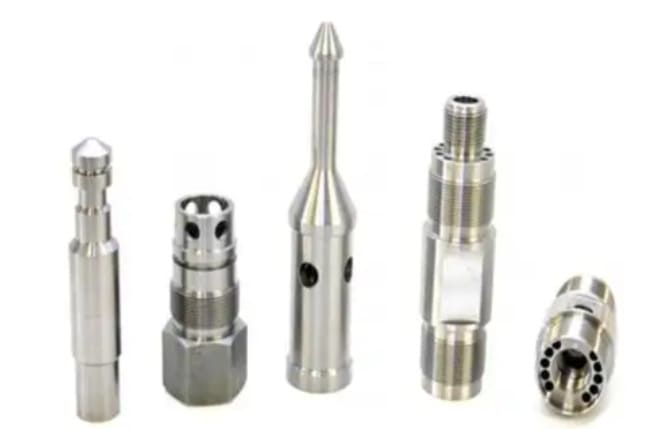

Swiss-type turning traces its roots to the watchmaking workshops of Switzerland, where craftsmen needed extreme accuracy for tiny, intricate parts. That same core principle — supporting the workpiece as close to the cutting zone as possible — makes CNC Swiss screw machining ideal for hollow part production today.
The secret lies in guide bushing technology. A guide bushing sits just 1 to 3 millimeters from the cutting tool, cradling the bar stock and eliminating deflection. This setup lets you hold tight tolerances down to 0.0002 inches — even on thin-walled hollow components that would flex or chatter on a standard lathe.
At the heart of every Swiss machine is a sliding headstock that moves along the Z-axis, feeding the bar into stationary or live tooling. The workpiece itself travels rather than relying solely on tool movement. This synchronized motion, combined with multiple tool holders positioned around the spindle, enables precision machining on several surfaces in a single setup.
Modern machines from manufacturers like Citizen, Star, and Tsugami operate on five or six axes at once. You can turn, mill, drill, cross-drill, and thread hollow components without ever unclamping the part. Bar stock feeds through hydraulic chucking collets, and advanced bar feeders — whether hydrodynamic oil-tube systems or hydrostatic servo-driven units — keep vibration low across bar lengths up to 24 feet.
If you design small, complex parts with internal cavities or through-bores, understanding this technology is essential. This guide walks you through everything from design rules and material choices to production strategies that save time and cost in hollow part production.
Understanding Swiss Machining Technology for Hollow Components
Swiss machining stands apart from other turning methods because of how it handles long, slender, and hollow workpieces. The secret lies in two key elements — the guide bushing system and the sliding headstock design. Together, they give you exceptional control over dimensional accuracy when producing thin-walled hollow parts.
How Guide Bushings Support Hollow Part Production
Guide bushings act as a bar stock support point located just 1–3mm from the cutting tool. This close proximity is critical. It minimizes deflection and vibration — two enemies of precision when machining hollow components with thin walls.
Guide bushing coaxiality is maintained within 0.0002 inches, ensuring perfect alignment between the bar and the cutting zone. You can choose between two main types depending on your part requirements:
- Rotary guide bushings — ideal for larger-diameter hollow workpieces, spinning in sync with the bar to reduce surface friction
- Fixed guide bushings — best suited for smaller components demanding extreme dimensional control
High-precision guide bushings are especially valuable in medical implant manufacturing, where tolerances leave zero room for error. The result is outstanding cutting tool stability throughout every operation.
The Role of Sliding Headstock in Achieving Tight Tolerances
The movable headstock is what truly defines Swiss-type machining. It advances and retracts bar stock through Z-axis motion, feeding material directly into the cutting zone. This dynamic positioning keeps the tool engaged close to the support point, delivering superior surface finishes on hollow parts.
Belt-driven spindles reach 8,000 rpm, while direct-drive models achieve 12,000 rpm for micro-manufacturing applications.
Key Differences Between Swiss and Traditional CNC Turning for Hollow Parts
Traditional CNC lathes clamp workpieces at both ends using a stationary headstock. This setup limits precision on slender hollow components prone to deflection. Swiss machines offer 5–6 axis capabilities compared to 2–4 axes on conventional lathes, enabling complex hollow geometries through simultaneous milling and turning in a single setup.
Design Guidelines for Hollow Swiss-Machined Components
When you’re designing hollow parts for Swiss machining, a few key rules can save you time, money, and headaches. Understanding design for manufacturability principles early in your project helps you avoid costly redesigns. Let’s break down the essentials — from wall thickness specifications to material choices and live tooling capabilities.
Design Considerations for Wall Thickness and Dimensional Accuracy
Your hollow part geometry directly affects machining stability. A good rule of thumb is to maintain a minimum wall thickness of 0.020 inches (0.5 mm). Keep depth-to-width ratios under 6:1 to prevent deflection or chatter during cutting.
Pay close attention to these wall thickness specifications and dimensional tolerances:
- On-axis holes — minimum 0.04-inch diameter with up to 6x depth capability
- Radial holes — minimum 0.08-inch diameter for reliable tool access
- Internal corner radii — at least 0.016 inches, matching the turning tool’s nose radius
Material Selection for Hollow Components
Material compatibility plays a big role in your results. Swiss machines handle nonferrous metals like brass, aluminum, nickel, bronze, and copper with ease. Engineered plastics — including PTFE and polycarbonate — run well too.
For demanding applications, exotic alloys such as nitinol, PEEK, and titanium benefit from coated tooling. These coatings extend tool life and maintain tight dimensional tolerances across long production runs.
Secondary Operations and Integrated Milling Capabilities
Modern Swiss machines equipped with live tooling support integrated milling operations right at the spindle. You can cross-drill, tap threads, cut wrench flats, keyways, and alignment slots — all without removing the part.
This single-setup manufacturing approach eliminates secondary handling. Gang-tool configurations let multiple operations run at once, cutting cycle times for parts like hydraulic pistons and pneumatic fittings. Companies such as Norman Noble and Boston Centerless have built strong reputations processing complex hollow geometries using these exact techniques.
Critical Design Parameters for Hollow Swiss-Machined Parts
When you design hollow parts for Swiss machining, a handful of critical parameters will determine whether your component succeeds or fails. Understanding these limits early saves you from costly redesigns and production delays.
Swiss machines achieve micron-level tolerance specifications thanks to rigid guide bushing setups that minimize tool deflection — even during aggressive cuts. For bore diameter accuracy, this setup is essential. The sliding headstock keeps the workpiece supported right at the cutting zone, giving you repeatable results across thousands of parts.
Here are the key dimensional limits you need to keep in mind for hollow shaft design:
- External grooves should not exceed 0.95-inch depth or go narrower than 0.047 inches.
- Deep features need a 6:1 width-to-depth ratio with at least 0.020-inch adjacent wall thickness.
- Internal sharp corners require relief radii — milling cutters achieve a 0.040-inch minimum radius, limited to 0.375-inch pocket depth.
- Threading ranges from #2-56 to ½-20 (imperial) and M1.6×0.35 to M12×1.75 (metric).
Geometric dimensioning plays a vital role in defining cannulated component specifications. You should call out concentricity control on your prints, especially for medical-grade cannulated screws or hollow pins where internal and external features must align within tight runout values.
Surface finish requirements deserve equal attention. Swiss machines can deliver finishes below 16 Ra microinches on external diameters. For marking, laser etching or electrochemical methods work best on hollow parts — recessed text adds cycle time and can compromise thin walls.
Soft materials like aluminum or plastic benefit from coil inserts and key inserts that boost thread durability in hollow sections. These small details make a big difference in long-term part performance across demanding applications we’ll explore in the next section.
Common Applications and Industries for Swiss-Machined Hollow Components
Swiss machining excels in industries where precision hollow parts are non-negotiable. From operating rooms to jet engines, this technology delivers the tight tolerances and surface finishes that critical applications demand. Let’s explore the key sectors that rely on Swiss-machined hollow components every day.
Medical Device Manufacturing: Cannulated Screws and Hollow Pins
The medical sector is one of the largest consumers of Swiss-machined hollow parts. Cannulated medical devices — such as bone screws with precise hollow cores — allow surgeons to pass guide wires during orthopedic procedures. Orthopedic hollow screws, including pedicle and polyaxial designs, require exact threading for secure bone fixation.
Neurovascular implants represent another growing segment. These devices often use nitinol — a flexible shape-memory alloy — to create stents with stringent dimensional control. Companies like Arch Medical Solutions produce these components under strict ISO 13485 certification, meeting the rigorous standards publications like BONEZONE and ORTHOWORLD regularly highlight.
Aerospace and Electronics: High-Precision Hollow Shafts and Connectors
Hollow aerospace components — from turbine shafts to structural fittings — demand exceptional strength-to-weight ratios. Swiss machines with SynchroFlash capabilities reduce production downtime while maintaining the consistency these parts require.
In the electronics sector, miniaturized electronics housings and connectors push the limits of what’s possible. Swiss machining delivers the speed and repeatability needed for high-volume runs of tiny hollow connectors used in sensors and circuit assemblies.
Hydraulic and Pneumatic Systems: Complex Hollow Fittings
Hydraulic connectors and pneumatic fittings often feature complex internal geometries — cross-drilled ports, integrated sealing surfaces, and multi-angle passages. Swiss machines with multi-axis milling capabilities produce these features in a single setup, which eliminates alignment errors across operations. The result is leak-free performance under high-pressure conditions.
- Cannulated bone screws for guide wire passage
- Nitinol neurovascular stents with sub-micron tolerances
- Lightweight hollow shafts for turbine assemblies
- Multi-port hydraulic and pneumatic bodies
Optimizing Production Efficiency and Cost Considerations
Getting the best results from Swiss machining hollow parts goes beyond design and material choices. You need to think about how your shop floor runs — from machine uptime to tooling strategies. A thorough cost-per-part analysis will reveal where you can save money and boost output across every production run.
Leveraging Lights-Out Machining for High-Volume Hollow Parts
Unattended operation is a game-changer for hollow part production. LNS systems paired with Meehanite cast iron machine bases deliver the stability needed for 24/7 lights-out machining. Real-time monitoring programs — like SwissAssist — track spindle loads, vibration, and tool wear. This level of production optimization keeps your machines running through nights and weekends without a single operator on the floor.
Bar Feed Systems: Hydrodynamic vs. Hydrostatic for Hollow Stock
Choosing the right automated bar feeding setup depends on your batch size and part complexity:
- Hydrodynamic feeders — use oil-filled guide channels that reduce noise and vibration, making them ideal for small-to-medium batch prototyping at lower operating costs
- Hydrostatic systems — handle 4- to 24-foot bars with servo motor advancement, supporting large-batch automated production and significant cycle time reduction
Reducing Secondary Operations Through Single-Setup Manufacturing
Single-setup manufacturing eliminates part handling risks by integrating turning, milling, and drilling in one cycle. You avoid tolerance stack-up errors that come with moving delicate hollow components between machines. This approach directly lowers your cost-per-part analysis numbers.
Tool Selection and Coatings for Extended Production Runs
Advanced coatings like AlTiN and TiSiN maintain sharp cutting edges when processing exotic materials such as PEEK or Inconel. Proper tool selection is essential for tool life extension — reducing insert changes and keeping your unattended operation running smoothly through demanding production schedules.
Conclusion
Swiss machining advantages stand out when producing hollow components that demand extreme accuracy. The guide bushing system keeps the workpiece stable just millimeters from the cutting tool — enabling tolerances as tight as 0.0002 inches. This level of precision component production is difficult to match with conventional CNC turning, especially for long, slender hollow parts used in medical, aerospace, and electronics applications.
Following hollow part manufacturing best practices starts at the design stage. You need to account for minimum wall thickness, proper corner radii, and threading specs before production begins. Smart design optimization strategies — like integrating milling operations into a single setup — cut handling time and reduce the risk of errors across complex hollow geometries.
On the production side, lights-out machining and automated bar feeding systems push efficiency to new levels. Paired with advanced tool coatings, these setups support extended, high-volume runs with consistent quality. As future manufacturing trends continue to favor tighter tolerances and faster lead times, Swiss machining remains a go-to solution for engineers and designers focused on reliable, cost-effective hollow part production.
