Orthopedic implants sit inside the human body, often for a lifetime. That means every component must meet exact specifications — no exceptions. Medical grade machining on Swiss-type platforms allows manufacturers to hold tolerances within ±0.005″ (0.127 mm) on parts as small as 0.5 mm in diameter. This level of control is essential for implantable components like bone anchors, resurfacing posts, and precision bushings.
In this guide, we walk you through the full scope of Swiss machining for orthopedic devices. You’ll learn about material selection, surface finish requirements, quality control protocols, and design strategies that reduce cost without sacrificing performance. Whether you’re an engineer specifying a new implant or a buyer preparing an RFQ, this resource will give you the technical foundation you need.

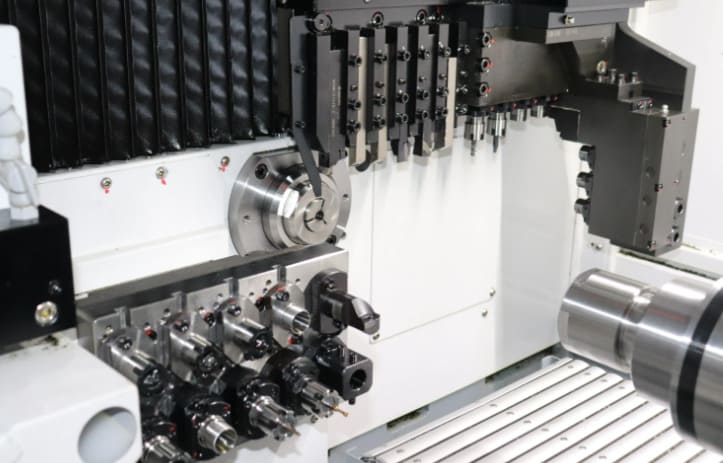

Understanding Swiss Machining Technology for Medical Device Manufacturing
When you need to produce tiny orthopedic pins, screws, or implants at scale, CNC Swiss lathe technology stands out as the go-to solution. This machining method was built from the ground up to handle small, slender parts — exactly the kind of components orthopedic surgeons rely on every day. Let’s break down how this technology works and why it matters for medical manufacturing.
The Evolution from Traditional Swiss Lathes to Modern CNC Machines
The original Swiss lathe dates back to the 19th century Swiss watchmaking industry. Those early machines were purely mechanical. Today, automated Swiss turning has transformed the process into a multi-axis, computer-controlled operation. Modern machines can perform turning, milling, drilling, and threading — all in a single setup. This eliminates the need to move parts between stations, which cuts cycle time and boosts accuracy.
Guide Bushing Technology and Deflection Elimination
The guide bushing system is what sets Swiss machining apart from conventional lathes. It supports the workpiece right next to the cutting tool, providing deflection control that standard machines simply can’t match. This matters because long, thin parts tend to flex under cutting pressure. With the bushing in place, you can machine parts with length-to-diameter ratios exceeding 20:1 while holding tolerances as tight as ±0.0001 inches.
Advantages for Small Diameter Medical Parts
Precision medical machining demands a unique combination of capabilities. Swiss machines deliver on every front:
- Superior surface finishes essential for biocompatible implants
- Ability to cut difficult alloys like titanium and cobalt chrome
- High-volume production runs with repeatable accuracy
- Complex geometries completed in one operation
These strengths make Swiss machining the natural choice for orthopedic components, where material selection and tight tolerances are critical to patient safety.

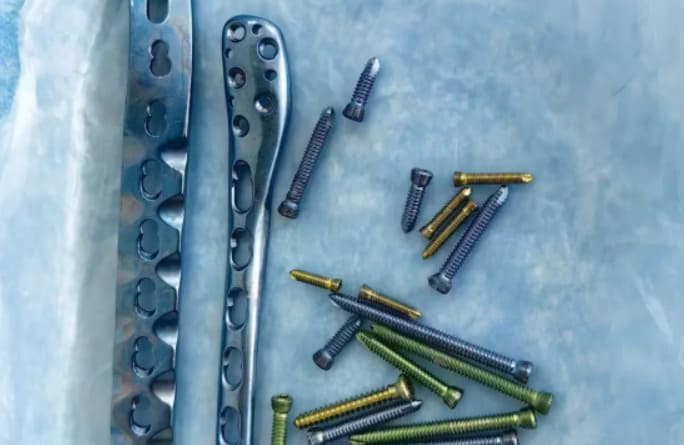

Swiss Machining for Orthopedic Components
Swiss CNC machining gives you the precision needed to produce a wide range of orthopedic parts. From tiny fasteners to complex implant geometries, this technology handles the tight tolerances that surgical applications demand. Let’s break down the key component categories and what makes each one unique.
Bone Screws and Anchors Manufacturing Requirements
Bone screw manufacturing calls for exact thread profiles, self-tapping features, and specialized head designs. Swiss machines excel at cutting these intricate geometries in a single setup — reducing handling and improving consistency. You need every screw to perform the same way during surgery, and that starts on the shop floor.
Orthopedic anchors used in soft tissue repair present their own challenges. These small parts often include cannulated designs, suture eyelets, and textured surfaces that promote tissue integration. Swiss machining delivers the sub-thousandth-inch accuracy these features require.
Guide Pins and Tapered Posts for Resurfacing Applications
Guide pin production demands strict diameter control along the full length of each pin. Depending on the surgical procedure, you may need sharp or blunt tips — each requiring different tooling setups. Surface finish is critical here, as rough surfaces can damage tissue during insertion.
Resurfacing posts incorporate variable tapers and precise surface textures that encourage osseointegration. Key requirements include:
- Dimensional accuracy for proper fit within prepared bone cavities
- Complex taper geometries machined in a single operation
- Surface roughness specs tailored to bone-contact zones
Custom Bushings for Medical Device Integration
Medical bushings play a vital role in catheters and rotating surgical instruments. These components spin at high RPM and must resist wear over extended use. Swiss machining achieves the tight concentricity between inner and outer diameters that these applications need — often holding tolerances within ±0.0002 inches. Biocompatible material selection rounds out the equation, ensuring safe and durable performance in clinical settings.
Critical Materials Selection for Orthopedic Implant Components
Choosing the right material is one of the most important decisions you’ll make when designing orthopedic implants. Each material brings a unique set of mechanical properties, biological responses, and machining characteristics to the table. Your selection directly impacts patient outcomes, device longevity, and manufacturing feasibility.
Titanium implants remain the gold standard for orthopedic screws, pins, and bone anchors. Grade 5 titanium (Ti-6Al-4V) offers an outstanding strength-to-weight ratio and excellent resistance to bodily fluids. Commercially pure titanium grades promote osseointegration — the process by which bone bonds directly to the implant surface.
Medical grade stainless steel — especially 316L and 304 — provides a cost-effective option for temporary fixation devices and surgical instruments. These alloys are easy to machine on Swiss-type lathes and deliver reliable performance for non-permanent applications.
Several other biocompatible materials play essential roles in modern orthopedic design:
- Cobalt chrome (CoCrMo) — delivers exceptional wear resistance, making it ideal for articulating joint surfaces and high-load bearing components.
- PEEK orthopedics applications — offer radiolucency for clear post-operative imaging, with mechanical properties close to cortical bone stiffness.
- Nitinol devices — use shape-memory and superelastic properties for specialized applications like self-expanding stents and bone staples.
- MP35N® — provides enhanced fatigue strength and corrosion resistance beyond traditional stainless steel options.
Reputable manufacturers maintain networks of approved suppliers to ensure full material traceability and certification compliance. This documentation chain is critical when you move from Swiss machining into the precision tolerance and quality control requirements covered in the next section.
Precision Tolerances and Quality Control in Orthopedic Part Production
When you’re producing orthopedic pins, screws, and implants, tight tolerances alone aren’t enough. You need a robust quality management system that catches defects before parts ever reach a surgical suite. From raw material intake to final medical device inspection, every step demands structured oversight and documented proof of compliance.
ISO 13485:2016 Certification Requirements
ISO 13485 certification is the gold standard for medical device manufacturers. This framework covers design, development, production, and delivery — all under one traceable system. Certified facilities maintain strict documentation control, risk management protocols, and validation processes tailored to orthopedic component production.
ANSI/ASQ Z 1.4 and Military Standards Compliance
Inspecting every single part in a production run is neither practical nor cost-effective. ANSI/ASQ Z 1.4 sampling standards give you statistically valid methods to verify lot acceptability. Acceptance quality levels — or AQLs — are assigned based on characteristic severity:
- Critical dimensions affecting patient safety receive the tightest AQLs
- Major characteristics tied to device function use moderate AQLs
- Minor cosmetic features allow slightly relaxed AQLs
Dimensional Accuracy and GD&T Specifications
GD&T tolerancing defines how orthopedic parts must perform in three-dimensional space. Typical callouts for Swiss-machined implant components include cylindricity for uniform screw shaft diameters, perpendicularity between heads and shanks, runout specs for rotating elements, and flatness requirements on bearing surfaces. These geometric controls go well beyond simple plus-minus dimensions.
Sampling Plans and Statistical Quality Control Methods
Statistical process control tools — such as Cpk capability studies, control charts, and measurement system analysis — help you verify that your process stays within spec over time. All gauges and instruments used during medical device inspection must carry NIST-traceable calibration records. This level of rigor ensures your surface finish and material properties meet the standards we’ll cover next.

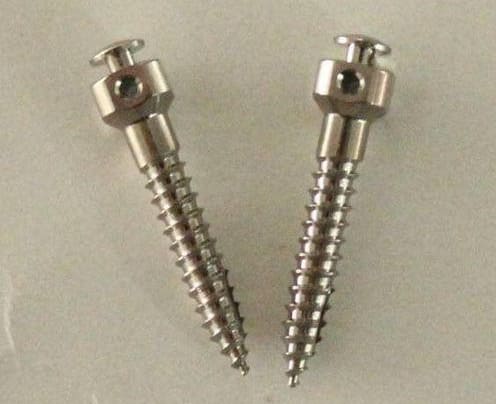

Surface Finish Requirements for Biocompatible Orthopedic Devices
The surface of an orthopedic implant plays a direct role in how the body responds to it. A rough or contaminated surface can promote bacterial adhesion and trigger adverse reactions. That’s why achieving biocompatible surfaces demands strict control over every finishing step — from initial machining marks to the final polished result.
Polishing and Deburring Techniques for Implantable Components
After Swiss machining, implantable parts still carry burrs and tool marks that need removal. Common deburring methods for mass production include:
- Vibratory finishing — ideal for batch processing of small screws and pins
- Centrifugal barrel finishing — delivers faster cycle times with aggressive material removal
- Ultrasonic deburring — reaches internal features and cross-holes that other methods miss
Once burrs are gone, electropolishing removes a thin, uniform layer of material. This process smooths micro-peaks on the surface and can bring surface finish Ra values below 0.2 micrometers. Electropolishing is especially useful for complex geometries found in 3D-printed or multi-featured implant designs.
Passivation Processes for Corrosion Resistance
Medical device passivation follows ASTM A967 standards to strip free iron from stainless steel surfaces. The process creates a protective chromium-oxide layer that resists corrosion inside the body. You should specify passivation as a mandatory step for any implant exposed to bodily fluids or tissue contact.
Surface Roughness Specifications and Measurement Standards
Orthopedic implant specs rely on several roughness parameters — Ra (arithmetic average), Rz (average maximum height), and Rt (total height). Typical requirements range from Ra 0.1 to 0.8 micrometers depending on the application. Load-bearing joint surfaces need the smoothest finish, while bone-contacting regions may use laser-textured topographies to encourage osseointegration. Eddy current testing offers a nondestructive way to verify surface integrity before implants reach the patient.
Advanced Manufacturing Techniques Beyond Traditional Swiss Machining
Swiss machining is a powerful tool for orthopedic components. Yet some part features demand techniques that go beyond traditional turning. When you need intricate geometries, ultra-tight tolerances, or patient-specific designs, a broader set of manufacturing methods becomes essential.
Multi-axis CNC machining lets you produce complex contours and undercuts on implant surfaces that a Swiss lathe simply cannot reach. With five or more axes of simultaneous motion, you can machine freeform shapes for knee trays, spinal cages, and trauma plates in a single setup — reducing cycle time and improving accuracy.
EDM machining plays a critical role when sharp internal corners, narrow slots, or intricate profiles are required. Wire EDM can cut hardened titanium and cobalt-chrome alloys without inducing thermal stress, making it ideal for specialty surgical instruments and complex implant interfaces.
Precision grinding techniques round out the tolerance picture. Consider these common applications:
- Centerless grinding for cylindrical tolerances within ±0.00005 inches
- Double disk grinding for parallelism and flatness on bearing surfaces
- Internal grinding and honing for cannulated screw bores
- Electrochemical grinding for burr-free, heat-free surface finishes at ±0.005 inches
Laser cutting medical devices enables permanent UDI markings and traceability codes on implants without compromising biocompatible surfaces. This non-contact process preserves the integrity of passivated finishes discussed in the previous section on surface requirements.
Additive manufacturing integration is reshaping how you approach patient-specific implants. By 3D printing porous lattice structures — designed to promote osseointegration — and finishing critical mating surfaces on a Swiss or multi-axis mill, you get the best of both worlds. This hybrid workflow delivers complex internal architectures with the dimensional precision your design demands.

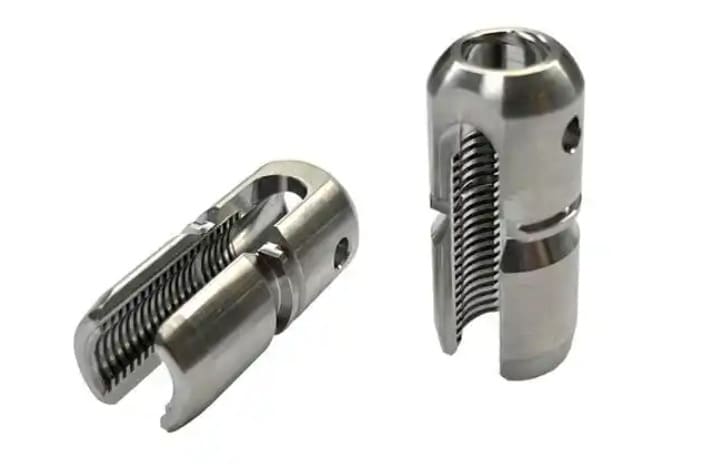

Optimizing Design for Manufacturability in Orthopedic Component Production
Smart engineering decisions made early in the design phase save you significant time and money downstream. Applying design for manufacturability principles to orthopedic pins, screws, and small implants helps you avoid costly revisions once production begins. Let’s break down the key strategies that drive efficient medical device sourcing and keep your projects on budget.
RFQ Development and Specification Guidelines
Effective RFQ optimization starts with a complete, detailed request package. Your RFQ should include:
- Fully dimensioned drawings with GD&T callouts
- Specific material grade requirements and certifications
- Surface finish specs using standardized Ra values
- Required quality documentation and test reports
- Anticipated annual and per-order quantities
Incomplete requests lead to inflated quotes and production delays. Give your supplier everything they need upfront.
Cost Considerations for Tight Tolerance Requirements
A thorough tolerance cost analysis reveals that specs tighter than ±0.001″ can double or triple your per-part expense. Identify which dimensions are truly critical for function and biocompatibility. Allow wider tolerances on non-critical features — this single step can cut machining costs by 20–40%.
Material Selection Impact on Manufacturing Processes
Your material choice directly shapes cycle times and tooling wear. Free-machining stainless steel grades run faster but may sacrifice mechanical strength. Titanium alloys demand specialized tooling and coolant strategies due to poor thermal conductivity. Match your material to the implant’s functional requirements — not just its machinability.
Volume Production Strategies for Medical Device Components
Production volume planning balances setup costs against inventory carrying expenses. For high-volume standard parts, lights-out Swiss machining maximizes throughput. Vendor-managed inventory programs work well for components with steady demand, reducing lead times and stockout risks across your supply chain.
Conclusion
Swiss machining expertise remains at the heart of producing orthopedic pins, screws, and small implants. Guide bushing technology, multi-axis control, and advanced CNC systems work together to achieve the tight tolerances and superior surface finishes that implantable devices demand. This level of precision orthopedic manufacturing excellence is non-negotiable when patient safety is on the line.
