Creating threads on parts smaller than a grain of rice demands a level of control that few manufacturing methods can deliver. Swiss CNC machining — a technology rooted in the 1870s watchmaking workshops of Switzerland — has become the go-to process for precision micro threading across medical, aerospace, and electronics sectors. Today, machines built by leaders like Tornos and Star Micronics can cut threads on components as tiny as 0.5mm in diameter while holding tolerances of ±0.001mm.
This guide walks you through the design principles, material choices, tooling strategies, and quality control methods that separate successful micro threading projects from costly failures. Whether you’re specifying bone screws for orthopedic implants or miniature fasteners for satellite assemblies, the tips ahead will help you avoid the most common pitfalls in threaded micro component production.
Understanding Swiss Machining Technology for Precision Threading
Swiss lathe technology traces its roots back to the 1870s — a time when skilled craftsmen needed reliable ways to produce tiny watch components. Today, that same core principle drives modern CNC machines capable of coordinating up to 13 axes at once. Before we explore the specifics, let’s break down what makes this approach so effective for micro threading.
Evolution from Swiss Watchmaking to Modern Micro Manufacturing
The watchmaking heritage of Switzerland gave birth to a machining method built for extreme accuracy. Early Swiss lathes were manual tools designed to shape minuscule screws and pins. Modern versions now use full CNC automation, enabling precision thread cutting at speeds and tolerances those original craftsmen could never have imagined.
How Guide Bushing Support Enables Sub-Micron Thread Accuracy
The guide bushing is the secret weapon of Swiss machining. It holds the workpiece just millimeters from the cutting tool, which eliminates deflection and vibration. Advanced systems now use piezo actuators and air bearing stages to reach nanometer-level resolution — critical when you’re cutting threads on parts smaller than a grain of rice.
Multi-Tool Systems for Simultaneous Threading Operations
One of the biggest advantages you gain is the ability to run simultaneous machining operations. Multiple tools can perform turning, milling, and drilling at the same time. This approach delivers key benefits:
- Cycle time reductions of 40–60% compared to single-operation setups
- Complex thread profiles completed in a single setup
- Reduced part handling, which minimizes contamination risk
Sliding Headstock Advantages in Thread Formation
The sliding headstock movement feeds bar stock through the guide bushing in small, controlled increments. This means only a short section of material is ever exposed during cutting. You get consistent support throughout the entire threading process — a must for maintaining tight tolerances on slender, delicate parts.
Swiss Machining for Threaded Micro Components: Design Tips and Pitfalls
Getting micro thread design right demands attention to a handful of critical factors. When you’re working with parts smaller than a pencil tip, even minor oversights can ruin an entire production run. Let’s walk through the key parameters, common mistakes, and strategies that separate successful projects from costly failures.
Critical Design Parameters for Micro Thread Success
Start by keeping your minimum thread depth at roughly 0.6 times the nominal diameter. Avoid sharp transitions near the thread root — these create stress concentrations that weaken tiny parts. Thermal expansion during cutting can shift dimensions, so maintaining shop temperature within ±0.5°C is essential for sub-micron accuracy.
Common Threading Errors in Components Under 0.5mm Diameter
At diameters below 0.5mm, threading errors become far more frequent. The most common issues include:
- Poor chip evacuation that clogs the cutting zone
- Burr formation along thread crests
- Tool deflection caused by excessive feed rates
- Inconsistent pitch from spindle speed variations
High-speed spindles paired with precise, low feed rates help you overcome these challenges.
Material Selection Impact on Thread Quality and Tool Life
Your material selection criteria play a direct role in surface finish and tool longevity. Aluminum demands extremely sharp tools to prevent smearing across thread flanks. Stainless steel work-hardens fast, which accelerates wear on cutting edges. Grain structure at this scale matters — finer grains produce cleaner threads.
Avoiding Deflection and Vibration in Slender Threaded Parts
Component deflection is a serious risk when length-to-diameter ratios exceed 10:1. Position the guide bushing within 1–2mm of the cutting zone to provide rigid support. Effective vibration control at this scale requires balancing spindle speed, depth of cut, and workpiece stiffness as a unified system — not as isolated variables.
Essential Thread Specifications and Tolerance Requirements
Getting micro threads right means understanding the exact specifications your project demands. Modern Swiss machines can hold tolerances within ±0.001mm on pitch diameter control — a level of precision that was nearly impossible just a decade ago. Surface finish values between Ra 0.2 and 0.4 micrometers are now standard for most applications.
Thread tolerance standards have evolved rapidly. The International Organization for Standardization (ISO) continues to develop new specifications that govern AI-integrated quality systems for automated thread validation. At the same time, the National Institute of Standards and Technology (NIST) provides calibration methods that enable sub-micron measurements for next-generation threaded components.
When you define micro thread specifications, you need to account for several critical parameters:
- Pitch diameter held to single-digit micron tolerances
- Thread profile requirements verified through 100% digital documentation
- Real-time process capability indices (Cpk) maintained above 2.0
- Surface finish consistency across full production runs
- Flank angle accuracy within ±0.5 degrees for critical applications
Dimensional accuracy at this scale leaves no room for guesswork. Some medical and aerospace applications now push into nanometer-level precision — a range where even thermal expansion from shop-floor temperature changes can affect results. You should plan your thread profile requirements around worst-case environmental conditions, not ideal ones.
Pitch diameter control remains the single most important factor in thread quality. It directly affects fit, function, and long-term reliability. By pairing tight thread tolerance standards with robust in-process monitoring, you set the foundation for consistent, high-quality output — a topic we explore deeper in the material selection section that follows.
Material Considerations for Micro Thread Manufacturing
Your choice of material shapes every aspect of micro thread quality — from surface finish to dimensional accuracy. Each metal and polymer reacts differently under the cutting forces of Swiss machining. Understanding material machinability helps you predict tool wear, set correct feed rates, and produce threads that meet strict tolerances.
Optimal Materials for Thread Durability and Precision
Stainless steel machining remains a top choice for threaded micro components. Grades like 303 and 316L deliver excellent corrosion resistance and strength. These steels demand sharp tooling and proper coolant flow to prevent work hardening at the thread root.
Titanium threading suits aerospace and medical parts where weight savings matter. Ti-6Al-4V offers a remarkable strength-to-weight ratio. Yet its poor thermal conductivity means heat builds up fast at the cutting edge — requiring careful speed and feed adjustments.
Aluminum alloys (6061, 7075) and brass enable faster cycle times for electronic and aerospace connectors. PEEK and Delrin plastics serve applications needing chemical resistance and electrical insulation.
Machinability Factors Affecting Thread Formation
Material machinability depends on hardness, ductility, and chip-forming behavior. You should evaluate these factors before selecting thread profiles:
- Chip control — gummy materials like titanium produce long, stringy chips that wrap around micro tooling
- Work hardening tendency — austenitic stainless steels harden during cutting, accelerating tool wear
- Thermal conductivity — low conductivity concentrates heat at the thread crest and flank
Biocompatible Materials for Medical Threaded Components
Biocompatible materials such as 316L stainless steel, commercially pure titanium, and PEEK are essential for surgical screws and implantable devices. These materials must comply with ASTM F138 and ISO 5832 standards to ensure safe tissue contact.
Heat Treatment Effects on Thread Integrity
Heat treatment specifications directly influence thread dimensional stability. Titanium aluminides and biodegradable magnesium alloys require cutting temperatures below critical thresholds to preserve grain structure. Always machine threads before age-hardening treatments when possible — this protects both geometry and surface integrity.
Tool Selection and Geometry for Threading Operations
Choosing the right tool for micro threading can make or break your part quality. The threading tool geometry you select directly affects surface finish, dimensional accuracy, and production speed. Let’s explore the key decisions you need to make before cutting your first thread.
Thread Mill versus Single Point Threading Tools
Thread milling technology creates a complete thread profile in a single helical pass. This approach cuts cycle times by 30–50% compared to single-point tools during batch production. Thread mills excel when you need to switch between different thread sizes — one tool can handle multiple pitches. Single-point tools still shine for ultra-tight tolerances on very small diameters where interpolation accuracy becomes a limiting factor.
Carbide and Diamond-Coated Tool Applications
Modern carbide cutting tools with nano-structured substrates keep sharp edges at temperatures above 1,000°C. This capability enables dry machining of superalloys — eliminating coolant contamination risks in medical device production. For materials above 70 HRC, diamond coatings extend tool life up to 10 times longer than uncoated options. Self-healing coating structures can even repair micro-fractures during the cut, maintaining consistent threading tool geometry throughout a production run.
Tool Wear Monitoring in High-Volume Production
Reliable tool wear analysis is essential when producing thousands of threaded micro components. Current monitoring systems use:
- Acoustic emission sensors that detect hardness variations in real time
- Vibration analysis algorithms predicting failures weeks before they occur
- Smart material recognition systems that auto-adjust cutting parameters
These technologies prevent premature failure of your carbide cutting tools and diamond coatings by responding to changing conditions at the cutting edge. Pairing proper tool wear analysis with the right programming strategies — covered in the next section — gives you a complete framework for consistent, high-quality micro threads.
Programming Strategies for Complex Thread Profiles
Getting the right thread on a micro component starts long before the tool touches the workpiece. Modern CNC programming techniques demand nanometer-level accuracy — especially when you’re dealing with complex profiles on parts smaller than a pencil tip. Your programming approach can make or break the entire job.
Today’s CAM software solutions — such as Mastercam and Esprit — let you simulate tool behavior with extreme precision. These platforms predict thermal expansion, material stress, and deflection before a single chip is cut. Machine learning algorithms built into these systems analyze thousands of past production variables. They optimize cutting parameters far beyond what manual adjustments can achieve, reducing setup times by up to 70%.
Effective toolpath strategies are essential for maintaining dimensional accuracy across varying thread geometries. Consider these key programming priorities:
- Use synchronized spindle-rotation-to-Z-axis movement for accurate multi-start threading with precise angular indexing.
- Program continuous feed rate adjustments for variable pitch threads to maintain constant chip load.
- Run full simulation cycles to catch collisions and verify thread profile optimization before production.
- Leverage AI-assisted analysis of historical data to improve first-part quality and reduce scrap rates.
Multi-start threading presents a unique challenge. Each start must be indexed at exact angular intervals while the spindle and linear axes stay in perfect sync. Even a fraction-of-a-degree error compounds across the thread length, resulting in a rejected part.
Thread profile optimization through smart programming sets the stage for the quality control methods we’ll explore next — because what you can’t program correctly, you can’t inspect into compliance.

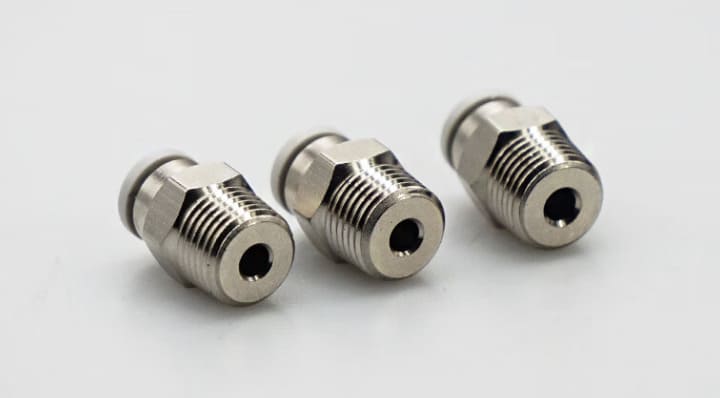

Quality Control Methods for Threaded Micro Components
Producing a perfect micro thread means nothing if you can’t verify it. Reliable thread inspection methods are essential for catching defects early — before they become costly scrap or field failures. Modern Swiss machining facilities use a layered approach to quality, combining real-time monitoring with post-process verification.
In-Process Thread Measurement Technologies
Laser micrometers built directly into Swiss machines allow in-process measurement of thread diameters with sub-micron accuracy. These sensors capture data during machining — no need to remove the part. Measurement readings feed straight to the machine controller, which compensates automatically for tool wear and thermal drift. This closed-loop system keeps your threads within spec across entire production runs.
Statistical Process Control for Thread Consistency
Statistical process control has evolved far beyond random sampling. Automated gauging systems now inspect 100% of threaded parts, building comprehensive quality databases in real time. You can track trends like gradual tool degradation or spindle temperature shifts long before they push parts out of tolerance. Key metrics to monitor include:
- Pitch diameter variation over time
- Thread depth consistency across batches
- Cpk values for critical thread dimensions
- Tool wear progression curves
Non-Contact Inspection Systems for Delicate Threads
Threads on parts under 0.5mm diameter are too fragile for touch probes. Non-contact metrology systems — using laser or white light sensors — scan thread features without risk of damage. These systems detect surface roughness, burrs, and form errors during cutting cycles.
Thread Profile Analysis Using White Light Interferometry
White light interferometry delivers nanoscale resolution for thread profile analysis. It maps the full 3D surface geometry of a thread flank, revealing imperfections invisible to optical comparators. For the most demanding applications — such as medical bone screws — engineers pair interferometry data with scanning electron microscopy for complete verification.
Advanced Threading Techniques in Swiss CNC Machines
Swiss CNC machines offer a range of advanced threading methods that push the boundaries of what’s possible in micro manufacturing. These techniques go far beyond standard single-point threading — they enable complex geometries, faster cycle times, and specialized profiles for demanding industries like medical devices and aerospace.
High-Speed Thread Whirling for Bone Screws
Thread whirling technology uses a ring-shaped cutter head spinning at speeds up to 120,000 RPM around the workpiece. This approach is the gold standard in bone screw manufacturing. It produces superior surface finishes that promote osseointegration — the process where bone tissue bonds directly to the implant.
Key benefits of thread whirling include:
- Reduced cutting forces on slender workpieces
- Excellent chip evacuation during deep thread cuts
- Single-pass thread completion for faster production
- Burr-free surfaces critical for implantable devices
Multi-Start Thread Production Methods
Multi-start thread production relies on synchronized multi-axis control to create two to four thread starts in a single operation. This technique reduces assembly time in medical devices and precision instruments. You need tight spindle synchronization and precise tool positioning to maintain uniform lead accuracy across all starts.
Variable Pitch Thread Manufacturing Strategies
Creating variable pitch threads for self-locking fasteners demands continuous feed rate adjustment throughout the cut. Your CNC program must adapt in real time to maintain optimal cutting conditions as the thread geometry changes along the part length.
These advanced threading methods — paired with hybrid approaches like micro-EDM integration for cooling channels in aerospace fuel components — eliminate secondary operations and reduce total production costs. Mastering these techniques gives you a clear competitive edge in high-precision threaded micro component manufacturing.
Common Manufacturing Challenges and Solutions
When working with threaded micro components, you’ll face a unique set of threading challenges that can derail even well-planned production runs. Understanding these issues — and knowing how to address them — is the key to consistent, high-quality output.
Chip evacuation tops the list of concerns for holes under 0.5mm in diameter. Peck drilling cycles paired with high-pressure coolant delivery are proven manufacturing solutions that prevent chip welding and tool breakage. You should aim for coolant pressures above 1,000 PSI to flush debris from these tiny features.
Work hardening in stainless steel and titanium creates another serious obstacle. Effective defect prevention starts with maintaining consistent cutting speeds and replacing sharp tools at set intervals — not when they fail. A dull tool generates excess heat, which accelerates hardening and ruins thread quality.
Here are the most critical areas where process optimization makes a measurable difference:
- Thermal distortion control — use temperature-regulated coolant held within ±0.5°C throughout each machining cycle to protect long, slender parts
- Burr management at thread exits — deploy specialized micro-deburring tools or ultrasonic cleaning for components under 1mm
- Deflection reduction — add intermediate steady rests for parts exceeding a 10:1 length-to-diameter ratio, or reduce cutting forces through optimized tool geometry
Successful production troubleshooting demands a systematic approach. Track each variable — tool wear, coolant temperature, spindle speed — and isolate changes one at a time. This disciplined method helps you pinpoint root causes instead of chasing symptoms across multiple variables.
Mastering these manufacturing solutions prepares you to handle the demanding specifications found in medical, aerospace, and electronics applications covered in the next section.
Industry Applications and Case Studies
Swiss-machined threaded micro components serve a wide range of critical sectors. Each sector brings unique demands tied to strict industry standards. Let’s explore how four key fields rely on precision threading to push the boundaries of modern engineering.
Medical Device Threading Requirements and Standards
Medical device threads must meet rigorous FDA regulations and ISO 13485 certification. Bone screws, spinal implants, and catheter fittings demand biocompatible surface treatments — often applied through atmospheric plasma systems during machining. These components require flawless thread profiles to ensure safe, reliable performance inside the human body.
Aerospace Fastener Production at Micro Scale
Aerospace fasteners used in fuel injector nozzles and sensor housings call for tolerances within ±0.0005 inches. At this level, even a slight deviation can compromise aircraft system reliability. Manufacturers certified under AS9100 — such as Shamrock Precision — produce these parts with repeatable accuracy across high-volume runs.
Electronic Connector Threading Specifications
The push toward device miniaturization has driven demand for electronic connectors with threads under 0.5mm in diameter. Smartphones, wearable devices, and medical sensors all use these tiny threaded pins. Tight pitch control and burr-free finishes are essential to ensure proper electrical contact and signal integrity.
Optical Industry Precision Thread Applications
Optical components like threaded lens mounts and fine-adjustment mechanisms require surface roughness below 0.1 micrometers. These threads enable precise alignment in microscopes, laser systems, and camera assemblies. Key requirements include:
- Ultra-smooth thread flanks to prevent light scattering
- Concentric thread profiles for accurate rotational adjustment
- Contamination-free machining to protect sensitive optical surfaces
Across all four sectors, meeting the right industry standards is non-negotiable. Your thread design choices — from material to tolerance — must align with the specific regulatory and performance demands of each application.
Conclusion
Swiss machining future developments are reshaping how we produce threaded micro components across medical, aerospace, and electronics industries. AI-driven systems now analyze dozens of production variables at once — adjusting feed rates, spindle speeds, and tool paths in real time. This level of technology integration means tighter tolerances and fewer rejected parts on every production run.
Quality improvement efforts are moving toward 100% in-process inspection using non-contact measurement systems and advanced statistical controls. Emerging technologies such as quantum sensors promise atomic-scale measurement capabilities, while hybrid manufacturing — blending additive and subtractive methods — will open new design possibilities for complex thread geometries. As you plan your next threaded micro component project, staying current with these tools and techniques gives you a clear competitive edge in precision manufacturing.
