Both traditional CNC machining and Swiss machining perform an important part in precision manufacturing. However each method has its own unique advantages. By understanding them you can choose the best options for your specific needs. In this blog post, we will cover their uses, advantages and limitations.

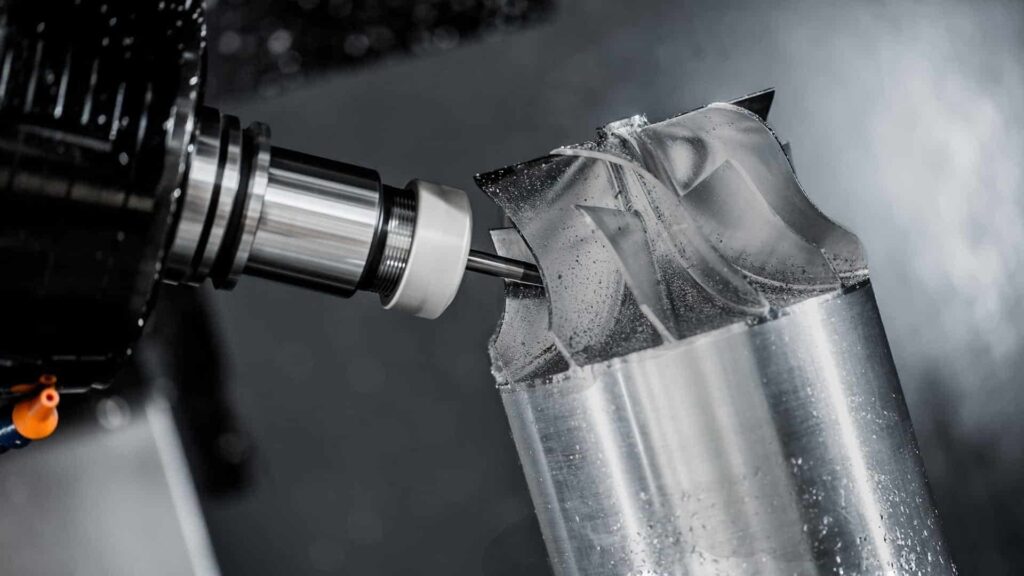

What is Traditional CNC Machining?

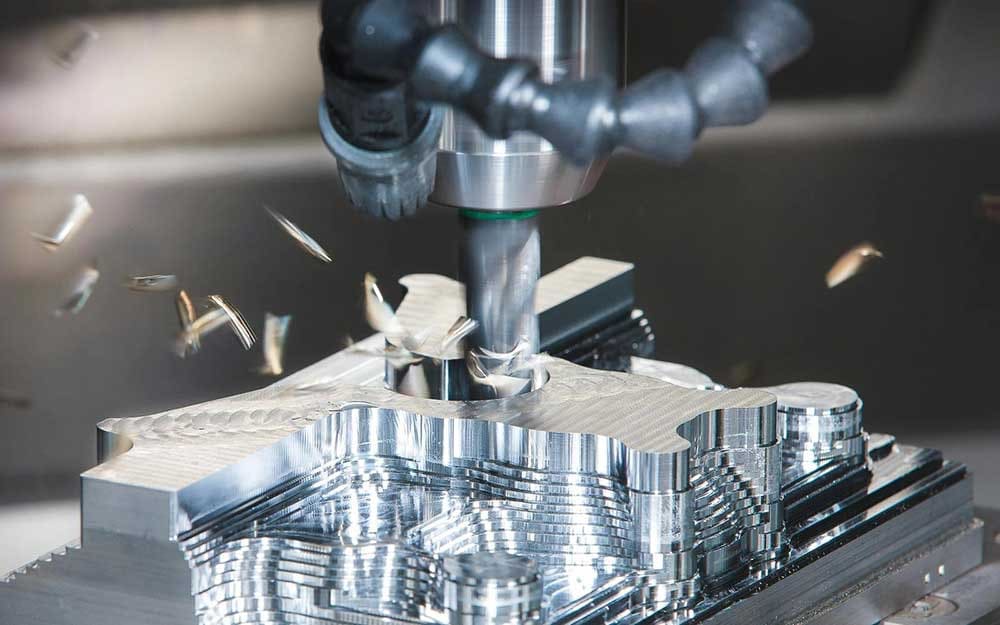

In simple terms, traditional CNC machining is a manufacturing process that uses computer controlled tools such as mills, grinders and lathes to remove material from a workpiece. These tools hold the workpiece stationary to create precise parts. Industries generally use this method to make metal parts and detailed plastic components.
See Also: What is CNC Precision Machining
What is Swiss Machining?
Swiss Machining is very different from a traditional lathe due to its sliding headstock design. In this method workpiece moves forward through a guide bushing which provides support to material near the cutting area. This arrangement greatly minimizes vibration and deflection. As a result swiss machining creates highly accurate, complex and small diameter parts.
Also See: What is Swiss Machining & Why Does it Matter?
Key Differences between Swiss Machining and Traditional CNC Machining
1. Headstock Movement
Swiss Machining
In Swiss machining a sliding headstock is used to move the bar stock axially through a stationary guide bushing. Due to this design, the cutting operation always occurs close to the support point. Thus each part of the workpiece can be machined with greater accuracy.
Traditional CNC Machining
Traditional CNC lathes, however, use a fixed headstock. In this method the workpiece remains stationary on its axis and the cutting tool rotates around it. For small and large diameter parts this machining method works well. However it provides less effective support when machining long or thin parts.
2. Workpiece Support and Stability
Swiss Machining
In Swiss machining, the guide bushing which is installed close to the tool provides continuous support to the workpiece. This sport greatly minimizes deflection & vibration. Therefore this machining method is best for machining long, thin or small workpieces.
Traditional CNC Machining
In contrast traditional CNC machines use collets or chucks to hold the workpiece from one or both ends. They do not have guide bushings to support the center section. That is why this method cannot properly handle deflection in long or thin workpieces. This limitation often leads to increased vibration and minimized machining accuracy.
3. Machining Axes and Complexity
Swiss Machining
Modern Swiss machines generally contain 7 to 13 machine axes. These machines can simultaneously perform multiple operations such as milling, turning and drilling in one cycle. Due to their multi axis capability, they produce detailed and complicated parts efficiently. As a result the need for secondary operations is greatly reduced.
Traditional CNC Machining
In comparison traditional CNC lathes generally have only three to five axes. The fewer axes limit the number of simultaneous operations. Thus additional machines and setup are often needed to produce complex geometries. This increases production times and decreases efficiency.
4. Ideal Part Size and Geometry
Swiss Machining
Swiss machining works best if your parts are complicated, small or less than 32mm in diameter. It is particularly effective for parts having length to diameter ratios greater than 3:1. Many industries such as electronics, medical and aerospace commonly use Swiss machining for producing small, thin and detailed parts.
Traditional CNC Machining
In contrast traditional CNC machining can handle a wider range of part sizes. These machines can process both large and small diameter components. Despite this versatility traditional CNC machines perform best with small and strong parts. For thin and long components, they are less stable and precise.

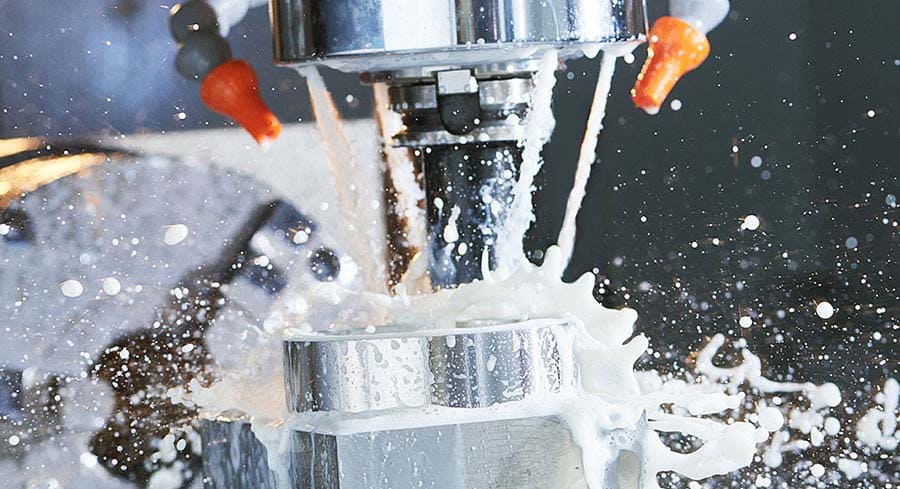

5. Coolant Usage
Swiss Machining
In Swiss type machines, oil based coolants are generally used. They provide effective heat dissipation and excellent lubrication at the cutting edge. These characteristics help prevent rust and reduce cutting tool wear. However oil based coolants tend to heat up a bit faster than water based coolants. Heat accumulation can be a problem if not properly managed.
Traditional CNC Machining
In comparison water based coolants are commonly used in traditional CNC machines. Due to their high heat capacity, they disperse heat efficiently. However these coolants provide less rust production & lubrication than oil based coolants.
6. Insert and Tooling Specifications
Swiss Machining
Swiss machines use special tooling like guide bushing and collet. In this method inserts with positive geometries are needed to avoid chatter as well as to reduce cutting resistance. Additionally Swiss machining inserts generally possess tighter ISO tolerance classes such as G or E. Due to these tighter tolerances cutting edge precision within microns are attained.
Traditional CNC Machining
On the other hand, in traditional CNC machining standard tooling and M class inserts are generally used. These inserts focus on sturdiness and power instead of precise work. Their strong edges have the ability to handle large and hard materials efficiently. However during the machining of complicated or small components, they generate high vibration and cutting forces.
7. Cycle Time and Production Efficiency
Swiss Machining
Swiss machining is well suited for producing large quantities of small, complex parts. It combines milling, turning, drilling, and threading operations into one setup. Due to their multi axis functionalities and integrated bar feeders, cycle times are greatly reduced. Consequently this improves your overall production efficiency.
Traditional CNC Machining
In comparison traditional CNC machines offer flexibility for a variety of parts, but their cycle times are typically long. If you want to machine complicated parts or those requiring multiple processes, separate setups or machine transfers are usually needed. As a result production times increase.
8. Automation and Material Handling
Swiss Machining
one of the main features of Swiss machining is automation. Automatic bar feeders continuously supply material which minimize manual intervention. Due to this automation, efficiency is greatly increased; particularly when producing large quantities of complex, small parts.
Traditional CNC Machining
However in traditional CNC machines manual loading or semi-automated pallet systems are usually used. Although automation solutions exist but they are generally less integrated. Furthermore it is very challenging to effectively implement continuous bar feeding on traditional CNC machines.
9. Tolerances and Surface Finish
Swiss Machining
Swiss machining provides extreme precision and are capable of maintaining tolerances of ±0.0002 inches. Vibrations are greatly reduced due to guide bushings. As a result you get parts with extremely smooth surfaces.
Traditional CNC Machining
Traditional CNC lathes can get surface finishes within ±0.001 inches. However they often face challenges with tighter tolerances. During the machining of thin or long components, this issue becomes more noticeable because deflection and vibration may occur.
10. Cost and Setup Time
Swiss Machining
The initial investment cost of Swiss machines is 20 to 30% higher than that of conventional CNC machines. Additionally setup procedures are more time consuming and complex due to high precision requirements. Although these constraints exist, reduced number of secondary processes and the faster cycle times often offset the higher initial cost.
Traditional CNC Machining
In comparison the initial purchase and tooling costs of traditional CNC machines are usually much lower. Setup is also faster due to their simpler setup, particularly for standard parts. Therefore traditional CNC machining is more economical for low to medium production volumes and for less complex parts.
11. Applications
Swiss Machining
If your parts need fine detailed features and precise tolerances, you should consider Swiss machining. Bone screws, medical implants and watch parts are among their common applications. Industries with consistent quality and precision needs highly depend on this method.
Traditional CNC Machining
Traditional CNC machines are useful for a wide range of part sizes and complexity levels. For lower volume runs, larger components and applications with less strict tolerance needs, this approach proves very effective. Their common applications include aerospace brackets, automotive housings and industrial equipment components.
Pros and Cons of Swiss Machining vs Traditional CNC Machining
Swiss Machining
Pros
- Swiss machining guarantees tolerances of ±0.002 inches which make it useful for electronics, aerospace and medical applications.
- For high volume production it offers consistent repeatability and quality due to its automated, multi axis operation.
- It is capable of efficiently handling small diameter, complex parts with superior surface finishes. This often eliminates the need for secondary processes.
Cons
- Swiss machines only work with smaller bar stock sizes usually up to 1.5 inches (38mm) diameter. Therefore you cannot use them for larger components.
- They need special equipment and complex machine arrangements which results in high setup and tooling expenses.
- Although oil based coolants provide excellent lubrication in Swiss machining but they are unable to dissipate heat properly during long machining cycles. This negatively impacts tool life and part quality.
Traditional CNC Machining
Pros
- Traditional CNC machines can work with many materials and component sizes. They are particularly effective for larger parts which Swiss machines cannot process.
- These machines can maintain tolerances of up to ±0.001 inches which guarantees repeatable accuracy.
- For small to medium sized production batches, traditional CNC machining is very cost effective. It offers less tooling expenses and initial investments compared to Swiss type lathes.
Cons
- In traditional CNC machining individual setups and manual tool changes are generally needed. This process can increase cycle times particularly for intricate, high-volume components.
- They have limited automation and simultaneous operation capabilities. This limitation extends production lead times & increases labor expenses as well.
- In traditional CNC machines it is very difficult to get extremely tight tolerances and perfect surface finishes. While working with long, thin components, this challenge is more apparent.
Swiss Machining vs Traditional CNC Machining: What to Choose?
Your choice between traditional CNC and Swiss machining should be based on your specific part characteristics as well as on your production goals.
If your project needs complex and small parts, Swiss machining gives better accuracy and production efficiency. It is particularly useful for aerospace and medical applications. On the other hand if you need the flexibility for different materials, larger parts or prototyping, traditional CNC machining is more suitable.
Ultimately the best choice depends on size, complexity and quantity of the parts you want to produce.
To Sum Up
In short your machining needs will determine whether to choose traditional CNC or Swiss machining. Swiss machining performs exceptionally well for high volume production runs involving small and precise parts. On the other hand for prototyping and manufacturing larger components, traditional CNC machining provides greater flexibility.
If you need any kind of CNC machining services then Richconn is your best option. You can contact us anytime.
Related Question
Can Swiss machines perform milling operations?
Yes modern Swiss machines can perform operations like milling and turning within one setup.
What are limitations on the type of parts manufacturable by Swiss machines?
Swiss machines are well suited for thin, small diameter parts (≤2.5) which need tight tolerances. However they are not suitable for large and bulky parts.
Can traditional CNC machines achieve the same level of precision as Swiss machines?
No for small, intricate parts traditional CNC machines generally cannot achieve the same tight tolerances as Swiss machines.
Can Swiss machines handle secondary operations like knurling and threading?
Yes Swiss machines can perform secondary operations like threading and knurling; however special tools are needed.
In what ways do maintenance needs differ between the two machine types?
Swiss machines require more advanced and regular maintenance. They need high lubricity cutting oils and specific coolant management systems. On the other hand traditional CNC machines usually demand less frequent and simpler maintenance.
