When it comes to precision manufacturing, choosing between a Swiss lathe and a turn-mill center is one of the most impactful decisions you’ll make on the shop floor. Both machines can turn and mill in a single setup — but they’re built for very different jobs.
The Swiss lathe is a specialist — purpose-built to control vibration on skinny, high-length-to-diameter parts. The turn-mill center is a generalist — engineered for multi-faceted complexity on bigger stock.
Understanding Swiss Machining vs Turn-Mill Machining Fundamentals
Before you choose between these two CNC lathe types, you need a clear grasp of how each one works. The Swiss turning process and turn-mill machining take very different approaches to shaping metal — and those differences affect everything from precision to part complexity.

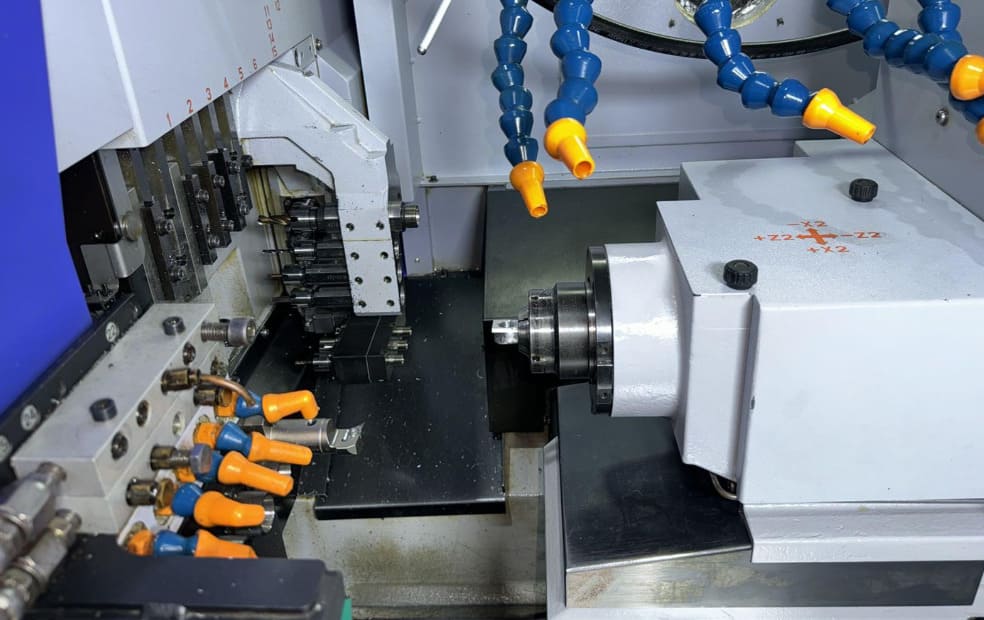

How Swiss Lathes Use Sliding Headstocks and Guide Bushings
Swiss lathes trace their roots to the 1870s Swiss watchmaking industry. The sliding headstock mechanism is what sets them apart. Instead of holding the workpiece still and moving tools along it, the headstock feeds bar stock through a guide bushing toward the cutting tool.
That guide bushing grips the material within just 1–2 mm of the cut point. This means cutting forces act on a rigidly supported section — not on a long, unsupported bar. The result is exceptional stability, even on thin, delicate parts. Modern Swiss machines can feature five or more axes along with multiple tool stations that perform turning, milling, drilling, and threading at the same time.

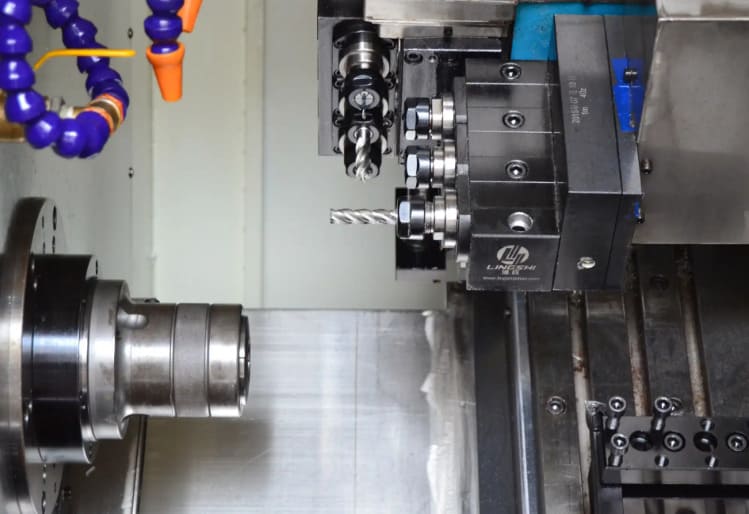

Turn-Mill Centers and Their B-Axis Capabilities
Turn-mill centers take a different path. These machines combine lathe operations with multi-axis machining through an articulating B-axis milling head. This head can approach the workpiece from virtually any angle, enabling full five-axis simultaneous motion.
Programming requires coordinating the B-axis with C, X, Y, and Z axes — all moving together in real time. This capability lets you produce complex, multi-faceted parts in a single setup.
Core Philosophy: Precision Focus vs Broad Flexibility
The debate around specialist vs generalist machines comes down to design intent. Here’s a quick comparison:
| Feature | Swiss Lathe (Specialist) | Turn-Mill Center (Generalist) |
|---|---|---|
| Workpiece Motion | Bar feeds through guide bushing | Workpiece held in chuck or fixture |
| Primary Strength | Small, long, precise parts | Complex, multi-sided geometries |
| Typical Axes | 5+ with gang tooling | 5-axis with articulating B-axis |
| Simultaneous Operations | Multiple tools cutting at once | Single spindle, sequential moves |
| Best Use Case | High-volume small components | Low-to-mid volume complex parts |
Swiss machines excel at one thing and do it extremely well. Turn-mill centers offer broader capability across a wider range of part types. Understanding this distinction helps you match the right machine to your next project — a topic we explore deeper in the sections ahead on precision, part geometry, and cost.
Guide Bushing Technology Versus B-Axis Spindle Systems
The way a machine holds and interacts with raw material defines what it can produce. Swiss lathes and turn-mill centers take opposite approaches to this challenge. One prioritizes rigid workpiece support systems, while the other favors an articulating spindle head for angular freedom. Understanding these differences helps you choose the right platform for your parts.
Workpiece Support Mechanisms in Swiss Machines
A guide bushing is a precision collet that grips bar stock just millimeters from the cutting zone. It rotates in sync with the main spindle, creating a near-zero deflection point right where forces are greatest. This design is the backbone of machining stability in Swiss-type equipment.
By supporting slender material so close to the cut, the guide bushing eliminates vibration and bending. You can machine long, thin shafts — parts with length-to-diameter ratios of 10:1 or greater — without chatter. Cutting tool positioning stays consistent because the workpiece simply cannot flex under pressure.
Articulating Milling Heads in Turn-Mill Centers
Turn-mill centers use a B-axis articulating spindle head that can approach the workpiece from virtually any angle. This transforms a lathe into a full five-axis machining center. You gain the ability to create compound curves, angled bores, and undercuts — all in a single setup.
This multi-axis versatility lets you complete complex parts without moving them between machines. The B-axis head swings through a wide angular range, giving you cutting tool positioning options that no fixed-tooling lathe can match.
Stability Versus Versatility Trade-offs
Choosing between these systems comes down to your part requirements. The comparison below breaks down the key differences:
| Feature | Guide Bushing (Swiss) | B-Axis Spindle (Turn-Mill) |
|---|---|---|
| Primary Strength | Machining stability for slender parts | Multi-axis versatility for complex geometry |
| Workpiece Support | Continuous contact near cutting zone | Chuck or collet at spindle end |
| Angular Access | Limited to axial and radial tools | Full B-axis rotation up to ±120° |
| Deflection Control | Excellent — sub-micron levels | Good — dependent on part overhang |
| Best Use Case | High-precision pins, shafts, contacts | Valve bodies, turbine components, housings |
Neither approach is universally better. Your workpiece support systems needs and geometry demands should guide the decision between rigid stability and angular freedom.
Precision Capabilities and Tolerance Achievements
When you compare Swiss lathes to turn-mill centers, the gap in machining tolerances becomes clear. Each platform targets a different range of precision — and understanding this tolerance comparison helps you pick the right machine for your project.
Swiss machines excel at micro-machining capabilities thanks to their guide bushing design. The bushing supports the workpiece just millimeters from the cutting tool. This close support reduces deflection and vibration, letting you hit accuracy specifications as tight as ±0.0002 mm on micro-scale parts. For standard runs, Swiss lathes routinely hold ±0.0005 mm — making them ideal for medical implants, aerospace pins, and electronic connectors as small as 0.008 inches in diameter.
Turn-mill centers take a different approach. Their strength lies in handling complex, multi-sided parts while still meeting solid precision manufacturing specs. You can expect tolerances between ±0.005 mm and ±0.01 mm — more than adequate for aerospace valve bodies, hydraulic fittings, and industrial components that demand tight dimensional control across multiple features.
Spindle speed ranges play a key role in what each machine can achieve:
- Swiss lathes operate between 1,000 and 10,000 RPM, optimized for small-diameter bar stock.
- Turn-mill centers run at 100 to 6,000 RPM, adjusting speed based on material type and part size.
| Specification | Swiss Machining | Turn-Mill Machining |
|---|---|---|
| Tight Tolerance Range | ±0.0002 mm | ±0.005 mm |
| Standard Tolerance Range | ±0.0005 mm | ±0.01 mm |
| Spindle Speed Range | 1,000–10,000 RPM | 100–6,000 RPM |
| Minimum Part Diameter | 0.008 inches | 0.5 inches typical |
| Best Application | Micro-scale, long slender parts | Complex multi-faceted parts |
This tolerance comparison makes one thing clear — your part’s geometry and required accuracy specifications should drive the machine selection. Swiss platforms win on ultra-tight precision, while turn-mill centers deliver flexibility for larger, more complex workpieces.
Part Geometry and Size Limitations
Choosing between Swiss machining and turn-mill centers often comes down to what you’re making. Each platform has distinct part geometry constraints that define its sweet spot. Understanding these boundaries helps you pick the right machine for every job.
Swiss Machining for Long Slender Parts with High L:D Ratios
Swiss lathes shine when you need to produce long, thin parts. A standard lathe starts to see deflection on parts with a length-to-diameter ratio above 3:1. Swiss machines eliminate this problem entirely. The guide bushing supports the workpiece just millimeters from the cutting tool, so the unsupported length stays tiny — even on parts 200mm long.
This means you can reliably machine parts with a length-to-diameter ratio of 20:1 or higher without any bending under cutting pressure. Bone screws, precision shafts, and contact pins are all ideal candidates.
Turn-Mill Centers for Complex Multi-Faceted Components
When your design calls for angled holes, 3D contoured surfaces, or non-cylindrical features, turn-mill centers are the better fit. Their B-axis milling heads enable true five-axis simultaneous motion, making complex component machining possible in a single setup. Valve bodies, turbine housings, and multi-sided aerospace fittings all benefit from this capability.
Diameter Constraints and Material Feed Considerations
Each platform has clear diameter limitations tied to its design. Swiss machines accept bar stock from 0.03mm up to about 32mm — rarely exceeding 38mm. Turn-mill centers handle workpieces up to 300mm or more, giving you far greater range.
Your material feed systems play a role as well. Swiss machines use bar feeders optimized for small-diameter stock, while turn-mill centers accommodate chucked blanks, forgings, and castings.
| Feature | Swiss Lathe | Turn-Mill Center |
|---|---|---|
| Typical Diameter Range | 0.03–38mm | Up to 300mm+ |
| Max Practical L:D Ratio | 20:1 and above | 3:1 to 6:1 |
| Angled Holes / 3D Surfaces | Limited | Full capability |
| Material Feed Method | Bar feeder (small stock) | Chuck, bar feeder, or fixtures |
| Best Geometry Type | Long, slender, cylindrical | Multi-faceted, non-cylindrical |
Production Volume and Efficiency Considerations
Choosing between Swiss machining and turn-mill centers often comes down to how many parts you need — and how fast you need them. Each platform excels at a different production scale, and understanding batch size economics helps you make smarter investments.
Swiss machines are built for high-volume production. Equipped with automatic bar feeders, they can run lights-out for hours, producing thousands to millions of identical parts. Up to twenty tools can engage the workpiece at once, enabling cycle time reduction of 50% or more compared to conventional lathes. A secondary spindle handles back-side operations in the same setup — eliminating the need for a second machine and driving manufacturing efficiency even higher.
Turn-mill centers take a different approach. They shine in low-to-medium volume runs, prototype work, and R&D environments where job changeovers happen frequently. Their “done-in-one” capability lets you complete complex multi-faceted parts without costly secondary operations. For smaller batches of intricate components, this flexibility delivers strong production volume optimization without requiring dedicated tooling setups.
| Factor | Swiss Machining | Turn-Mill Centers |
|---|---|---|
| Ideal Volume Range | 10,000+ parts per run | 1–5,000 parts per run |
| Cycle Time Reduction Potential | 50%+ with simultaneous tooling | 30–40% via done-in-one processing |
| Setup Changeover Speed | Longer initial setup, fast repeat runs | Quick changeovers for diverse jobs |
| Cost-Per-Part at Scale | Lowest at high volumes | Competitive at low-to-medium volumes |
| Best Use Case | Mass production of uniform parts | Mixed-part, short-run manufacturing |
When you evaluate batch size economics, consider your annual demand and part variety. Swiss machines reward commitment to a single part number at scale. Turn-mill centers reward shops that need to pivot between jobs quickly while maintaining high-volume production readiness for short runs.
Programming Complexity and Operator Skill Requirements
Both Swiss lathes and turn-mill centers demand advanced CNC programming skills — but in very different ways. The type of machine you run shapes the operator training requirements, the learning curve, and the daily challenges your team will face on the shop floor.
Process Synchronization in Swiss Machine Programming
Swiss lathe programming follows a “divide and conquer” approach. You split the part into operations across multiple tool gangs, the main spindle, and the sub-spindle. The real challenge is getting all of these channels to work in perfect harmony. Mastering synchronization techniques means coordinating simultaneous cuts — so one tool isn’t idle while another finishes. Every wasted millisecond adds up across thousands of parts.
Managing Five-Axis Simultaneous Motion in Turn-Mill Centers
Turn-mill centers shift the focus toward multi-axis programming. You’re directing the B-axis to move in coordination with the C, X, Y, and Z axes — all at once. This requires strong 3D spatial thinking. Collision avoidance becomes a constant concern when tools, spindles, and workpieces share tight quarters. Simulation software is essential before you ever press “cycle start.”
Setup Differences Between Guide Bushing and Complex Fixturing
Machine setup complexity varies between the two platforms. Here’s a quick comparison of what each operator needs to master:
| Skill Area | Swiss Lathe Operator | Turn-Mill Operator |
|---|---|---|
| Primary Setup Focus | Guide bushing pressure adjustment | Workpiece fixturing and alignment |
| Tool Management | Gang-style tool positioning | Large tool changer library (60+ tools) |
| Core Programming Challenge | Multi-channel synchronization | Complex kinematics and collision avoidance |
| Material Handling | High-speed continuous bar feeding | Individual part loading and clamping |
A Swiss operator must dial in guide bushing pressure precisely. Too tight, and you scratch the bar stock. Too loose, and slippage ruins your tolerances. A turn-mill operator, on the other hand, focuses on securing diverse workpiece shapes and managing a broad tool library across varied jobs.
Material Compatibility and Processing Capabilities
Choosing the right machine starts with understanding your workpiece material options. Each platform—Swiss lathe or turn-mill center—handles different metals and plastics in distinct ways. The material processing capabilities of these machines shape what you can produce, how fast you can run, and what quality you can expect.
Small Diameter Bar Stock Processing in Swiss Machines
Swiss machines thrive on small-diameter bar stock fed through a guide bushing. This setup demands strict bar stock specifications—specifically, ground bar stock that meets SMQ requirements (Screw Machine Quality). SMQ-grade material ensures consistent roundness and surface finish, which is critical for guide bushing fit and precision output.
You can run a wide range of materials on Swiss lathes, including:
- Aluminum and brass
- Stainless steel (303, 304, 316)
- Titanium (Grade 5 Ti-6Al-4V for medical implants)
- Copper and nickel alloys
- Rigid plastics like polycarbonate and PTFE (Teflon)
Feed rates typically range from 0.02–0.3 mm/rev, with finer feeds reserved for micro-machining operations. Titanium machining on Swiss lathes is especially effective because the guide bushing eliminates deflection on long, slender parts.
Large Workpiece Handling in Turn-Mill Centers
Turn-mill centers offer broader machining material compatibility. They accept larger stock and are less sensitive to material quality—no SMQ requirements apply. These machines excel with heavy-duty and exotic materials like Inconel, carbon fiber composites, and fiberglass.
| Parameter | Swiss Machines | Turn-Mill Centers |
|---|---|---|
| Typical Feed Rate (Roughing) | 0.05–0.3 mm/rev | 0.05–0.5 mm/rev |
| Typical Feed Rate (Finishing) | 0.02–0.1 mm/rev | 0.01–0.1 mm/rev |
| Bar Stock Quality | SMQ ground bar required | Standard mill stock accepted |
| Metals Supported | Aluminum, brass, titanium, stainless steel, nickel alloys | All listed plus Inconel, carbon steel |
| Plastics and Composites | Polycarbonate, PTFE | Acrylic, nylon, polyethylene, carbon fiber, fiberglass |
Understanding these workpiece material options helps you match each job to the right platform—saving time, reducing scrap, and hitting your cost targets before diving into the investment analysis covered next.
Cost Analysis and Return on Investment
Choosing between Swiss lathes and turn-mill centers is a financial decision as much as a technical one. Understanding equipment investment costs helps you plan your budget and forecast long-term profitability. Let’s break down where your money goes — and where it comes back.
Swiss lathes typically range from $70,000 to $150,000, while turn-mill centers often exceed $150,000. Swiss machines tend to cost 20–30% more than conventional lathes due to their multi-axis designs, guide bushing systems, and specialized tooling. An honest ROI calculation must account for these upfront figures alongside production gains over time.
When you run an operational cost comparison, the picture shifts. Swiss machines demand higher-skilled programmers and longer initial setup windows. Yet their cycle times for complex, high-volume parts are significantly shorter. Turn-mill centers require moderate operator skill and offer faster setups — but cycles stretch longer on intricate geometries.
| Cost Factor | Swiss Lathe | Turn-Mill Center |
|---|---|---|
| Machine Price Range | $70,000–$150,000 | $150,000–$400,000+ |
| Initial Setup Cost | 20–30% higher than conventional | Moderate |
| Cycle Time (Complex Parts) | Shorter | Longer |
| Operator Skill Level | Advanced | Moderate |
| Best ROI Production Volume | High-volume runs | Mixed-volume, large parts |
Setup time economics play a big role in your per-part cost analysis. Swiss machines need more time upfront to configure complex tooling arrays. Once running, they produce small intricate parts at a lower cost per piece during long production runs. Turn-mill centers pay off faster when you’re machining larger, multi-faceted components in moderate batches.
The bottom line: your ideal choice depends on part complexity, volume, and size. A thorough per-part cost analysis — factoring in labor, tooling, and cycle time — gives you the clearest path to the best return on your investment.
Industry Applications and Use Cases
Choosing between Swiss machining and turn-mill centers depends on what you’re making — and for which industry. Each platform excels in specific production use cases that align with its mechanical strengths. Let’s break down where each machine type delivers the best results across real-world industrial applications.
Medical and Aerospace Components in Swiss Machining
Swiss lathes dominate medical device manufacturing. Bone screws with 2mm diameters and 10:1 length-to-diameter ratios demand the kind of precision only a guide bushing can provide — often holding tolerances to ±0.0001 inches. Dental implants, spinal rods, and surgical instruments all rely on this technology.
In aerospace component production, Swiss machines produce fuel injector nozzles, sensor housings, and high-strength fasteners. These parts require tight tolerances paired with exotic materials like titanium and Inconel. Electronic connectors, pins, and micro-components for circuit boards round out the typical Swiss workload.
Complex Valve Bodies and Multi-Sided Parts in Turn-Mill Centers
Turn-mill centers shine when you need to machine large, multi-faceted components in a single setup. Automotive crankshafts, camshafts, and transmission parts benefit from the B-axis milling capability. Industrial machinery shafts, heavy-duty connectors, and construction-grade bolts are equally well-suited to these machines.
High-Volume Production Versus Prototype Manufacturing
Your production volume plays a key role in machine selection. Running 10,000 bone screws? Swiss is your answer. Need 500 automotive shafts at 100mm diameter? A turn-mill center is far more cost-effective. For prototype development, turn-mill centers often win due to faster setup changes and broader part flexibility.
| Factor | Swiss Machining | Turn-Mill Centers |
|---|---|---|
| Best Volume Range | 10,000+ parts | 500–5,000 parts |
| Typical Part Diameter | 1mm–32mm | 50mm–300mm |
| Top Industry | Medical devices | Automotive |
| Prototype Suitability | Low | High |
| Example Part | Bone screws | Valve bodies |
Conclusion
This CNC process comparison summary highlights a clear truth — Swiss lathes and turn-mill centers are both powerful, but they serve different roles. Swiss lathes are production powerhouses built for small, long, slender parts. They deliver unmatched speed and precision thanks to guide bushing technology. Turn-mill centers shine when you need to machine complex, multi-sided components in a single setup. Their B-axis spindle capabilities unlock geometry options that no other platform can match.
Your machining method selection should weigh several manufacturing decision factors. Part size, geometry, tolerance needs, production volume, material type, and budget all play a role. Keep in mind that Swiss lathes are more specialized and less common than standard CNC lathes. This can affect lead times if you plan to outsource your work to a contract shop.
