Some materials bend or stretch when pulled while others snap under the same force. Tensile stress explains this difference. It is a key idea in material science and engineering. Ignoring or misunderstanding tensile stress can cause weak designs or even lead to structural failure.
In this blog post we will explore the meaning of tensile stress, the ways to measure it as well as its importance in building strong and dependable structures.
Fundamentals of Tensile Stress

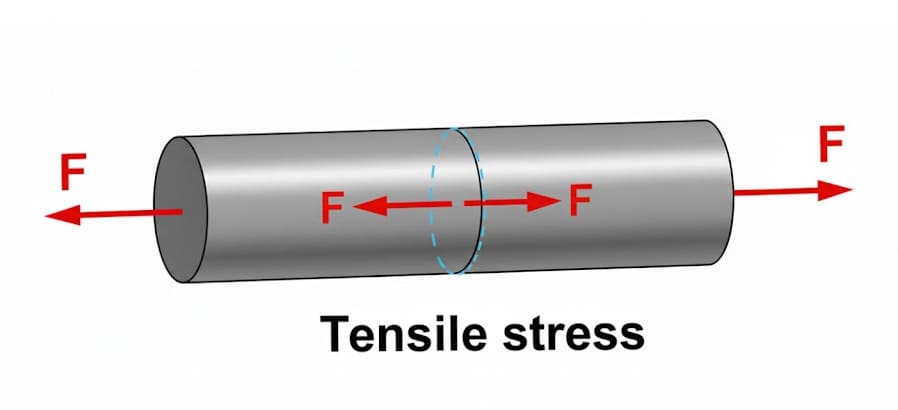

Tensile stress describes the internal force per unit area that stops a material from being pulled apart. Its measurement uses units like Pascal (Pa) or pounds per square inch (psi). To find tensile stress, engineers divide the applied force (F) by the material’s original cross sectional area (A). This calculation gives engineering stress. True stress, on the other hand, uses the actual area as the material stretches.
1. Stress–Strain Behavior: Elastic & Plastic Regions
The way a material responds to stress and the resulting strain (deformation) shows its basic properties. This response can be separated into different stages:
- Elastic Deformation: Material stretches in this first stage but returns to its original shape when the load is gone. Hooke’s Law describes this behavior.
- Yielding: When the material reaches its elastic limit, it starts to deform in a way that cannot be reversed. This limit point is called the yield point.
- Plastic Deformation: After the yield point, the material changes shape permanently and will not go back to its original form.
- Ultimate Tensile Stress (UTS) & Fracture: UTS marks the highest stress the material can handle before it begins to neck and finally breaks.
2. Constitutive Models & Material Laws
Engineers use constitutive models to predict how materials respond to forces. These models define the link between stress and strain in different situations.
- Hooke’s Law: This basic model applies to the elastic region. It states that stress increases in direct proportion to strain. This law works well for materials that do not stretch much.
- Hardening Models: When materials deform plastically, models like the Hollomon or Swift equations describe how they get stronger. This process is known as strain hardening.
- Rate & Temperature Models: More advanced models, such as the Johnson‐Cook law, account for the effects of strain rate and temperature on material strength. These models are important for understanding how materials behave during fast impacts or at high temperatures.
Experimental/Practical Measurement
Engineers use standardized tensile tests to determine a material’s tensile properties. Accurate results depend on careful preparation and precise execution during these tests.
I. Specimen Preparation & Geometry
This process begins with preparation of a test sample, known as a specimen. Standards like ASTM E8 specify a “dog‐bone” shape for these specimens. This geometry makes sure that deformation and failure happen in the narrow gauge section, not at the ends.
At RICHCONN, we rely on precision CNC machining to create specimens that match strict ASTM dimensions. This approach provides consistent results and dependable data for engineering decisions.
I. Test Setup & Grips/ Fixtures

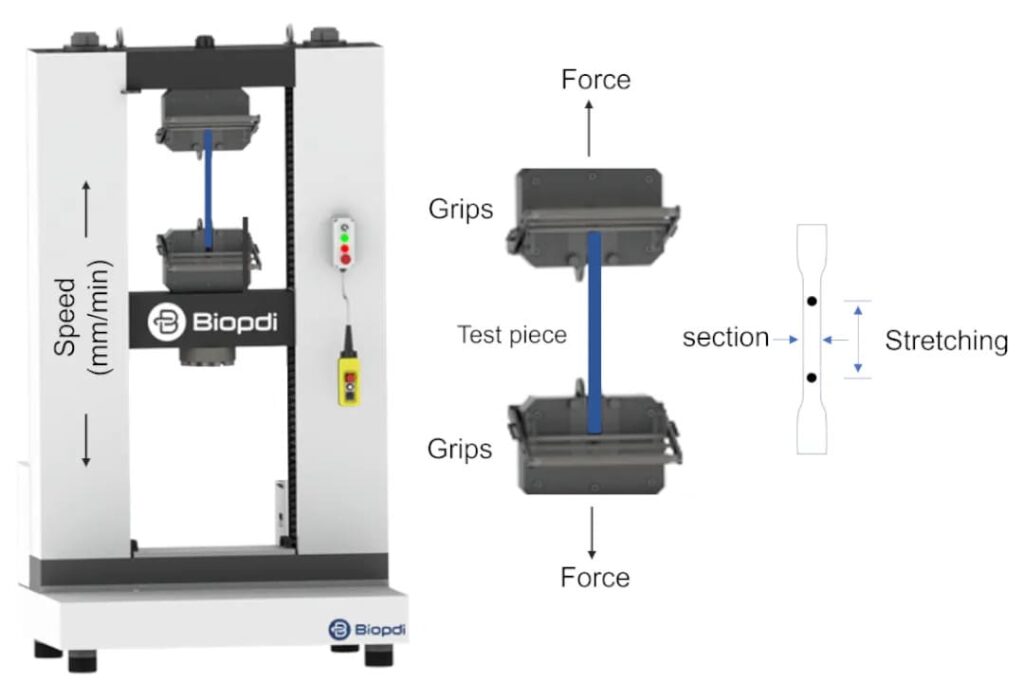

Next, the specimen is placed in a universal testing machine. Grips on the machine hold both ends of the specimen tightly. This setup applies the pulling force straight along the specimen’s length. It’s crucial because accurate alignment is necessary to get correct measurements.
II. Load Application & Displacement Measurement
The machine applies a tensile load at a steady rate. As the specimen stretches, an extensometer measures how much the gauge section lengthens. This device records the elongation with high precision.
III. Data Acquisition_ Converting Load Vs Elongation → Stress Vs Strain
The testing machine collects data on the force applied and the amount the specimen stretches. To get stress and strain values, engineers divide the load by the original cross‐sectional area and the elongation by the initial gauge length.
IV. Post Test Analysis & Verification
Once the specimen breaks, engineers review the results. They examine the fracture surface to identify the failure mode. They also check that all test conditions were met which confirms the reliability of the data.
Material Behavior Under Tensile Stress
Tensile tests show that materials react differently to pulling forces. The stress‐strain curve best displays this response. Both the material’s internal makeup and outside conditions influence how it behaves.

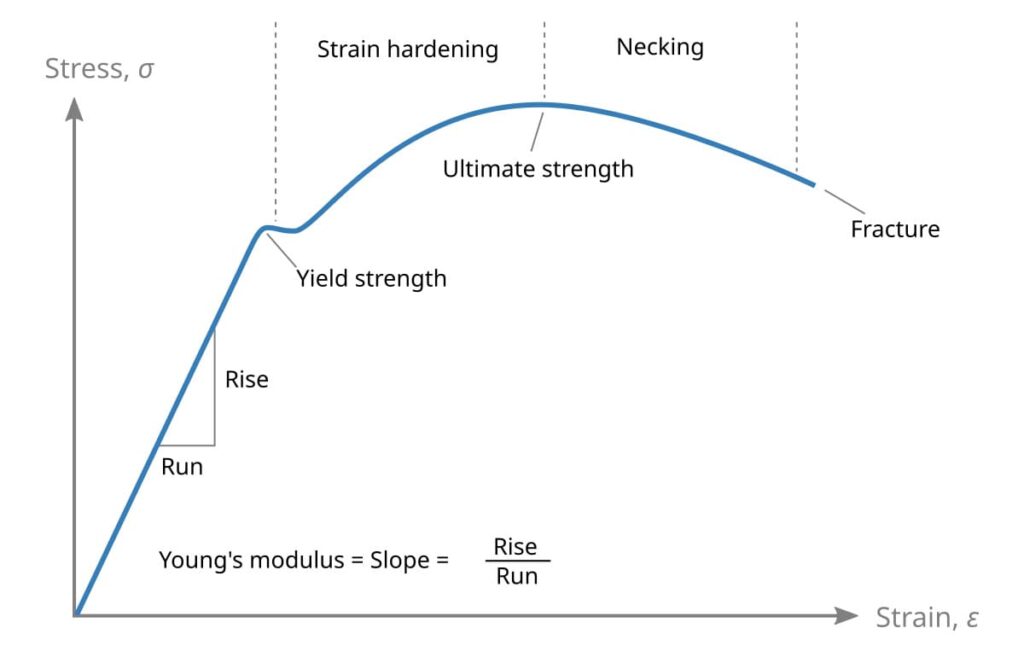

The Stress Strain Curve Explained
A stress‐strain curve plots stress against strain to show how a material stretches. Key points on the curve include the yield point which marks the start of permanent deformation; and the ultimate tensile strength (UTS) which is the highest stress the material can handle. Engineers rely on the curve’s shape to select materials for particular applications.
Related Blogpost: What is the Difference between Stiffness and Strength

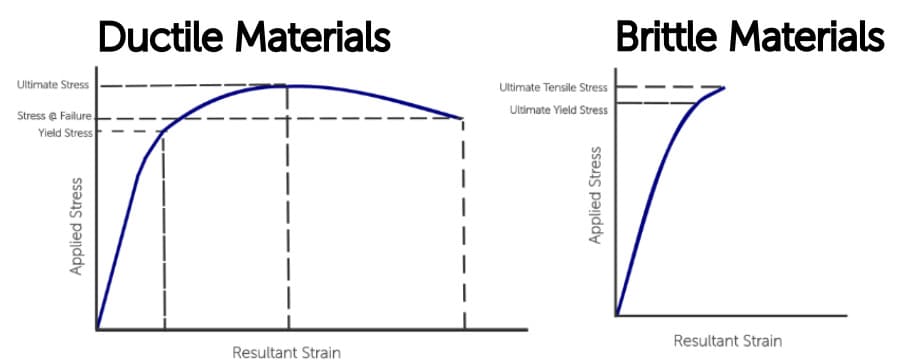

Ductile vs Brittle Behavior
Materials can behave in a ductile or brittle manner. Ductile materials like steel & aluminum can stretch a lot before breaking. Their stress‐strain curves show a long region of plastic deformation. Brittle materials, such as glass and ceramics, break quickly after reaching their elastic limit and give little warning before failure.
Localization & Instability: Necking & Post Neck Behavior

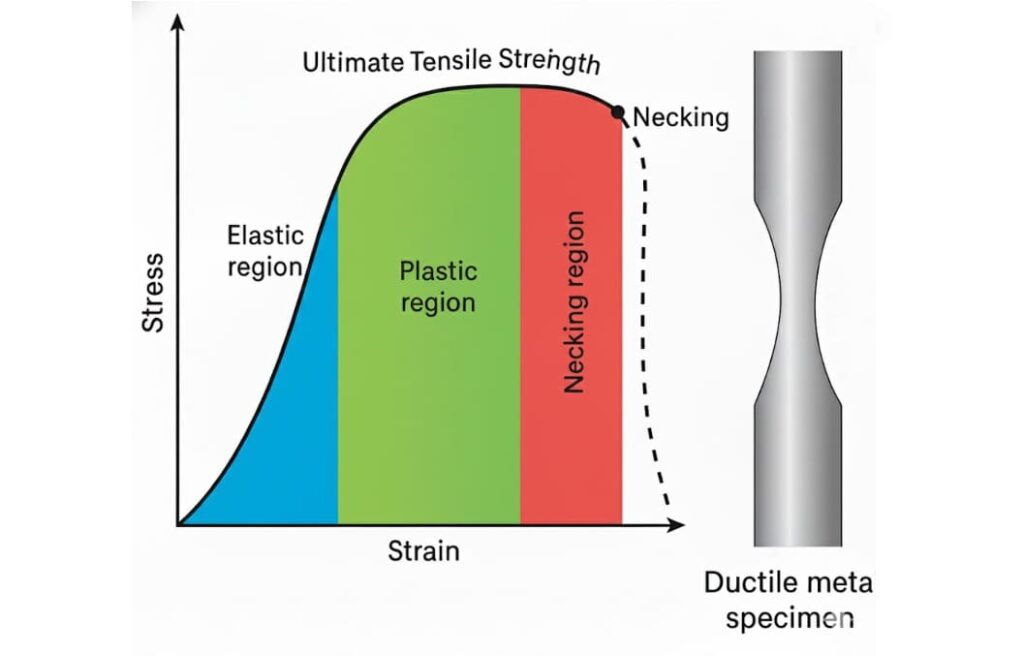

After a ductile material hits its UTS, it begins to narrow at a single spot. This process is called necking. The cross‐section shrinks which concentrates stress and eventually causes the material to break. While engineering stress appears to drop during necking, the true stress at the narrowed area keeps rising until the material fails.

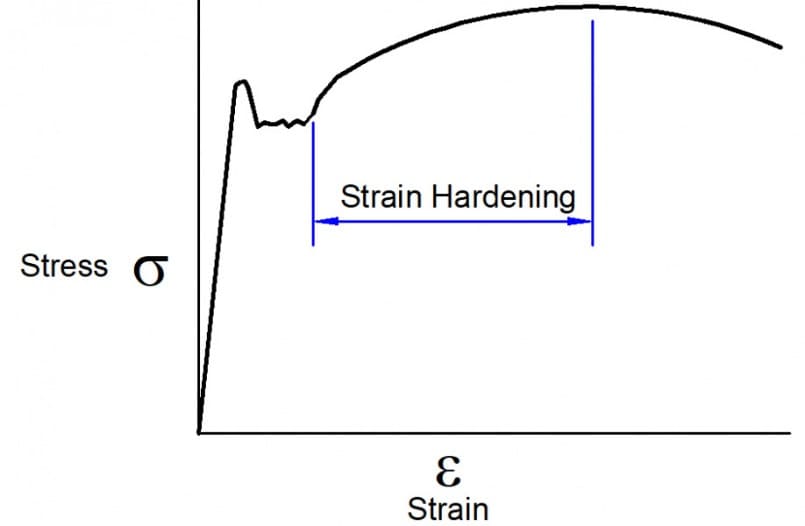

Microstructural Factors & Hardening Effects
A material’s internal structure has a major role in its tensile response. Features like grain size and crystal arrangement set its strength & ductility. Many metals also show strain hardening which means they get stronger as they deform. This hardening helps the material resist necking at first.

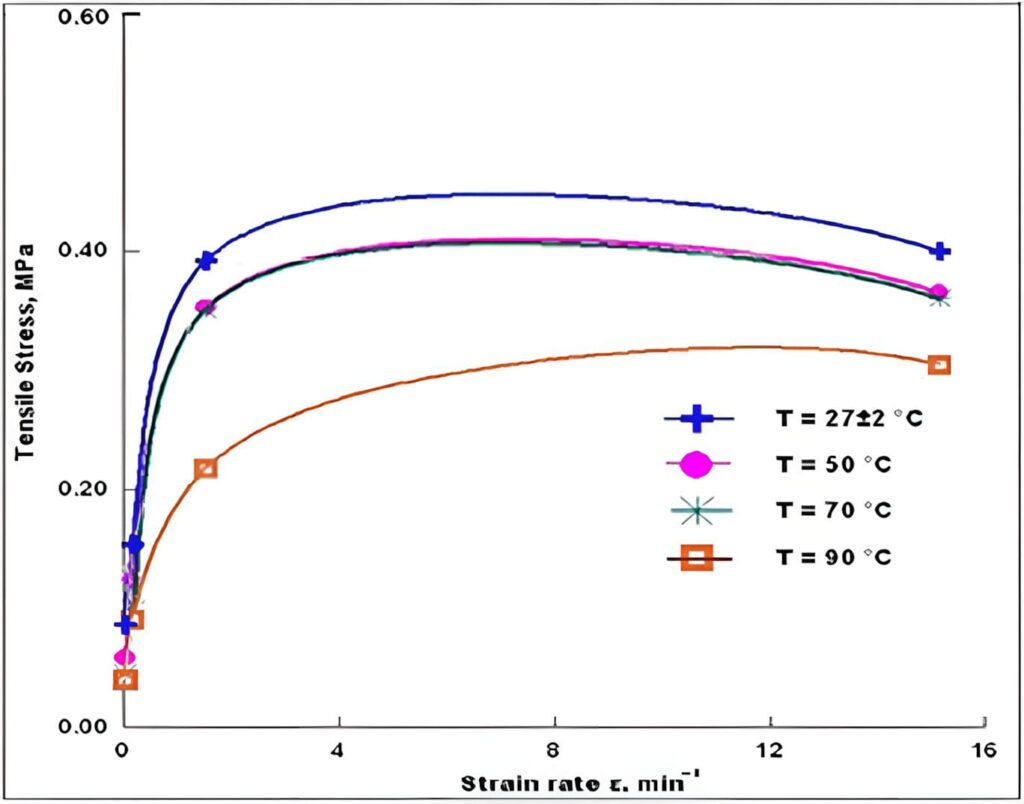

Environmental & Rate Effects
Outside conditions matter as well. High temperatures can soften materials and lower their tensile strength; this is called thermal softening. If the strain rate increases, strength mostly goes up but the material may become more brittle. Moreover repeated loading or fatigue can also cause failure at stress levels far below the UTS.
Tensile Stress in Design & Engineering Applications
Engineers rely on tensile stress to design products that are both safe and reliable. This concept guides their choices for materials, shapes and safety margins in every application.
1. Design Considerations & Safety Factors
When designing components, engineers assure that expected stresses remain well below the material’s failure point. They determine an “allowable stress” by dividing the ultimate strength of the material by a Factor of Safety (FoS). This FoS creates a safety margin to account for unexpected loads or variations in material properties. For example steel structures mostly use a FoS between 1.5 and 1.8.
2. Failure Criteria & Yield Criteria
In real‐world conditions, stress rarely acts in just one direction. Multiple directions of stress often occur at the same time. To handle this, engineers use failure criteria like Tresca and von Mises. These models take results from basic tensile tests and also predict when a material will yield or fail under combined, multi‐axial loads.
3. Material Selection & Trade‐offs
Tensile data helps engineers choose the right materials. They must consider properties such as strength, ductility as well as weight for each use. For example bridge cables may need high strength steel while aircraft parts might need lightweight composites to improve fuel efficiency.
4. Computational Modeling & Simulation

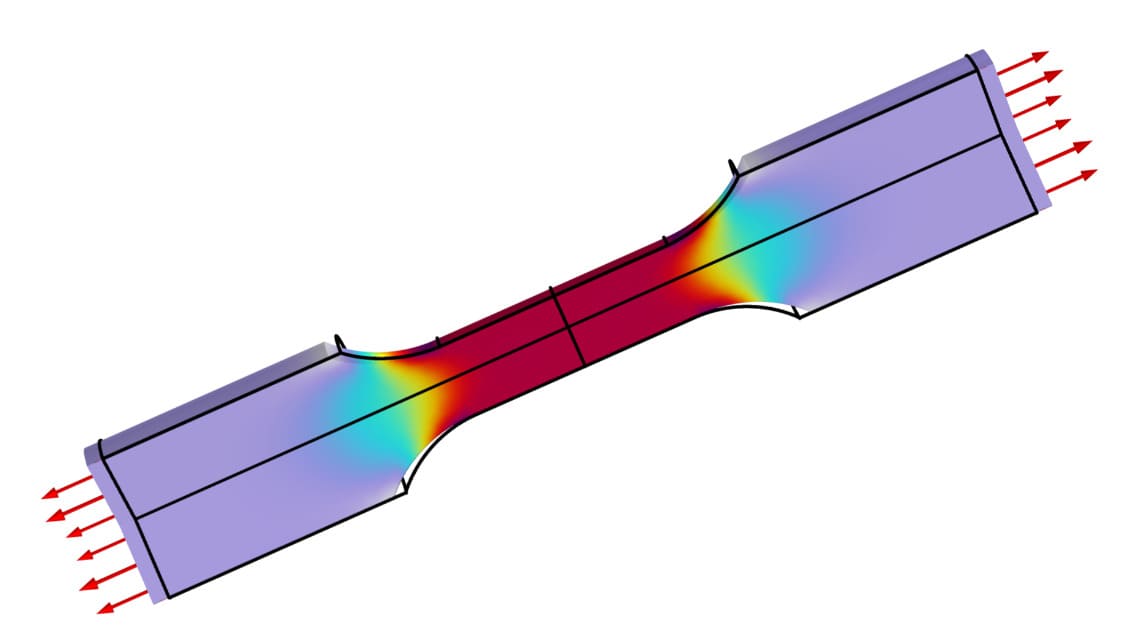

Today’s engineering practices make extensive use of computer simulations. Finite Element Analysis (FEA) is a key tool that uses tensile property data to predict how a part will behave under stress. Designers can test parts digitally and spot high stress zones before manufacturing starts and this helps prevent failures.
At Richconn, our team applies Finite Element Analysis (FEA) with accurate tensile data at the start of the design process. This approach lets us simulate stresses and adjust part geometry before machining. This saves time and improves reliability in the finished product.
Conclusion
Tensile stress has a vital role in engineering. It affects how engineers choose materials, design components and assure products remain reliable. Knowing the basics—from the stress‐strain curve to different failure modes – helps guarantee that parts work as expected.
If you need CNC machined parts with the right material strength, Richconn offers the best solution. You can contact us whenever you need assistance.
Related Questions
Tensile stress measures the force applied per unit area on a material. In contrast, tensile strength refers to the highest stress a material can handle before it breaks.
Necking describes the point where a material’s cross‐section thins out in a particular area. This happens after the material reaches its ultimate tensile strength and just before it breaks.
When temperature rises, a material’s tensile strength usually drops and its ductility increases. If the temperature falls, tensile strength often goes up but the material can become more brittle.
