This article delves into CNC machining and CNC machined parts, compiling comprehensive and up-to-date information on all aspects you should know. This article will offer expert insights into CNC machine part materials, tolerances, benefits, design considerations, and CNC machining services in general. Let’s embark on this journey of discovery.

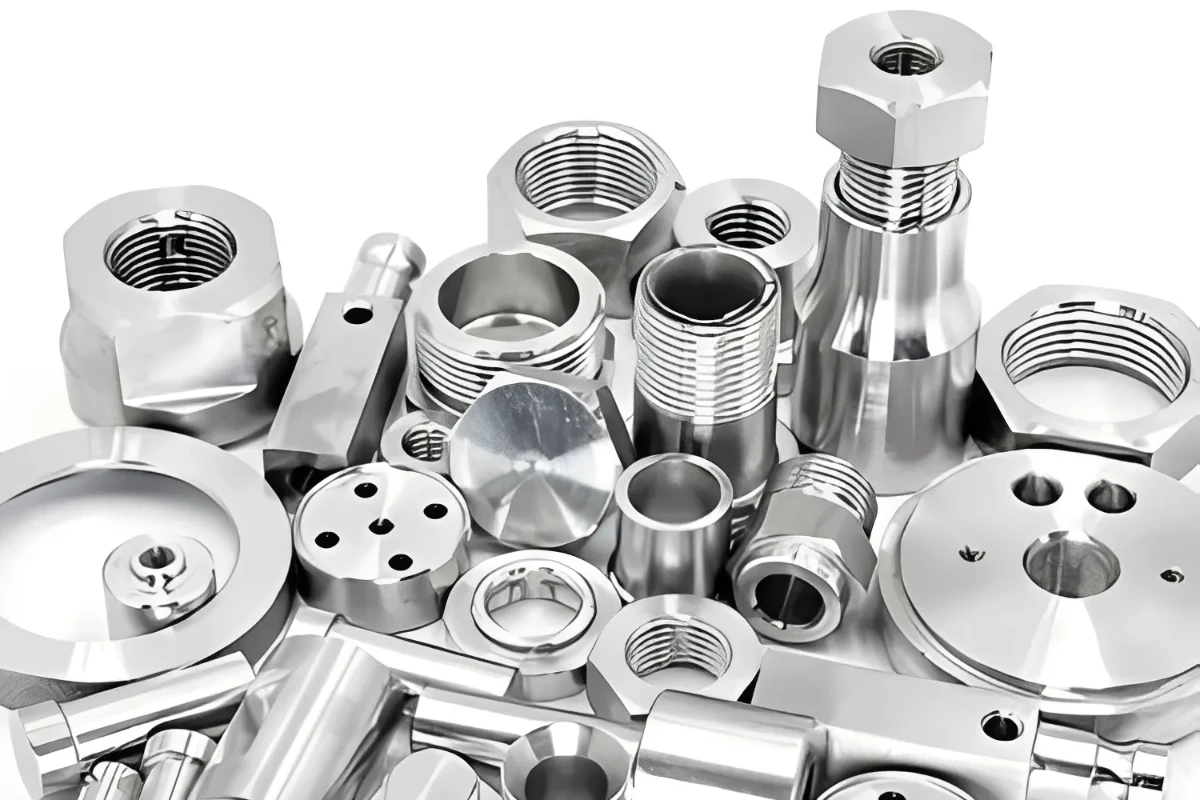

What Are Machined Parts?
Machined parts are elements meticulously crafted through the machining process. So, what exactly is machining? It is a technique that utilizes subtractive cutting machines, including mills, lathes, and grinders, to fashion a desired part. Despite the distinct techniques employed by these machines, the ultimate objective remains the same: to eliminate material from a workpiece and shape it into the desired form.
Machining can either be conducted manually or digitally. In manual machining, a highly skilled machinist operates cutting machines to shape components. Conversely, digital machining represents an automated cutting method utilizing Computer Numerical Control (CNC) machines. This digital manufacturing process involves inputting pre-programmed instructions into the CNC machine, which then cuts parts precisely according to these specifications. The outcome is exceptionally precise, uniform, and efficient machined parts.
With digital CNC machining services widely available online, tailoring machined parts to business needs has never been easier. Yet, manual machining, molding, casting, and forging remain relevant in many industrial contexts.
Materials Used for CNC Machining Parts
The selection of material for a CNC machined part has a major impact on cost, performance, manufacturability, and lifecycle. A reliable machining shop will help evaluate options based on factors such as weight, strength, conductivity, corrosion resistance, surface finish, and cost. Typical materials fall into three main categories:
Metals
Metals are by far the most common in CNC machining. Materials such as aluminum, stainless steel, copper, titanium, magnesium, zinc, and mild steel, along with their alloys, provide excellent mechanical and thermal properties. For example, aluminum stands out for its light weight and thermal conductivity, while stainless steel offers corrosion resistance and durability.
Plastics
Plastics offer lower weight, versatility, and corrosion resistance, making them ideal for applications in consumer electronics, automotive, medical equipment, and electrical insulation. Examples include ABS, Nylon, Acrylic, Polycarbonate, PVC, Delrin, and others.
Ceramics and Composite Materials
Ceramics and composite materials also find their place in CNC machining for specialized uses. Composite materials, which combine two or more materials such as fiberglass and resin, may be machined when required. Each material brings its own machinability concerns. For example, very hard materials may cause tool wear, whereas very soft materials may deform under machining forces.
Machined Part Tolerances
Machined part tolerances refer to the permissible variations from the stated dimensions. The tolerances in CNC machine parts can be influenced by various factors, including the machining method employed, the material utilized, the intricacy of the design, and the associated cost considerations.
CNC machining excels in its ability to produce parts with precise tolerances, which is particularly beneficial for crucial dimensions like diameters, lengths, and hole sizes. Strict adherence to machining tolerances is essential for ensuring the functionality of the parts. However, tighter tolerances require more accurate CNC machining procedures, which may lead to increased production costs.
On the other hand, looser tolerances permit a less rigorous machining approach but may compromise the performance of the components. These relaxed specifications are typically used for prototypes and non-mechanical components.
Machined Part Surface Finishes
Following the CNC machining process, surface treatments can be applied to machined parts to enhance their visual appearance and texture. Surface finish not only serves an aesthetic purpose but also fulfills functional requirements.
As-Machined Surfaces
These are surfaces that are not subject to any treatment following the CNC machining process. They retain their natural finish and are typically used for internal parts, emphasizing functionality rather than aesthetics.
Bead-Blasted Finishes
Bead blasting utilizes abrasive media to achieve a matte surface finish on machined parts. The roughness of the resulting finish varies depending on the process parameters. However, bead blasting is not suitable for delicate parts because it can alter their geometry by removing material.
Anodization
After CNC machining, anodization may be applied to the component, a treatment commonly used for aluminum machined parts. This process creates a durable and corrosion-resistant finish that also enhances wear resistance.
Powder Coating
Another surface treatment option is powder coating, which involves applying powdered paint to machined parts and baking them in an oven. This results in a wear-resistant and corrosion-resistant layer that outperforms traditional paint coatings. Additionally, powder coatings offer a range of vibrant colors, enabling the creation of visually appealing custom machined parts.
The Advantages of Machined Parts
CNC machined parts possess numerous advantages over those produced through alternative manufacturing processes. The following section explores some of these key benefits.
No MOQ
One of the significant benefits of CNC machined parts is their flexibility in terms of order quantity, as there is no minimum order quantity requirement. This allows efficient production of even small batches or individual custom parts at cost-effective rates.
In contrast, other manufacturing methods such as molding often involve expensive tooling processes that limit the cost-effectiveness of producing only a few custom parts. Therefore, CNC machining is particularly suitable for businesses with varying quantity demands, customized designs, and prototyping needs.
Prototypes
CNC machining stands out for its precision and efficiency, enabling the swift production of high-quality prototypes with remarkable accuracy. These prototypes closely mimic the final product, facilitating efficient evaluation and design validation.
Moreover, rapid prototyping makes it possible to generate multiple variations of a part for testing and validation. Based on the prototype that exhibits the best performance, production can then move forward with confidence.
Design Freedom
CNC machining offers outstanding design flexibility, enabling the fabrication of precision parts with intricate details and complex geometries. This capability transforms imaginative concepts into reality while overcoming many of the challenges associated with traditional manufacturing methods.
Strength
When it comes to manufacturing parts, performance and durability are essential considerations. CNC machined parts excel in both areas, offering superior strength and resilience compared with parts produced through many other processes. This is partly because CNC machining avoids some of the internal stresses commonly associated with alternative production methods.
Furthermore, machined parts are crafted from solid material blocks, helping ensure their structural integrity and long-term durability. This makes them a reliable choice for a wide range of demanding applications.
The Design Guide of Machined Parts
Undercuts
Undercuts, which cannot be formed with standard cutting tools due to obstructed surfaces, are intricate features that come in two forms: T-slots and dovetails. To achieve these cuts, a specialized cutting tool is required. The width of an undercut typically falls between 3 and 40 mm, with the depth not exceeding twice its width.
When dealing with undercuts on internal walls, it is important to consider the clearance needed for the cutting tool. As a general rule, the space between the machined wall and the internal wall should be at least four times the undercut depth.
To streamline the process and ensure cost-effectiveness, it is advisable to adhere to standard sizes in whole millimeters for undercut dimensions, as cutting tools are available in these standard sizes. If a design calls for a non-standard undercut, the manufacturer may need to fabricate a custom cutting tool, which can extend lead time and increase production cost.
Scale
The capacity of a CNC machine to manufacture parts is determined by its work envelope, which differs based on the material type and the specific CNC machine used. Commonly, the maximum dimensions for milled parts are constrained to 400 × 250 × 150 mm, while turned parts can reach a maximum of ⌀500 mm × 1000 mm.
If larger parts are required, production is still possible with larger CNC machines. It is best to consult with manufacturing partners to obtain guidance before beginning a custom CNC machining project.
Cavities, Holes, and Threads
The dimensions of holes and cavities in a part vary based on the tools used. It is advisable to maintain a cavity depth that is four times its width to avoid excessive vibration. Additionally, deeper cavities may result in rounded edges instead of sharp ones.
With CNC technology, threads can be cut down to M6. When designing threads, the thread length should be at least 1.5 times its diameter, with a recommended length of three times the diameter. Lengths exceeding this recommendation are generally unnecessary, as the initial teeth carry the majority of the load.
Holes are typically formed using drill bits or end mills. Since drill bits are standardized in size, it is beneficial to align hole diameters with standard drill bit sizes. It is also recommended to keep the maximum depth of a hole at four times its diameter.
Conclusion
CNC machining has revolutionized the industrial production of parts, offering numerous advantages including the elimination of minimum order quantities, accelerated prototyping, shortened lead times, and enhanced quality control. The availability of online CNC machining services has further facilitated the procurement of high-quality CNC parts with greater convenience.
Richconn is a strong choice for CNC machined parts, ranging from aerospace machining components to custom rotational parts for motorcycles and other industrial applications. With extensive experience in the CNC machining industry across a diverse array of applications and industries, Richconn is equipped to handle a wide variety of projects with precision and efficiency.
FAQ
What is a CNC machined part?
A CNC machined part is a component produced by subtractive manufacturing. Material is removed from a solid block by CNC-controlled machine tools to create the final geometry.
Why choose CNC machining over other manufacturing methods?
CNC machining offers rapid turnaround, no tooling cost for small runs, high precision tolerances, and strong material properties compared with many alternative methods.
What materials can CNC machines handle?
CNC machines can handle a wide range of metals such as aluminum, stainless steel, titanium, and copper, as well as plastics like ABS, Nylon, and Polycarbonate. In some cases, they can also machine composites or ceramics depending on machine capability and tooling.
What are critical design features to watch for when preparing parts for machining?
Key features include ensuring tool access, avoiding extremely deep and thin cavities, accounting for tolerances properly, selecting workable materials, and incorporating finishing treatments intelligently.
Does CNC machining require minimum quantity?
Often no minimum quantity is required for CNC machining, which allows prototyping or small batch production without large upfront tooling costs.
