Sometimes manufacturers face difficulty in picking the right CNC machining setup. Confusion such as the one between 3-axis and 5-axis can cost you both time and money. This article will cover the important differences so you can make correct choice for your machining projects.

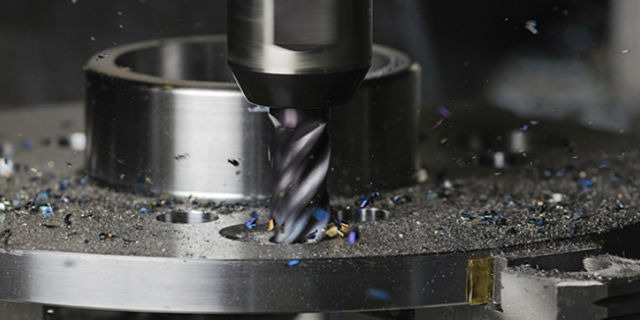

What is 3-Axis CNC Machining?
3-axis CNC machining uses computer controlled cutting tools that move along three linear axes—X (left to right), Y (front to back), and Z (up and down). The cutting tool remains perpendicular to the workpiece surface while doing drilling, milling and cutting sharp edges.

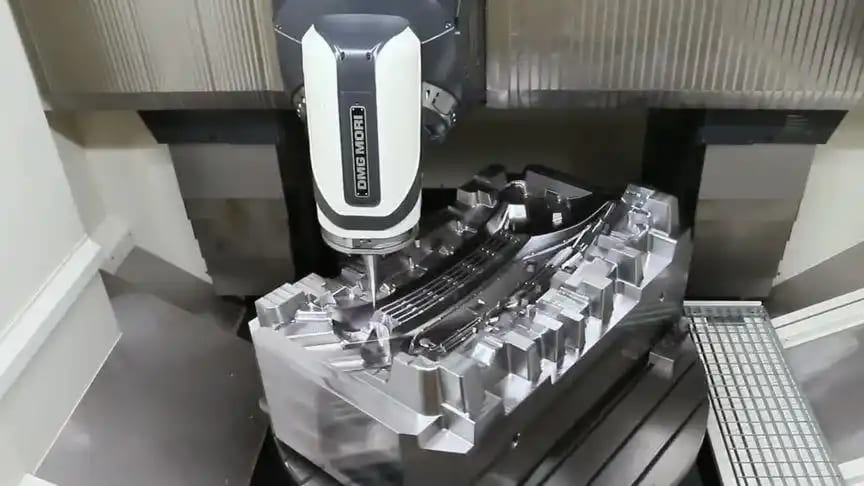

What is 5-Axis CNC Machining?
5-axis CNC machining moves along three linear axes (X, Y, Z) and plus two rotational axes (A, B, or C). The cutting tool moves along linear dimensions while rotating on additional axes at the same time. So it can approach workpiece from any direction which helps these machines create intricate geometries and complicated designs in one setup.

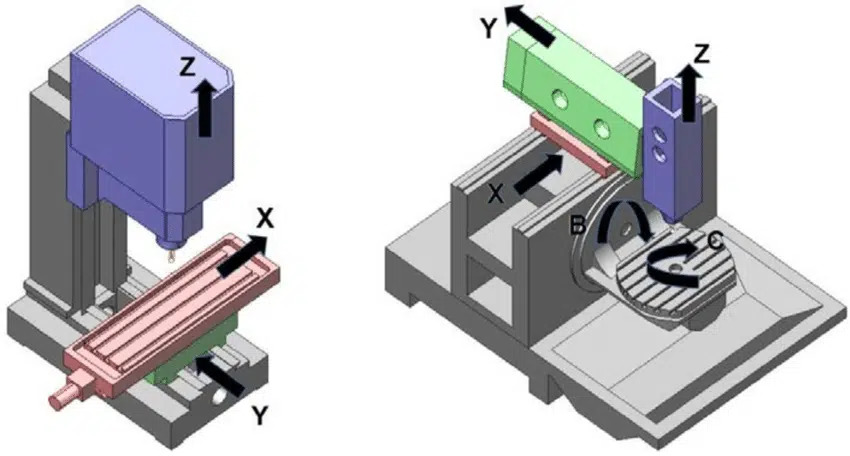

Main Differences Between 3-Axis and 5-Axis CNC Machining
1. Complexity of Operations
3-axis CNC machines work with linear movements along axes and perform straight forward operations like basic milling and drilling for simple shapes and flat surfaces. On the other side, 5-axis machines use two additional rotational axes to do multi directional cutting for complex shapes, undercuts and deep pockets.
2. Precision and Accuracy
5–Axis CNC machining has higher precision (up to ±0.0001 to ±0.0005) and accuracy (±0.0002 to ±0.0005) than 3-axis CNC machining which has precision of ±0.002 to ±0.005 and accuracy of ±0.003 to ±0.010. In 5–Axis machining, complicated high precision parts can be produced with less errors and more consistency because there is less need for multiple setups.
3. Speed and Efficiency
Most 3–axis machines usually work at 1,000–3,000 RPM for basic cuts. Thus they are suitable for simple tasks with cycle times of 20–30 parts per hour. But 5–axis machines can reach speeds of more than 20,000 RPM. And there is no need for manual repositioning in 5-axis machining which decreases cycle times by 75%.
4. Cost
3-axis machines with basic parts (servo motors, ball screws, spindle) are cheaper because of small number of moving parts. So they are good for simple low volume jobs. They also require less training as well as lower maintenance costs. However advanced models of 5-axis machines with automated tool changers and tilting heads have higher operating and initial costs but they provide long term savings by decreasing labor, errors and setups.
5. Programming and Setup
5-axis systems need latest CAM software like Siemens NX or Mastercam to handle complicated tool vectors and rotational movements (IJK coordinates). On the opposite, 3-axis programming uses basic G-code with linear XYZ coordinates which is suitable for entry level operators.
Unlike 3–axis machines which need simple workpiece fixturing, 5–axis machines have far more complicated setup procedures because of simultaneous axis control as well as collision detection needs.
Applications and Industries for 3-Axis and 5-Axis CNC Machining
Both 3–axis and 5–axis CNC machines are used in different industrial areas for particular purposes. Now we will cover them one by one.
3–Axis CNC Machining
Automotive

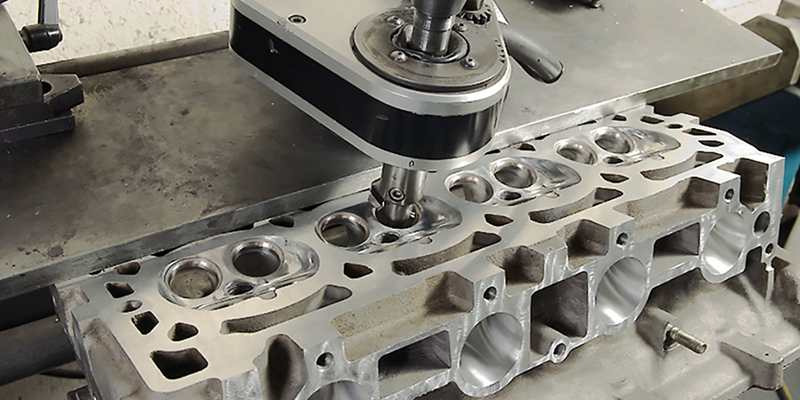

3–axis CNC machines are designed for making important vehicle parts like starter motors, gearboxes, drive axles and cylinder heads.
Consumer Items
Smartphone housings, PCB parts and casings of electronic devices are manufactured by 3-axis CNC machines. Besides that, these machines can also create decorative elements with precise surface finishes, furniture parts and also metal molds for rubber soles.
Woodworking
For furniture manufacturing through intricate carving, precise shaping and detailed cutting, 3-axis CNC routers are great. They also make decorative panels, custom cabinetry and architectural elements with constant surface finishes.
Aerospace
A 3-axis CNC machine can easily make big components of aerospace sector such as motor housings, fuel pumps and wing ribs which need simple geometries and greater MRR.
5-Axis CNC Machining
Medical
5-axis CNC machines are used to manufacture medical products that need very high precision such as orthopedic implants, dental implants, surgical implants and complex surgical tools made from biocompatible materials.
Aerospace
5-axis CNC machines can produce important aircraft parts such as engine rotors, fuselage sections, wing structures and turbine blades with precision of 4 microns.
Defense
5-axis CNC machines produce very significant military components including parts for the submarine, stealth equipment, smart weapons as well as radar systems and high-performance engine parts.
Molds and Tooling
5-axis CNC machines can make complicated mold cavities and die components with intricate surface contours and deep pockets. It facilitates one setup manufacturing of stamping dies and injection molds.
Advantages and Disadvantages of 3-Axis and 5-Axis CNC Machining
| Aspect | 3-Axis CNC Machining | 5-Axis CNC Machining |
|---|---|---|
| Cost | Has lesser initial as well as maintenance costs. | Is costly because of added complexity and technology. |
| Easy to Use | Can be operated easily and needs less maintenance because of one or two moving parts. | Requires particular skills and training for operation and programming. |
| Setup Time | Multiple setups and repositioning are needed for more complex parts. So setup time is longer and most of the time causes potential errors. | Decreases setup time by allowing for multi angle cuts in a single setup to make the complete process simple and easy. |
| Suitability for Complicated Parts | Face difficulty during machining complex shapes as they require a number of setups and the part needs to be positioned differently which increases the total processing time. | Are outstanding for multi directional cuts and complex shapes. |
| Surface Finish | Gives less fine surface finishes on intricate designs and might need additional post-processing steps. | Produces better surface finishes for complex parts due to simultaneous multi-angle cutting which minimizes the need for further finishing processes. |
Conclusion
3–axis or 5–axis CNC machining? The right choice ultimately depends on production volume, precision needs and part complexity. 3–axis machines are best for simple parts because of their lower costs whereas 5–axis machines give outstanding accuracy for complicated shapes or designs in demanding industries.
If you need any type of CNC machining services whether 3–axis or 5–axis, then RICHCONN is best option. You can contact us at any time to discuss your particular requirements.
FAQs
What are some specific features of a 5-axis CNC machine that make it ideal for aerospace components?
5-axis machines allow continuous multi directional cutting with shorter tools to keep tight tolerances and decrease vibration.
What is the difference between the finishing of a 3-axis machined part and a 5-axis machined part?
5-axis machines produce better surface finish through shorter cutting tools and better tool orientation. But 3-axis machines need more setups which can cause alignment marks and irregularity in surface quality.
Where to find 3-axis and 5-axis machining service providers?
You can contact specialized CNC service providers like RICHCONN who provide services for both technologies. We assure components meet industry certifications and quality management systems for your particular industry needs.
