Precision is very important in engineering to successfully manufacture and assemble parts. Two crucial concepts that make sure proper functioning and fitting of parts are tolerance and allowance.
Today we’ll see what tolerance and allowance are, how they get used in different industries and their different types. We’ll also look at differences between them, how they influence production quality and design and why they matter in engineering work.
What is Tolerance?
Engineering tolerance defines the acceptable range of variation from a specified dimension during manufacturing. It tells you that a part can deviate from its basic measurements this much without considerable effect on its functionality. For example, a metal rod has a diameter of 20mm and its tolerance is ±0.1mm. This tolerance range means that the rod can be of diameter between 9.9mm and 10.1mm. And this variation will not have much impact on the rod’s quality.
What is Allowance?
The intentional difference in sizes of two mating parts is called allowance. Engineers deliberately create this overlap or gap to guarantee the right function and fit in mechanical units. For example, in the manufacturing of bearing for an axle, a small gap is usually left that can accommodate lubricant and permit smooth rotation. This planned spacing performs a very important role in making sure that components work together effectively in different mechanical systems.

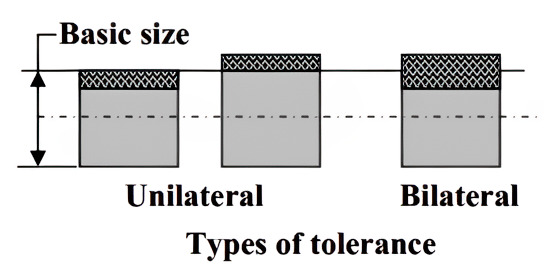

Types of Tolerances
Tolerances come in two main forms: unilateral and bilateral.
Unilateral Tolerance
This type of tolerance permits variation in a single direction from the basic size, either positive or negative. For example a hole with a basic size of 20 mm might have a unilateral tolerance ranging from 19.85 mm to 20 mm. Engineers mostly use this type of tolerance for strict control of dimensions in precision parts.
Bilateral Tolerance
Bilateral tolerance, on the other hand, gives variation in both directions from the basic size. For a part that measures 20 mm, the bilateral tolerance might permit dimensions between 19.8 mm and 20.1 mm. High-volume production mostly takes advantage of this tolerance type.
Tolerancing Strategies in Engineering
When specifying tolerances on technical drawings, engineers usually depend on two main strategies that are plus-minus tolerances and direct limit tolerances.

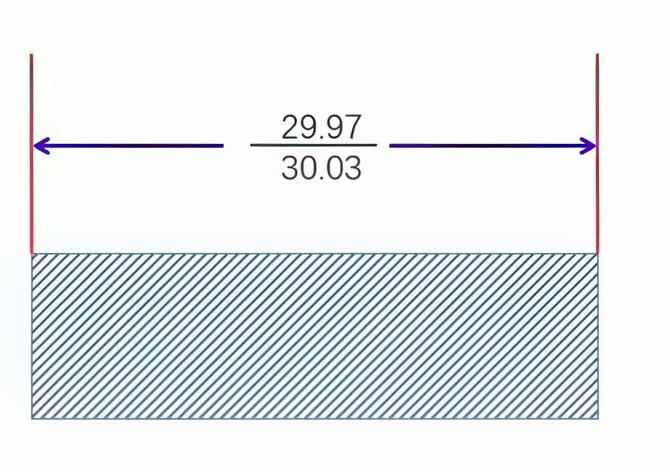

Direct Limit Tolerances
This strategy tells about the minimum and maximum allowed sizes on the drawing. You might see a part specified as 29.97 – 30.03 mm which clearly defines its acceptable size range. This strategy saves a lot of space on drawings but it doesn’t explicitly show the base dimension.

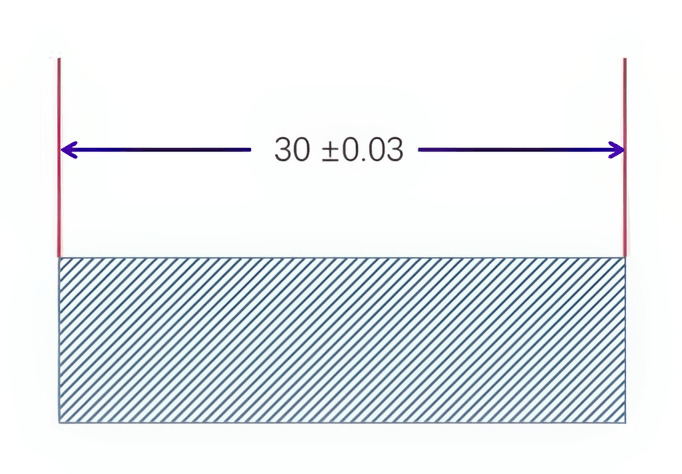

Plus and Minus Tolerances
Plus and minus tolerances use a basic size with variations that are denoted by ± symbols. For example, 30 mm ±0.03 shows that the part can range between 29.97 and 30.03 mm. This tolerance strategy gets used a lot as it simplifies calculations and is easy to understand. It can make drawings appear more crowded but it clearly tells about both allowed deviations and the target size.
Types of Allowances

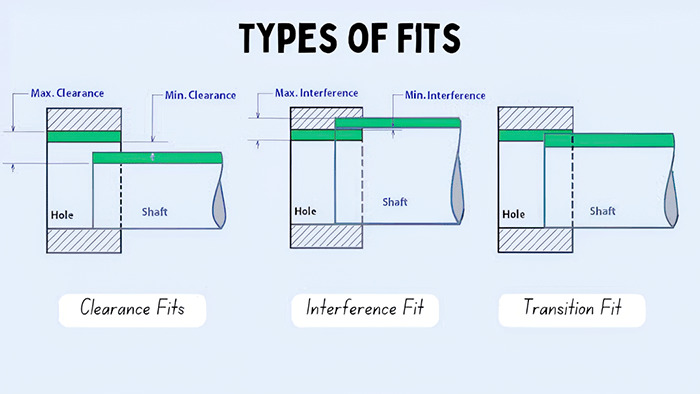

Clearance fit, transition fit and interference fit are the three main allowance types.
Clearance Fit
A clearance fit intentionally creates space between mating components which facilitates free movement. You’ll find this fit in piston-cylinder units, door hinges, bolts and nuts. Car axle bearings also have a clearance fit that makes sure of minimal friction and smooth rotation.
Interference Fit
In Interference fit size of one part is usually kept slightly larger than its mating space. This results in a tight connection. This type of fit usually needs particular assembly technique or force. Railway wheel press fitted on axle and press-fitted bearings are common examples that have these interference fits. Engineers generally choose this method for parts that must remain strongly connected with each other.
Transition Fit
Providing multifunctionality, transition fits give either interference or slight clearance depending on the actual component dimensions. This adaptable fit balances stability with simple assembly. Coupling rings, shaft-key units and gear-shaft connections mostly have transition fits. This fit can also be seen in piston-cylinder arrangements in engine where it provides necessary movement as well as perfect sealing.
Importance of Allowance and Tolerance in Engineering
Allowance and tolerance are very important in manufacturing and engineering design. Using them correctly guarantees efficient production, good product quality and dependable performance.
Mass Production
Allowances and tolerances are super important in modern mass production. They help make sure that parts can be made uniformly and rapidly. When manufacturers know about a part’s acceptable size, they will not waste time in measuring each and every part and it can speed up the production. This will save a lot of time and money.
Functional Design and Assembly
Tolerances and allowances are very important for component functionality and compatibility. For example, in a car axle the right allowance assures smooth fit within its bearing. Too much space will cause wobbling and insufficient clearance will lead to sticking. Well-defined tolerances also guarantee that parts from different production batches work seamlessly together.
Machining Processes and Material
Machined parts generally require stricter tolerances than cast components. Material choice also influences allowance requirements because thermal expansion rates differ among different substances. Engineers must attempt to match the practical manufacturing constraints with the need for accuracy. Overly strict tolerances increase production costs. On the other hand, very loose tolerances can compromise product safety and quality.
Main Differences between Tolerance and Allowance
Planned vs. Unplanned Deviations
Tolerance is the unplanned deviation that can happen in a part’s manufacturing and allowance is the planned variation in a part’s design. Allowances is calculated and an intentional difference of dimension is kept in the parts to create a proper fit. On the other side, tolerances accommodate unavoidable imperfections that happens during manufacturing.
Application in Part Design vs. Assembly
Tolerances are specified for every single part dimensions throughout engineering drawings. Allowances, however, only come into play where components need to fit together.
Functional Impact
Quality standards depend on tolerances to keep parts within allowed limits. In contrast, allowances dictate how components will interact with each other. This directly determines assembly performance of parts. The right allowance selection makes sure that components remain fixed or move as intended.
Calculation
To find tolerance, engineers measure the gap between minimum and maximum allowable dimensions for a single part. Whereas, in the process of finding allowance the difference between minimum hole size and maximum shaft size (two parts that will fit into one another during assembly) is calculated.
| Parameter | Tolerance | Allowance |
|---|---|---|
| Planned vs. Unplanned Deviations | Planned gap | Unplanned gap |
| Application in Part Design vs. Assembly | Tolerance is specified in design for every part | Only needed for parts that need to fit together |
| Function | To keep parts within allowed limits | dictate how two mating components interact with each other |
| Calculation | Calculate gap between minimum and maximum allowable dimension | Find difference of sizes between two such parts that will fit into one another during assembly |
| Purpose | For maintaining a consistent part’s quality | Needed so that two parts can fit together firmly |
Applications of Tolerance and Allowance
Allowance and tolerances have a necessary role in parts manufacturing in different industrial sectors, including:
Automotive Industry
In automobile manufacturing, exact allowances and tolerances are vital for engine parts because here components must fit exactly to function properly. To avoid wear and guarantee smooth running, engine bearings, pistons and transmission gears need precise measurements.
Aerospace Engineering
Manufacturing aircraft parts requires very high accuracy level. Important parts such as landing gear structure and blades of turbine are made with strict tolerances so that they can comply with the safety requirements. Here even the slightest variability from base size could risk the safety of flight.
Electronics Manufacturing
Electrical parts like connectors and circuit boards need accurate fits. Manufacturers use micro level tolerances for avoiding signal distortion and for guaranteeing proper connection with electricity. Computers and mobiles also need exact placement of their parts to function properly.
Heavy Machinery and Construction
Construction fields generally allow higher tolerances versus other fields but still need special attention toward allowances. Mechanical systems, concrete structures and steel beams require optimum spacing for movement and thermal growth. Heavy machinery like excavators and cranes need accurate fits for their moving parts to operate efficiently and safely.
Conclusion
Tolerance controls part’s manufacturing variability and allowance makes sure that two parts fit together well. Together, these two allow accurate assembly, proficient manufacturing and dependable performance in different industrial sectors.
FAQ’s
Can a single part have both tolerance and allowance in its design specifications?
Yes, a component can have allowance as well as tolerance. Tolerance in part design governs the manufacturing preciseness of its dimensions and the allowance in the part dictates how this part will interact with other parts when they come together during assembly.
What are the consequences of not applying the correct tolerances in high-precision industries?
Incorrect tolerances can cause decreased performance, poorly fit parts, higher production expenses and premature part’s failure. In medical and aerospace fields errors like these can cause systems to malfunction which can lead to safety concerns.
How do tolerances and allowances affect the assembly and functionality of automotive components?
For automotive manufacturing, these specifications make sure of proper function and fit of parts like bearings and engine components. Accurate allowances and tolerances help to avoid problems such as vibration, too much wear and disturbing noise. They also guarantee flawless functioning and long life of parts.
How do material properties decide a part’s tolerance range?
Material characteristics greatly affect the choice of tolerance range. Materials shrink and expand differently as temperatures change, have different machinability and wear differently from others with time. Engineers need to think about these characteristics when choosing tolerances. This makes sure that parts work right, throughout their whole lifetime.
