Many people wonder if a jig is just another name for a fixture. This confusion is very common. However these two devices serve different purposes. In this blog post you will learn the key differences between them which will definitely help you choose the right tool for your needs.
Jigs vs Fixtures: The Real Difference
What Is a Jig?
A jig holds the workpiece in place and also guides the cutting tool to a precise spot. It acts like a template. This assures that the tool performs the same action every time. As a result you get high accuracy and repeatability.
What Is a Fixture?

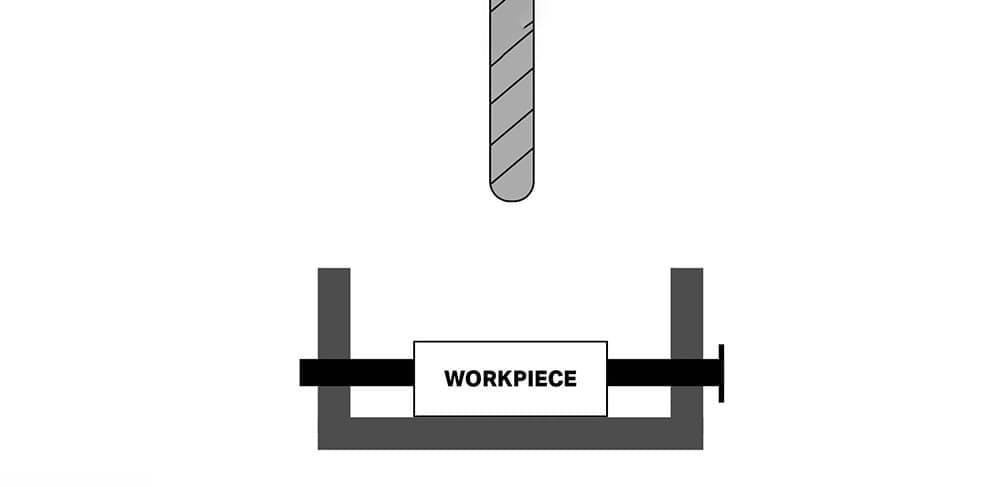

A fixture is a device that clamps, supports and positions the workpiece securely during an operation. Unlike a jig, it does not guide the tool. Its main job is to keep the workpiece stable, particularly for heavy duty tasks.
Comparative Differences Between Jigs & Fixtures
Jigs and fixtures both improve productivity. However they work in different ways.
1. Guidance vs Holding
The main job of a jig is to guide the cutting tool to the right spot on the workpiece. A fixture, on the other hand, holds and supports the part so it stays still during the process.
2. Contact with Tooling
Jigs touch the cutting tool directly to control its movement. Fixtures keep the workpiece secure but do not make contact with the tool during machining.
3. Complexity & Setup
Jigs are mostly lighter and simpler to set up. Operators can handle them with ease. Their straightforward design means that less specialized training is needed.
Fixtures are different. They are heavier and built to handle strong cutting forces and vibration. Operators must clamp them tightly to the machine. This creates a rigid and stable support for the workpiece.
4. Typical Applications
Jigs guide the tool during use. They work best for holes‐making tasks like drilling, boring, reaming as well as tapping. These operations need precise tool placement.
Conversely, fixtures focus on holding the workpiece securely. They are necessary for milling, turning and also grinding. In these processes it is necessary to keep the workpiece completely stable.
5. Machinery & Automation Integration
Jigs are well suited for manual precision work as well as for portable jobs in small production batches. They fit handheld tools and let you quickly perform setup changes.
In contrast, fixtures make automation possible in CNC machining centers and assembly lines. They assure consistent positioning. Automotive factories rely on fixtures for robotic welding and assembly.
Comparison Table
| Feature | Jigs | Fixtures |
|---|---|---|
| Primary Function | Guide cutting tools | Hold and locate workpieces |
| Tool Contact | Direct contact with tools | No contact with tools |
| Weight | Lighter construction | Heavier and more robust |
| Mounting | Can be handheld | Bolted to machine table |
| Operations | Drilling, boring, reaming | Milling, grinding, turning |
Types of Jigs & Fixtures
Manufacturers use many specialized forms of jigs and fixtures. Every type serves a particular manufacturing operation
Varieties of Jigs
Template / Plate Jigs

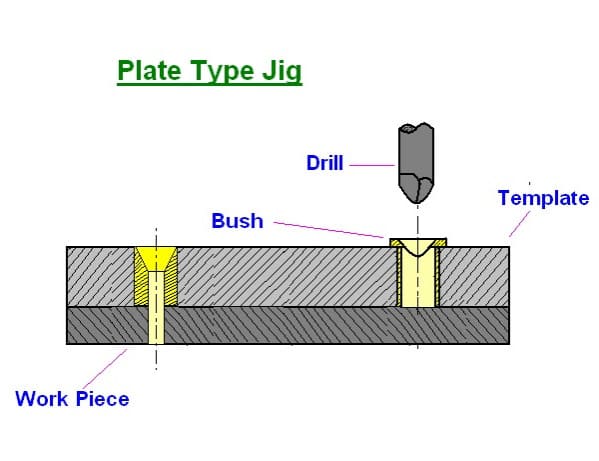

Template jigs guide drilling by using fixed holes. Plate jigs build on this idea and add drill bushes. These bushes help achieve higher accuracy, particularly with larger workpieces.
Angle Plate / Box / Leaf / Channel / Ring Jigs
- Angle plate jigs hold parts at set angles. This setup lets users drill side surfaces without moving the part which keeps angular accuracy high.

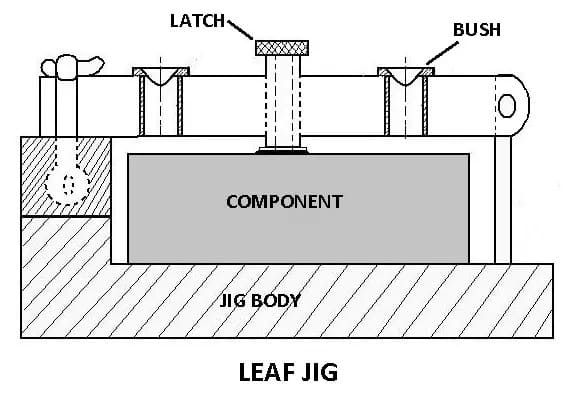

- Leaf jigs use hinged plates. These plates make loading quick, particularly for thin or flexible parts.
- Box jigs surround the workpiece. With this design, users can machine multiple faces in one setup.
- Channel jigs have a U shaped form. They guide drilling from three directions.
- Ring jigs work best for round parts that have flanges.

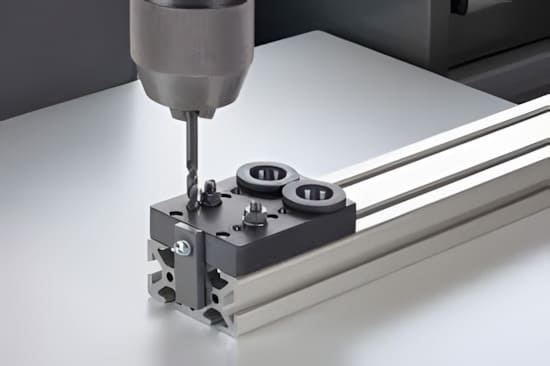

Drill & Boring Jigs
Drill jigs make sure holes are placed the same way every time. Boring jigs hold parts steady while enlarging holes. They keep the tool aligned for precise results.
Universal & Custom Jigs
Universal jigs can change their shape to fit different parts. This flexibility supports a range of production needs. Custom jigs, on the other hand, are made for a single task or workpiece and solve particular problems.

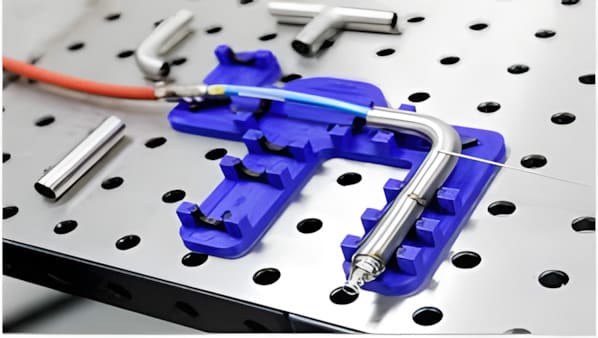

Emerging / Agile Tooling Jigs
Agile jigs made with 3D printing or CNC machines can cut lead times and costs by as much as 90%. These jigs adapt quickly which helps with rapid prototyping and complicated manufacturing.
Varieties of Fixtures

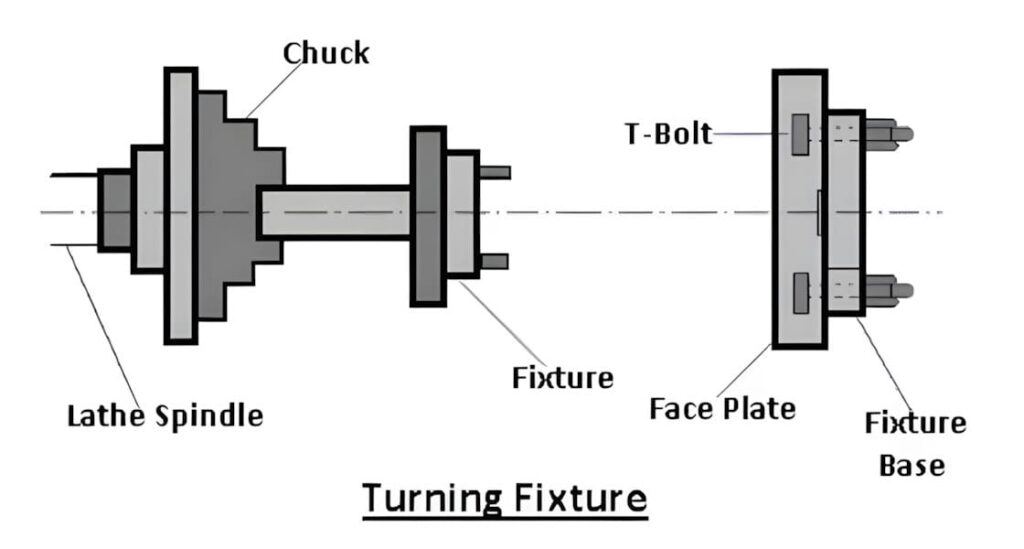

Drilling, Milling & Lathe Fixtures
Each fixture type matches a particular machine.
- Milling fixtures can withstand heavy cutting forces.
- Drilling fixtures keep holes accurate and in the right place.
- Lathe fixtures grip parts as they spin. This lets you make precise cylindrical shapes.

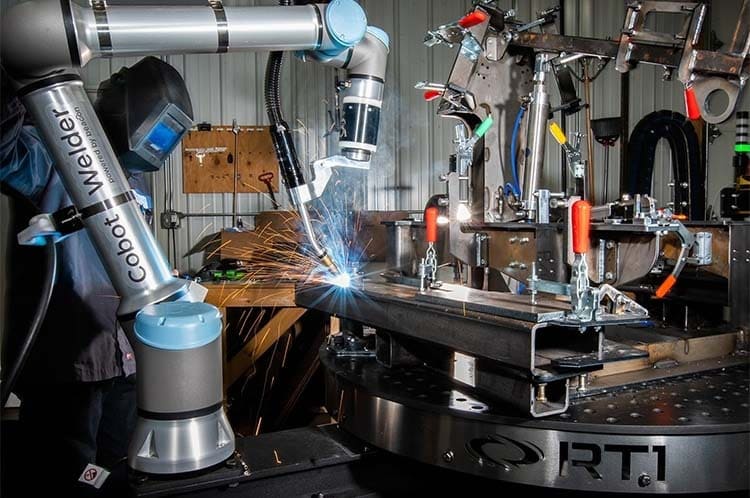

Welding Fixtures
Welding fixtures keep metal parts aligned during assembly. They reduce warping from heat and give welders clear access.
At RICHCONN, our welding fixtures use adjustable shims, precision tabs as well as flatness checks. These features help maintain assembly quality for later fabrication steps.

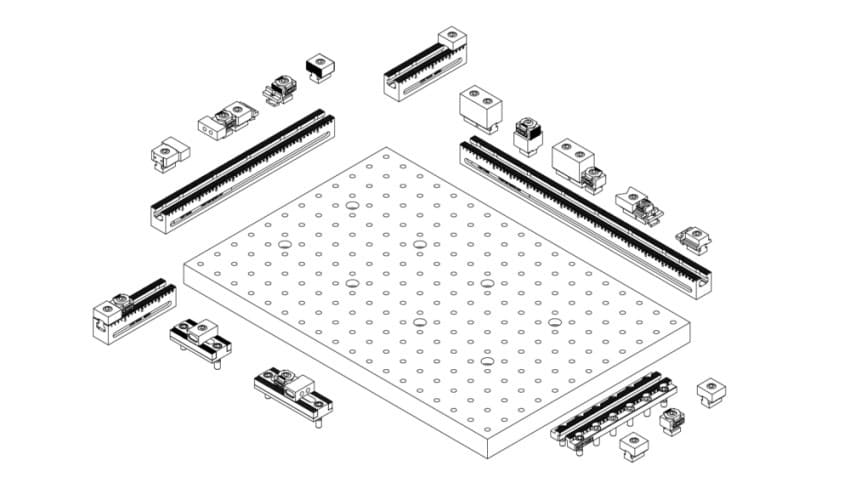

Modular Fixtures
Modular fixtures use precise, interchangeable parts to create flexible workholding setups. These systems work well for prototypes or small batches. They cost less and save time compared to tools made for only one purpose.
Design Considerations & Manufacturing Techniques
Careful design and modern manufacturing methods form the foundation of effective jigs and fixtures. To keep your tooling accurate, efficient as well as affordable, focus on these important factors.
Key Design Principles
A good jig or fixture design prevents incorrect loading by being fail‐safe. It must also have enough rigidity to withstand machining forces while maintaining precision.
Make handling simple to improve operator safety and boost productivity. Allow enough clearance for part variations. Moreover use the 3‐2‐1 principle to position the workpiece accurately without over‐constraining it.
Material Selection & Production Methods
Choose materials and production methods that match the needs of your application.
Hardened steels provide long lasting durability. Aluminum is lightweight and easy to machine. Plastics work well for surfaces that should not mar the part.
For tooling, CNC machining delivers high precision. Casting is better for complicated shapes. Each method offers a different balance of cost, lifespan and speed.
If you are unsure which materials or production methods best fit your workholding needs, RICHCONN’s engineering team can help by sharing our expertise.
Agile Tooling & Modern Trends
Manufacturers now use agile tooling more often. Additive manufacturing makes it possible to produce custom jigs and fixtures quickly, sometimes in just a few hours. This approach reduces both costs and lead times, particularly for prototypes and small, specialized production runs.
Which Option Should I Select?
The right choice depends on your particular operation.
Use jigs for repeated drilling, tapping or reaming tasks that need tool guidance. Select fixtures when you need stable workholding for milling, grinding or welding.
Jigs help save setup time in high volume jobs. But for complicated parts with many angles, fixtures give better support.
To Sum Up
Manufacturing processes rely on jigs and fixtures to achieve precise results. Jigs help direct cutting tools for accurate manufacturing while fixtures keep workpieces steady and secure. Using these tools properly leads to proficient operations and high quality products.
If you need custom jigs and fixtures tailored to your needs, reach out to Richconn for expert CNC machining services. You can contact us anytime.
