The Ultimate Guide to Thread Machining: Techniques, Types, and Tools

Efficient thread machining is very important for making high-quality parts. It facilitates secure and precise connections in many applications in aerospace and automotive. Knowing these techniques will largely increase your product’s performance and productivity.

This all-inclusive guide gives a full overview of thread machining. We will go through different thread types, machining methods, material selection and tools.

What is Thread Machining?

Thread machining is a precision manufacturing process that makes helical grooves on tapered or cylindrical surfaces. It removes material to make internal or external threads using specialized cutting tools. This subtractive method is important for making fasteners like nuts, screws and bolts. Thread machining allows precise motion control and secure fastening across industries.

Types of Threads

Thread machining includes different thread forms. Every thread type is designed for particular uses. Some common threads are:

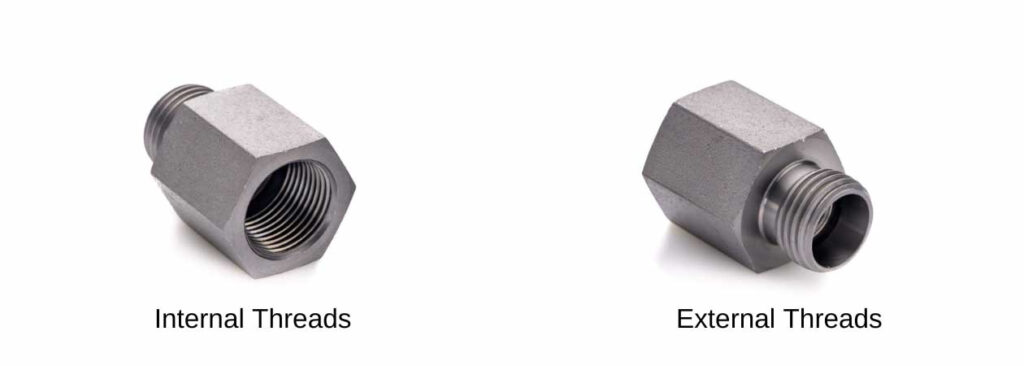

Internal vs. External Threads

External threads are usually machined on outer surfaces of cylindrical or tapered parts like screws and bolts. They are made from using lathes or by die cutting methods. On the other hand, internal threads are machined inside cavities or holes like in tapped and nut holes. These are created using taps, single-tip tools or thread mills. External threads are normally easier to make and inspect but internal threads provide better compact design and protection.

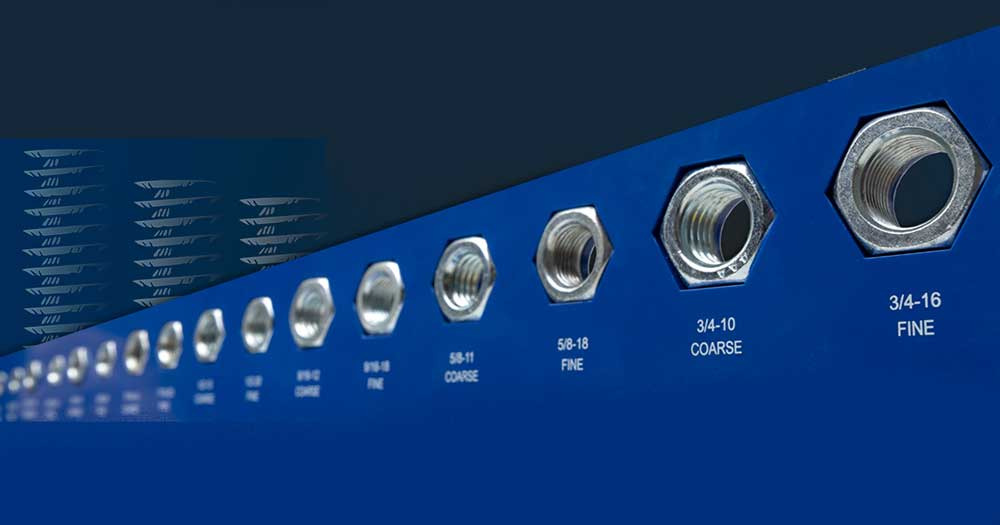

Common Thread Forms

• Unified Thread Standard (UTS): The UTS system is a standardized threading that is broadly used in North America. It includes the coarse (UNC) and fine (UNF) variants with a 60° thread angle. UTS gives strength and adaptability which makes it an appropriate choice for consumer goods, general engineering and automotive operations.
• Metric Threads: Based on the metric system, it is an internationally recognized thread system. Metric threads provide global interchangeability and are identified by diameter (mm) and pitch (e.g. M10x1.5). These threads are mostly used in global trade, precision engineering and auto manufacturing to guarantee compatibility across borders.
• British Standard Threads (BSF, BSP): BSF and BSP are two distinct British thread standards. BSF threads have thread sizes of 1/8” to 1/12” and a 55° angle with rounded crests and roots, while BSP threads have a 55° angle and 1/16” taper per inch. BSF is used in older British machinery. Whereas BSP are preferred in hydraulic and plumbing systems worldwide.
• Acme Threads: Acme or trapezoidal threads have a 29° angle and trapezoidal profile which is designed for heavy loads and power transmission. Stronger than V-threads, acme threads are mostly used in CNC systems, lead screws and jacks. These threads have better performance, wear resistance and load capacity in dirty environments.
• Square Threads: With their square cross-section profile and 90° angle, square threads provide low friction and high proficiency. They are best for power transmission in machine vises, tools and jacks where maximum power transfer and lower friction are important.

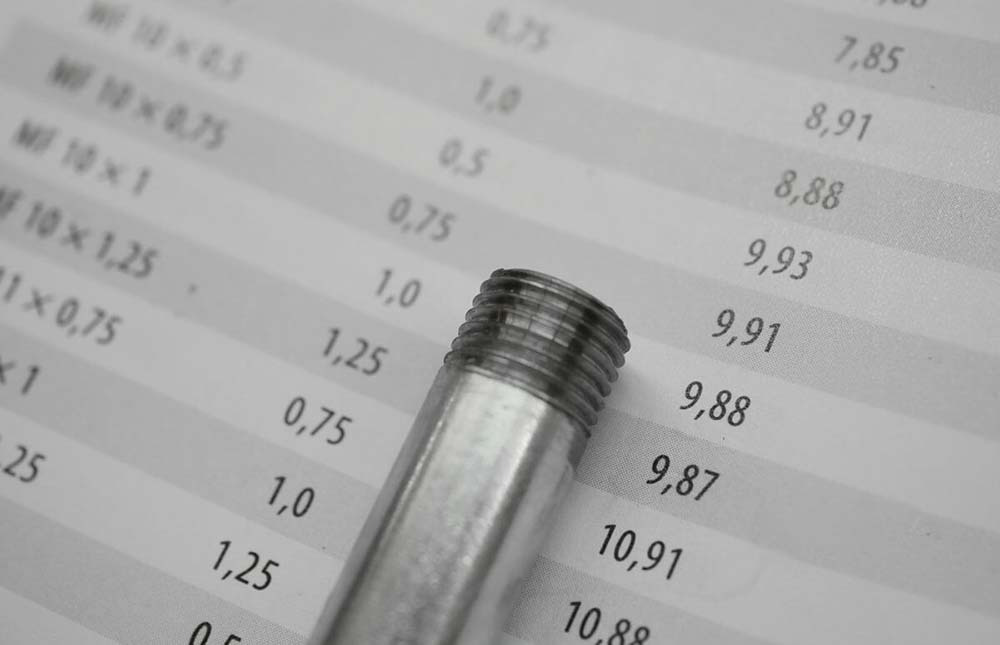

Thread Classification

Thread classification refers to the system of categorizing threads by their specifications and characteristics like:

External Threads

These threads are classified on their pitch and major diameter. The major diameter is largest diameter of thread that is measured from crest to crest. For imperial threads, common major diameters range from 0.06′′ to 6′′ and 1mm to 100mm for metric threads. Whereas pitch is the distance between two nearby thread crests. It varies from fine (e.g. 0.5 mm) to coarse (e.g. 6 mm) based on medium or high stress applications. Finer pitches have better precision, while coarser pitches give more strength.

Internal Threads

Internal threads are categorized by tap drill size which decides the minor diameter. This important detail gives strength and guarantees proper thread fit. For metric threads, common tap sizes comes in variety of ranges like 5mm, 6.8mm and 8.5mm.

Thread Standard	Tap Drill Size (mm)
Metric M10x1.5	8.5
Metric M8x1.25	6.8
Metric M6x1	5.0

Thread Machining Techniques

The thread machining process uses multiple techniques to cut accurate spiral grooves. Here are some main methods:

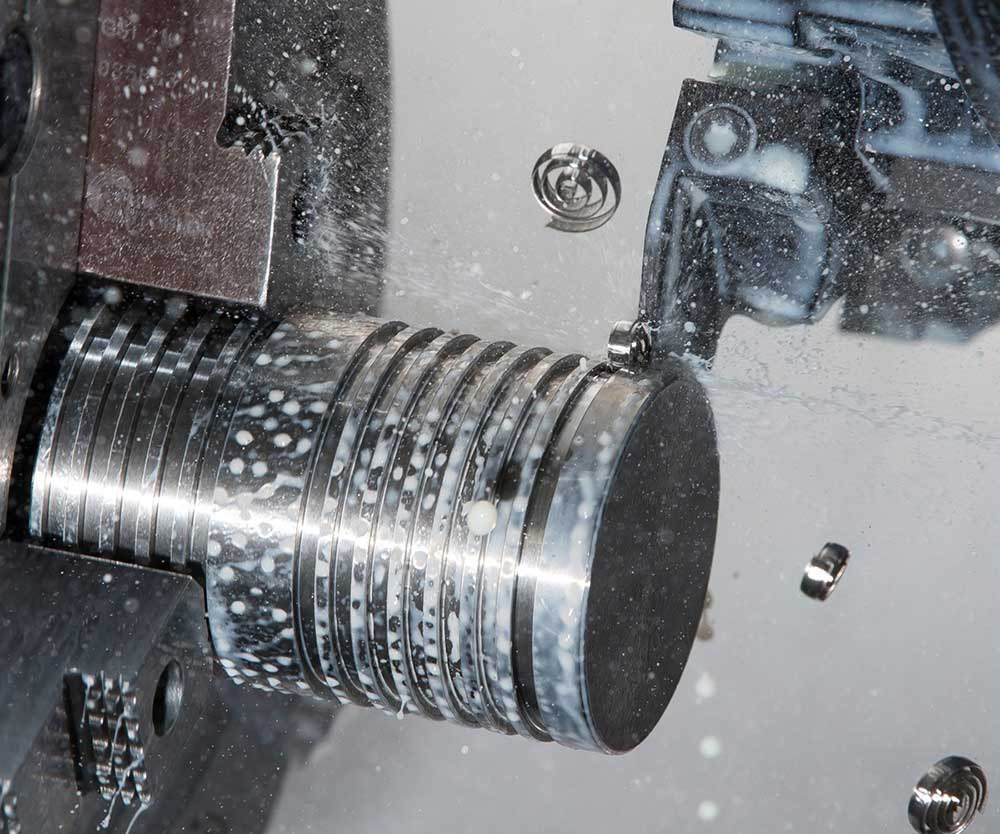

Turning

Thread turning that is normally performed on lathes or CNC machines, makes precise external threads by synchronizing tool’s feed speed with part rotation. This method is great for making constant, long threads on cylindrical components which provides outstanding surface finish quality and high accuracy.

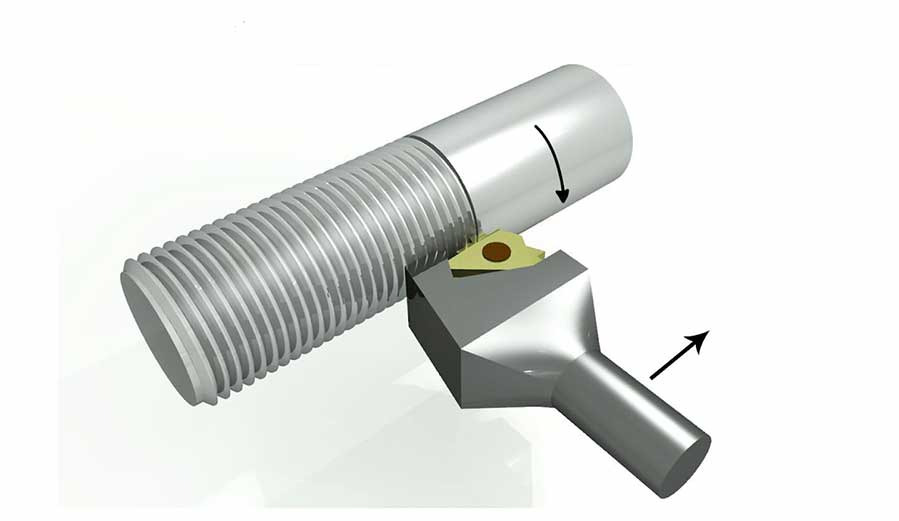

Single-Point Threading

In single-point threading, a single solitary cutting tool is used on lathes to create threads. The tool moves linearly along the rotating workpiece, coordinating spindle speed and feed rate to give accurate thread shape and pitch. This method is appropriate for small production runs and custom threads.

Threading on CNC Machines

CNC threading uses computer-controlled lathes for accurate thread making. It uses circular interpolation to synchronize tool movement with workpiece rotation. The process is preferred for producing multi-start threads, complicated thread profiles and tapered threads with consistency and high accuracy.

Milling

The process involves cutting threads with a rotating milling cutter with multiple teeth that moves axially along the workpiece to remove material and form the thread. This technique is best for roughing operations, large threads and coarse pitches. It can also be used to make both internal and external threads.

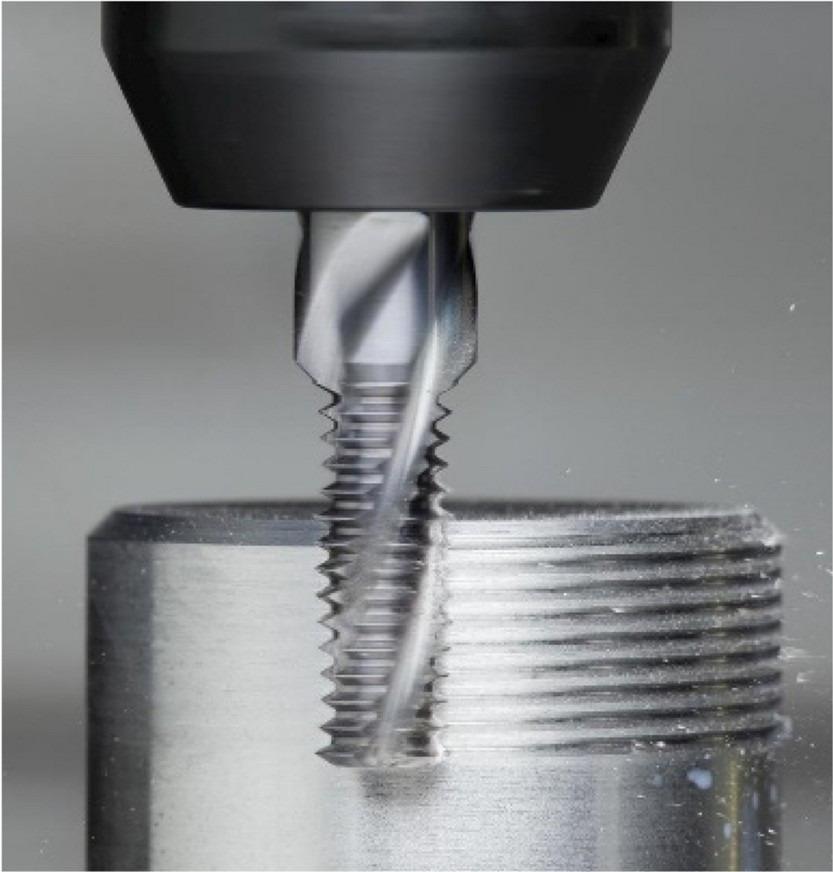

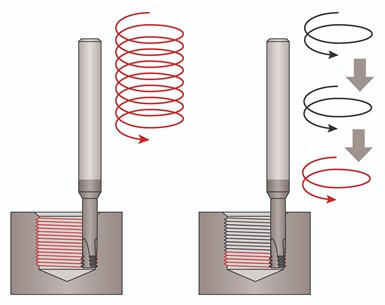

Thread Milling

Thread milling uses particular cutters to produce accurate threads through helical interpolation. This adaptable method makes both external and internal threads on different sizes and materials. It gives extraordinary flexibility in dimensions, thread quality and is preferred for machining hard materials like titanium and hardened steel.

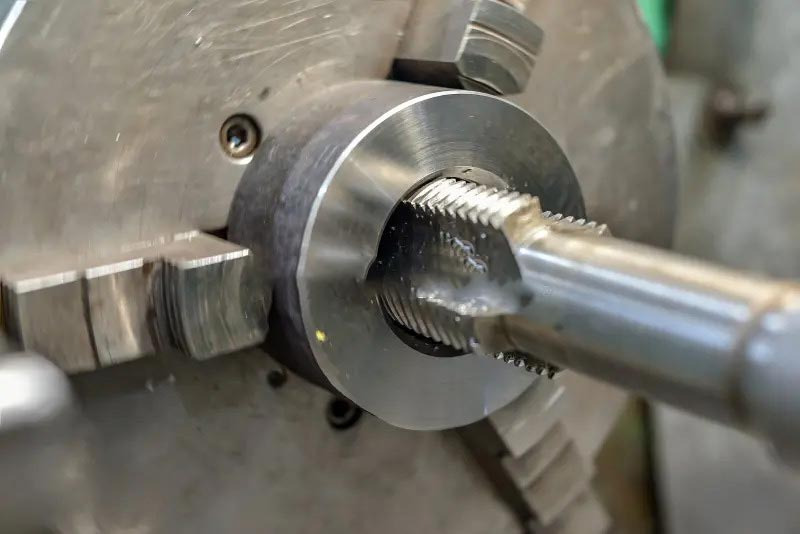

Tapping

This method makes internal threads using a purpose-built cutting tool called a tap. It involves rotating the tap into a pre-drilled hole and steadily cutting threads. Tapping is proficient for high volume production and small-diameter holes. The process also guarantees accuracy with optimized cutting parameters, automated tool paths and synchronized spindle speeds for consistent thread quality.

Tap Types and Their Purposes

1. Spiral Point Taps: These taps have a pointed or spiral tip that pushes chips forward. They are used for high-speed tapping and through-holes operations particularly in materials that make short, broken chips.
2. Spiral Flute Taps: They are designed with spiral or flute grooves to erase chips upward. These taps are good for blind holes and for materials that make long, stringy chips. They provide outstanding chip removal in challenging situations.
3. Straight Flute Taps: possess strong, straight parallel grooves on the tap surface. These versatile taps work better in both blind and through holes with short thread depths, particularly in hard materials that need high torque.
4. Tap Drill Size & Hole Prep: Both are important for successful tapping. The right tap drill size guarantees maximum thread strength and engagement. For proper hole preparation, chamfering, perpendicularity and accurate sizing are needed to acquire high quality threads and long tap life.
5. Chip Removal and Coolants: They are important for proficient tapping. Successful chip removal avoids breakage of tap and clogging, while coolants dissipate heat, decrease friction and improve chip evacuation. Together, they can increase tool life, thread quality and facilitate faster cutting speeds.

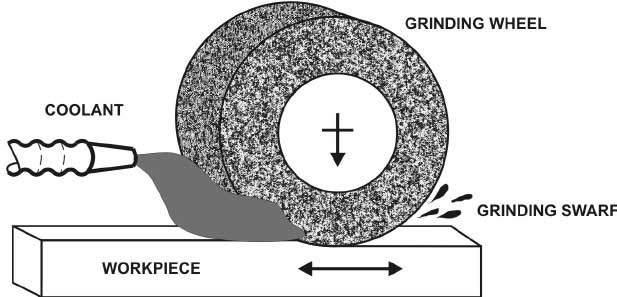

Grinding

Thread grinding uses accurately shaped abrasive wheel to produce threads on hardened metal. It involves coordinating the workpiece rotation with the grinding wheel’s linear movement. As the wheel moves along the axis, it removes material in a helical pattern and slowly forms thread profile. Multiple passes are normally needed to reach the desired thread finish and depth.

Rolling

Thread rolling is a cold forming process that forms metal into threads without material removal. The process starts with a cylindrical workpiece between two rolling dies. As the dies roll, they apply pressure to the workpiece, slowly forming thread profile. The metal flows plastically into the die grooves which produce accurate thread geometry. This continuous process makes the entire thread in one pass.

Tools and Equipment for Thread Machining

Thread machining needs special equipment and tools. Some important machines, cutting tools and measuring instruments used in this manufacturing process are.

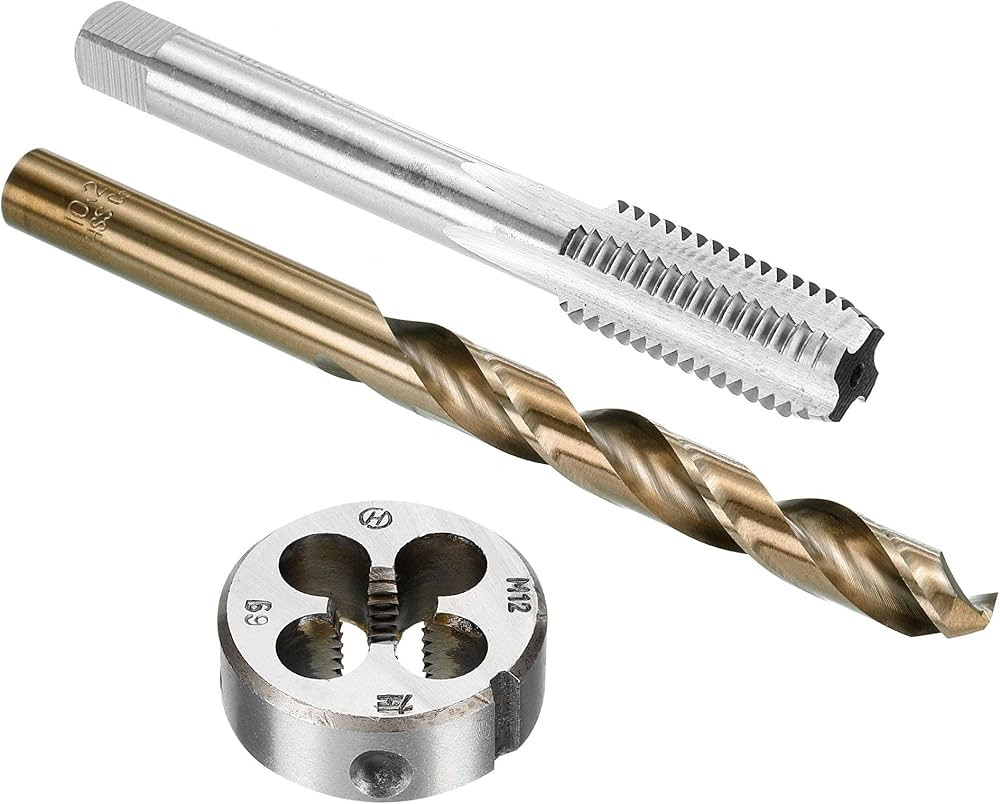

Cutting Tools

Thread machining depends on particular cutting tools like thread mills, taps and dies.

• Taps: spiral flute, straight flute and spiral flute are used for internal threading
• Thread mills: For general purpose threading, single-point and multi-point mills are employed.
• Dies: For external threading on bolts and rods.
• Thread cutting inserts: Ceramic or carbide tips are necessary for high speed machining.

Machining Equipment

Thread machining uses specialized equipment like CNC lathes, milling machines, tapping machines and thread grinders.

• CNC lathes: These are precision machines used for external threading with computer controlled tool paths.
• Thread milling centers: Special machines for making intricate external and internal threads.
• Thread grinding machines: High precision machines appropriate for fine threads and hardened materials.
• Thread rolling machines: These proficient machines are used for mass production of external threads

Measuring Instruments

Thread measurement requires particular tools:

• Thread micrometers: These micrometers are used for measuring pitch diameter with accuracy up to 0.001 mm.
• Thread gauges: Go/no-go gauges for quick fail/pass checks of thread dimensions.
• Optical comparators: They magnify thread profiles for visual inspection against approved prints.
• Coordinate Measuring Machines (CMM): uses high accuracy probes for complicated thread geometries

Materials and Their Impact on Thread Machining

Material properties have a big impact on thread machining. Ductile materials like aluminium need different cutting parameters than brittle materials like cast iron, while hardened steels need slower speeds and particular tooling. Superalloys are also known for work hardening so they need advanced cutting techniques and strong setups. Material selection also impacts thread quality, tool wear and surface finish.

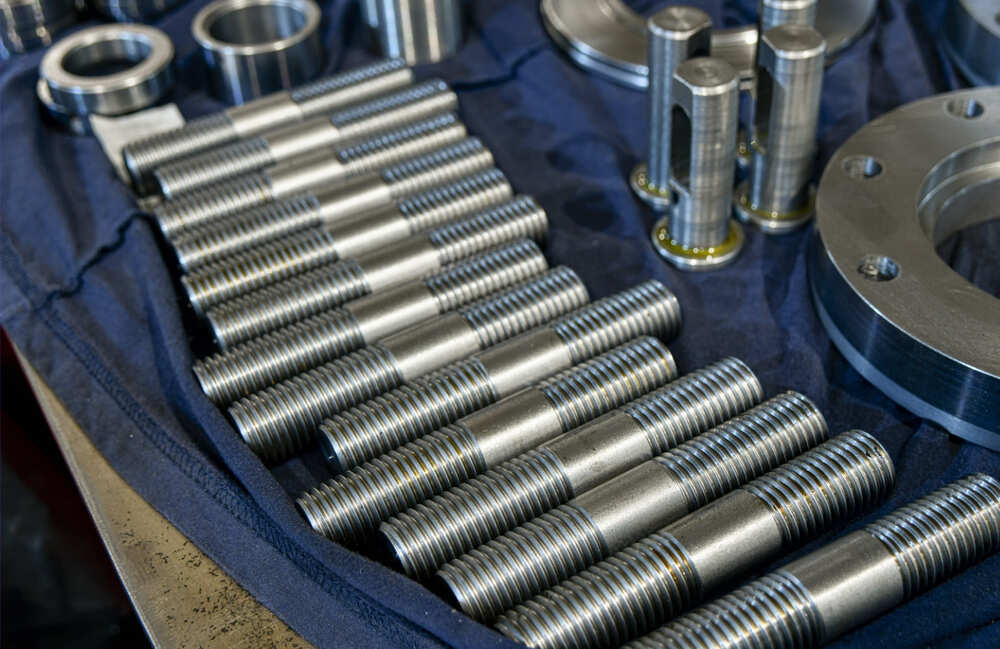

Applications of Thread Machining

Thread machining is used in many industries. We will look at its main uses in some important areas.

Automotive: Thread machining makes accurate threads for chassis parts, cylinder heads and engine blocks. It guarantees secure sealing and fastening in high pressure, high temperature and vibrational conditions.

Aerospace: In aerospace, thread machining is used to create particular fasteners, turbine shafts and structural parts. These components need precise fits to guarantee performance and safety in flight operations.

Construction and Heavy Machinery: This method produces heavy duty fasteners for load carrying components and structural joints. It allows secure connections in bridges, cranes and excavators for stability and stability under heavy loads.

Consumer Products: Precision threads made through machining are important for toys, electronics and appliances. They facilitate repair of everyday items, easy assembly and disassembly to improve product life and user experience.

Challenges and Solutions in Thread Machining

Thread machining is precise but it also faces many challenges. Some of the common challenges and their solutions are:

• Thread accuracy is a major issue as incorrect profile or pitch can cause mating problems. To address this issue, you should take advantage of high precision CNC machines and must calibrate measuring instruments regularly.
• Tool wear in thread machining can happen quickly, particularly in hard materials like Inconel. Coated carbide tools with customized cutting parameters and optimized geometries can keep thread quality and increase tool life.
• Poor chip evacuation mostly causes surface defects and compromises thread quality in thread machining. Using peck drilling cycles for deep holes and proper cutting fluids can manage chip formation and removal.

Conclusion

Thread machining is important process in modern manufacturing that provides multiple ways to produce threads. From traditional methods to modern CNC operations, the industry is evolving constantly. As technology moves forward, thread machining will remain important to produce high performance parts for many industries.

At Richconn, we use the most advanced CNC equipment to machine various metal parts. You can contact us anytime to discuss your project requirements.

FAQs about Thread Machining

1. How do material properties affect thread machining quality?

Thermal conductivity, material hardness and ductility influence surface finish, tool wear and cutting forces. Harder materials need slower speeds and particular tooling, while softer materials can be machined faster.

2. What are the latest advancements in thread machining technology?

Recent innovation includes advanced coating technologies and multi-function CNC machines for cutting, threading tools and inserts. This improves tool life, proficiency and accuracy in thread machining.

3. How does thread milling differ from traditional tapping?

Thread milling uses a rotating cutter to create threads through helical interpolation. It provides multiple thread size options. On the other hand, tapping uses a tap tool that gives speed and simplicity for standard thread sizes.
