Threaded holes are key in manufacturing, they enable precise assembly and tight fastening. This guide covers different types of threaded holes, machining methods, materials, tools and best practices. By getting this knowledge you can optimize your threaded hole machining for better quality and efficiency.
What are Threaded Holes?

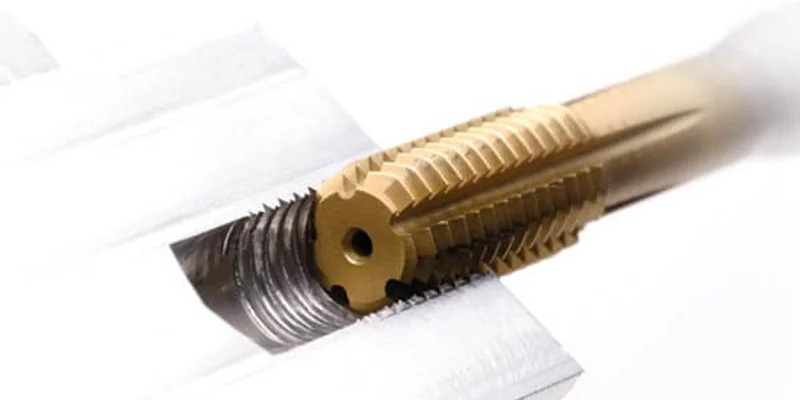

A circular tapped hole is named as a threaded hole. Inside a threaded hole you will find precisely engineered helical grooves cut into the cylindrical cavity walls. These grooves follow profiles that have defined diameters and pitches. This assures tight connections with fasteners like bolts and screws.
Types of Threaded Holes
Manufacturing fields use different types of threaded holes and every hole is designed for its particular purpose. Here’s a breakdown of the main types:

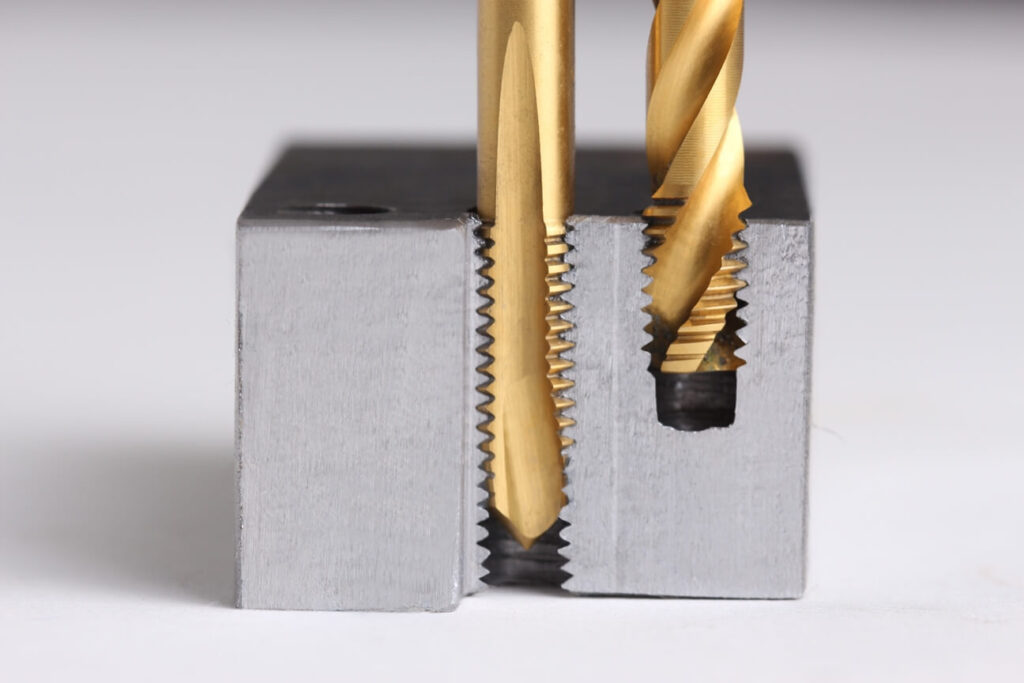

Through Holes
From entry to exit, through holes form a complete passage through the workpiece material. Their threading is uniform in the complete length. They are used when fasteners have to pass from the material. Engineers specify through holes in situations where chip evacuation is a necessity.

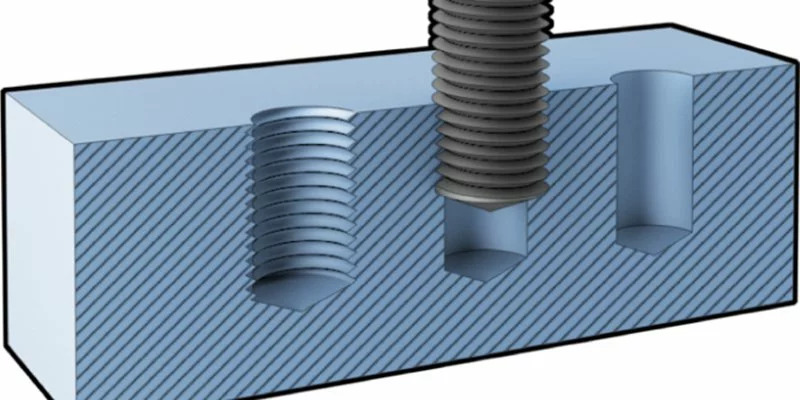

Blind Holes
Unlike through holes, blind holes stop at a predetermined depth in the workpiece. These precisely controlled depths end in conical or flat bottoms. Machinists have to manage chip evacuation and assure thread engagement when threading these holes.

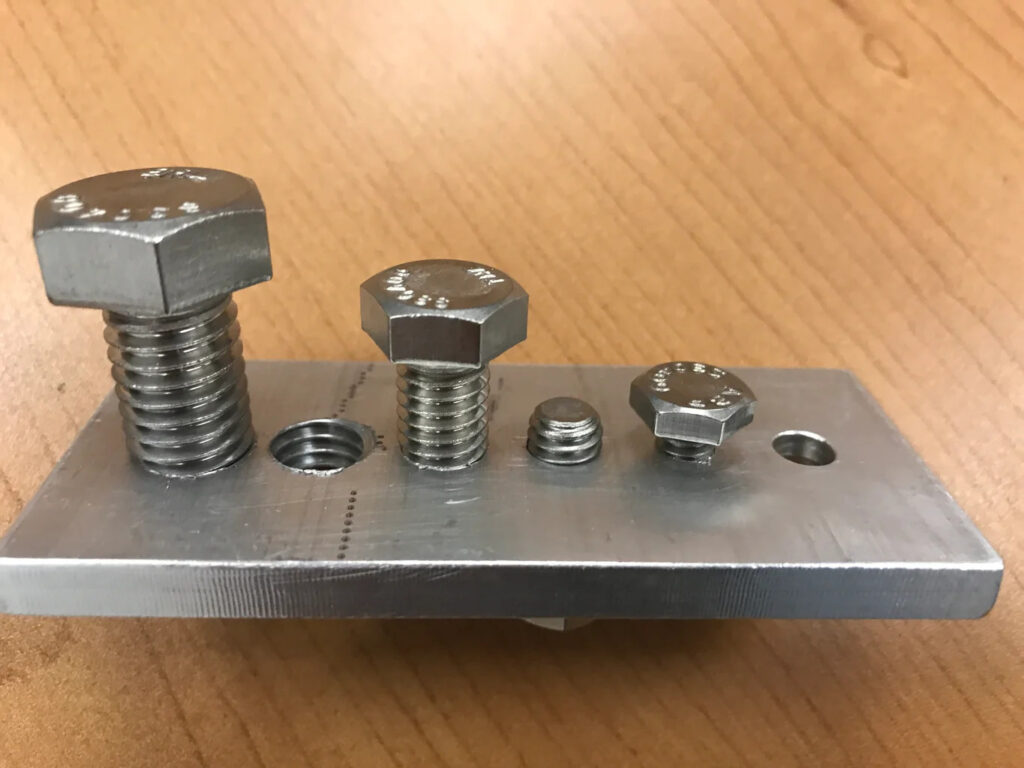

Tapped Holes
In this type, threads are cut into pre-drilled holes with the help of tap tools. Different situations need different tap dimensions and thread pitches. These holes are usual in vehicle parts and other assemblies where you have to disassemble parts time to time.
Threaded Inserts

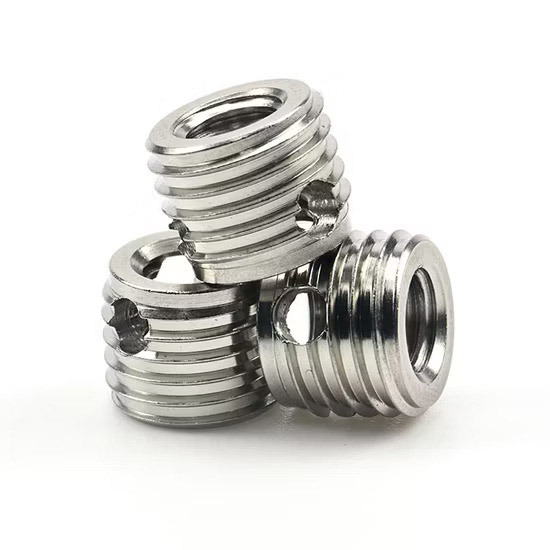

Metal sleeves having threads inside and textured surface outside are named as threaded inserts. Their design resists loosening forces and improves thread durability in soft materials. Aerospace, automotive and medical use these inserts because of their reliable usability during repeated assembly cycles and better load bearing ability.
Helicoil Inserts

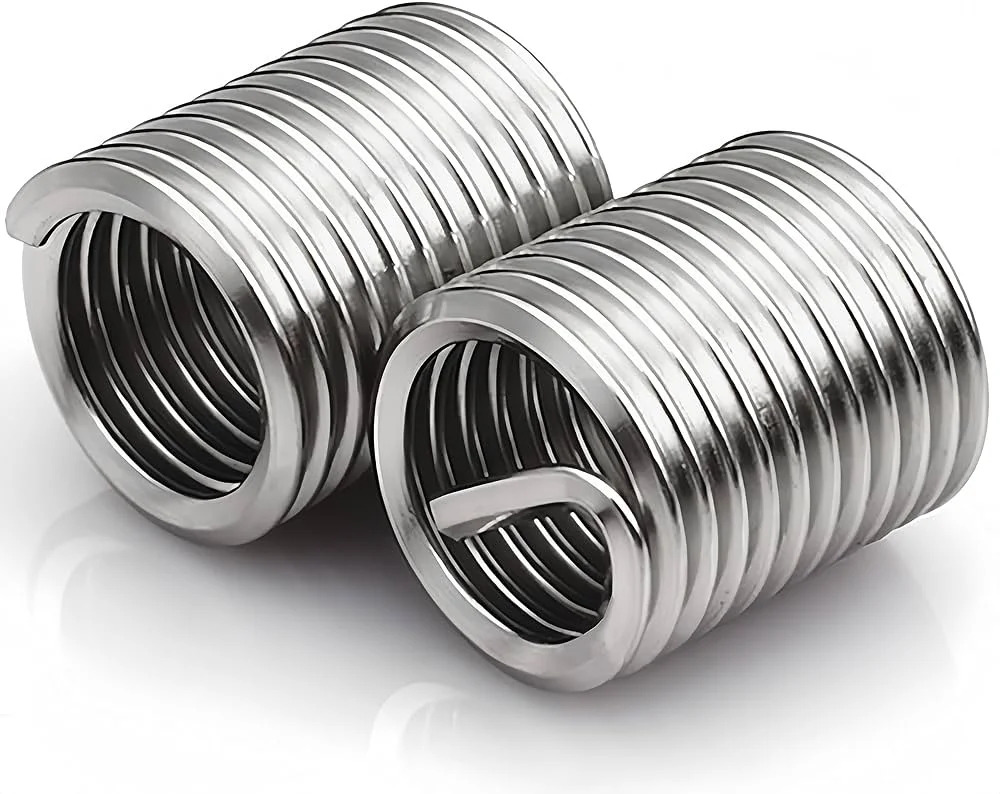

Made from stainless steel wire, helicoil inserts are permanent thread reinforcement. They can keep their integrity in extreme temperatures i.e., of -320 to +800°F and distribute loads equally throughout the thread profile. Their spring type design minimizes stress concentration, particularly in aluminum, plastics and other soft materials.
Machining Methods for Threaded Holes
Different methods are there to make threaded holes and every hole has its own benefits for different uses.

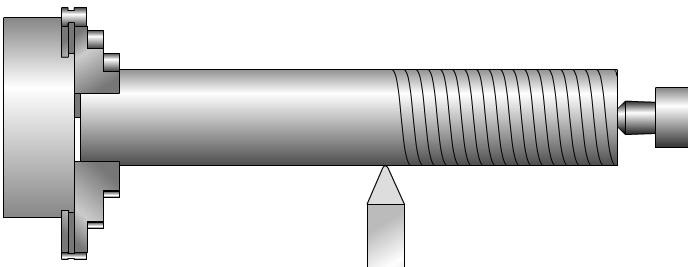

1. Thread Cutting
A tap drill forms the initial hole slightly smaller than the desired thread diameter. Specially crafted cutting tools then remove material systematically to form the threads. This method gives a stable thread quality in most engineering materials.

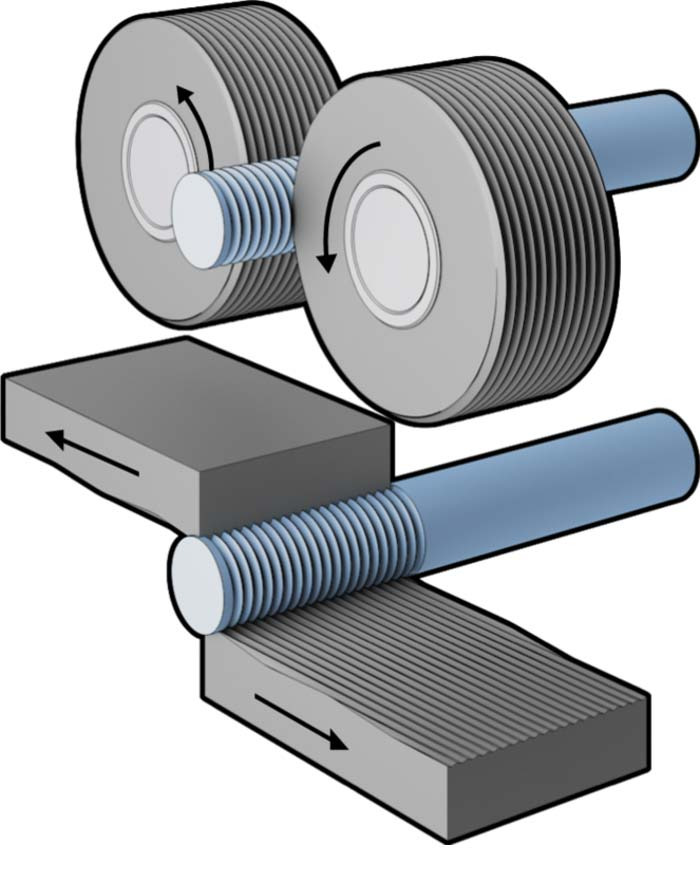

2. Thread Forming
High pressure rollers displace material in this method to generate threads without removing it. Cold formed threads have increased wear resistance because of work hardening. While this method processes ductile materials fast, success depends on material characteristics.

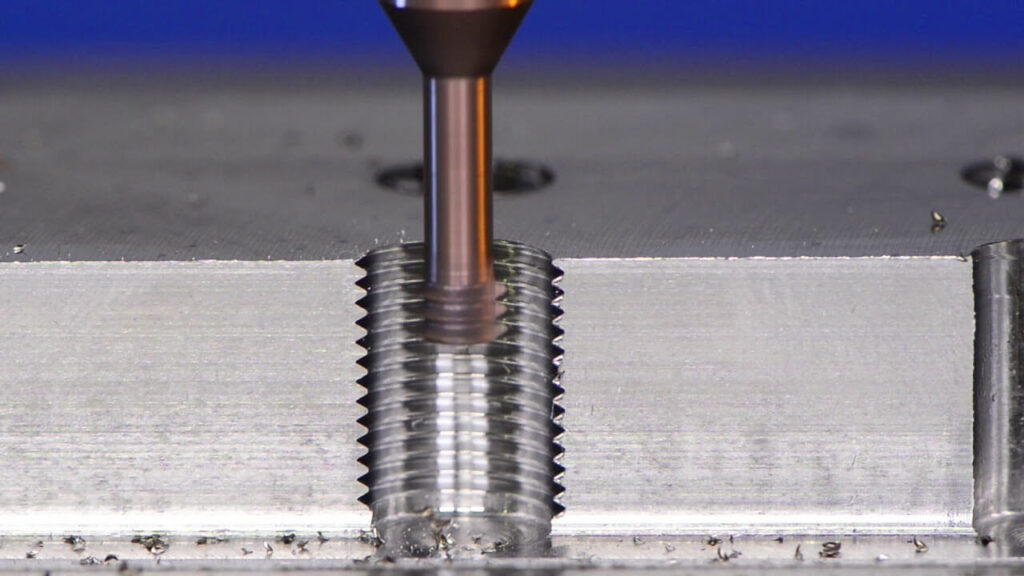

3. Thread Milling
In this type of milling CNC machines with customized rotating tools generate internal threads with the help of helical movements. Single tool can produce a number of threads and this method is cost effective for large diameter scenarios because it minimizes tool wear and preserves accuracy.

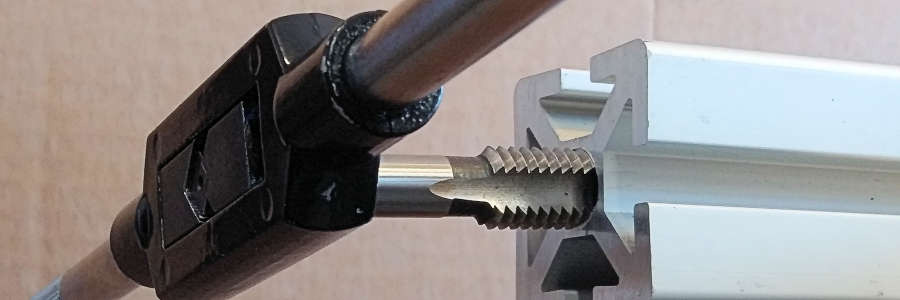

4. Tapping
Specially crafted taps are used for pre-drilled holes to make threads in tapping. Success is dependent on lubrication and spindle speed which is normally 40 to 60 RPM. Advanced CNC tapping centers deliver consistent results for high volume production runs.
5. Thread Grinding

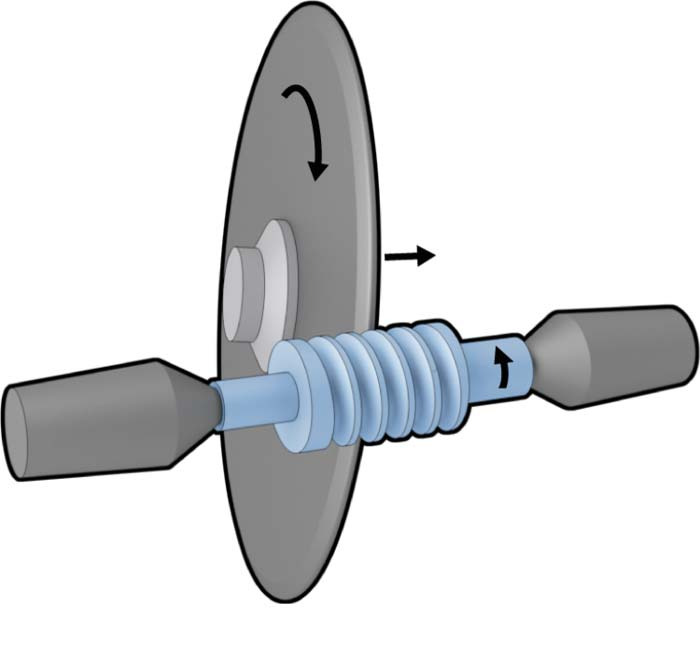

Abrasive wheels grind internal and external threads under CNC control in this type of machining. This method is better for heat treated parts and hardened materials. Engineers choose thread grinding when surface finish and thread profile is vital.
Materials and Their Machinability
Successful threading depends on understanding the response of different materials to machining. Some materials are as follows:
Metals
2011 and 6061 aluminum alloys can machine well and produce clean chips when threading. 303 stainless steel is moderately machinable but high carbon steels need controlled cutting parameters. Adding sulfur and lead to steel formulas helps in machinability and chip evacuation.
Plastics
Acetal, PEEK and Polycarbonate plastics are mostly used for threaded parts because of their great machining properties. They need temperature control to save them from distortion. Nylon and UHMW are good for situation which need good durability and chemical resistance but their lower melting points means that you have to use cooling strategies and particular cutting speeds.
Composites
These materials add notable issues in threading because they have abrasive fiber reinforcements such as carbon, glass or graphite which can affect cutting parameters. Unlike metals, composites break by brittle fracture instead of plastic deformation.
Tools and Equipment
Precise threaded hole formation needs some special tools. Following are the parts needed for threading.
Dies and Taps
Hardened carbon steel and High Speed Steel (HSS) are the basis for quality dies and taps because these are the necessary cutting tools. There are three types of taps known as taper, bottoming and intermediate for internal threading.
External threading uses dies which cut threads into cylindrical parts and rods. These precision tools work throughout material types from aluminum to hardened steel and come in sets with matching thread specifications and drill sizes.
Thread Mills

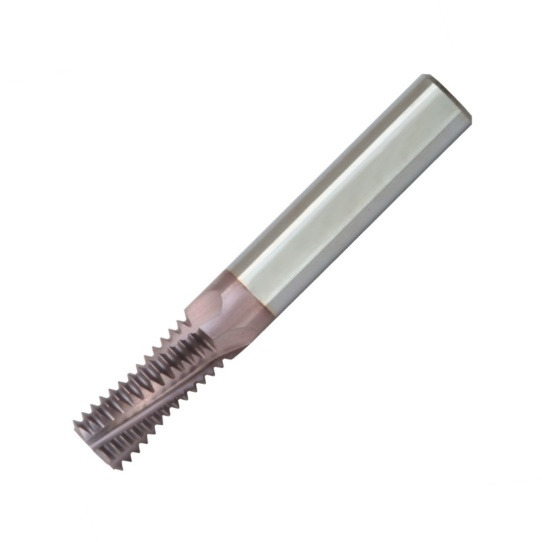

Advanced threading requires special thread mills. Available in multi-tooth and single profile configurations, these tools mostly have internal coolant channels. The T740TX series is a modern CNC thread mill design which combines carbide coating with modern cutting geometries to maximize chip evacuation.

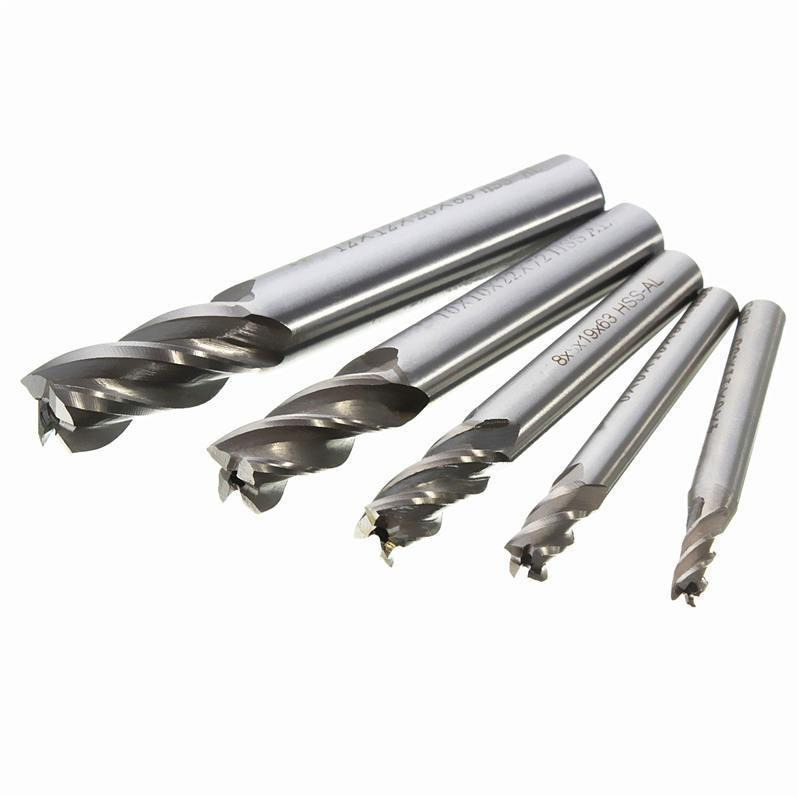

Drill Bits
Proper hole preparation starts with the right drill bit. Thread charts help machinists select the correct bit diameter whether using metric or fractional measurements. Carbide tipped bits are better for tough situations while HSS bits are good for standard purposes. Many manufacturers are now adding customized coatings to bits for better usability in different materials.
CNC Machines

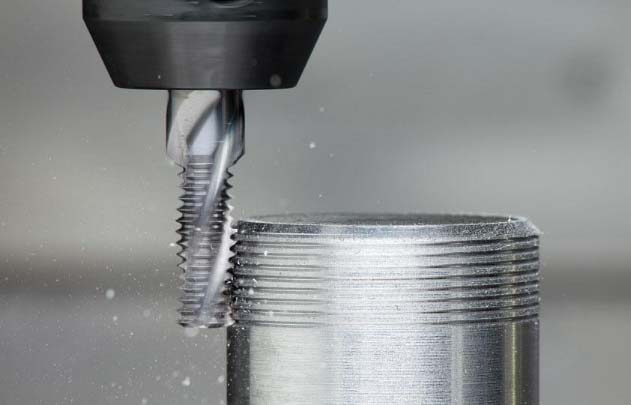

Threading is highly dependent on CNC technology with dedicated G-code cycles such as in G32, G33 and G76. Standard CNC mills are good for basic threading but complex geometries require 5 axis machines for best results. Built in flexible tapping chucks will automatically compensate for feed variations and give precise threads continuously.
Coolants and Lubricants

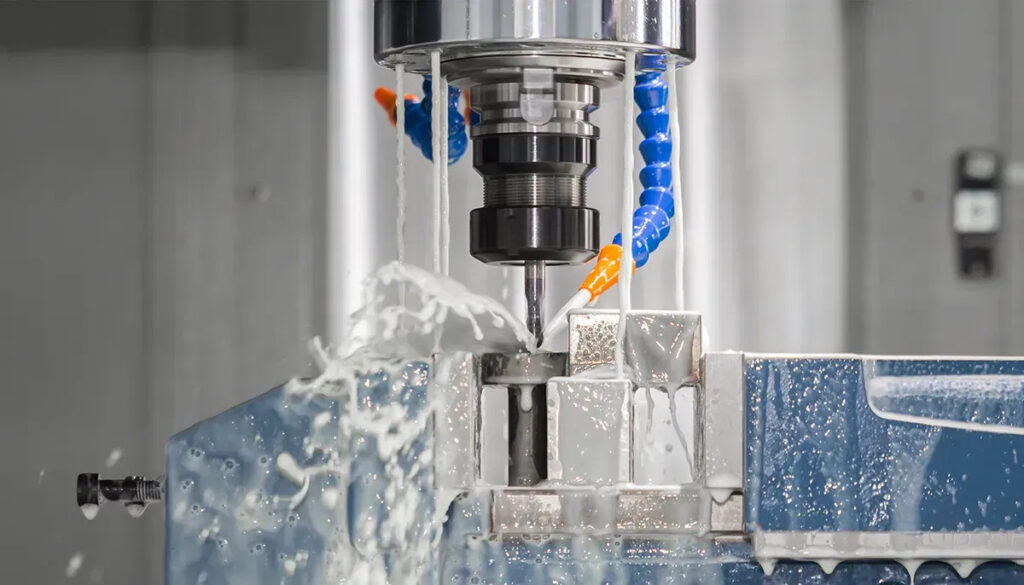

Thread machining is all about fluid selection. Heavy duty work needs straight oils and high speed work needs water soluble oils for cooling. Aluminum needs vegetable based fluids and stainless steel machining needs synthetic fluids. Right fluid concentration in machining will extend tool life and protect the workpiece from corrosion.
Variables which affect threaded holes machining
Machining threaded holes is all about understanding these aspects which will help you to maximize the process and get better results.
Material Hardness
The material hardness decides the tool and operation parameters. Harder materials need slower cutting speeds and carbide tools to get precise threads. Lubrication is the main thing to prevent material distortion and hold the tool in condition. Engineers have to match the cutting parameters with the material traits.
Brittleness and Ductility
The material’s ability to deform decides the threading method. Thread forming works well with ductile materials such as brass and aluminum because these metals flow without leaving chips. Brittle materials need those cutting processes which can remove material debris. This will help you to choose the right method and tools.
Thermal Properties
Every material has its own ability to conduct heat. Those having greater conduction rates can be machined faster as they dissipate heat away from cutting area. On the other hand materials such as titanium which have poor thermal conductivity need advanced cooling methods and also slower speeds. Proper temperature control assures dimensional stability and extends tool life.
Best Practices in Threaded Holes Machining
Success in threaded holes machining comes from following technical guidelines and established procedures. These necessary practices will give you long lasting and high quality results.
Hole Preparation
A punch mark is designed in the center to guide the drill bit for preparation of a hole. Drill bits are used according to the type of material and a constant downward pressure is applied throughout the operation. The final bolt size should be greater than the starting hole’s diameter to move forward the threading process. Pilot holes can reduce tool stress for hard materials and a coating of cutting fluid will then improve the overall finish.
Feed Rates and Speed
Machining phases need different feed and speed combinations for working properly. Roughing works best at 0.005 to 0.02 inches per revolution and finishing at 0.002 to 0.004 inches per revolution.
Material type decides the cutting speed as nickel alloys which are harder need only 30 to 60 RPM but aluminum require 300 to 400 RPM. Deep holes need slower speeds to protect the tooling.
Quality Control
You should use thread gauges and micrometers to check important parameters of threads like its perpendicularity and dimensions. Use in process gauging for rapid adjustments and Statistical Process Control to track thread consistency.
Chip Removal
Metal chips must be removed properly to get good thread quality and extend tool life. A mixture of high pressure coolant and tap reversals breaks down and removes the debris. For deep holes, spiral point taps generate a natural upward path for chip removal. Use right mixture of feed rates and cutting fluids to keep cutting zone clean.
Conclusion
Tooling, material and process control are the main things to consider for better threaded hole machining. You can get durable threads if quality checks are implemented, material properties are known and right speeds and feeds are given.
Should you need any kind of thread machining service, then RICHCONN is the best option. You can contact us anytime.
FAQs
1. Can we use CNC machines for threading?
Yes we can. Thread milling, grinding, tapping and turning are some well-known ways.
2. What are some signs of poor thread quality and how can they be solved?
Rough surfaces, uneven profiles and incorrect dimensions are usual signs. Mostly, you can solve these easily if you use correct cutting parameters and pick the right tool.
3. How do I repair damaged threads?
Helical inserts can be a good option here. In 1st step, remove the old threads (you can use a drill). After this use a tap to make a hole and then push the new helical insert into it.
4. What are some differences between a UNF and UNC thread?
UNF has more threads in 1 inch and its threads are always smaller. On the other side UNC threads are lesser in an inch. Also they are larger in size.
5. How do I select the right tap for a particular material?
The right tap can be selected according to the material such as straight flute taps for non-ferrous metals, HSS for cast iron and steel while cobalt HSS with TiCN coating taps for stainless steel.
