Unbalanced rotors can cause serious operational problems which may result in machine failure. Titanium alloys are suitable for manufacturing balanced rotors due to their good corrosion resistance and strength, but their properties make them difficult to machine.
In this blog post we will cover properties, machining techniques and balancing practices for titanium alloy rotors.
What is Titanium Alloy Balancing Rotor Machining?
In simple terms titanium balancing rotor machining is a precision engineering process in which high performance rotors are made from titanium alloys by combining modern machining techniques with dynamic balancing.
This special process assures minimum vibration and better weight distribution in rotating components of different industries like automotive, aerospace, energy sector etc.
Properties of Titanium Alloys Relevant to Rotor Machining
Corrosion Resistance
Titanium alloys provide outstanding corrosion resistance. These alloys form stable TiO₂ film on their surface. This self-healing oxide layer which is 5-6 nm thick protects them from corrosion caused by seawater, chlorides and acids.
Moreover this feature in rotor machining guarantees that components can perform in harsh environments without degradation.
High Strength-to-Weight Ratio
Titanium alloys have impressive strength to weight ratio. They have density of 4.43 g/cm³ and tensile strength around 1,000 MPa.
This optimal ratio permits production of high performance and lightweight rotors. Such rotors not only maintain their structural integrity at operating speeds but decrease overall system mass too.
Challenges in Machining Due to Material Properties
Titanium alloys have very low thermal conductivity so as a result they generate lot of heat at the cutting edge. Besides that their high chemical reactivity leads to tool wear and adhesion whereas severe work hardening largely increases cutting resistance.
Machining Techniques for Titanium Alloy Rotors
1. Milling and Turning
Both milling and turning are used to machine titanium alloy rotors.
Milling machines shape titanium alloy rotors using multi edge rotary cutters. These cutters remove material layers to create precise grooves and contours.
In turning single point cutting tool removes material from rotating rotor to create cylindrical profiles. Both methods require correct cutting speeds as well as effective cooling and rigid setups to handle titanium’s machining.

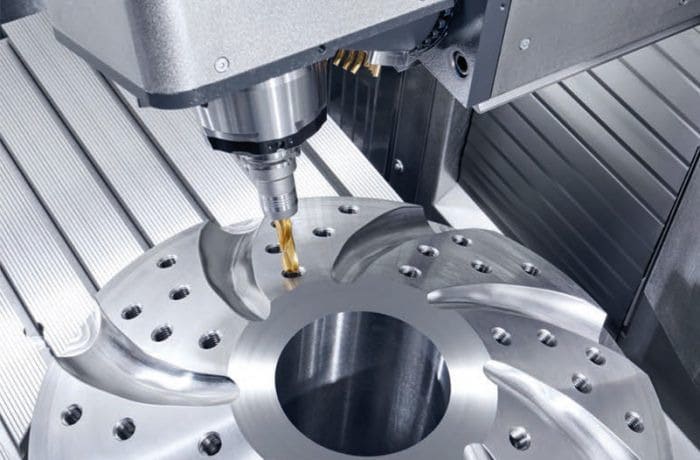

2. Drilling
In drilling process⸴ WC-Co or sharp carbide drills are used to make accurate holes in titanium alloy rotors. The process uses peck drilling to remove material in small amounts. This assures smooth finishes & accuracy.
Furthermore the process uses coolant systems to handle problems such as chip evacuation and heat buildup. These systems maintain temperature and help in obtaining high quality holes.

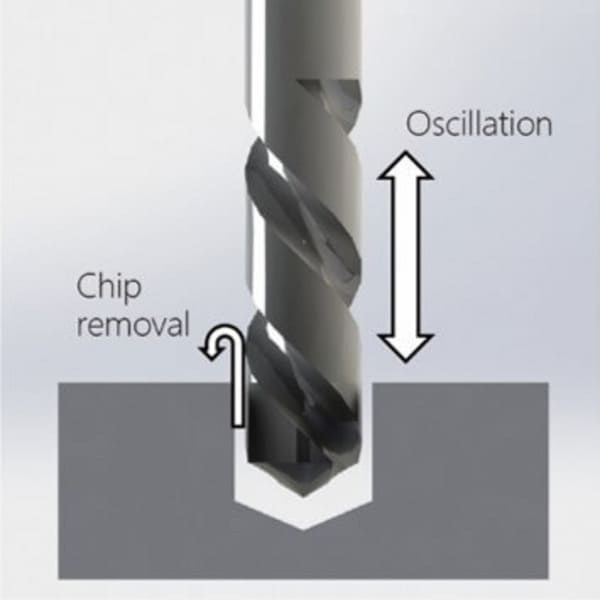

3. Rotary Ultrasonic Machining
RUM uses combination of high frequency vibrations with rotational cutting motion to machine titanium aluminum rotors. A diamond impregnated tool that rotates and vibrates at the same time accurately removes material with low cutting force.
This method in addition to improving the surface finish also decreases tool wear. Hence it is suitable for creating complicated rotor geometries.

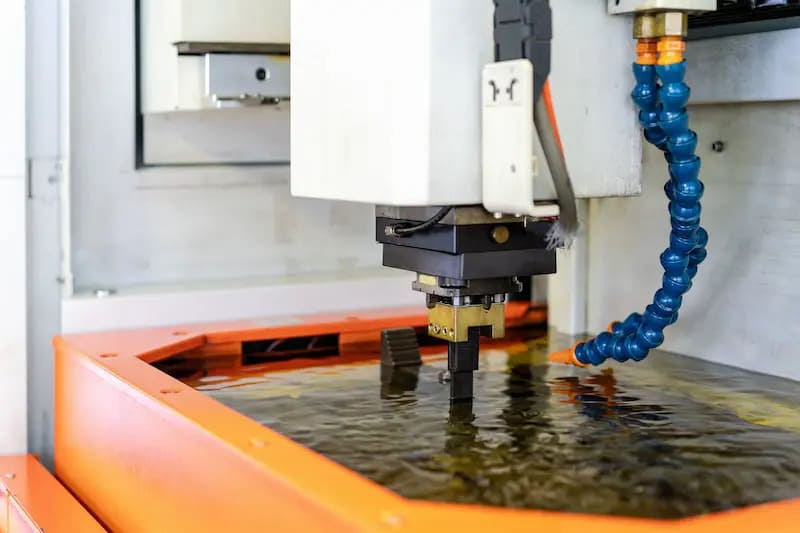

4. Electrical Discharge Machining
EDM is a non-contact process in which material is removed from titanium alloy rotors using controlled electrical discharges within a dielectric fluid. This process permits machining of complicated geometries and deep cavities which are not possible with traditional methods.
Moreover EDM assures minimum thermal distortion and great dimensional accuracy. So it is perfect for high performance rotor applications.
See also: Sinker EDM vs Wire EDM

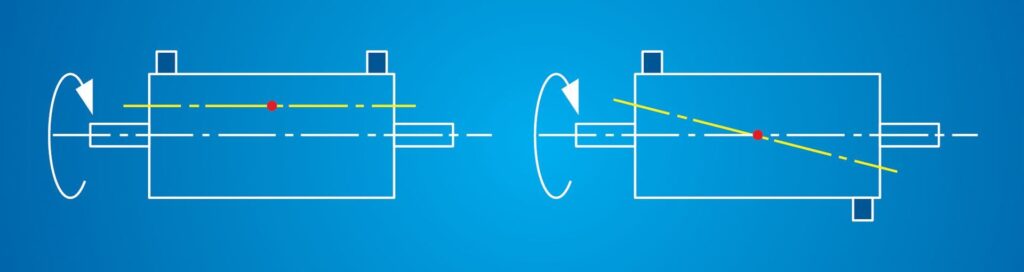

Balancing of Titanium Alloy Rotors
Importance of Balancing Rotors
Rotor balancing performs an important part in assuring better durability and smooth operation of titanium alloy rotors. An unbalanced rotor creates unwanted vibrations that affect operational performance and lead to premature wear. Proper balancing reduces these vibrations on bearings and their surrounding components.
Balancing Methods
1. Static Balancing
Static balancing assures that when rotor is at rest, its mass is spread uniformly around its axis. In this process the rotor is placed on balancing machine to identify imbalances, which are then corrected by adding or reducing weight on a single plane. This technique is good for low speed applications like rigid rotors, but lacks accuracy for complicated geometries.
2. Dynamic Balancing
In dynamic balancing the rotor is rotated at operational speed on a balancing machine that is equipped with correction mechanism and vibration sensors. These sensors identify the location of imbalance. Then apply correction weights in multiple planes to achieve proper center of mass alignment.
Apart from that, these machines are also equipped with calibration and soft bearing systems. These setups assure accuracy & decrease friction for high speed applications.
Standards & Guidelines
ISO 21940-21:2022 is an international standard which specifies exact requirements for balancing titanium alloy rotor. This standard defines balance quality grades as well as tolerance limits and measurement procedures.

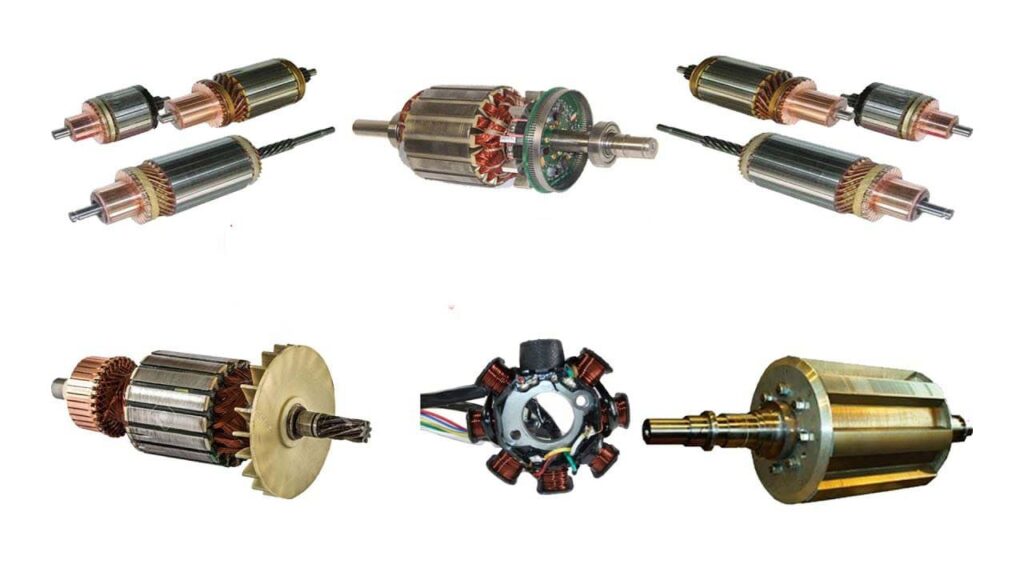

Applications of Titanium Alloy Balancing Rotor Machining
Aerospace Industry
Titanium alloy rotors perform an important role in different components of aerospace industry.
For example in helicopter blades and jet engines, they provide outstanding resistance to aggressive conditions and lightweight characteristics. Therefore correct balancing of these components improves proficiency for high altitude operations and decreases vibrations during machining.
Automotive Sector
Titanium alloy rotors are used in turbochargers as well as brake rotors in high performance automobiles. Precise balancing of these components, apart from minimizing mechanical stress during high speed operations, also assures rotational stability during machining.
Energy Sector
Titanium alloy rotors are used for power generation in turbines. Balancing of these rotors is important to keep better energy conversion and to protect machinery from vibration damage.
Challenges in Machining Titanium Alloy Rotors
Work Hardening & Its Impact on Machining Processes
Titanium alloys show work hardening during machining due to which their surface hardness increases after each pass. This phenomenon accelerates tool wear and increases cutting forces which further complicate subsequent machining operations.
Material Adhesion and Tool Wear Issues
During machining, titanium produces large tool wear due to its high strength. This in turn reduces process proficiency and tool life. In addition the material’s ability to adhere to cutting edges creates build up edges which degrades surface finish & compromises dimensional accuracy.
Heat Generation & Thermal Management
Heat generation is a big challenge during machining of titanium alloy rotors. This is because of its very low thermal conductivity which generates intense heat at cutting edge. Moreover its poor management leads to rapid tool wear, creates surface defects and decreases cutting accuracy.
Best Practices & Recommendations
Ensuring Precision in Machining
You need tight control over important parameters to obtain machining accuracy. You should use high quality carbide tools with TiAIN coating in order to minimize friction and improve heat resistance. Besides that apply strong workholding setups and dynamic milling strategies with engagement angles less than 30° to obtain good results.
Keeping Balance during Operation
You should constantly monitor bearing temperatures & vibration levels during operation. Schedule dynamic balance checks at specified intervals to guarantee consistency. Besides that install real time monitoring systems with preset alarm thresholds as well. When these setups detect any imbalances then you can make immediate corrections to keep better performance.
Safety Instruction
Machining titanium alloy rotors requires special safety measures. Such as installing proper ventilation systems, effective chip containment measures and fire resistant coolants. In addition you should implement strict PPE guidelines, clear emergency shutdown procedures and keep machine guards at all times. Also adhere to operational speed limits to decrease risk during high speed rotor balancing.
Conclusion
In short, titanium rotor balancing machining combines latest techniques to assure best performance and accuracy in different industries. You can increase router life and meet demanding application requirements by following best practices and managing machining challenges.
If you require any kind of CNC machining services for titanium alloy rotors, then RICHCONN is best option. You can contact us anytime.
Related Questions
How does the choice of cutting tool material affect titanium machining?
Cutting tool’s choice has a great impact on titanium machining. Harder materials such as carbide show resistance to heat generation and wear which assures better cutting. But soft tools wear out quickly due to high cutting forces of titanium.
How does tool geometry influence the machining of titanium rotors?
Tool geometry decreases heat generation as well as cutting forces in titanium rotor machining. Some geometric features like sharp cutting edges & large rake angles help reduce tool wear and remove material more smoothly.
What role does tool coating perform in machining titanium alloys?
Tool coatings such as TiAN improve tool performance during machining in two ways. They improve heat resistance capabilities and reduce friction during operation. These benefits permit high cutting speeds and extend the operational life of tools.
How does chip formation affect titanium machining?
Chip formation generates great amount of heat and cutting forces during titanium machining which in turn leads to poor surface quality and high tool wear.
Can balancing be performed on-site or is specialized equipment required?
Balancing can be done on site. But it depends more on accuracy you want to reach. Portable balancing machines can handle basic on site tasks whereas high accuracy dynamic balancing at operational speeds requires specialized machinery.
