Titanium and aluminum are among today’s most commonly used metals across various industries. Each metal has its own distinct properties such as durability, strength and weight. In this blog post, we will cover properties, cost and most common uses of each metal. This comparison will help you choose the right material according to your project needs.
Chemical Composition
| Property | Titanium (Commercially Pure & Alloys) | Aluminum Alloys |
|---|---|---|
| Main Element | Titanium (Ti) ~88 to 99% | Aluminum (Al) ~90 to 99% |
| Impurities | Fe ≤ 0.5%, O ≤ 0.4%, N ≤ 0.05% | Varies by grade, often Si ≤ 0.6%, Fe ≤ 0.7% |
| Typical Alloying Elements | Fe, V, Al, O, N, H, Mo | Mg, Si, Cu, Mn, Zn, Cr |
Also See: What are Aluminum Alloy
Mechanical and Physical Properties
Weight and Density
Both metals are known for being light, although aluminum is much lighter. Its density is just 2.7 g/cm³. On the other hand titanium is about 60% heavier with a density of 4.5 g/cm³. Due to low density of aluminum, it is well suited for projects with weight saving requirements. However titanium’s high density increases its strength.
Strength and Strength to Weight Ratio
In terms of pure strength, titanium is clearly superior to aluminum. The tensile strength of titanium alloys ranges from 600 to 1250 MPa. On the other hand aluminum alloys have tensile strength of only 70 to 700 MPa.
Although titanium is heavier it provides a better strength to weight ratio. It is particularly useful for applications which need high strength and low weight.
Aluminum, however, is not as strong but its strength to weight ratio is reasonable which makes it popular for projects that balance cost and weight.
Corrosion Resistance
Both aluminum and titanium have good corrosion resistance. However titanium is better than aluminum because it forms a stable oxide layer which remains effective even in harsh conditions.
Aluminum also forms a protective oxide layer but is less resistant to alkalis and acids. That is why titanium is generally preferred in marine, medical and chemical industries. Aluminum, however, is well suited for environments with less chemical effects.
Melting Point
Titanium has a significantly higher melting point generally from 1650 to 1670°C. Whereas aluminum melts at lower temperature of 582 to 652°C. Due to this difference, titanium is well suited for applications which are subjected to high temperatures like jet engines. Under such conditions aluminum would quickly lose its structural stability.
Electrical and Thermal Conductivity
Aluminum is a better conductor of heat and electricity than titanium. The thermal conductivity of aluminum is approximately 210 to 237 W/m·K and its electrical conductivity is 30 to 64% that of copper. Due to these properties it is ideal for electrical components and heat sinks.
In contrast thermal conductivity of titanium is only 15 to 20% and its electrical conductivity is roughly 3% of copper’s. That is why titanium is rarely selected when efficient electricity or heat conduction is needed.
Also See: Titanium vs Aluminium Steel
Machinability and Fabrication
Ease of Machining
Aluminum is easily machined because it is soft and has a low density. This results in faster cutting speeds and less tool wear. In contrast titanium places more stress on machining tools. During its machining a slower process and frequent tool changes are needed which increases production time and costs.
However these challenges can be reduced by working with specialists such as Richconn who are experienced in titanium specific tooling. These specialists obtain best results by using advanced cooling methods and by optimizing CNC parameters.
Also See: A Complete Guide to CNC Machining of Aluminium
Formability and Weldability
Due to low melting point and limited reactivity of aluminum it is easily welded and formed into complicated shapes using common fabrication methods. However the weldability of titanium depends on its grade. Commercially pure titanium and alpha alloys are relatively easy to weld. In contrast, for welding high beta alloys special procedures are needed.
Surface Treatments and Finishing
Various surface treatments can be applied to aluminum with relative ease such as anodizing and painting. These treatments improve corrosion resistance as well as appearance. On the other hand titanium is naturally corrosion resistant but can be ionized for coloration purposes. However finishing titanium is generally more challenging.
Titanium finishing specialists like Richconn use beat blasting and advanced anodizing methods. These methods provide outstanding surface finishes and accurate tolerances without reducing titanium’s inherent corrosion resistance.
Cost Analysis
| Cost Factor | Titanium | Aluminum |
|---|---|---|
| Raw Material Cost | ~$35 per kg | ~$2 per kg |
| Manufacturing Cost | $5.75+ per kg finished product | $2.2+ per kg finished product |
| Processing Complexity | High (special tools needed) | Low (standard machining) |
| Long term Value | Excellent durability reduces replacement frequency | Higher replacement rate, Lower initial cost |
Also See: Cost of Titanium Per Pound
Advantages and Disadvantages
Advantages and Disadvantages of Titanium
| Advantages | Disadvantages |
|---|---|
| Titanium provides outstanding corrosion resistance particularly in challenging conditions like acids or seawater. | Due to difficult extraction and processing, titanium is considerably more expensive than steel or aluminum. |
| This metal is very useful for aircraft support gear due to its excellent strength to weight ratio. | It is difficult to machine titanium and generally special tools and expertise are needed |
| Titanium retains its strength even at extremely high temperatures which make it valuable for engine & turbine parts. | It has low heat conductivity which limits its usefulness in heat transfer applications. |
| Due to its biocompatibility, titanium is well suited for medical implants which are implanted in the human body. | |
| It exhibits resistance to fatigue and remains durable even after repeated movements or stress. |
Advantages and Disadvantages of Aluminum
| Advantages | Disadvantages |
|---|---|
| Aluminum weighs about one third as much as steel and that’s why it is suitable for aircraft and automotive parts. | It is softer and weaker than steel which makes it more likely to get damaged. That’s why it is not suitable for heavy duty applications. |
| It naturally forms an oxide layer that provides corrosion resistance, thus making it suitable for outdoor and marine environments. | Aluminum can be susceptible to pitting corrosion in alkaline or salty conditions without special treatment. |
| Aluminum can be recycled repeatedly which saves about 95% of energy used in initial production. | Aluminum loses strength at high temperatures due to its low melting point (around 660°C), thus limiting its use in heat intensive applications. |
| It provides effective structural support without adding unnecessary weight due to its strength to weight ratio. | |
| Aluminum is easily machinable and can be formed into precise shapes which increases flexibility and efficiency in the machining process. |
Applications and Industry Use Cases
Aerospace Industry
In aerospace Industry titanium is used to make landing gear, aircraft engines and structural frames because of its outstanding strength to weight ratio and corrosion resistance. On the other hand aluminum remains essential for making fuselages, airframes and wings because of its ease of manufacturing and lightweight properties.
Medical Field
Titanium, because of its outstanding biocompatibility and non reactive properties, is suitable for bone plates, permanent implants and dental fixtures. Aluminum, however, cannot be used for implants. Instead aluminum is mainly used for lightweight medical devices, wheelchairs and diagnostic equipment.
Automotive Industry
In the automotive industry aluminum is important for large scale manufacturing of parts such as engine blocks, wheels and car bodies. Its reasonable price and machine tool durability perform an important part in reducing costs and improving performance.
In comparison titanium is preferred in high performance automotive parts such as suspension springs, connecting rods and exhaust systems for which durability and low weight are important.
Electronics and Consumer Goods
Due to its durability, strength and elegant appearance, titanium is often used in eyewear, luxury watches and high end sporting equipment. Aluminum, in contrast, is versatile and cost effective. Due to these characteristics it is popular in kitchenware, electronic casings and common household items.

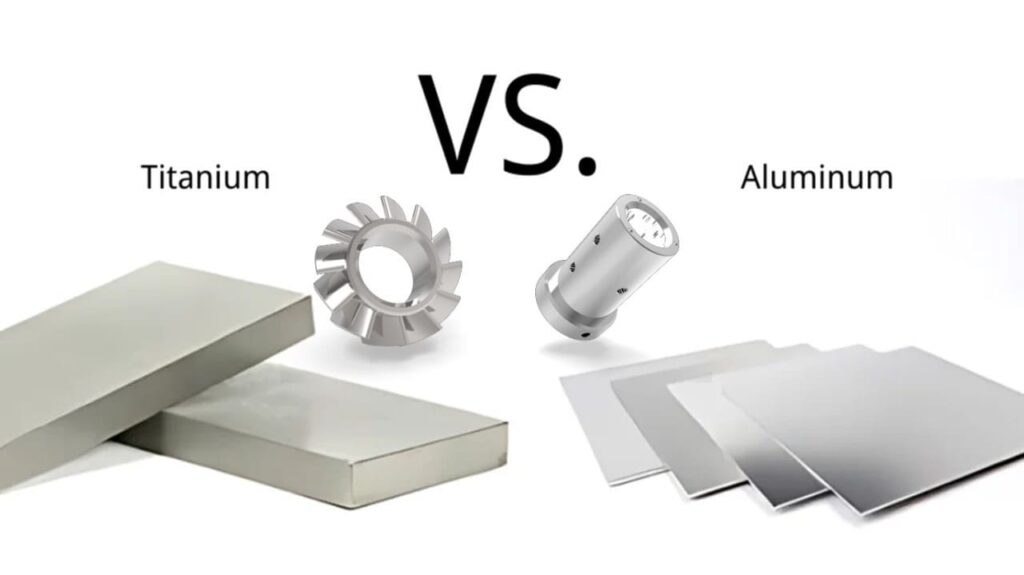

Choosing between Titanium vs Aluminum – Which one is Right?
Consider the specific needs of your project when choosing between aluminum & titanium.
If you need extraordinary strength, durability and corrosion resistance then titanium is the best choice. On the other hand aluminum is well suited for projects that are cost sensitive. Furthermore it is ideal for applications requiring low weight, ease of fabrication and high electrical or thermal conductivity.
It is advisable to consult with manufacturers early when choosing between these metals. Our team often advises clients on matching load specifications with production efficiency to avoid unnecessary complexity.
To Sum Up
In short, both titanium and aluminum have their own unique advantages. Titanium is known for its outstanding corrosion resistance, durability and high temperature performance. In contrast aluminum stands out due to its excellent conductivity, low weight and ease of machining. Determining the best metal depends entirely on the specific needs of your project.
For professional advice and precision machining of titanium or aluminum components we recommend Richconn. You can contact us anytime.
Related Questions
1. In which industries is titanium preferred over aluminum and why?
Titanium is the preferred over aluminum in industries like aerospace, marine and medical. This is primarily due to its high strength to weight ratio, outstanding corrosion resistance and biocompatibility.
2. How do titanium and aluminum differ in terms of thermal conductivity?
The thermal conductivity of aluminum range from 210 to 237 W/m·K; in contrast titanium’s range is only 15 to 20 W/m·K. Therefore aluminum is best suited for heat dissipation tasks.
3. What are the challenges associated with machining titanium vs aluminum?
It is difficult to machine titanium because it has low thermal conductivity, greater strength and tendency to harden during machining. Such characteristics lead to excessive heat generation and rapid tool failure. Aluminum, on the other hand, is easier to machine. It results in faster production speeds and less tool failure.
4. How do the recycling processes of aluminum and titanium differ?
The recycling process for aluminum is simple, cost effective and preserves the metal’s characteristics. In contrast, titanium recycling is more complex. It requires thorough cleaning, careful sorting and special melting methods.
5. How do titanium and aluminum compare in terms of electrical conductivity?
The electrical conductivity of aluminum is approximately 30 to 64% that of copper. This makes aluminum suitable for electrical wiring. Titanium, however, has much lower electrical conductivity around 3% compared to copper. Consequently titanium is rarely selected for applications which need good electrical performance.
