Choosing between titanium vs stainless steel for a project can be complicated as each material has distinct properties and qualities. These materials are broadly used in different industries like medical aerospace and construction because of their strength, corrosion resistance, and durability.
This complete guide on titanium and stainless steel will discuss their material composition, attributes and uses. We will also see their properties with advantages and disadvantages.
Material Composition and Structure
Composition of a material and its structure greatly impact the properties of material for particular applications. Let’s discuss them in detail.
Titanium

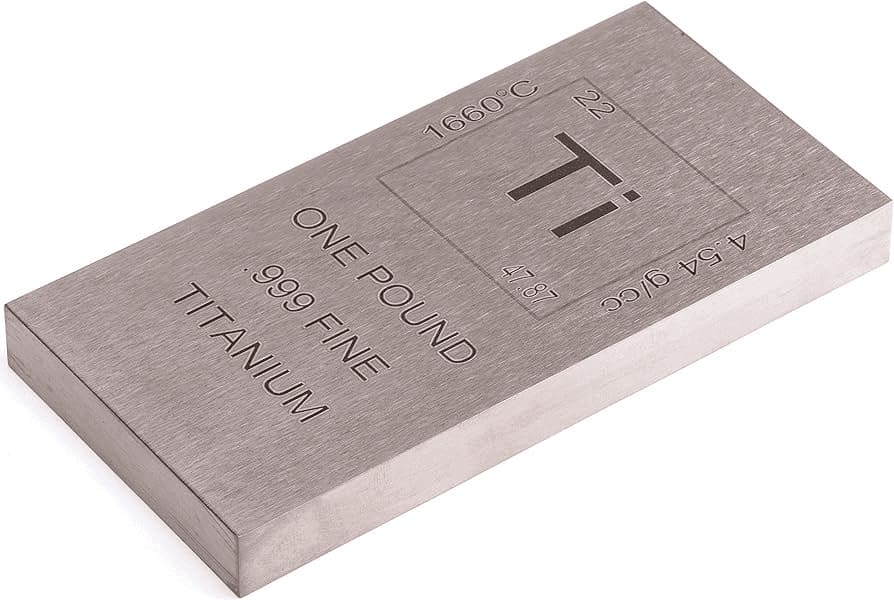

Known for its extraordinary corrosion resistance and strength-to-weight ratio, titanium is a transition metal. Pure titanium makes up 99% of its composition with small amounts of other metals added to manufacture alloys. For example, Ti-6Al-4V has 6% Al and 4% vanadium which increases its mechanical properties.
Titanium’s hexagonal close-packed crystal structure contributes to its remarkable strength, with tensile strength up to 1380 MPa. It also has good ductility with 10-14% elongation. These attributes make titanium very popular in medical, aerospace and chemical sectors.
Stainless Steel
Stainless steel is mainly an alloy of iron and chromium (minimum 10.5%), with varying amounts of molybdenum, nickel and other elements. Adding chromium to steel creates a protective chromium oxide layer that increases its corrosion resistance. Common grades of stainless steel like 316 and 304 differ in nickel and molybdenum content which affect their uses and properties.
Depending on the heat treatment and specific alloy type, stainless steel usually has a face-centered cubic (FCC) lattice. This structure plays an important role in finding the material’s ductility and strength.
Physical Properties
Both titanium and stainless steel have outstanding physical properties which makes them appropriate for different operations.
Strength and Durability
A titanium alloy Ti-6Al-4V has a tensile strength ranging from 1200 to 1400 MPa. Its outstanding strength-to-weight ratio makes it appropriate for weight-sensitive applications like in aerospace. On the other hand, stainless steel usually has a higher tensile strength up to 1900 MPa which depends on its composition and heat treatment.
Titanium has better fatigue resistance. It can handle repeated stress cycles without failure, while stainless steel is also durable but it has lower fatigue resistance than titanium.
Weight and Thickness
With a density of 4.5 g/cm3, titanium weighs about 45% less than stainless steel which has a density of 8 g/cm3. This lower density gives titanium an advantage in operations like aerospace where weight is an important factor. Whereas stainless steel has a higher density which increases its strength, durability and weight. This makes it appropriate for operations that need heavy-duty performance.
Elastic Modulus
Elastic modulus measures a material’s stiffness and ability to deform under stress. Titanium has a modulus 110 GPa and its keeps its structural integrity while resisting deformation.
On the other hand, stainless steel has a higher elastic modulus 200 GPa which makes it rigid and less prone to deforming under similar loads.
Corrosion Resistance
In harsh environments like seawater and acidic conditions, titanium gives better corrosion resistance than stainless steel. Its stable oxide coating provides outstanding protection against corrosion. On the other hand, stainless steel also resists corrosion but it can suffer from crevice corrosion and pitting in chloride-rich conditions. So, titanium is usually preferred for operations that need long-life durability in tough conditions.
Thermal and Electrical Properties
Titanium has a lower thermal conductivity of 11.4 W/m·K. This makes titanium less adaptable at heat transfer than stainless steel which has a thermal conductivity around 16 W/m·K.
Titanium has a resistivity value of 4.2 μΩ·m and is less conductive than stainless steel while stainless steel has a resistivity value ranging from 0.7 to 1.0 μΩ·m. This is why titanium is mostly used in applications that need thermal insulation. Whereas stainless steel is preferred in electrical operations as it provides better conductivity.
Machinability and Fabrication
Titanium is more complicated to machine due to its poor heat conduction. It usually needs particular procedures and tools like high-speed machining and carbide tooling. It tends to work harden quickly so it needs higher feed rates and lower cutting speeds.
Stainless steel is easier to machine with good chip control and heat tolerance. This makes it more adaptable for different fabrication processes.
Fabrication: For fabricating titanium, special tools, inert gas shielding and skilled welders are needed to prevent cracking and contamination. It’s high melting point (1,668°C), reactivity with oxygen and nitrogen at high temperatures make welding complicated as compared to stainless steel.
Stainless steel can be welded using multiple welding like MIG, spot or TIG. It has a lower melting point (1,400-1,450°C) and less reactivity which facilitates simpler welding methods.
Applications and Use Cases
The particular properties of titanium and stainless steel make them useful for different industries. We will now see how these materials are used in different industries.
Aviation and Aerospace

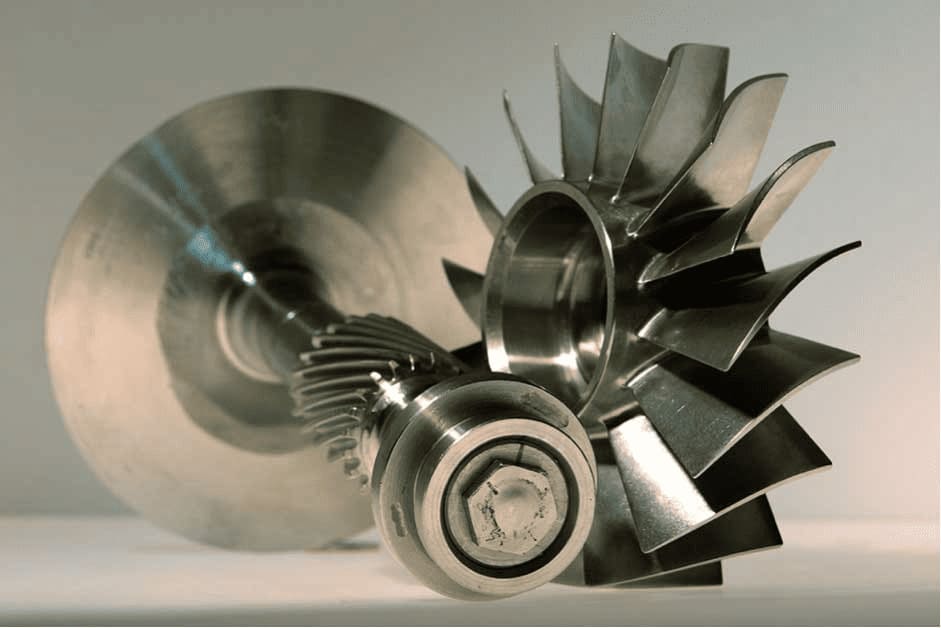

Titanium is broadly used in aerospace and aviation industries. It’s phenomenal strength-to-weight ratio and heat resistance make it appropriate for engine components, turbine blades and airframes. Titanium fasteners are also used in aircraft assembly.
Stainless steel is used in applications that need high durability and fatigue resistance like exhaust systems and landing gear.
Medical Field

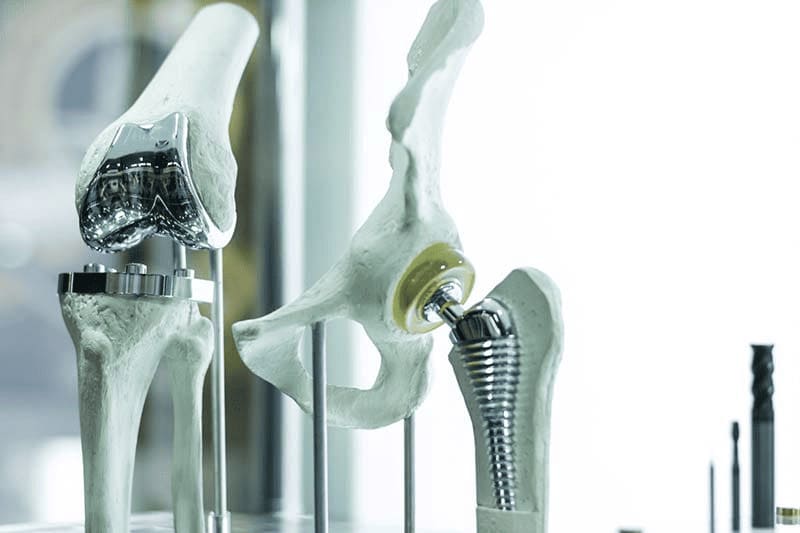

Titanium is preferred in medical field, particularly in implants. Hip and knee replacements, dental implants, and bone plates all use titanium due to its biocompatibility and low weight. Patients also benefit from lightweight and long-lasting titanium implants that integrate well with bone.
Stainless steel is mostly used for surgical tools. Its hardness gives sharp, durable and easy to sterilize instruments which keeps hygiene.

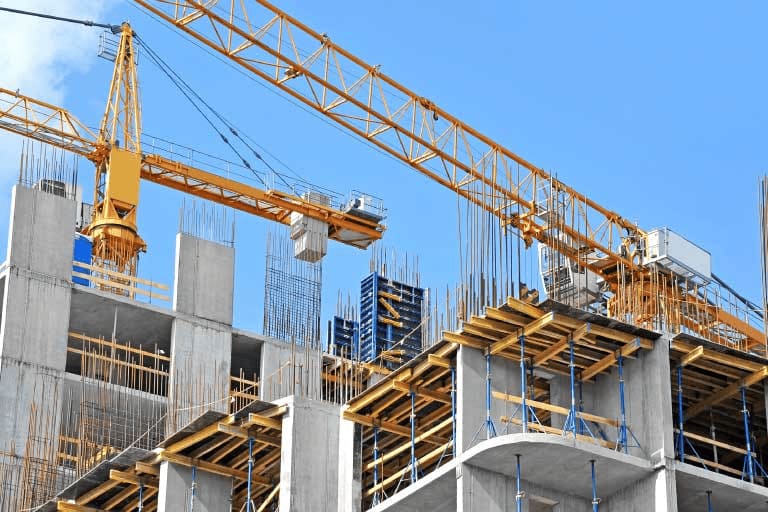

Construction and Infrastructure
Architects and engineers use titanium in architectural elements and bridges due to its ability to handle harsh environments, its lightweight nature and aesthetic appeal.
On the other hand, stainless steel is used in building facades, piping systems and fasteners. It provides outstanding tensile strength, corrosion resistance, durability and ease of fabrication.
Marine and Chemical Processing

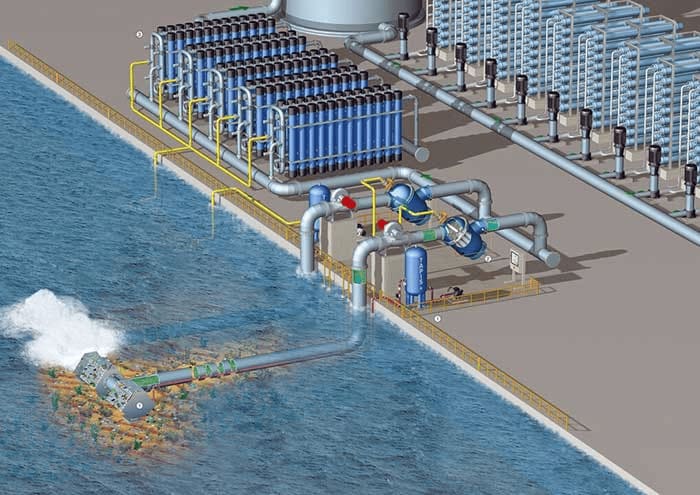

and chemical processing equipment use titanium due to its outstanding corrosion resistance. It can also handle aggressive conditions, resist pitting and crevice corrosion in these demanding settings.
Stainless steel is particularly used in structures and equipment that need moderate corrosion resistance and high strength.
Pros and Cons
| Material | Pros | Cons |
| Titanium | Exceptional strength-to-weight ratio (about 40% stronger than steel but 45% lighter) | High cost (5-10 times more expensive than stainless steel) |
| Superior corrosion resistance (forms a stable oxide layer) | Difficult to machine (requires special tools and techniques) | |
| Biocompatibility for medical applications | ||
| High temperature performance (maintains strength up to 1100°F/593°C) | ||
| Stainless Steel | Cost-effective and widely available | Susceptibility to specific corrosion types (e.g., pitting, crevice corrosion) |
| Excellent corrosion resistance in various environments | Lower strength-to-weight ratio compared to titanium (about 60% heavier for equivalent strength) | |
| High strength and durability (tensile strength ranging from 515-827 MPa for general grades) | ||
| Versatile in fabrication and machining | ||
| Temperature resistance (up to 2000°C for some grades) |
Cost Analysis
The cost of titanium and stainless steel usually depends on the particular application, grade and quantity of material.
Material Cost
Raw titanium usually costs $25-35 per kilogram, while stainless steel has a lower price of $2-5 per kilogram. Titanium has a complicated extraction process and limited supply which results in higher cost. On the other hand, stainless steel is more abundant and less expensive. It makes stainless steel appropriate for mass production and large projects.
Fabrication Cost
Titanium has a higher fabrication cost than stainless steel. Particular procedures and equipment like electron beam welding and vacuum furnaces is needed for processing titanium. This increases the fabrication costs by 50%.
Stainless steel is fabricated using standard tools like traditional milling machines and TIG welders. This difference in fabrication cost also impacts material selection for big projects.
Titanium vs Stainless Steel: Which One is Better to Choose?
Deciding between titanium and stainless steel depends on your particular project needs. Here are some important factors:
Choose Titanium:
- Exceptional Strength to Weight-Ratio – Titanium has outstanding strength-to-weight ratio. It is 45% lighter than stainless steel while keeping strength. This feature is important in operations where lower weight increases performance and proficiency like automotive and aerospace.
- Superior Corrosion Resistance – Titanium creates a protective oxide layer that gives outstanding resistance in corrosive conditions like chemicals and seawater. It has less maintenance cost and also increases the lifespan in harsh conditions.
- Biocompatibility – Titanium is mostly used in medical devices and implants due to its biocompatibility. Its ability to integrate with tissue decreases the risk of rejection which guarantees success in surgical operations.
- Lower Thermal Conductivity – Titanium has lower thermal conductivity. This makes titanium appropriate for applications like aerospace components that experience maximum temperature changes.
Choose Stainless Steel:
- Cost-Effective: Stainless steel usually costs less than titanium. This makes stainless steel an affordable choice for high volume production and large projects.
- Excellent Corrosion-Resistant Uses: Stainless steel creates a protective layer of chromium oxide that provides moderate corrosion resistance. Marine and chemical plants usually use stainless steel due to its longer lifespan in different situations.
- High-Strength and Durability: Stainless steel has a tensile strength ranging from 515 to 827 MPa with outstanding strength to weight ratio. Stainless steel is preferred in structural applications like heavy industries and construction where durability is important.
- Versatility in Fabrication: Stainless steel is easy to machine, form and weld using standard tools and techniques. This adaptability also aids in production of complicated shapes and designs which makes it appropriate for variety of manufacturing processes.
Conclusion
Each material has different advantages for particular applications. Titanium has outstanding strength-to-weight ratio and corrosion resistance which makes it appropriate for medical and aerospace uses. On the other hand, stainless steel has cheaper price for industrial and construction industries with good durability. Engineers should also consider environmental factors, budget limitations, and particular project needs for better material selection.
FAQs
Q1: Can titanium and stainless steel be used together in same application?
Yes, they can be used together with proper fastening and coatings to prevent corrosion. For example, titanium screws and stainless steel are usually used together in medical implants.
Q2: What are the environmental impacts of using titanium versus stainless steel?
Titanium production needs high energy and also emits higher CO2 and pollutants like chlorine gas. On the other hand, stainless steel has lower emissions during production but it has higher mining impacts. Both materials are recyclable but stainless steel reaches better recycling rates than titanium.
Q3: Which material has better heat resistance to extreme temperatures, titanium or stainless steel?
Stainless steel handles extreme heat better than titanium. While titanium can keep its integrity up to 600°C, some particular stainless steel grades can handle temperatures of more than 800°C.
