Tolerance stacking in engineering design is highly important to satisfactorily establish a product with good quality and practical manufacturability. It saves production costs and decreases assembly problems. This guide covers different tolerance stack-up analysis methods and practical tips for better tolerance management in manufacturing.
What is Tolerance Stacking?
In simple terms, it is collective impact of individual tolerances in part or assembly’s features. In asssembly of multiple components, their individual dimensional variations add up which can potentially influence the final product’s fit and function. This tells the manufacturer if the parts will come together properly.
Suppose a simple desk drawer assembly. The drawer slides have a width tolerance of ±0.5mm, the drawer box has side tolerances of ±0.3mm and the cabinet frame opening has a tolerance of ±0.4mm. When assembled, these different values can add up and the drawer will bind if all parts are at maximum size or rattle if all parts are at minimum size. Even though each part meets its own spec, the combined tolerances can still create functional problems.
Methods of Tolerance Stack-Up Analysis
Engineers use two well known methods to analyze tolerance stacking in manufacturing: worst-case and statistical analysis. Each has its own advantages and is suited for different production tasks.
Worst-Case Tolerance Analysis
This approach basically looks at the maximum possible variation by setting all tolerances at their maximum limits. This method presumes that all parts in an assembly will be manufactured at either maximum or minimum size. It’s a conservative approach which confirms 100% part compatibility and is mostly used for components in aerospace and medical devices. But this method needs very tight tolerances which can be costly and complicated to manufacture.

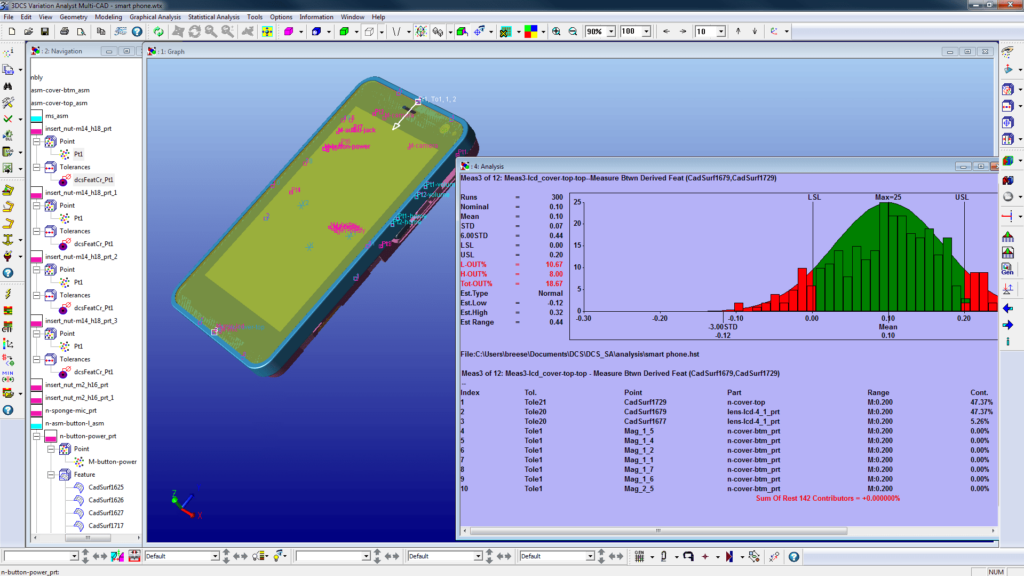

Statistical Tolerance Analysis
Unlike worst case analysis, statistical analysis is more realistic by considering the probability of tolerance variations. It recognizes that it’s highly unlikely for all parts to be at their highest tolerance limits at the same time. Statistical analysis uses two main methods:
Root Sum Square (RSS) Method
RSS assumes parts are normally distributed with most measurements near the target value. It combines individual tolerances statistically to get a more realistic result for total variations than worst case analysis.
Monte Carlo Simulation
This method runs thousands of virtual assembly trials using random combinations of part dimensions within specified tolerances. It gives you a clear sense of how parts will function in real production conditions. The simulation also tells what percentage of assemblies will fail quality standards so that manufacturers can make better decisions on tolerance specifications.
The main advantage of statistical analysis is that it can have wider component tolerances and still meet acceptable quality levels. But it doesn’t assure 100% assembly success as there’s always a small chance parts will be out of spec. This method is good for high volume production where occasional rejects are acceptable and neutralized by lower production costs.
Comparison between Worst-Case and Statistical Methods
| Aspect | Worst-Case Method | Statistical Method |
|---|---|---|
| Best Used For | Safety of parts (medical devices, aerospace) | Large volume manufacturing (automotive, consumer products) |
| Production Volume | Low-volume production runs | Mass production where some variation is acceptable |
| Cost Impact | Higher manufacturing costs | Lower production costs |
| Quality Guarantee | 100% parts will fit and function | 95-99% success rate, depending on chosen confidence level |
| Design Approach | Uses maximum possible variations | Uses probable variations based on normal distribution |
| Complexity Level | Simple to calculate and understand | More complex, requires statistical knowledge |
| Resource Needs | Basic calculation tools sufficient | Mostly needs specialized software |
| Real-World Accuracy | Mostly too conservative | Better matches actual production results |
| Risk Level | Very low risk, highly reliable | Calculated risk with known probability of failure |

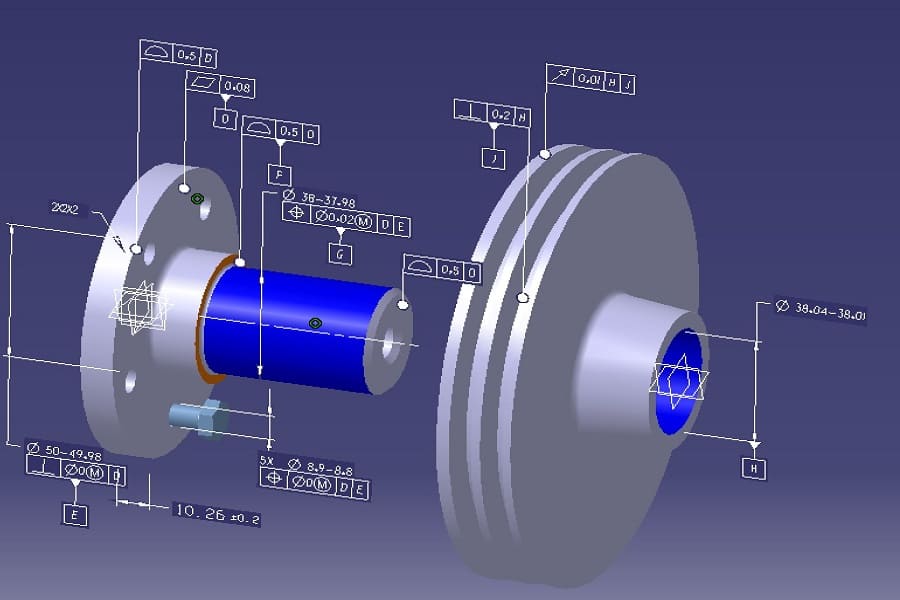

Best Practices for Managing Tolerance Stacking
Tolerance stacking needs a following methodical approach for better manufacturing results.
Setting Realistic Tolerances
First, establish realistic tolerance limits in correspondence to your own manufacturing capacities. Don’t make tolerances stricter than necessary as it will cost more and does not give any benefit. Focus on the features that can impact product function and safety.
Avoid Over-Dimensioning
Keep design as simple as you can and only specify tolerances where they are important. Too many dimensions can create confusion and make parts harder to manufacture. For non-critical features, use general tolerances.
Using Analysis Software Tools
Latest CAD software can simulate tolerance stack-ups before production starts. These tools will identify problems early and save time and money by avoiding manufacturing problems.
Working with Manufacturing Teams
Communication between design and production teams is also important. Manufacturing experts can give valuable information about what tolerances are possible with the equipment and processes you have.
Considering Post-Manufacturing Effects
Parts normally change over time. So it is recommended to account for temperature changes, wear and material properties in your tolerance calculations. This will guarantee that product works well for its whole life.
These practices will aid in making designs that are manufacturable, durable and cost effective. It’s all about the right balance between precision and practicality.
To Sum Up
Tolerance stacking is the most important factor to get idea of component fitting and functionality. Worst case analysis may guarantee compatibility but statistical analysis is a more realistic approach for mass production.
Are you looking to get your parts manufactured with precise tolerances and expert stack-up analysis, then RICHCONN is the best option. You can contact us anytime.
FAQs
How does tolerance stacking affect product quality?
Poor tolerance management can result in loose fits, binding components or parts that won’t assemble which will then decrease overall product quality and reliability.
Which industries rely on tolerance stacking?
Automotive, aerospace, medical device manufacturing and consumer electronics industries depend most on tolerance stacking. These fields need perfect fits and constant performance for functionality and safety.
What is difference between linear and geometric tolerance stacking?
Linear tolerance stacking is sum of all given tolerances which are in straight line such as length and width, whereas geometric tolerance stacking is concerned with more complicated characteristics like circularity, flatness and the relative position of parts to each other.
Can tolerance stacking be used in non-mechanical systems?
Yes. It can be applied to optical systems, electrical circuits and even software timing. Any setup with cumulative variations can gain benefit from tolerance stacking analysis.
Can tolerance stacking affect manufacturing cost?
Yes, tighter tolerances will cost more because they need more skilled workers, precise machinery and frequent quality checks. Proper tolerance analysis will provide the balance between quality requirements and production costs.
