Have you ever cut a part too short, snapped a tool or ended up with the wrong dimensions? These problems are common in CNC machining and oftentimes incorrect tool offsets are the cause. In this blog post you will learn what tool offsets are, discover the different types you might use and find out how to set them properly. With the right offsets, your machining stays accurate and trouble-free.

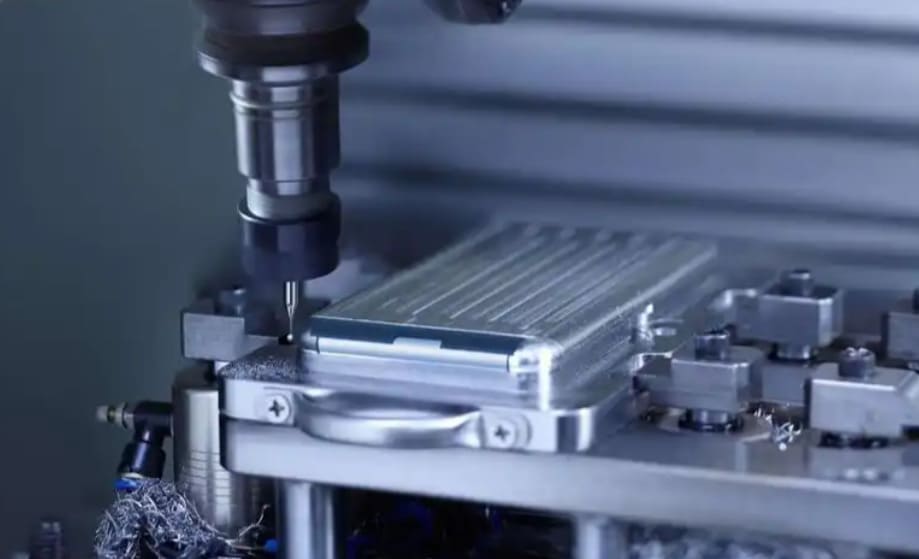

What Is Tool Offset in CNC Machining
Tool offset has a vital role in CNC machining. It tells the machine exactly where the tip of the cutting tool is, compared to a chosen zero point. By adjusting for tool length and diameter, the machine can cut in the right place. This adjustment keeps results accurate as well as consistent.
Types of Tool Offsets in CNC Machining
CNC machines rely on multiple offsets to pinpoint a tool’s position & shape. Every offset type corrects for a different factor. These adjustments make sure the machine cuts exactly where needed.

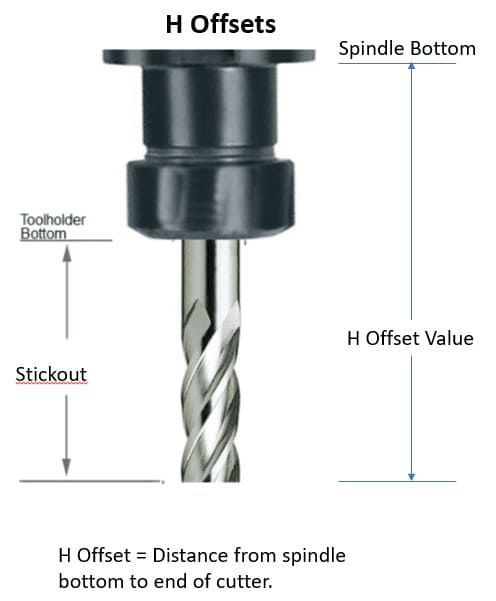

1. Tool Length Offset (TLO/ Height Offset)
Tool Length Offset (TLO) handles differences in tool lengths. It records the distance from a reference point on the machine, like the spindle nose, to the tip of the tool. This value assures that the Z axis cut depth is correct. Controllers use H codes to store this measurement.

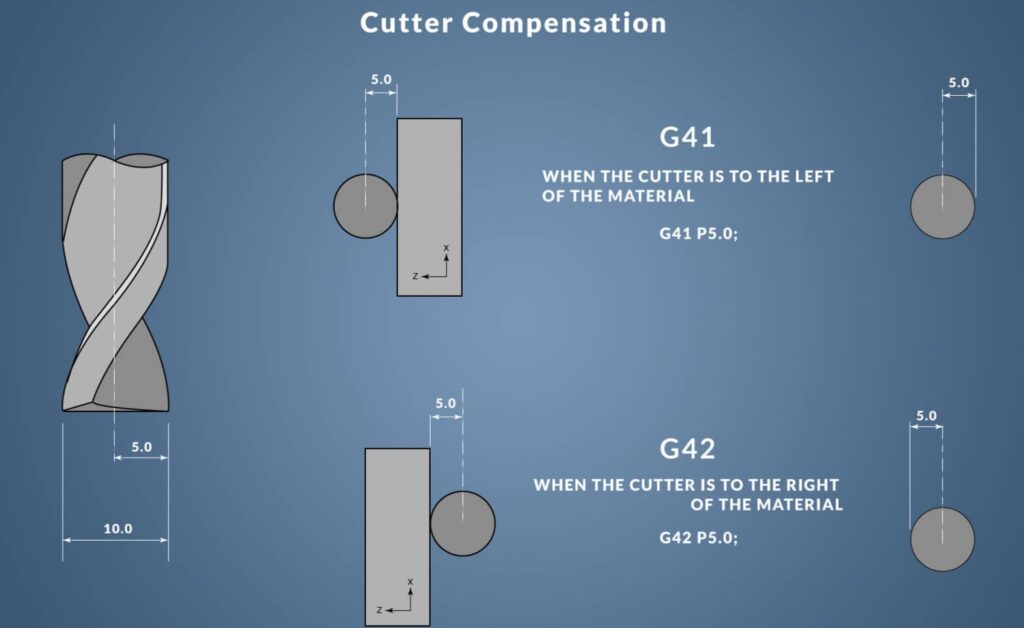

2. Tool Radius (Cutter Radius) Offset/ Compensation
This offset is needed for precise profiles and contours. It changes the toolpath to account for the cutter’s radius which avoids mistakes on curved surfaces. During milling, programmers use G41 for left compensation and G42 for right compensation to apply this correction.
3. Tool Wear/ Wear Offsets
Cutting tools slowly wear down which can change their sizes. Wear offsets make small, accurate adjustments to correct for this gradual wear. These changes, often just a few microns, keep parts within tolerance during long runs. Additionally you do not need to stop or reprogram the machine to maintain accuracy.

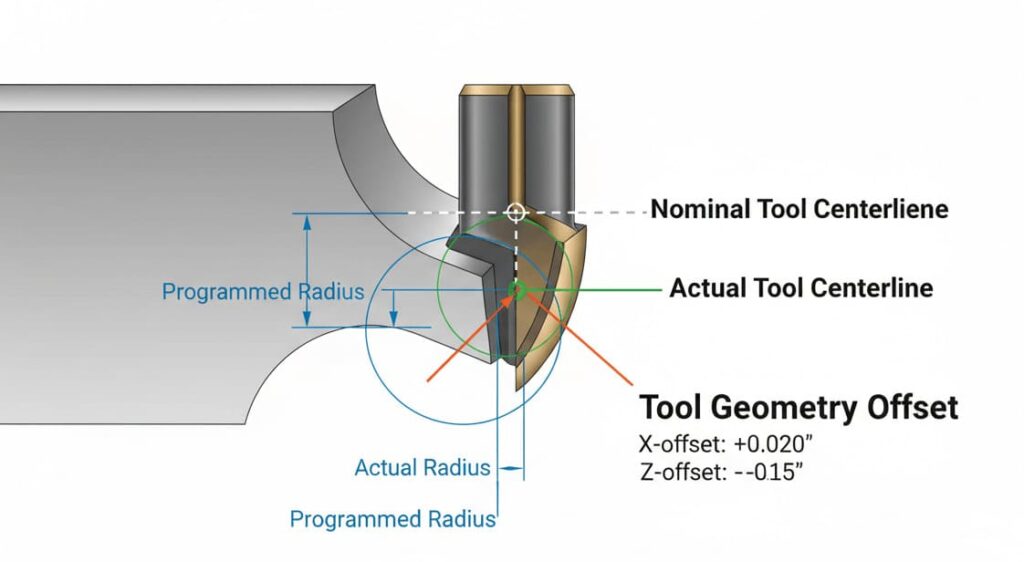

4. Geometry/ Tool Shape Offset
Geometry or tool shape offset accounts for the unique profiles of tools like ball mills and tapered cutters. Instead of only considering length or radius, this offset defines the tool’s entire profile. With this information, the CNC controller can calculate cutting paths for complicated surfaces and tools with non-standard shapes.
5. Combining Offsets
CNC controllers achieve high precision by applying several offsets together. This system combines tool length, radius and wear offsets to determine the final toolpath. Every movement then matches the tool’s actual size and condition. This removes the need for manual recalculation and assures precise machining.
6. Other Offsets & Edge Cases

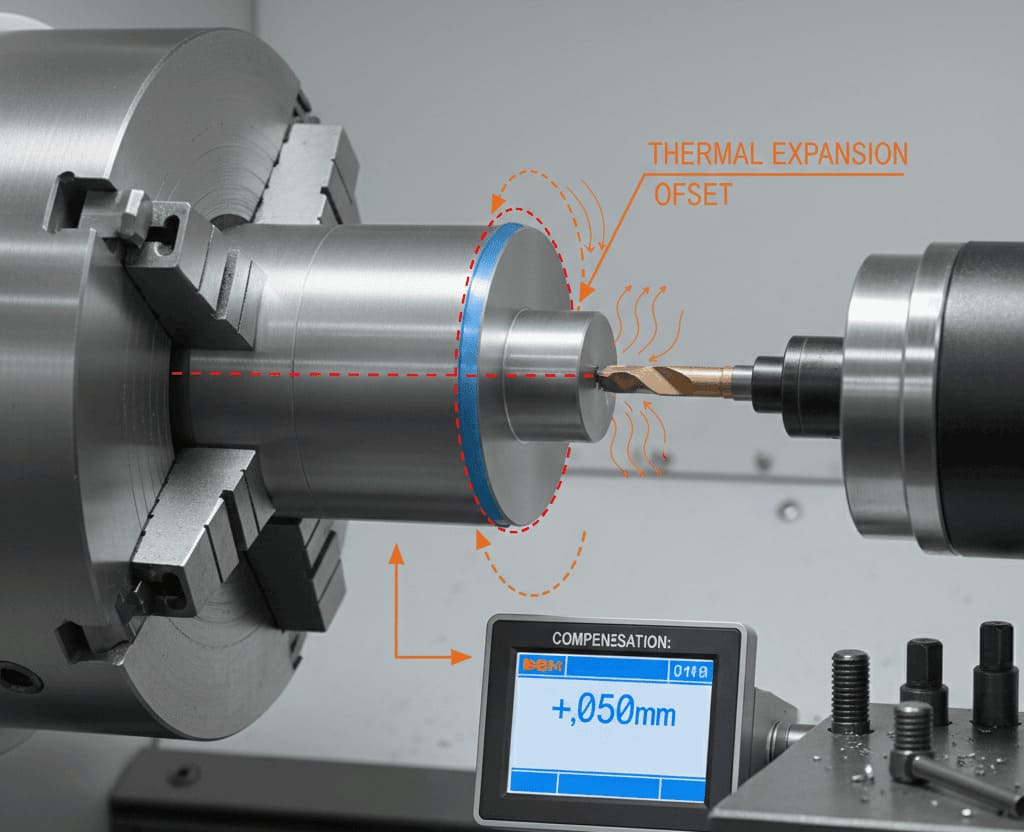

Some machining situations need extra offsets to solve special problems. For example thermal expansion offsets correct for part growth when the machine heats up. This can prevent errors as large as 70 microns. Similarly offsets that compensate for bending forces help keep thin or flexible parts accurate during milling.
How CNC Controllers Handle Tool Offsets
Knowing how CNC controllers apply and manage tool offsets is key to achieving accurate machining.
Offset Registers & Tables in the Controller
CNC controllers keep offset values in special registers that are arranged as tables. Each register stores measurements such as tool length (Z axis) or diameter compensation. The controller uses D codes for diameter and H codes for length to access these registers. During setup, operators enter measured values into the tables. The machine then selects the correct offset by matching the tool number to its register.
At RICHCONN, we use modern controllers that support hundreds of offset registers. This lets us run complicated multi tool jobs without interruptions.
G Codes/ H Codes for Applying Offsets
Offset compensation in CNC programs relies on G codes. To enable tool length compensation, G43 is used together with an H code and a Z axis movement. For tool radius compensation, G41 shifts the tool path to the left while G42 shifts it to the right. G40 cancels radius compensation and G49 cancels length compensation. The H code tells the controller which offset register to access; for example H1 selects register 1. Most machine shops match tool numbers with offset numbers to keep things simple.
Intersection-Point Calculation
The controller adjusts the programmed tool path by adding the compensation value. For radius compensation, it finds where offset lines and curves intersect to calculate the tool center’s path. This method assures the tool’s edge follows the intended geometry, particularly at corners & arcs.
Sequencing_ When the Offset Is Activated in the Program
Activating tool offsets in the correct order is crucial for safety. The machine usually receives the offset command right after a tool change. The controller then needs a linear move, often along the Z axis, before it applies compensation and starts cutting. Offsets must be canceled at the end—use G49 for length and G40 for radius—to avoid unexpected machine actions.
Resolving Multiple Offsets_ Tool + Work + Compensation
CNC controllers follow a set order when applying offsets. The work offset, such as G54 to G59, defines the part’s zero point first. After that, the controller adds tool length, radius as well as wear offsets to this coordinate system. By combining all these values, the controller calculates the exact toolpath.
Controller Limitations & Number of Offset Registers
Controllers can only store a certain number of offset registers. Newer machines may offer more than 200 but older ones might only have 16 or 32. This memory limit determines how many tools the machine can use at once. On complicated jobs, running out of registers can stop production therefore careful planning is necessary.
Why Tool Offset Matters
Managing tool offset correctly affects both workshop performance & profitability. This is not just a technical concern; it has direct business consequences.
1. Accuracy & Dimensional Precision
Offsets must be set properly to achieve precision. They make sure each cut is accurate. Thus parts stay within tight tolerances, sometimes down to microns. By using correct offsets, you avoid overcutting or undercutting. This is necessary for making components that are both high quality and dimensionally correct.
2. Repeatability & Tool Changes
Offsets help maintain consistency during production runs. Automated tool changes become possible without losing accuracy. After setting an offset, the machine keeps using that value for every part. This guarantees identical results which is important for mass production.
3. Time & Efficiency
Good offset management cuts down on both time & cost. Setup times drop and manual trial cuts are not needed. This speeds up job changeovers and keeps machines running longer. As a result productivity goes up and operational costs go down.
4. Surface Finish & Tool Life
When offsets are precise, the tool contacts the material as intended. This stops chatter and vibration so the surface finish is smoother. The tool also faces less stress which means it lasts longer and you spend less on replacements.
5. Risks/ Dangers of Incorrect Offsets
Setting offsets incorrectly can cause major problems. Parts may get scrapped and you might need to redo work or waste material. In severe cases, the tool could hit the workpiece or machine and this causes expensive repairs and long delays.
To avoid these issues, many companies choose specialized CNC machining providers like RICHCONN. These providers use strict offset controls and thorough quality checks to catch errors before they happen.
How to Measure/ Set Tool Offset in CNC Machining
Workshops use different methods to measure and record offset values. These range from simple manual methods to advanced automated systems.
Manual “Touch off” Method
In the touch off method, the operator moves the tool tip until it touches a reference surface such as the workpiece top. The machine display shows the position and the operator enters the value by hand. This process is simple and does not need extra equipment; but it takes time and depends on the operator’s experience.

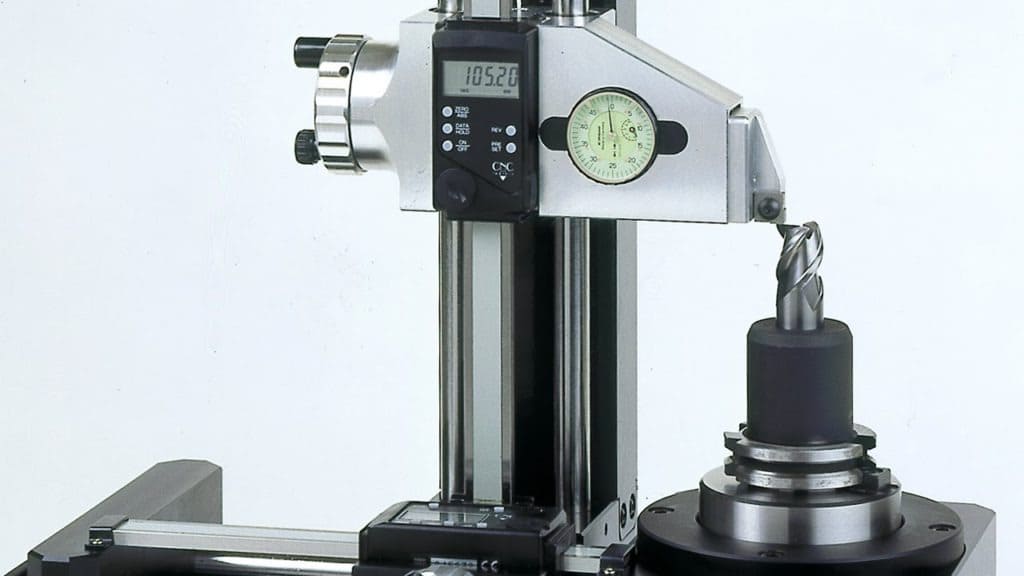

Tool Presetters (Offline)
A tool presetter measures a tool’s length and diameter before loading it into the machine. This device works offline and provides high accuracy. You can use a presetter to save machine time because production does not stop for setup. The measured data goes straight to the CNC controller.

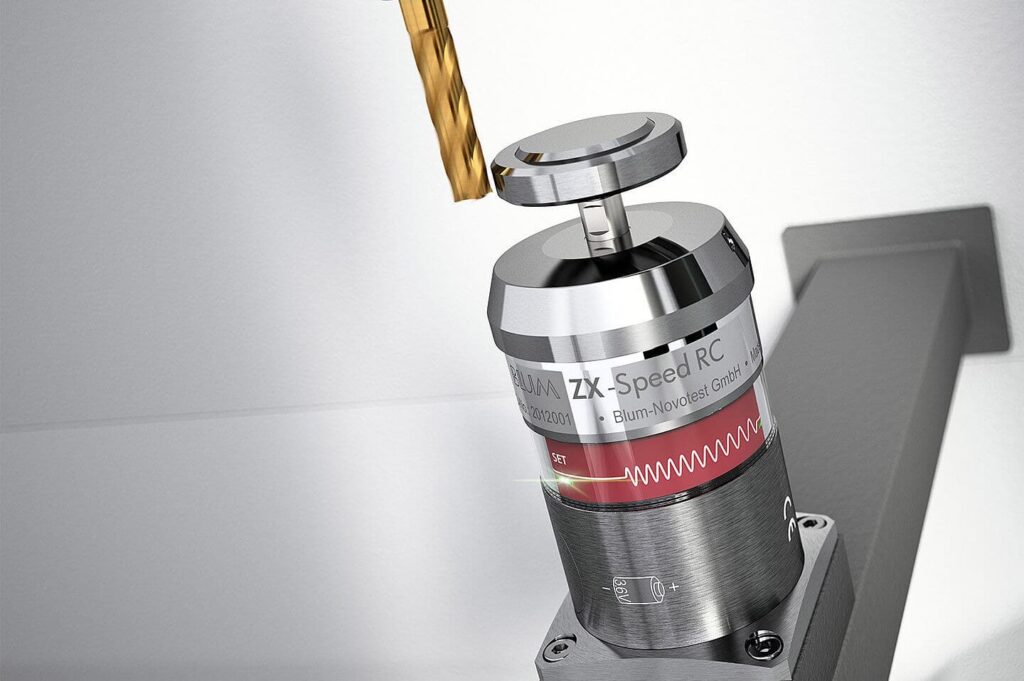

Automatic Tool Setters & Probing Systems
On-machine devices like mechanical probes, lasers or optical sensors handle the measurement automatically. The machine brings the tool to the sensor, records its size instantly as well as updates the offset table. This approach offers high speed and repeatability along with accuracy.
Process/ Workflow for Entering Offsets
This workflow is simple. First, load the tool into the spindle. Next, measure its length or radius using one of the available methods. Enter the value into the correct offset register in the controller. Finally, run a test or use a graphical simulation to check that the offset is set correctly before starting machining.
How to Update Offsets (Particularly Wear)
As tools wear, machinists adjust the wear offset value in small steps. During production, they measure parts. If they see the dimensions drifting, they enter a small correction—often just a few microns (0.001mm)—to keep the part within tolerance. This adjustment happens without stopping the machine.
Sample G code/ CNC control interface snippet
After measuring, store the offset value in the controller’s tool geometry table. For example the length for tool #1 goes into its register. The G code program uses a command like G43 H01 to call & activate this offset.
Best Practices & Optimization Strategies
Standardize Offset Procedures Across the Shop
Set one documented method for establishing offsets in every area of the shop. When everyone follows the same process, operator mistakes decrease and accuracy stays consistent from shift to shift.
To keep reliability high, RICHCONN records each offset procedure and, if needed, provides clients with validation reports for complete transparency.
Use Dedicated Tool Presetter or Calibration Station
Measure tool length and diameter with an offline tool presetter. By doing this, you keep production machines running, shorten setup times and this also improves measurement accuracy.
Automate Probing/ Touch Measurement Where Possible
Install on machine probing systems to handle tool and work offset measurements automatically. This removes guesswork, cuts down on human error and also speeds up the setup process.
Regularly Verify Offsets (e.g., Before Critical Jobs)
Never rely on stored offsets without checking. Always re-measure tools before starting a new run or any job that needs high precision; because even tiny differences can change the quality of the finished part.
Track Tool Wear & Apply Wear Offsets
Watch tool condition during the machining job and adjust wear offsets as needed. By doing this, you avoid dimensional mistakes on long jobs and extend the life of your tools.
Maintain Offset Databases with Versioning
Build a central digital database for your tools. This gives each one a unique ID. Storing offset data this way avoids mix-ups and mistakes when you use tools for different jobs.
Use Consistent Conventions (units, sign convention)
Pick a single standard for units (such as inches or millimeters) and sign conventions for offset values across the shop. This simple rule stops costly errors from misreading values.
Training Operators & Documentation
Train every operator on your shop’s standard offset methods. Give them clear documentation and checklists to help prevent mistakes and keep processes consistent on all shifts.
To Sum Up
Tool offsets have a key role in CNC machining precision. They help maintain tight tolerances, improve surface finish and reduce costly errors. When manufacturers follow best practices—such as regular tool calibration, use of automated measurement along with record keeping—they boost both efficiency and part quality.
If you need CNC machining with strict quality control, Richconn offers expert manufacturing services. You can contact us anytime.
Related Questions
No this approach will not work. Tool offsets are necessary because they adjust for tool length, diameter and wear. These are the factors that exact dimensions alone do not cover.
You need to recalibrate offsets after changing tools or when tools show signs of wear or during scheduled machine maintenance. This keeps machining accurate.
You have to enter the new tool’s length and diameter offsets into the CNC control. If you skip this step, the machine may cut incorrectly or even get damaged.
Yes. Many advanced CNC machines include automatic tool setters & probe systems. These devices measure tool size and update offsets on their own which speeds up the process and improves accuracy.
High speed and high precision machining use advanced offset methods. Automatic tool setters and probing systems help keep tolerances tight and accuracy high.
