What is Tool Steel Machining?
In simple words, tool steel machining means cutting, shaping or grinding steels that have a high hardness. These steels are used to make molds and dies. Since they are resistant to wear and heat, they are more difficult to machine. You will need to choose the right setup, tools and techniques to handle these materials. This way you can achieve the desired tolerances and finish for your project.
Classifications of Tool Steel
Water Hardening (W Series)
This group of tool steels is least expensive. They are hardened by quenching in water. Usually they are used for hand tools such as chisels and punches. Although they provide reasonable hardness, they do not perform well in high heat situations. They can crack or warp when exposed to thermal stress.
Oil Hardening (O Series)
These steels provide good toughness and are resistant to wear. Usually they are chosen for cutting tools, dies and forming tools.
High Carbon Chromium (D Series)
These steels stand out due to their outstanding wear resistance. For long run stamping, shearing, and forming jobs, they are very useful.
Air Hardening (A Series)
After heat treatment, these steels retain their dimensions. Mostly they are used for dies and precision gauges.
High Speed Steels (M and T Series)
High speed steels retain their hardness even when temperatures rise. For high speed cutting tools like taps, drills, reamers and milling cutters, these are mostly used. Their ability to resist softening means your tools last much longer even with continuous use. When you need to machine at higher speeds, they are the best option.
Also See: High-Speed Machining: Techniques, Applications and Considerations
Hot Work Steels (H Series)
For jobs that involve high temperatures such as forging or die casting, these steels work best. These steels do not crack, soften or suffer from thermal fatigue easily. Even during repeated cycles of heating and cooling, they work well.
Shock Resistant Steels (S Series)
Shock resistant steels handle sudden impacts and dynamic loads well. Mostly they are used for tools such as punches, chisels and hammers. Since they are tough, they prevent breakage and cracks under stress. When you need shock absorption in addition to strength, these steels give reliable results.
Special Purpose Steels
Special purpose steels meet unique needs such as extreme toughness, corrosion resistance or specific thermal properties. For demanding industries, manufacturers often custom-blend these alloys. Mostly you will find them in medical, aerospace and energy sectors where standard tool steels cannot perform.
Important Tools for Machining Tool Steel
Tool Holders
Select tool holders which provide both precision and rigidity. Since tool steel creates strong cutting forces, you need secure clamping. This approach keeps your machining accurate, prevents vibration and extends your tool’s life.
Cutting Tools
When working with hardened tool steels, choose carbide end mills and inserts. These tools can operate at high temperatures and are wear resistant. If you are machining softer grades or handling small batches, high speed steel tools offer a reliable and cost effective option.
Machine Tools
Pick CNC machines with solid platforms and strong spindles. In tool steel machining, heavy duty cuts are very common. To avoid deflection during these operations, your equipment must provide enough power and maintain rigidity.
Coolants and Lubricants
Heat management is very important when machining tool steel. To remove heat efficiently, use high pressure systems and apply flood coolant. For finishing passes, air or mist cooling can sometimes be enough. Lubricants also perform an important part as they lower friction and improve the surface finish.
Most Effective Machining Methods for Tool Steel
Drilling
It is difficult to drill tool steel because of its hardness. To avoid chip buildup, use peck drilling cycles and rigid setup. Compared to standard HSS options, cobalt or carbide drills work better. The use of coolant fed drills is highly recommended to control heat and extend tool life.
Turning
When turning tool steel on a lathe, choose carbide inserts. Set your cutting speeds to moderate levels and keep feeds steady. For roughing, use rigid tools and keep overhang to a minimum. When finishing, lower the depth of cut and slightly raise the surface speed. This approach prevents the part from overheating and improves the finish.
Milling
For milling, select high performance end mills which work well with hardened materials. Set feed rates high and use conservative speeds during roughing. For finishing, decrease both feed rate and depth of cut. This way you can get smoother surfaces. Climb milling usually gives finer finish and better tool life.
Grinding
Grinding lets you achieve fine surface finishes and tight tolerances. For tool steels, use vitrified bond wheels. Dress the wheel properly so it keeps sharp. To avoid cracks or burns on the part’s surface, apply only light pressure.
Electrical Discharge Machining (EDM)
For complex shapes and hardened tool steels, EDM works best. The process removes material through electrical sparks so there is no contact or mechanical stress. Although EDM is slow, it is the best choice for parts which cannot be machined by conventional methods after hardening.

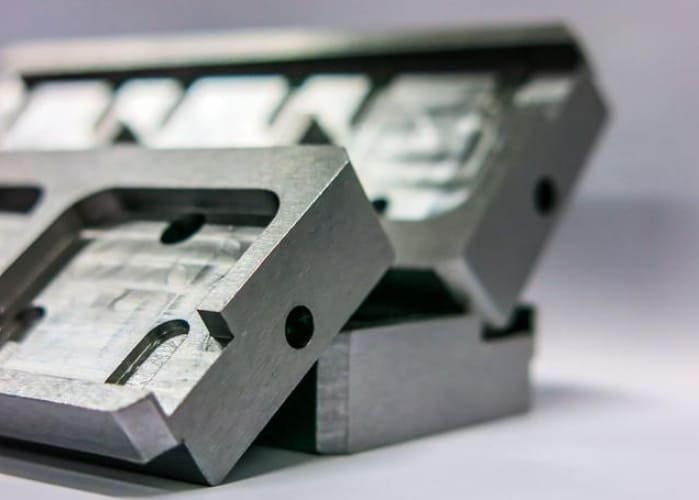

Tips for Successful Tool Steel Machining
Use Appropriate Tool Geometry
Choose clearance and rake angles that lower cutting forces. Select a positive rake for hard tool steels and keep cutting edges sharp. To minimize chipping and increase strength at the cutting edge, use tools with a corner radius.
Optimize Cutting Parameters
Adjust feeds and speeds according to tool steel grade and the cutting tool material. Generally slower speeds with heavier feed rates give better results. Start with the values given in manufacturer data sheets. Then make necessary adjustments based on tool performance and the surface finish.
Implement Proper Cooling Techniques
In tool steel machining, a lot of heat is generated. To remove heat and extend tool life, use high pressure coolant systems or flood cooling. Air or mist cooling may be enough for light work or finishing but these methods do not work as well for heavy duty machining.
Workpiece Preparation
Make sure that the material is stress relieved before starting machining. This step reduces internal tension and helps prevent distortion or movement. Because of these pre machining treatments, stability is improved which is important for keeping tight tolerances in hardened steels.
Regular Tool Maintenance
Regularly check your tools for signs of wear or breakage. Dull tools increase cutting forces and lead to poor surface quality. Mainly for carbide inserts or end mills, set up a regular inspection and replacement schedule.
Heat Treatment and Its Impact on Machining
Heat treatment has a strong influence on how tool steel responds during machining. You have to organize your machining steps according to heat treatment process, if you want to achieve high strength and hardness.
Purpose of Heat Treatment
Mainly heat treatment is used to improve mechanical properties like wear resistance, hardness and strength. Applying this process improves performance and helps extend tool life during use.
Common Heat Treatment Processes
Annealing, quenching and tempering are methods which are widely used. Annealing makes steel softer, thus machining becomes easier. Quenching raises hardness. Tempering lowers brittleness so the steel’s properties become more balanced.
Effects on Machinability
After hardening, tool steel machining becomes more difficult because the material becomes stronger. This requires the use of sharper cutting tools, more rigid setups and carefully chosen parameters. Some manufacturers choose to machine tool steel while it is still annealed. They then apply heat treatment after final machining to combine easy machining with high performance.
Surface Finishing Techniques for Tool Steel
In the tool steel machining process, finishing is the final step. This step has a major impact on tool wear resistance, performance and overall performance of tools. You need to select both the right finishing method and right treatment to get the best results.
Importance of Surface Finish
A quality surface finish does more than improve appearance. It helps prevent early wear, lowers friction and increases part’s life. Moreover in tools and dies, smooth surfaces improve material flow and reduce sticking during use.
Finishing Methods
Polishing, honing and lapping are methods which are commonly used. Polishing works by smoothing out tiny valleys and peaks on the surface. Honing fixes dimensional errors. Lapping works best when you need flat surfaces on die or mold components.
Common Coatings
Titanium Aluminum Nitride (TiAlN), Titanium Nitride (TiN) and Chromium Nitride (CrN) are coatings which are commonly used. These coatings keep heat from building up, increase wear resistance and help both the tool and work piece last longer.
Challenges in Machining Tool Steel
Heat Generation
During machining of tool steels, a lot of heat is generated. Excessive heat can cause thermal expansion and damage your tools. To control temperature and keep part dimensions accurate you will need effective cooling methods like high pressure systems or floods.
Hardness and Wear Resistance
Tool steels are designed to be extremely hard. Because of this property, tools wear out quickly particularly during roughing operations. Choose wear resistant tools such as coated carbides to address this issue. It is also very important to set the cutting parameters correctly.
Material Toughness
Due to the toughness of tool steel, higher cutting forces are needed. This can lead to tool deflection particularly with long reach setups. To keep everything stable and obtain a better surface finish, use sturdy tool holders and rigid machines.
Dimensional Stability
Tool steel may shift slightly during or after machining particularly if stress relief treatment hasn’t been performed. Make sure to check tolerances after machining. Pre-machining heat treatment can also help improve dimensional stability.
If you identify these challenges early and adjust your speeds, tooling and machining steps, most problems can be solved. By careful planning you can reduce scrap, extend tool life and obtain consistent results from batch to batch.
Safety Specifications
Handling and Storage
Tool steel bars and plates are heavy. For safe handling, use proper lifting tools. Store raw materials on stable racks and label them clearly to prevent mix ups. To prevent rusting, keep materials dry and clean.
Personal Protective Equipment (PPE)
When handling tool steel, wear safety goggles, gloves and protective clothing. Sharp edges and heavy pieces can cause injuries. If dry cutting or grinding is being done, you may need respiratory protection as well.
Machine Safety
Check that all safety guards are attached to your manual lathes and CNC machines. Make sure all emergency stops are working and are easy for you to reach. While the machine is running, never open machine enclosures or bypass safety interlocks.
To Sum Up
In short, proper machining of tool steel produces reliable and tough parts that last. You can handle issues such as heat, wear and distortion by following proven methods, choosing proper tools and practicing good safety habits. Precision machining is very important whether you are making mold, dies or industrial tools as it directly affects the quality of your finished parts.
