Today in engineering, weight reduction without compromising performance is important. But many professionals struggle to find best lightweight metals for their tasks. This post will cover top 5 lightweight metals in modern engineering and compare their properties and applications so you can pick the right metal for your next project.

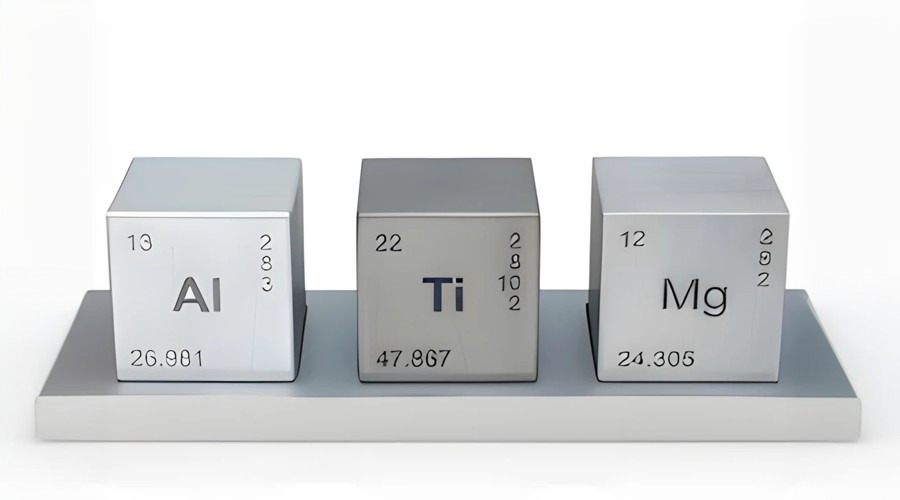

What is a Lightweight Metal?
A metal which has density less than 5 g/cm³ is a lightweight metal. The lightest metals that show metallic characteristics are magnesium (1.7 g/cm³), aluminum (2.7 g/cm³) and titanium (4.5 g/cm³). Compared to conventional heavy metals, these metals give outstanding corrosion resistance and strength to weight ratios.
Why these Metals are Important in Modern Engineering
Better Performance
These metals give better strength to weight ratios than traditional materials. So the transportation sector gets more payload capacity and better fuel proficiency. In portable tools lightweight metals minimize operator fatigue without compromising their structural integrity.
Economic Benefits
Using lightweight metals provides big cost savings. They reduce operational costs through lower maintenance needs and energy consumption. Sure the initial cost is higher but their long term benefits mostly justify the investment through longevity and better functionality of product.
Environment Friendly
Nowadays engineers look for particular materials which can save energy and reduce the environmental burden. In transportation, lightweight metals not only decreases greenhouse gas emissions but they reduce fuel consumption too. Their use in machinery and vehicles also helps meet environmental regulations.
Manufacturing Benefits
Lightweight metals are greatly machinable and formable. Their characteristics facilitate thin-wall component production and precision die-casting. Most lightweight metals have good corrosion resistance which can be improved by alloying and surface treatments.
Top 5 Lightweight Metals
1. Aluminum Alloys
Aluminum alloys are metallic materials made by combining aluminum with other elements like magnesium, silicon, manganese, zinc and copper. They are classified into seven series (1000-7000) based on the main alloying elements.
The density of aluminum alloys is 2.7 g/cm³, Young’s modulus is 10,000 ksi and the thermal conductivity is 120 – 220 W/m·K. Their face centered cubic structure allows for good formability with tensile strength ranging from 90 to 690 MPa through heat treatment.
Applications
Aircraft structural components as well as engine pistons, railway car bodies, transmission towers, electronic conductors, heat exchangers and architectural window frames are manufactured from aluminum alloys, which require traceable laser marking.
Advantages and disadvantages
Aluminum alloys provide outstanding corrosion resistance, better strength to weight ratio and high thermal conductivity. They also are proficient for recycling and heat transfer.
Aluminum alloys may have good fatigue resistance but some lower strength alloys may not perform well in cyclic loading applications.

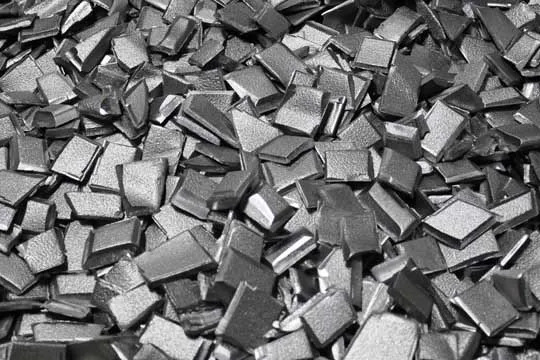

2. Titanium Alloys
In simple terms titanium alloys are made from titanium and elements like aluminium and vanadium. The most common grade is Ti-6Al-4V which comprises 6% aluminium and 4% vanadium.
Titanium alloys have tensile strength of 275-1250 MPa and impressive fatigue resistance at 50% of tensile strength. They keep their structural integrity at 500°C and they show fracture toughness in the range of 28–108 MPa m^1/2.
Applications
The components of aircraft’s engine, rotors, landing gear, compressor blades as well as biomedical implants, high performance automotive parts and marine equipment are manufactured from titanium alloys. Aerospace applications are mostly dominated by Ti–6Al–4V grade.
Advantages and disadvantages
Titanium alloys are very light, strong and resistant to corrosion even in harsh situations. Also, they are non-reactive with the human body and so they are ideal for medical implants.
But titanium alloys are costly and tough to machine because of their ability to work-harden rapidly.

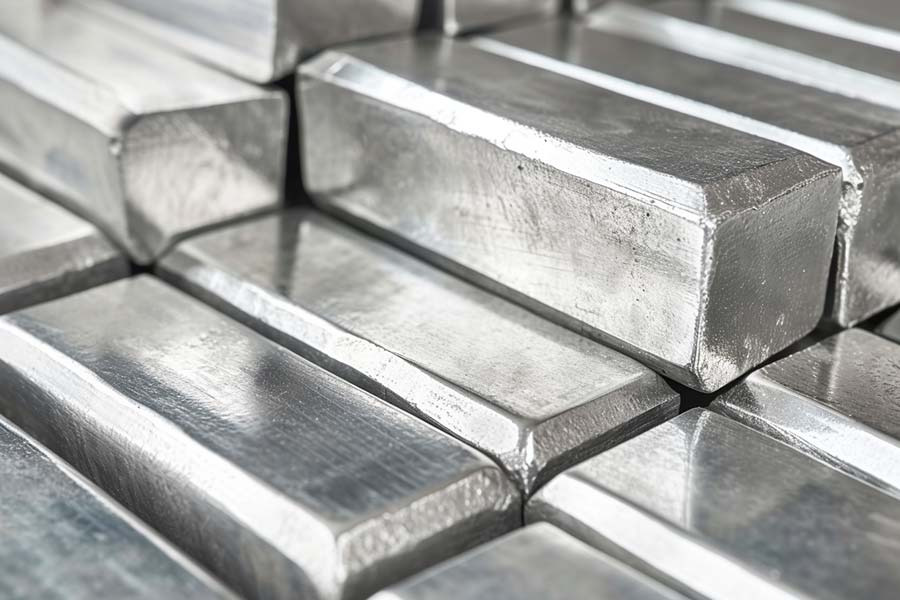

3. Magnesium Alloys
Magnesium alloys are lightest structural metals with elements like zinc, manganese and aluminium. For example AZ91D contains 8-9% aluminium along with smaller amounts of zinc and manganese.
Magnesium alloys have a tensile strength up to 360 MPa (for wrought variants), density of 1.74 g/cm³ and yield strength of 300 MPa. Their hexagonal crystal structure gives outstanding natural stiffness and damping capacity.
Applications
Magnesium alloys are used for making helicopter rotor blades, gearbox casings, automotive engine blocks, electronic device housings, medical implants and aircraft landing wheels.
Advantages and disadvantages
Magnesium alloys give the lowest structural metal density and also have great electromagnetic shielding abilities. They give competitive strength in different applications in spite of their lightweight structure.
In aggressive conditions, magnesium alloys can corrode which could be prevented by alloying or coating.

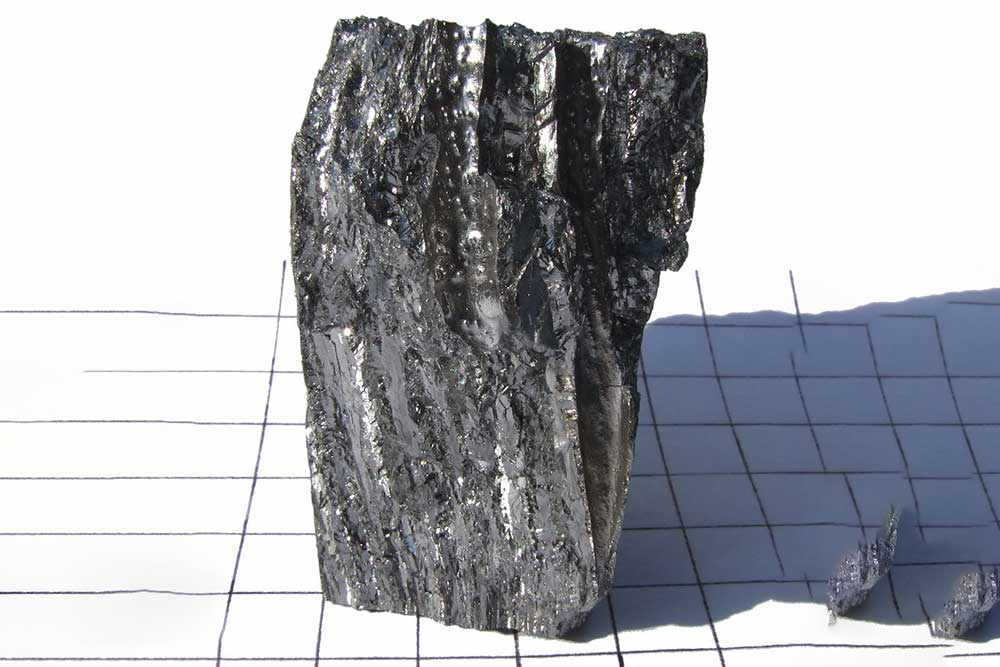

4. Beryllium
Fourth on the periodic table, Beryllium (Be) is an alkaline earth metal of steel-gray color. It occurs in three forms as beryllium containing alloys, beryllium as pure metal and beryllia ceramics.
Properties
Beryllium has extraordinary stiffness with Young’s modulus of 287 GPa and a melting point of 1287°C. Its hexagonal crystal structure gives sound conduction speed of 12.9 km/s with thermal conductivity value around 216 W·m⁻¹·K⁻¹.
Applications
Beryllium is used for producing nuclear reactor components, aerospace heat shields, inertial guidance systems, electronic connectors, precision instruments for navigation setups and X-ray windows.
Advantages and disadvantages
For nuclear applications, beryllium has good neutron moderation properties and outstanding dimensional stability at extreme temperatures. Beryllium is non-magnetic in nature so it doesn’t interfere with sensitive military and electronic equipment.
Because of its brittleness, beryllium needs special equipment and handling during machining to prevent fractures.

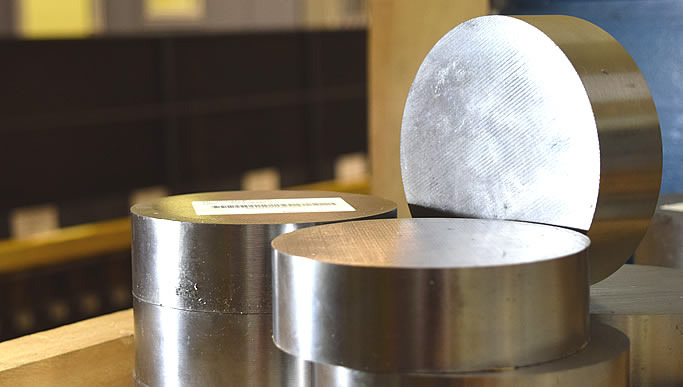

5. Lithium Alloys
Made by combining pure lithium with copper, magnesium, zinc and aluminum, these are metallic alloys. They normally come in two types Mg-Li alloys and Al-Li alloys.
Lithium alloys have BCC crystal structure and extremely low density of 1.3-1.65 g/cm³. As lithium content increases, their stiffness increases too by 6 GPa. Also, they exhibit extraordinary resistance to fatigue cracks and yield strength of 600 MPa.
Applications
Fuselages, bearing assemblies, radiation shielding, nuclear reactor coolants and airplane wings are all made from lithium alloys. Aluminum lithium alloys are also extensively used in structural aerospace applications.
Advantages and disadvantages
Lithium alloys have impressive strength to weight ratio and good degassing properties for purified microstructure. They are also fatigue resistant under cyclic loading.
Lithium is less available naturally than other alloying elements so its supply may be limited and material costs can vary too.
Top 5 Lightweight Metals Comparison
| Property | Aluminum Alloys | Titanium Alloys | Magnesium Alloys | Beryllium | Lithium Alloys |
|---|---|---|---|---|---|
| Thermal Conductivity (W/m·K) | 237 | 17 | 156 | 216 | 84 |
| Melting Point (°C) | 660 | 1725 | 650 | 1289 | 180 |
| Tensile Strength (MPa) | 570 | 1070 | 320 | 345 | 600 |
| Density (g/cm³) | 2.70 | 4.50 | 1.74 | 1.85 | 2.67 |
| Yield Strength (MPa) | 241 | 880 | 160 | 240 | 300 |
| Corrosion Resistance | High | Excellent | Moderate | Very High | Moderate |
| Electrical Conductivity (% IACS) | 36 | 3 | 15 | 30 | 60 |
How to Choose the Right Lightweight Metal?
Mechanical Properties
Lightweight metals mechanical properties vary greatly among different materials and alloys. In the case of dynamic loading conditions, titanium is best option because of its impressive thermal stability and fatigue resistance. Although for weight reduction applications, magnesium alloys are better as they have good strength to weight ratio.
Corrosion Resistance
Each lightweight metal has different corrosion behavior in particular environments. For surface applications where surface protection is important, aluminum alloys are better as they naturally form a protective surface layer. Magnesium alloys are better for applications where weight is main concern. But they need careful composition mostly with calcium to improve corrosion resistance.
Manufacturability
Manufacturing processes are different for each lightweight metal. For projects that need versatile forming options in 350-500°C range and better machinability, aluminum alloys are best. On the other side, magnesium alloys are good in casting processes but need controlled atmosphere to avoid oxidation.
Cost Considerations
Raw material prices vary greatly among lightweight metals. Titanium alloys are $15-40 per kg, magnesium alloys are $20-60 per kg, aluminum alloys are $1,100-2,600 per ton and beryllium copper alloys cost somewhat between $25-50 per kg.
Sustainability
The production and recycling of lightweight metals have significantly different environmental impact. Aluminium is one of the materials that is infinitely recyclable with minimum property loss and needs only 5% of initial production energy when it is recycled. Magnesium and titanium need special recycling methods and similarly beryllium needs rigid environmental control during reprocessing.

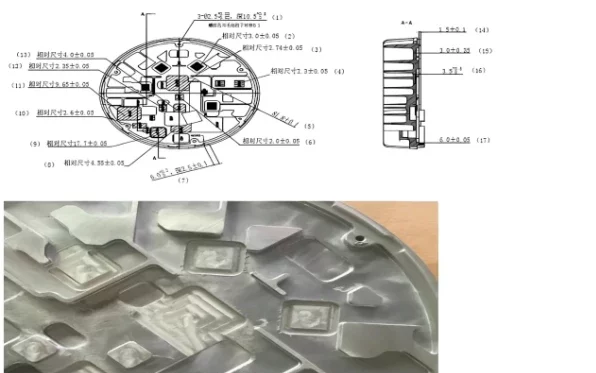

Case Study: The 5700 Box Body Case
The article above identifies aluminum as one of the top lightweight metals in modern engineering, noting its thermal conductivity of 120–220 W/m·K alongside its low density of 2.7 g/cm³ — a combination that makes it the default material for heat management in electronics and communications hardware. 5G base station components push both of those properties to their limits: the equipment runs at higher power densities than previous generations, demands lighter enclosures for easier installation, and cannot tolerate vibration or surface defects that would compromise thermal contact. The following case from Richconn’s engineering team documents the manufacturing challenges of a 5G heat dissipation enclosure in production-scale 6061 aluminum.
- Part: 5700 Box Body Heat Sink
- Industry: Telecommunications / 5G
- Material: 6061 Aluminum (die-cast blank)
- Process: CNC Turning + Turn-Mill Compound Machining
- Batch: 500 pieces per order / 5,000 pieces cumulative delivered
The Challenge
The 5700 enclosure features cylindrical radial cooling fins distributed around the outer circumference of a die-cast aluminum body, with a finished outer diameter of 168.3 ± 0.1 mm. The fins must be machined to a clean, burr-free condition with no deformation — requirements that are straightforward to specify but genuinely difficult to achieve on this geometry.
The root cause is structural, not material. When a turning tool engages a fin on a cylindrical heat sink, it does not cut through a continuous solid surface — it interrupts repeatedly as each fin passes through the cut. At the entry and exit of each interruption, the tool experiences an impact load rather than a steady cutting load. At 2,000 RPM with a feed rate of 800 mm/min, these interrupted impacts accumulate rapidly. The result, with conventional tooling approaches, is predictable: the tool deflects on each impact, the thin fin walls flex under the cutting force, and the part exits the machine with deformed fins and burrs at every interruption point. In initial trials, the defect rate was 100% — every part had fin deformation or burrs, or both.
The geometry also creates a secondary problem. Fins distributed around a full circumference create uneven material removal as the tool traverses the part. Zones with fins present and zones between fins have completely different cutting resistance. The tool is alternately loaded and unloaded with each revolution, which excites tool chatter and further degrades surface quality and dimensional control.
The Solution: Profile Filling to Eliminate Interrupted Cutting
The engineering team’s solution addressed the root cause directly rather than compensating for its effects. A profiled filler was fitted to the fin geometry before the turning operation — physically filling the spaces between fins to convert the interrupted cutting condition into a continuous one.
With the inter-fin spaces filled, the turning tool engages a closed cylindrical surface throughout the cut. The repeated impact loads that caused fin deflection and burr formation are eliminated. The tool sees a consistent, steady cutting load from the first fin to the last. The outer diameter of 168.3 ± 0.1 mm can then be machined to a clean light-cut finish with an R0.2 nose radius tool at controlled parameters (spindle 2,000 RPM, feed 800 mm/min, depth of cut 0.2 mm), and the fins emerge from the operation undamaged and burr-free.
After the turning operation, the profiled filler is removed, and the finished fins are exposed. The turn-mill compound center handles both turning and any milling features in a single setup, eliminating repositioning error and maintaining dimensional consistency across the full batch.
The Result
The design change from interrupted to continuous cutting reduced the defect rate from 100% to 1%. All fins on conforming parts were free of deformation and burrs. The outer diameter held within the ±0.1 mm tolerance. Customer sample approval was granted, and the part entered volume production — with 5,000 pieces delivered cumulatively at the time of this case record.
What This Case Illustrates
The article above notes that aluminum’s thermal conductivity makes it ideal for heat sinks and cooling components in electronics. What the material comparison does not capture is that the same fin geometry that maximizes heat dissipation surface area also creates the most difficult interrupted-cutting condition in CNC turning. High fin count on a cylindrical surface is thermally optimal and mechanically hostile to the cutting tool at the same time.
The resolution here is an example of Design for Manufacturability (DFM) thinking applied at the process level rather than the design level: rather than simplifying the fin geometry to make it easier to machine — which would reduce thermal performance — the team adapted the process to accommodate the geometry as designed. Profile filling is not a complicated technique, but it requires recognizing that the problem is the interrupted cutting condition, not the tool or the parameters. Once the root cause is correctly identified, the solution is both simple and highly effective. For engineers designing heat sinks or finned enclosures in aluminum for 5G, telecom, or power electronics applications, this case establishes that fin geometry and machining process must be designed together from the start.
To Sum up
The correct choice of lightweight metals greatly depends on operation needs. Titanium is strong and aluminum is cheaper whereas beryllium, lithium and magnesium are for special purposes. So the ultimate decision should be made after considering their cost, manufacturability and mechanical properties.
If you need any type of CNC machining or metal fabrication services for these metals, then Richconn is best option. You can contact us anytime.
FAQs
How is aluminum recycled in engineering?
Aluminium recycling procedure has 5 steps which are collecting scrap, sorting, baling, then melting at high temp and casting into ingots.
Which one among them is strongest lightweight metal?
Titanium is one of the strongest lightweight metal with durability and strength to weight ratio like steel.
Can lightweight metals be used for 3D printing?
Yes lightweight metals like titanium and aluminium are broadly used in 3D printing by using laser powder bed fusion technology.
What are sustainability advantages of using lightweight metals?
Lightweight metals are greatly recyclable so they decrease material waste, carbon emissions and fuel consumption in transportation.
How does strength-to-weight ratio of titanium compare to aluminum?
Titanium has greater strength to weight ratio of 187 kN·m/kg than aluminum which has 158 kN·m/kg.
