Making transparent plastic parts that hold their clarity is more difficult than most people expect. Cracks, haze or a cloudy surface can appear when the material experiences even modest heat or stress. Therefore in this guide we will tell you about the main materials, key design factors and machining methods that you can use to machine very clean and highly transparent plastic parts.

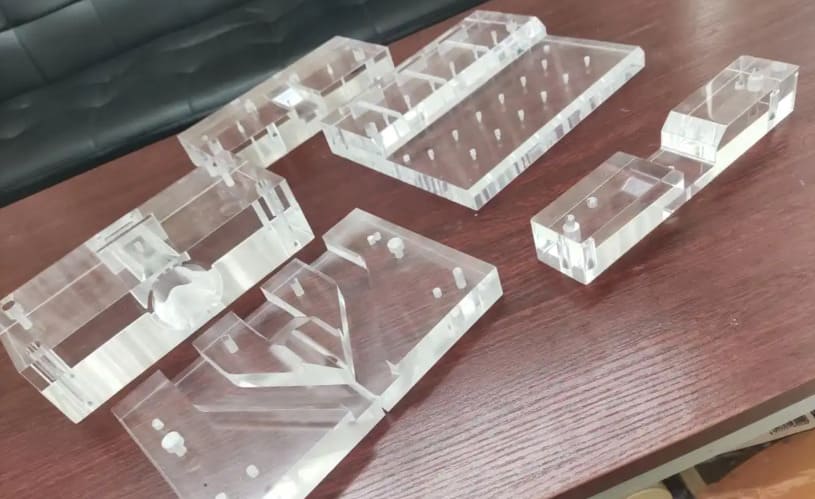

What Are Transparent Plastics?
Transparent plastics belong to a group of synthetic polymers that allow light to pass through with very little distortion. Because of this property, these materials provide clear visibility which makes them useful for optical and protective uses.
Polycarbonate (PC), Acrylic (PMMA) and PETG are common examples and there are also specialized types such as COP, COC, PSU and PEI. Each plastic has its own advantages and disadvantages, some of which are listed in the table below:
| Transparent Plastic | Optical Clarity (%) | Machining Advantage | Limitations |
|---|---|---|---|
| PMMA (Acrylic) | 92 | Easy to polish, smooth edges | Brittle, cracks easily |
| PC | 88–92 | Resists chipping, handles aggressive cuts | Harder to polish |
| PETG | ~90 | No cracking/chipping | Slight tint |
| COP/COC | 92+ | Stable, precise tolerances | High cost |
| PSU/PEI | 85–90 | High hardness, scratch-resistant | Not clear |
Mechanical & Optical Properties That Are Important in Machining
When machining clear parts, two factors dominate—refractive index which governs light bending and internal stress which creates birefringence and distortion. Even slight tool-induced stress can upset these properties and turn a transparent surface opaque.
Hardness and softening temperature of the plastic also shape the strategy. For example PMMA is relatively hard therefore it forms very clean chips but the softer PC demands razor-sharp cutters to avoid heat-related smearing.
How Transparent Plastics Compare to Metals & Opaque Plastics?
Transparent plastics do not conduct heat away from the cutting area like metals do; instead, they act as thermal insulators. Because of this, they expand with heat much more than steel—almost ten times as much—leading to quick changes in size and softening during machining. These plastics are also more elastic which can cause chatter and vibration if the part is not held firmly. Opaque polymers are usually stiffer and less prone to these issues.
Why Transparent Plastics Are Difficult to Machine?
Clear plastics require much higher precision than metals during machining. Even minor mistakes can destroy optical clarity and turn usable parts into scrap.
Low Softening Points & Heat Sensitivity
PMMA and similar polymers soften early (approx 105 °C Tg) and conduct heat poorly at about 0.19 W/m·K. Because heat cannot escape as it does in metals, it accumulates at the cutting edge. When that happens, chips smear, cutters load up and the surface turns opaque or even melts. If spindle settings do not remove heat well, these problems become even more worse.
Low Hardness, Elasticity & Vibration
Transparent plastics bend much more than steel because their elastic modulus is only about 1/60 as high. When cutters apply pressure, the material flexes and then springs back. This movement leads to vibration and chatter which makes it difficult to obtain flat surfaces and precise dimensions compared to stiffer metals.
Handling Risks & Scratch Sensitivity
Most clear plastics are soft, with PMMA at about Mohs 3 hardness. They can be damaged during handling. Dust attracted by static charge or even wiping with a shop rag can also leave micro-scratches. These marks reduce light transmission before the part even leaves the machine.
Residual Stress, Microcracking & Failure
Poor machining may entrap the internal stresses within the part. These stresses promote crazing (a network of microcracks) and can later trigger fractures or warping. Heavy clamping, sharp internal corners or abrupt toolpath changes intensify these stress concentrations.
Shop Environment & Cleanliness Needs
Optical parts attract metal particles and dust from the air. If they are machined on equipment that was previously used for ferrous metals then it is likely that recut chips and deep scratches will occur. To achieve optical-grade transparency, shops must use dedicated, clean setups for these parts.
Design Guidelines for Transparent Plastics Machining
A well thought-out design is essential when machining clear plastic parts. The following recommendations will help keep your components clear, sturdy and defect-free.
1. Wall Thickness, Bosses & Ribs for Clarity And Strength
Make sure that structural walls are thicker than 1.5 mm to stop deflection during machining. When you need to change thickness, use smooth, gradual transitions instead of sudden steps. This approach lowers internal stress and helps prevent cracks in clear parts.
2. Fillets, Radii & Edge Geometry to Minimize Stress
Cracks often start at sharp corners because they collect stress. Therefore use large internal radii that match your cutting tools to spread out stress.
On outside edges, select chamfers over rounded edges. This choice gives a cleaner finish and helps chips clear out during cutting.
3. Optical Tolerances, Flatness & Alignment
Apply strict tolerances only for lens mounts or other interacting optical faces because each extra micron drives up cost. When designing windows or light guides, concentrate on maintaining parallel and flat faces instead. Doing so let’s light pass straight through while sidestepping expensive ultra-precision cuts.
4. Threading, Drilling & Undercut Design in Clear Materials
Standard cut taps can damage brittle plastics by causing cracks. Instead add threaded inserts or use thread milling to reduce stress. Moreover avoid making counterbores and deep undercuts because these can trap heat and often result in surface crazing or melting.
5. Avoiding Features That Trap Chips or Complicate Polishing
Do not include deep, narrow slots less than 3mm wide since chips can re-weld to the surface there. Design pockets with open corners or draft angles so polishing pads can reach the bottom easily and avoid damaging the walls.
Tooling, Machine Setup & Workholding
To achieve a flawless finish on clear plastics, you need the right tooling, secure workholding and a machine in good condition.
Best Tool Types & Cutting Geometries
To keep friction low, choose single-flute polished carbide end mills with a high helix angle, about 25°. These tool shapes push-out chips quickly and stop heat from building up, which would otherwise melt plastic surfaces.
Always use tools set aside only for plastics. That’s because even a tiny wear from cutting metals can leave a white haze on clear parts.
Workholding Strategies to Minimize Marks & Distortion
Hold the parts in place with soft jaws or vacuum fixtures that are shaped to fit the part’s profile. This method spreads clamping pressure evenly. Moreover stay away from metal vices because they can create stress spots. These spots often cause internal cracks known as “crazing” in transparent plastics.
At RICHCONN, our machinists rely on custom soft jaws and vacuum fixtures. These methods protect delicate parts and keep lens-quality surfaces free from marks.
Related Blogpost: Workholding Methods for CNC Machining
Airflow, Coolants & Chip Management for Clear Finishes
- Clear chips from acrylics with a high-pressure air blast to avoid thermal shock.
- When machining polycarbonate and there is a need for liquid coolant, always select water-soluble, non-petroleum coolants to prevent chemical crazing.
- Remove chips quickly. If chips are recut, they cause permanent cloudiness that polishing cannot fix.
Machine Condition, Vibration Control & Cleanliness
Check spindle runout before finishing optical surfaces; it should be less than 0.005mm. Too much vibration causes “chatter” marks which scatter light. Also be sure to clean the machine enclosure thoroughly. This is important because any stray metal chips from earlier jobs can scratch soft plastic surfaces.
CNC Machining Parameters for Transparent Plastics
Obtaining a clear finish on transparent plastics starts with precisely chosen machine parameters. Because these materials can melt easily, they must be handled carefully to preserve optical clarity.
Feed, Speed & Depth Parameters
When machining acrylic or polycarbonate, choose a high spindle speed. Pair this with a moderate feed rate and keep the depth of cut shallow. This combination clears chips cleanly, limits heat and prevents melting or crazing.
Roughing Versus Finishing Passes for Clear Surfaces
Using two separate stages gives the best clarity and keeps cycle times short. Start with an aggressive roughing pass to remove most of the material quickly. Then follow with several light finishing passes. Leave a consistent layer of 0.1mm to 0.5mm for finishing. This reduces stress and helps avoid tool marks.
Related Blogpost: A Complete Guide to Rouging and Finishing in CNC machining
Feeds & Speeds Reference Ranges for PC & Acrylic
| Material | RPM Range | Feed (inches/tooth) | DOC ( in inches) |
| Acrylic | 10,000 – 16,000 | 0.002–0.004 | 0.02–0.10 |
| Polycarbonate (PC) | 8,000 –12,000 | 0.002–0.005 | 0.02–0.08 |
Note: Treat these values as starting guidelines. Always run test cuts to adjust for your tool’s geometry and machine’s rigidity.
CAM Toolpath Techniques for Smooth Surface Quality
Toolpaths must stay continuous and smooth to produce a flawless optical surface. Spiral finishing, climb milling and constant-scallop paths work well for this purpose. Because these strategies minimize abrupt directional changes, they reduce visible tool marks. Also when possible, you should activate toolpath-smoothing options in the CAM software to push the finish even further.
Other Machining Processes for Transparent Plastics beyond Milling
Standard milling is not the only option; other machining processes can also shape transparent plastics efficiently.
A. Turning & Facing Transparent Plastic Tubes and Rods
Turning suits cylindrical optical components such as light pipes and lenses but it demands sharp diamond tools to preserve clarity. Because clear plastics differ from metals, they respond best to high spindle speeds combined with light cuts which prevent clouding or melting. Effective chip removal is also important. This prevents hot plastic from wrapping around the part and damaging the surface.
B. Drilling, Tapping & Thread Milling Without Cracks
Brittle plastics such as acrylic often crack when standard drills are used so choose 0° rake bits or those designed specifically for plastics. When cutting threads, prefer thread milling because the technique imposes minimal radial stress and therefore lessens stress-cracking. Peck cycles should always be programmed to evacuate chips and keep deep holes cool.
Related Blogpost: Drilling vs Tapping
C. Routing & Laser Cutting Clear Sheets
CNC routing works well for shaping large, clear plastic sheets with complex outlines. Laser cutting on the other hand, is best for producing smooth, polished edges on acrylic; however it may introduce micro-cracks and internal stress in polycarbonate. The optimal cutting method depends on both the desired edge quality and the plastic type.
D. Hybrid Workflows with Machining, 3D Printing & Molding
Combining machining, 3D printing and molding creates complex transparent parts efficiently. A lens for example, can be formed close to its final shape by molding or 3D printing. Afterwards diamond turning or precision machining can be used to refine the optical surfaces and obtain the needed transparency and precision which saves time.
Surface Finishing & Polishing for Optical Clarity
Plastics need careful finishing after machining to reach true optical clarity. These steps remove defects and transform a hazy part into a transparent one.
Stepwise Sanding & Mechanical Polishing Workflow
Mechanical polishing uses several steps to smooth the plastic. Start by wet sanding with grits ranging from 600 to 2000. This process removes machining marks and keeps the surface cool. Complete the finish with a buffing wheel and a diamond paste or polishing compound to get a glass like appearance.

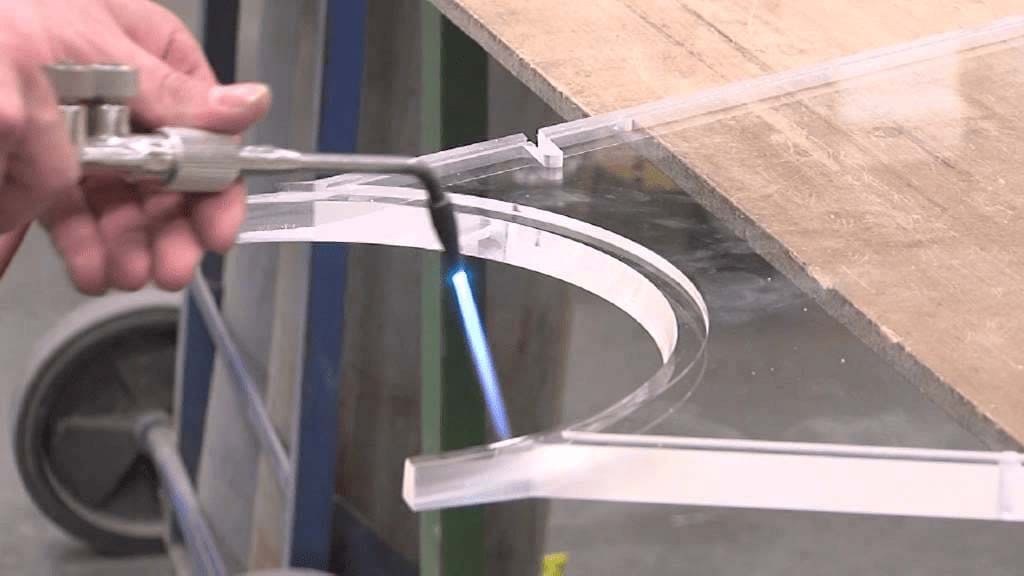

Flame Polishing, Vapor Polishing & When to Use Them
Flame and vapor polishing both melt the surface at a microscopic level to improve clarity. Flame polishing works well on acrylic (PMMA) yet it may harm polycarbonate (PC). Vapor polishing on the other hand, provides tighter control and can access intricate internal features. However it demands rigorous safety practices and specialized solvents.
At RICHCONN, our technicians evaluate each part’s material and geometry before choosing a polishing method that delivers consistently clear, high quality results.
Cleaning, Deburring & Handling to Avoid Scratches & Haze
Careful handling is necessary after machining to keep soft plastic surfaces free from scratches. For manual deburring, choose isopropyl alcohol or non-abrasive tools to gently smooth sharp edges. Clean each part using mild soap and water or isopropyl alcohol. Do not use harsh chemicals like acetone because they can cause stress cracking.
Protective Coatings, Hard Coats & Anti-Reflective Layers
Applying specialized coatings greatly extends both the function and life of transparent plastic components. For example hard coats can raise scratch resistance, a property softer materials such as polycarbonate and acrylic particularly need. Furthermore anti-reflective (AR) coatings help reduce glare and improve light transmission.
Quality Assurance, Testing & Troubleshooting
To guarantee high quality transparent parts, you need to inspect them closely, measure them accurately and address any issues that arise. By following these steps, you can make sure your finished parts meet strict standards for both optics and dimensions.
Optical & Visual Inspection Methods
Begin with basic visual checks to spot flaws in clear parts. Low-angle viewing and back-lighting can reveal bubbles, scratches or haze. For more detailed inspection, use polarized light to find internal stress patterns and birefringence. These issues can affect optical performance.
Flatness, Roughness & Accuracy Testing
Specialized instrumentation is necessary when you quantify optical surface quality. A profilometer determines surface roughness (Ra) and verifies that the finish remains within clarity limits. Transparent components benefit from non-contact optical scanners or CMMs fitted with suitable probes. Such equipment records flatness and dimensions while never touching the part.
At RICHCONN, we use ISO 9001-certified inspection procedures to confirm surface roughness as fine as 0.2 µm Ra. We also supply detailed optical inspection reports on request so you can be sure the parts meet your standards.
Process Tweaks & Corrective Actions for Typical Problems
When you notice defects you can fix them by making specific process changes.
- If plastic shows whitening, try lowering the feed rate. You can also improve cooling or switch to a sharper tool.
- For parts with high internal stress, use a post-machining annealing cycle. This step helps the material relax and stops future cracks from forming.

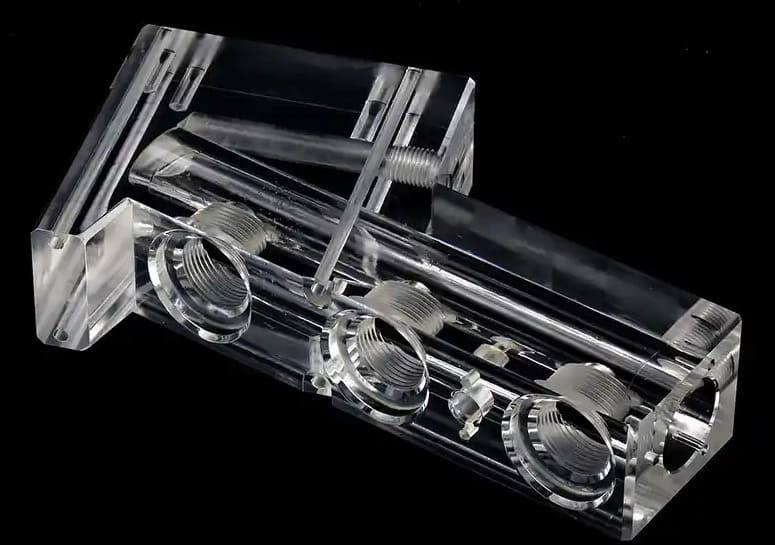

Material Selection for Machining Transparent Plastic Parts
Selecting the right material comes first and is the most important part of machining clear plastic parts. The material you pick will impact strength, clarity and how easy the part is to manufacture.
Choosing Between Polycarbonate, Acrylic, PETG & Other Clear Plastics
The best plastic depends on your application.
- Acrylic (PMMA) is the top choice for optical clarity and lets more light through than glass.
- Polycarbonate (PC) is better if you need high impact resistance and toughness.
- For temperature stability or chemical resistance, PETG or advanced plastics like PEI are good options.
Material Grades, Thicknesses & Stock Forms for CNC Machining
You can buy transparent plastics as rods, sheets or blocks. The form you choose affects how you hold the part and how you machine it.
- Sheets are best for flat items such as windows.
- Rods are good for making turned parts like lenses.
- Thicker blocks on the other hand, allow for complex 3D shapes but they may contain more internal stress so you need to control warping.
Cast vs Extruded Acrylic for Machining
The way acrylic sheet or rod is produced strongly influences how it machines. Cast material usually wins because lower internal stress limits chipping or melting at the tool. Although extruded stock costs less and offers tight dimensional control, its higher stress can trigger cracks during machining.
When to Choose Optical-Grade vs General-Purpose Material?
You need to weigh clarity against cost when picking between optical-grade and general-purpose material. Optical-grade plastics provide top transparency and very few defects which make them suitable for precision windows or lenses. General-purpose grades on the other hand, work well for less demanding parts such as display covers or guards and they are usually more affordable.
Main Applications of Transparent Plastic Machined Parts
1. Protective Screens, Covers & Machine Guards
Industrial safety often depends on polycarbonate guards. These shields protect workers from flying debris but still let them see clearly. When CNC-machined, each cover matches equipment geometry precisely, eliminating potential weak areas. Consequently the guard withstands blows that would shatter glass or softer plastics.
2. Consumer Electronics & Display Components
Display covers and screens in electronics must fit seamlessly. CNC machining creates acrylic and polycarbonate parts with very tight tolerances. This process ensures that indicator windows, transparent covers and screens match the shape and size needed for compact devices.
3. Optical Elements & Light-Guiding Parts
For light guides, lenses and prisms, materials like acrylic deliver the required transparency. CNC machining delivers accurate angles and smooth surfaces. As a result optical assemblies handle light efficiently.
4. Clear Components for Lab & Medical Devices
In laboratories and clinics, PSU, PETG and similar plastics enable clear visual monitoring. CNC processes turn them into optical cuvettes, fluidic manifolds and diagnostic housings. Their machined surfaces are smooth so staff can sterilize them quickly. This design satisfies rigorous hygiene rules.
5. Automotive, Aerospace & Specialty Engineering
Automotive and aerospace teams specify polycarbonate or acrylic components for cockpits and instrument clusters. These areas demand UV stability and shatter resistance. By using stress-relieved machining, the parts survive temperature swings, vibration and prolonged service without crazing.
Common Defects & Their Origins in Transparent Plastic Machining
Unique challenges arise when transparent plastics are machined and these challenges frequently produce defects. Understanding why they form is key to avoiding them and producing flawless components.
Appearance Issues – Haze & White Marks
Excessive cutting heat generally triggers these problems. They become more likely when tools lose sharpness, when chips are re-machined in pockets or when depths of cut are too large. As a result haze or white stress marks tend to form along edges and within drilled holes.
Geometric Defects – Distortion, Warping & Poor Flatness
Internal stresses in the plastic may release unevenly during machining which causes warping. This problem gets worse if there are temperature differences or if fixturing does not hold the material securely. Parts with sudden changes in thickness are more likely to distort or lose flatness as they cool down.
Surface Damage – Swirl Marks, Scratches & Polishing Lines
Surface damage becomes visible after machining is finished. Scratches can form if rags are contaminated, fixtures are dirty or when polishing does not remove marks from earlier grits. Poor handling or packaging can also harm polished surfaces.
Structural Imperfection – Crazing, Cracking & Stress Marks
Stress that collects at sharp internal corners initiates these failures. Additional risk comes from over-tight clamping, overly aggressive drilling/tapping as well as exposure to harsh chemicals such as some cleaners or lubricants. The resulting damage may show up right away or appear later as cracks develop over time.
Internal Defects such as Voids, Bubbles & Inclusions
The raw stock itself often carries these flaws before any tool touches it. Gas or moisture that became trapped during molding produces bubbles or voids. These defects lower both the optical clarity and the strength of the finished part.
How to Choose a Machining Partner for Transparent Plastic Parts
Selecting a suitable machining partner performs an important part in achieving top-quality transparent plastic components. To ensure the best results, you should provide precise requirements and ask thorough questions during your search.
Main Questions to Ask?
Ask the questions below to judge whether a supplier can meet optical grade expectations.
- What experience do you have with optical-grade clear parts? Look for suppliers who can present finished work that matches your clarity and surface finish needs.
- What fixturing methods do you use for clear plastics? Confirm the use of soft jaws and vacuum tables to eliminate marks and distortion.
- What surface roughness (Ra) can you reach on PC or PMMA? Verify that Ra values below 0.4 μm are routinely reached.
- Which polishing methods do you provide? They should recommend flame or vapor polishing depending on the part shape and material.
- What is your process for inspection and documentation? You should receive certifications, surface quality data and dimensional reports with each order.
What A Capable Transparent Plastic Machine Shop Should Provide?
A shop with expertise should use advanced multi-axis CNC machines with spindle speeds between 15,000 and 18,000 RPM. This helps limit heat buildup. Moreover the shop must use vacuum fixtures to prevent distortion or marks and keep a clean area for both polishing and inspection. Full documentation is also required which includes detailed inspection reports and material certifications that confirm both surface finish and dimensions.
Clear instructions about design intent help achieve accurate results. Mark optically critical surfaces on your drawings. When needed, provide 3D CAD models that include optical simulation data or light-path diagrams. This makes it easier to spot features that need the highest precision and perfect polish.
For the best outcome you can also send your drawings or 3D models to RICHCONN’s engineering team. Our experts will highlight possible issues, check manufacturability and help you clearly indicate which optical surfaces need the greatest attention.
To Sum Up
To get glass-like transparency in machined plastics, you must carefully manage heat, use the right tools and finish parts with special post-processing steps. Choosing suitable materials and working with an experienced partner allows you to make strong, optical quality parts that glass cannot match.
If you want fast delivery, precise results and smooth project management then Richconn is the best option. You can contact us anytime.
Related Questions
To reduce stress in the material, apply the right amount of clamping force, use sharp cutting tools and keep the part cool during machining. You can also anneal the acrylic after machining to help stop cracks from forming.
For the highest optical clarity, acrylic (PMMA) is usually the top choice. But if you need parts that can handle strong impacts and remain tough then polycarbonate (PC) is better.
No you shouldn’t, because many conventional coolants promote stress cracking in plastics. Instead rely on water-based fluids, compressed air or coolants specifically approved for plastics.
To get an optical-grade surface, start with precise machining and then polish the part in several stages. This process includes sanding with finer grits and buffing until the surface becomes clear and smooth.
