In many engineering applications it is a common design challenge to achieve maximum mass within a limited volume. Tungsten addresses this challenge by providing extremely high density along with reliable mechanical stability. In this guide we will cover the density characteristics of pure tungsten and tungsten heavy alloys. This will help you select the right material for compact & high-performance components.
What Is The Density Of Tungsten?
Tungsten has a density of 19.3 grams per cubic centimeter (g/cm³) or 0.697 pounds per cubic inch (lb/in³). Its high density comes from its body-centered cubic (BCC) atomic structure, which packs atoms tightly.
With a specific gravity of 19.3, it is 19.3 times denser than water. However the actual density of manufactured parts is often slightly lower than the theoretical value. This difference arises from microscopic pores left over from the powder metallurgy manufacturing process.
Density of Different Types of Tungsten
The density of tungsten is not a single value; it varies depending on its composition and form.
| Main Type of Tungsten | Typical Density (g/cm³) |
| Pure Tungsten | 19.25 |
| Tungsten Heavy Alloys (WHA) | 17.0 to18.5 |
| Tungsten-Copper (W-Cu) | 11.85 to 16.75 |
| Tungsten Carbide (WC) | Approximately 15.6 |
Pure Tungsten
At approximately 19.25 g/cm³, pure tungsten is one of the densest metals available. This high density is a main reason for its use in applications that require significant mass in a small volume such as in high temperature components.
Tungsten Carbide
Tungsten carbide (WC) is an extremely hard, ceramic like compound. Its density sits around 15.6 g/cm³ which is lower than pure tungsten. This creates a trade-off between a slightly reduced density and extreme hardness.
Tungsten Heavy Alloys
Tungsten Heavy Alloys (WHAs) are composites, not true alloys. They consist of tungsten powder with a nickel-copper (W-Ni-Cu) or nickel-iron (W-Ni-Fe) binder matrix. This composition results in a slightly lower density, generally falling between 17.0 and 18.5 g/cm.
Tungsten Copper (W-Cu) Composites
W-Cu density fluctuates (11.85 to 16.75 g/cm³) based on copper ratios. High-copper blends prioritize thermal conductivity for heat sinks but sacrifice mass. Conversely low-copper grades maintain higher density for robust electrical contacts.
Density of Sintered vs Wrought Products
The manufacturing process significantly impacts final density. Sintered tungsten parts often retain microscopic pores which lower effective density. In contrast, mechanical working like rolling or swaging eliminates many of these voids. This pushes wrought tungsten components closer to the theoretical maximum.

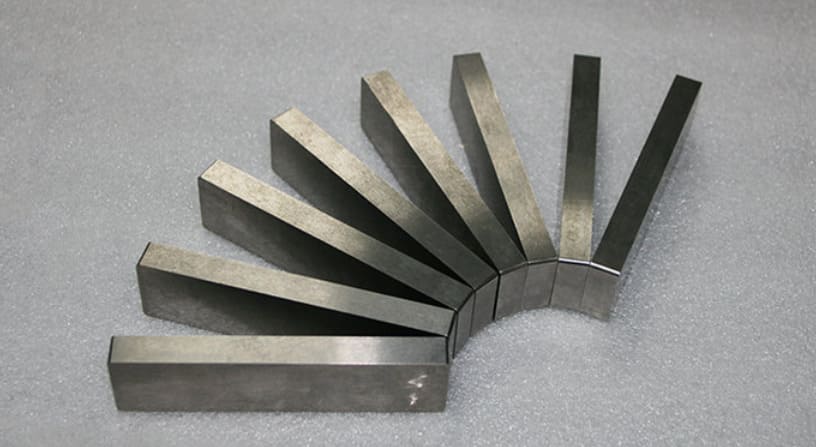

Effect of Density on Various Mechanical Properties of Tungsten
Tungsten’s exceptional density is not just a physical statistic. It fundamentally governs the metal’s mechanical behavior and performance limits.
Thermodynamic Stability
A direct relationship exists between tungsten’s density and its remarkably low coefficient of thermal expansion, the lowest among pure metals. Tightly packed atoms of dense tungsten resist expansion when heated. This ensures dimensional stability at extreme temperatures. That’s why tungsten is well suited for high-temperature applications.
Impact on Tensile Strength & Structural Integrity
The dense body-centered cubic packing of tungsten atoms creates powerful metallic bonds. This arrangement provides immense resistance to deformation which results in exceptionally high tensile strength, approximately 980 MPa. Consequently tungsten components withstand extreme loads without failing. This ensures long term structural integrity in critical applications.
Kinetic Stability & Vibration Damping
Tungsten’s high density provides the mass to absorb kinetic energy and neutralize vibrations. This “dead weight” effect greatly reduces chatter in high-speed CNC boring bars and tool shanks. Engineers rely on this stability to ensure precision in delicate machining operations.
Correlation between Density & Radiation Shielding
Tungsten’s density makes it an outstanding material for radiation shielding. At 1.7 times the density of lead, it offers superior protection from gamma rays and X-rays in a significantly smaller volume. This allows for thinner, effective shielding in industrial and medical settings without compromising safety.
Modulus of Elasticity
Tungsten’s density correlates with its massive 411 GPa Young’s Modulus. This stiffness, nearly triple steel’s, prevents deflection in slender tools. As a result it ensures high accuracy in long-overhang machining applications.
Factors That Affect the Density of Tungsten
Sintering Temperature & Liquid Phase Densification
Sintering at optimal temperatures is important for achieving high density in tungsten alloys. During liquid phase sintering, a liquid matrix forms and pulls tungsten particles together, effectively reducing pores.
Proper temperature control ensures nearly complete densification (close to max value) but excessive heat can negatively impact density.
Effect of Alloying Elements
Pure tungsten offers a density of 19.3 g/cm³ but industrial applications often require Tungsten Heavy Alloys (WHAs). Adding binders like Nickel-Copper (Ni-Cu) or Nickel-Iron (Ni-Fe) inevitably lowers the overall density to between 17.0 and 18.5 g/cm³. This reduction occurs because the matrix elements possess significantly lower atomic masses than the tungsten particles they bind.
Porosity & Micro Voids in Powder Metallurgy
Powder metallurgy, the primary method for forming tungsten parts, can leave microscopic empty spaces or pores within the material. These voids directly reduce the measured density compared to the solid theoretical value
Grain Size Distribution
The shape and size of initial powder particles also influence final density. Finer, uniform powders pack together more efficiently. This reduces the number of voids and contributes to a higher density. Conversely irregular or excessively large grains create interstitial gaps that resist closure and result in a lower-density product.
Post Processing Techniques
Techniques applied after sintering can further increase density. Processes like hot isostatic pressing apply high temperature and pressure to collapse internal voids. Similarly rolling or forging mechanically deforms the material which helps eliminate porosity and enhance density.
Main Industrial Applications of Tungsten According To Its Density
Tungsten’s remarkable density makes it a vital material for specialized technical and industrial applications.
Aerospace & Aviation
In the aerospace sector, tungsten alloys are important for counterweights in aircraft. Their high density allows for the creation of small, heavy components. These parts help to balance wings and helicopter rotor blades which improve flight control. This also helps reduce vibrations which increases passenger comfort and extends the aircraft’s lifespan
Mechanical Tooling
Tungsten carbide, a dense composite, is essential for high-performance cutting tools and drills. Its high density contributes to superior wear resistance and the ability to withstand mechanical stress. This allows for efficient and precise machining of very hard materials.
Defense Sector
In the defense industry, the Kinetic Energy Penetrators (KEP) rely entirely on high sectional density of tungsten to breach modern armor. The dense tungsten core concentrates immense kinetic energy upon a small impact point. This mass retention helps projectiles penetrate thick steel plating where lighter metals would simply shatter.
Gas & Oil Industry
The gas and oil sector relies on tungsten’s density for downhole drilling operations. Heavy tungsten alloy components are used as sinker bars to add weight to drilling tool assemblies. This ensures the tools can effectively descend through dense drilling fluids and maintain stability.
Automotive Engineering
In high-performance automotive applications, density is key for stability and balance. Tungsten alloys are used for crankshaft balancing to reduce engine vibrations effectively. Similarly in motorsports, these dense weights lower a car’s center of gravity which improve handling at high speeds.
How to Measure the Density of Tungsten Accurately
To accurately measure tungsten’s density, several reliable scientific methods can be employed.
The Archimedes Principle
This classic method involves weighing the tungsten sample in air and then weighing it while it is submerged in a liquid of known density like water. The difference in weight allows for the calculation of the tungsten’s volume. By dividing the mass by the volume, an accurate density is determined.
X-Ray Diffraction (XRD) Methods
In a research context, XRD is used to determine tungsten’s theoretical density at an atomic level. This method analyzes the material’s crystal structure and measures the precise dimensions of its atomic lattice. From these measurements, scientists can calculate the maximum possible density of tungsten. This value provides a benchmark against which manufactured parts are compared.
Helium Gas Pycnometry
This technique uses helium gas to measure the tungsten’s volume with high precision. The tungsten sample is placed in a chamber of a known size which is then filled with helium. Because helium atoms are small, they can penetrate tiny surface pores. This results in a highly accurate volume and density measurement.
Non Destructive Testing (NDT)
For quality assurance on critical components, NDT methods like radiographic and ultrasonic testing are invaluable. These techniques can detect internal flaws such as cracks and voids which would reduce the overall density of a part. By identifying variations in material consistency, NDT ensures the structural integrity and uniform density of the final product without causing any damage.
Comparing the Density of Tungsten with Other Industrial Metals
Tungsten vs Steel
For mechanical designs with tight space constraints, tungsten offers a substantial advantage over steel. Tungsten is about 2.5 times heavier than steel for the same volume. This allows designers to place a large amount of mass in a very small area which is ideal for balancing and vibration-dampening applications.
Tungsten vs Lead
Tungsten is approximately 1.7 times denser than lead. This makes it a superior choice for engineers seeking high-efficiency volume reduction. Its non-toxic nature further enhances its suitability for applications where lead might pose health or environmental concerns.
Comparison with Precious Metals
Tungsten’s density is remarkably similar to that of gold and only slightly less than platinum. This parity makes it a cost-effective substitute for these precious metals in industrial testing. It is also used in certain applications where high density is the primary requirement such as in specialized weights or contacts.
Tungsten vs Depleted Uranium
In heavy ballast applications, tungsten is often preferred over depleted uranium (DU). Although their densities are very similar, tungsten is non-radioactive which makes it a safer choice. While DU can be less expensive, the regulatory and safety advantages of tungsten often outweigh the cost difference.
The Density Hierarchy Table
This table provides a quick comparison of the densities of several main industrial metals.
| Metal (Symbol) | Density (g/cm³) |
| Tungsten (W) | ~19.3 |
| Tantalum (Ta) | ~16.7 |
| Lead (Pb) | ~11.3 |
| Molybdenum (Mo) | ~10.2 |
| Iron (Fe) | ~7.87 |
For teams comparing these metals in real-world designs, RICHCONN often supports the process by machining small prototype sets in tungsten, steel or other alloys. This helps engineers evaluate density, cost and size trade-offs directly on physical parts rather than relying only on simulations or estimates.
Engineering Challenges– Designing with High Density Materials
While tungsten’s density is its tremendous asset, it also presents distinct engineering challenges. These challenges require careful planning in both design and manufacturing.
Structural Support Requirements
The concentrated mass of tungsten components places substantial stress on supporting structures. Engineers must design frames to safely manage these high localized loads to prevent mechanical failure. This often requires reinforcing assemblies or using stronger materials which add design complexity. Neglecting this factor can compromise the entire assembly’s integrity.
At RICHCONN we handle these challenges every day by using stable setups and custom 5-axis CNC processes. This allows us to machine tungsten parts that stay accurate and resist cracking.
Machinability Constraints
The high density and hardness of tungsten alloys makes machining difficult. It causes rapid tool wear and necessitates the use of specialized diamond-tipped or carbide tools. CNC programming must also be adjusted for slower feeds and speeds to prevent tool breakage and ensure precision.
Joining & Fastening
Tungsten’s sheer mass and hardness complicate traditional joining. Its high thermal mass—a direct result of its density— causes rapid heat dissipation which hinder brazing and welding processes. Furthermore machining precise threads is difficult due to the material’s hardness. Therefore reliable connections often require alternative methods like specialized fasteners or shrink-fitting.
To Sum Up
In short, tungsten’s remarkable density is essential for industries that need strength, mass and stability. However its unique properties demand that you must account for special engineering and manufacturing considerations.
If you need precision CNC machining services for tungsten and other high-density materials, then Richconn is your best option. You can contact us anytime.
Related Questions
Yes tungsten is significantly denser. With a density of about 19.3 g/cm³, it is approximately 2.5 times denser than typical steel.
No pure tungsten is difficult to machine because it is very brittle and hard at room temperature. However tungsten heavy alloys which contain elements like iron and nickel are relatively easy to machine.
Tungsten’s high density allows for smaller and more effective counterweights in limited spaces and enhances performance. Although more expensive initially, this can improve the overall cost-to-performance ratio where space is a critical factor.
Yes but only slightly. Like all materials, tungsten expands when heated which causes a minor decrease in its density. However this change is relatively weak compared to other properties.
