In modern machinery, bearings are very important. These parts help lessen friction in between moving pieces and permit smooth rotation. Today we’ll look at the 10 common bearing types and see where each one works best.

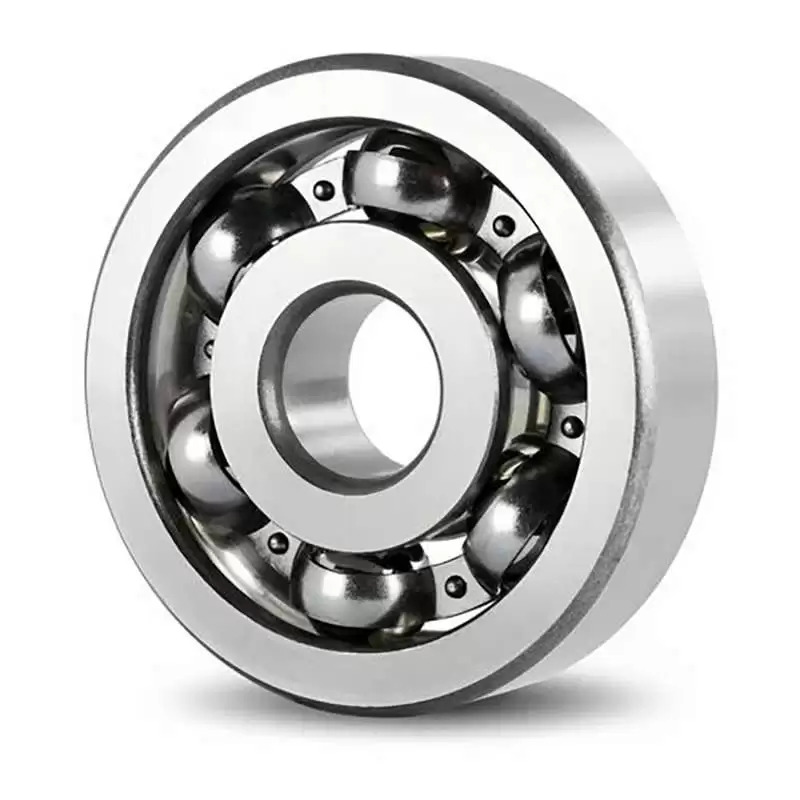

1. Deep Groove Ball Bearings
Groove ball bearings have simple yet very effective design. Their outer and inner rings have deep raceway grooves. They also have balls that roll between these grooves. This setup is capable of handling radial and axial loads from any direction.
These bearings are very good for high speed use because they have limited ball to raceway contact. They are incredibly quiet and need very little maintenance. As a result, they are the best choice when precision is important.
Applications
These bearings can be spotted in many everyday machines. They are used in electric motors, gearboxes and home appliances such as washing machines. They are also important in industrial equipment, automotive parts and construction machinery where smooth operation is important.

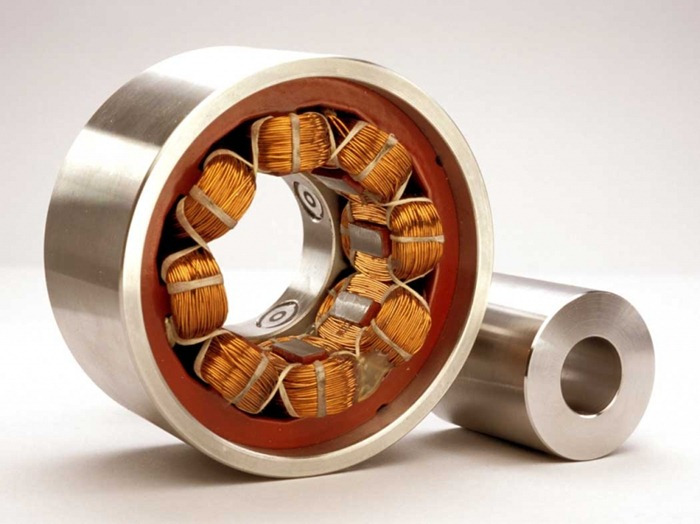

2. Magnetic Bearings
Magnetic bearings use electromagnetic forces to suspend a rotor in a stator which is different from what traditional bearings do. And through this contactless operation all friction and wear is eliminated. Their active versions have sensors and control systems to keep the rotor exactly in the right place.
In vacuum environments and extreme temperatures, these innovative bearings really shine. They need no lubrication and produce almost no friction, so they need zero maintenance.
Applications
Magnetic bearings are frequently used for high speed machinery, such as compressors, turbines and flywheel energy storage systems. They are also key components of maglev trains and high tech medical equipment.

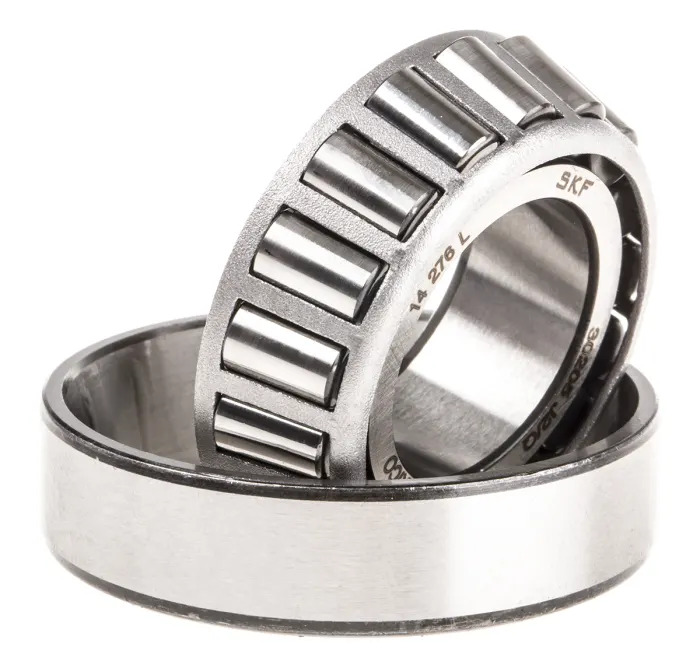

3. Tapered Roller Bearings
Conical rollers fit between tapered inner and outer ring raceways in tapered roller bearings. Because of this unique geometry, they can handle combined axial and radial loads. Different load-conditions can be accommodated simply by changing the contact angle.
These bearings give high stiffness and are relatively easy to adjust for clearance or preload. These are best suited for moderate speed and heavy load applications. But they cause more friction than some other types of bearing.
Applications
Tapered roller bearings are largely used by the automotive industry in transmissions and wheel hubs. These versatile bearings are also used for wind turbines, construction equipment and heavy machinery.

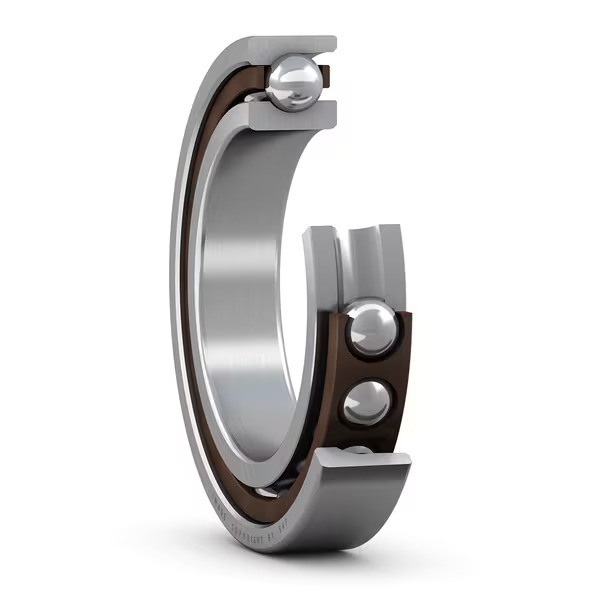

4. Angular Contact Ball Bearings
In angular contact bearings, the rings are placed at a specific angle to the balls so that there is a point contact. This clever setup provides effective management of combined radial and axial loads.
These bearings come with different types of cage material like synthetic resin, pressed steel or brass. They are invaluable for demanding applications because they are incredibly precise.
Applications
These bearings are used in machine tools, compressors and electric motors. They’re also used in the aerospace sector, where precision can’t be compromised in systems.

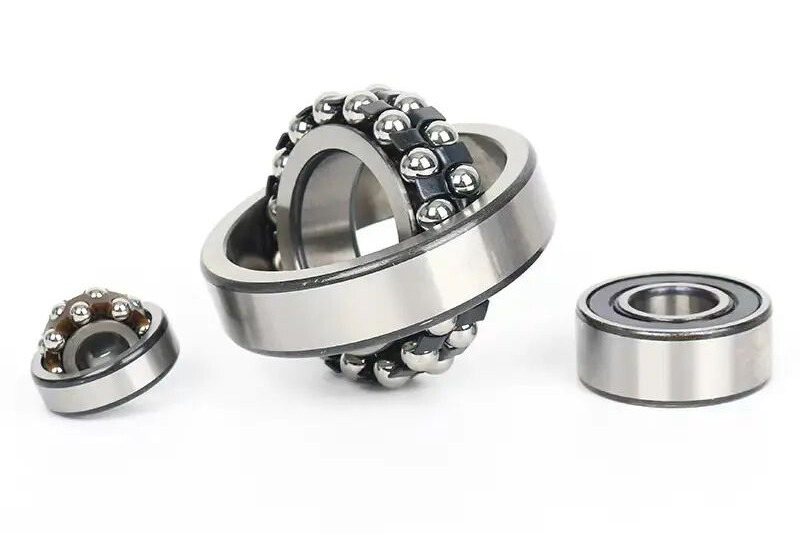

5. Self-Aligning Ball Bearings
A unique spherical outer raceway is a feature of self aligning ball bearings. They have two raceways in their inner ring and two balls that can adjust position. This smart design means that the bearing can cope with up to 3 degrees of shaft misalignment.
Even when shafts aren’t perfectly aligned, these bearings work well. They help reduce friction and heat generation. Low to medium loads are commonly handled by them very efficiently and they work great at high speeds.
Applications
Many industries use these adaptable bearings. They are regularly used in textile machines, conveyor systems and pumps. They are also common in printing presses and farm equipment where shaft alignment problems are common. The self adjustment ability of these bearings makes them very good for hard to reach spots too.

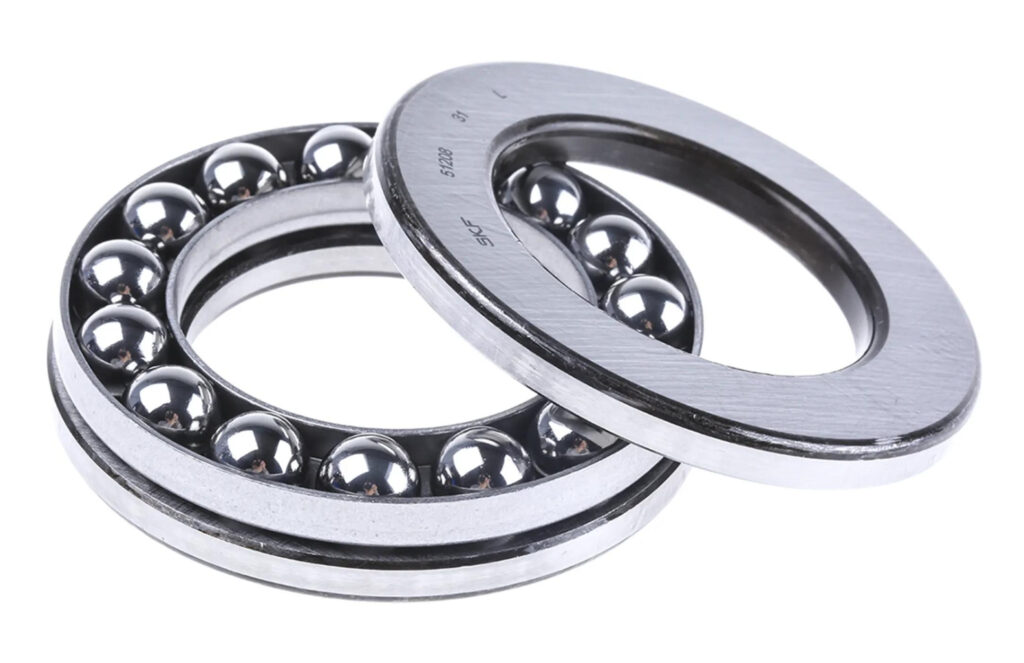

6. Thrust Ball Bearings
These bearings are able to take axial loads in one or both directions. A single-direction thrust ball bearing has its balls sandwiched between two washers by a cage whereas double direction thrust bearing uses three washers and two ball cages. The washers can be flat or grooved. Grooved ones give more accurate rotation.
High speed operation and low friction is possible with these bearings. They are also easy to install and are compact. But they can’t carry radial loads and must be aligned to operate properly.
Applications
Thrust ball bearings are important in many industrial uses. Car steering systems and tool spindles of machines use them mostly. They also get used in rotating platforms, turntables, vacuum pumps, etc.

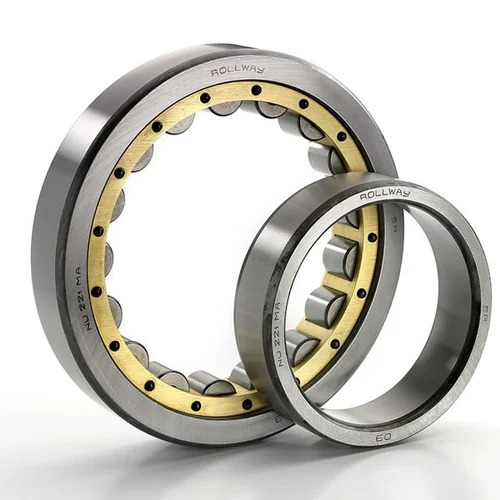

7. Cylindrical Roller Bearings
Linear contact between rollers and raceways is the key feature of cylindrical roller bearings. This design enables them to operate at high speed and handle heavy radial loads. Their inner and outer rings split apart easily to make mounting easy.
These bearings do very well in tight places. They also withstand impact and shock better than ball bearings. Some types of cylindrical roller bearings are able to carry small axial loads also.
Applications
Cylindrical roller bearings get used in electric motors as well as in industrial pumps. They’re also important in paper mills, railway axle boxes and wind turbines. Because of high load capacity, they are perfect for machinery that is used in mining and construction.

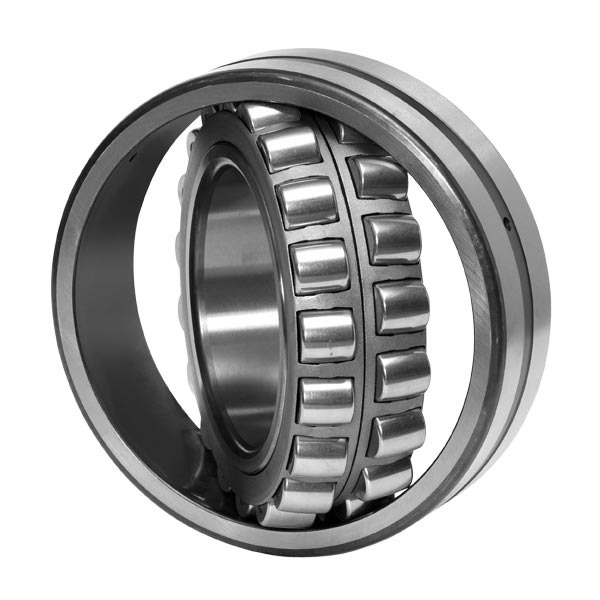

8. Spherical Roller Bearings
The spherical roller bearing is a type of bearing that has barrel shaped rollers. These rollers roll on a sphere shaped outer raceway which makes these bearings self aligning; so any shaft misalignment issues are not a problem. These bearings deal with heavy loads from all directions and do well at high speeds. They also have no problems adapting to temperature changes.
Applications
These bearings are valued in the mining sector because of their durability in harsh conditions. Paper mills also use them in their heavy machinery. They are also important in heavy duty conveyor systems, wind turbines and steel making.

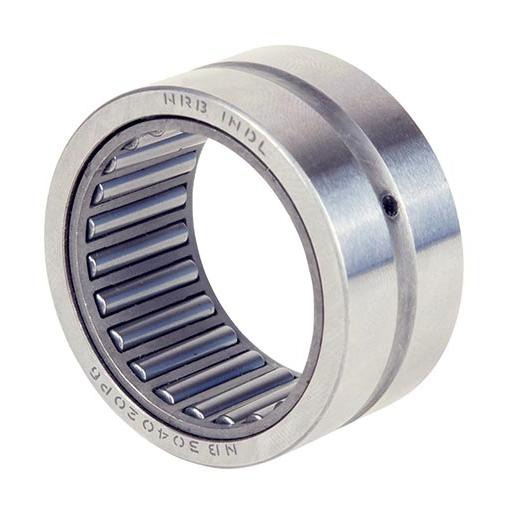

9. Needle Roller Bearings
Long, thin cylindrical rollers are utilised in needle roller bearings. They are compact in design which permits a high load capacity in a small radial space. These bearings have low friction and can run at high speeds.
For places with very limited radial-space yet greater radial loads, these are best. These bearings can be installed with or without an inner ring depending on the surface finish and hardness of the shaft.
Applications
Automotive transmissions, compressors and pumps are typical applications of needle roller bearings. In addition, they are also present in textile machinery, printing press and industrial gearboxes. Their slim profile makes them ideal for reciprocating engines and for other space deprived designs too.

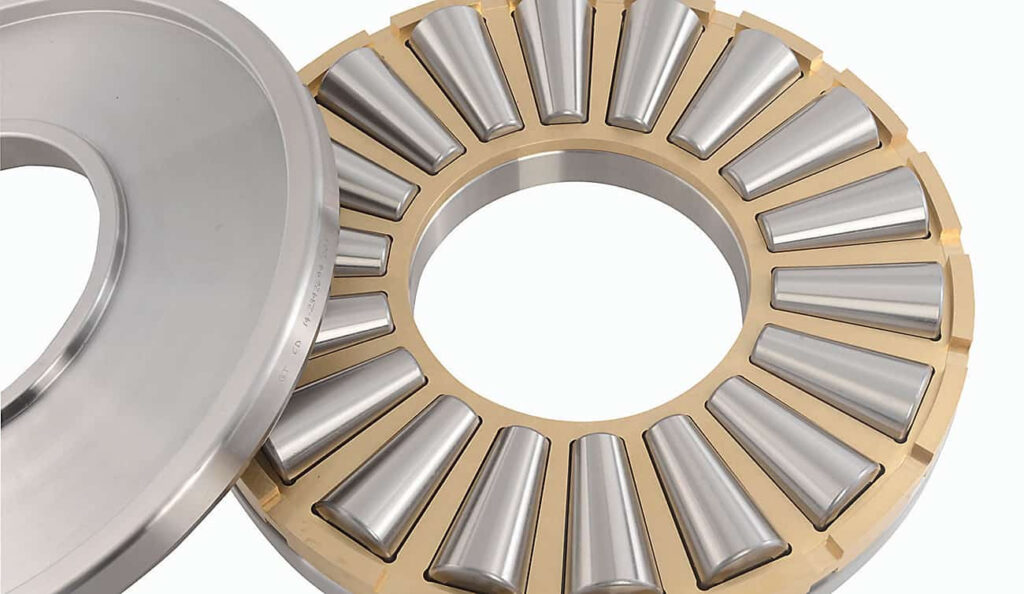

10. Thrust Roller Bearings
Thrust roller bearings are constructed to carry heavy axial loads and have cylindrical or tapered rollers between two washers. Using brass cages and simple construction, they achieve extraordinary structural rigidity and load capacity. Users can select from single direction or double direction models and some of these bearing types can take radial as well as axial loads.
These bearings are best for more slowly operating applications but excel where compactness and high strength are needed.
Applications
Thrust roller bearings are used in machine’s tool rotary tables, powdering machines and extruders. In addition, they serve a crucial function in marine, automotive and aerospace systems in which strong axial loads are typical.
How to Choose the Right Type of Bearings?
To select the right bearing, you first need to know your load requirements. Roller or cylindrical bearings are best suited for applications that experience a lot of radial loads. And thrust bearings are good to bear the heavy axial loads. In the situation where you have both types of loads, use tapered rollers or angular contact bearings.
Then, estimate the operating speed requirements. For high speed applications, ball bearings are good whereas for slow and heavy duty operations roller bearings are better. Make sure to always check the speed ratings that manufacturers give for optimum performance.
Bearing choice is also greatly affected by environmental factors. The type of bearing you need will depend on your operating environment’s temperature, chemical exposure and dust levels. Choose bearings made with appropriate seals and materials to tolerate your distinct environmental challenges.
Finally see how much precision is needed. For high accuracy applications, bearings need to have tighter tolerances. When making your final selection, remember to also take into consideration the starting cost and expected maintenance expenses.
Conclusion
Bearing is a very important part that gets used in many industries and provides different solutions for different operating conditions and load types. Knowledge about every bearing type and their distinct characteristics will help you pick the correct bearing for your particular application. If you need expert advice on selecting the right bearing for your project contact Richconn’s team.
FAQs
Can a single bearing take radial and axial loads?
Yes some bearings are able to handle radial as well as axial loads such as angular and tapered roller bearings.
What effect does lubrication have on bearing performance?
Reducing friction, minimizing wear and extending bearing life are all benefits of good lubrication.
How do I know what bearing fits on a shaft or housing?
Bearing fit is affected by load, speed, and operating temperature, so take these factors into consideration when selecting a bearing that can fit correctly on shaft. And for detailed fitting guidelines check manufacturer specifications.
What effect does misalignment have on bearing performance?
Increased friction and premature wear are a result of misalignment. These alignment issues are mostly offset by self aligning bearings.
What makes ceramic bearings different from steel bearings?
Ceramic bearings differ from steel ones in the way that they have more speed, produce less friction and have better resistance toward corrosion. But ceramic bearings are more costly and are more brittle.
